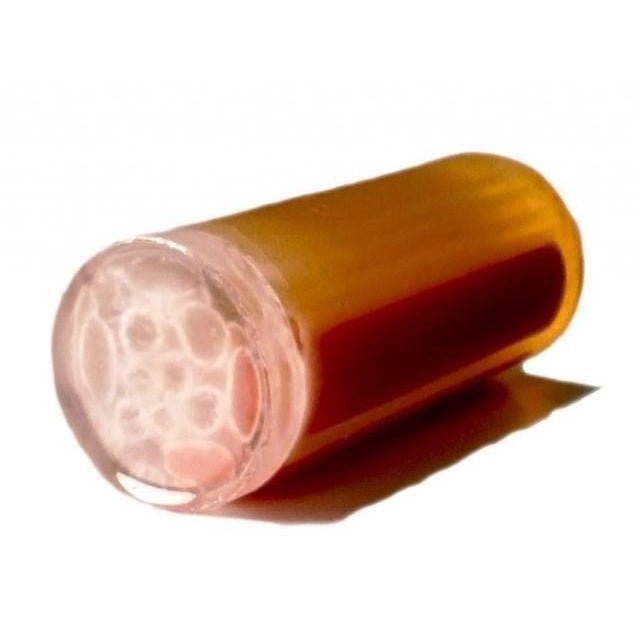

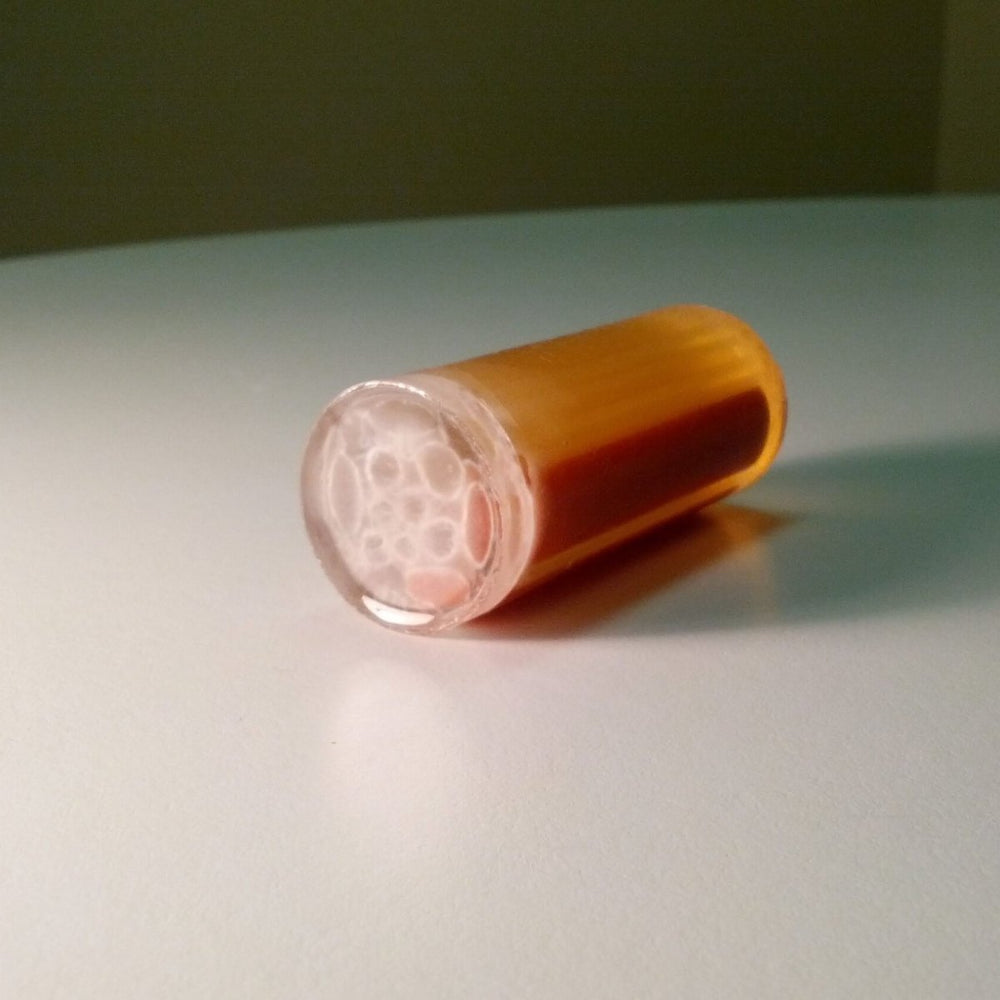

Cylindrical Rat Phantom for X-Ray CT and Ultrasound Applications

Rat Phantom (cylindrical version) is a well-suited tool specifically designed for R&D applications. The precise cylindrical shape, good stability over a long period of time, and high durability of the phantom allow for testing and calibration-related work of various medical imaging devices.

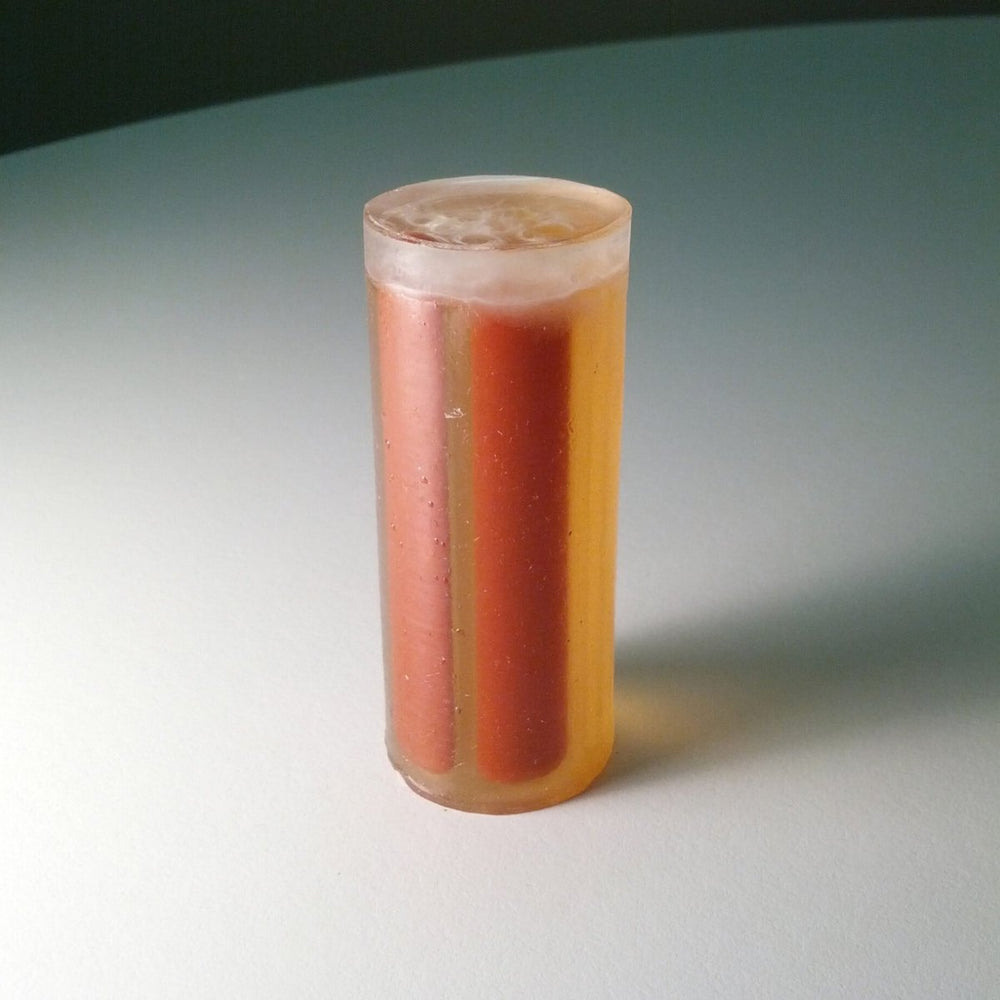

The cylindrical version has a 27 mm diameter and 70 mm height, which correspond to the dimensions of small animals (i.e. a laboratory mouse.)

The small phantom is Ultrasound and CT-compatible, and it can be customized in size and shape. The internal features can also be modified in terms of shape and properties to fit the needs of any particular bio-medical research project.

Anatomy:

  • Soft Body Tissue – for better imaging results and optical transparency, we set this tissue to be transparent and to have no speckles.
  • Organs without Speckles – those are organs which are softer than the surrounding body tissue. They appear brighter on T2-weigthed MRI images.
  • Organs with Speckles – those are the organs with higher stiffness and density (i.e. muscles). They appear brighter on T2-weigthed MRI images.
  • Cartilage Tissue – very stiff and much more attenuative tissue than the organs and body tissue. It appears darker on T2-weigthed MRI images.
  • Soft Organs with Speckles – those are the softest organs in the phantom. They appear the brightest in the phantom on T2-weigthed MRI images (i.e. kidneys, liver, etc.).

Included In Order:

  • Cylindrical Rat Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case

Materials Used:

  • Soft tissues and organs: composition of urethane-based soft resin
  • Synthetic bones: ceramic-reinforced urethane-based composite material

Dimensions and Weight:

Phantom:
  • Size: 1 x 1 x 3 in (approx.)
  • Weight: 1 Lbs (approx.)
Shippment:
  • Size: 10 x 8 x 6 in (approx.)
  • Weight: 3 Lbs (approx.)

Design:

Technical Properties:

Type of Tissue Sound Velocity [m/s] Density
[g/cm³] 		Hardness
[Shore 00] 		T2
[ms] 		Speckles Attenuation Measured
at 2.25 MHz [dB/cm]
(#1) – Transparent 1400 ± 10 1.00 40 50 NO 1.5 ± 0.2
(#2) – Transparent 1400 ± 10 1.01 30 65 NO 1.2 ± 0.2
(#3) – Red 1400 ± 10 1.04 30 65 YES 1.2 ± 0.2
(#4) – Cartilage 1850 ± 10 1.06 85 20 N/A 30 ± 2
(#5) – Non-Transparent 1400 ± 10 1.00 20 75 YES 1.0 ± 0.2
