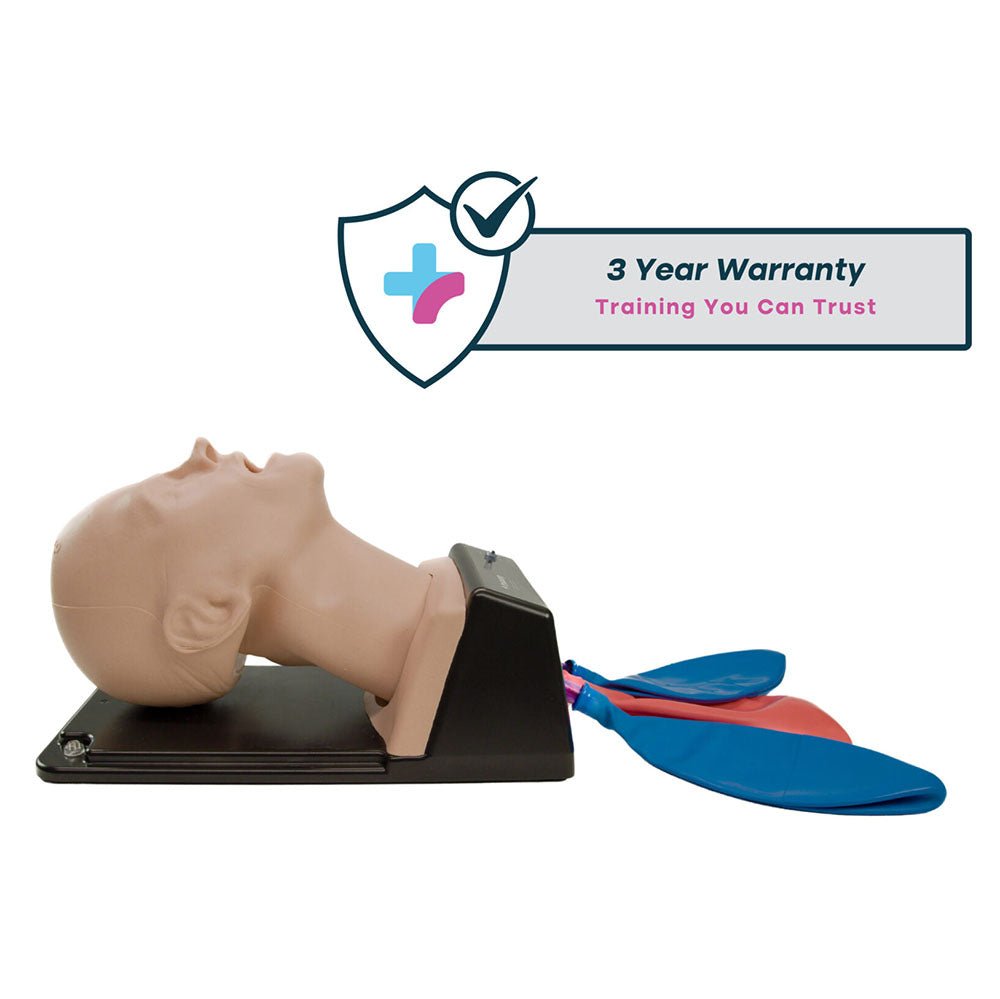

AirSim Advance X Model


Endo/Nasotracheal intubation	✔	✔	✔	✔
Bag valve mask ventilation	✔	✔	✔	✔
Supraglottic device insertion	✔	✔	✔	✔
Direct/video laryngoscopy	✔	✔	✔	✔
NG tube insertion	✔	✔	✔	✔
Needle/surgical cricothyroidotomy		✔	✔	✔
Percutaneous tracheostomy		✔	✔	✔
Difficult Features (Laryngospasm etc)			✔
Smart Feedback				✔
Bronchoscopy techniques	Optional Add-On	Optional Add-On	Optional Add-On
Warranty	3 Years	3 Years	1 Year	1 Year

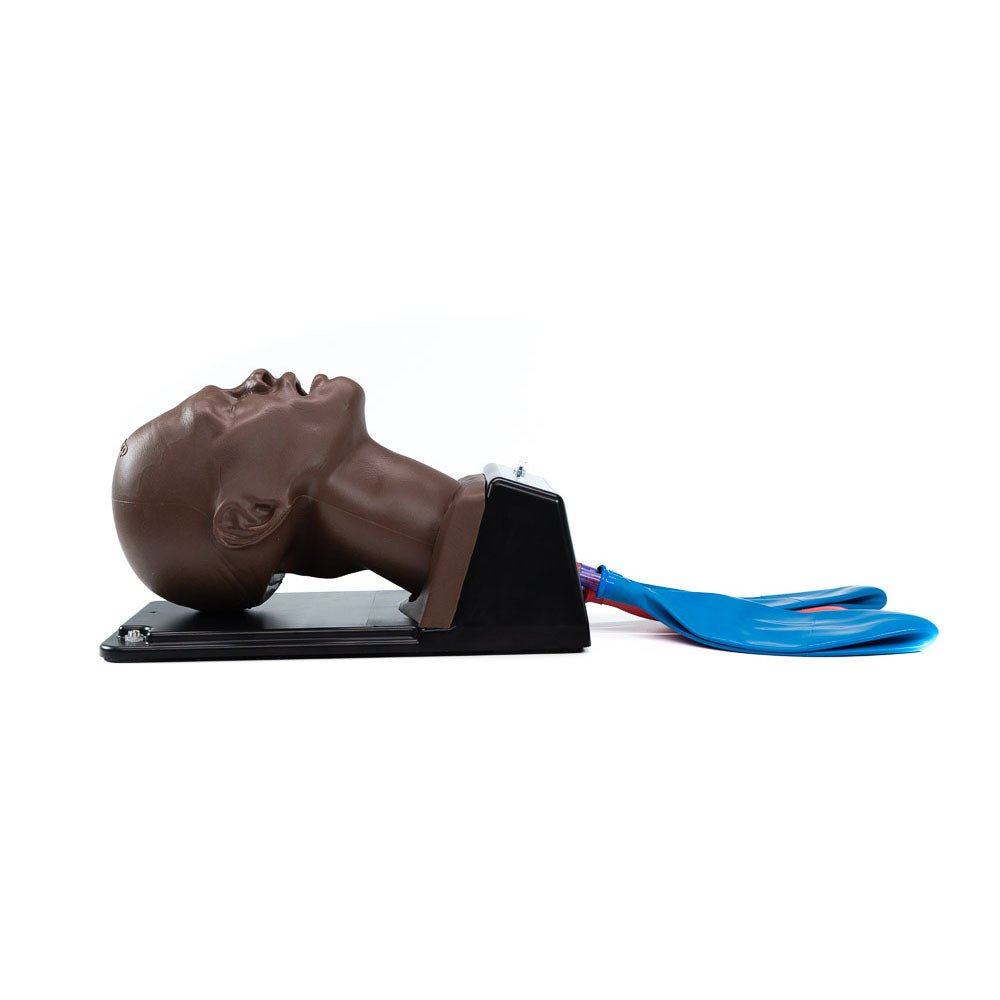

Skin Tone	Dark/Light	Dark/Light	Dark/Light	Dark/Light

What makes the AirSim airway so unique?

The AirSim Airway has been designed using CT DICOM data from real patients, to provide trainees with a lifelike intubation training solution. Our advanced airway and softer skin has been rigorously tested to withstand over 80,000 intubation cycles without failure. This ensures greater tactile accuracy, helping users develop critical airway and trauma management skills with confidence.

What skills can I teach using the AirSim Advance X?

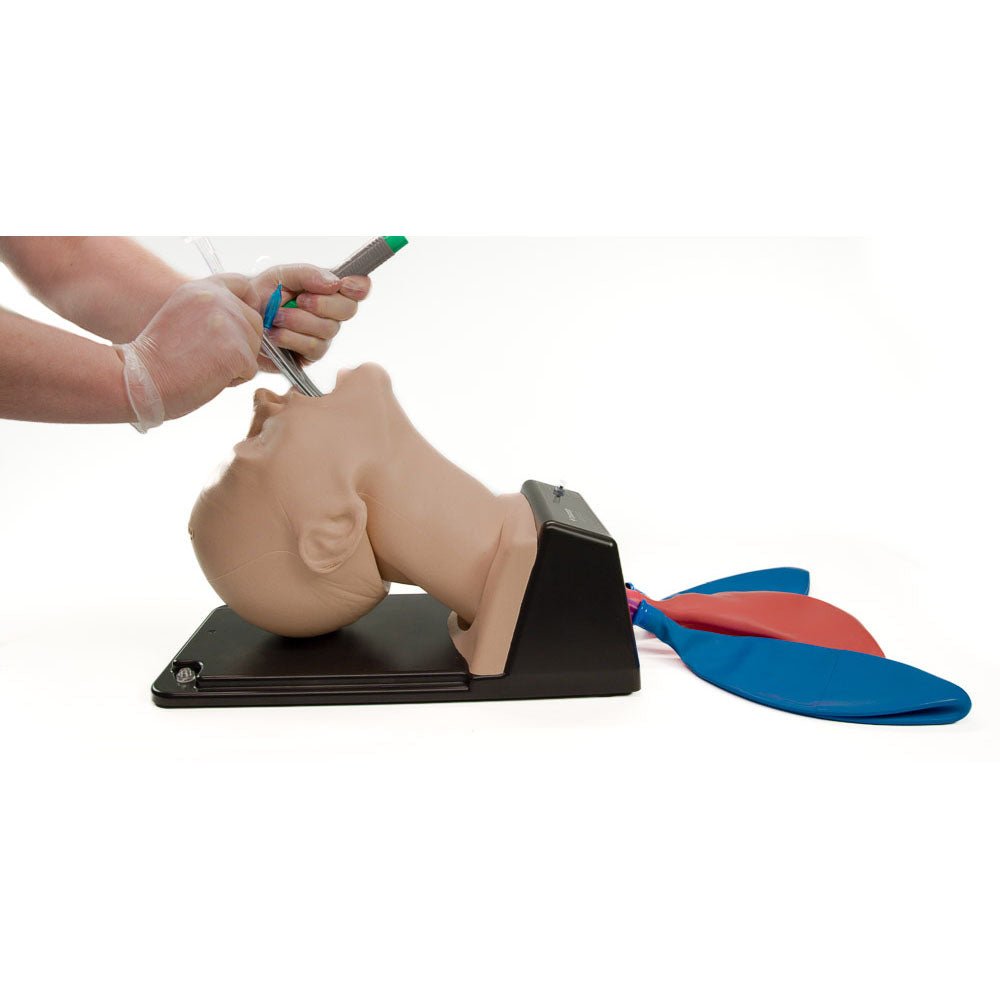

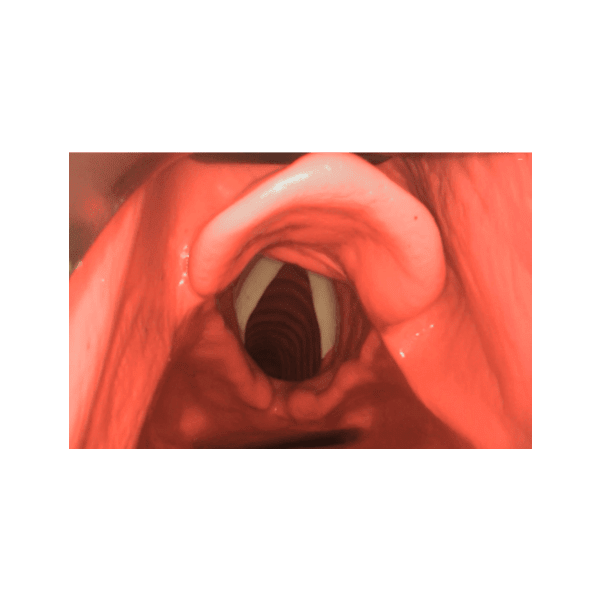

Direct and video laryngoscopy
Endotracheal intubation
Nasotracheal intubation
Supraglottic device insertion
Combitube insertion

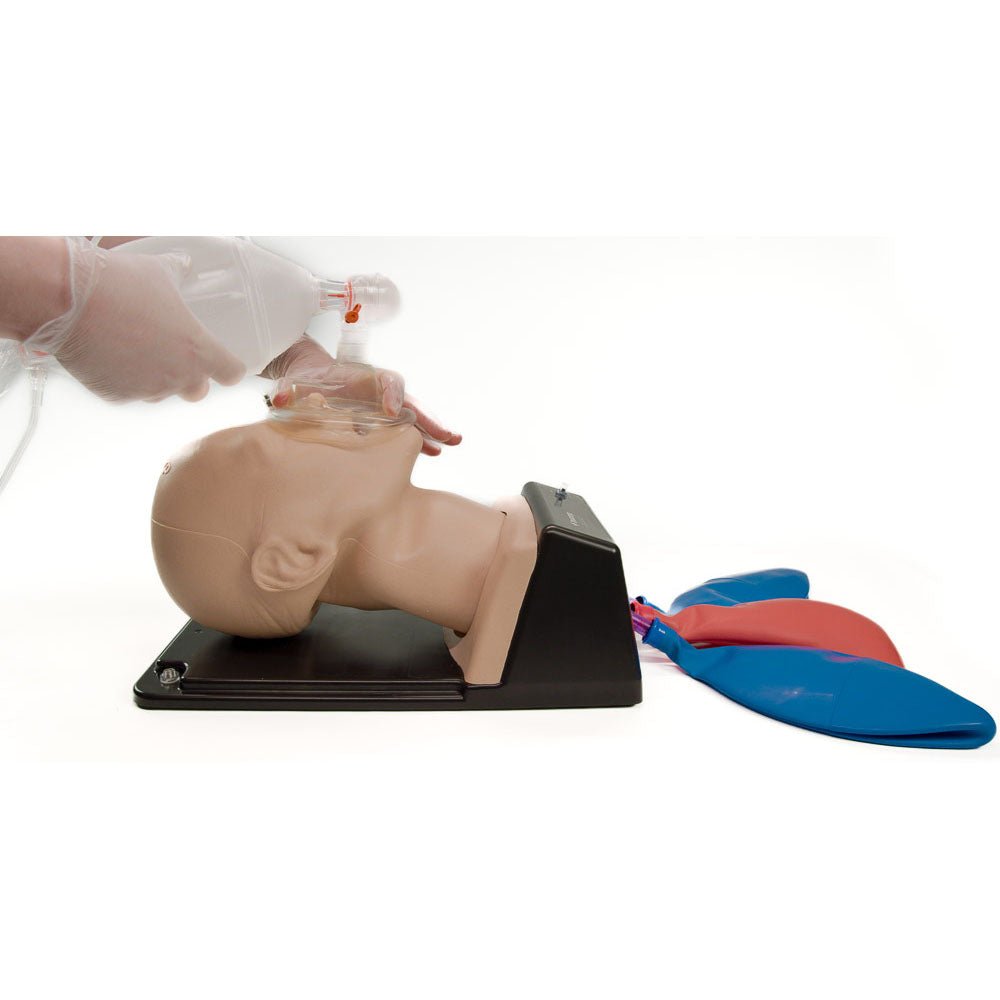

Bag valve mask (BVM) ventilation

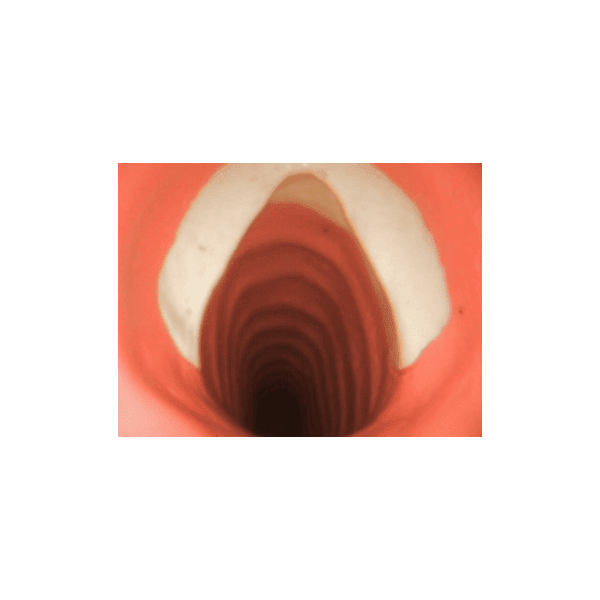

Fibre optic intubation & examination
Nasogastric (NG) tube insertion techniques
Single lung isolation techniques

What package contents will arrive with my order?

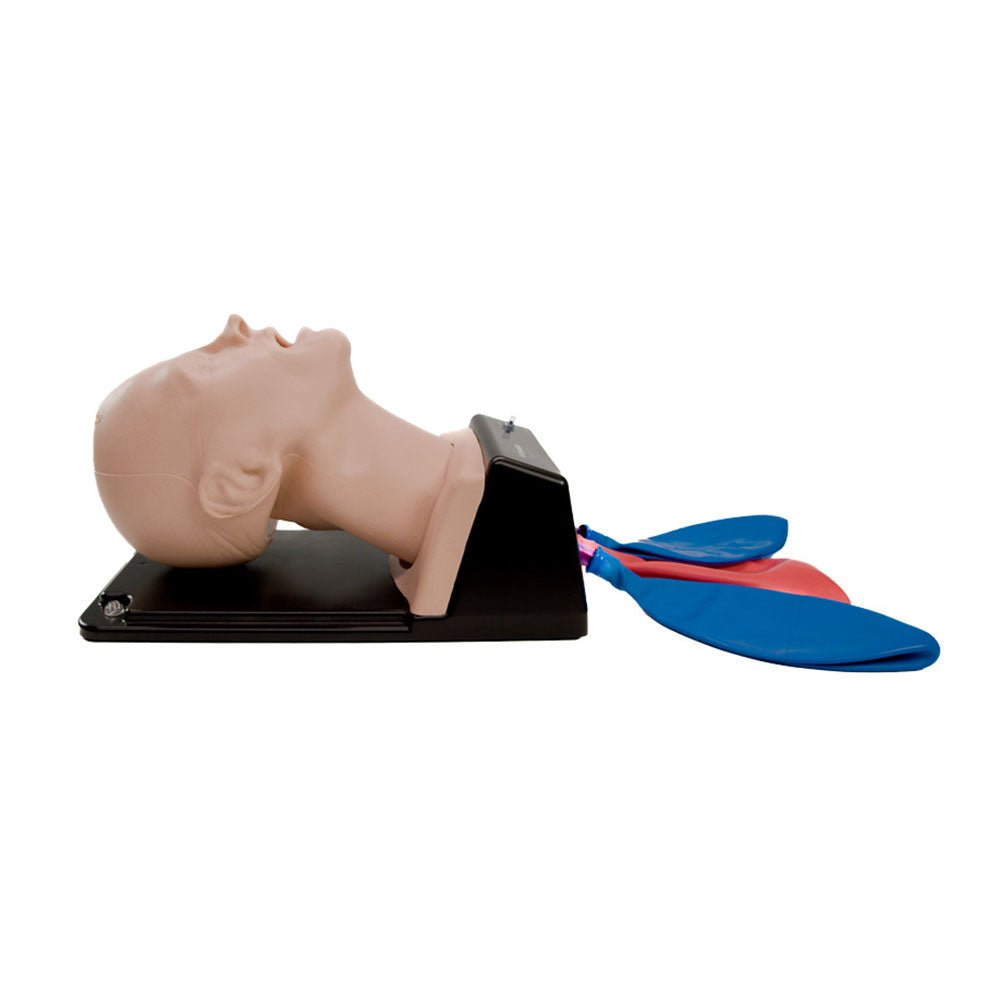

1 AirSim Advance X manikin ready to use (AA91100X)
1 Carrier/storage case
1 Bottle of TruCorp lubrication
3 Adult lung bags replicating 2 lungs & stomach
2 sets of adhesive pads (attachable to suction cups for increased stability if required)

Do I need to order replacement consumables?

Lubrication is the only consumable required for ongoing training using the AirSim Advance X. TruCorp’s lubrication is a cost-efficient, water-soluble solution and is supplied in a 100ml bottle. Please contact our sales team to purchase.

What type of lubrication can be used during intubation practice?

We recommend TruCorp’s lubrication for best practice, but alternatives can be used provided they are water-soluble lubricants. Please do not use silicone-based products as they will degrade the materials.

What type of lubrication can be used during intubation practice?

We recommend TruCorp’s lubrication for best practice, but alternatives can be used provided they are water-soluble lubricants. Please do not use silicone-based products as they will degrade the materials.

What equipment sizes are recommended?

Size 7.0-7.5mm ID for nasal intubation
Size 8.0-9.0mm ID for oral intubation
Large / Size 6 for BVM ventilation mask
Size 3-5 for LMA laryngeal masks
Similar respective sizes for other supraglottic devices

Does the AirSim Advance X require assembly?

No, this training manikin is delivered ready to use so you can begin training straight away! Generously spray the oral/nasal passages and equipment with the lubrication provided.

Can I make intubation more difficult on the AirSim Advance X manikin??

The tongue can be inflated to simulate tongue edema. Attach an empty syringe to the connector located on the base of the manikin and insert approx. 20ml of air.

Does the manikin provide user feedback to indicate successful or failed procedures?

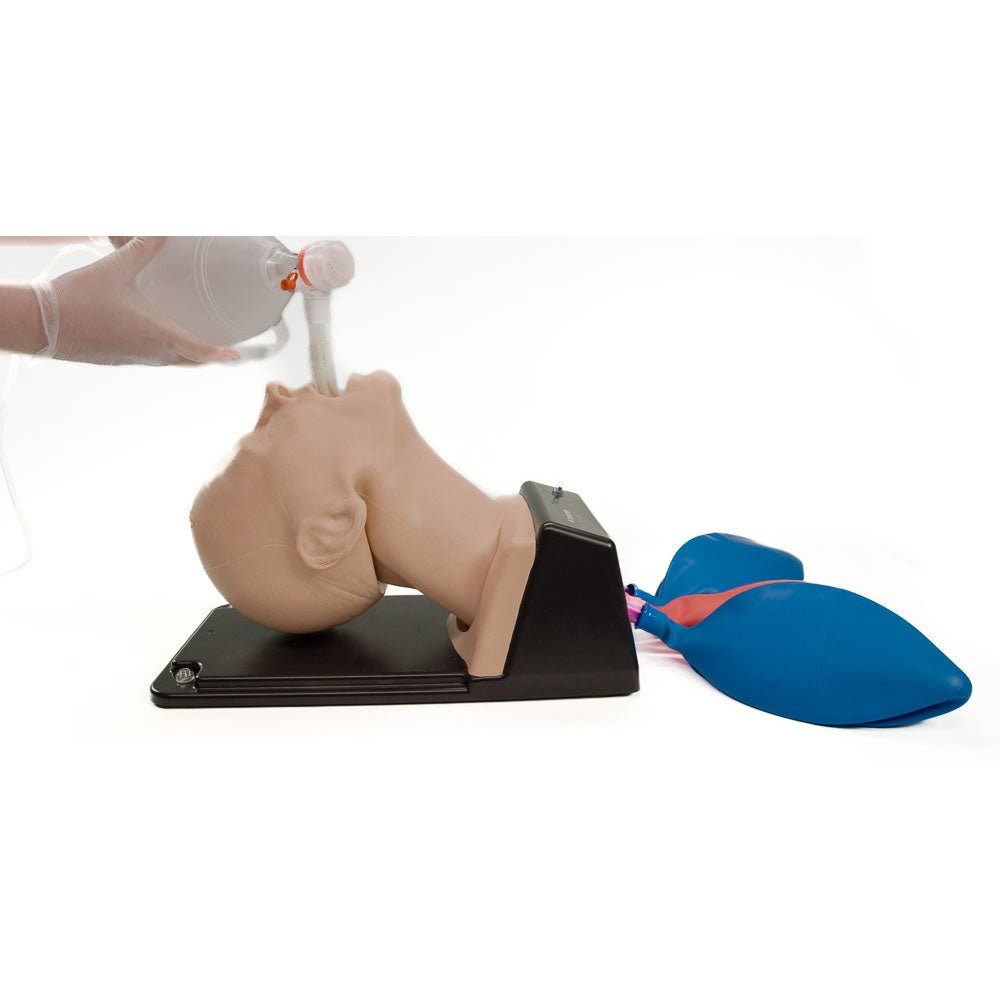

Yes, if successfully intubated the two lung bags will inflate. If the airway device is incorrectly placed in the oesophagus, the stomach bag will inflate.

What warranty comes with the AirSim Advance X?

The AirSim Advance X manikin comes with a 3-year warranty. Warranty begins from the date of delivery.

My AirSim Advance X manikin needs repairing. How can I arrange this?

Another great benefit of this product is its modular design. This means spare parts can be ordered and interchanged at your location by your team. Please contact us and provide the serial number (found under the manikin base) and an image/video of the issue. If it meets the warranty conditions TruCorp will provide the required parts free of charge. If the warranty has expired, our sales team will provide a quote.

How should I store the manikin when it is not in use?

Please store the manikin in clean, dry conditions away from heat and direct sunlight. Avoid contact with metals, solvents, oils or greases and strong detergents. When the product is not in use please store in the black carrier case provided.

What can I use to clean the manikin?

Thoroughly wash the AirSim airway in warm water. Please use warm soapy water or similar until all visible foreign matter and residue is removed.

Mild detergents or enzymatic cleaning agents may be used on the airway at the proper dilution. The detergent must not contain skin or mucous membrane irritants.

Germicides, disinfectants or chemical agents such as glutaraldehyde (e.g. Cidex®)
Ethylene oxide, phenol-based cleaners or iodine-containing cleaners

In response to the recent COVID-19 pandemic, we recommend this additional step to ensure the product is fully sanitized:

Generously spray alcohol spray or gel (minimum 75% alcohol) and wipe off. Repeat 3-4 times to fully disinfect the product. This can be done on the silicone skin and the latex airway.
