TruBaby X Lite Pediatric Basic Skills Trainer

What makes TruCorp's airway manikins so unique?

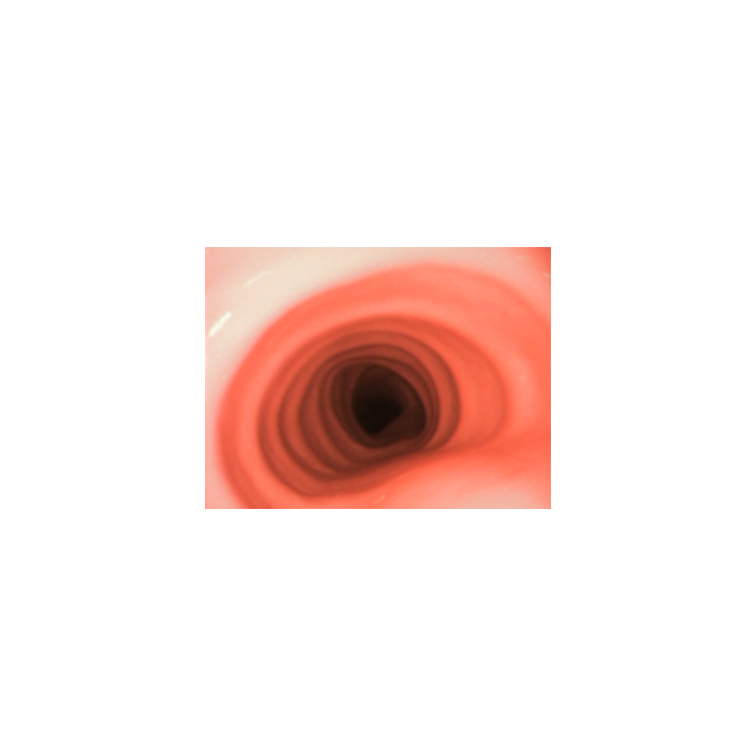

The AirSim® airway has been designed using CT DICOM data from real patients, to provide trainees with a lifelike intubation training solution. Our airway and softer skin has been rigorously tested to withstand over 80,000 intubation cycles without failure. This ensures greater tactile accuracy, helping users develop critical airway management skills with confidence.

What age is the TruBaby X model designed to be?

TruBaby X has been designed as a 50th percentile 5-month old infant.

What skills can I teach using the TruBaby X?

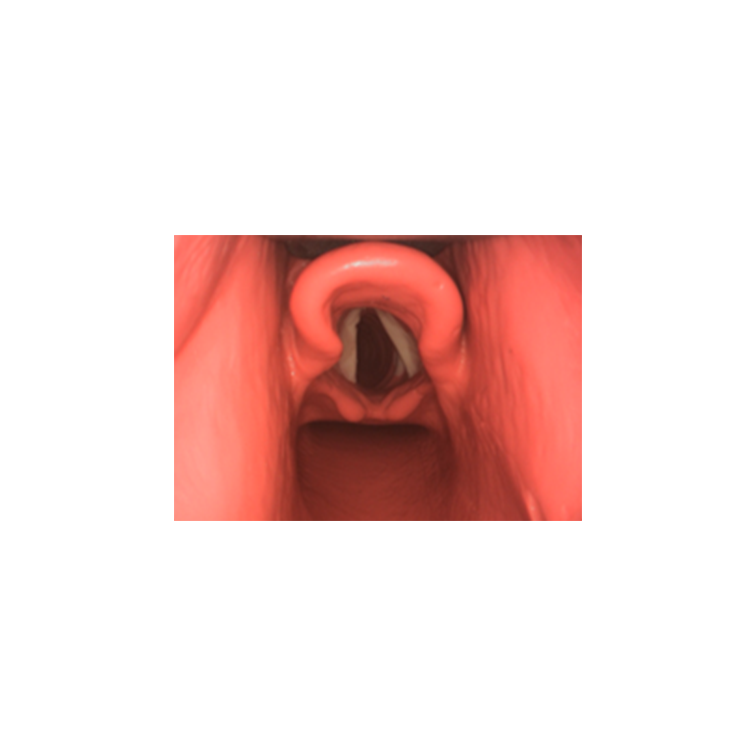

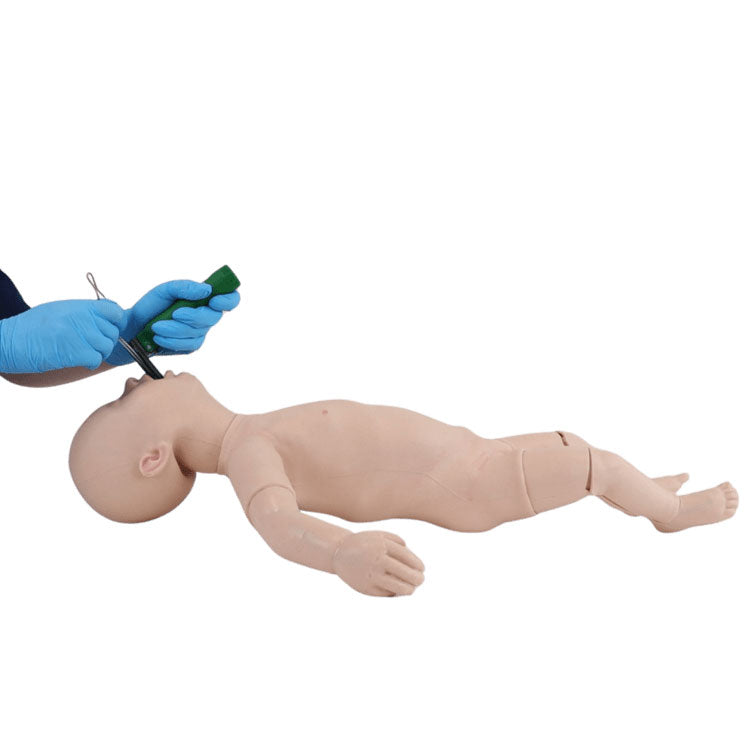

Direct and video laryngoscopy
Endotracheal intubation
Nasotracheal intubation
Supraglottic device insertion

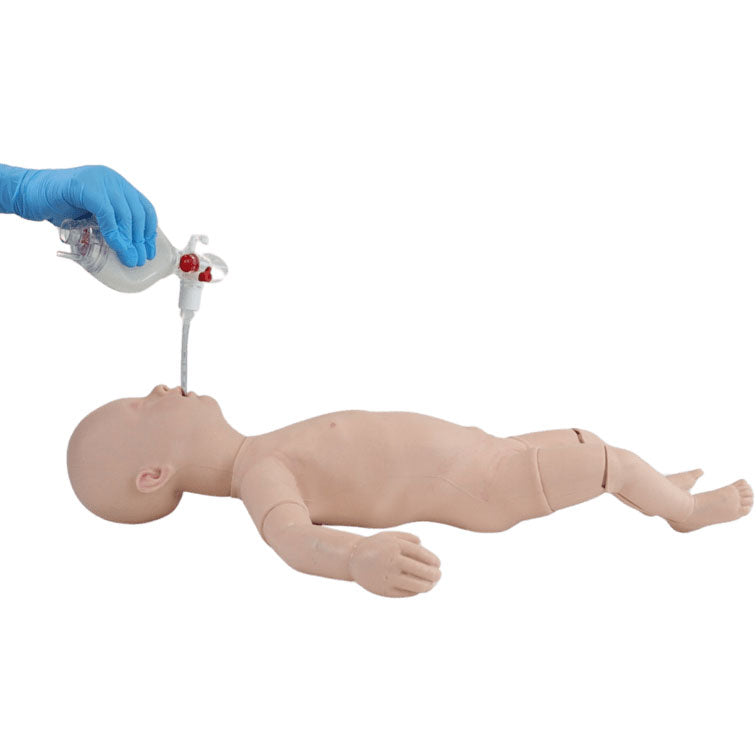

Bag valve mask (BVM) ventilation

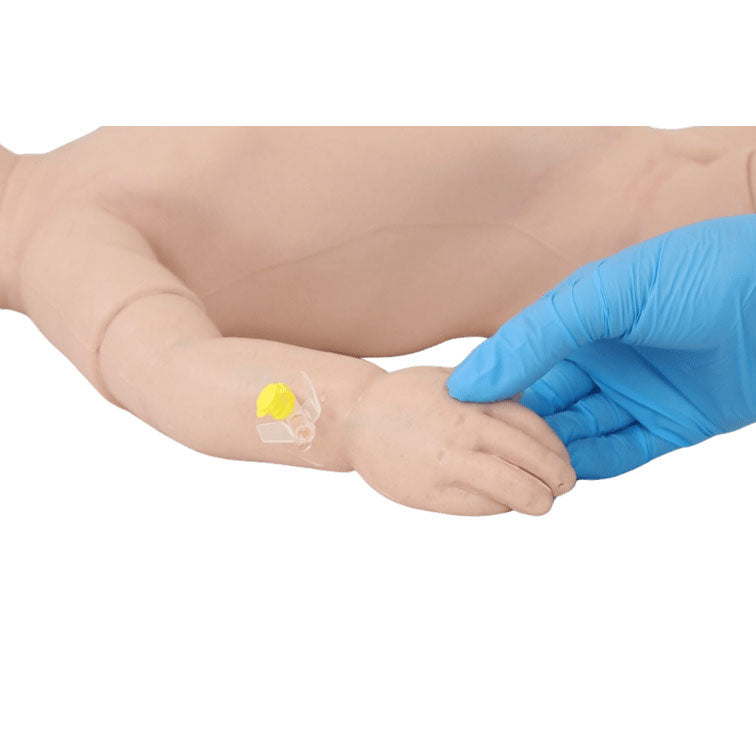

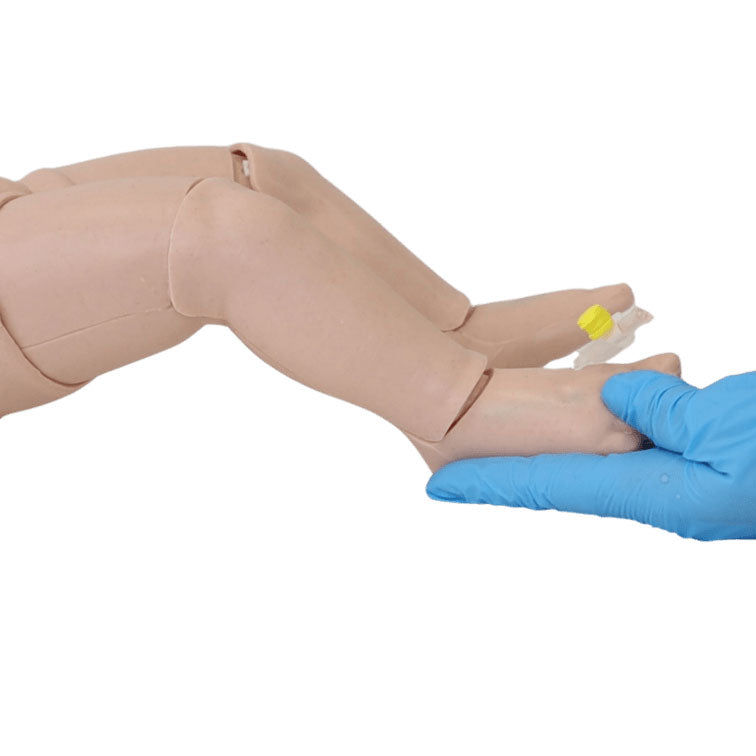

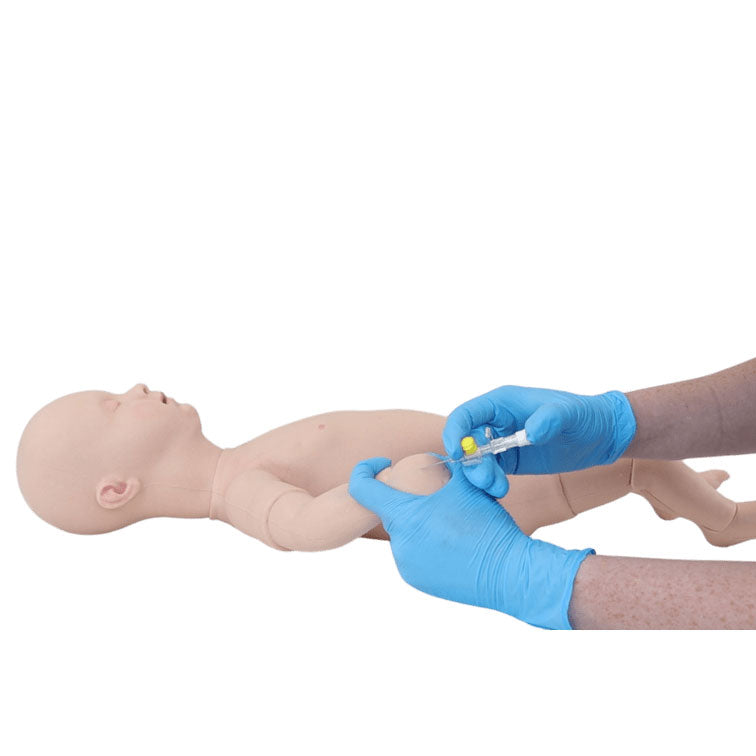

IV cannulation (hands, arms, and feet)

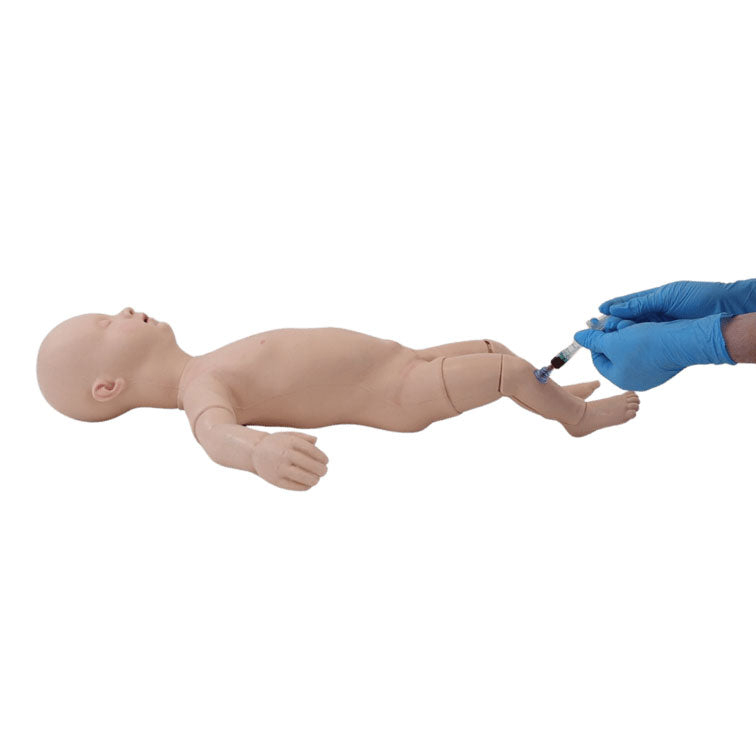

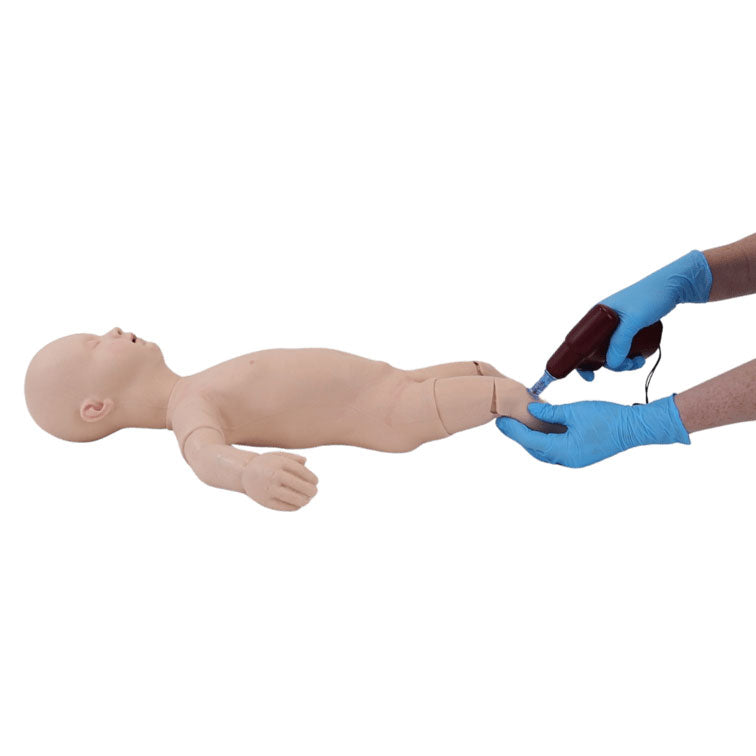

Intraosseous infusion (tibia)
Urethral catheterization (male and female)
CPR
Intramuscular injection site

What package contents will arrive with my order?

100ml bottle of TruCorp lubrication (TL001)v
250ml bottle of artificial blood concentrate (CVB250)v
3 sets of IO inserts (TBIO20)v
1 TruBaby X Lite male genitalia insert (TBUI01M)v

What replacement consumables are compatible?

TruCorp lubrication – 100ml (TL001)
Concentrated blood – 250ml (CVB250)
TruBaby X Lite Arms – non-ultrasound (TBARM01L/TBARM01R)
TruBaby X Lite Legs (TBLEG01L/TBLEG01R)
TruBaby X Lite IO inserts – pack of 20 (TBIO20)
TruBaby X Lite female genitalia insert (TBUI01F)
TruBaby X Lite male genitalia insert (TBUI01M)

How many procedures will each consumable facilitate?

IV Cannulation (hands, arms, and feet): up to 300+ needle penetrations per single arm, and up to 250+ needle penetrations per foot (non-ultrasound inserts)
IO Tibia: Single use per IO insert
Urethral catheterization: 100+ catheterization procedures per genitalia insert
All consumables are quick and easy to interchange so there is no disruption to teaching time

What type of lubrication can be used during intubation practice?

We recommend TruCorp’s lubrication for best practice, but alternatives can be used provided they are water-soluble lubricants. Please do not use silicone-based products as they will degrade the materials.

Does the TruBaby X Lite require assembly?

No, this training manikin is delivered with all parts attached. You will simply need to fill the fluid system. Please refer to the user manual for instructions on how to fill the fluid system. For airway management training, generously spray the oral/nasal passages and equipment with the lubrication provided.

What equipment sizes are recommended?

3.5-4.0mm ID for oral intubation
2.0-3.0mm ID for nasal intubation
Size 1 for supraglottic devices
Size 1 for video laryngoscopy
Size 18G needle for IO tibia
Size 8F urethral catheter
Size 24G needle for IV

What warranty comes with the TruBaby X Lite?

The TruBaby X Lite manikin comes with a 2-year warranty on the TruBaby X Lite. Warranty begins from date of delivery.

My TruBaby X Lite manikin needs repairing. How can I arrange this?

Please contact us and provide the serial number (found under the neck skin of the manikin) and an image/video of the issue. If it meets the warranty conditions TruCorp will repair free of charge. If the warranty has expired, our sales team will provide a quote for repair.

How should I store the manikin when it is not in use?

Please store the manikin in clean, dry conditions away from heat and direct sunlight. Avoid contact with metals, solvents, oils or greases and strong detergents. When the product is not in use please store in the black carrier case provided.

What can I use to clean the manikin?

Thoroughly wash the AirSim® airway in warm water. Please use warm soapy water or similar until all visible foreign matter and residue is removed.

Mild detergents or enzymatic cleaning agents may be used on the airway at the proper dilution. The detergent must not contain skin or mucous membrane irritants.

Germicides, disinfectants, or chemical agents such as glutaraldehyde (e.g. Cidex®)
Ethylene oxide, phenol-based cleaners or iodine-containing cleaners

In response to the recent COVID-19 pandemic, we recommend this additional step to ensure the product is fully sanitized:

Generously spray alcohol spray or gel (minimum 75% alcohol) and wipe off. Repeat 3-4 times to fully disinfect the product. This can be done on the silicone skin and the latex airway.

We recommend a frequent deep clean of the internal fluid systems to prevent mould and fungal build-up. A sterilizing product such as Milton Sterilizing Fluid is sufficient.
