Smart Airway Child


Patient Age	6-Years-Old	6-Years-Old	6-Years-Old	5-Months-Old	5-Months-Old
Endo/Nasotracheal intubation	✓	✓	✓	✓	✓
Bag valve mask ventilation	✓	✓	✓	✓	✓
Supraglottic device insertion	✓	✓	✓	✓	✓
Direct/video laryngoscopy	✓	✓	✓	✓	✓
NG tube insertion	✓	✓	✓	✓	✓
3-2-1 Warranty	3-Years	3-Years	1-Year	3-Years	3-Years
Needle/surgical cricothyroidotomy		✓	✓
Percutaneous tracheostomy		✓	✓
Bronchoscopy techniques	Optional Add-On	Optional Add-On
Difficult Anatomy (i.e Cleft Palate)					✓
Smart Feedback			✓

What makes TruCorp's airway manikins so unique?

The AirSim® airway has been designed using CT DICOM data from real patients, to provide trainees with a lifelike intubation training solution. Our airway and softer skin has been rigorously tested to withstand over 80,000 intubation cycles without failure. This ensures greater tactile accuracy, helping users develop critical airway management skills with confidence.

What skills can I teach using the Smart Airway Child?

Direct and video laryngoscopy
Endotracheal intubation
Nasotracheal intubation
Supraglottic device insertion
Combi tube insertion
Bag valve mask (BVM) ventilation
Fibre optic intubation & examination
Single lung isolation techniques
Needle & surgical cricothyroidotomy
Percutaneous tracheostomy

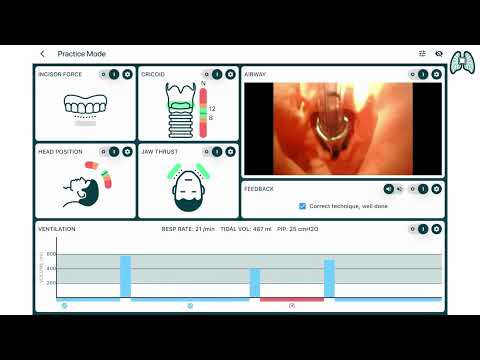

Incisor force
Patient head positioning

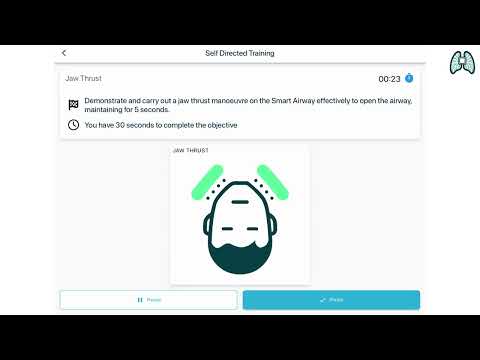

Jaw thrust
Internal airway visuals and ventilation (including Left and Right lung isolation).

What package contents will arrive with my order?

x1 Smart Airway Child model (SAC10002)
x1 USB C connection cable
x1 Smart Airway Child carrier case
x1 100ml TruCorp lubrication (TL001)
x1 Child Wrap Around Neck Skin (CRSN2005) attached
x5 Child Larynx Insert (CNLX050) , 1 attached, 4 extra

Do I need to order replacement consumables?

TruCorp lubrication 100ml (TL001)
Child Larynx inserts (CNLX050)
Child wrap around neck skins (CRSN2005)

Super Saver Child Cric Training Pack (100 Procedures) (CTP0100)

How many procedures will each consumable facilitate?

1 child larynx insert (CNLX050) facilitates 1 surgical cricothyroidotomy and 2-3 percutaneous tracheostomy procedures
1 child wrap around neck skin (CRSN2005) facilitates approx. 10-15 incisions, the skin is designed to be rotated around the neck to maximize usage
All consumables are quick and easy to interchange so there is no disruption to teaching time

What type of lubrication can be used during intubation practice?

We recommend TruCorp’s lubrication for best practice, but alternatives can be used provided they are water-soluble lubricants. Please do not use silicone-based products as they will degrade the materials.

Does the Smart Airway Child require assembly?

No, this training manikin is delivered ready to use so you can begin training straight away! Simply, power up the manikin and connect to the Smart Airway app. Generously spray the oral/nasal passages and equipment with the lubrication provided..

What equipment sizes are recommended?

4.5-5.0 mm ID for nasal intubation
5.5-6.0 mm ID for oral intubation
Size 2 laryngoscope blade
Size 2 for LMA laryngeal masks
Similar respective sizes for other supraglottic devices

Does the manikin provide user feedback to indicate successful or failed procedures?

Yes, if successfully intubated you will see a visible chest rise. If the student has failed to intubate, the app will highlight incorrect intubation i.e the tube has been inserted into the stomach.

Can I make intubation more difficult on the Smart Airway Child manikin?

The tongue can be inflated to simulate tongue edema. Attach a syringe to the connector located on the base of the manikin and insert approx. 20ml of air.

My Smart Airway Child manikin needs repairing. How can I arrange this?

Please contact us and provide the serial number (found on the manikin’s endplate) and an image/video of the issue. If it meets the warranty conditions TruCorp will provide the required parts free of charge. If the warranty has expired, our sales team will provide a quote. The Smart Airway range must be returned to TruCorp for repair due to the complexity of the inner workings.

What warranty comes with the Smart Airway Child?

The Smart Airway Child manikin comes with a 1-year warranty. Warranty begins from date of delivery.

What can I use to clean the manikin?

The model should be treated with care, as though it is a real-life clinical environment. When the product is not in use, please store in the black carrier case provided.

Store in clean, dry conditions away from heat and direct sunlight; avoid contact with metals, solvents, oils or greases and strong detergents.

Alcohol wipes (minimum 75%) may be used on the airway in accordance with the manufacturer’s instructions.

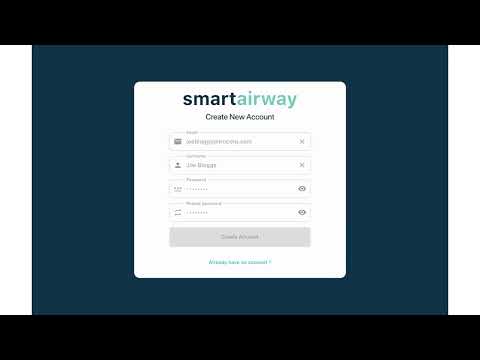

How can I download the Smart Airway App?

Smart Airway is available on Mac App Store (Apple Silicon Mac only) & iPad App Store (not available on Apple iPhone App) and Google Play Store for Android tablets, (not available on Android phones).
