AirwayPlus Lifecast - Pulses/Breathing (APL-PB)
Active breathing with chest rise and fall
Radial and carotid pulses
Airway management
Moveable jaw
Intubation
Oropharyngeal Airway (OPA)
Nasopharyngeal Airway (NPA)
Selectable airway obstruction
Cricothyroidotomy
Needle decompression (troacentesis)
Tension pneumothorax
IV insertion
Intraosseous (I/O) infusion
Adjustable eyes (pupils constricted or dilated)
Two-way audio communication
Remote controlled
Real-time digital feedback for trainers
Teeth sensor
0.0 lb
AirwayPlus Lifecast - Pulses/Breathing (APL-PB)
Item # TAC-APL-PB
On Demand
Request a quote for pricing
Request a quote for pricing
Need an estimate?
Click Add To Quote
Features & Specifications
-
by
A trusted GT partner -
1-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request
by
Frequently Bought Together
(
AirwayPlus Lifecast - Pulses/Breathing (APL-PB)

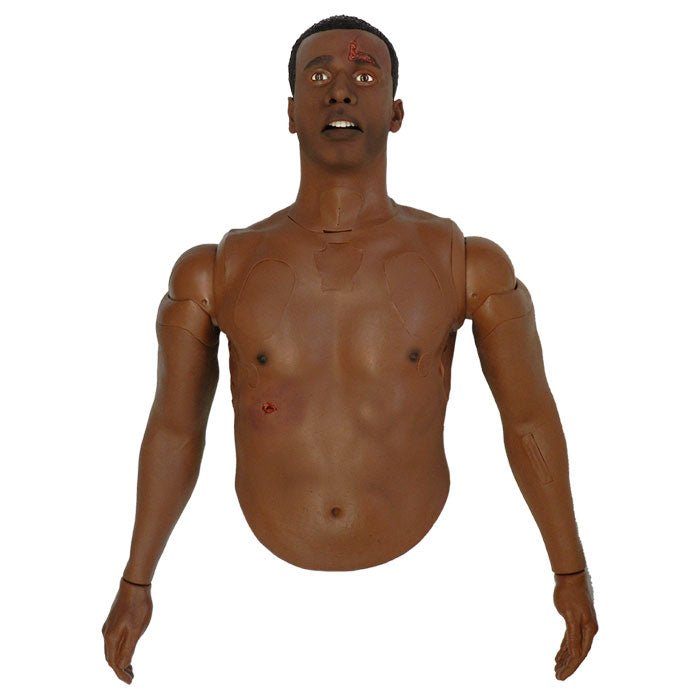

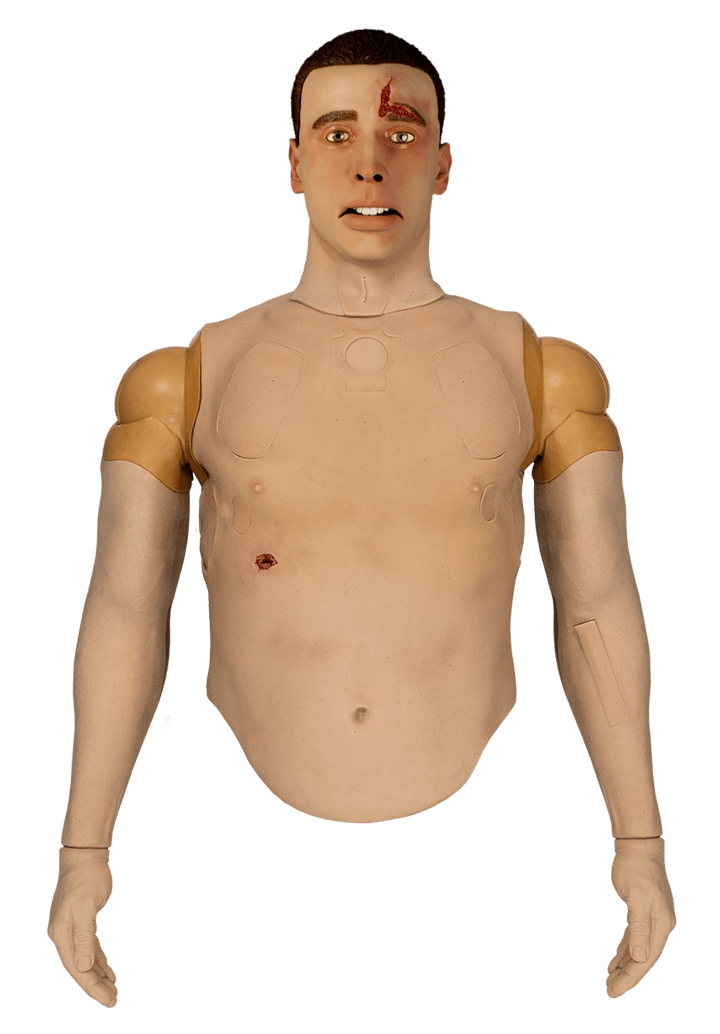

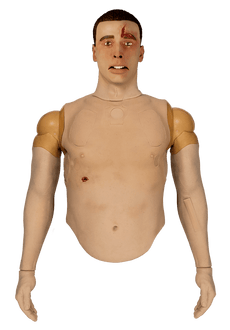

Medical simulator to address the treatment of traumatic upper body injuries, incorporating pulses, breathing, and real-time feedback
The APL-PB incorporates pulses, breathing, and real-time feedback. Using the APL-PB, learners are able to physically locate both radial and carotid pulses, assess breathing patterns, and use this information to perform appropriate interventions. The APL-PB also incorporates other intervention training such as maintaining a patient’s airway, needle decompression, identifying tension pneumothorax, bi-lateral chest tube insertion, cricothyroidotomy, and Intraosseous (I/O) infusion.
Key Features
Product Details
- Multiple sensors relay results to trainer in real-time, taking the guesswork out of simulation
- Simulated breathing and coordinated breath sounds in 4 quadrants
- Palpable radial and carotid pulse points
- Simulates tension pneumothorax in either side with appropriate physiologic cues

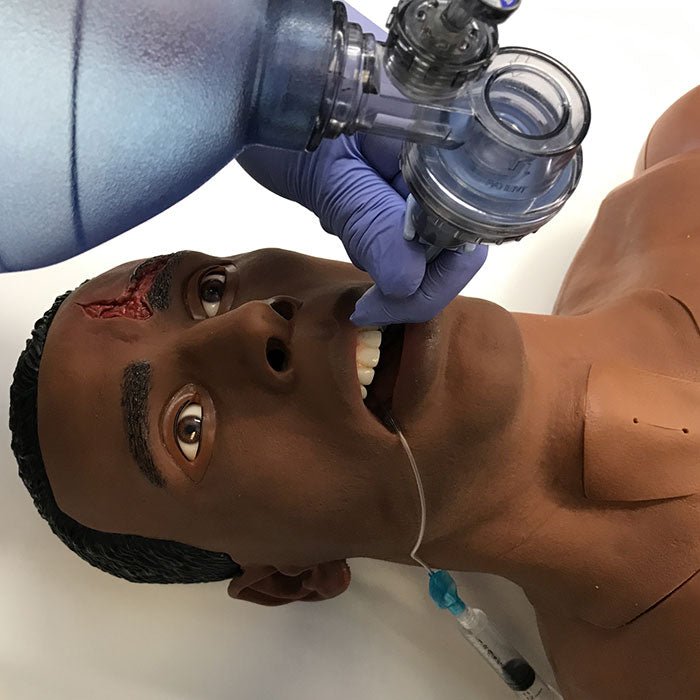

- Flexible jaw with internal tracheal landmarks for orotracheal intubation
- Bilateral chest tube insertion sites with replaceable, multiple-use skin plugs
- Oral airway cavity (with teeth and tongue) for oropharyngeal intubation
- Teeth sensor to detect excessive contact during intubation
- Trainer-selectable airway obstruction at the nose or throat to cue for surgical cric
- Simulated cricothyroidotomy with larynx, and single and multiple-use replaceable skin plugs
- Realistic manubrium allows intraosseous (I/O) training with fluid infusion
- Interactive needle decompression training sites (full size 3.25” 14 gauge needle) with replaceable multi-use skin plugs and pleural membranes
- Ruggedized Remote Control with real-time training validation and feedback
- 2-way Communication (TWC) audio system allows trainer to speak through the simulator
Remote Controlled with Real-time Sensor Data
All TacMed Simulation high-fidelity simulators are operated by a long-range RC controller which includes real-time telemetry to monitor medical interventions. Easy to use, menu-driven software takes only minutes to learn and sensor data is immediately displayed on the main control screen for quick reference. The display shows key vitals and provides instructors with instant data on the effectiveness of student interventions such as tourniquet application, wound hemostasis, airway intervention, needle decompression, and chest tube placement.
Mix-N-Match
TacMed Solutions upper and lower trainers can be combined in any configuration to increase training capabilities
 |
 |
 |
 |
 |
|
| FEATURES | MATTi™ | CRU-R | APL-PB Viewing |
EMITT-TMU | EMITT-ASU |
|---|---|---|---|---|---|
| Breathing | Y | Y | Y | Y | |
| Realistic Aiway/Intubation | Y | Y | Y | Y | Y |
| Sensored Intubation Feedback | Y | Y | Y | Y | |
| Physiologic Response to Bag Ventilation | Y | Y | Y | Y | |
| Cicothyroidotomy | Y | Y | Y | Y | Y |
| Tension Pneumothorax | Y | Y | Y | Y | |
| Needle Decompression | Y | Y | Y | Y | Y |
| Needle-D with Air Release | Y | Y | Y | ||
| Central Line (Subclavian) | Y | ||||
| CPR w/ Sensor Feedback | Y | Y | |||
| Probeable Wounds | Y | Y | Y | Y | Y |
| Bubbling Chest Wound | Y | Y | Y | Y | |
| Amputation Am w/ Ateial Bleeding | OPT | OPT | OPT | OPT | |
| Bun Am | Y | OPT | OPT | OPT | |
| I/O Trainer at Manubium | Y | Y | Y | Y | |
| I/O Trainer at Humeral Head | Y | Y | Y | Y | |
| Bilateral Chest Tube | Y | Y | Y | ||
| Adjustable Eyes (manual) | Y | Y | Y | Y | |
| Adjustable Eyes (light-reactive) | Y | ||||
| IV Training Site | Y | Y | Y | Y | Y |
| IV Training Site (infusible) | Y | Y | Y | Y | |
| IV Flash Cue | Y | Y | Y | Y | |
| Heat and Breath Sounds | Y | Y | |||
| 2 Way Audio Communication | Y | Y | Y | OPT | |
| Radial Pulses | Y | Y | Y | Y | |
| Carotid Pulses | Y | Y | Y | Y | |
| Brachial Pulses | Y | ||||
| Blood Pressure (standard cuff) | Y | ||||
| Teeth Contact Sensor | Y | Y | Y | ||
| Nasal Passage Blockage | Y | Y | Y | ||
| Difficult Aiway | Y | Y | Y | ||
| IM Injection Sites - Deltoid | Y | ||||
| Vital Signs Monitor and VitalsBidge compatible | Y | Y | Y | Y | |
| Gast ic Rise w/ Incorect Intubation | Y | Y | Y | ||
| NG Tube Placement | Y | ||||
| Ruggedized Remote Control | Y | Y | Y | ||
| Real-Time Sensor Feedback | Y | Y | Y | Y | |
| Modular Limbs | Y | ||||
Download:
GTSimulators by Global Technologies
TacMed Solutions Authorized Dealer
AirwayPlus Lifecast - Pulses/Breathing (APL-PB)
| DIMENSIONS: | Lenght: 36 in width: 23 in Chest: 45 in Neck: 17.5 in Shoulders: 51 in |
| WEIGHT: | FULL: 83 lbs EMPTY: 80 lbs |
| POWER SUPPLY: | Two (2) 18V Li-ion batteries |
| CASE DIMENSIONS: | 51 x 26 x 12in - 153lbs. |
