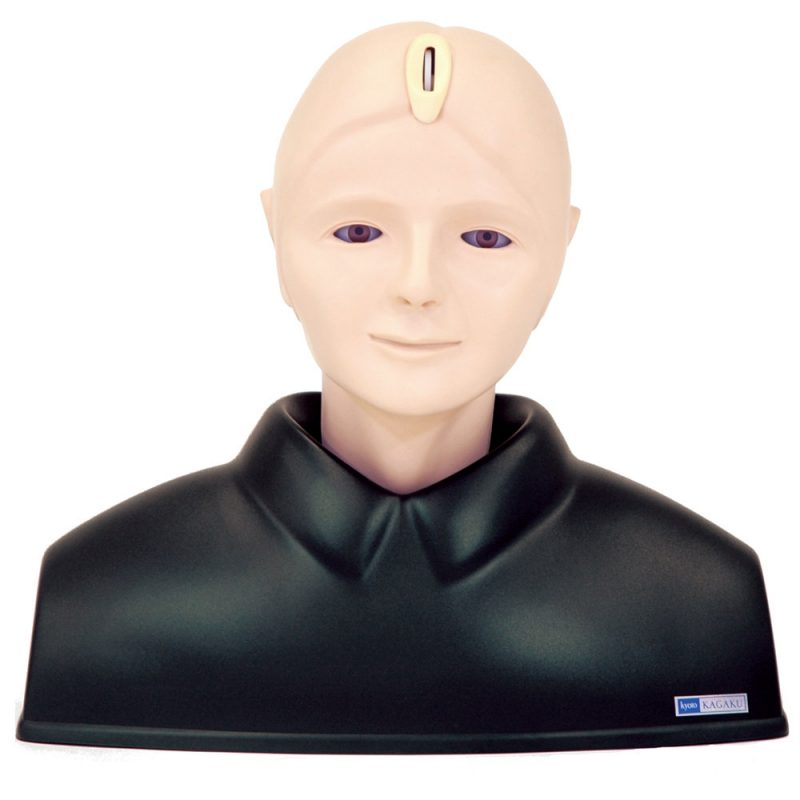

EYE Examination Simulator II (2 Steps)

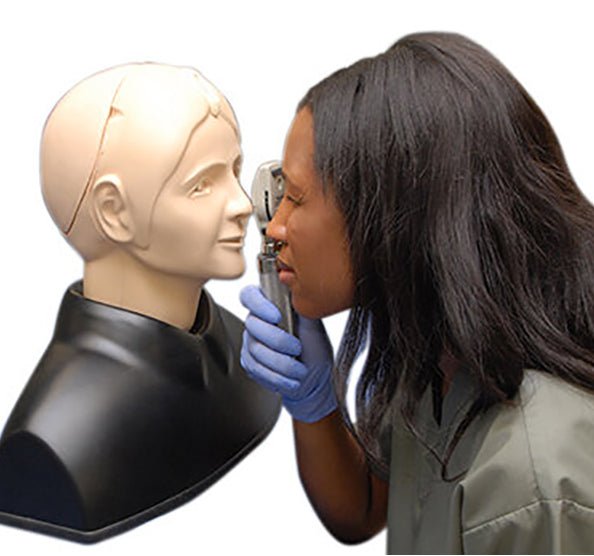

The EYE Examination Simulator is an innovative trainer for fundus examination, designed to allow examination of eyegrounds with the physician's own ophthalmoscope. Various cases can be set up for trainees using combinations of choice of slides, depth and pupil diameter.
Soft and supple material allows hands-on simulation of real examination procedures, such as raising the eyelid.

Features
  • Lenses are used for a part of the eyeball, and reproduces the visual axis close to human.
  • It is possible to change the degree of dilation and contraction of the pupil in 3 steps (2, 3.5,5mm) offering different degrees of challenges. (*M82A is 2 steps; 3.5, 8mm)
  • The soft and supple material allows simulations of a real examination, in ways such as pulling up the eyelid.
  • Real clinical images
  • 10 fundus slide cases of common eye diseases

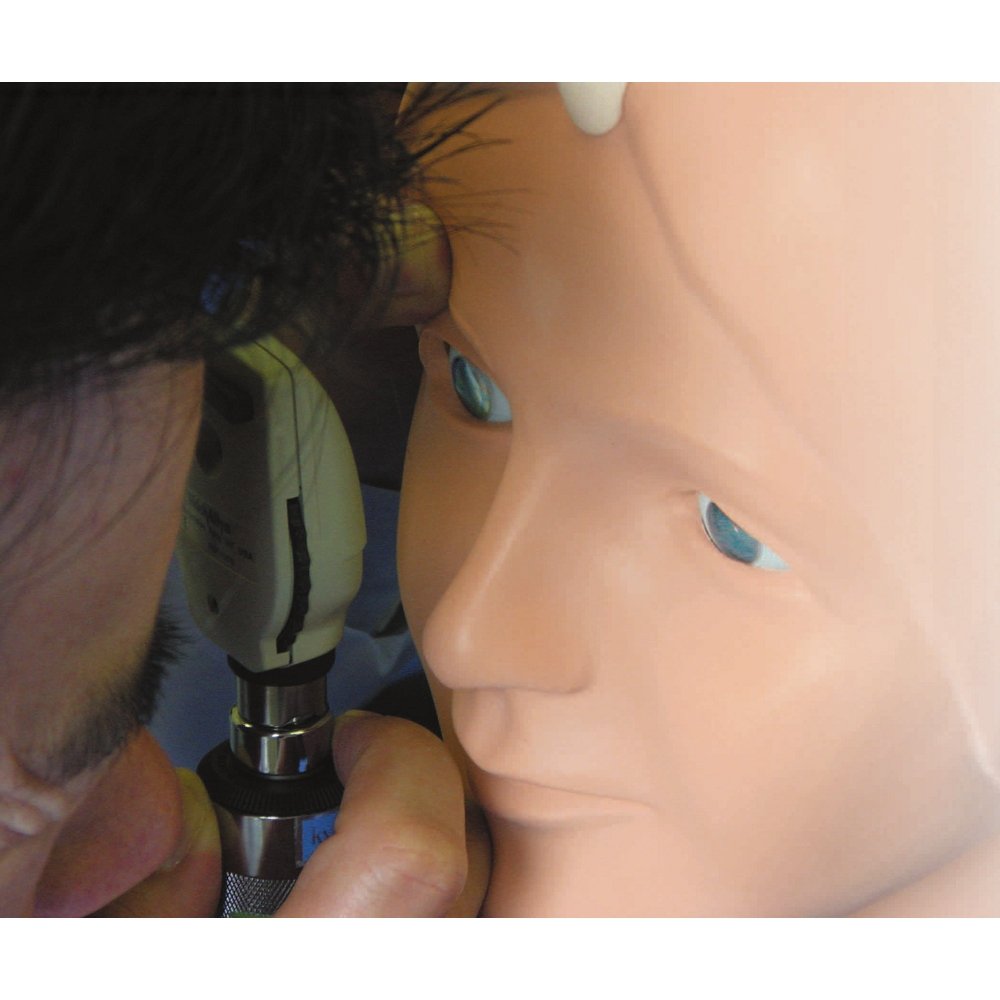

  • You can examine the optic fundus with any ophthalmoscope available on the market. Provides you with the simulation of an actual examination.

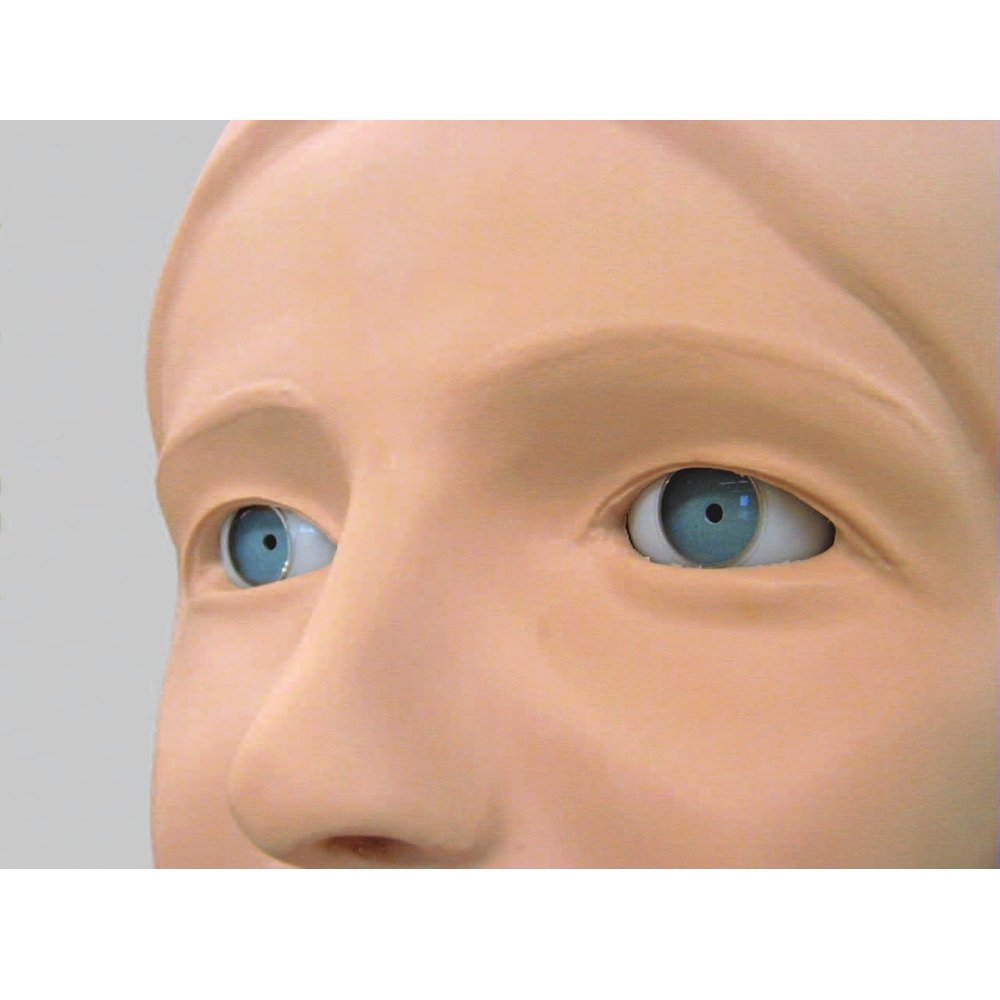

Lens-Equipped eyeball units which simulates visual axis of human eye

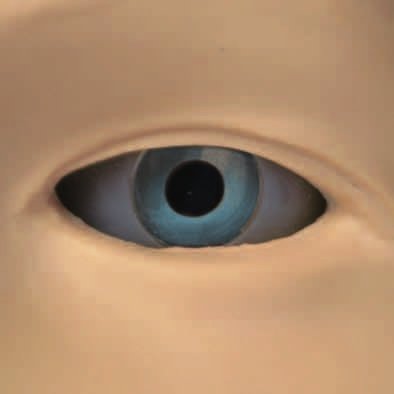

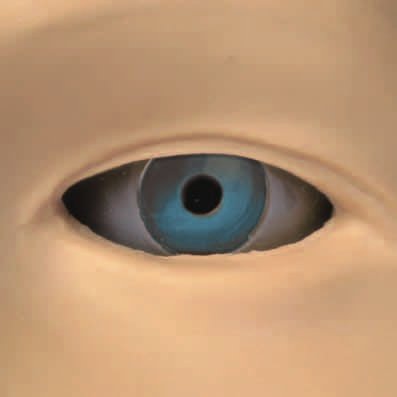

Different pupil sizes can be set for challenge variation

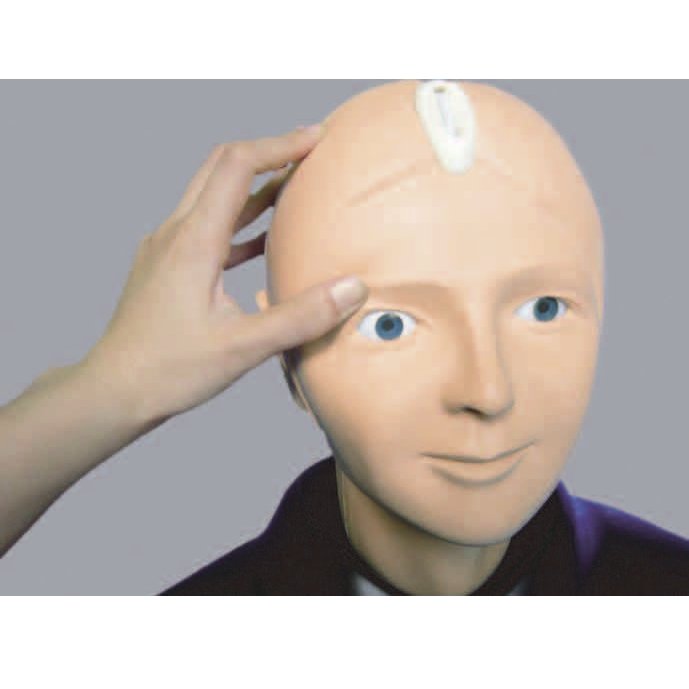

Realistic raising of Eyelid Practice how to position your subdominant hand and your body against the patient.
Detectable Red Reflex

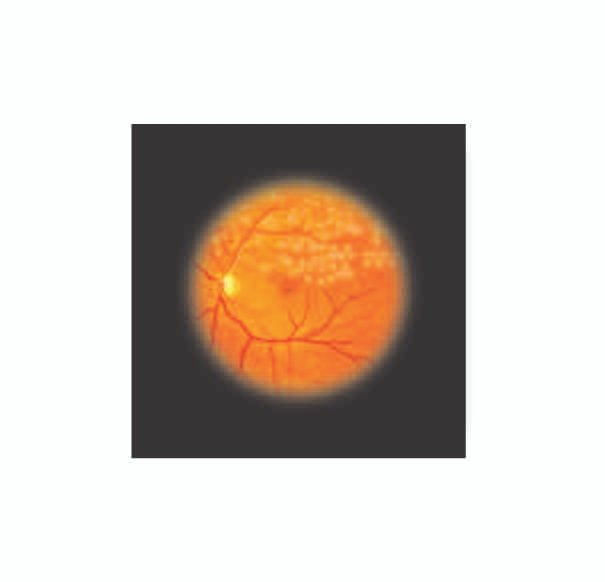

Most common pathologies with in 10 real clinical images

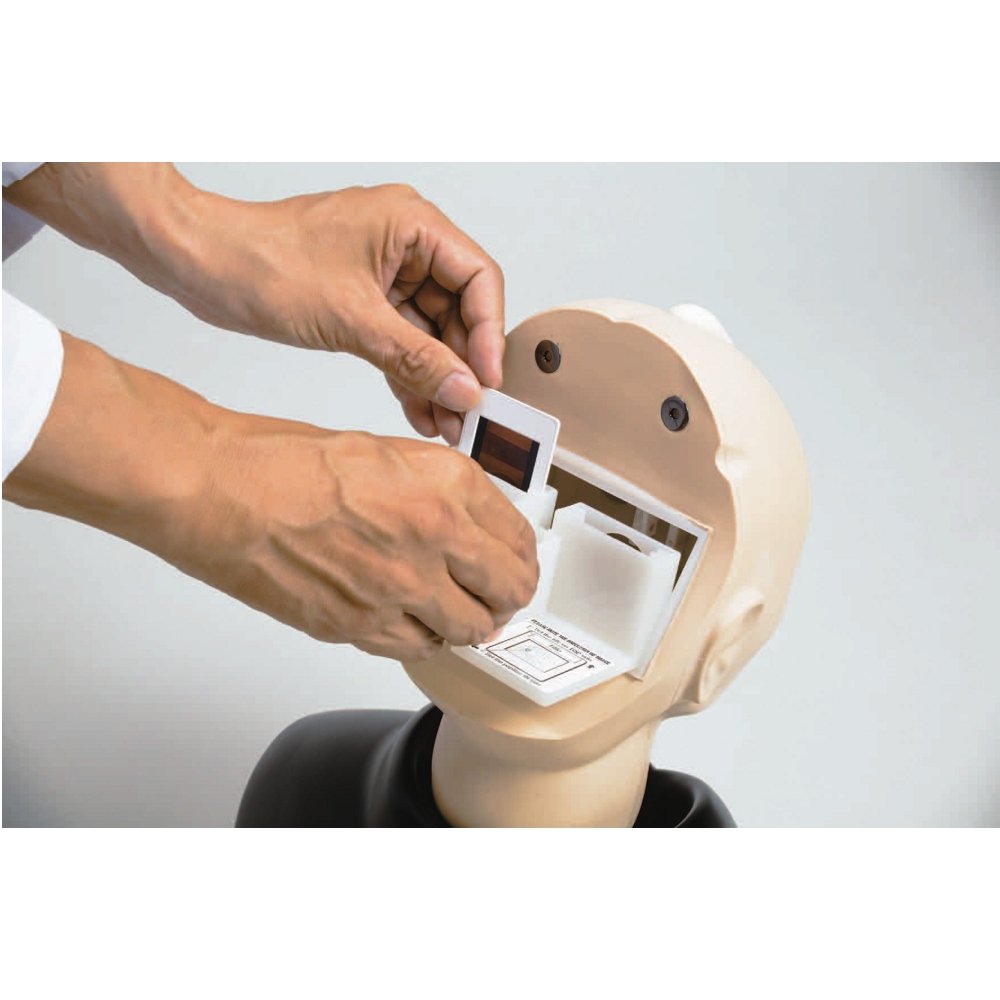

Adjustable fundus depth : Normal / Myopia / Hyperopia
Difference of KK-M82 (3 steps) and KK-M82A (2 steps)
Pupils of KK-M82A are designed larger than KK-M82.
KK-M82A: 3.5mm / 8.0mm diameter.
KK-M82: 2.0mm / 3.5mm / 5.0mm diameter.

This offers advantages for providing;
- Dilated pupils when using mydriaticeye drops
- Visual intelligibility for bigginers
Training skills / Applications
  • Funds examination with direct ophthalmoscope
Case / Pathology
  • 1Normal fundus
  • 2Hypertensive retinopathy:
    • Grade 3 arteriolar vasoconstriction
    • Grade 1 arteriolosclerosis
    • Hemorrhages and cotton wool spots
    • Simple vein concealment
  • 3Diabetic retinopathy:
    • Microaneurysm, hemorrhages and hard exudates
  • 4Papilloedema (chronic phase)
  • 5Papilloedema (acute phase)
  • 6Glaucomatous optic atrophy:
    • Glaucomatous optic disc cupping and nerve fiber defect
  • 7Retinal vein occlusion (acute phase):
    • Flame-shaped hemorrhage and cotton wool spots
  • 8Retinal vein occlusion (post retinal laser photocoagulation)
  • 9Toxoplasmosis: retinochoroiditis
  • 10Age-related macular degeneration:
    • Macular exudates and subretinal hemorrhage

※M82A includes two normal fundus slides.

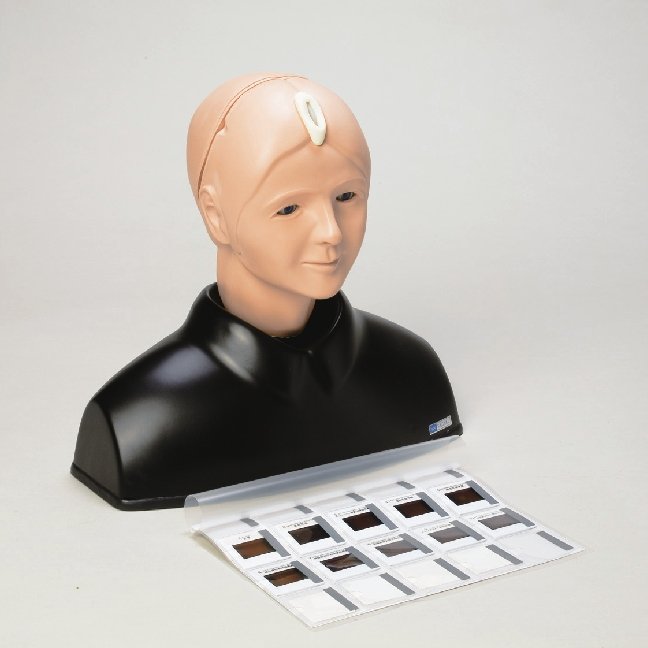

Set includes

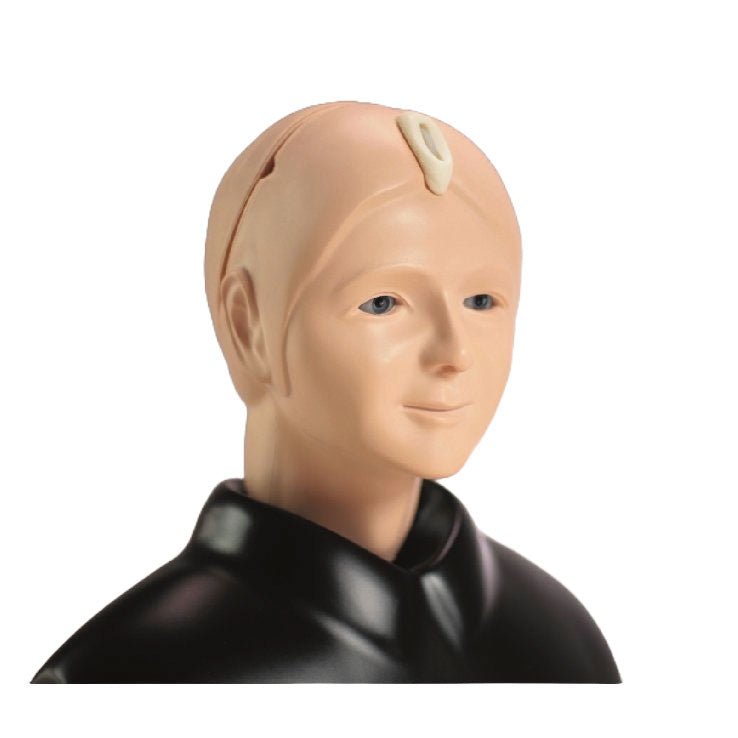

  • 1 manikin head and shoulder
    • M82 Model: 3 steps pupil diameter variations(2.0mm / 3.5mm / 5.0mm)
    • M82A Model: 2 steps pupil diameter variations(3.5mm / 8.0mm)
  • 1 -1 slider holder with 3 steps depth setting /
  • 1 slide duster /
  • 1 set of case slides/
  • 1 storage case /
  • 1 instruction manual
Materials
  • Soft resin
  • Hard resin
  • Latex is included in the blower
Product Dimensions and Weight:
  • Size: W16.5 x D8.7 x H15.4in / W42 x D22 x H39㎝
  • Weight: 4.4lbs / 2kg
Shipping Dimensions and Weight:
  • M82 Size: W19 x D11 x H20 in / W49 D29 x H53㎝
  • M82A Size: W19 x D11 x H14 in / W48 x D27 x 36cm
  • Weight: 8lbs / 4kg

※Ophthalmoscope is not included.
※Specifications are subject to change.

Made in Japan by Kyoto Kagaku.

GTSimulators by Global Technologies
Kyoto Kagaku Authorized Dealer

EYE Examination Simulator II (2 Step)


Product Dimensions and Weight:
  • Size: W16.5 x D8.7 x H15.4in / W42 x D22 x H39㎝
  • Weight: 4.4lbs / 2kg
Shipping Dimensions and Weight:
  • M82A Size: W19 x D11 x H14 in / W48 x D27 x 36cm
  • Weight: 8lbs / 4kg
