Pediatric Hand for X-Ray CT & MRI training
All pictures shown are for illustration purposes only. The actual product may vary.

Pediatric Hand for X-Ray CT & MRI training

Item # TPS-HN-P01
$2,352.00 $2,400.00
You save $48.00
Ships in 12-16 weeks

Need an estimate?
Click Add To Quote

Quote Helper

Features & Specifications
  • Trusted Vendorby True Phantom
    A trusted GT partner
  • 2-Year Warranty
    Provided by manufacturer
  • GSA PricingGov't pricing
    Available upon request
About This Item
Frequently Bought Together
Store Ratings: 4.7/5 GT Reviews (1900+ Reviews)
Questions?
Get Help From Our Support

Pediatric Hand for X-Ray CT, MRI

The Pediatric Lower Arm phantom is a great tool for X-Ray CT and MRI procedures. This phantom is based on the anatomical structure of a 4 year old human arm. The arm includes wrist, fingers, partial radius, and partial ulna bones.

The Pediatric Hand Phantom is designed specifically for X-Ray, CT, and MRI applications. This innovative medical training tool is essential for radiologists, technicians, and educators dedicated to advancing pediatric imaging techniques and improving diagnostic accuracy.

The Pediatric Hand Phantom accurately replicates the intricate anatomy of a 4-year-old child’s hand, including bones, joints, and soft tissues. This precision ensures a lifelike representation that aids in detailed anatomical studies and practice.

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values which makes this product to be best fit for any T2-weighted MRI imaging methods. Very good results can be also achieved with Proton Density imaging methods. The phantom can be still imaged with T1-weighted methods but the T1 values are less realistic and they are within the range of about 100 ms.

Anatomy

  • Wrist Bones
  • Finger Bones
  • Partial Ulna
  • Partial Radius
  • Soft tissue mimicking material

Your order will include:
  • Pediatric Hand Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case
Download:
Brochure
Phantom Dimensions and Weight:
  • Size: 6 x 3 x 1 in (approx.)
  • Weight: 1 lb (approx.).
Shipping Dimensions and Weight:
  • Size: 10 x 7 x 5 in (approx.)
  • Weight: 3 lbs (approx.)
Materials Used
  • Soft tissue and organs: Composition of urethane base soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

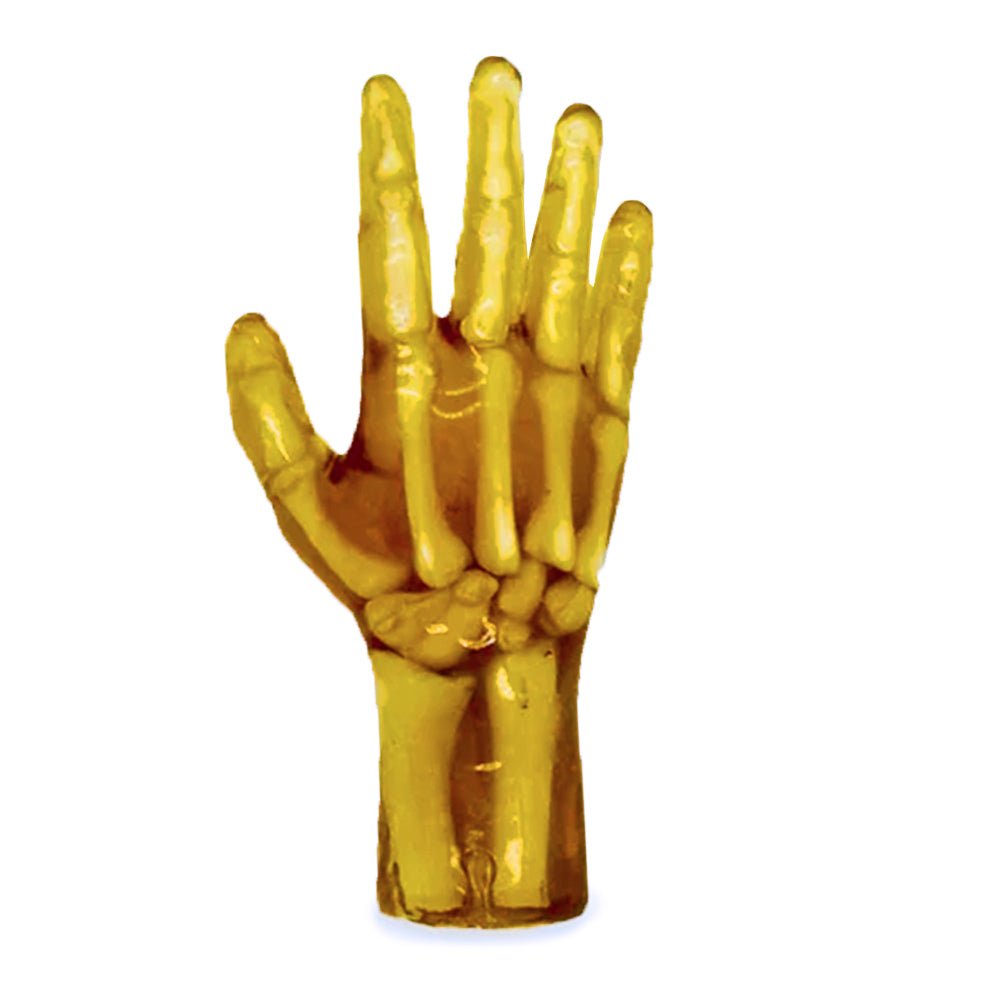

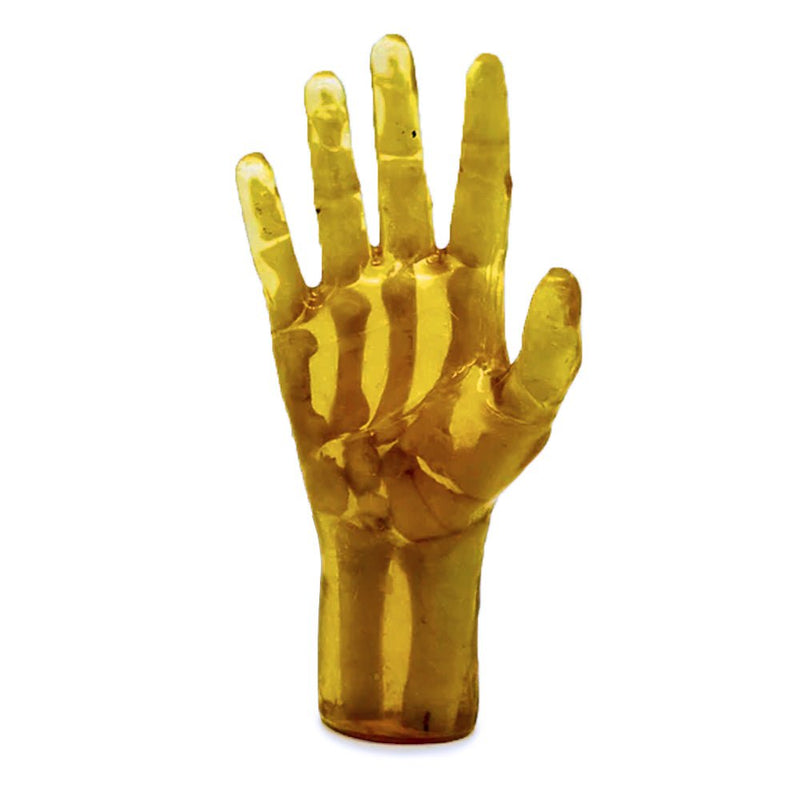

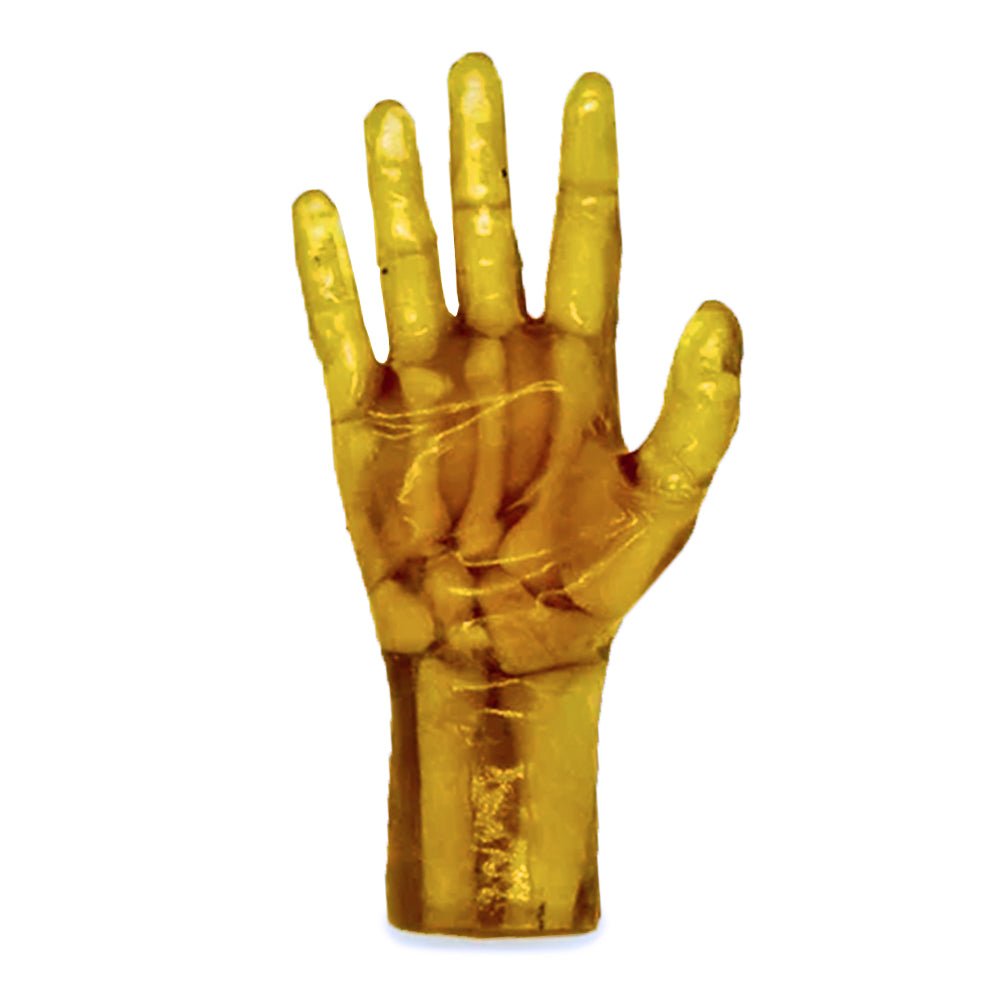

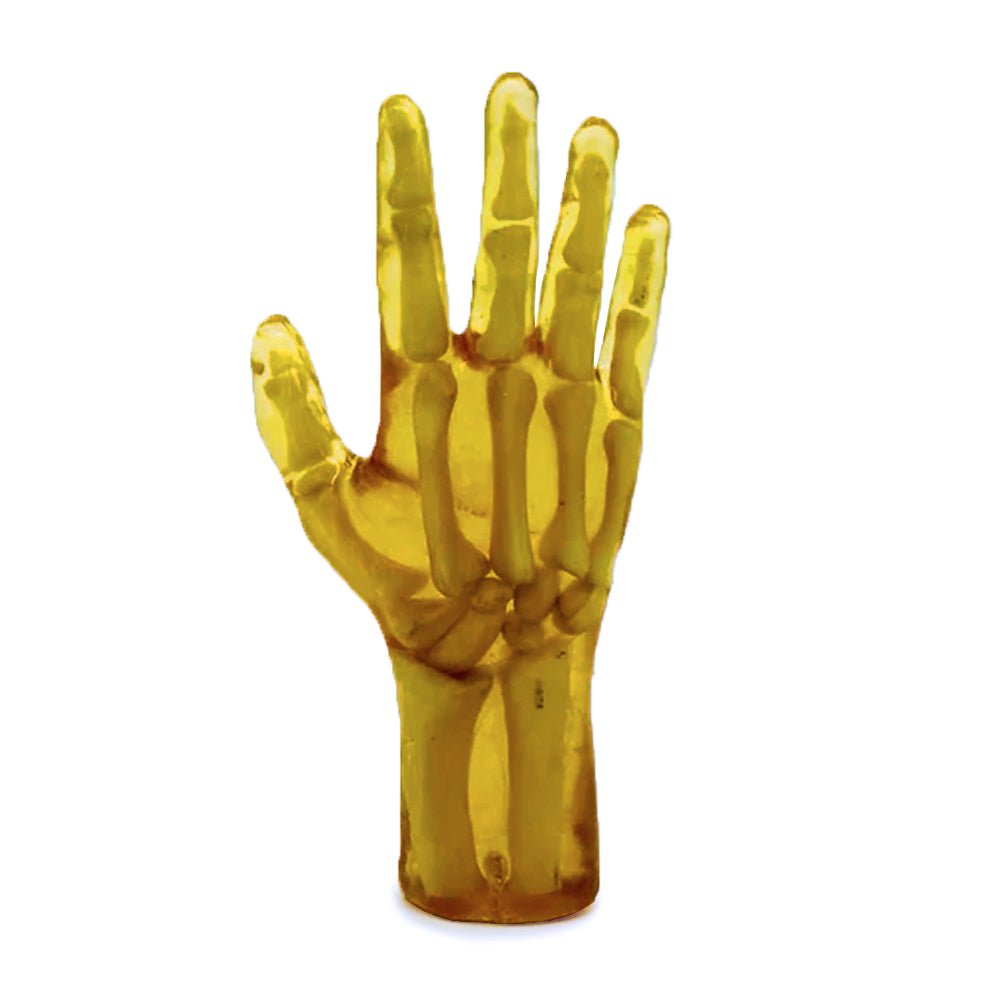

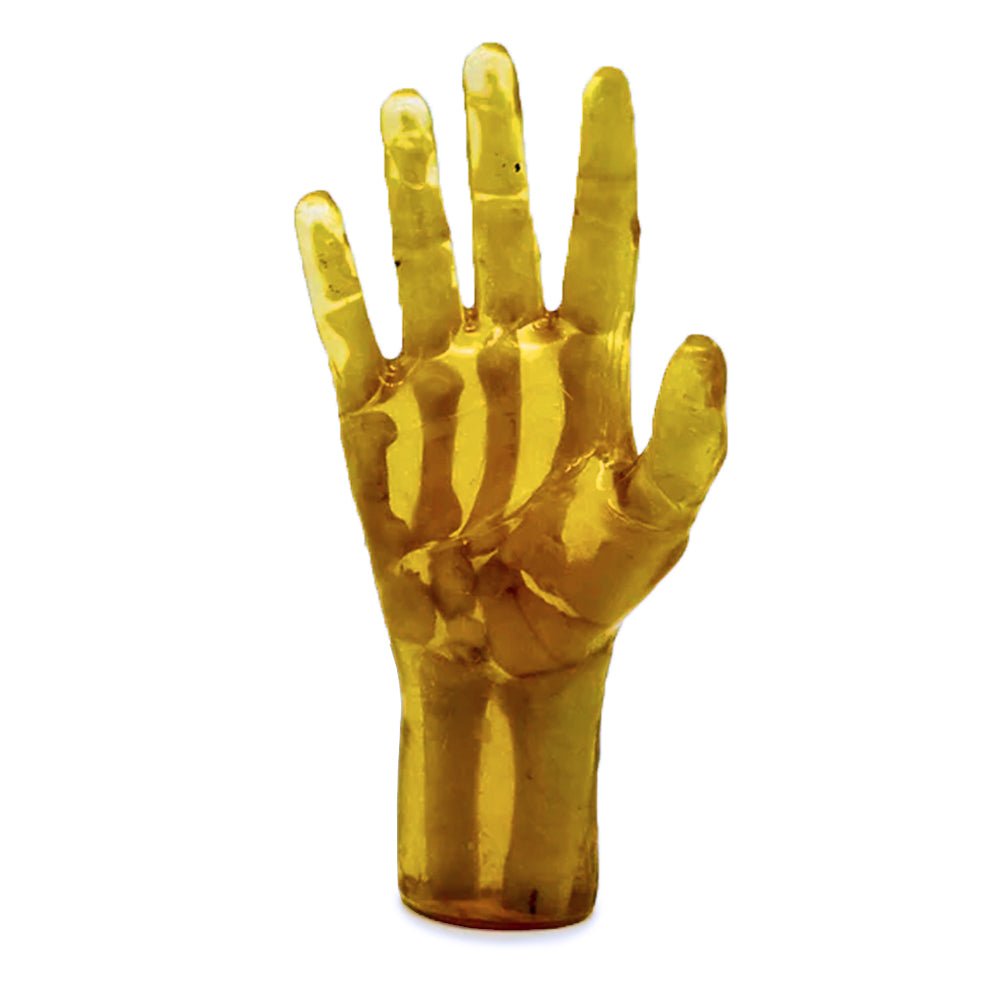

Front View

Lateral View

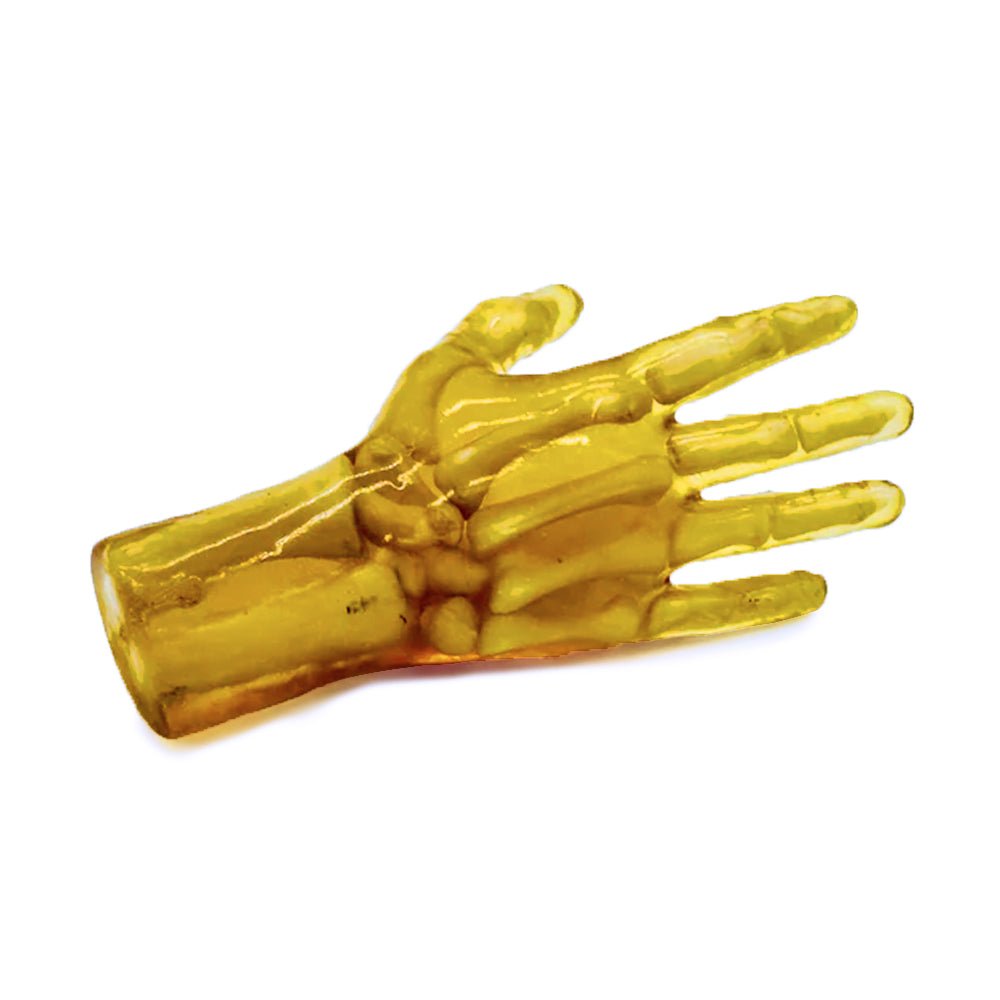

Perspective View

Top View

Pediatric Hand for X-Ray CT, MRI

Dimensions and Weight:
  • Size: 6 x 3 x 1 in (approx.)
  • Weight: 1 lb (approx.).
Shipping Dimensions and Weight:
  • Size: 10 x 7 x 5 in (approx.)
  • Weight: 3 lbs (approx.)
Materials Used
  • Soft tissue and organs: Composition of urethane base soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

Technical Properties

Type of Tissue Sound Velocity[m/s] Density [g/cm3] Attenuation Measured at 2.25 MHz [dB/cm] Hardness [Shore OO] T2 [ms] Speckles
Body Tissue 1400 ± 10 1.00 1.5 ± 0.2 40 55 NO/LOW
Cortical Bone 3000 ± 30 2.31 6.4 ± 0.3 N/A N/A N/A
Trabecular Bone 2800 ± 50 2.03 21 ± 2 N/A N/A N/A

Thermal Properties of our Bone-Mimicking Material

Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s

HU Values of the Tissue Mimicking-Materials

S.No. Tissue Type HU Value (Average)
1 Body Tissue -25
3 Trabecular Bone 800
4 Cortical Bone 1300
