SMART STAT Basic with iPad

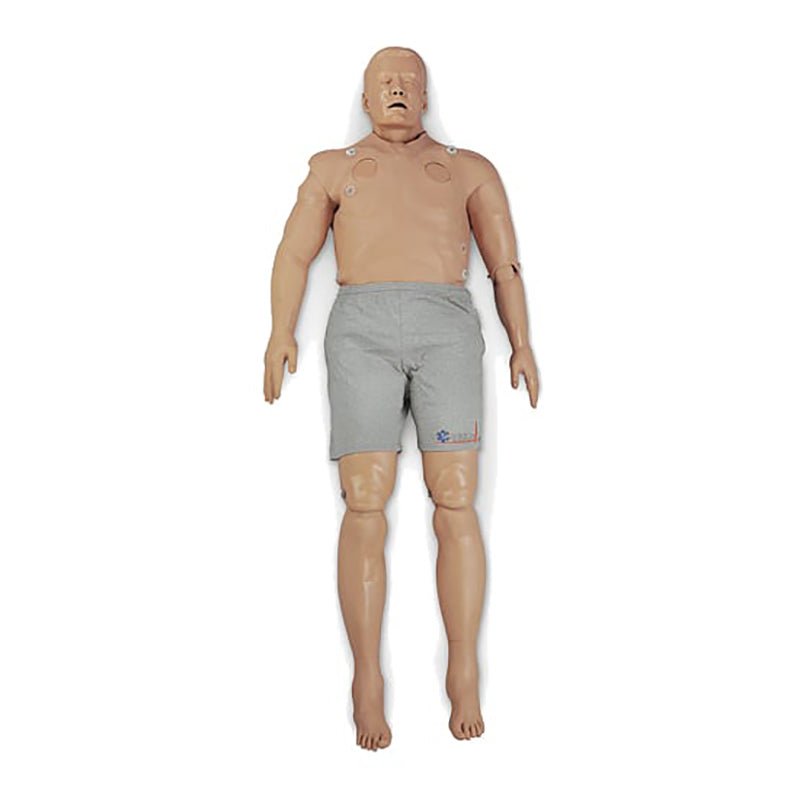

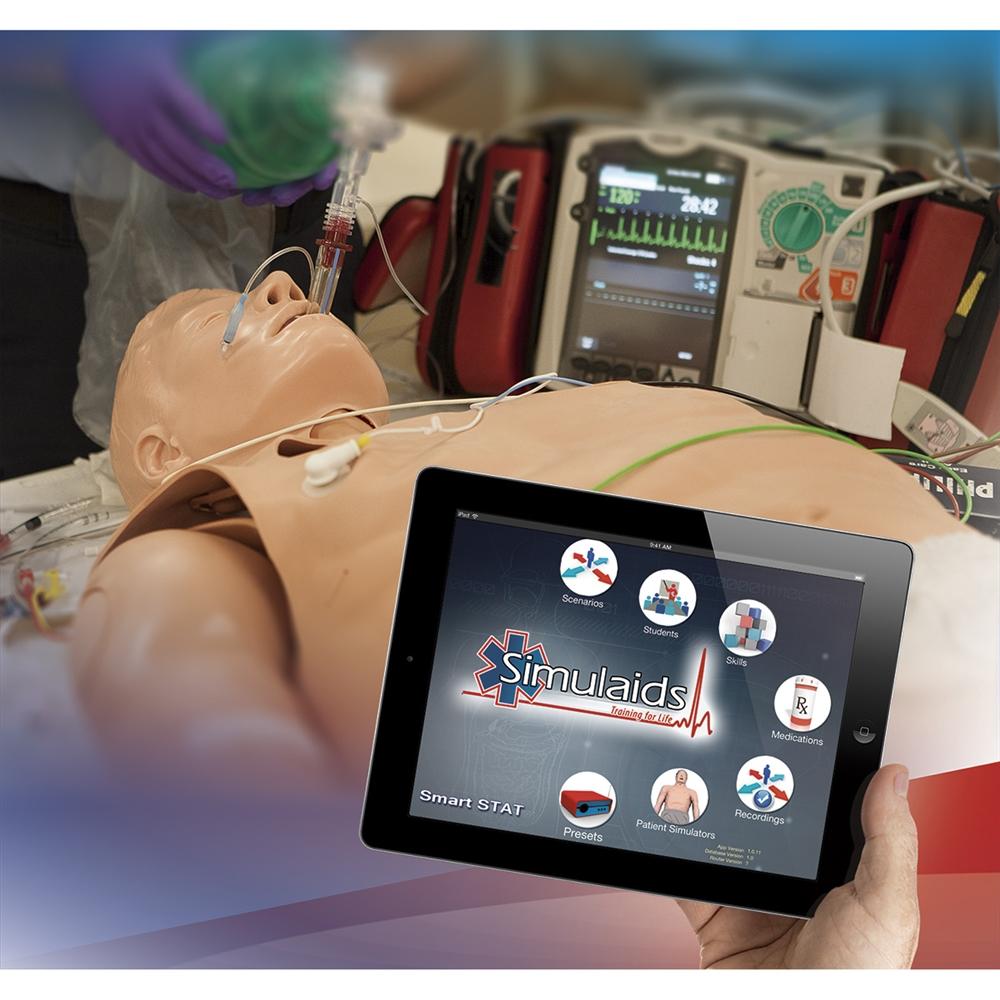

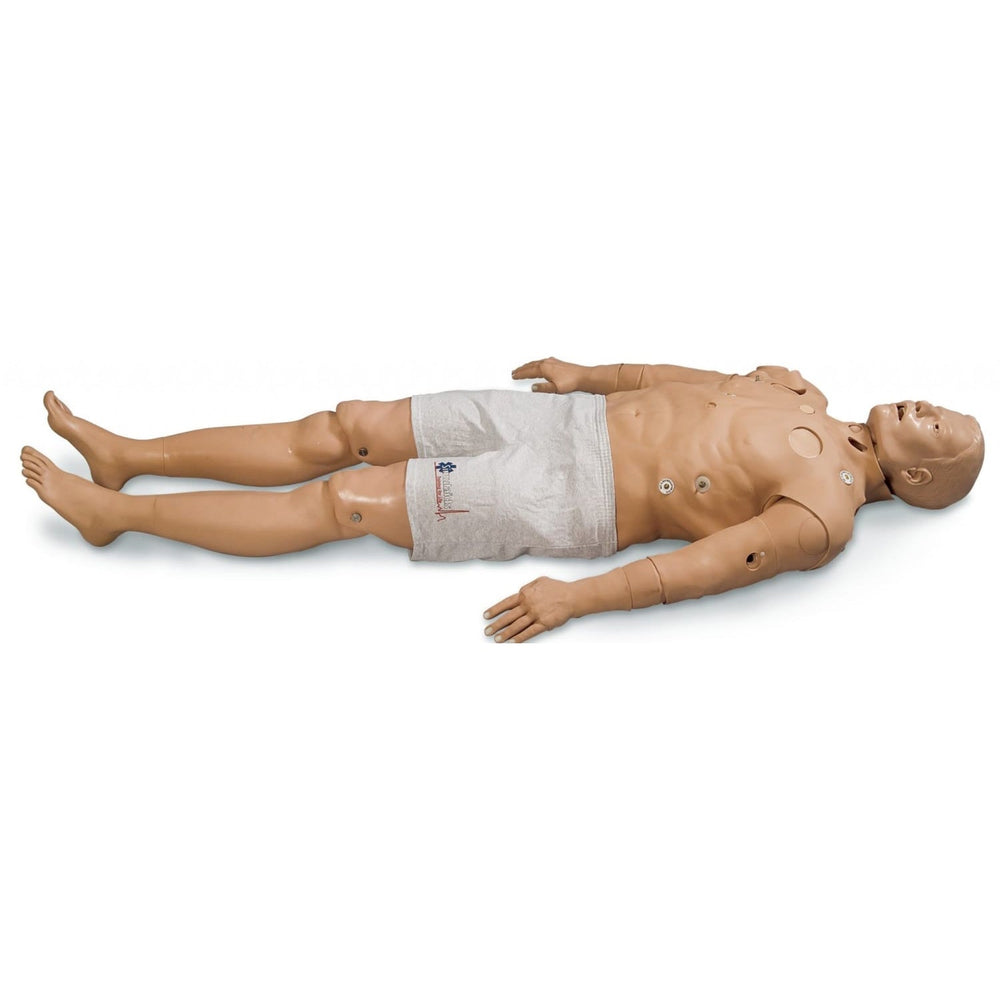

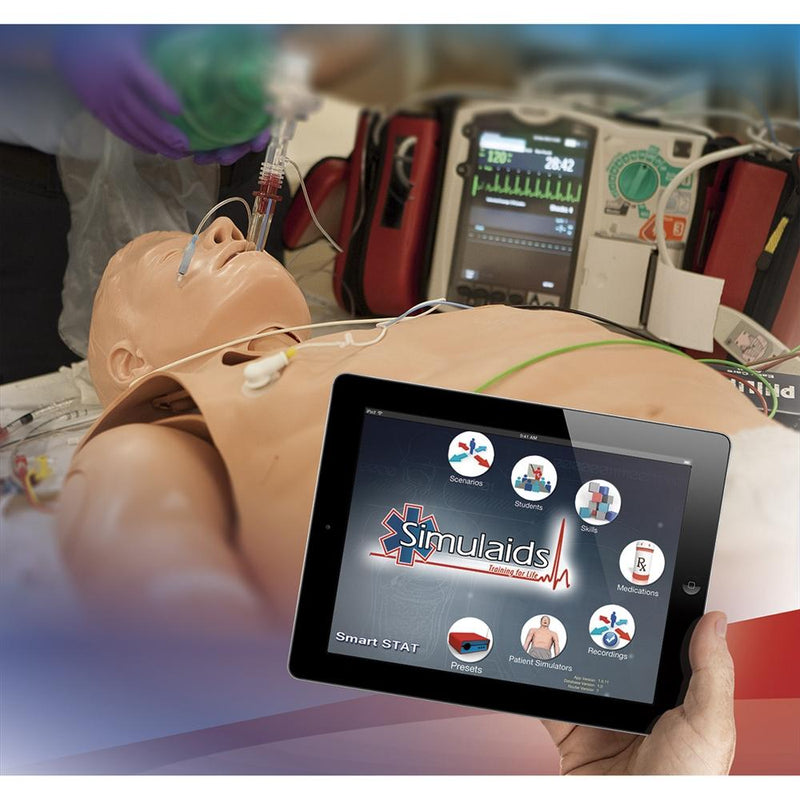

A high fidelity, wireless and tetherless, 34 kg adult human manikin. SMART STAT patient simulator is significantly better value than other patient simulators with similar a specification. A reliable, affordable and realistic ‘sim man’ enabling you to train in austere environments. The portable, intuitive and reliable iPad control system offers the opportunity for a wide range of simulation training exercises across many medical disciplines including:

  • Emergency Medical Services
  • NHS/University Simulation Centres
  • Military battle field
  • Nurse safety
  • Medical schools
  • Nursing schools
  • Paramedic and pre-hospital care
  • University teaching hospital
  • Disaster response

Main Features:

  • Wireless and tetherless connectivity.
  • Light-reactive pupils.
  • Difficult airway – Oedema of the Tongue and Larynx.
  • Fluid secretions – tears, nasal mucus, foaming mouth.
  • ETCO2 discharge.
  • Pre-recorded voice and vomiting sounds.
  • Wireless microphone for instructor dialogue.
  • Lips and fingernails with cyanosis and CO flushing.
  • Bilateral BP and IV arms.
  • IO access in the manubrium.
  • External jugular catheterisation.
  • 5-lead ECG monitoring & defibrillation.
  • Urinary catheterisation (Foley functional) with interchangeable genitalia.
  • Abdominal sounds in 4 quadrants.
  • Fluids on-board, including IV blood and urine output.
  • Each pulse point can be shut down to emulate vascular difficulties or disease states.
  • Lower left leg battery — up to 3.5 hours of operation per charge (extra battery legs are recommended).

More Features:

  • On-board air compressor with no external connections or baggage to move.

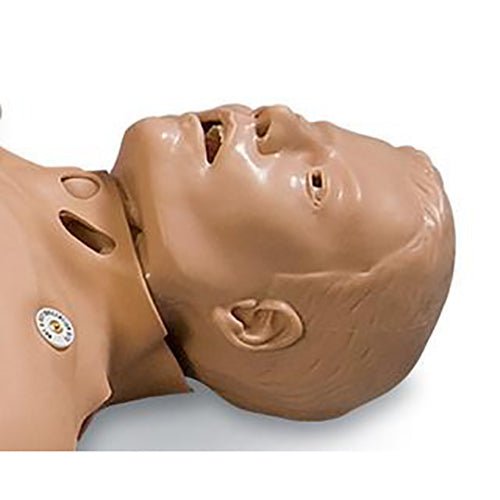

  • Advanced Deluxe Intubation Head with oral and nasal intubation, break-out teeth, tongue oedema, laryngospasm, cricothyrotomy and moveable eyelids. The silicone head skin utilises a thin material capable of allowing the mouth to open naturally when the head is placed in the sniffing position for intubation.
  • Heart and lung sounds: 6 anterior and 4 posterior lung sound speakers and 4 heart sound speakers allowing for sounds to be heard in the appropriate places. Stridor is heard in the upper lung speakers, base wheezes are heard in the four lower lung speakers, etc.
  • 12 always-active pulse points, in pairs, carotid, femoral, popliteal, pedal (dorsal arch), brachial, and radial.
  • Distal pulses drop off with BP set below 70 mmHg systolic.
  • BP settings of systolic and diastolic values with individual settings for the amplitude of the speaker sounds and to obtain an auscultatory gap.
  • IM/SubQ injection sites bilaterally in the deltoid and on right thigh.
  • Bilateral chest complications of tension pneumothorax and chest tube insertion — no damage is done to the manikin and reuse is immediately available (replacement skins included).
  • Spontaneous respiration with chest movement.
  • Stomach distention.
  • Pericardiocentesis.


  • SMART STAT Basic patient simulator
  • 1 battery leg with charging systems
  • 17 ECG rhythms with variations
  • BP cuff
  • Embroidered STAT Simulator shorts
  • Set of 5 defibrillation site adapters
  • Carry case
  • Operating manual
  • Replacement parts, including:
    • - pneumothorax pads
    • - IV veins
    • - IM injection sites
    • - pericardiocentesis pads
    • - IO pads
    • - cricothyrotomy neck skins
    • - sets of teeth
    • - lubricant for intubation

Download Manual:

Economy Package

  • Includes iPad
  • One-year Warranty
  • Extended Warranty Available

Optional Add-ons

Trauma Bleeding Arm

Amputed Arm

Trauma Bleeding Leg

Intraosseous Leg

Amputed Leg

Battery Leg

Trauma Overlay Flash Moulage

Key Features BASIC
(Item You're viewing)
(Shop Now)
(Shop Now)
Blood Pressure
Cardiac Rhythms 51 variations 51 variations 51 variations
Vitals Monitor
Lung Sound Sites 6 anterior 6 anterior, 4 posterior 6 anterior, 4 posterior
Cardiac Sound Sites 4 4 4
Airway Management: Oral/Nasal
Stomach Rise/Auscultation (Related to Airway Placement)
Right main stem intubation
Needle Cricothyrotomy
Tracheotomy Care/Suctioning (Non-Surgical)
Positive Pressure Ventilation
Cricoid Pressure
(Sellick Manoeuvre)
ETCO2 Flushing
Cyanosis/CO Flushing
Pulse Oximeter Reading
Jaw Thrust
Break-away teeth
Spontaneous Chest Rise
ALS Functions with Cardioversion
Chest Decompression/
Reactive Pupils
CPR Landmarks
Chest Compressions
Anterior Pacing
ECG Leads 5 (optional 12-lead overlay) 5 (optional 12-lead overlay) 5 (optional 12-lead overlay)
IV Access & IM
Phlebotomy & Arterial Access
IO Access Optional Leg & Humerus FAST, Optional Leg & Humerus FAST, Optional Leg & Humerus
Pulse Points Reactive to BP 12 12 12
Oedema: Tongue, Larynx
Fluid Management External Internal Internal
Facial Fluids 0 3 3
Urinary Catheterisation
Bowel Sounds
Trauma Management Optional torso overlay with packable wound, trauma leg and arm – external fluids Optional torso overlay with packable wound, trauma leg and arm (bleeding) Optional torso overlay with packable wound, trauma leg and arm (bleeding)
Microphone Speech Options Wireless one-way, Pre-programmed Wireless one-way, Pre-programmed Wireless one-way, Pre-programmed
Control Device Apple iPad Apple iPad Apple iPad
Debriefing Support Part of iPad App Part of iPad App Part of iPad App
Storage Carry case Carry case Carry case
Includes SimVitals 5-Line Monitor, Amputated Bleeding Leg & IO Leg
Shipping Dimensions and Weight:
• Box Size: 56” x 28” x 12”
• Shipping Weight: 125 lbs
