Whole Body Simulator (HEMO) Trauma Trainer - Pulses/Breathing
Active breathing with chest rise and fall
Radial and carotid pulses
Airway management
Moveable jaw
Intubation
Oropharyngeal Airway (OPA)
Nasopharyngeal Airway (NPA)
Selectable airway obstruction
Intubation teeth sensor
Cricothyroidotomy
Needle decompression (troacentesis)
Tension pneumothorax
IV insertion
Intraosseous (I/O) infusion
Adjustable eyes (pupils normal, constricted, TBI)
Two-way audio communication
Full-motion legs
Amputation
Packable wound
Crush injury
Tourniquet training
Simulated wounds (shrapnel, lacerations)
Crepitus (to cue for crushed pelvis)
Optional priapism (to cue for spinal injury)
Scrotal avulsion
Tetherless (battery operated)
Remote Controlled
Real-time digital feedback for trainers
0.0 lb
Whole Body Simulator (HEMO) Trauma Trainer - Pulses/Breathing
Item # TAC-WBS-HPB
On Demand
Request a quote for pricing
Request a quote for pricing
Need an estimate?
Click Add To Quote
Features & Specifications
-
by
A trusted GT partner -
1-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request
by
Frequently Bought Together
(
Whole Body Simulator (HEMO) Trauma Trainer - Pulses/Breathing
Rugged and realistic full body trainer for the treatment of severe trauma.

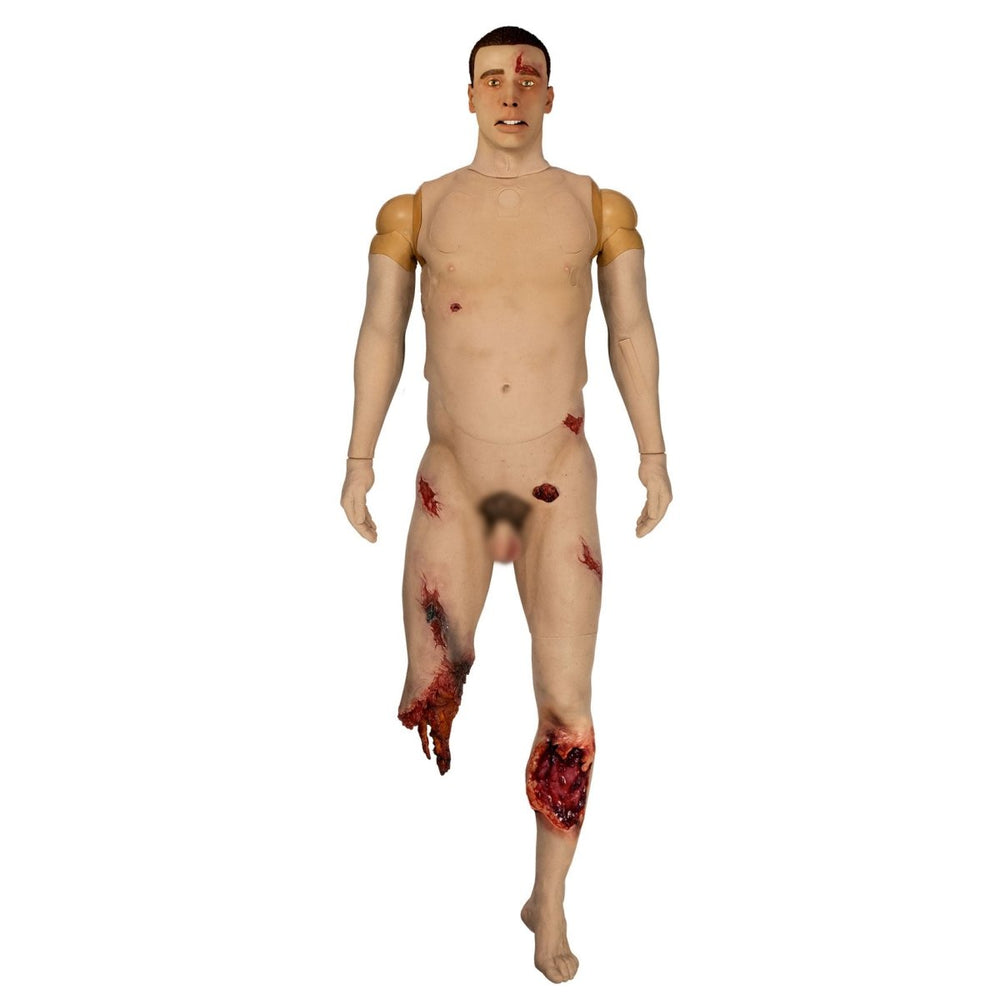

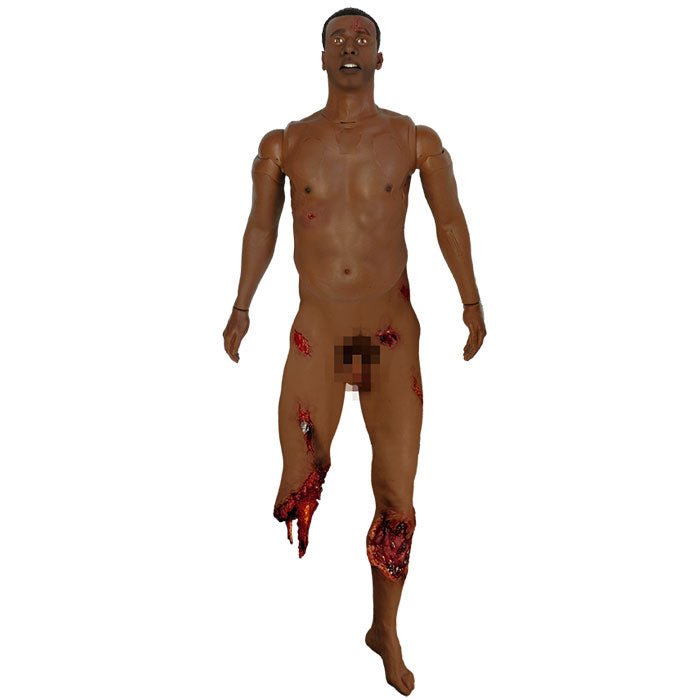

The Whole-Body Simulator HEMO-PB (WBS-HEMO-PB) is a rugged, realistic full-body trainer to treat severe trauma.
Purpose-built for field exercises and use in any weather or environment, the WBS HEMO-PB offers realistic leg
movement and lifelike arterial bleeding that deliver ultra-high-fidelity training for a truly immersive learning
experience. It also incorporates a deep wound at the inguinal crease for hemostatic training.
Using the WBS-HEMO-PB, learners can use field techniques such as hand, knee, and elbow pressure to occlude bleeding.
It offers pulses, breathing, and real-time feedback through our long-range remote control. Users can physically
locate both radial and carotid pulses, assess breathing patterns, and use this information to perform appropriate
interventions. Other intervention training includes maintaining a patient’s airway, needle decompression,
identifying tension pneumothorax, bi-lateral chest tube insertion, cricothyroidotomy, and Intraosseous (I/O)
infusion.
Key Features
Product Details
- Multiple sensors relay results to the trainer in real-time, taking the guesswork out of the simulation.
- Simulated breathing and coordinated breath sound in 4 quadrants.
- Palpable radial and carotid pulse points
- Simulates tension pneumothorax in either side with appropriate physiologic cues

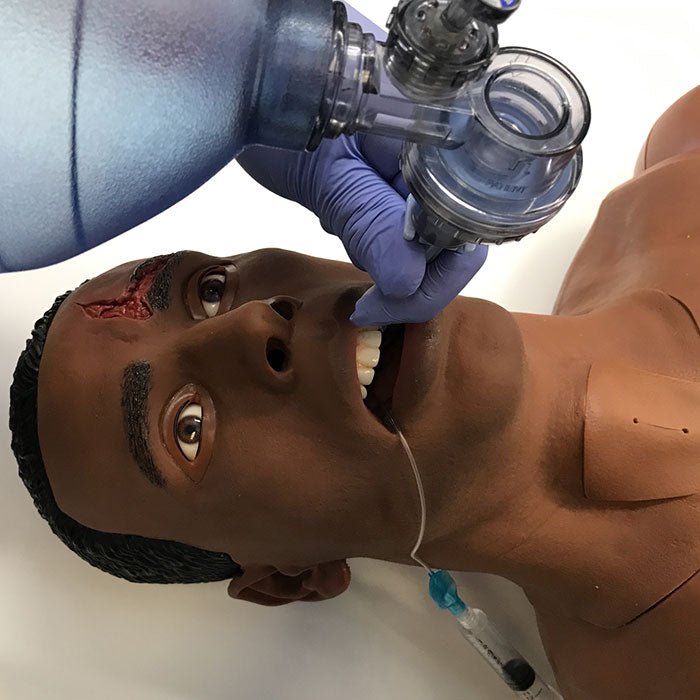

- Flexible jaw with internal tracheal landmarks for orotracheal intubation
- Bilateral chest tube insertion sites with replaceable, multiple-use skin plugs
- Oral airway cavity (with teeth and tongue) for oropharyngeal intubation
- Trainer-selectable airway obstruction at the nose or throat to cue for surgical cric
- Simulated cricothyroidotomy with larynx, and single and multiple-use replaceable skin plugs
- Realistic manubrium allows intraosseous (I/O) training with fluid infusion
- Needle decompression with air release and sensor feedback (full size 3.25” 14 gauge needle) with replaceable multi-use skin plugs and pleural membranes
- 2-way Communication (TWC) audio system allows the trainer to speak through the simulator
- Full left leg with a hemostatic wound at the inguinal crease that requires packing with gauze and applying appropriate pressure
- Amputation requires proper tourniquet application or manual pressure to occlude bleeding
- Lifelike leg movement, remote-controlled using practical and durable special effects animatronics technology
- Specially formulated synthetic tissue with unparalleled realism and durability providing visual and tactile stimuli
- It can be used with human actors
- Crepitus to cue for crushed pelvis injury
- Scrotal avulsion
- Water-resistant
- Easy to clean and maintain after use
- Optional interchangeable priapism
- Rugged, remote control with real-time data streaming
Remote Controlled with Real-time Sensor Data
All high-fidelity simulators are operated by a long-range RC controller, including real-time telemetry to monitor medical interventions. Easy to use, menu-driven software takes only minutes to learn, and sensor data is immediately displayed on the main control screen for quick reference. The display shows key vitals and provides instructors with instant data on the effectiveness of student interventions such as tourniquet application, wound hemostasis, airway intervention, needle decompression, and chest tube placement.
Training Flexibility and Wound Variation
Each WBS system consists of an upper and lower torso that disconnects for easier storage and transportation. When
assembled, the simulator functions as a complete human body and can be operated by a single remote control.
Injuries, bleeding, and interventions performed (or not performed) affect overall patient health and vitals.
The connection mechanism used to attach upper and lower torsos is standardized across the entire TacMed Simulation
portfolio, allowing customers the flexibility to customize their configuration by combining different upper and
lower torsos to vary the wounds and features needed for their specific training requirements. The remote-control
software can recognize and pair with any TacMed Simulation remote-controlled simulator, providing seamless
transition when changing components.
Download:
GTSimulators by Global Technologies
TacMed Solutions Authorized Dealer
Whole Body Simulator (HEMO) Trauma Trainer - Pulses/Breathing
| DIMENSIONS: | Lenght: 75 in width: 23 in Chest: 45 in Neck: 17.5 in Shoulders: 51 in |
| WEIGHT: | FULL: 169 EMPTY: 161 lbs |
| POWER SUPPLY: | Four (4) 18V Li-ion batteries |
| BLOOD RESERVOIR: | 2 liters |
