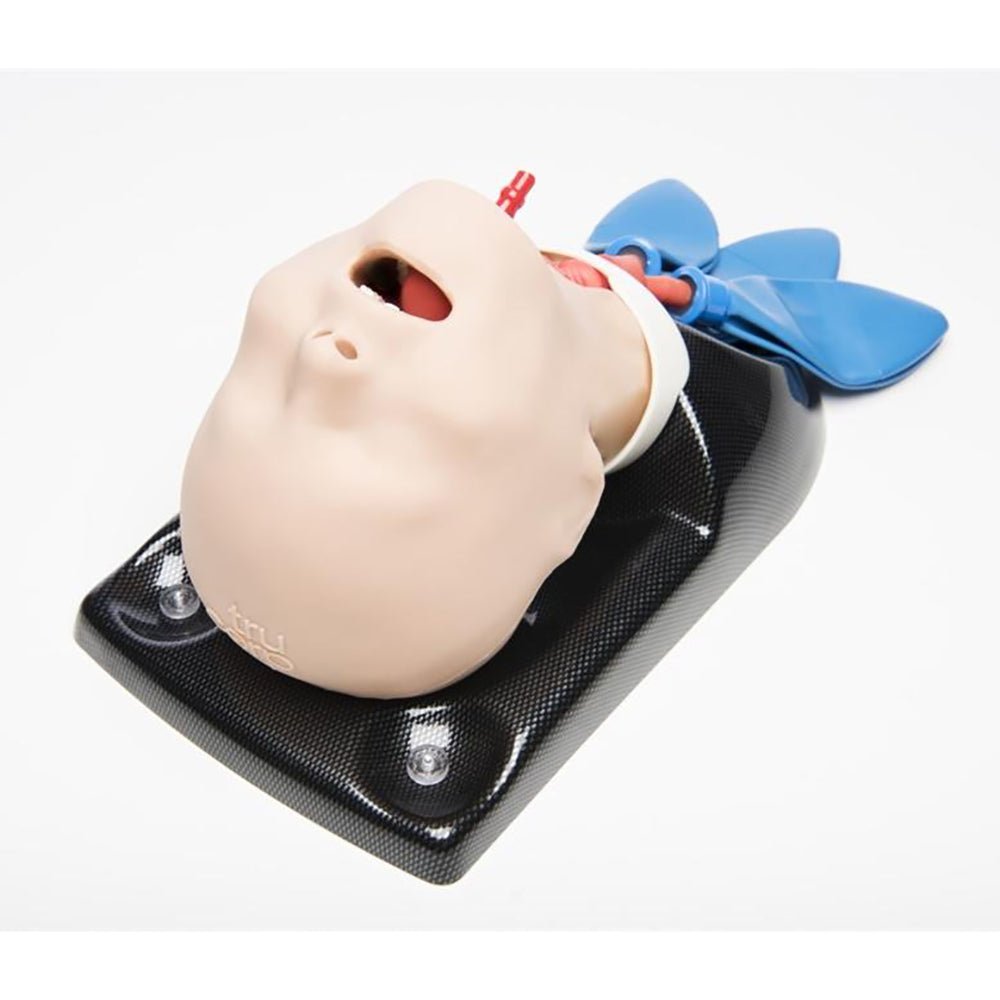

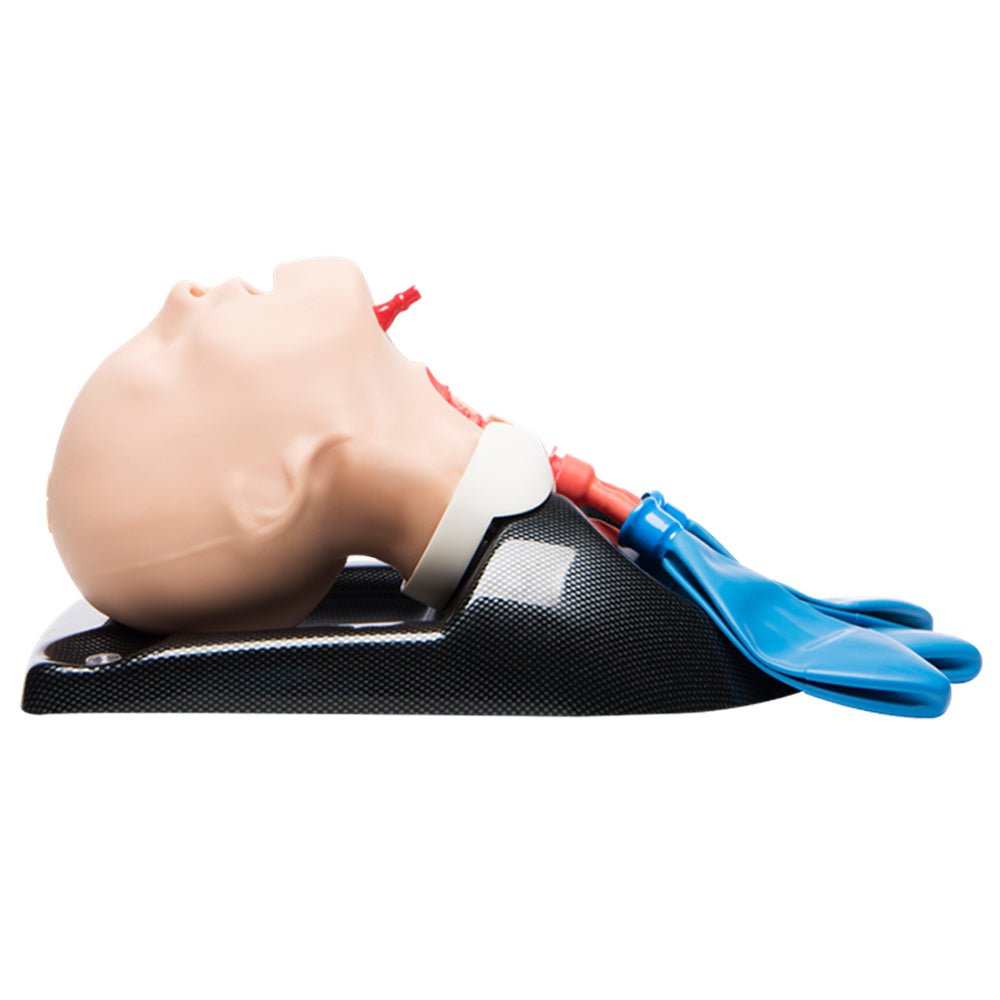

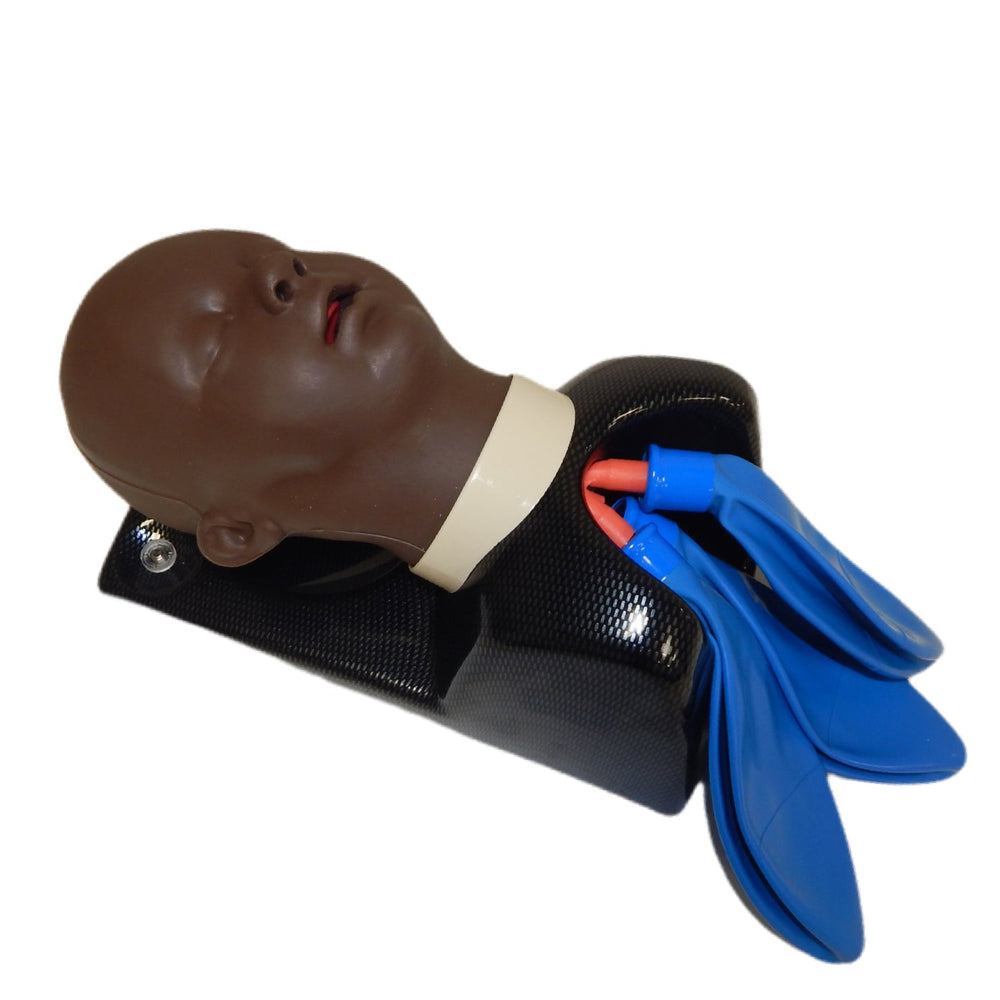

AirSim Child Combo X Model

This manikin is designed as a 6-year old child.

Learners will gain proficiency in the below procedures:

• Direct and video laryngoscopy
• Endotracheal intubation
• Nasotracheal intubation
• Supraglottic device insertion
• Bag valve mask (BVM) ventilation
• Nasogastric (NG) tube insertion techniques

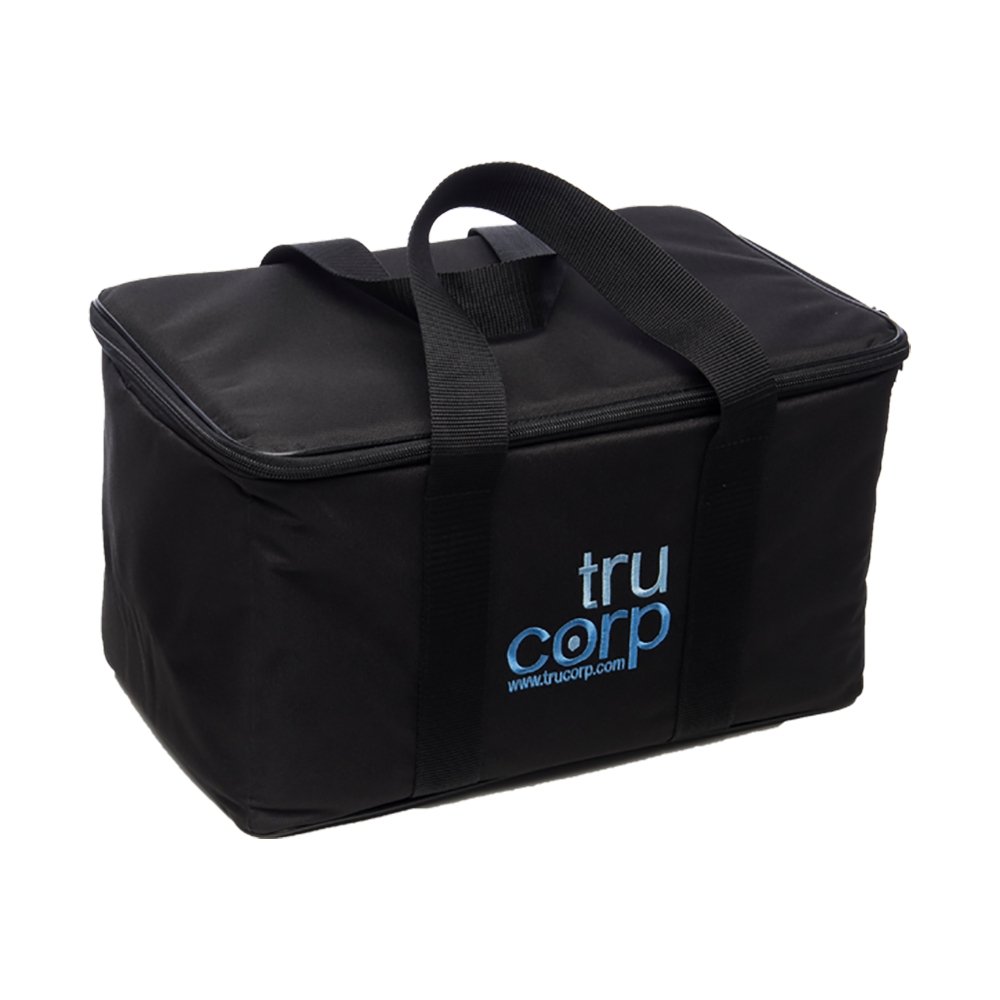

• 1 Carrier/storage case
• 1 Bottle of TruCorp lubrication

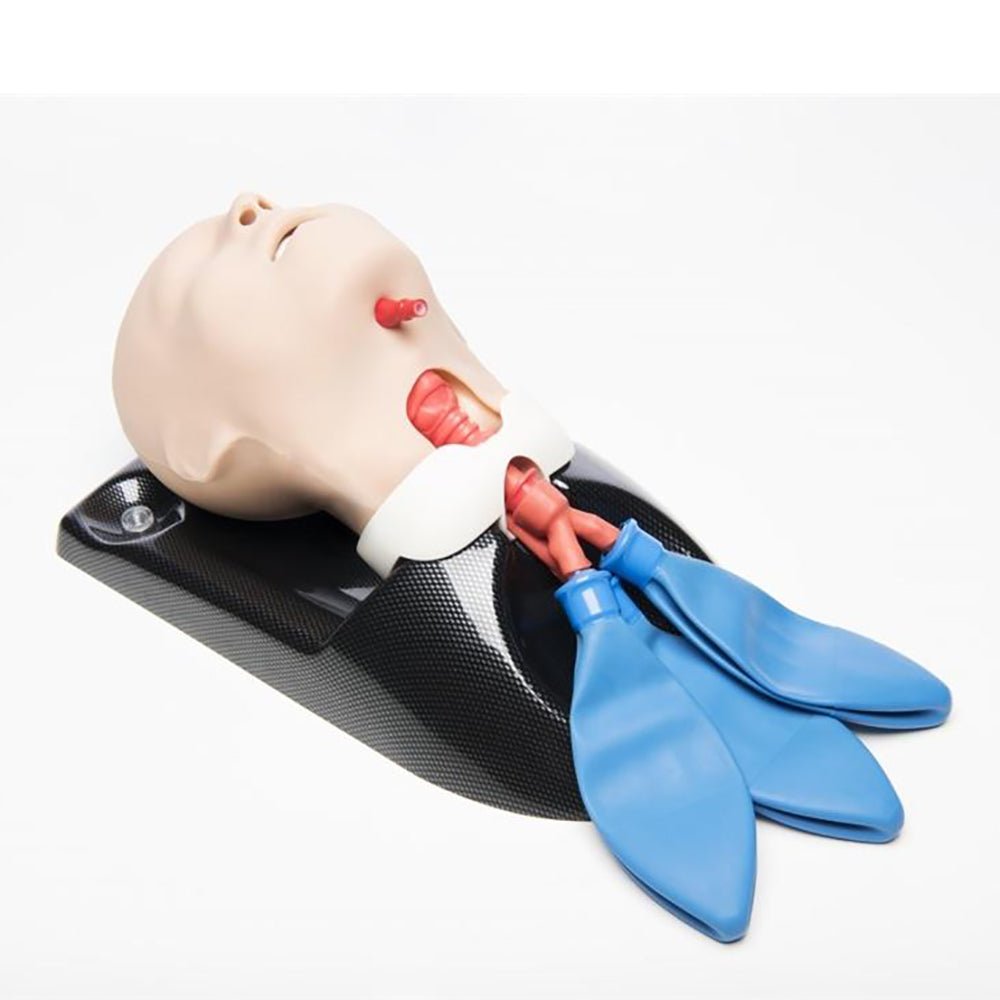

• 3 Child lung bags replicating 2 lungs & stomach
• 5 Larynx inserts (1 attached, 4 extra)
• 1 Wrap around neck skin (attached)
• 2 sets of adhesive pads (attachable to suction cups for increased stability if required)

Lubrication is the only consumable required for ongoing training using the AirSim Child X. TruCorp’s lubrication is a cost-efficient, water-soluble solution and is supplied in a 100ml bottle. Please contact our sales team to purchase.

We recommend TruCorp’s lubrication for best practice, but alternatives can be used provided they are water-soluble lubricants. Please do not use silicone-based products as they will degrade the materials.

• 4.5-5.0 mm ID for nasal intubation
• 5.5-6.0 mm ID for oral intubation
• Size 2 laryngoscope blade
• Size 2 for LMA laryngeal masks
• Similar respective sizes for other supraglottic devices

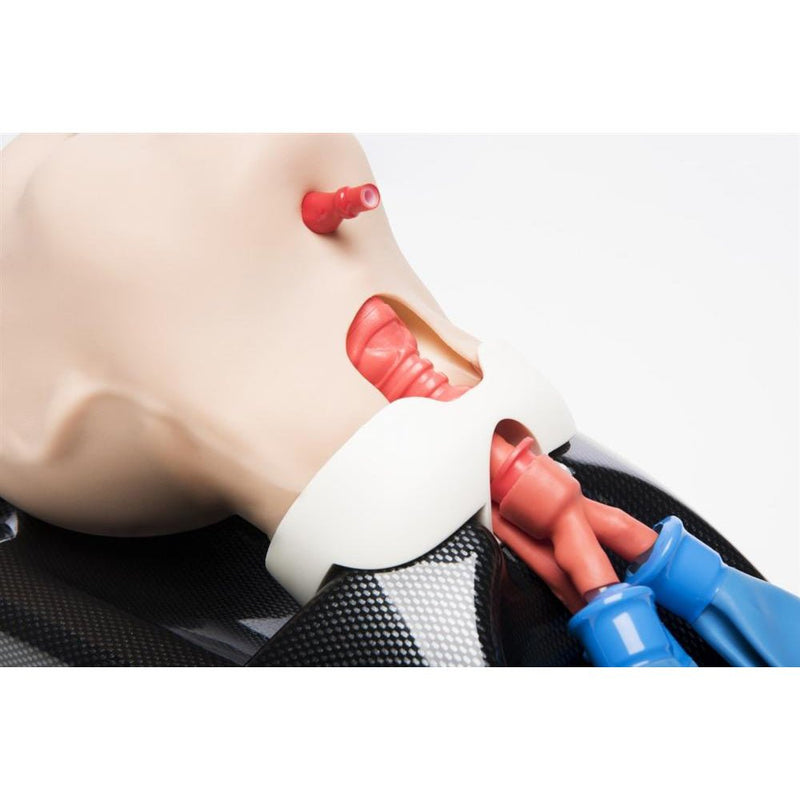

The tongue can be inflated to simulate tongue edema. Attach an empty syringe to the red connector located underneath the skin below the chin and insert approx. 20ml of air.

Yes, if successfully intubated the two lung bags will inflate. If the airway device is incorrectly placed in the esophagus, the stomach bag will inflate.

The AirSim Child Combo X manikin comes with a 5-year warranty on the AirSim X airway and a 1-year warranty on all other parts. Warranty begins from the date of delivery.

Another great benefit of this product is its modular design. This means spare parts can be ordered and interchanged at your location by your team. Please contact us and provide the serial number (found under the manikin base) and an image/video of the issue. If it meets the warranty conditions TruCorp will provide the required parts free of charge. If the warranty has expired, our sales team will provide a quote.

Please store the manikin in clean, dry conditions away from heat and direct sunlight. Avoid contact with metals, solvents, oils or greases, and strong detergents. When the product is not in use please store in the black carrier case provided.

Thoroughly wash the AirSim X airway in warm water. Please use warm soapy water or similar until all visible foreign matter and residue are removed.

Mild detergents or enzymatic cleaning agents may be used on the airway at the proper dilution. The detergent must not contain skin or mucous membrane irritants.

Please do not use any of the following when cleaning the AirSim product range:
• Germicides, disinfectants, or chemical agents such as glutaraldehyde (e.g. Cidex^®)
• Ethylene oxide, phenol-based cleaners, or iodine-containing cleaners

In response to the recent COVID-19 pandemic, we recommend this additional step to ensure the product is fully sanitized:

Generously spray alcohol spray or gel (minimum 75% alcohol) and wipe off. Repeat 3-4 times to fully disinfect the product. This can be done on the silicone skin and the latex airway.
