2.5cm Fat Ring For Abdomen Phantom

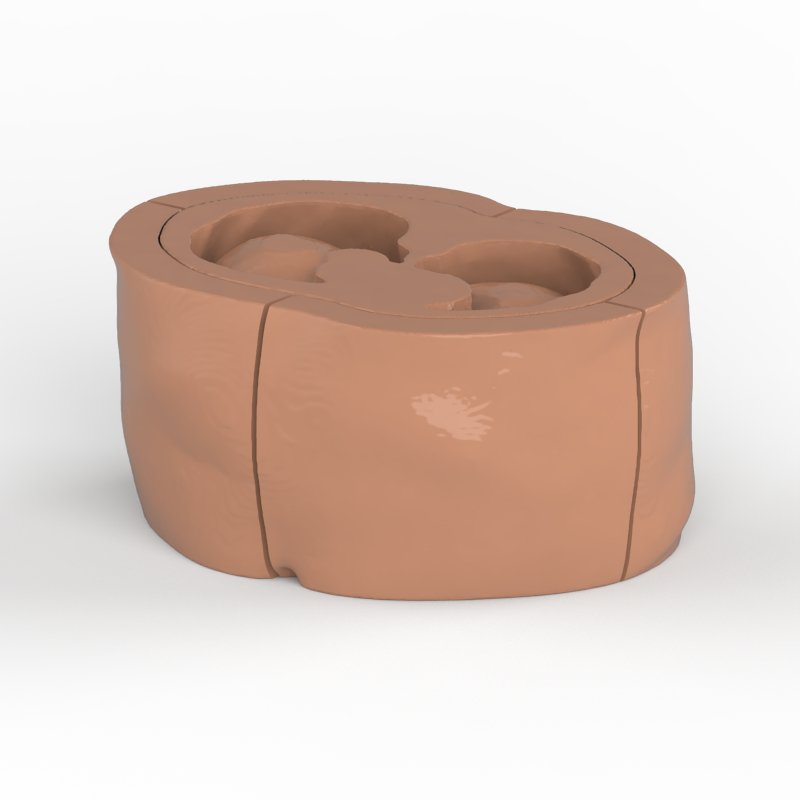

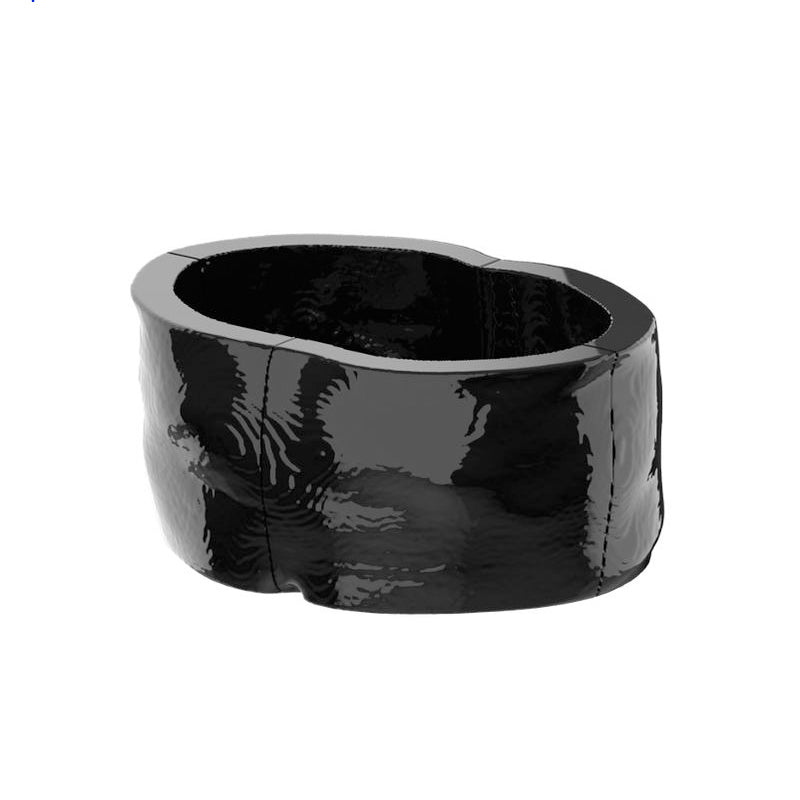

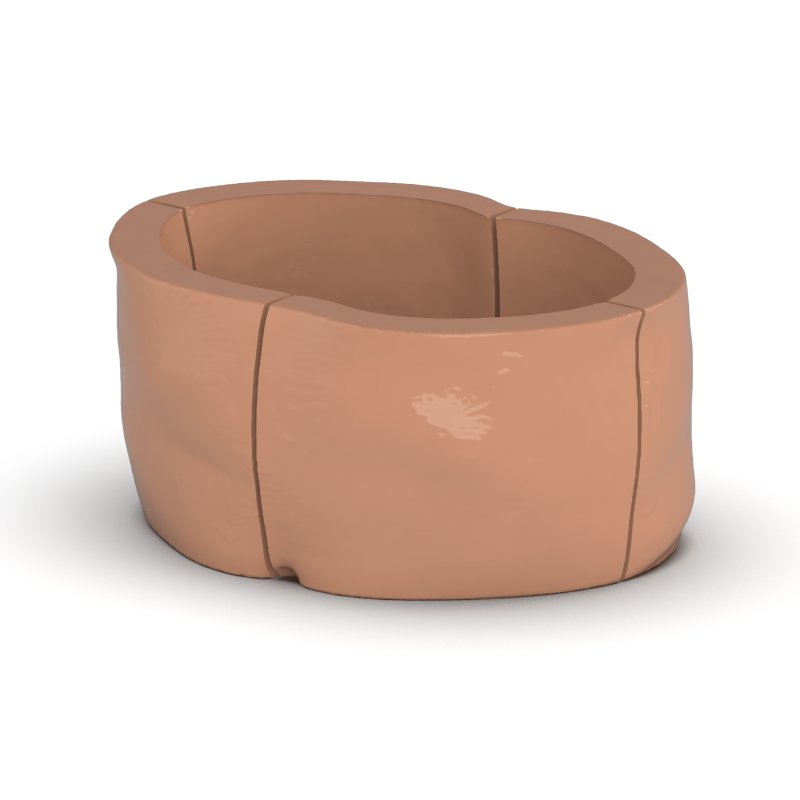

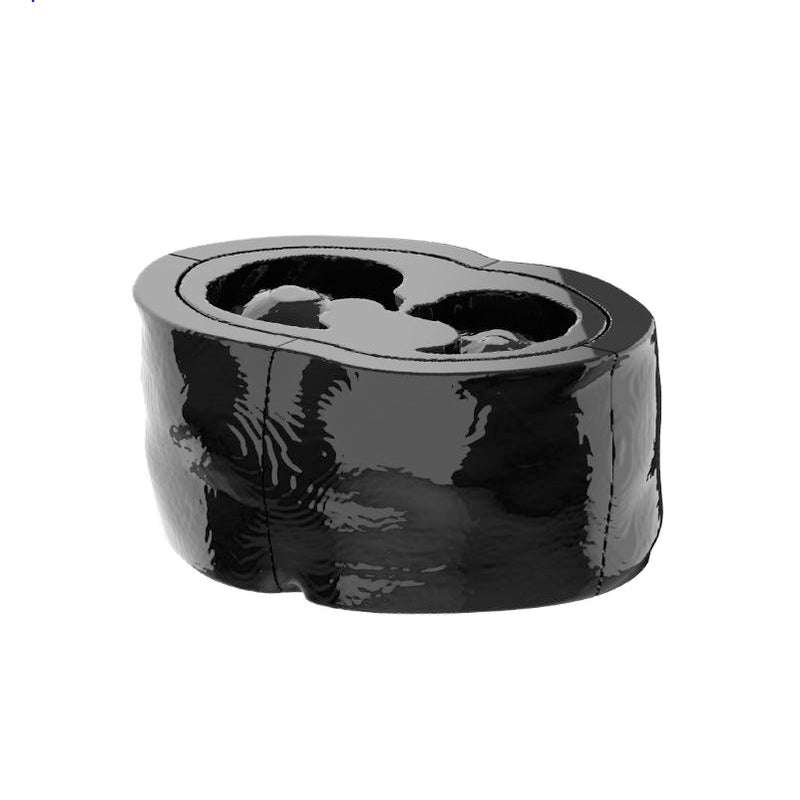

This 2.5 cm thick fat ring is made of adipose tissue equivalent material and can be mounted around abdomen phantoms PX-53-02, PX-53-03 or PX-53-08 for scanning.
It consists of four parts that fit the phantom shape.
Fat rings for other phantoms or with other thicknesses are also available upon request. Contact us

    Specifications:
  • Size: Approx. 32 x 24 x 15 cm
  • Weight: Approx. 2.67 kg
  • Thickness: 2.5 cm
  • Material: Cellulose-polymer composite – (adipose tissue equivalent)
    This accessory fits the following phantoms:
  • Abdomen Phantom - Portal Venous Phase (PX-53-02)
  • Abdomen Phantom - Low-Contrast Spheres (PX-53-03)
  • Abdomen Phantom - PV Mixed Cylinders (PX-53-08)
    General indications:
  • The accessory is made of a cellulose-polymer composite material with properties similar to hardwood. If handled carefully, it will last a long time
  • The accessory is coated with a protective layer. If the protective layer is undamaged, the accessory can be cleaned using a damp cloth (water or mild detergent).
  • Protect from direct sunlight.
  • § Maintain a storage temperature of 10 °C to 30 °C. If the accessory is exposed to temperatures below -10 °C or above 45 °C, it can be severely damaged.
  • The accessory is not certified as medical device.
Download:
Brochure

Made by PhantomX and sold by GTSimulators.

GTSimulators by Global Technologies
PhantomX Authorized Dealer

Product Dimensions and Weight:
  • Size: Approx. 32 x 24 x 15 cm
  • Weight: Approx. 2.67 kg
