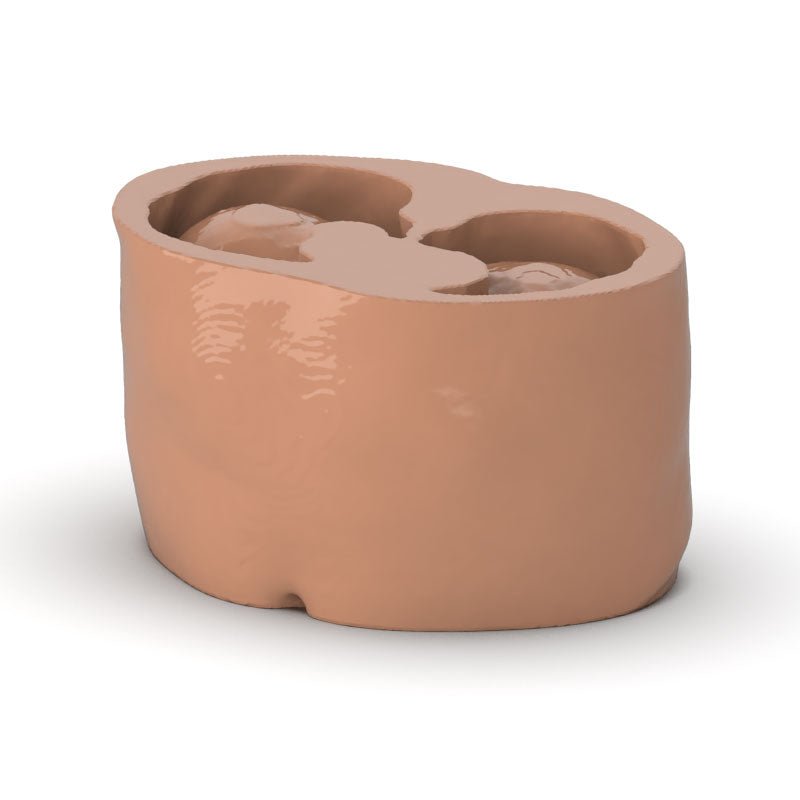

Abdomen Phantom - Low-Contrast Spheres

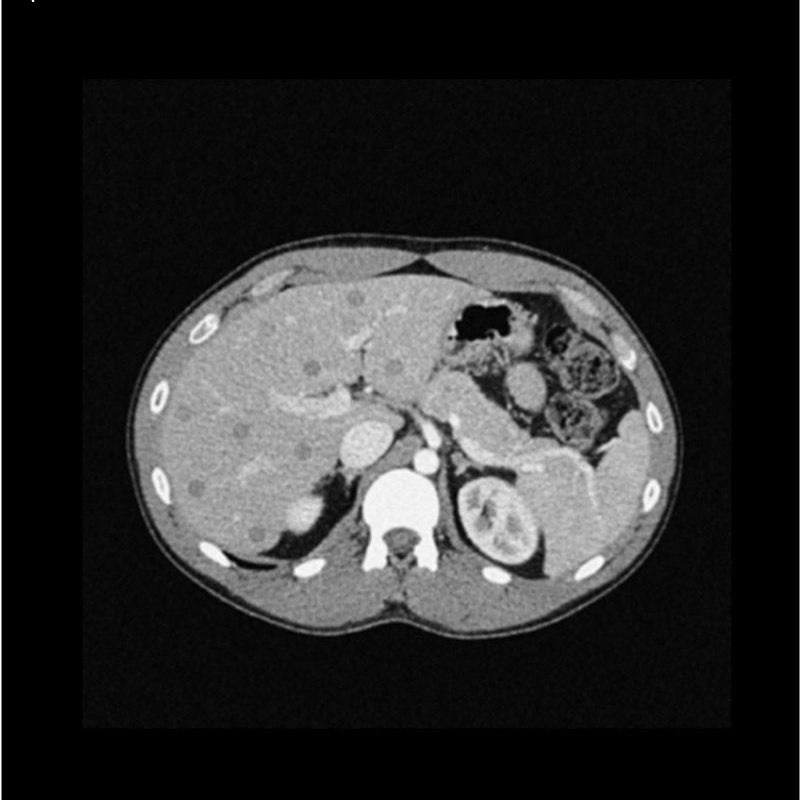

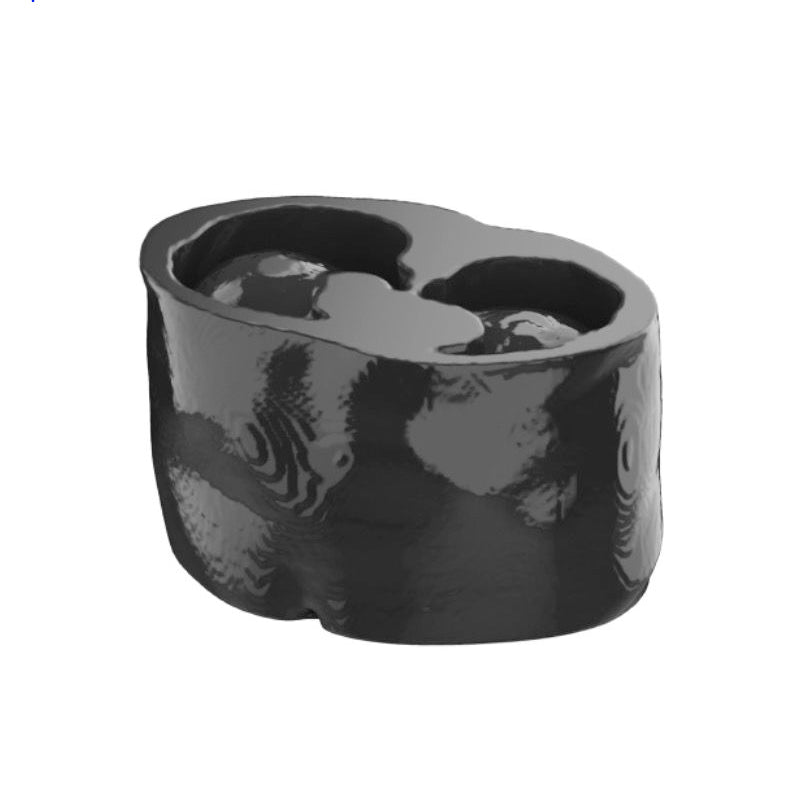

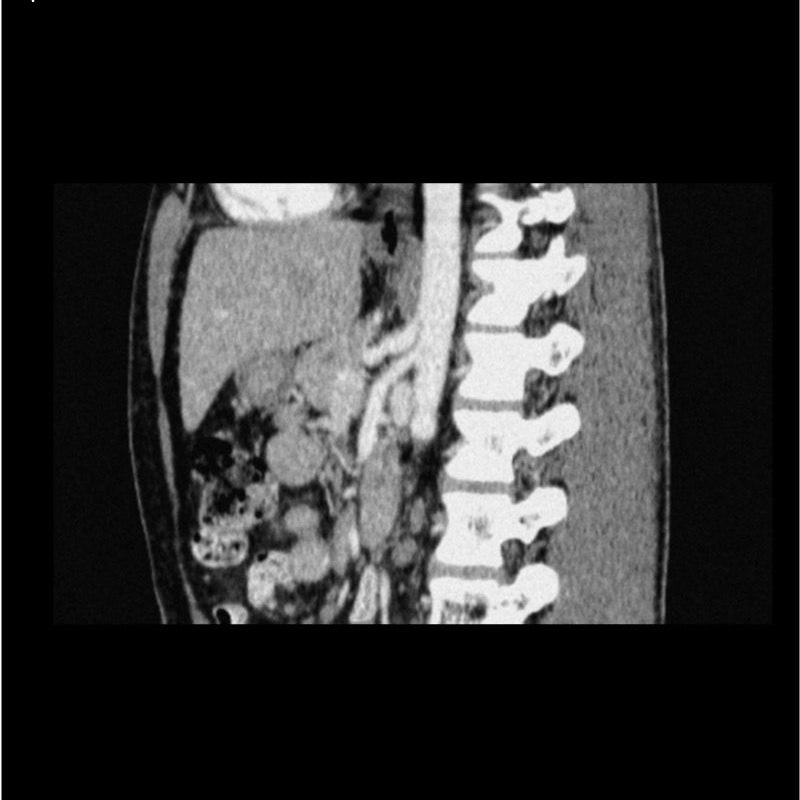

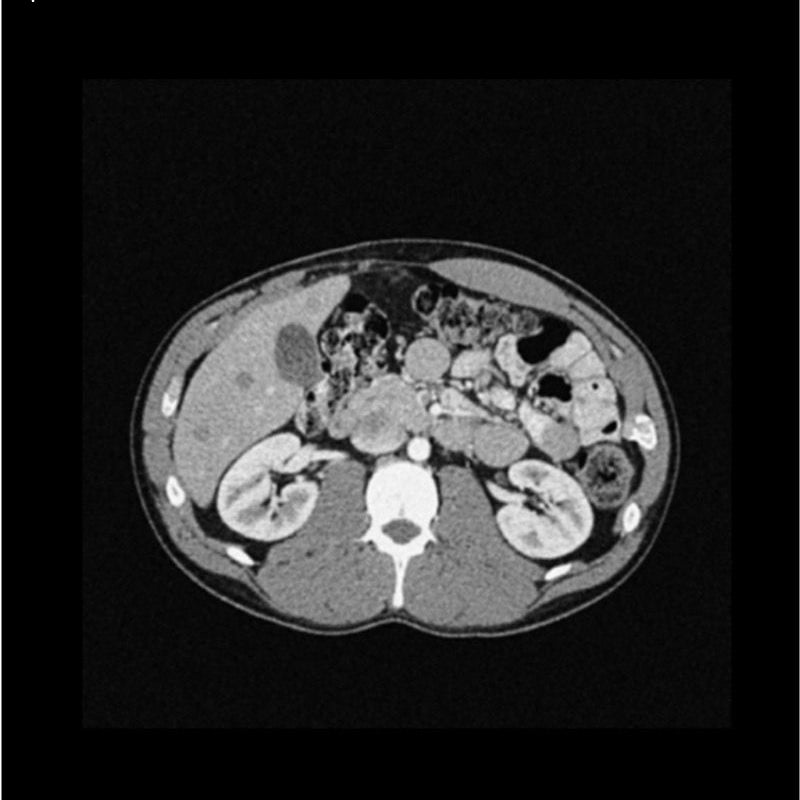

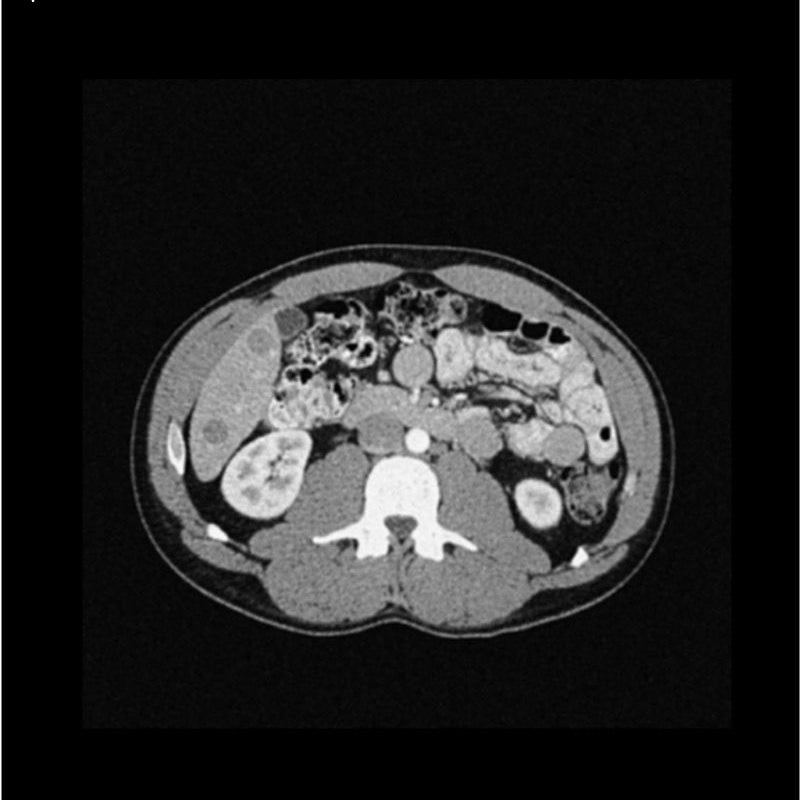

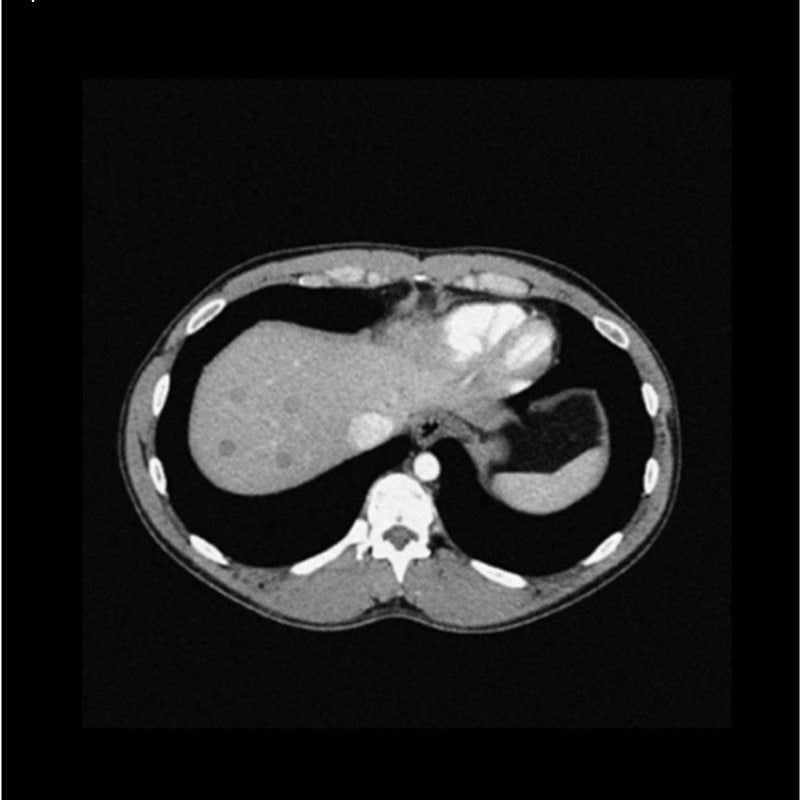

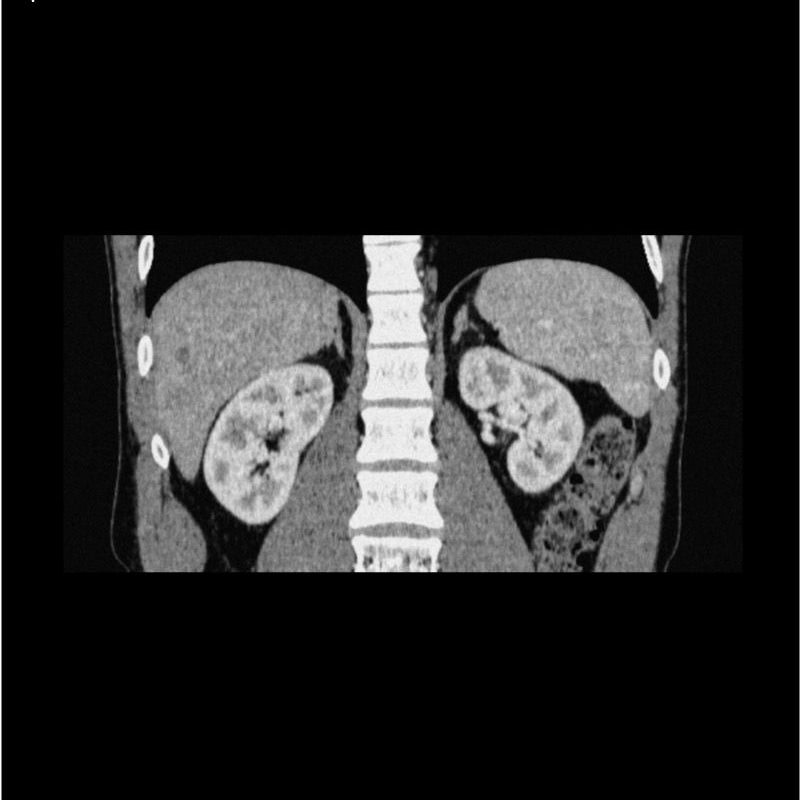

This phantom simulates a contrast medium enhanced abdomen in portal venous phase. It covers the eleventh thoracic vertebra to the fourth lumbar vertebra (partially included). The phantom has 42 spherical liver lesions with 8 and 12 mm diameter and lesion contrasts of 10, 20, 30 and 40 HU to the surrounding liver.

The phantom can be used in CT (including CBCT) to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications. It is also suited for training purposes. The phantom provides a detailed and realistic simulation of soft and bone tissue. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.

    SPECIFICATIONS:
  • Size: Approx. 27 x 19 x 15 cm
  • Weight: Approx. 5 kg
  • Base material: Cellulose-polymer composite
  • Optimal tube voltage: 120 kVp – (adaptable upon request)
DIAGNOSTIC FEATURES:

Realistic simulation of vasculature, bone and soft tissues, including the liver, gallbladder, pancreas, spleen, adrenals, kidneys, stomach, small intestine and colon.

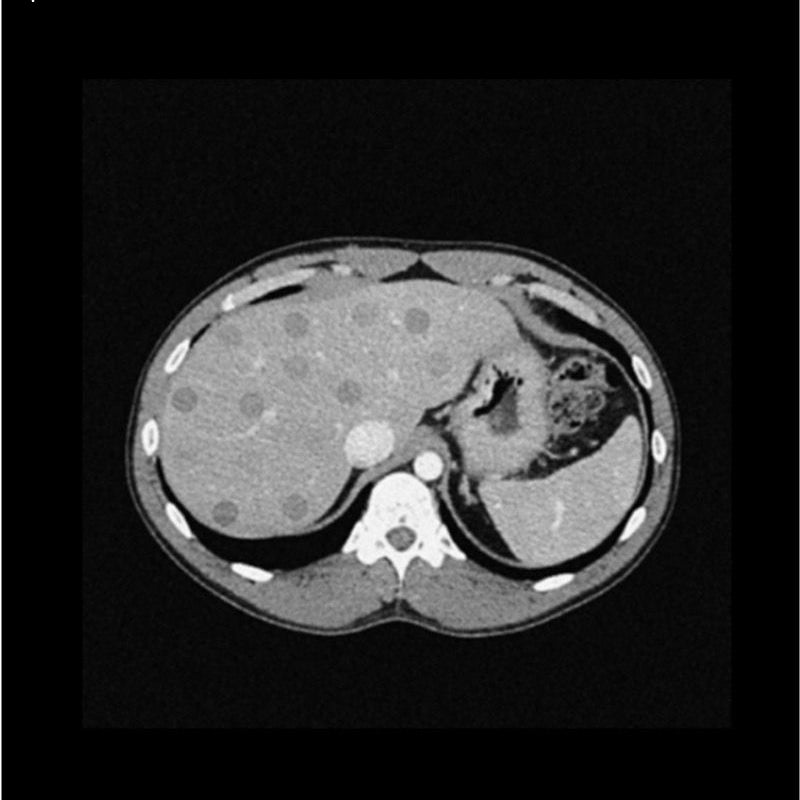

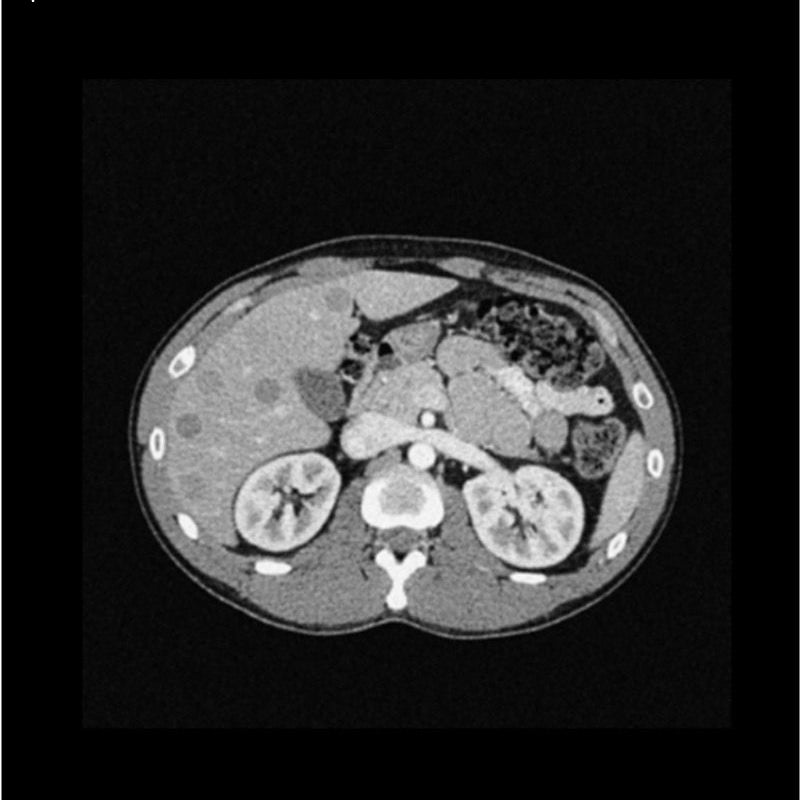

    42 spherical liver lesions in 7 sections.
  • Lesion diameter: 8 mm and 12 mm
  • Lesions contrasts: 10, 20, 30 and 40 HU at 120 kVp
  • Section 1: 4 lesions
  • Section 2: 15 lesions
  • Section 3: 9 lesions
  • Section 4: 6 lesions
  • Section 5: 3 lesions
  • Section 6: 3 lesions
  • Section 7: 2 lesions
    The following accessories are available for this phantom:
  • 5 cm Fat Ring For Abdomen Phantom (PX-53-06)
  • 2.5 cm Fat Ring For Abdomen Phantom (PX-53-07)
    General indications:
  • The phantom is made of a cellulose-polymer composite material with properties similar to hardwood. If handled carefully, it will last a long time.
  • The phantom is coated with a protective layer. If the protective layer is undamaged, the phantom can be cleaned using a damp cloth (water or mild detergent)
  • Protect from direct sunlight.
  • Maintain a storage temperature of 10°C to 30°C. If the phantom is exposed to temperatures below -10°C or above 45°C, it can be severely damaged.
  • The phantom is not equipped for dose measurements with dosimeters and it is not suited for material characterization with dual energy CT.
  • The phantom is not certified as medical device.
  • Air voids are filled with cellulose-polymer composite of approx. -160 HU.
Download:
Brochure

Made by PhantomX and sold by GTSimulators.

GTSimulators by Global Technologies
PhantomX Authorized Dealer

Product Dimensions and Weight:
  • Size: 27 x 19 x 15 cm
  • Weight: 5kg / 11 lbs


    General indications:
  • Phantoms are manufactured of a cellulose-polymer composite material with similar properties to hardwood. If treated carefully, they will last for a long period.
  • The phantoms are coated with a protective layer. If the protective layer is unharmed, the phantoms can be cleaned using a damp cloth (water or mild detergent).
  • Protect from direct sunlight.
  • Maintain a storage temperature of 10 °C to 30 °C.
  • If the phantom is exposed to temperatures below -10 °C or above 45 °C, it can be seriously damaged.
  • The phantom is not equipped for dose measurements with dosimeters and it is not suited for material characterization with dual energy CT.
  • Air voids are filled with cellulose-polymer composite of approx. -80 HU.
