Adult Ear Phantom for X-Ray CT, Ultrasound and MRI
Ships in 12-16 weeks
0.0 lb
All pictures shown are for illustration purposes only. The actual product appearance may vary.
Adult Ear Phantom for X-Ray CT, Ultrasound and MRI
Item # TPS-ER-A01
$2,646.00
$2,700.00
You save $54.00
Need an estimate?
Click Add To Quote
Features & Specifications
-
by
A trusted GT partner -
FREE Shipping
U.S. Contiguous States Only -
2-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request
by
Frequently Bought Together
(
Adult Ear Phantom for X-Ray CT, Ultrasound and MRI
The Adult Ear Phantom is designed around the complex anatomy of a human ear and is valuable for researching and developing noise reduction equipment. It can be customized for projects involving Ultrasound, X-Ray/CT, and MRI imaging. The phantom is an ideal tool for testing and calibrating hearing aid equipment and can be used as a stand-alone product or incorporated into the complete skull or head phantoms.
The Adult Ear Phantom is a product with the complex anatomy of a human ear, and it can be used for research and development of noise reduction equipment. The phantom can be customized to match various projects involving Ultrasound, X-Ray/CT, and MRI imaging methods. The ear phantom could be your ideal tool to test and do calibration-related work on any hearing aid equipment.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Excellent results can also be achieved with Proton Density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic and within the range of about 100 ms.
Features:
- Ear Cartilage Tissue

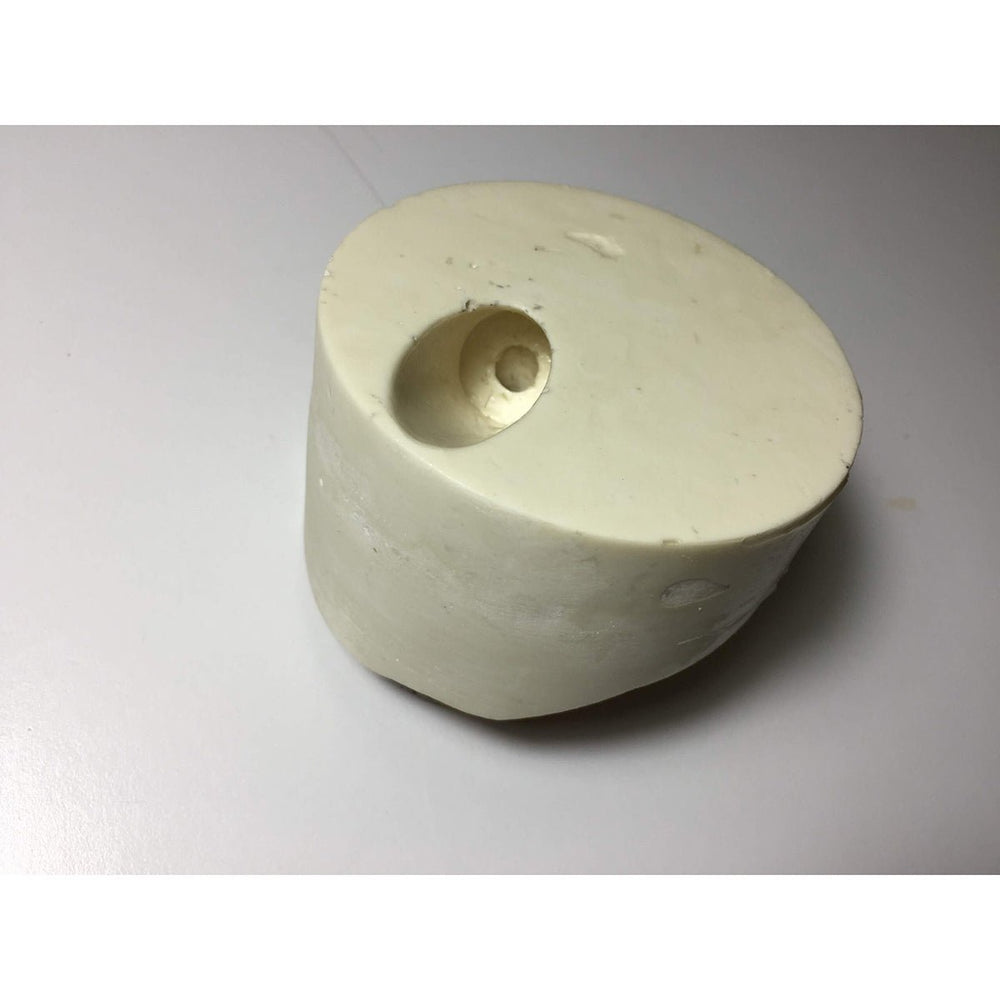

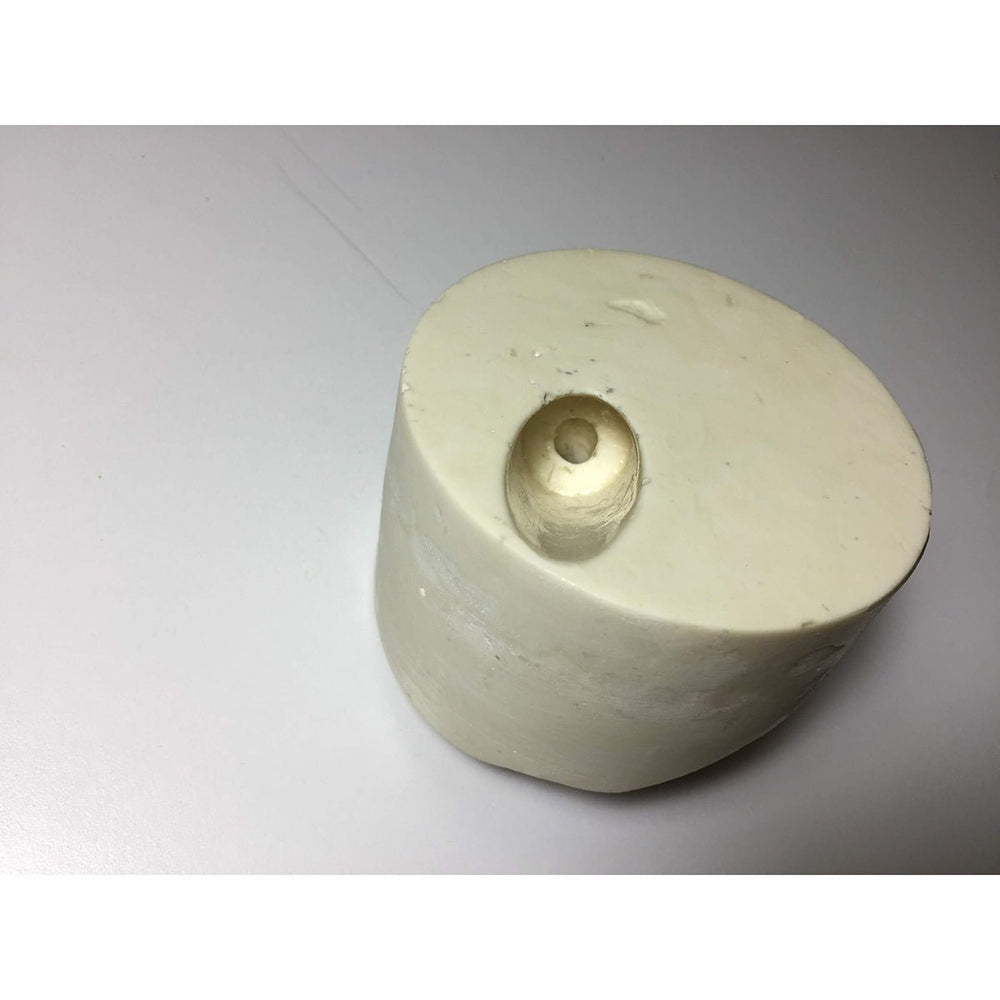

- Bone with Ear Canal
- Acoustically Accurate Skin Mimicking-Tissue
- Adult Ear Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Materials Used:
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
- Height: 3 x 3 x 3 in (approx.)
- Weight: 1 lb (approx.)
- Height: 12 x 10 x 10 in (approx.)
- Weight: 3 lbs (approx.)
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

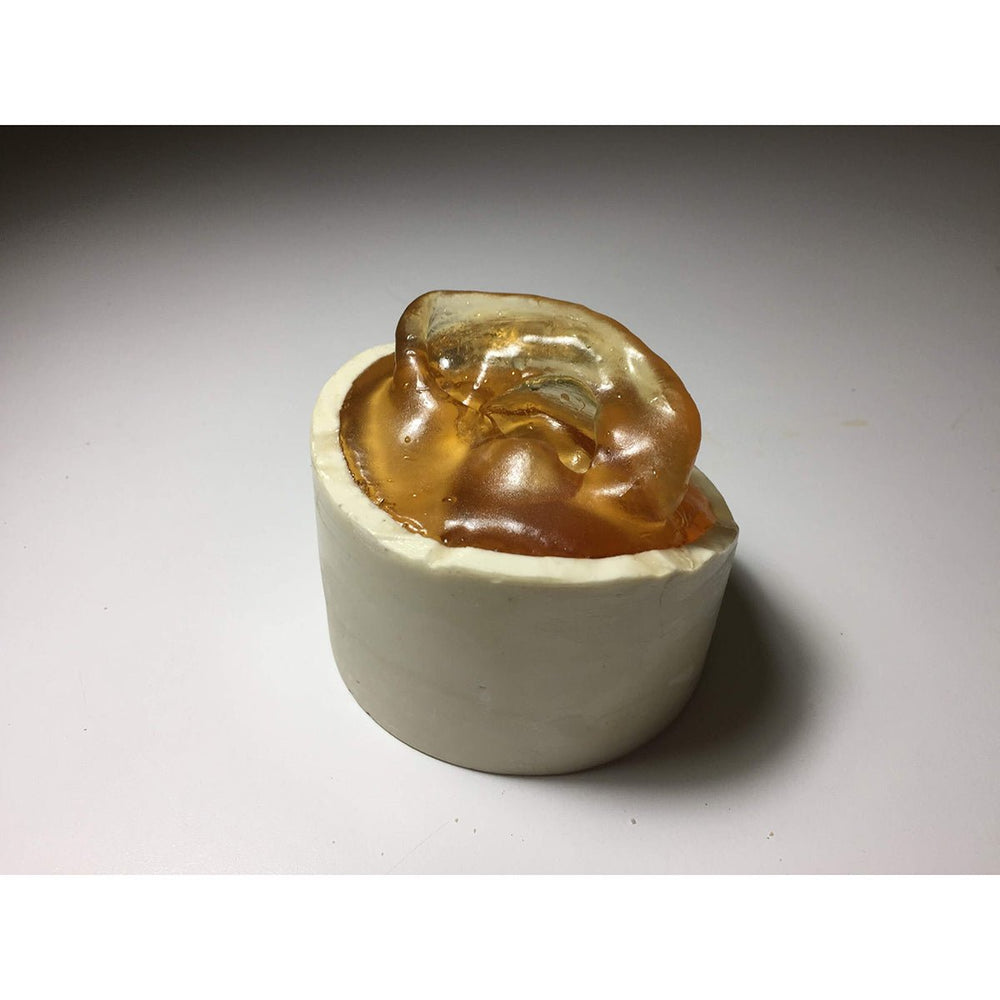

Front View

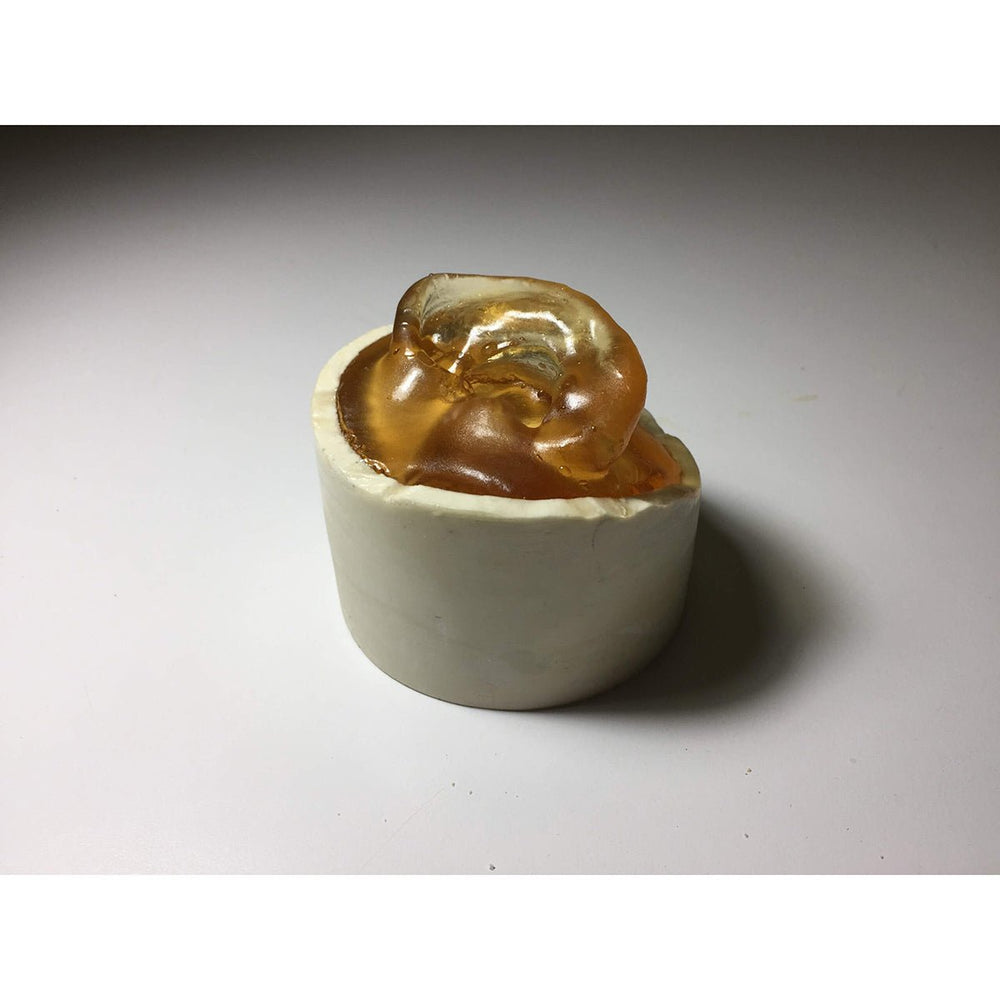

Lateral View

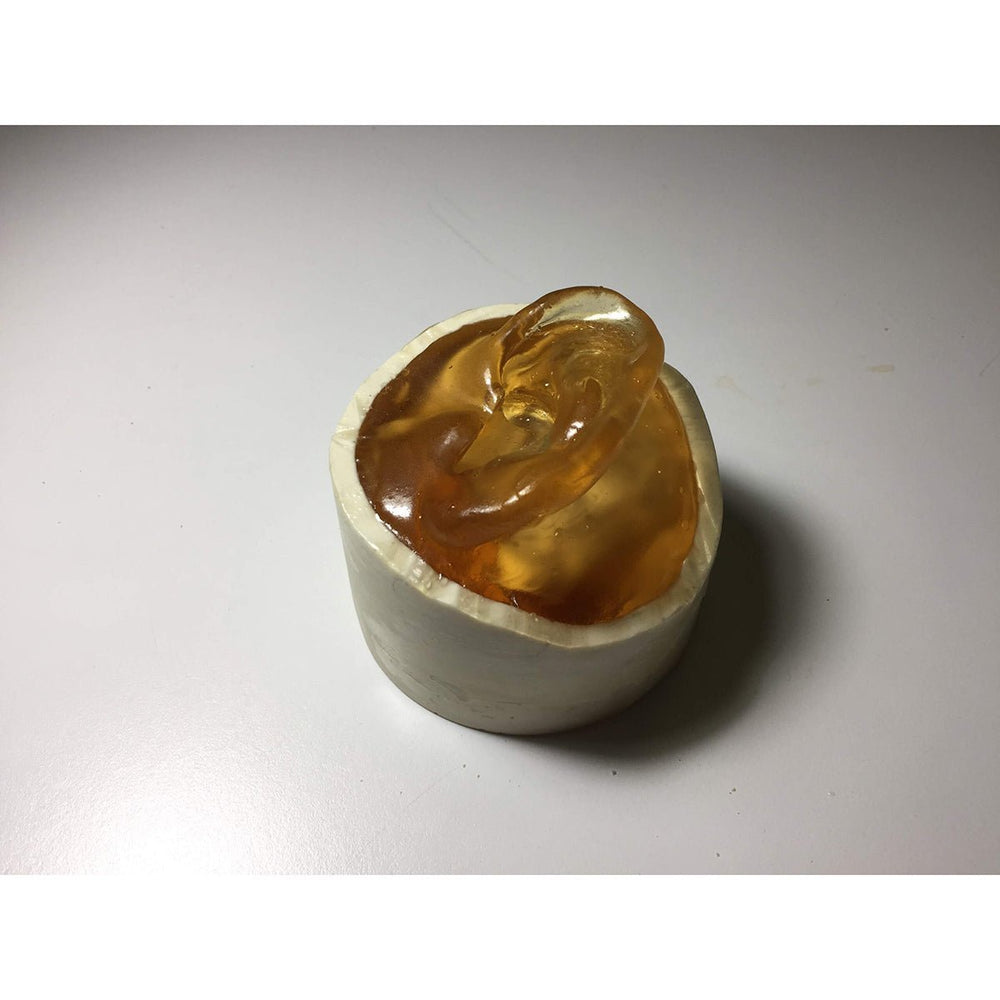

Perspective View

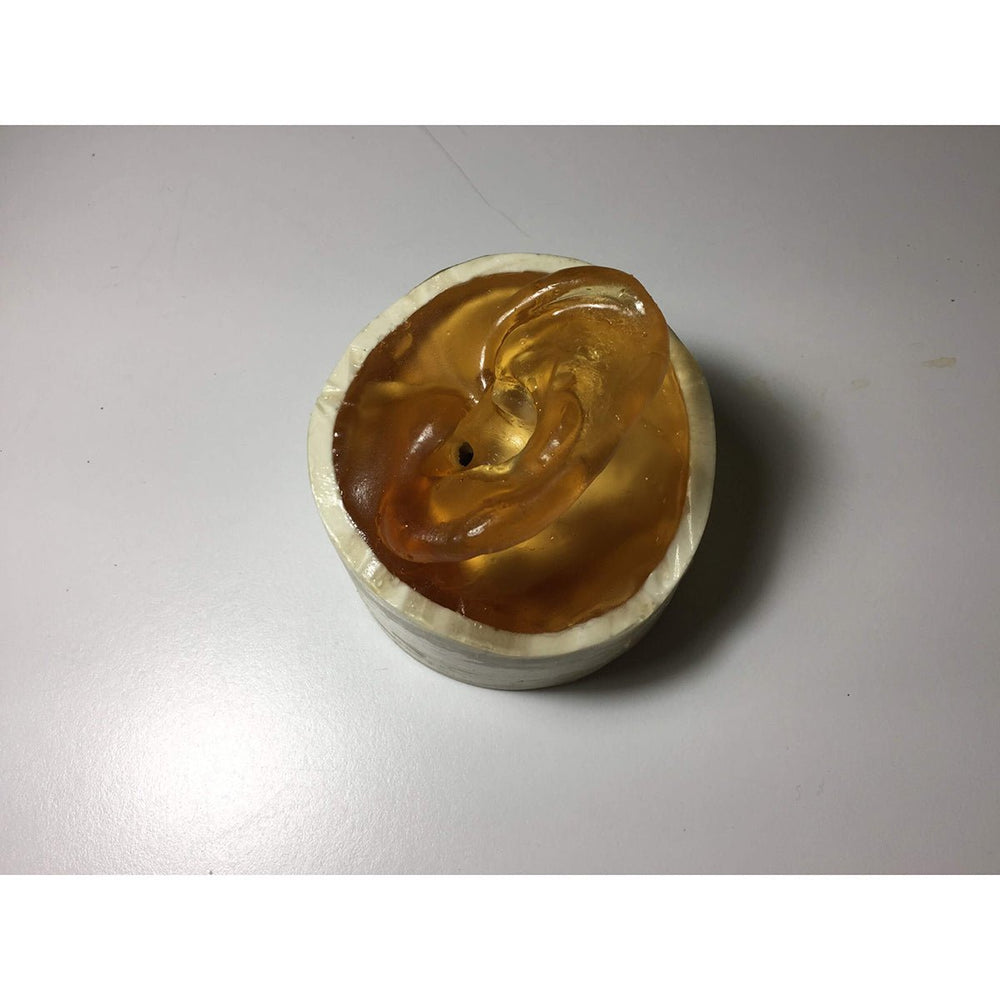

Top View
X-Ray Scan
Technical Properties:
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness | Speckles |
|---|---|---|---|---|---|
| Soft Tissue | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 Shore OO | NO |
| Cartilage | 1800 ± 10 | 1.03 | 25 ± 2 | 65 Shore A | NO |
| Temporal Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A |
Thermal Properties of our Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
HU Values of the Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Materials Used:
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
- Height: 3 x 3 x 3 in (approx.)
- Weight: 1 lb (approx.)
- Height: 12 x 10 x 10 in (approx.)
- Weight: 3 lbs (approx.)
