Adult Heart Phantom with Water Tank for X-Ray CT, Ultrasound and MRI
Item # TPS-HT-A01Need an estimate?
Click Add To Quote
-
by
A trusted GT partner -
FREE Shipping
U.S. Contiguous States Only -
2-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request
Adult Heart Phantom with Water Tank for Ultrasound, MRI, CT Scan and Endoscopic

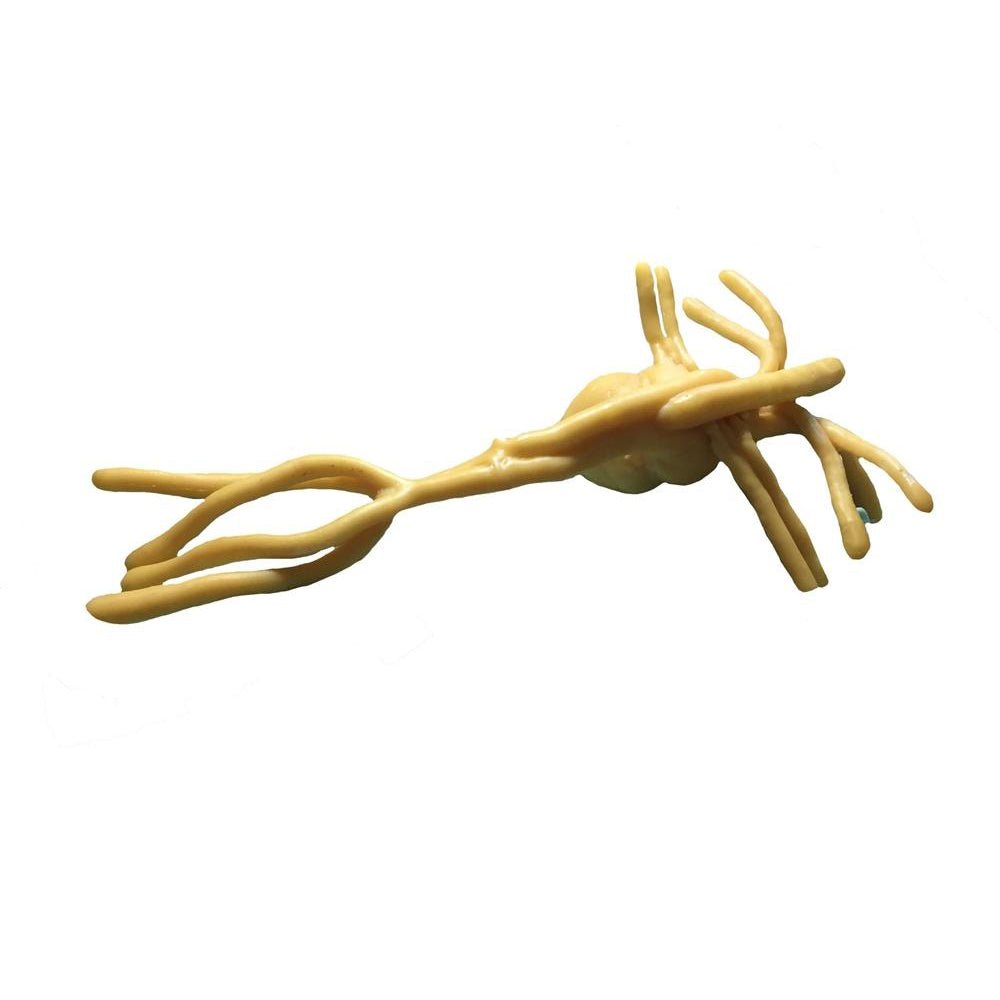

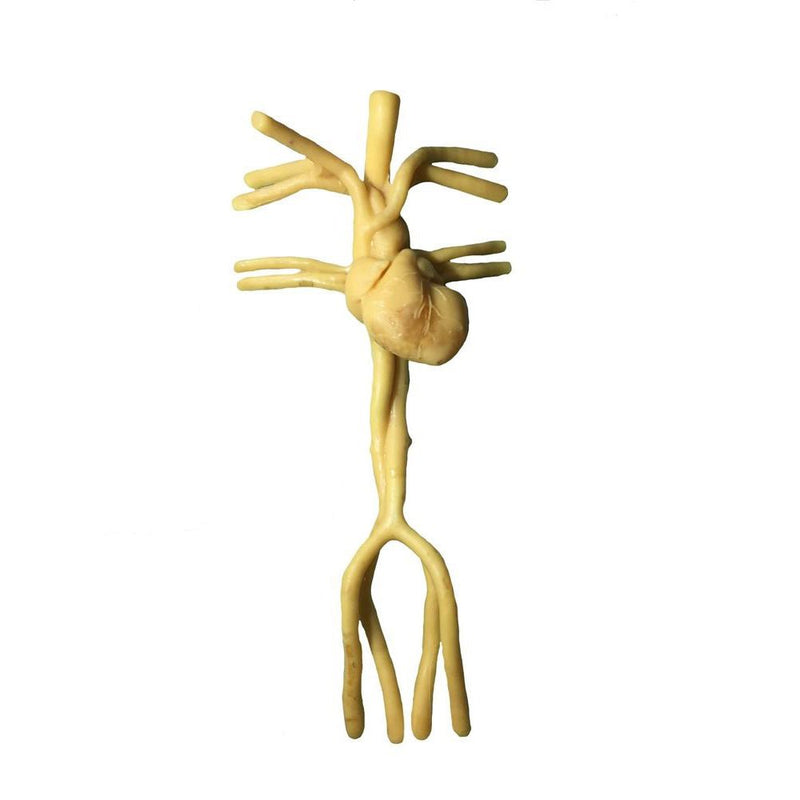

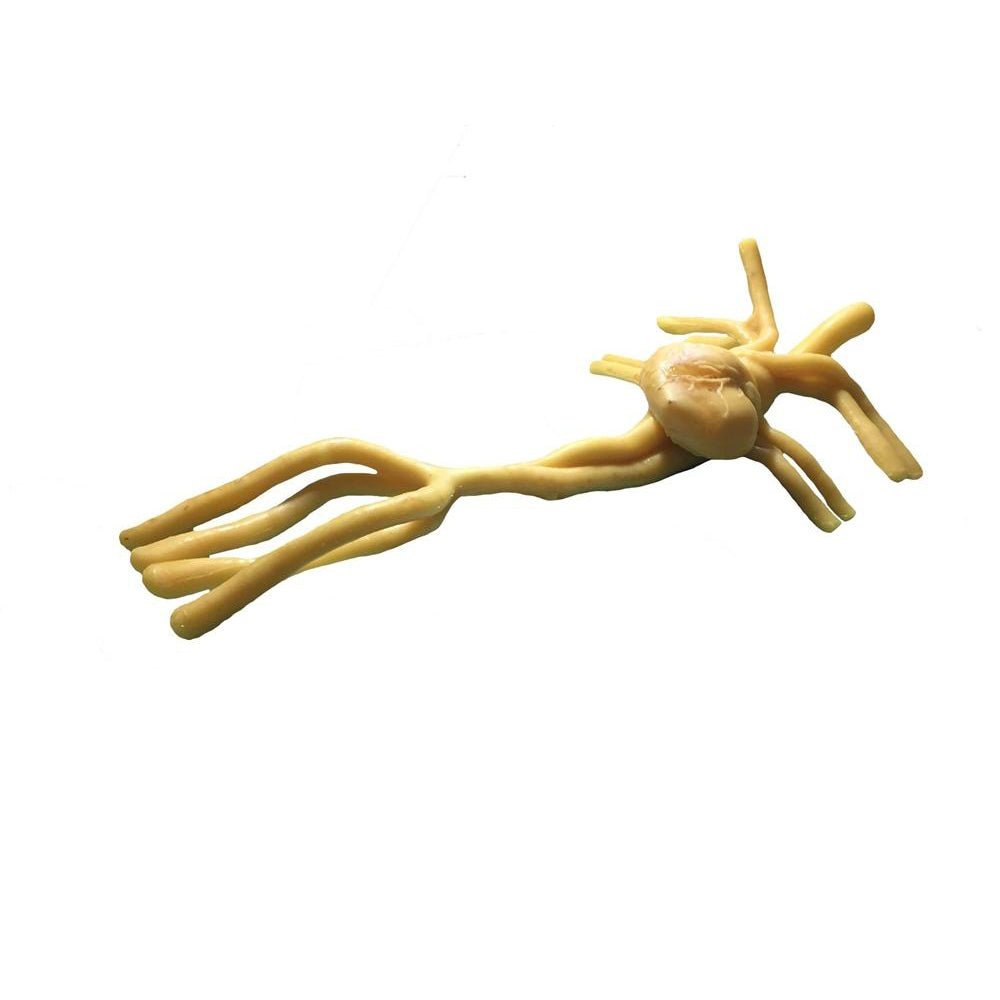

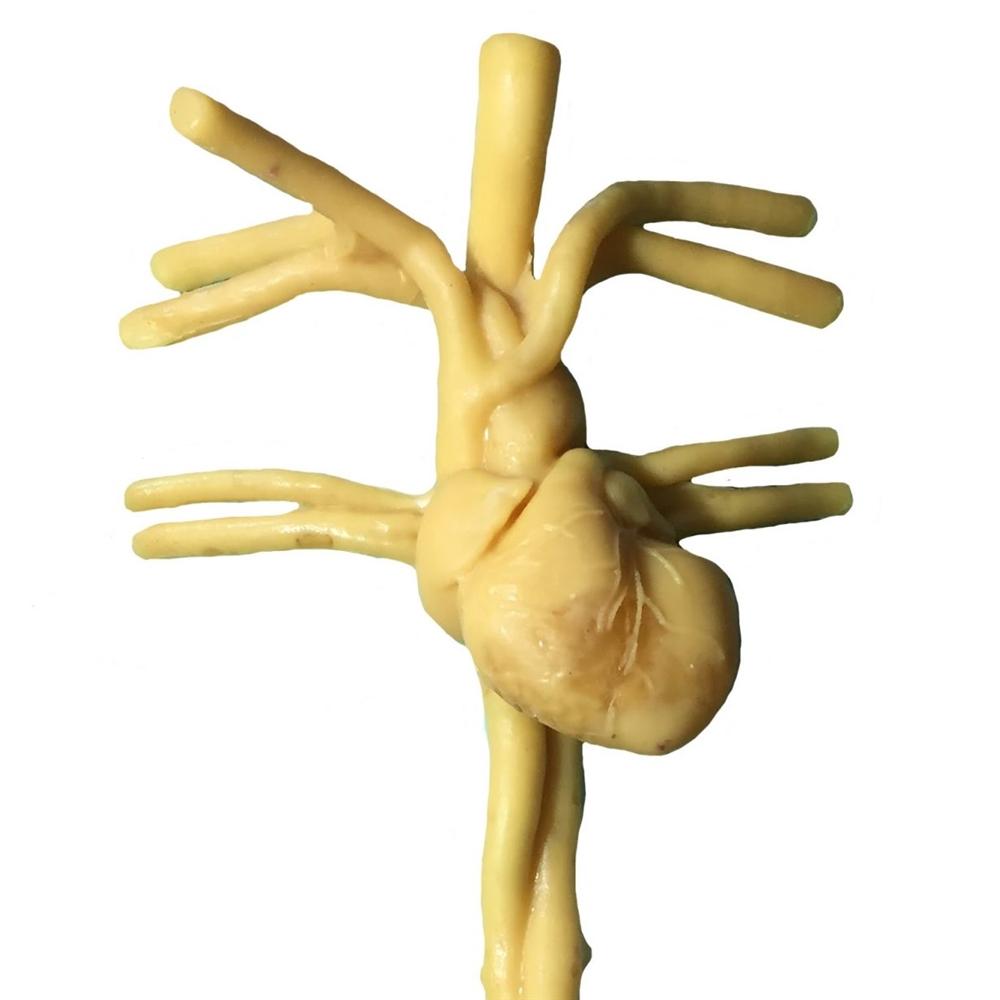

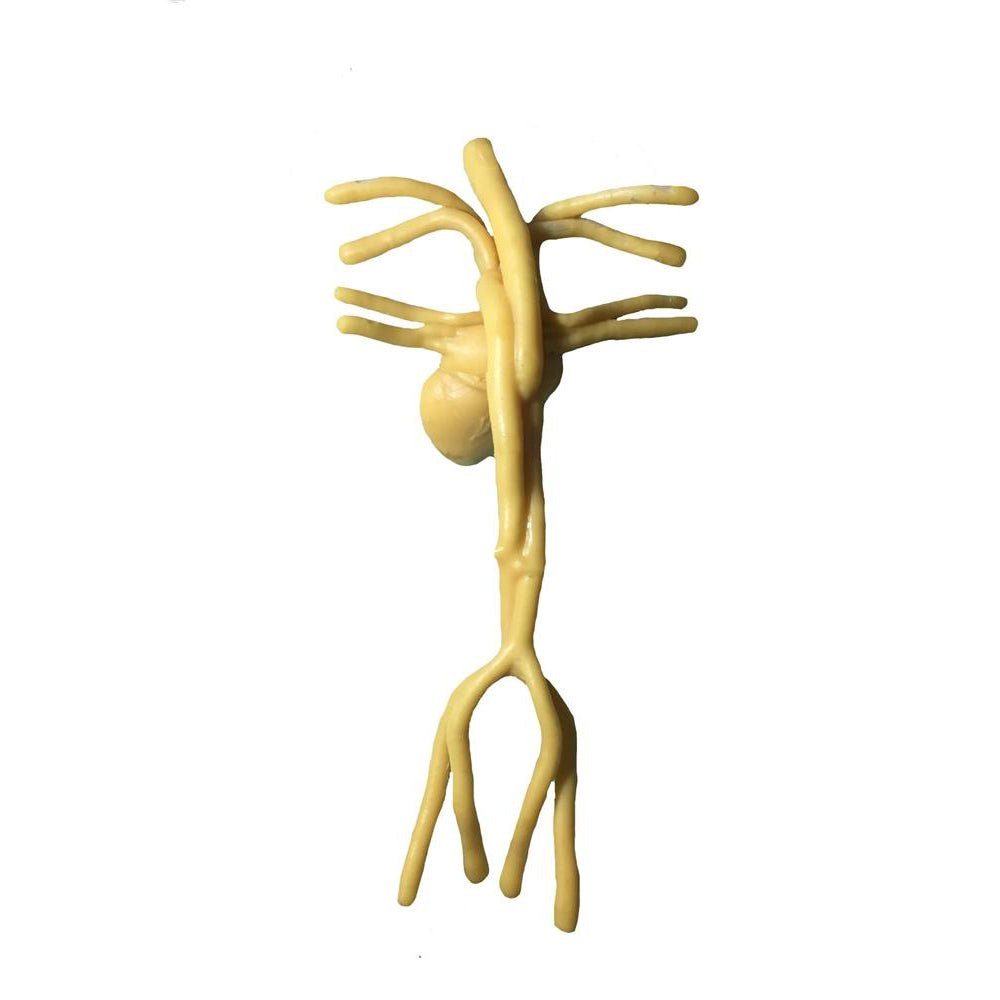

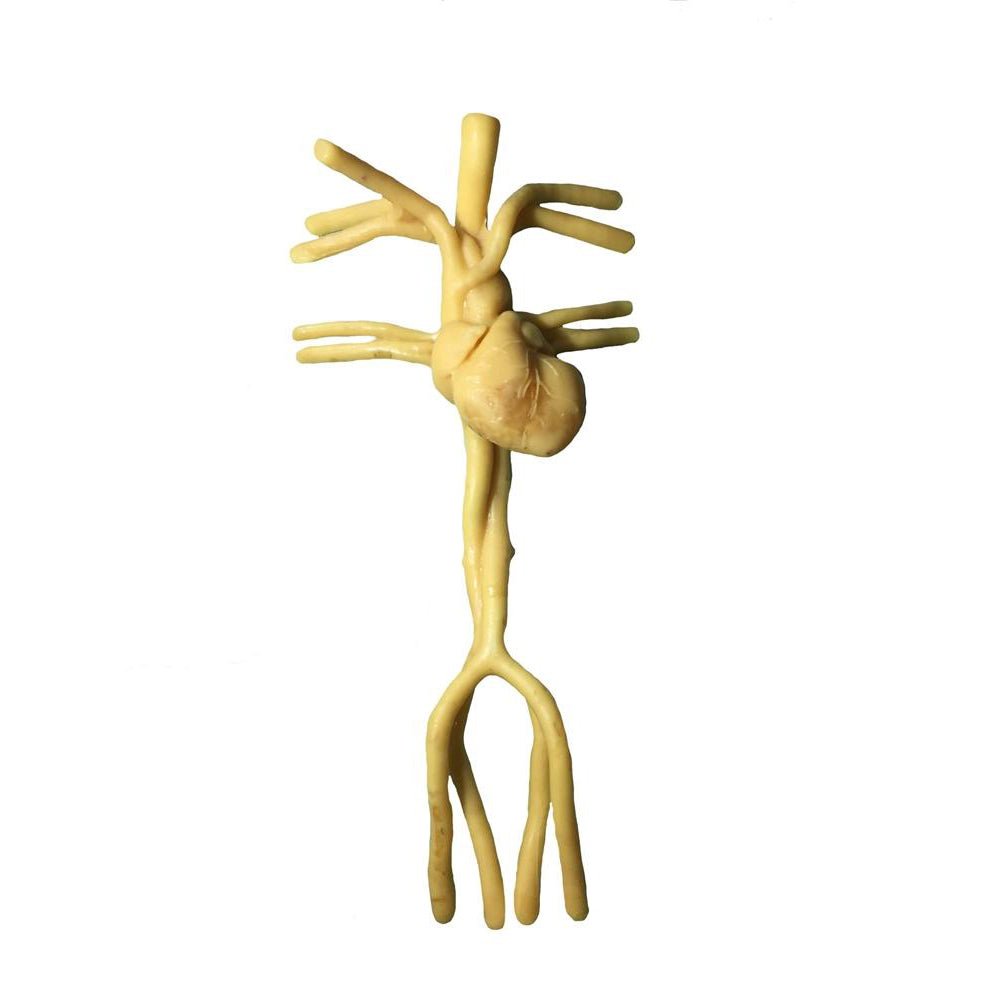

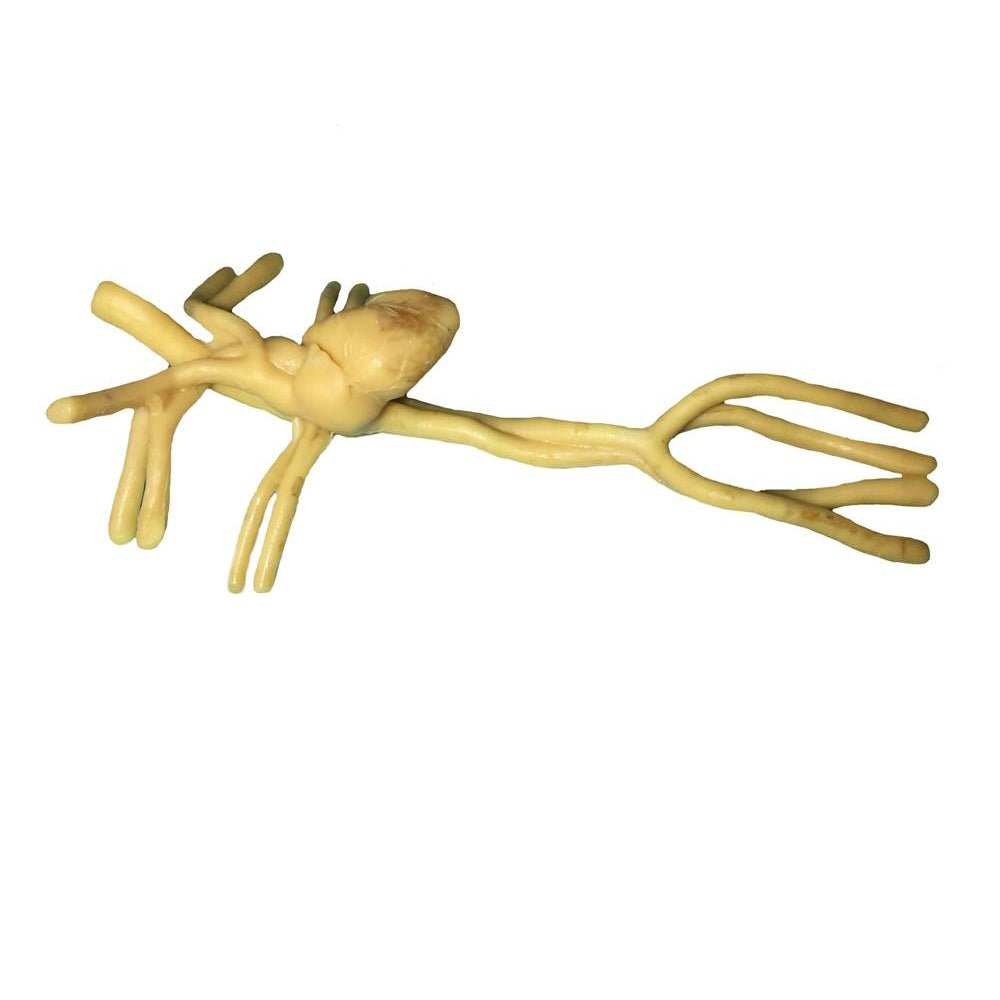

The Adult Heart Phantom is a realistic simulator of a healthy human heart, compatible with X-Ray/CT, Ultrasound, and
MRI. It supports beating functionality and lifelike motions, making it useful for echocardiograms, endoscopies,
catheter insertion, and cardiovascular research. Made from synthetic material with accurate anatomical structures,
the phantom is fully customizable for various biomedical projects. A water tank is included to ensure proper
mounting and performance for viewing internal structures and heart motion.

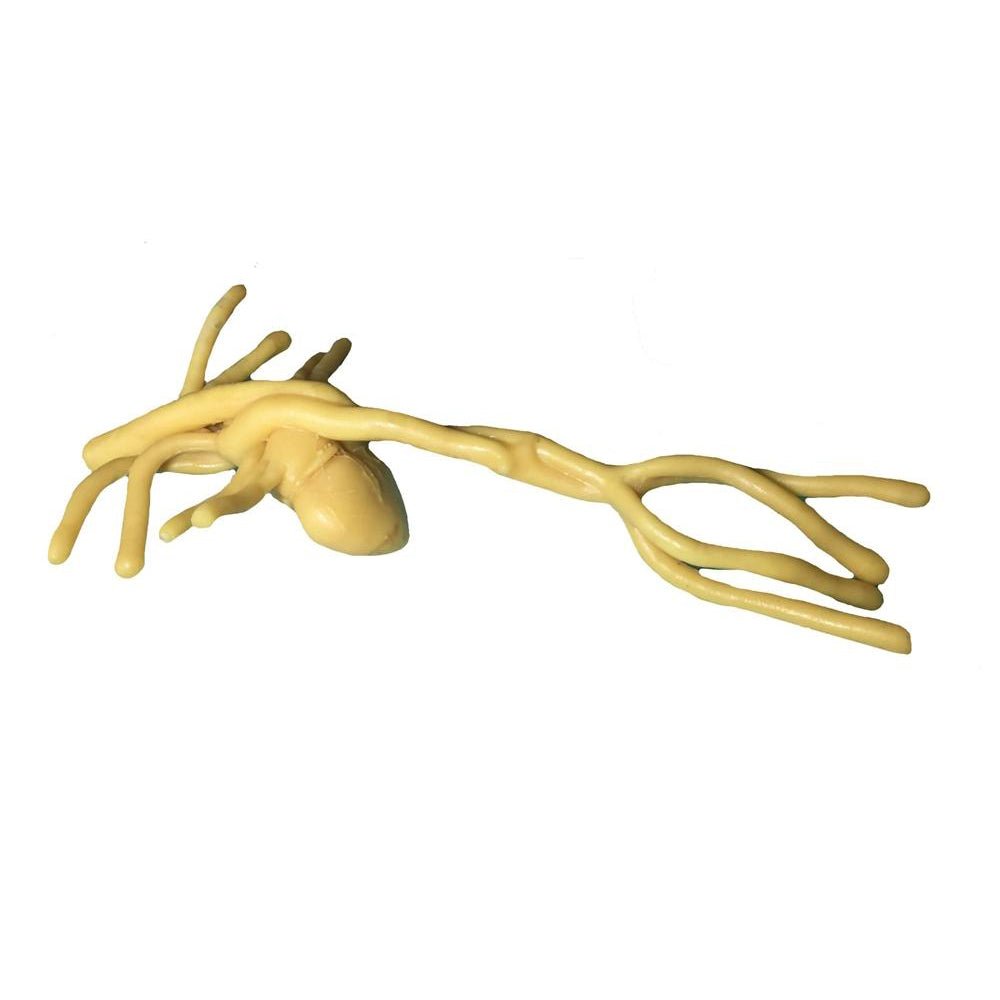

The Adult Heart Phantom is a realistic simulator of a healthy-adult human heart. The phantom is compatible with
X-Ray/CT, Ultrasound, and MRI. This product has a wide range of applications as it also has the potential to support
beating functionality and generate life-like motions. Some of its uses and applications include transesophageal and
transthoracic echocardiograms, ultrasound-navigated endoscopies, catheter insertion under ultrasound probes,
angiography, and other cardio-based research and development studies. This phantom can be used with Barium-sulfate,
Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based contrast mediums.
The phantom is built from a realistic, life-like, synthetic material to mimic the acoustical, physical, and
mechanical properties of real biological tissues. Using 3D printing technology and synthetic material, the heart
phantom is built to reflect exact anatomical structures. The phantom is fully customizable and able to suit a wide
variety of bio-medical projects.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values which makes this product
to be best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density
imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and
they are within the range of about 100 ms.
Upon special request, the geometry and dimensions of the phantom and its properties can be customized based on the
requirements of any particular project.

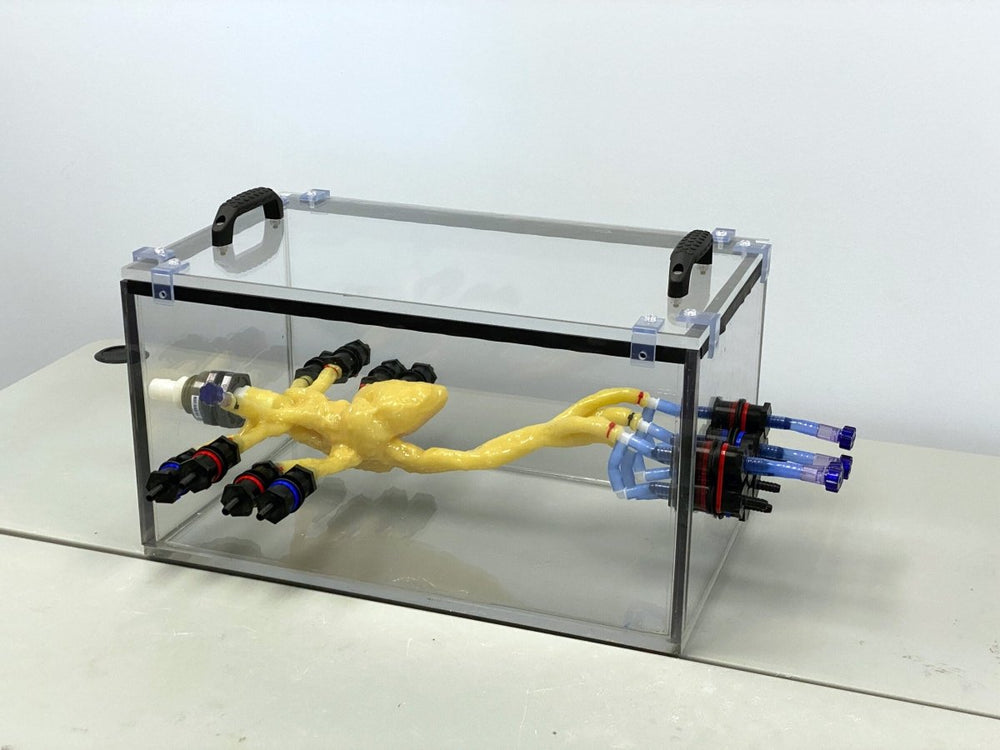

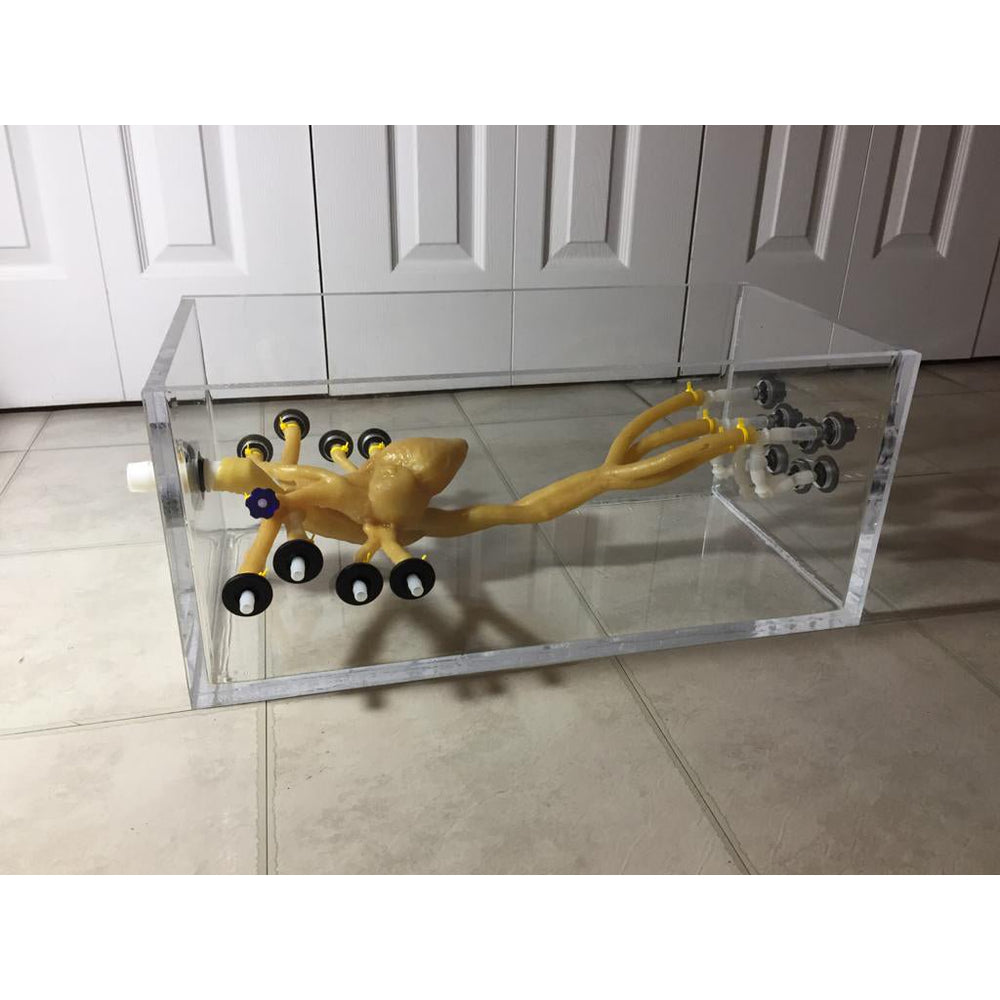

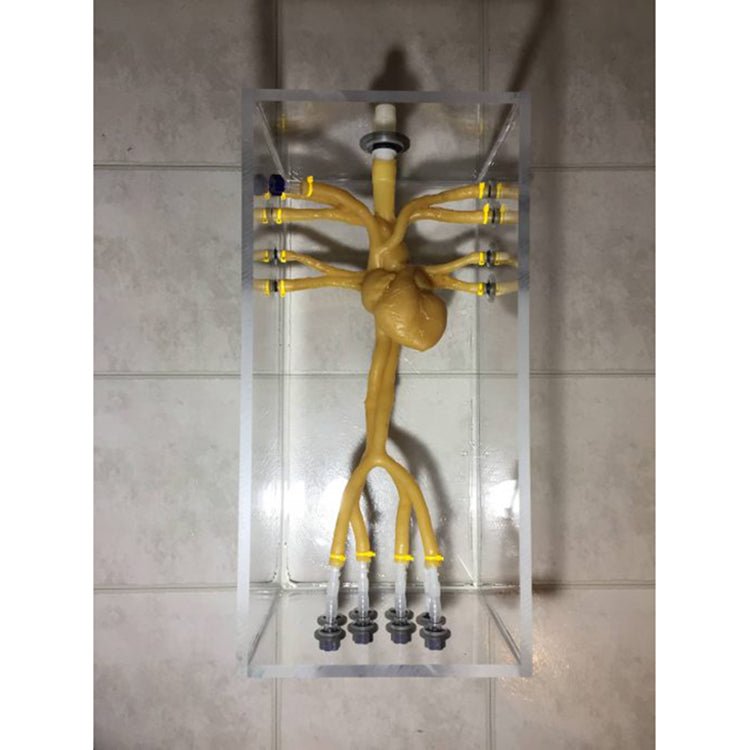

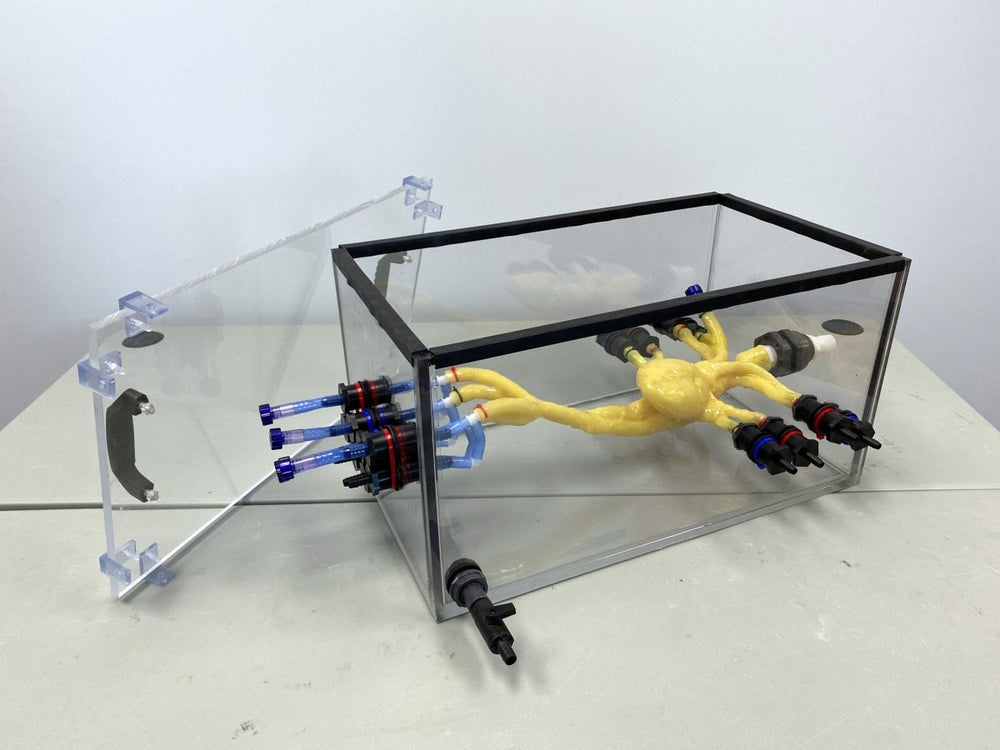

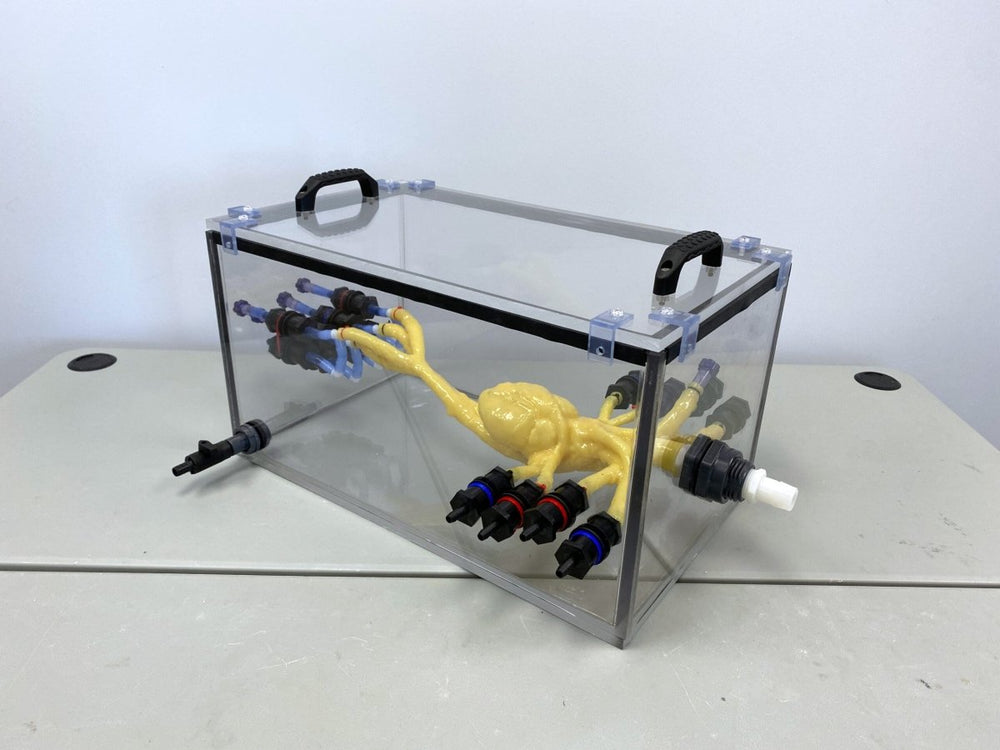

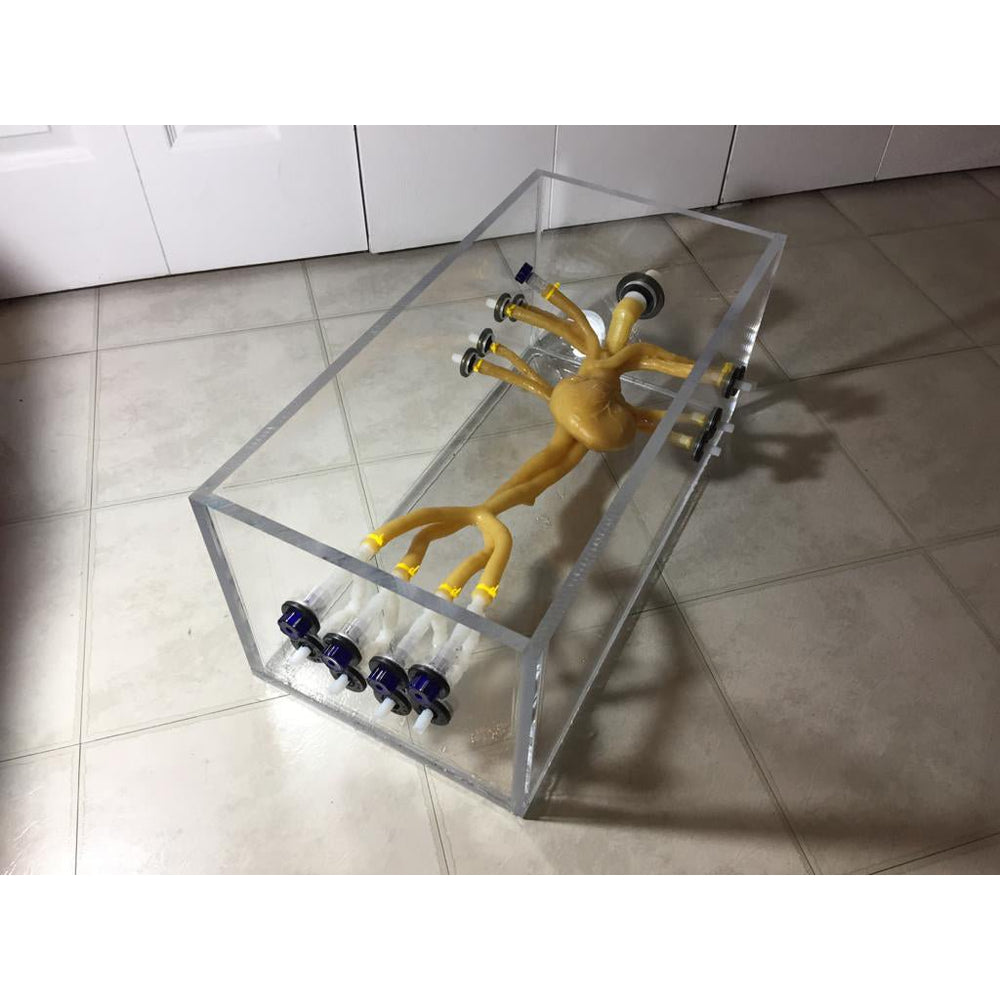

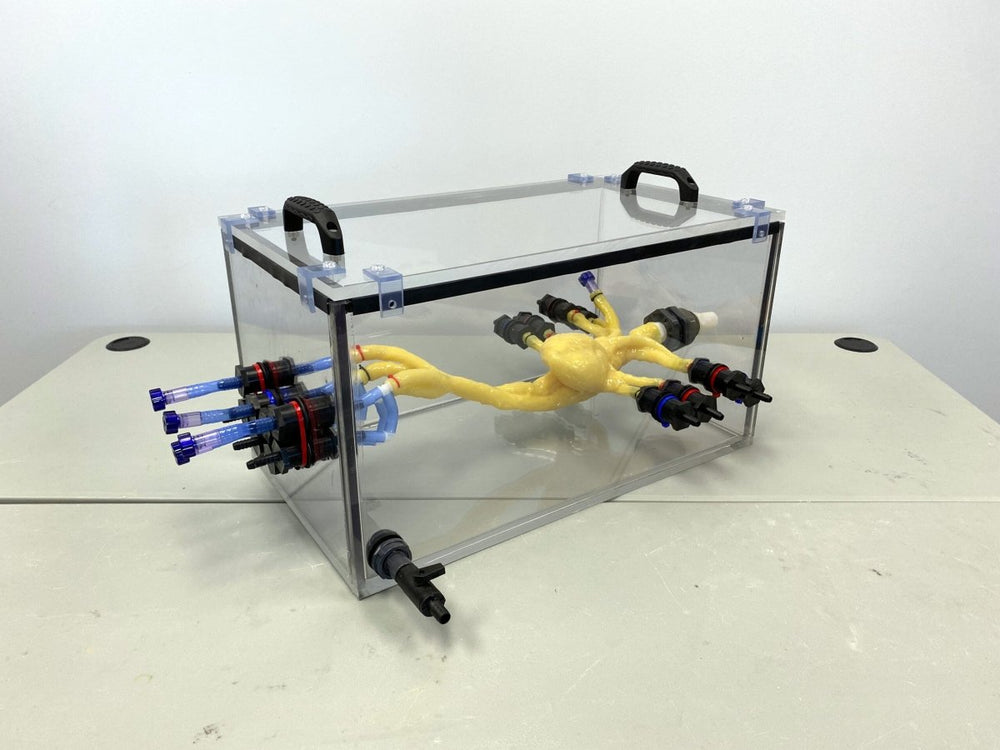

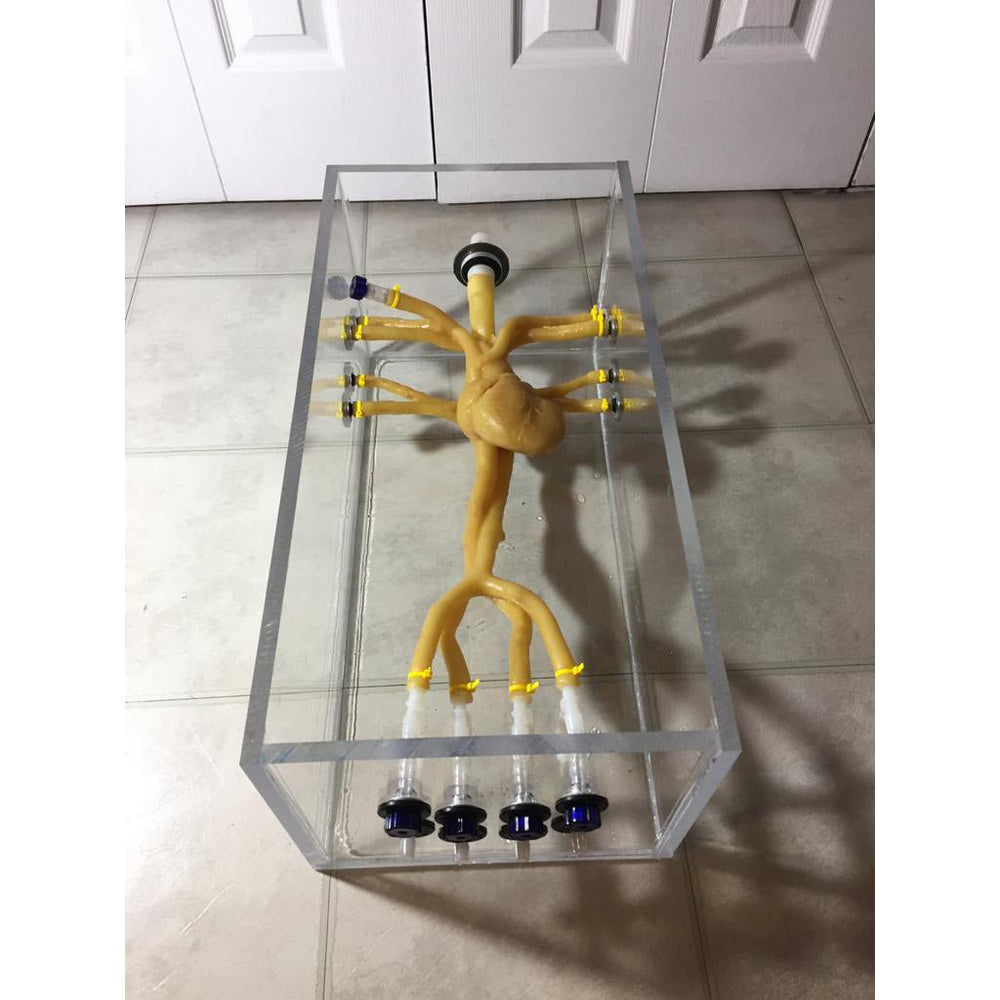

Note: This product comes with a water tank, as shown in the images above. The water tank helps
researchers to mount
the heart properly and achieve the correct performance of the phantom in terms of the view of internal structures
and heart motion.

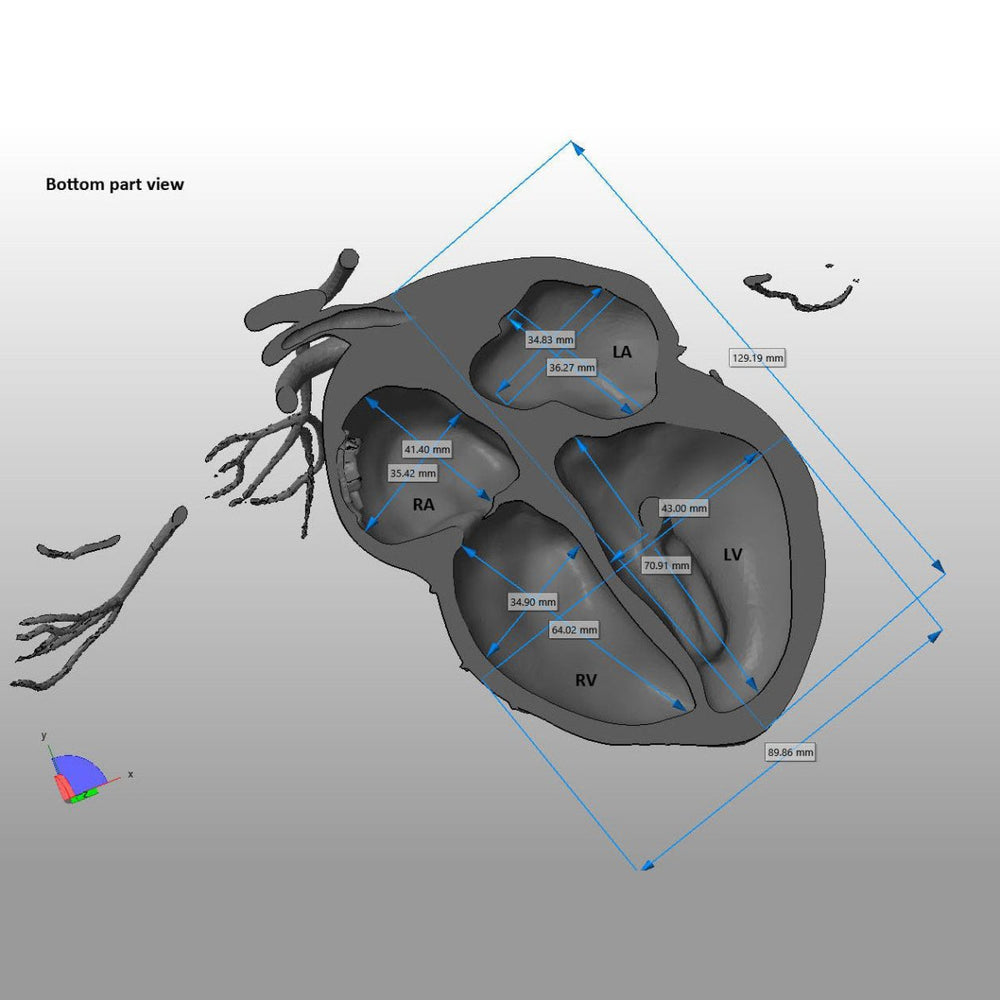

Anatomy
- 2 Atria, 2 Ventricles
- Right Ventricle
- Moderator Band that runs from the anterior wall to the septum bridge
- Volume: 60 ml
- Left Ventricle
- Papillary muscles to the anterior and posterior walls
- Volume: 63 ml
- Right Atrium
- Right atrial appendage with distinct muscle structures
- Volume: 45 ml
- Left Atrium
- Unique muscle structure to the appendage of the left atrium
- Volume: 29 ml
- Right Ventricle
- 4 Valves
- Appendage Feature
- SVC
- IVC
- Aorta
- Jugular vessels
- Pulmonic and Pulmonary Veins attached to LA
- Flexible Valvular Structures
- Adult Heart Phantom
- Water Tank for Heart Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Heart Pump (V3) - [TPS-HP-A03]
- Size: 23 x 7 x 12 in (approx.)
- Weight: 3 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
Custom Heart with Carotid Arteries (Optional)

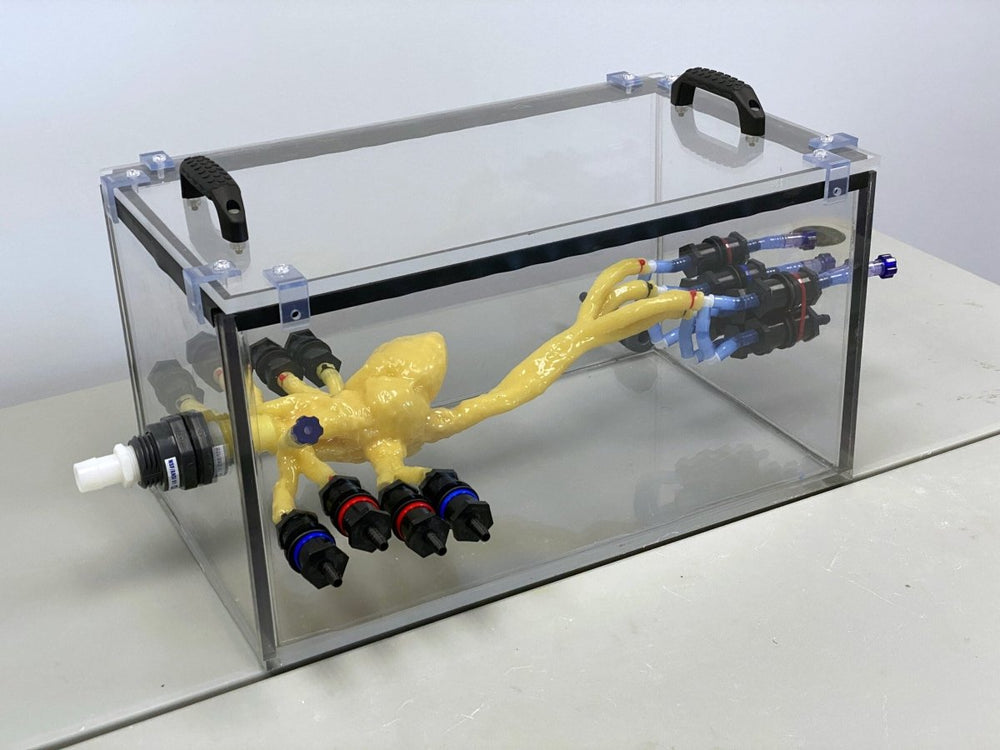

Water Tank and Optional Heart Pump Set-Up
*The above images show the Adult Heart Phantom set up with TPS
Heart Pump (V3).
*These products are compatible and can be used to demonstrate beating heart motion.
*Please Note: That the above images are for reference only, and the heart pump must be
purchased separately.
Torso Installation
The above images show the Adult Heart Phantom installed into our TPS-TO-A03 Advanced Adult
Torso Phantom.
Please note that the Torso must be purchased separately.
Adult Heart Phantom for Ultrasound, MRI, CT Scan and Endoscopic
Phantom Size & Weight- Size: 23 x 7 x 12 in (approx.)
- Weight: 3 lbs (approx.)
- Size: 36 x 24 x 12 in (approx.)
- Weight: 22 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
Technical Properties:
Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] |
Hardness [Shore 00] |
T2 [ms] |
Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
Heart Tissue | 1400 ± 10 | 1.02 | 60 | 30 (at 0.35 T) | YES | 1.7 ± 0.2 |
