Adult Pelvis Phantom with Prostate for X-Ray CT and MRI

The Adult Pelvis with Prostate Phantom is designed based on an average adult human (male). The synthetic bones used in this phantom are made out of our patented material, which is best suited for the X-Ray/CT, and MR imaging applications. This product can be further customized to match any project’s specific requirements.

The Adult Pelvis with Prostate Phantom is designed based on an average adult human (male). It is made out of realistic patented bone material that is suitable for X-RAY CT and MR imaging applications. It can be used as a tool to conduct medical imaging research, radiology training, testing, and calibration purposes. This product can be further customized to match our client’s specific requirements.

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values which makes this product to be best fit for any T2-weighted MRI imaging methods. Very good results can be also achieved with Proton Density imaging methods. The phantom can be still imaged with T1-weighted methods but the T1 values are less realistic and they are within the range of about 100 ms.

The bones will consist of a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of the particular project. The phantom can also be customized in size and shape (i.e. based on any individual’s CT scan).

Anatomy:
  • Spine from L5 to L2
  • Pelvis Bone
  • Partial Left and Right Femoral Bones
  • Large Intestine
  • Rectum
  • Prostate
  • Bladder with Simulated Internal Fluid
  • Cervical Spine
Your order will include:
  • Adult Pelvis with Prostate Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case (Optional)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Phantom:
  • Height: 14 x 10 x 16 in (approx.)
  • Weight: 49 lbs (approx.)
Shipment:
  • Height: 36 x 24 x 12 in (approx.)
  • Weight: 88 lbs (approx.)

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

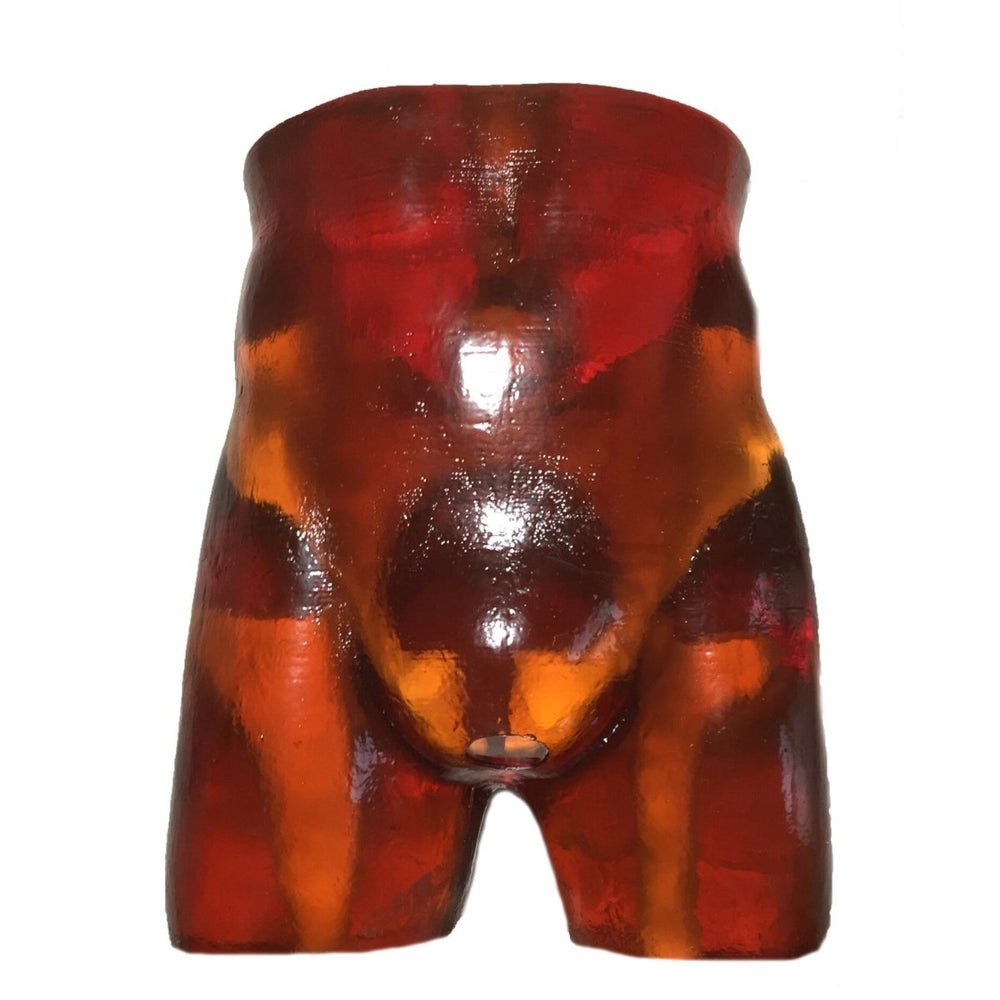

Front View
Lateral View

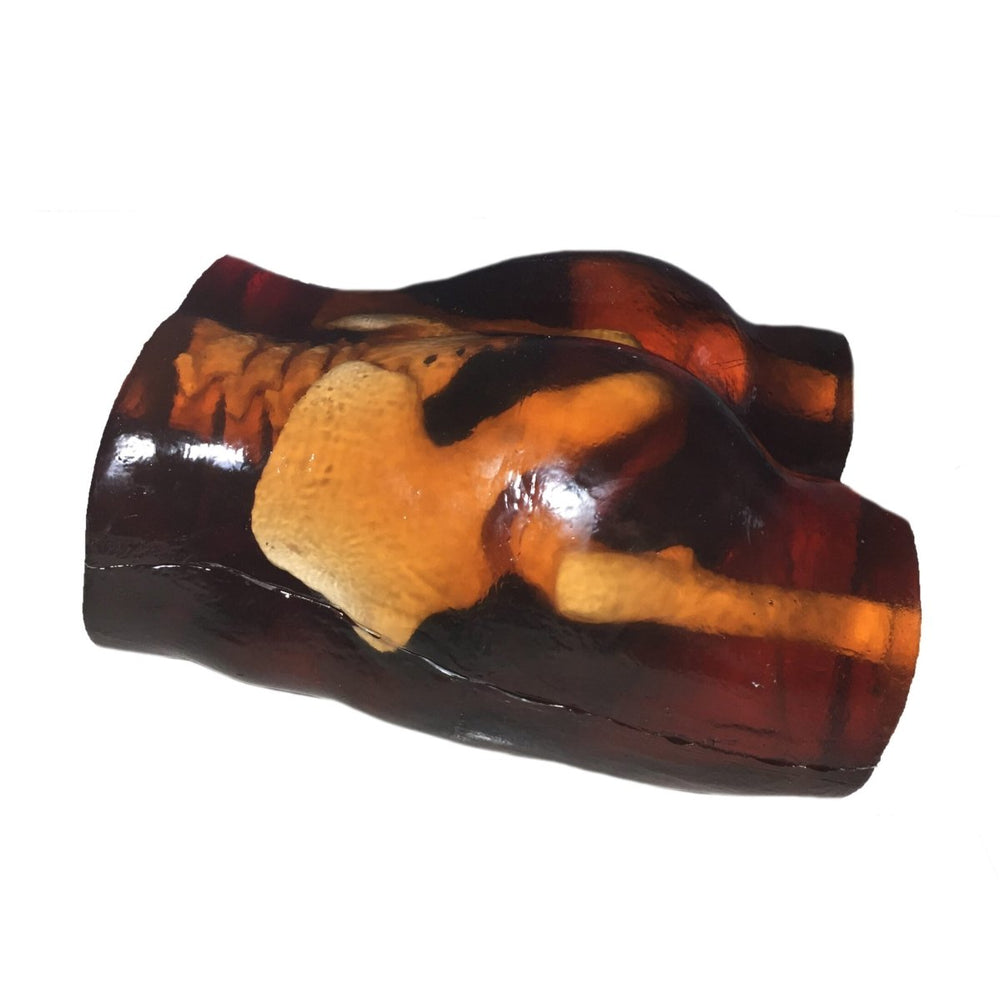

Perspective View
Top View

CT Scans

MRI Scans

Type of Tissue Sound Velocity [m/s] Density
[g/cm³]
Hardness
[Shore 00]
T2
[ms]
Hounsfield Value Attenuation Measured
at 2.25 MHz [dB/cm]
Cortical Bone 3000 ± 30 2.31 N/A N/A 1300 6.4 ± 0.3
Trabecular Bone 2800 ± 50 2.03 N/A N/A 1300 21 ± 2
Soft Tissue 1400 ± 10 1.02 60 50 ms 25 1.7 ± 0.2
Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
S.No. Tissue Type HU Value (average)
1 Trabecular Bone 800
2 Cortical Bone 1300
    Dimensions and Weight:
  • Size: 36 x 26 x 40 cm (approx.)
  • Weight: 22 kgs (approx.)
    Materials Used:
  • Soft tissue and organs: Composition of urethane base soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

TECHNICAL PROPERTIES

Type of the tissues: Sound velocity [m/s] Density
[g/cm³]
Hardness
[Shore 00]
T2
[ms]
Hounsfield value Attenuation measured
at 2.25 MHz [dB/cm]
Cortical bone material used to fabricate the phantom 3000 ± 30 2.31 N/A N/A 1300 6.4 ± 0.3
Trabecular bone material used to fabricate the phantom 2800 ± 50 2.03 N/A N/A 1300 21 ± 2
Soft Tissue 1400 ± 10 1.02 60 50 ms 25 1.7 ± 0.2
