Adult Spine for X-Ray CT, MRI
Our Adult Spine phantom consists of 25 individual vertebrae assembled on top of each other and encased in a semi-cylindrical-shaped body-mimicking tissue. It is majorly composed of the following components.

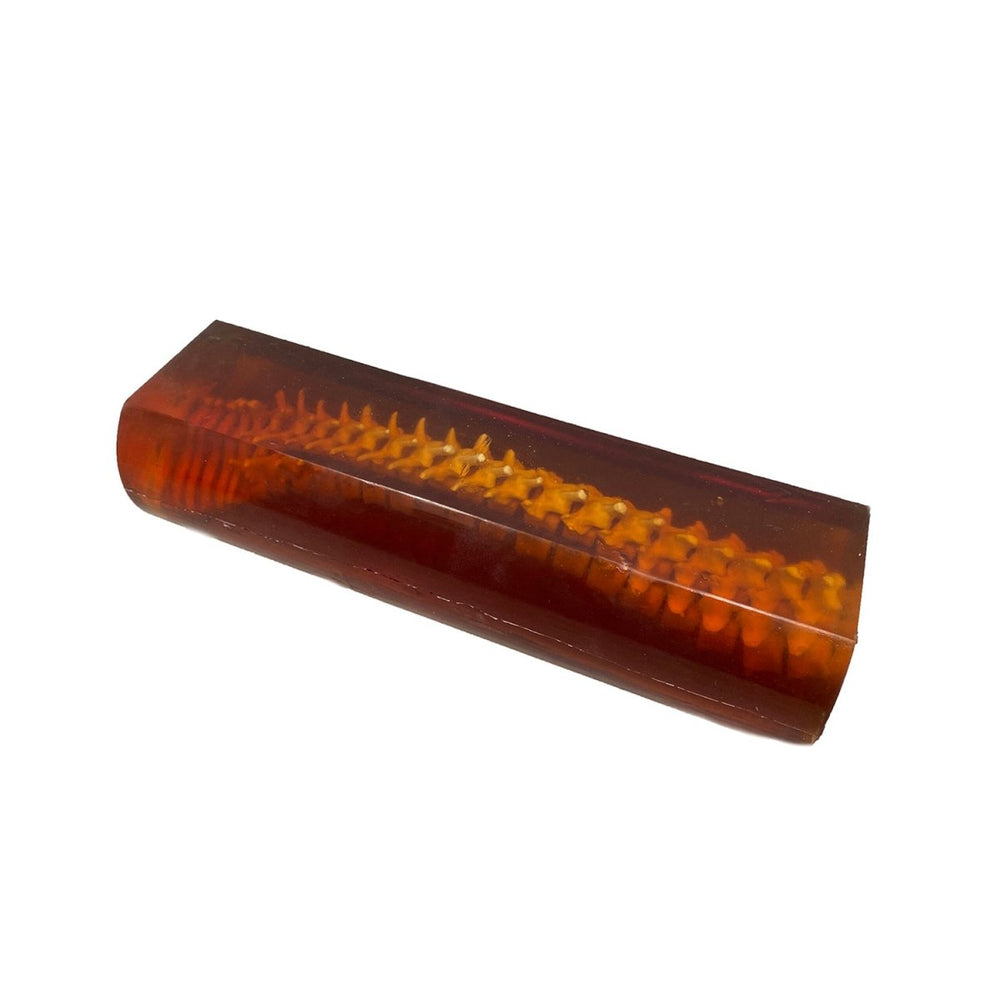

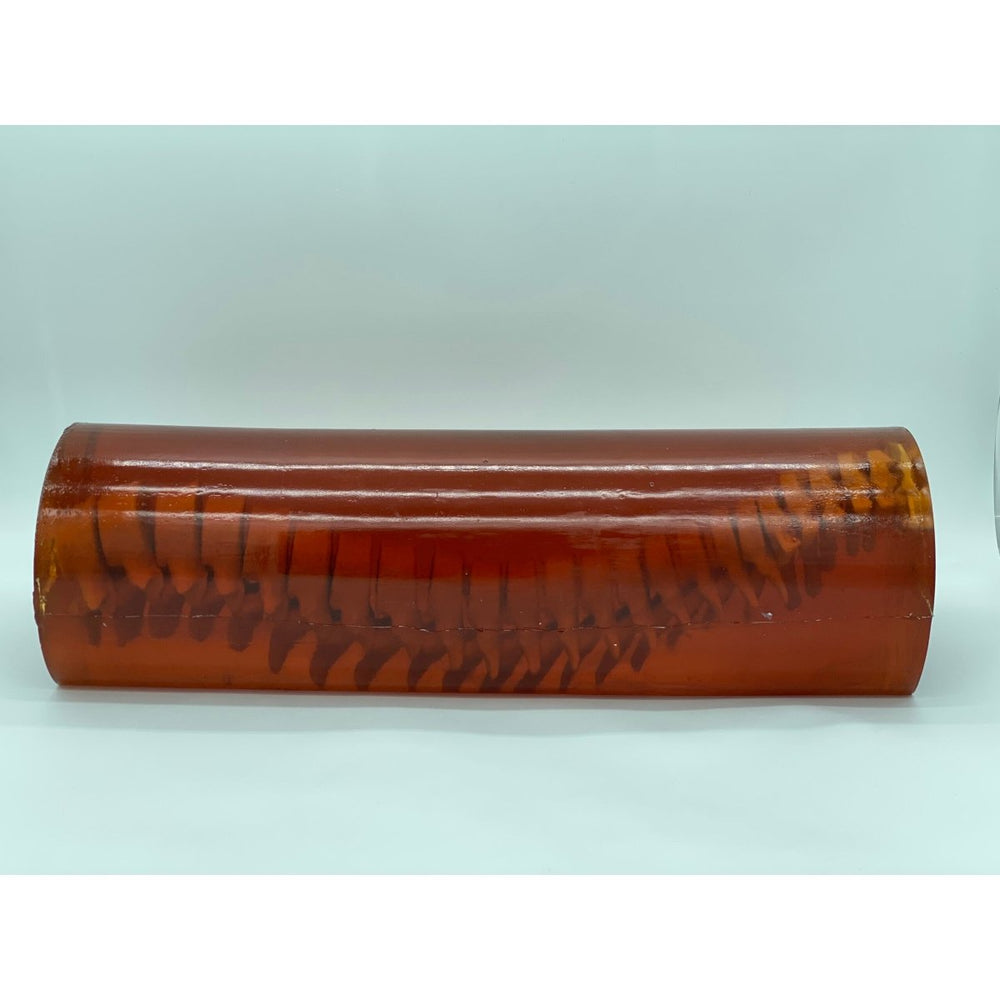

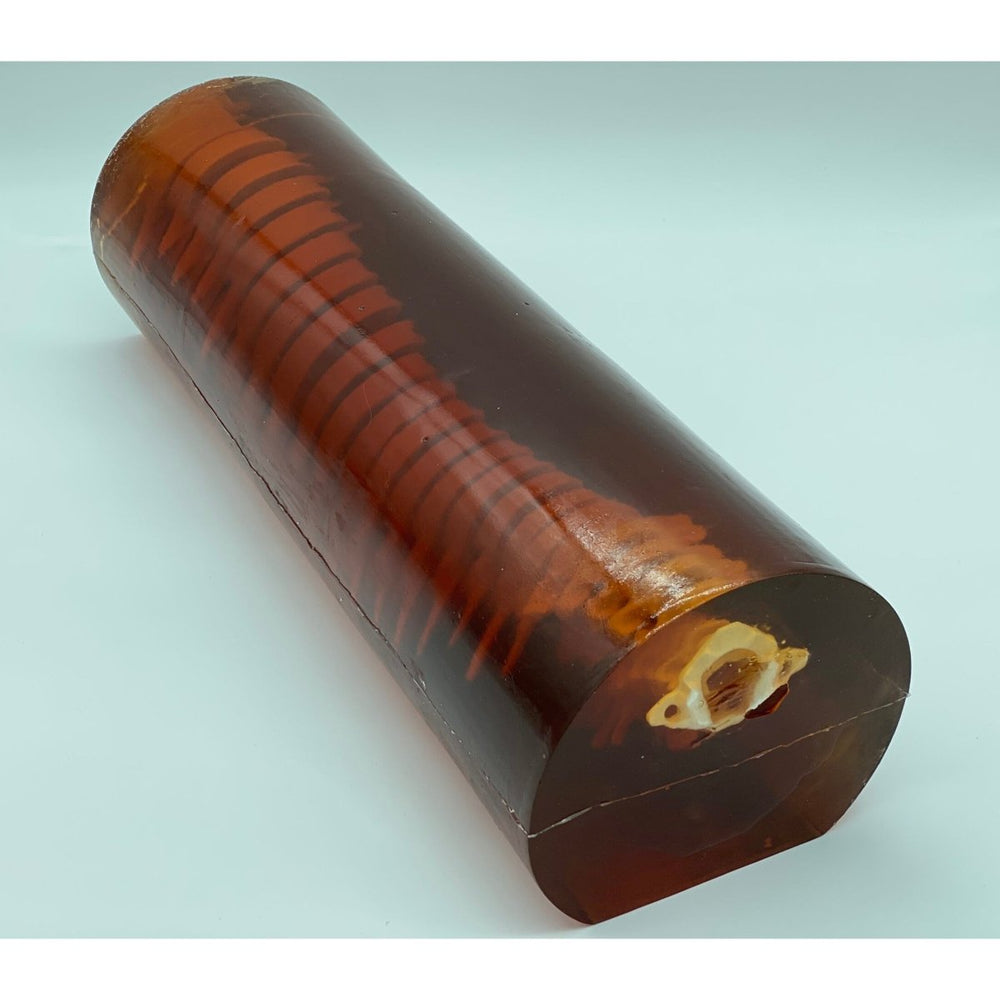

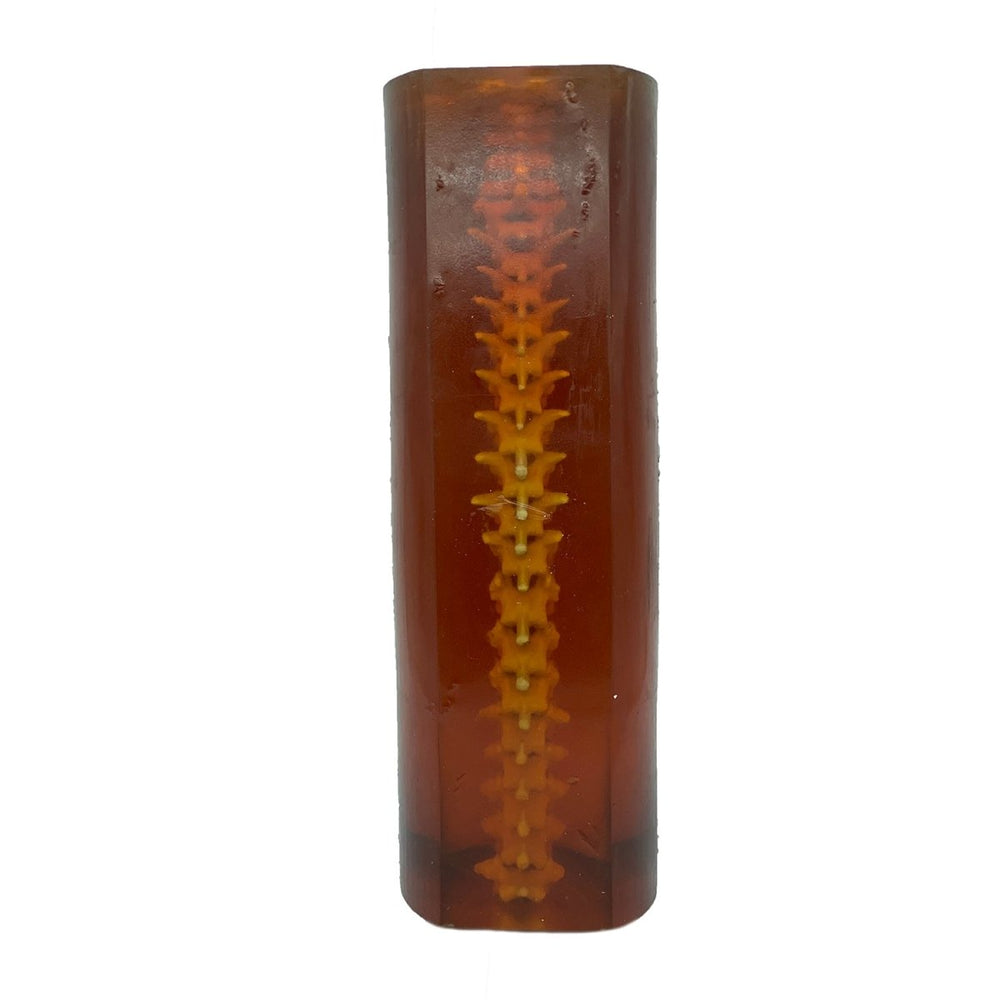

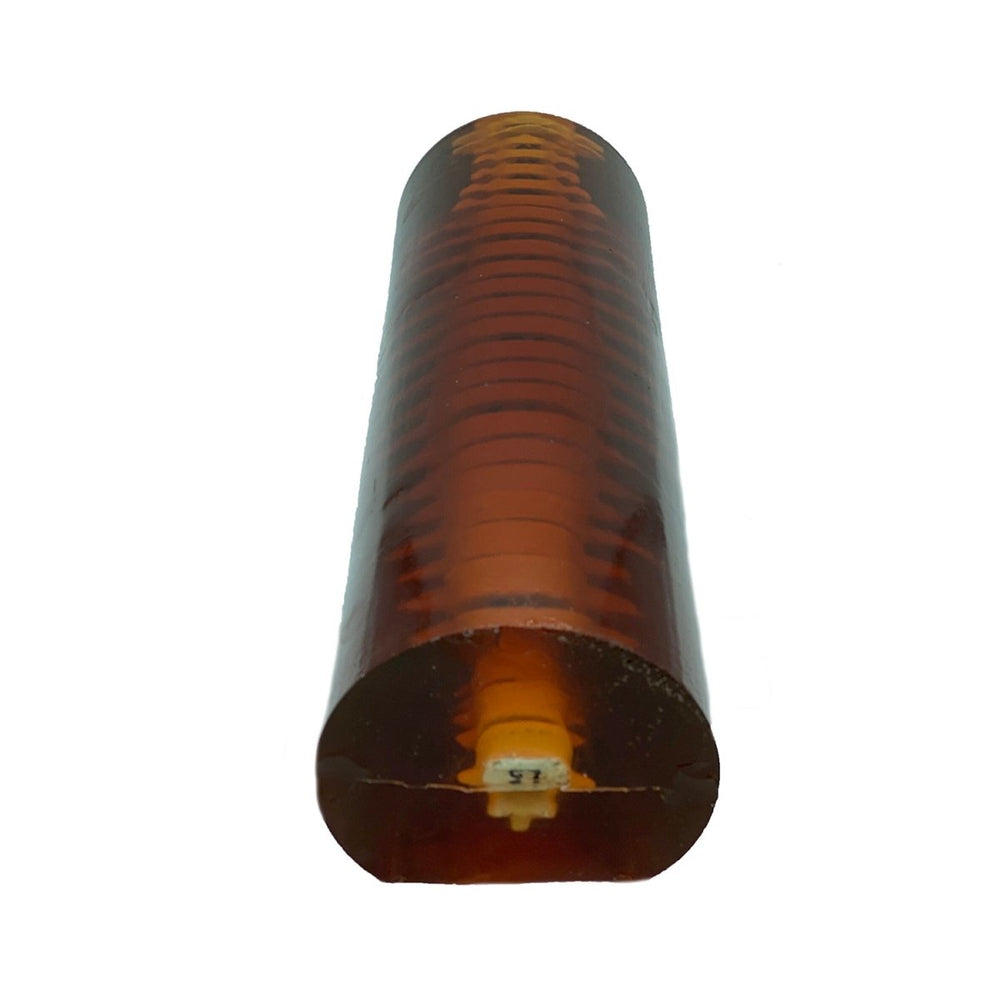

Adult Spine Phantom consists of 25 individual vertebrae assembled on top of each other and encased in a semi-cylindrical-shaped body-mimicking tissue. The vertebrae have a realistic three-layered structure with inner porosity which can be adjusted according to the requirement of the particular project.
The Phantom is designed based on average human anatomy, and the bones are made out of realistic patented bone material that is suitable for MRI and X-Ray CT applications. It can be used for medical imaging research and treatment planning of various medical procedures. (Upon request, it can be modified for a lumbar or spine lumbar practice phantom with soft tissue-mimicking material surrounding it)
The phantom can be further customized with water fillable spinal canal inside the vertebrae or with a prefilled spinal canal for medical imaging or research applications.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values which makes this product to be best fit for any T2-weighted MRI imaging methods. Very good results can be also achieved with Proton Density imaging methods. The phantom can be still imaged with T1-weighted methods but the T1 values are less realistic and they are within the range of about 100 ms.
- Cervical Vertebrae (C1 – C7)
- Thoracic Vertebrae (T1 – T12)
- Lumbar Vertebrae (L1 – L5)
- Adult Spine Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
- Height: 22 x 7 x 7 in (approx.)
- Weight: 30 lbs (approx.)
- Height: 32 x 23 x 13 in (approx.)
- Weight: 55 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
NOTE: *These CT scans were obtained from our Adult Spine for X-Ray CT. These serve as an example of the imaging quality of our products, the CT scans from this phantom may slightly differ. If you have any questions related to these, please Contact Us
Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] |
Hardness [Shore 00] |
T2 [ms] |
Hounsfield Value | Attenuation Measured at 2.25 MHz[dB/cm] |
---|---|---|---|---|---|---|
Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
Soft Tissue | 1400 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
---|---|---|---|---|---|
0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
S.No. | Tissue Type | HU Value (average) |
---|---|---|
1 | Trabecular Bone | 800 |
2 | Cortical Bone | 1300 |
Adult Spine for X-Ray CT, MRI
Product Dimensions and Weight:- Height: 22 x 7 x 7 in (approx.)
- Weight: 30 lbs (approx.)
- Height: 32 x 23 x 13 in (approx.)
- Weight: 55 lbs (approx.)
