Complex Adult Brain Phantom for Ultrasound, MRI and CT applications
Ships in 12-16 weeks
0.0 lb
All pictures shown are for illustration purposes only. The actual product appearance may vary.
Complex Adult Brain Phantom for Ultrasound, MRI and CT applications
Item # TPS-BN-A02
$4,165.00
$4,250.00
You save $85.00
Need an estimate?
Click Add To Quote
Features & Specifications
-
by
A trusted GT partner -
FREE Shipping
U.S. Contiguous States Only -
2-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request
by
Frequently Bought Together
(
Complex Adult Brain Phantom for Ultrasound, MRI and CT applications

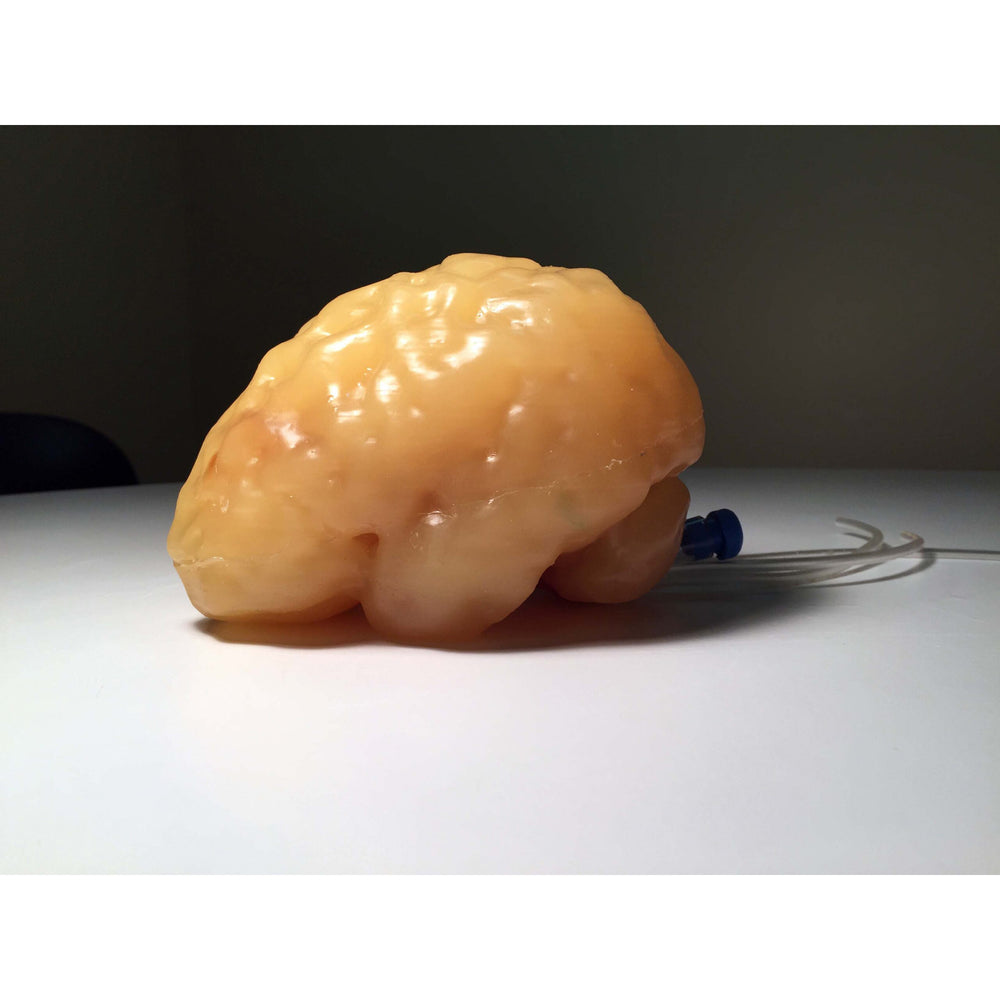

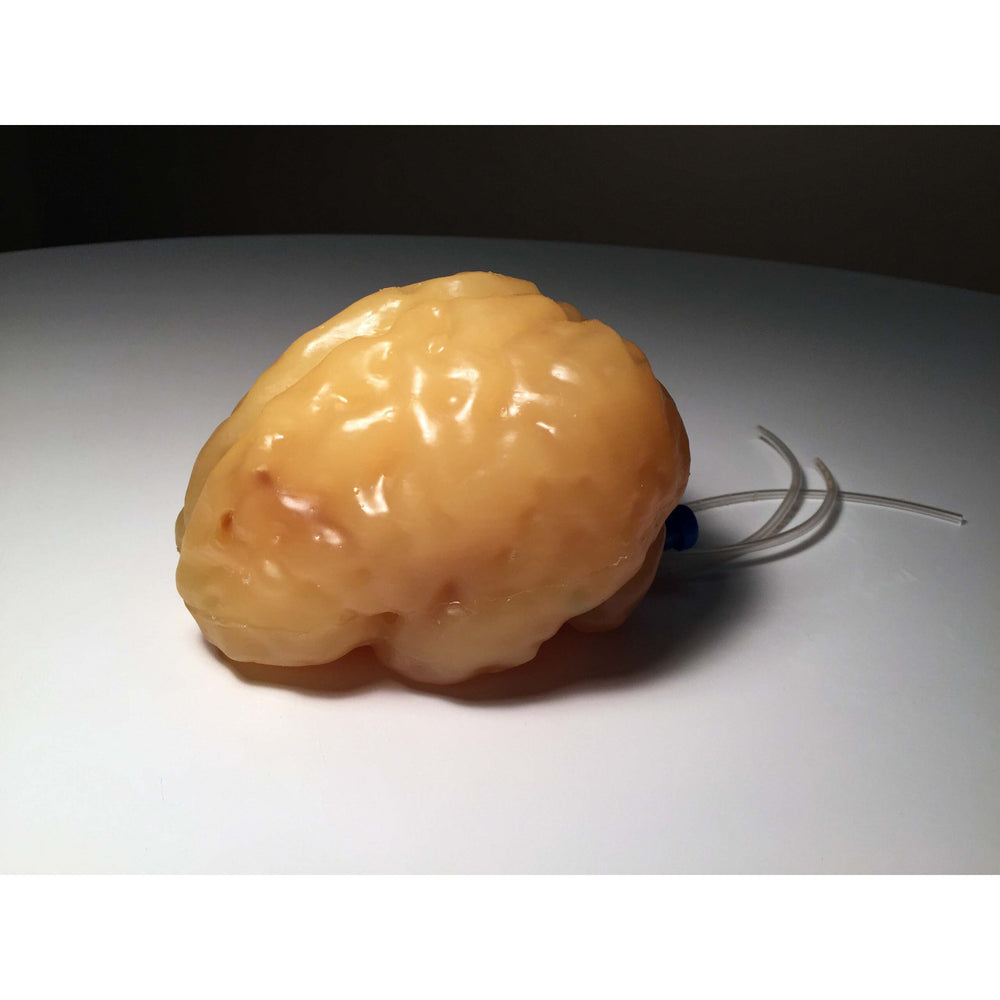

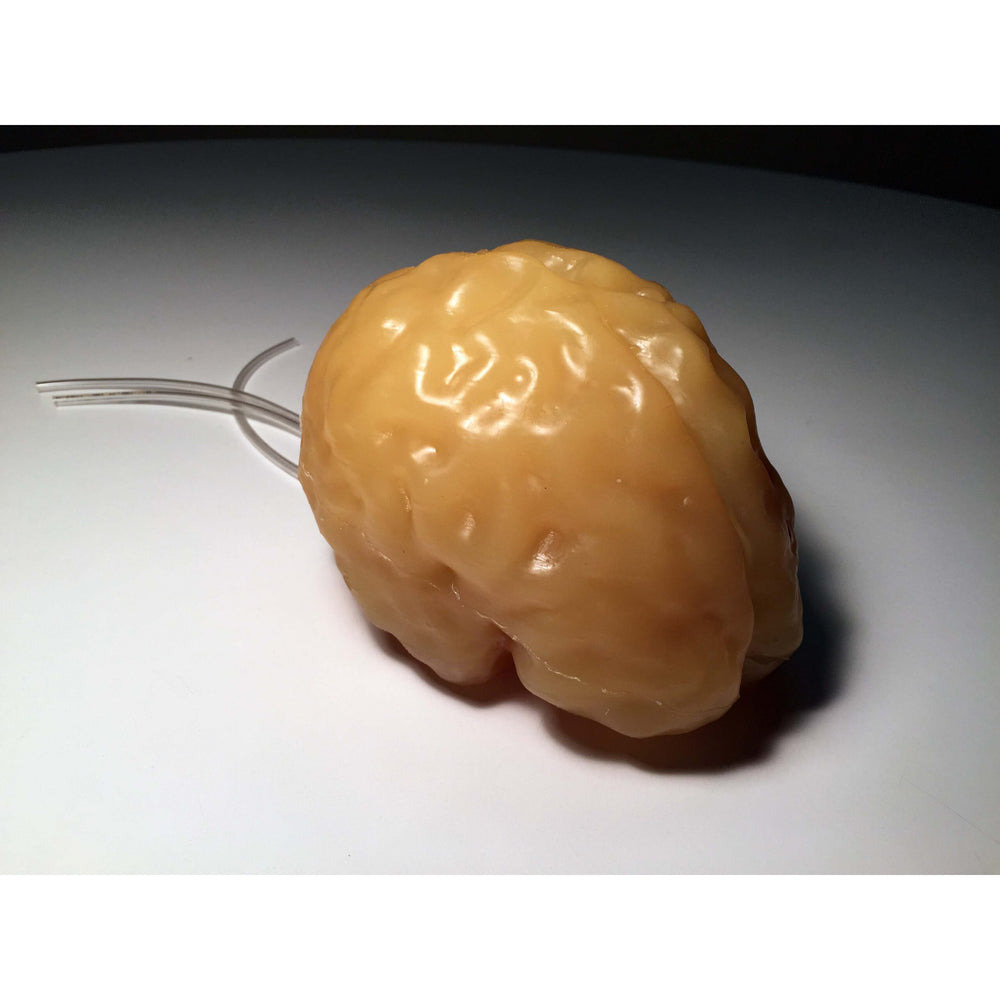

The Adult Brain (Complex) phantom is designed based on an average brain, and it is made out of realistic
tissue-mimicking materials suitable for Ultrasound, MRI, and X-Ray/CT. The complex arteries and vessels allow for
angiography training and applications. This phantom can be used with Barium-sulfate, Iodine-based, Gadolinium-based,
Microbubble, and Iron Oxide-based contrast mediums.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product
to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with Proton
Density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less
realistic, and they are within the range of about 100 ms.
Upon special request, the phantom features and the properties of the tissue-mimicking materials can be customized
based on the requirements of any particular project.
Anatomy:
- Realistic Brain Tissue
- Gray Matter (contrast x)
- White Matter (contrast x’)
- Brain Ventricles
- Brain Tumor
-
Blood Vessels with a 2mm Inner Diameter
- One Bifurcation
- Falx Cerebri
Your order will include:
- Adult Brain (Complex) Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Phantom:
- Height: 5 x 6 x 5 in (approx.)
- Weight: 2 lbs (approx.)
- Height: 12 x 10 x 10 in (approx.)
- Weight: 6 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
CT Scans
*/ These CT scans were obtained from our Adult Brain (Basic) Phantom. (TPS-BN-A03). They serve only as an example of our imaging quality. Actual product images may vary. If you have any questions related to this, please Contact Us /*
Ultrasound Scans
MRI Scans
*/ These MRI scans were obtained from our Adult Brain (Basic) Phantom. (TPS-BN-A03). They serve only as an example of our imaging quality. Actual product images may vary. If you have any questions related to this, please Contact Us /*
Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] |
Hardness [Shore 00] |
T2 [ms] |
Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
|---|---|---|---|---|---|---|
| Brain Grey Matter | 1400 ± 10 | 0.99 | 20 | 70 | VARIABLE | 1.0 ± 0.2 |
| Brain White Matter | 1400 ± 10 | 1.01 | 35 | 60 | YES | 1.3 ± 0.2 |
| Falx Cerebri | 1400 ± 10 | 1.01 | 60 | 50 | YES | 1.7 ± 0.2 |
| Tumor Feature | 1400 ± 10 | 1.00 | 30 | 65 | YES | 1.2 ± 0.2 |
HU Values of the Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Brain Tissue | -25 |
Complex Adult Brain Phantom for Ultrasound, MRI and CT applications
Phantom:- Height: 5 x 6 x 5 in (approx.)
- Weight: 2 lbs (approx.)
- Height: 12 x 10 x 10 in (approx.)
- Weight: 6 lbs (approx.)
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
