Digital EYE Examination Simulator (2 Steps)
Product Dimensions and Weight:
24.0 lb
Digital EYE Examination Simulator (2 Steps)
Item # KK-MW61A
$4,100.00

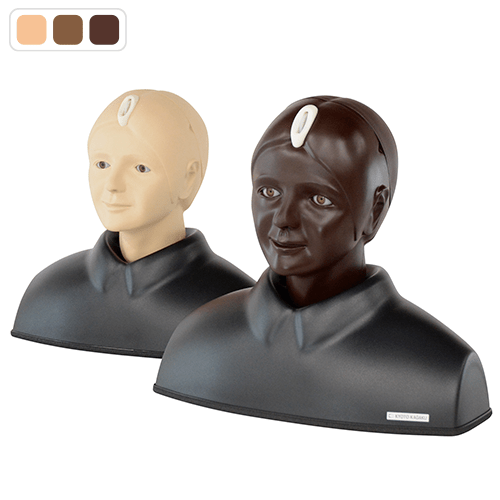

Skin Color
Need an estimate?
Click Add To Quote
Features & Specifications
-
by
A trusted GT partner -
1-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request
by
Frequently Bought Together
(
Digital EYE Examination Simulator (2 Steps)

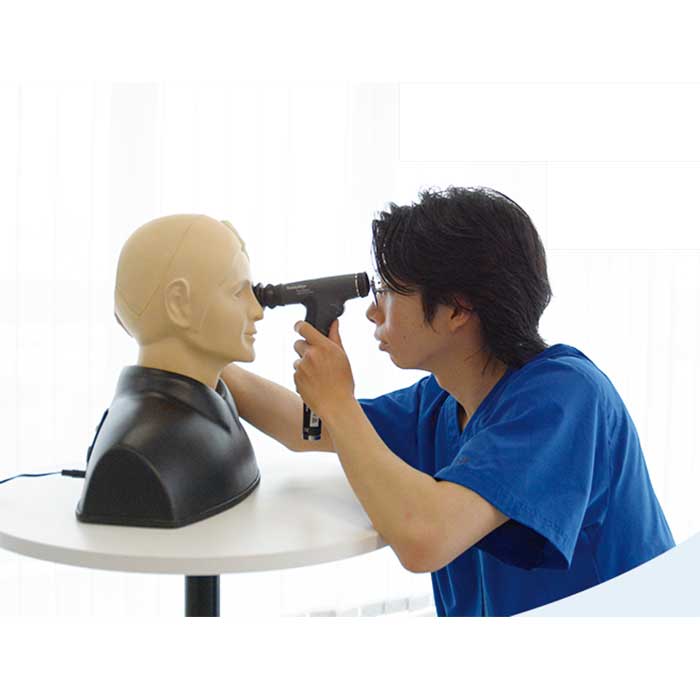

Our standard Eye Examination Simulators are utilized by many simulation centers. This digital version of the Eye Examination Simulator is an upgrade to showcase various innovative features.
Features
Training skills / Applications
Made in Japan by Kyoto Kagaku.
GTSimulators by Global Technologies
Kyoto Kagaku Authorized Dealer

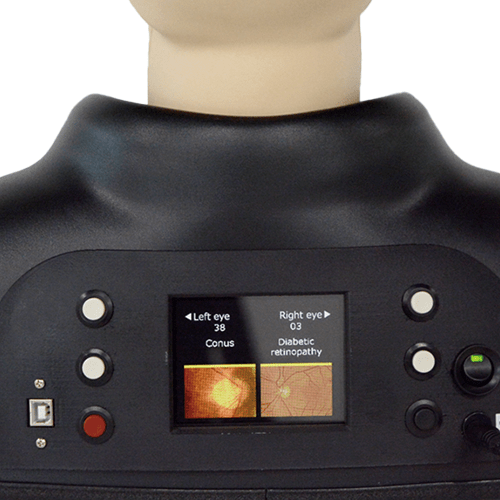

- 40 cases of fundus images (including 10 common diseases) are pre-installed for eye examination training and viewable on 160dpi monitor
- Pre-installed fundus images are from actual cases using real clinical images in order to properly reproduce appropriate representative views of the eye unit
- Custom fundus images can be programmed into the simulator via USB
- Lens-equipped eyeball units that simulate the visual axis of the human eye can be examined using all types of direct opthalmoscopes
- Soft and supple material, allowing for realistic raising of the eyelid
- Changing the degree of dilation and contraction of the pupil in 2 steps (3.5, 8mm)offers different degrees of challenges.
*MW61 is 3
steps (2, 3.5, 5mm)
40 Pre-set Cases
Different pupil sizes can be set for challenge variation
Install Your Original Fundus Images
- Fundus examination with real ophthalmoscope

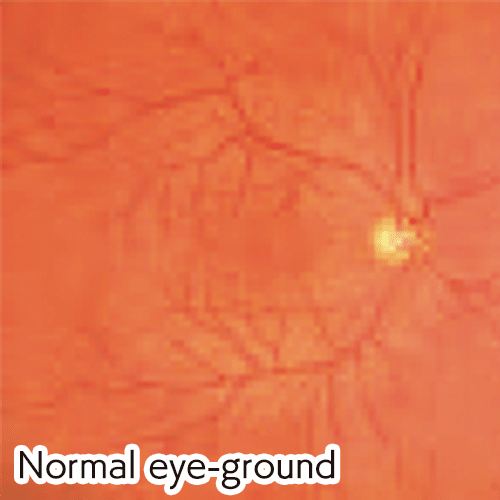

- Normal fundus
- Hypertensive retinopathy
- Diabetic retinopathy
- Papilloedema (chronic phase)

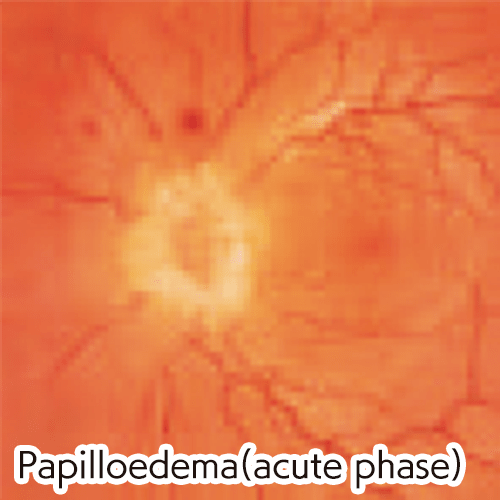

- Papilloedema (acute phase)
- Glaucomatous optic atrophy
- Retinal vein occlusion (acute phase)
- Retinal vein occlusion (post retinal laser photocoagulation)
- Toxoplasmosis
- Age-related macular degeneration
- optic disc cupping 1
- optic disc cupping 2
- optic disc cupping 3
- optic disc cupping, Tilted disc (Fuch's Coloboma)
- optic disc cupping, exudates
- Drusen 1
- Drusen 2
- Optic disc cupping with drusen 1
- Optic disc cupping with drusen 2
- Macular Drusen
- Optic disc hemorrhages
- Hemorrhages
- Chorioretinal atrophy 1
- Chorioretinal atrophy 2
- Vitreous clouding 1
- Vitreous clouding 2
- Vitreous clouding 3
- Vitreous clouding 4
- Retinal nerve fiber layer defect 1
- Retinal nerve fiber layer defect 2
- Pigmentation
- Hemorrhages, sheathing of vessel
- photocoagulation
- Megalopapilla
- Epiretinal membrane 1
- Epiretinal membrane 2
- Epiretinal membrane 3
- conus
- Macular Degeneration
- eye exudate
Set includes
- 1 manikin head and shoulder (M61 or M61A)
- M61 Model: 3 steps pupil diameter variations（2.0mm / 3.5mm / 5.0mm）
- M61A Model: 2 steps pupil diameter variations（3.5mm / 8.0mm）
- 1 power cable
- 1 USB cable
- 1 USB flash drive (with case installer)
- 1 instruction manual
Downloads:
※Ophthalmoscope is not included.
※Ophthalmoscope is not included.
Materials
- Soft resin
- Hard resin
- Latex free
- Size (approx.): W42 x D21.5 x H38 cm / W16.5 x D8.5 x H15 in
- Weight (approx.) 2.5kg / 5.5lbs
- Packing size (approx.): W46 x D30 x H54 cm / W18.1 x D11.8 x H21.2 in
- Packing weight (approx.): 4.35kg / 9.6lbs
| Comparison Table |
EYE Examination Simulator |
Digital
EYE Examination Simulator II |
|---|---|---|
| SKU | KK-M82A | KK-MW61A |
| Target learners | Novice | Advanced Novice to Intermediate |
| Skills | ||
| Eye examination | ✓ | ✓ |
| Handling of devices | ✓ | - |
| Device | ||
| Ophthalmoscope | ✓ | ✓ |
| Pathology | ||
| Cases | 10 | 40 |
| Image Importer | - | ✓ |
GTSimulators by Global Technologies
Kyoto Kagaku Authorized Dealer
EYE Examination Simulator II (2 Step)
Product Dimensions and Weight:
- Size: W16.5 x D8.7 x H15.4in / W42 x D22 x H39㎝
- Weight: 4.4lbs / 2kg
- M82A Size: W19 x D11 x H14 in / W48 x D27 x 36cm
- Weight: 8lbs / 4kg
