Adult Torso for X-Ray CT and Ultrasound
Ships in 12-16 weeks
0.0 lb
All pictures shown are for illustration purposes only. The actual product appearance may vary.
Adult Torso for X-Ray CT and Ultrasound
Item # TPS-US-A02
$18,522.00
$18,900.00
You save $378.00
Need an estimate?
Click Add To Quote
Features & Specifications
-
by
A trusted GT partner -
FREE Shipping
U.S. Contiguous States Only -
2-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request
by
Frequently Bought Together
(
Adult Torso for X-Ray CT and Ultrasound

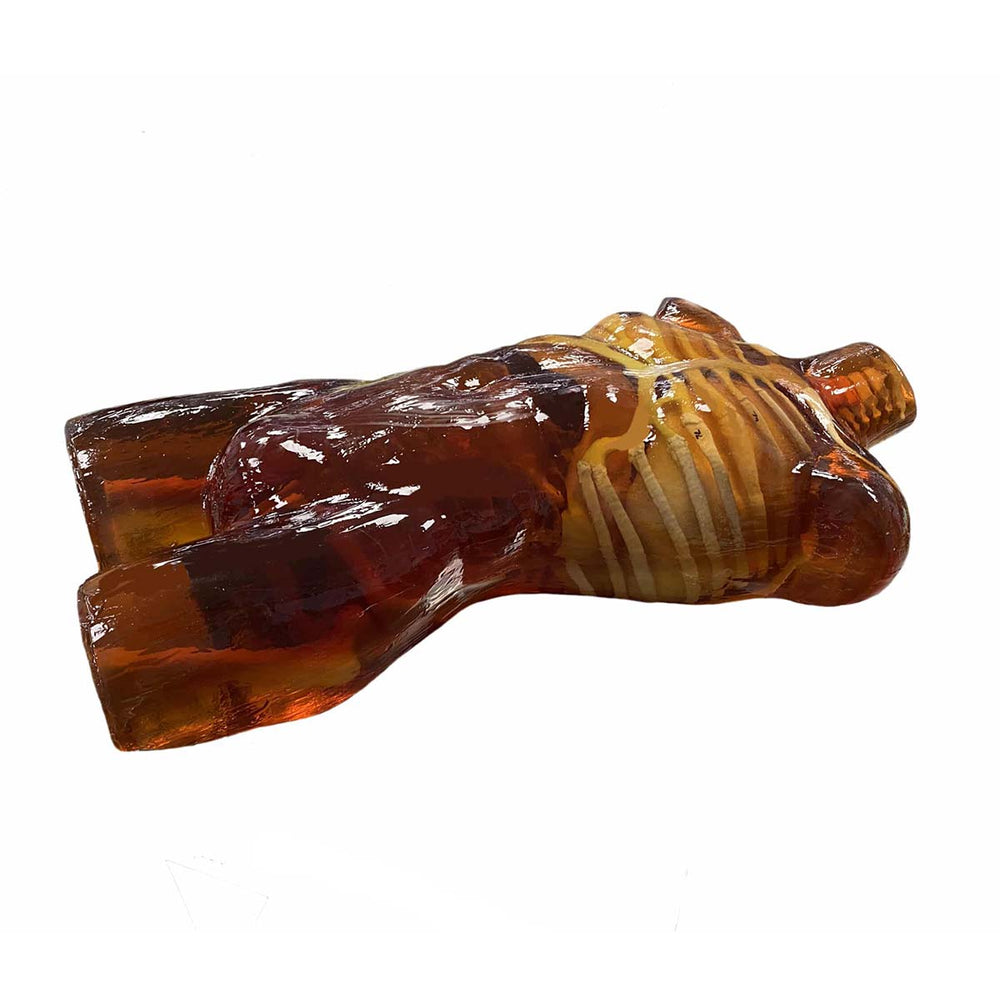

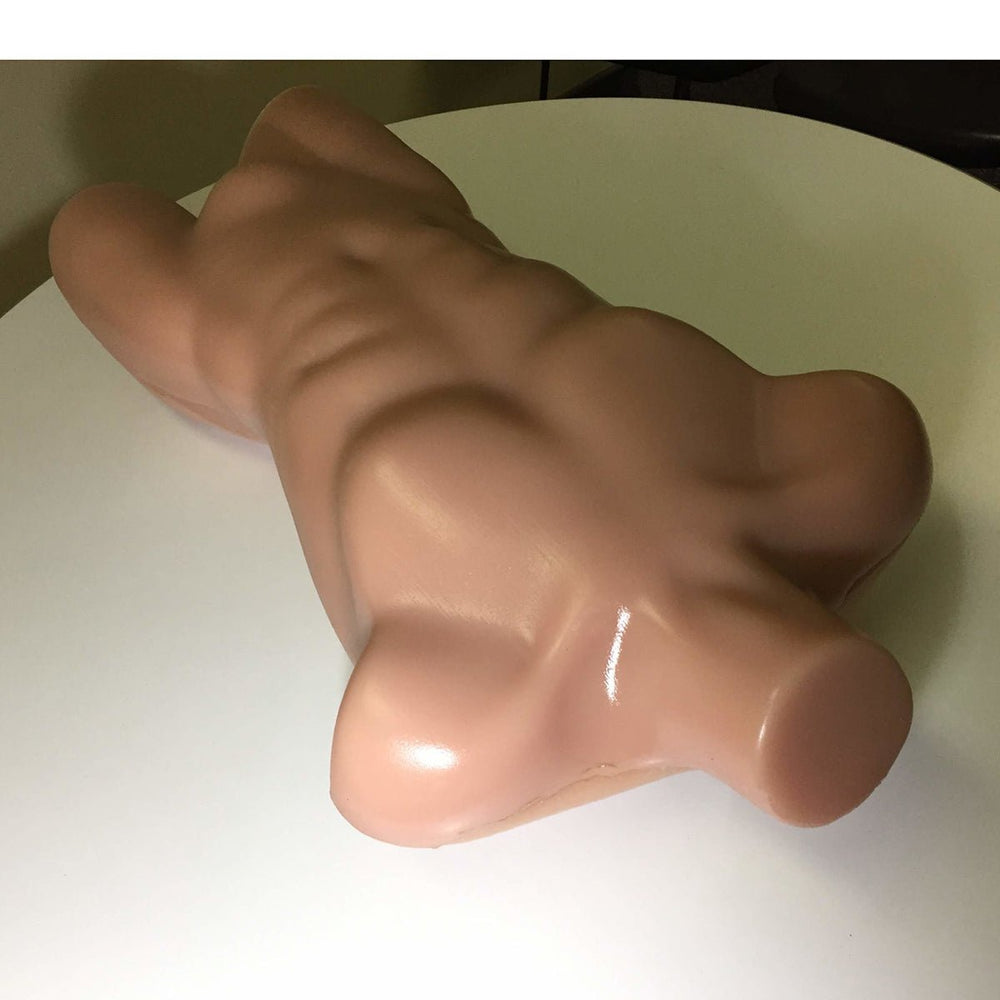

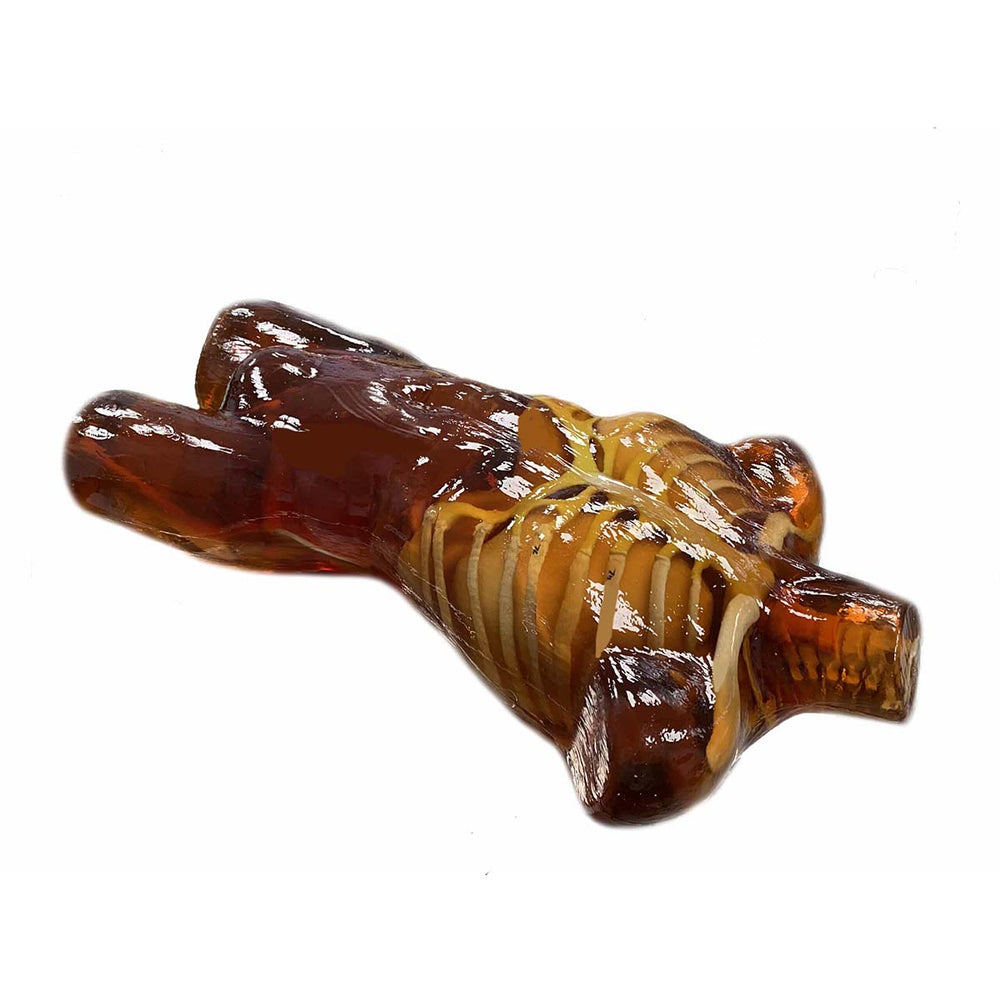

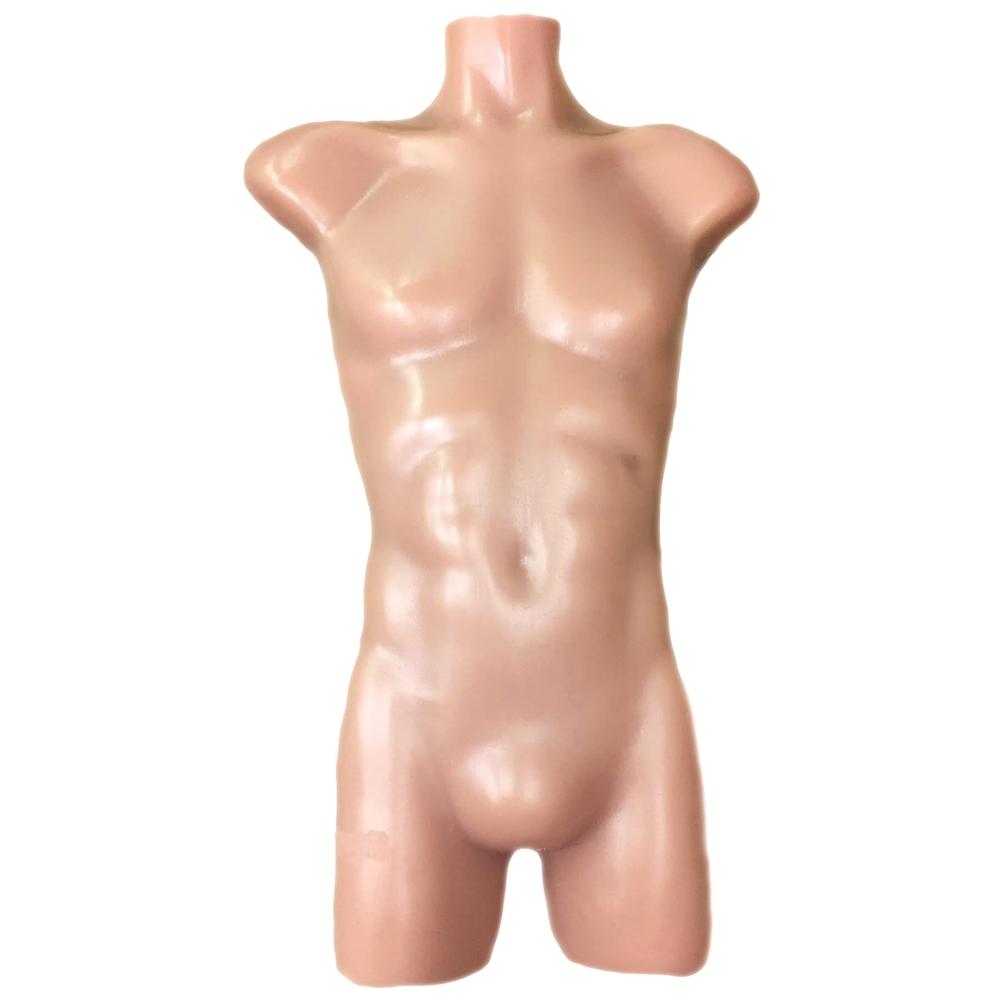

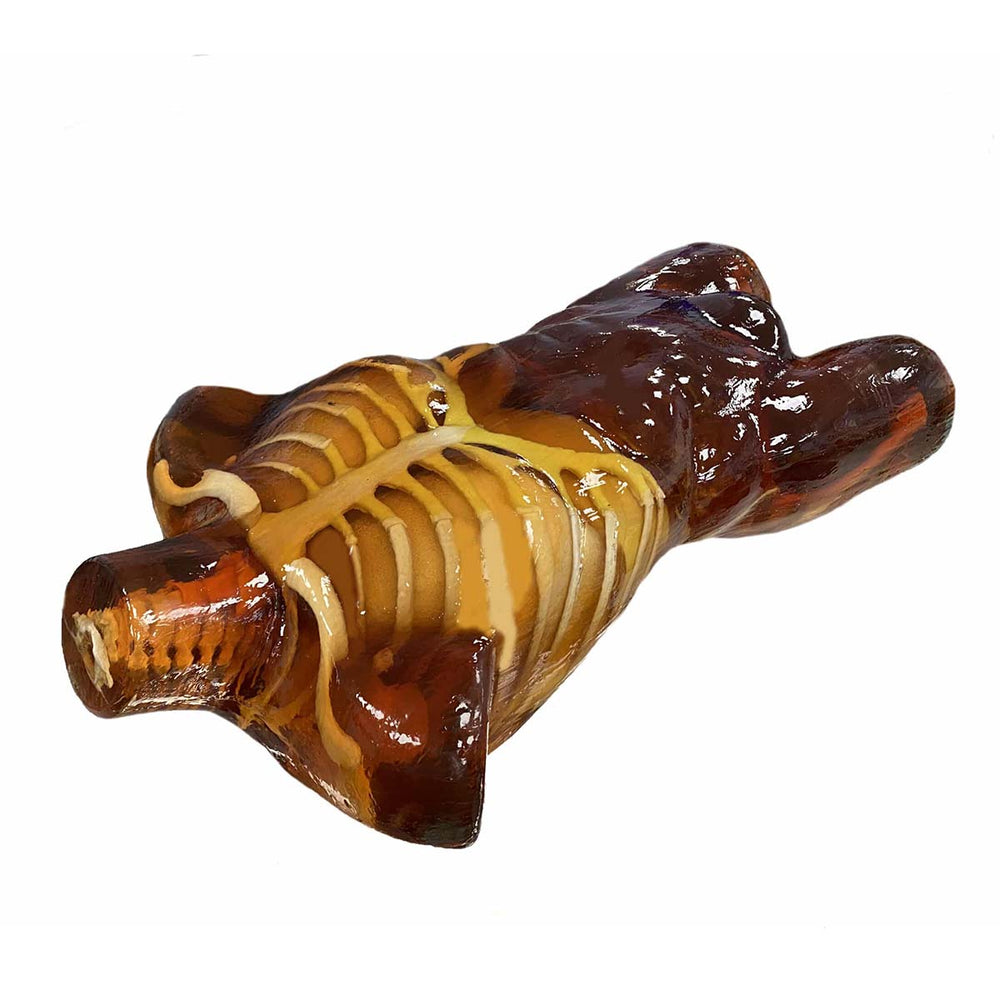

The Adult Torso Phantom for X-Ray CT, US is a realistic tool designed for X-Ray/CT and Ultrasound training. Its design is based on the anatomy of an adult male, featuring a realistic skeleton and customizable pathologies. It is an ideal tool for ultrasound technicians and medical students.
Adult Torso for X-Ray CT, US is designed based on an average anatomy of an adult healthy human male. It is compatible with X-Ray/CT and Ultrasound. The skeleton is made from individually cast bones from a realistic patented epoxy-based composite material with vertebrae that have a realistic three-layered structure with inner porosity.
The phantom can be customized with any pathologies for learning the techniques of FAST (focused assessment with sonography for trauma), FAMUS (Focused Acute Medicine Ultrasound), and any other procedural training (Pericardial effusion, etc.)
Anatomy
- Complete Spine
- Complete Ribcage
- Shoulders & Clavicles
- Pelvis
- Partial Femur Bones
- Trachea
- Heart
- Lungs
- Diaphragm
- Liver
- Gallbladder
- Stomach
- Kidneys
- Spleen
- Pancreas
- Large and Small Intestines
- Bladder
- Prostate
Included In Order:
- Adult Human Torso Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service

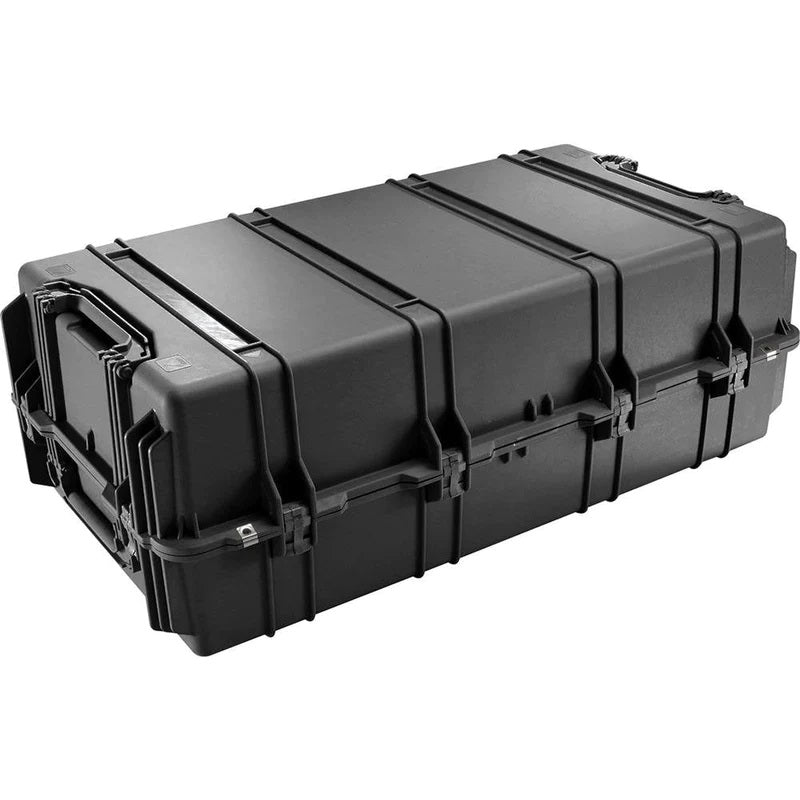

- Hard Carry Case
Shipping Dimensions and Weight with Hard Carry Case:
- Size: 47 x 36 x 18 in (approx.)
- Weight: 144 lbs (approx.)
- Size: 34 x 18 x 10 in (approx.)
- Weight: 88.2 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
Design of the Phantom:
Front view
Lateral view
Perspective view
Top view
CT Scans of the Torso
*/ These scans were obtained from a customized ultrasound & X-RAY CT Torso that were captured by a CANON CT Scanner – One Aquilion (Model TSX-305A). If you have any questions related to these, Contact Us /*
Ultrasound Scans of the Torso

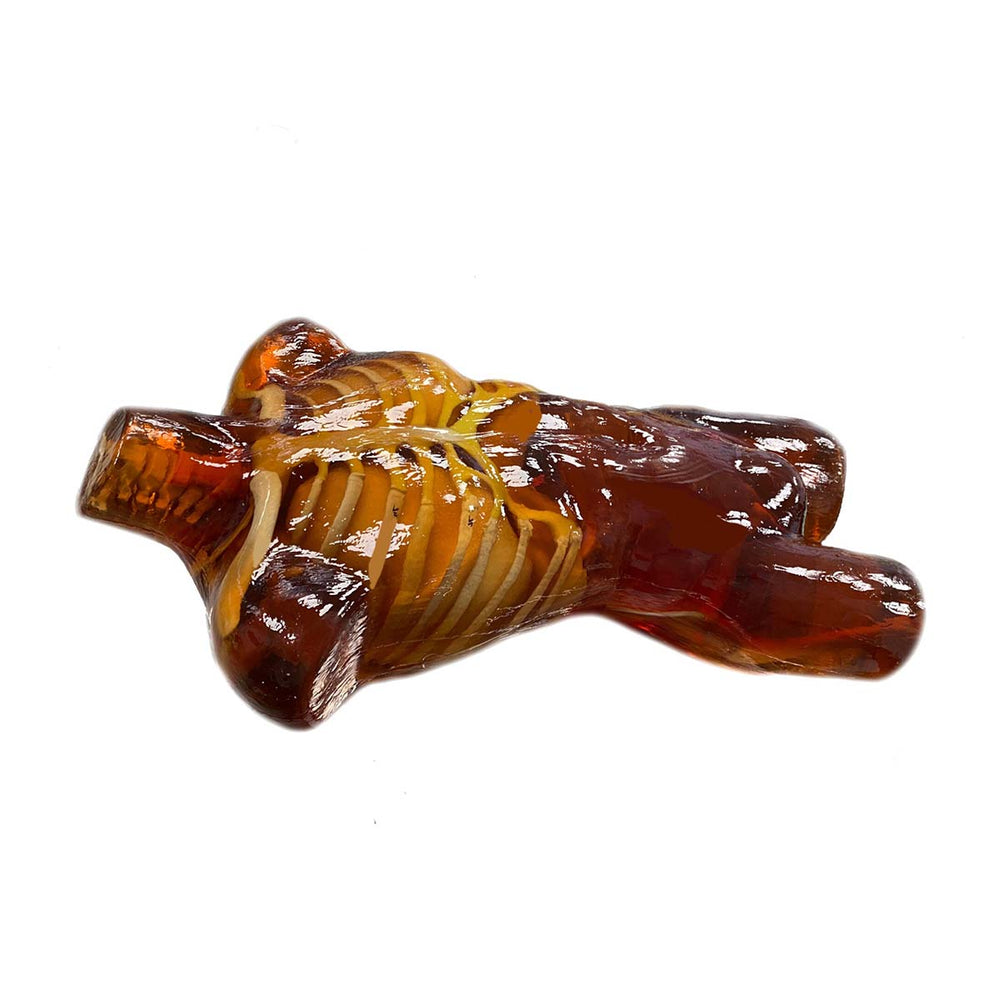

Adult Torso for X-Ray CT and Ultrasound, Transparent
Shipping Dimensions and Weight with Hard Carry Case:- Size: 47 x 36 x 18 in (approx.)
- Weight: 144 lbs (approx.)
- Size: 34 x 18 x 10 in (approx.)
- Weight: 88.2 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1400 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Tumor Feature | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Body Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Aorta | 40 |
| 5 | Vena Cava | 40 |
| 6 | Trachea | 80(Tissue part), -1000(Air filled part) |
| 7 | Pancreas | 110 |
| 8 | Spleen | 110 |
| 9 | Kidneys | 110 |
| 10 | Bladder | 35 |
| 11 | Rectum Wall | 100 |
| 12 | Sigmoid Colon Wall | 100 |
| 13 | Heart | 40 |
| 14 | Liver | 110 |
| 15 | Gallbladder | 35 |
