Newborn Head for Ultrasound, MRI and CT applications (Dynamic)
Ships in 12-16 weeks
0.0 lb
All pictures shown are for illustration purposes only. The actual product appearance may vary.
Newborn Head for Ultrasound, MRI and CT applications (Dynamic)
Item # TPS-HD-N03
$6,272.00
$6,400.00
You save $128.00
Need an estimate?
Click Add To Quote
Features & Specifications
-
by
A trusted GT partner -
FREE Shipping
U.S. Contiguous States Only -
2-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request
by
Frequently Bought Together
(
Newborn Head Phantom for X-Ray CT, Ultrasound and MRI (Dynamic)
The Newborn Head (Dynamic) phantom is designed to be suitable for medical imaging of blood flow underneath the skull. The phantom is designed based on an average newborn head and is made out of realistic soft and hard tissue-mimicking materials suitable for Ultrasound, MRI, and X-Ray/CT applications. This newborn head phantom makes for a great tool for angiography training and applications. The skull pieces are individually cast from our realistic patented epoxy-based bone material. This phantom can be used with Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based contrast mediums.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with Proton Density imaging methods. The phantom can be still imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
Anatomy:
- Based on an average Newborn Skull and Head
- Realistic Newborn Brain Tissue
- Complex Network of Small Brain Vessels
- Single Vessels with 3 mm Inner Diameter
- Single Vessels with 2 mm Inner Diameter
Included In Order:
- Newborn Head Phantom (Dynamic)
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Dimensions & Weight
Phantom
- Size: 5 x 6 x 5 in (approx.)
- Weight: 4 lbs (approx.)
- Size: 12 x 10 x 10 in (approx.)
- Weight: 8 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

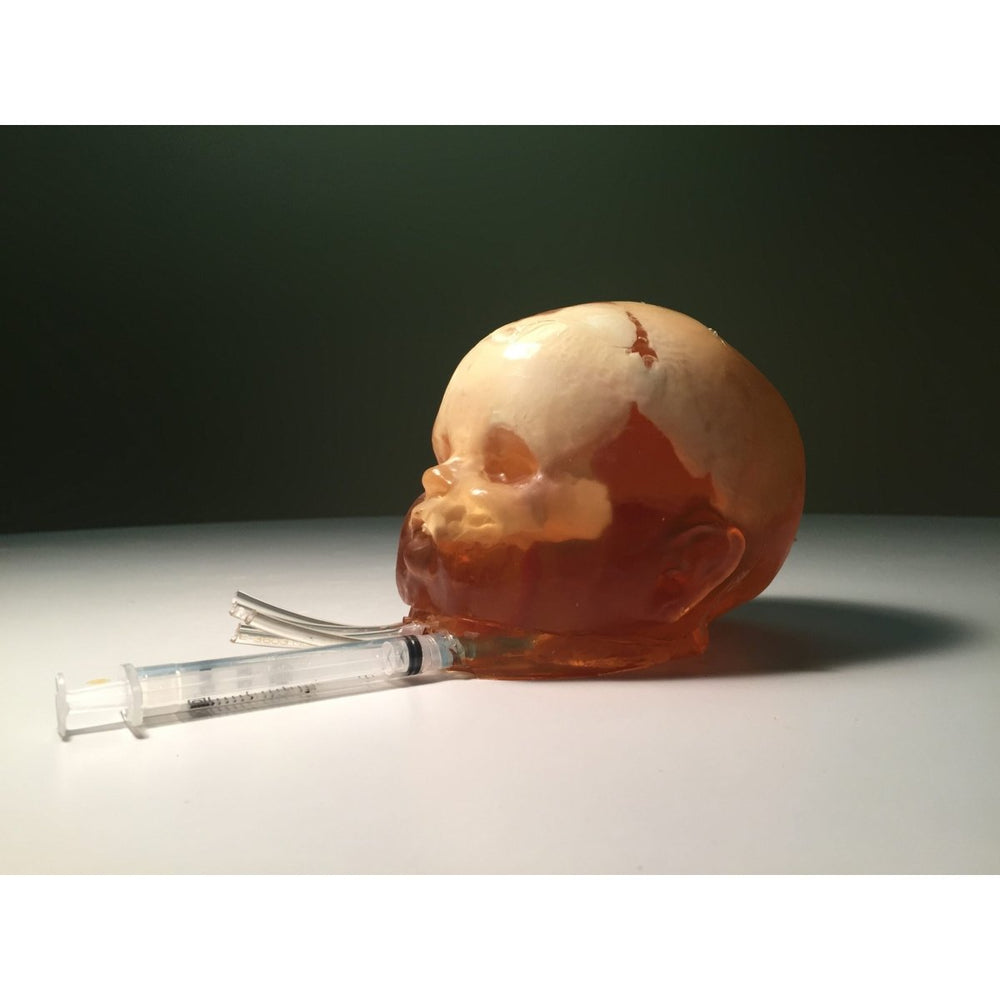

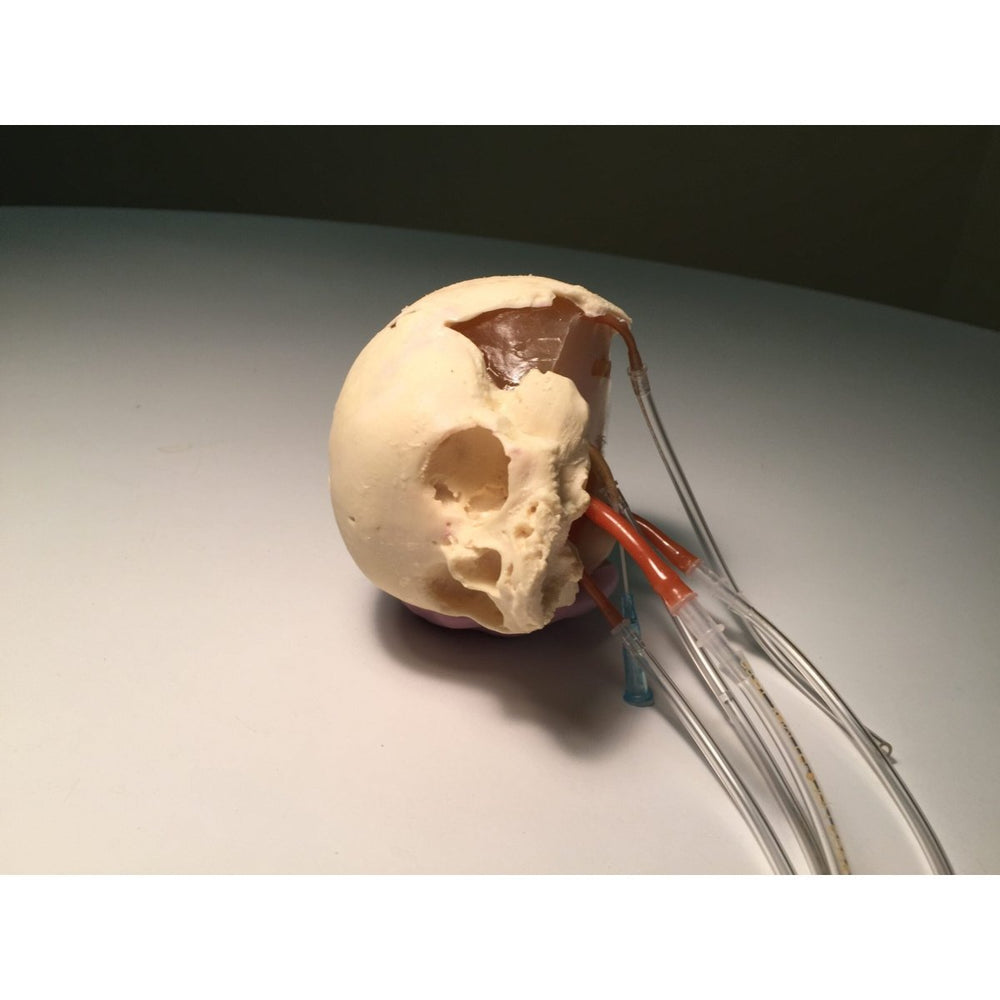

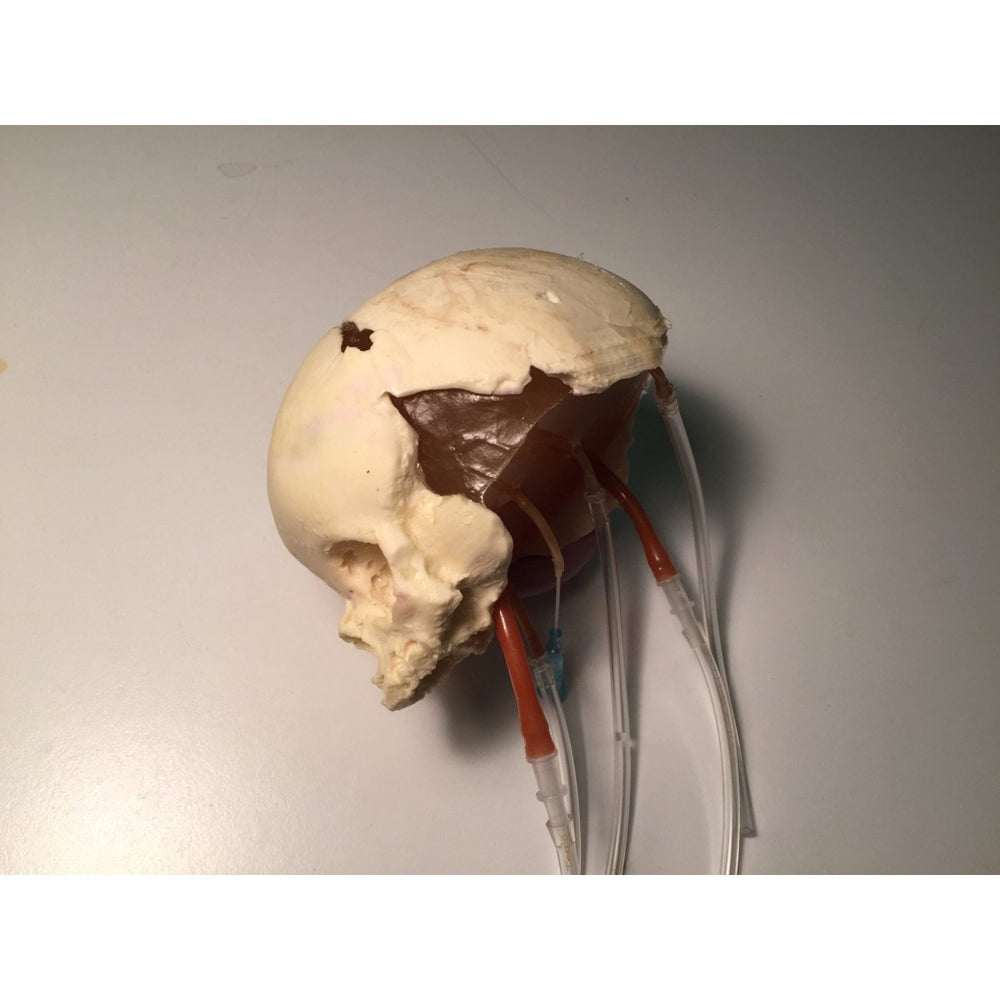

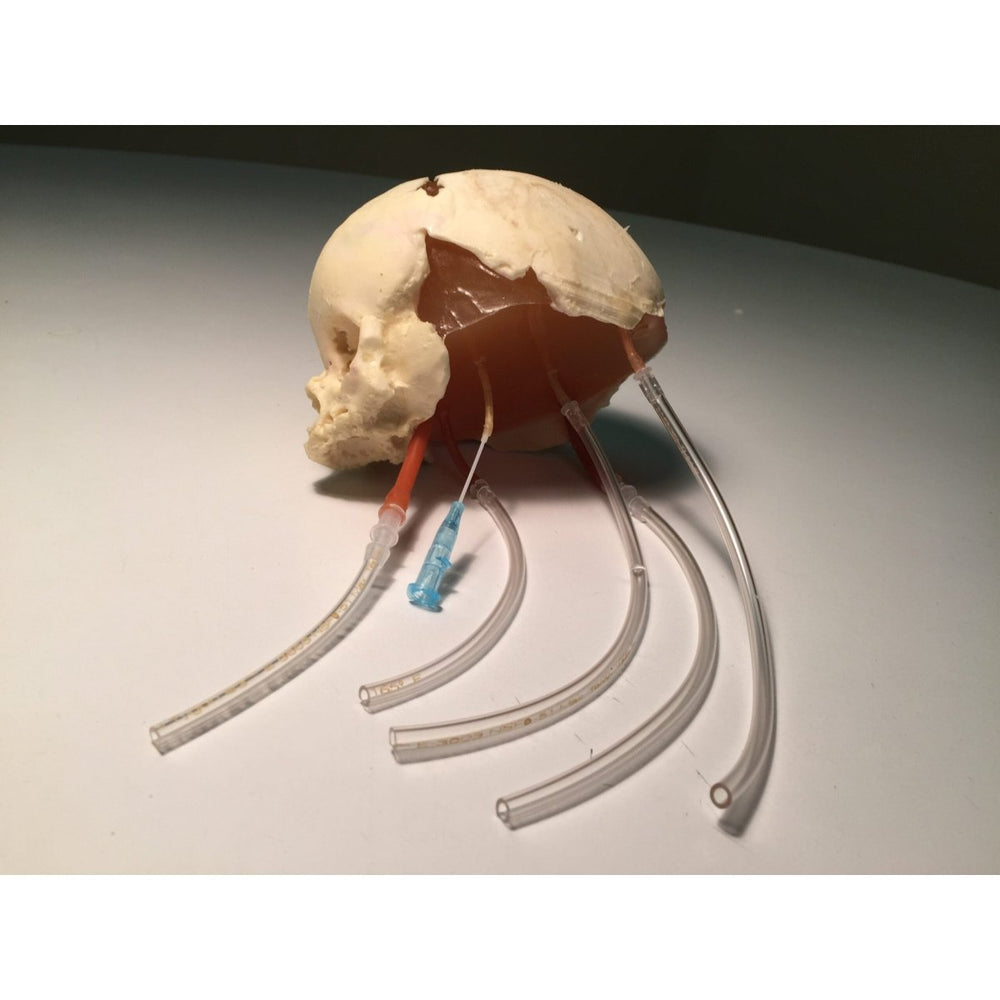

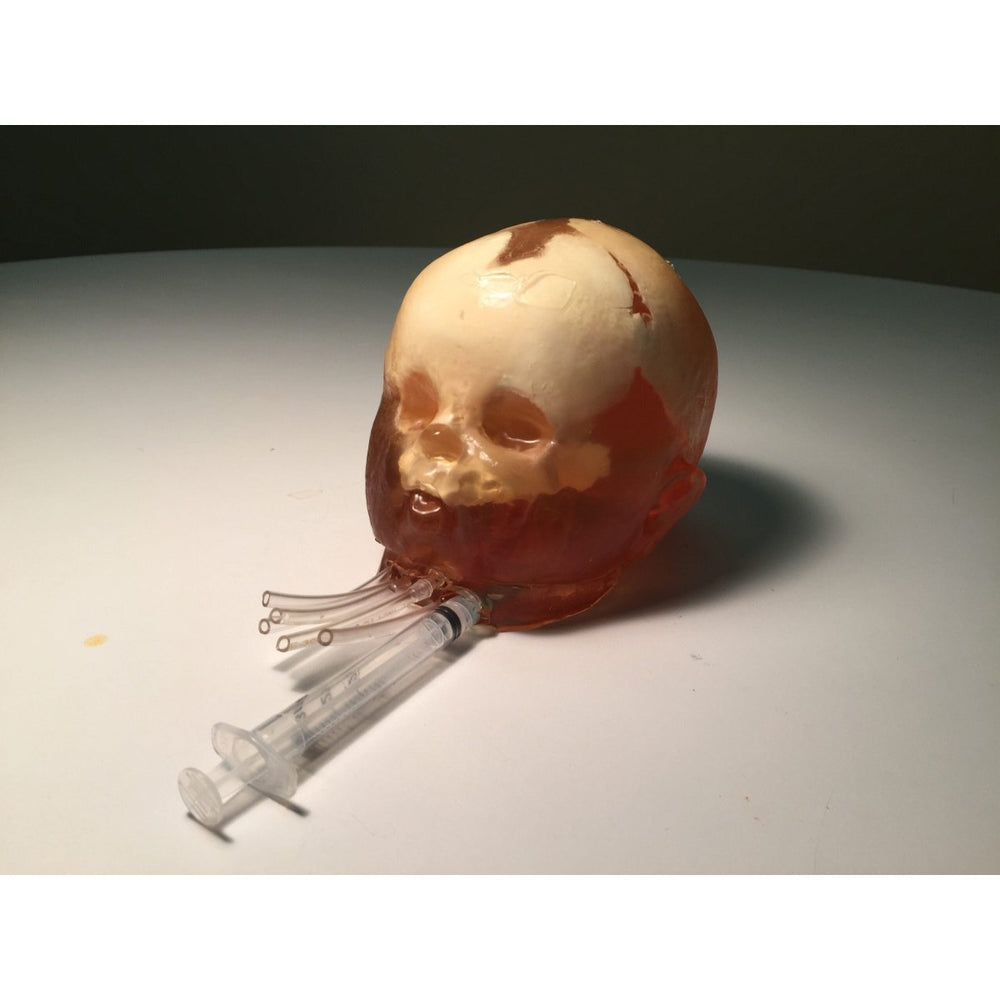

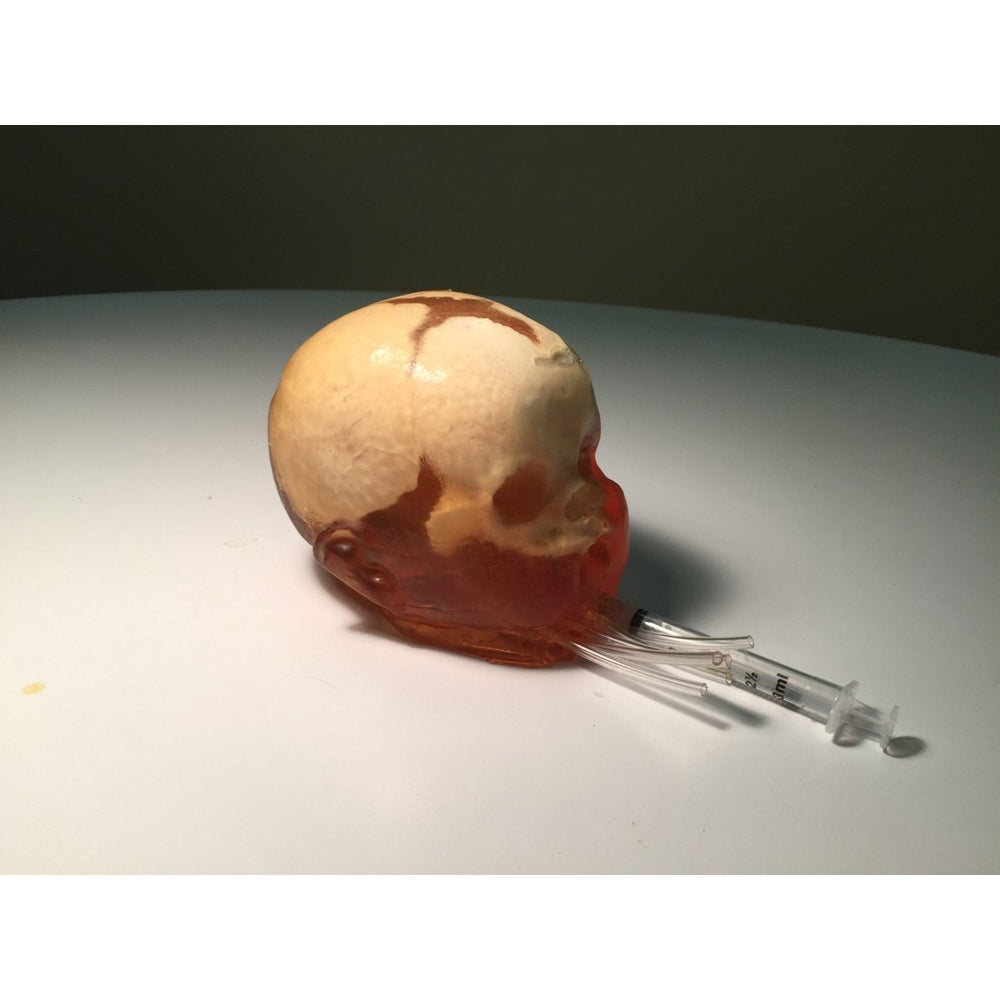

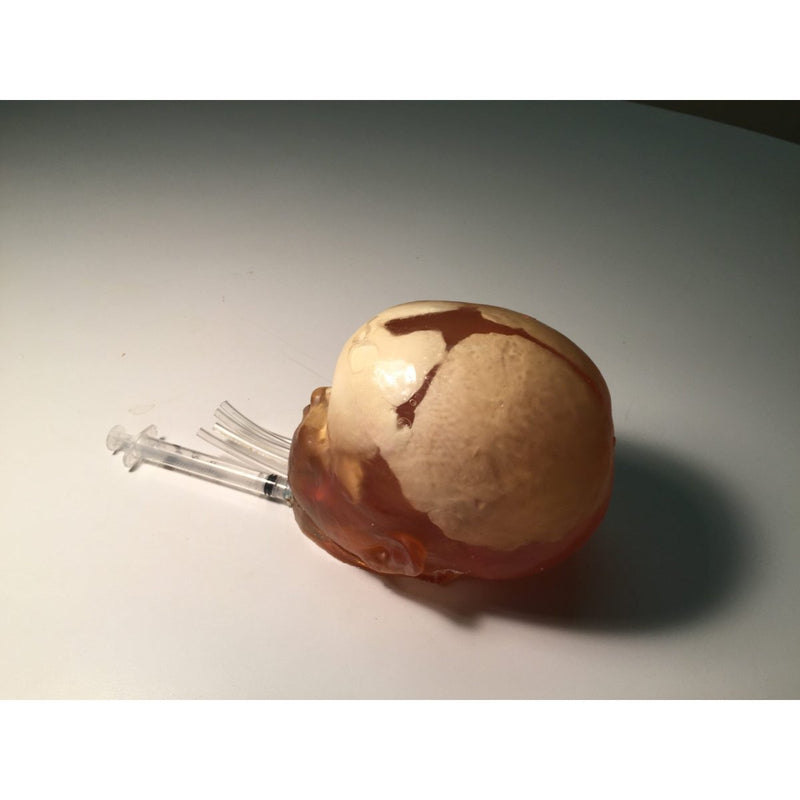

Front view
Right view
Left view
Perspective view
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz[dB/cm] |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
| Brain Matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
| Soft Tissue | 1400 ± 10 | 1.01 | 35 | N/A | NO | 1.3 ± 0.2 |
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
HU Values of the Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Brain Tissue | -25 |
| 2 | Cortical Bone | 1300 |
Newborn Head Phantom for X-Ray CT, Ultrasound and MRI (Dynamic)
Dimensions and Weight:
> Phantom- Size: 5 x 6 x 5 in (approx.)
- Weight: 4 lbs (approx.)
- Size: 12 x 10 x 10 in (approx.)
- Weight: 8 lbs (approx.)
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
