Newborn Torso for X-Ray CT and Ultrasound
The Newborn Torso phantom was developed in collaboration with the Sonographic Clinical Assessment of the Newborn
Training Program at the University of Calgary. This phantom is an deal tool for Ultrasound-guided procedures, such
as catheter insertion through the umbilical cord and bladder catheterization. It is constructed with realistic
tissue-mimicking materials suitable for Ultrasound and X-Ray/CT imaging.

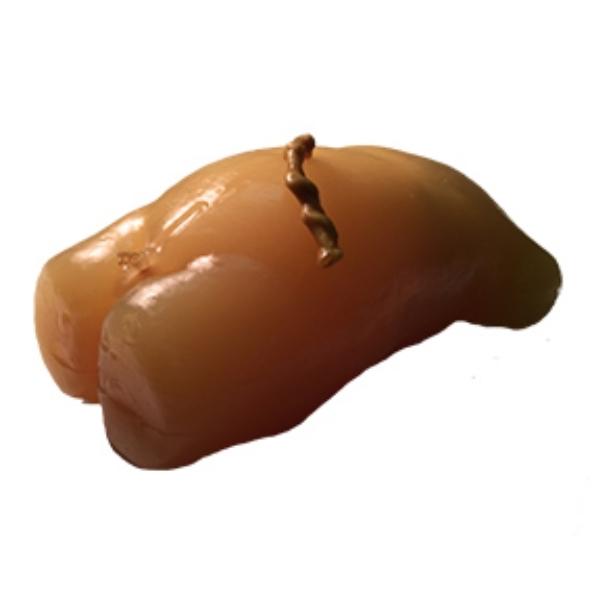

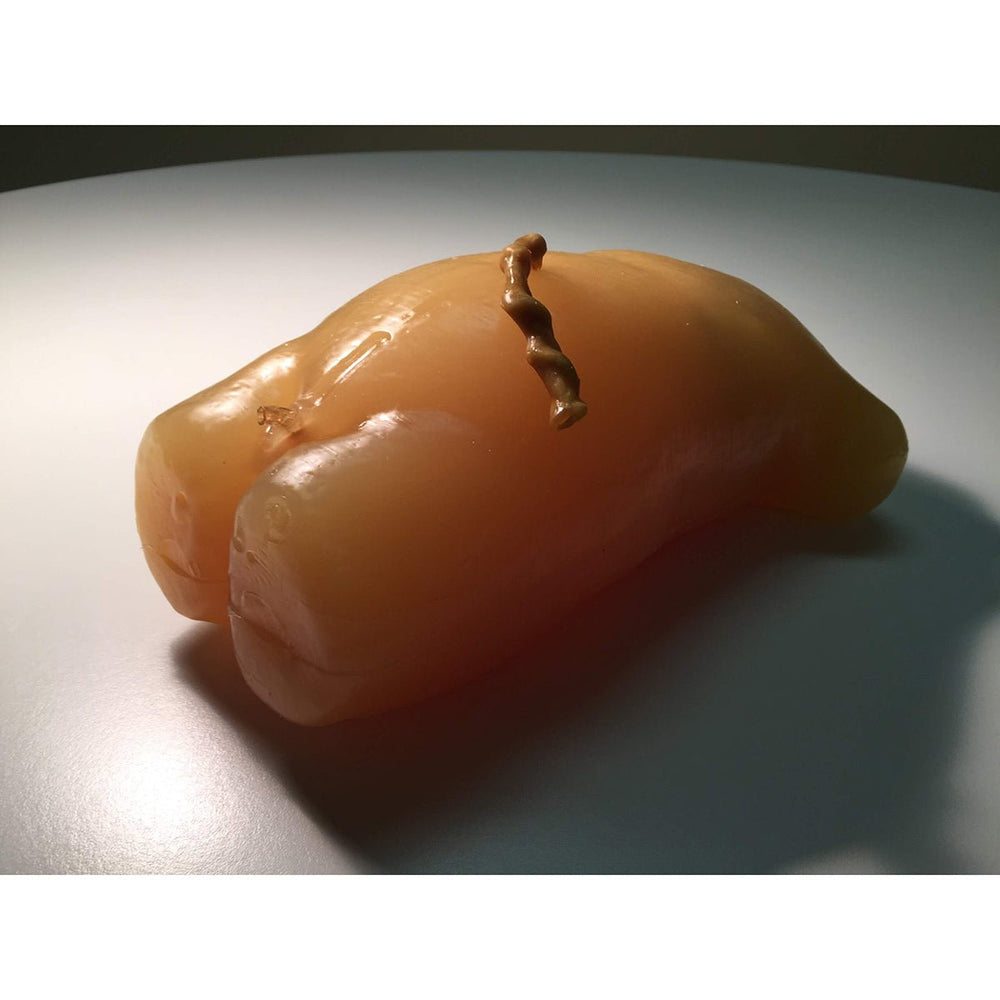

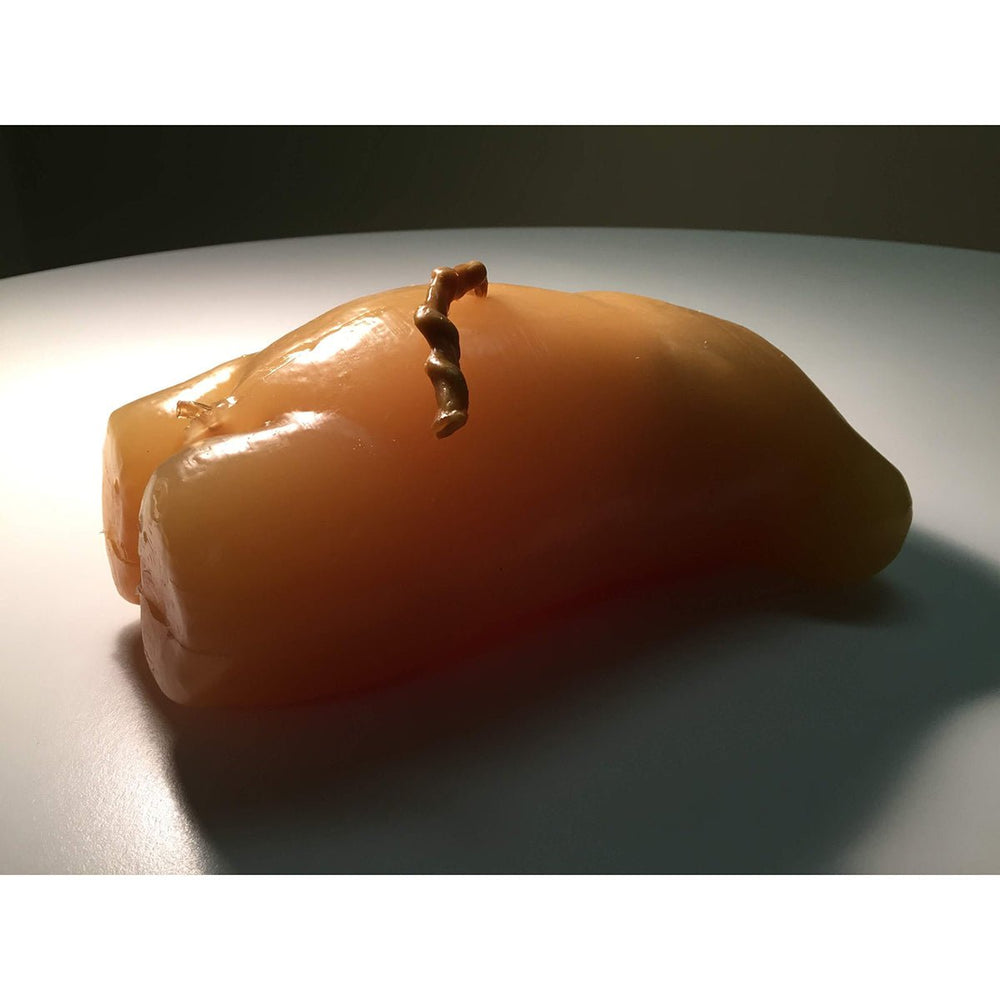

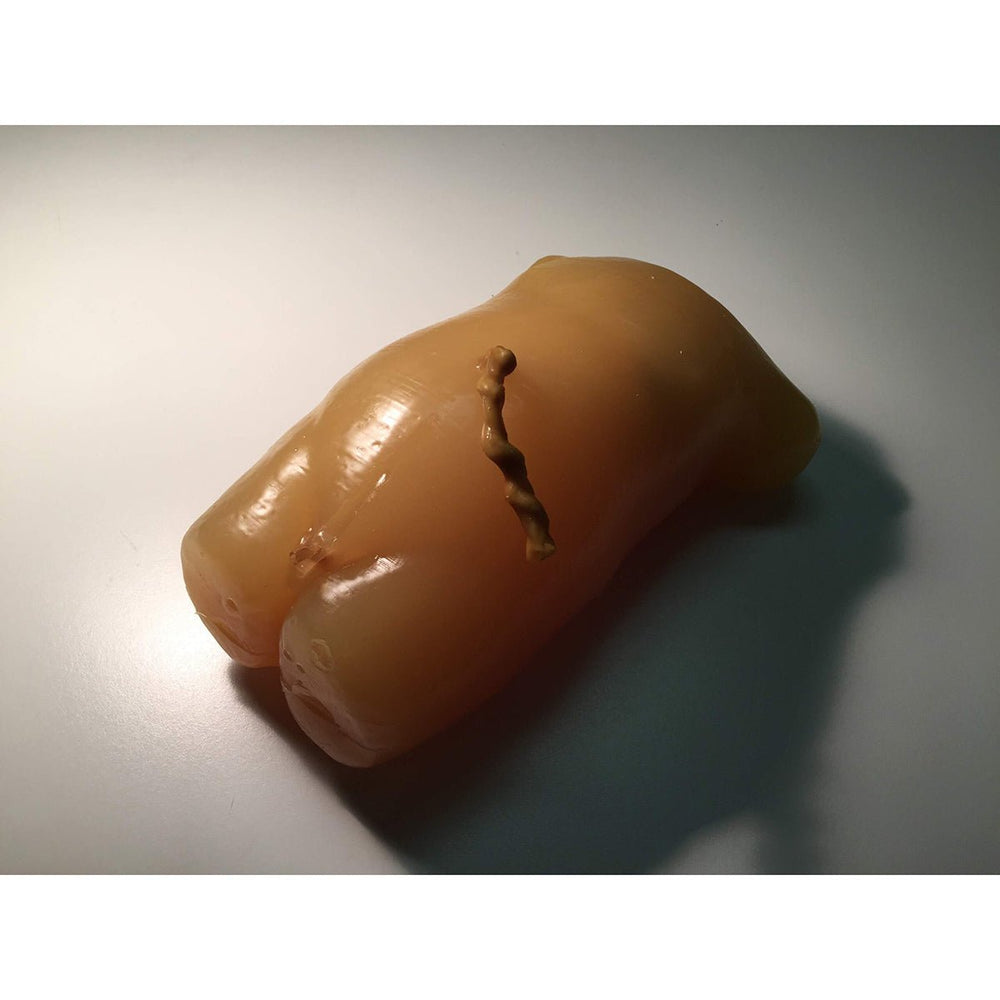

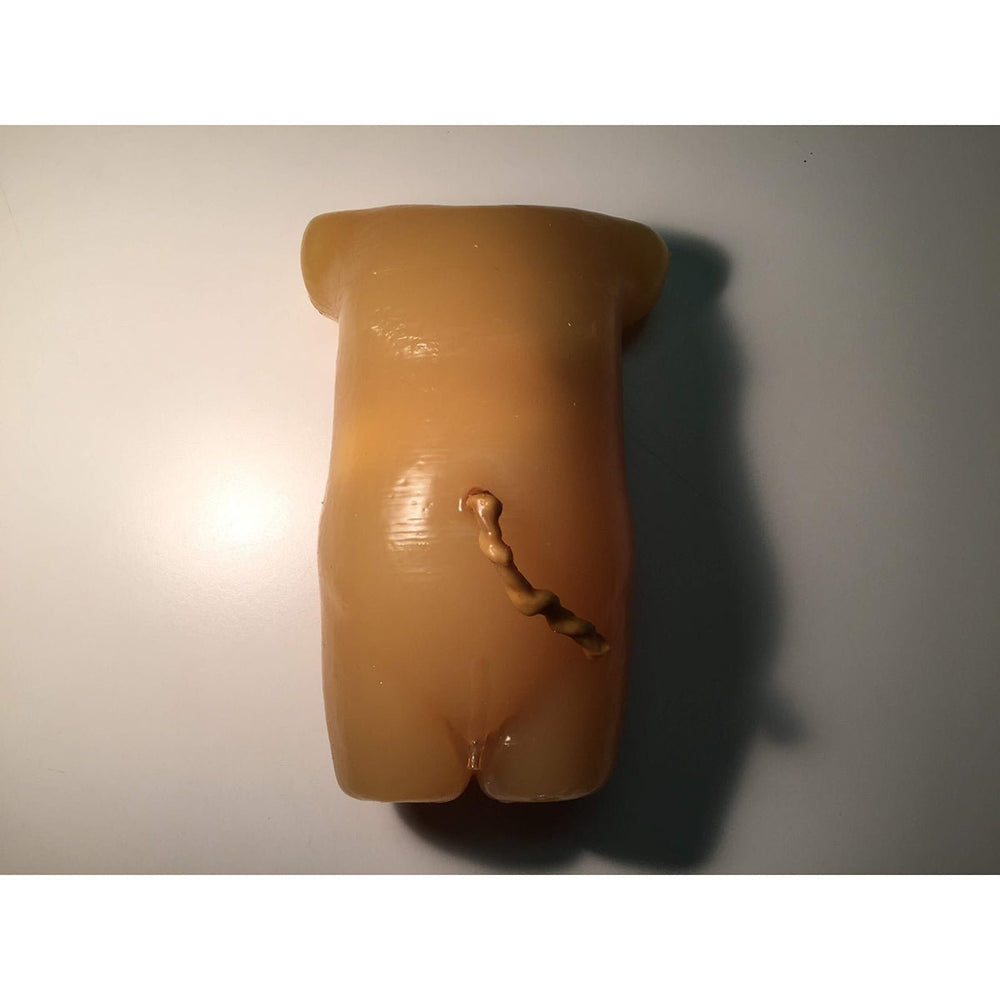

The design of our standard newborn torso phantom is based on an average newborn torso. It is made from realistic
tissue-mimicking materials with ultrasound speckles suitable for Ultrasound and X-Ray/CT imaging methods. The
phantom has a water-fillable umbilical cord and bladder, which can both be used for catheterization training under
ultrasound guidance.
The phantom was developed in collaboration with a group of physician experts from the Sonographic Clinical
Assessment of the Newborn (SCAN) Training Program program at the University of Calgary (Department of Pediatrics).
- Heart
- Aorta
- Inferior Vena Cava
- Water Fillable Umbilical Cord
- Liver
- Water Fillable Bladder
- Realistic Body Tissue
Your order will include:
- Newborn Torso Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Product Dimensions and Weight:
- Height: 6 x 5 x 9 in (approx.)
- Weight: 4 lbs (approx.)
- Height: 16 x 12 x 10 in (approx.)
- Weight: 8 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
X-Ray Scans
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] |
Hardness [Shore 00] |
T2 [ms] |
Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
|---|---|---|---|---|---|---|
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 20 | 70 | VARIABLE | 1.0 ± 0.2 |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 20 | 70 | NO | 1.0 ± 0.2 |
| Body Tissue | 1400 ± 10 | 1.00 | 30 | 65 | NO/LOW | 1.2 ± 0.2 |
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Body Tissue | -25 |
| 2 | Aorta | 40 |
| 3 | Inferior Vena Cava | 40 |
| 4 | Bladder | 35 |
| 5 | Heart | 40 |
| 6 | Liver | 110 |
