Advanced Newborn Torso for X-Ray CT and Ultrasound
All pictures shown are for illustration purposes only. The actual product may vary.

Advanced Newborn Torso for X-Ray CT and Ultrasound

Item # TPS-AN-N01
$7,056.00 $7,200.00
You save $144.00
Ships in 12-16 weeks

Need an estimate?
Click Add To Quote

Quote Helper

Features & Specifications
  • Trusted Vendorby True Phantom
    A trusted GT partner
  • FREE Shipping
    U.S. Contiguous States Only
  • 2-Year Warranty
    Provided by manufacturer
  • GSA PricingGov't pricing
    Available upon request
About This Item
Frequently Bought Together
Store Ratings: 4.7/5 GT Reviews (1900+ Reviews)
Questions?
Get Help From Our Support

Advanced Newborn Torso for X-Ray CT and Ultrasound

The Advanced Newborn Torso phantom was developed in collaboration with the Sonographic Clinical Assessment of the Newborn Training Program at the University of Calgary. This phantom is an deal tool for Ultrasound-guided procedures, such as catheter insertion through the umbilical cord and bladder catheterization. It is constructed with realistic tissue-mimicking materials suitable for Ultrasound and X-Ray/CT imaging.

The design of this Advanced Newborn Torso phantom is based on an average newborn torso. It is made from realistic tissue-mimicking materials suitable for Ultrasound and X-Ray imaging. The phantom has a water-fillable umbilical cord and bladder, which can be both used for catheterization training under ultrasound guidance.

The phantom was developed in collaboration with a group of physician experts from the Sonographic Clinical Assessment of the Newborn (SCAN) Training Program program at the University of Calgary (Department of Pediatrics).

Anatomy:
  • Heart
  • Aorta
  • Inferior Vena Cava
  • Liver
  • Kidneys
  • Stomach
  • Large and Small Intestines
  • Water Fillable Bladder
  • Water fillable Umbilical Cord
  • Realistic Body Tissue
Your order will include:
  • Newborn Torso (Advanced) Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case
Download:
manual
Product Dimensions and Weight:
  • Height: 6 x 5 x 9 in (approx.)
  • Weight: 4 lbs (approx.)
Shipping Dimensions and Weight:
  • Height: 16 x 12 x 10 in (approx.)
  • Weight: 8 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

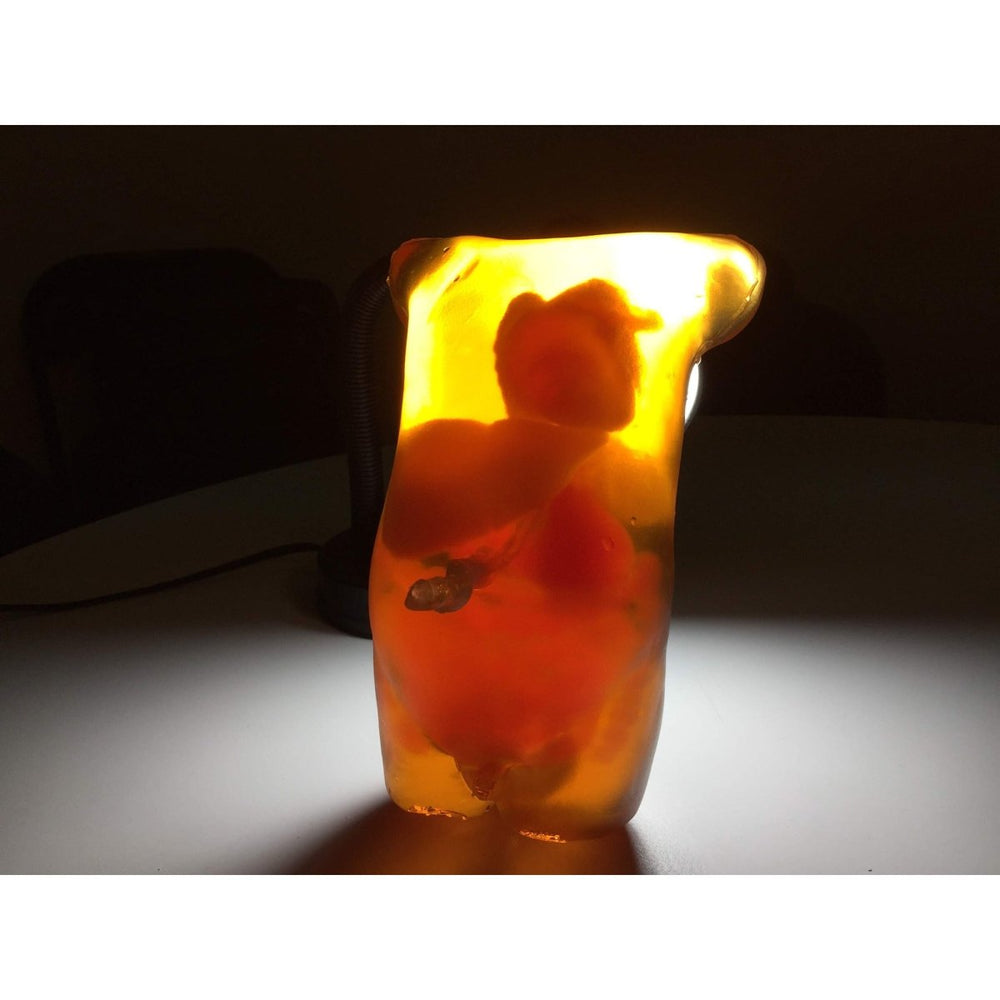

Front View

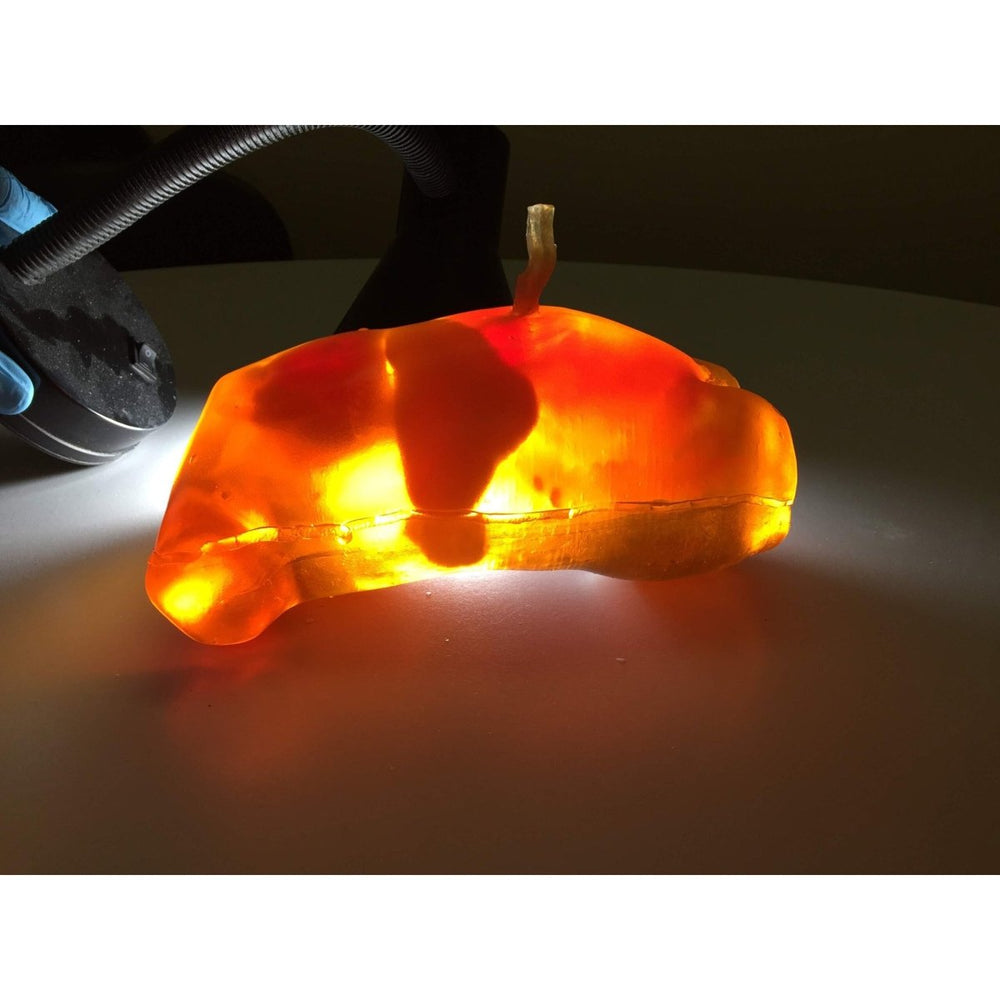

Lateral View

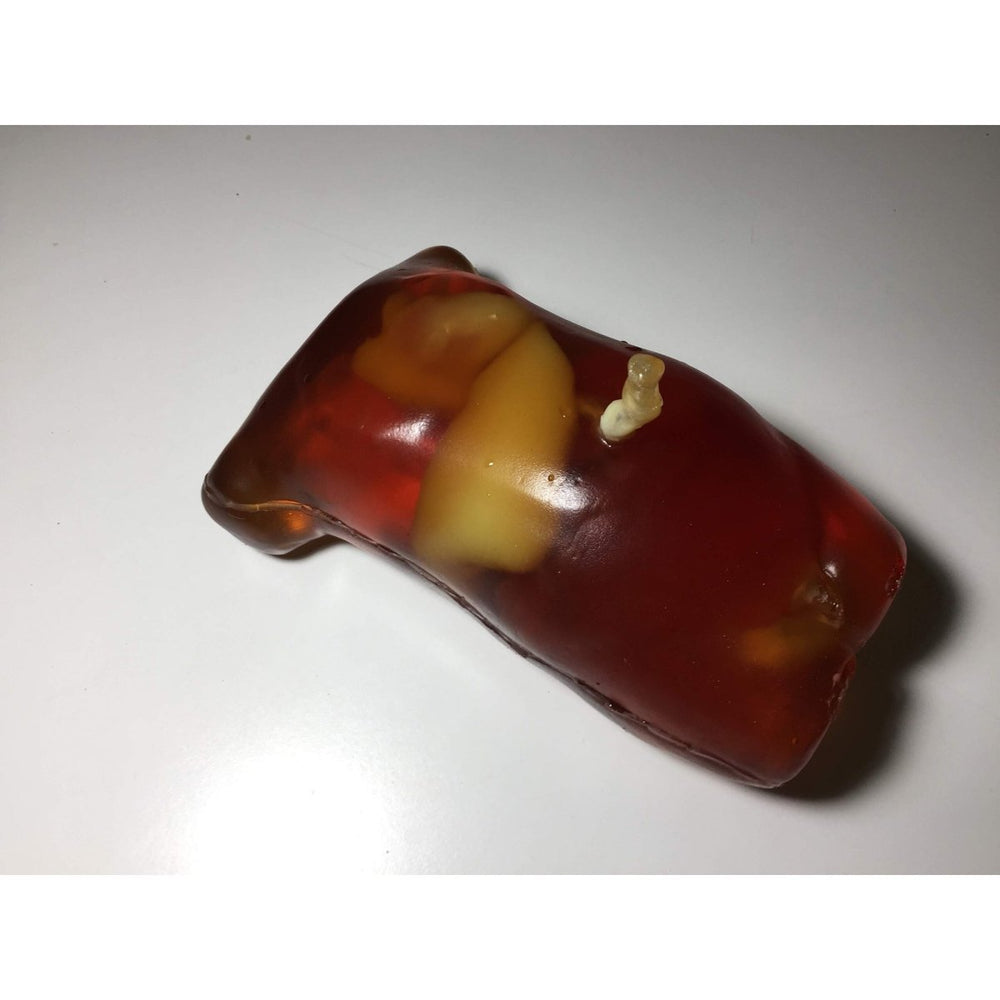

Perspective View
Top View
Type of Tissue Sound Velocity [m/s] Density
[g/cm³]
Hardness
[Shore 00]
T2
[ms]
Speckles Attenuation Measured
at 2.25 MHz [dB/cm]
Organs with Speckles (liver, kidneys, etc.) 1400 ± 10 0.99 20 70 VARIABLE 1.0 ± 0.2
Organs without Speckles (stomach, intestines, etc.) 1400 ± 10 0.99 20 70 NO 1.0 ± 0.2
Body Tissue 1400 ± 10 1.00 30 65 NO/LOW 1.2 ± 0.2
S.No. Tissue Type HU Value (average)
1 Body Tissue -25
2 Aorta 40
3 Inferior Vena Cava 40
4 Bladder 35
5 Heart 40
6 Liver 110

Advanced Newborn Torso for X-Ray CT and Ultrasound

Product Dimensions and Weight:
  • Height: 6 x 5 x 9 in (approx.)
  • Weight: 4 lbs (approx.)
Shipping Dimensions and Weight:
  • Height: 16 x 12 x 10 in (approx.)
  • Weight: 8 lbs (approx.)

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
