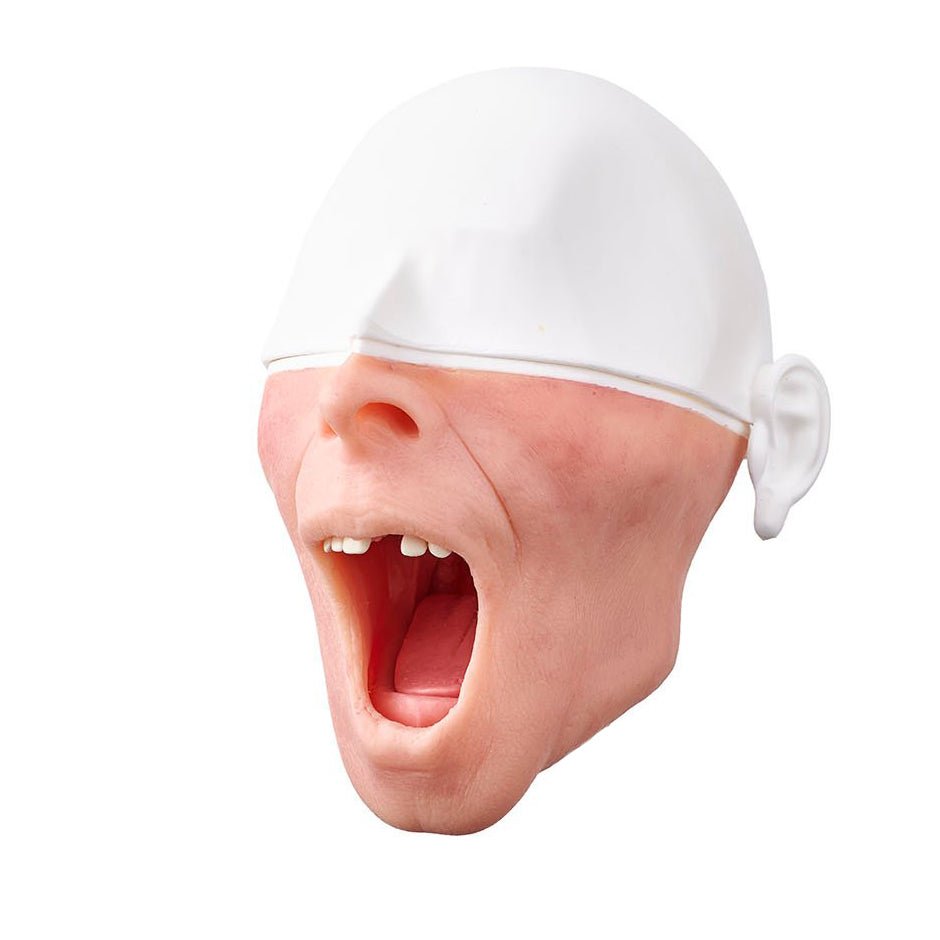

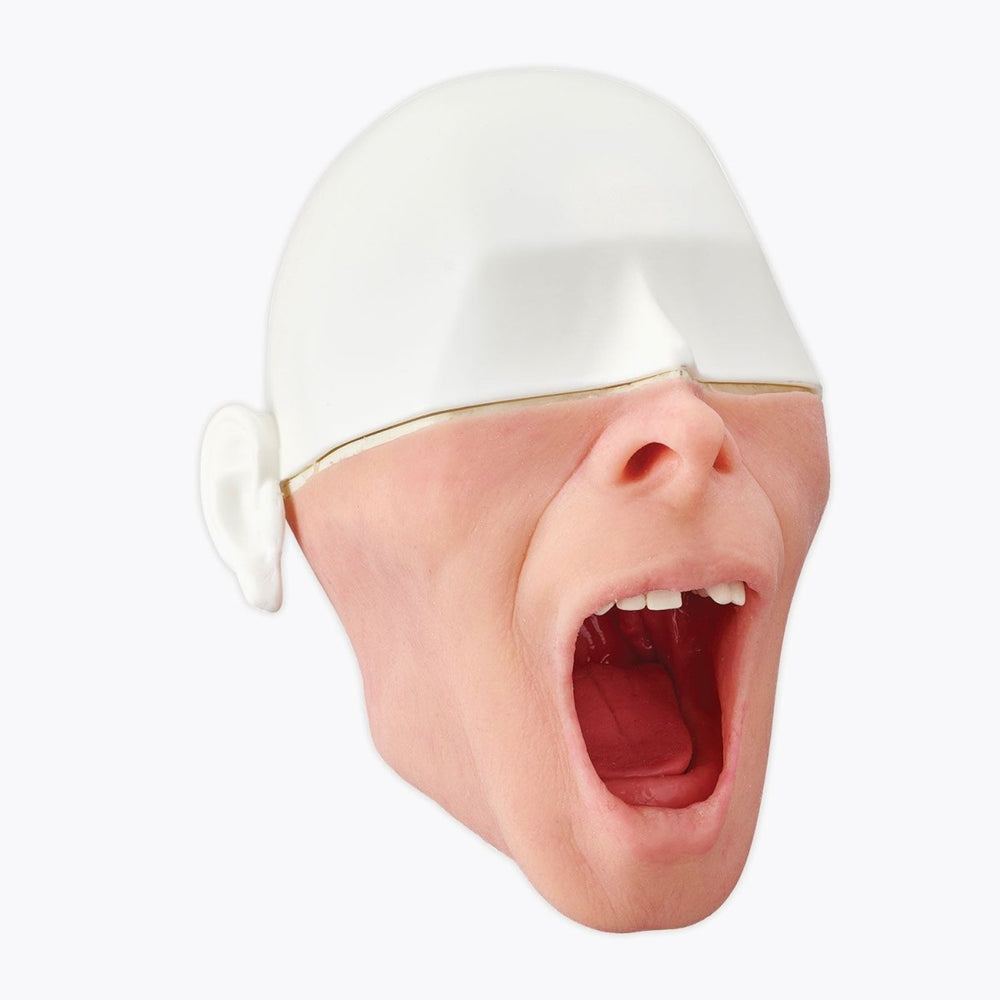

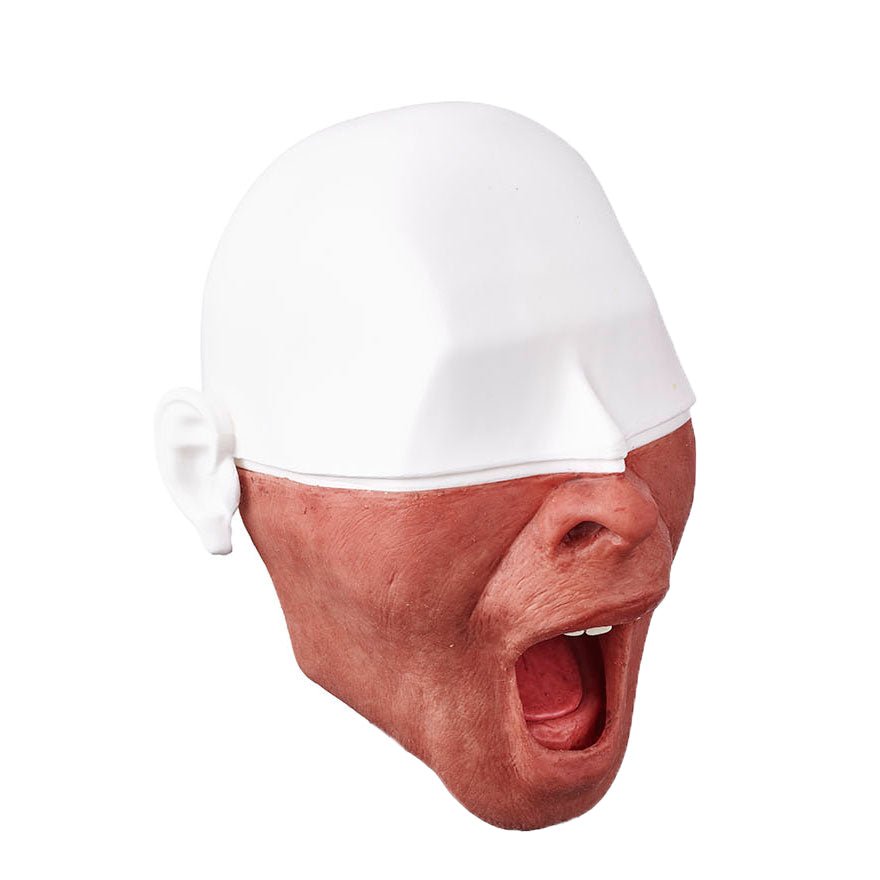

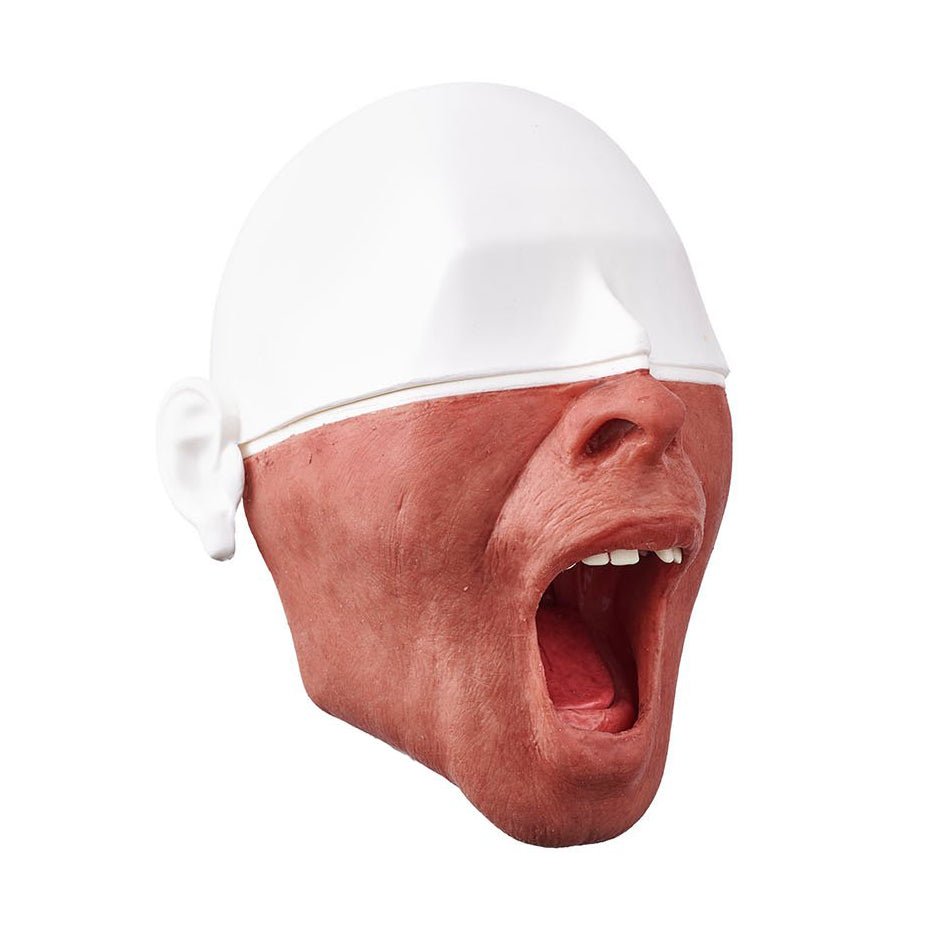

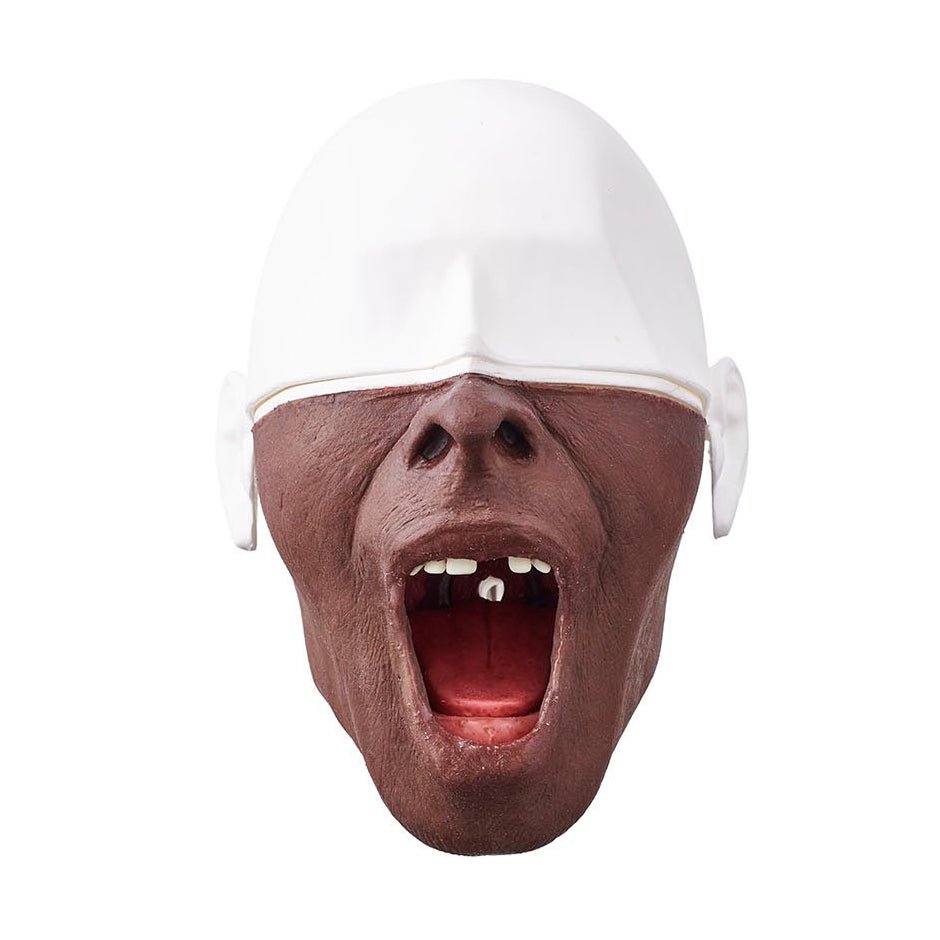

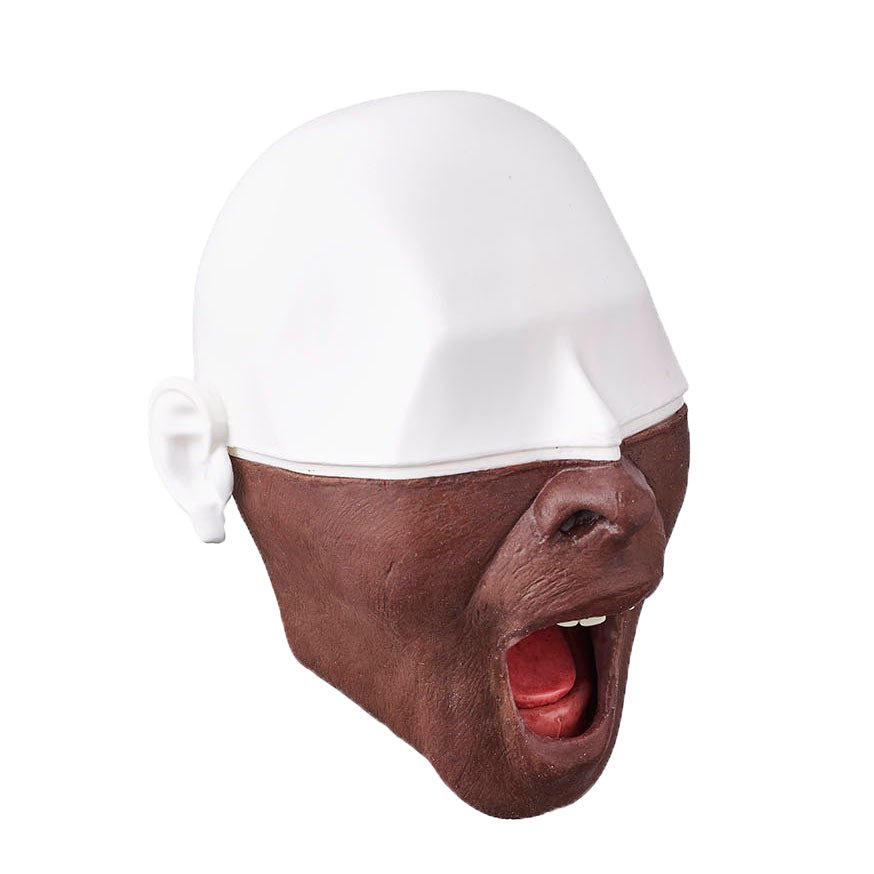

Surgio - Hyper-Real Implant Surgery Partner

For the first time, students can learn with a true, extremely accurate simulation model, using our advanced surgical manikin system. Stand head and shoulders above the competition, and provide your students with an unprecedented, true-to-life implant surgical experience

Surgio is the one and only surgical and restorative mannequin system with extraordinary realism for procedural accuracy on a number of sites including non-aesthetic and aesthetic implant restoration, moderate full-arch removable restoration, advanced full-arch fixed restoration and advanced sinus augmentation & implant-supported 3-unit bridge.

Surgio provides the ‘real feel’ of soft tissue cutting, bone exposure, implant placement, suturing, and post-operative implant restoration. Students placing their first implant case will experience a true procedural simulation, working within the confines of the oral cavity, managing light obstruction and refraction, tissue rebound and tongue protrusion.

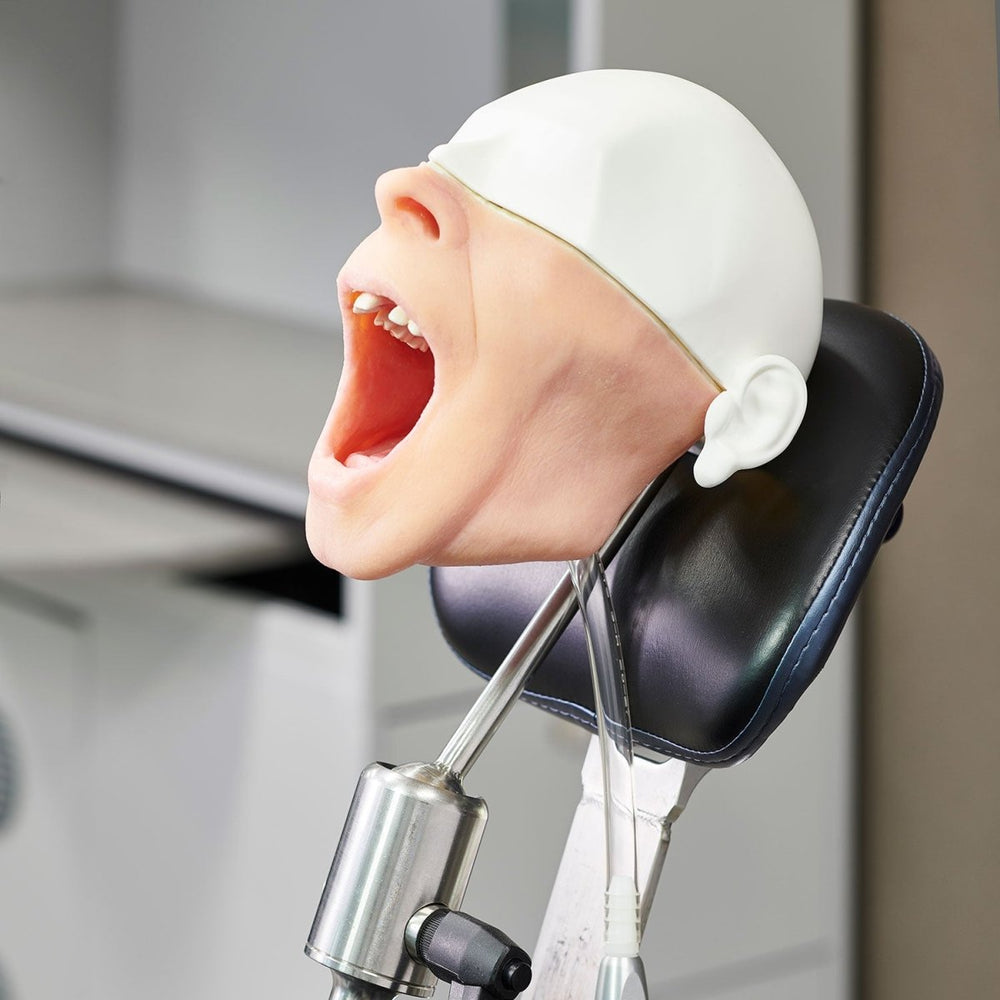

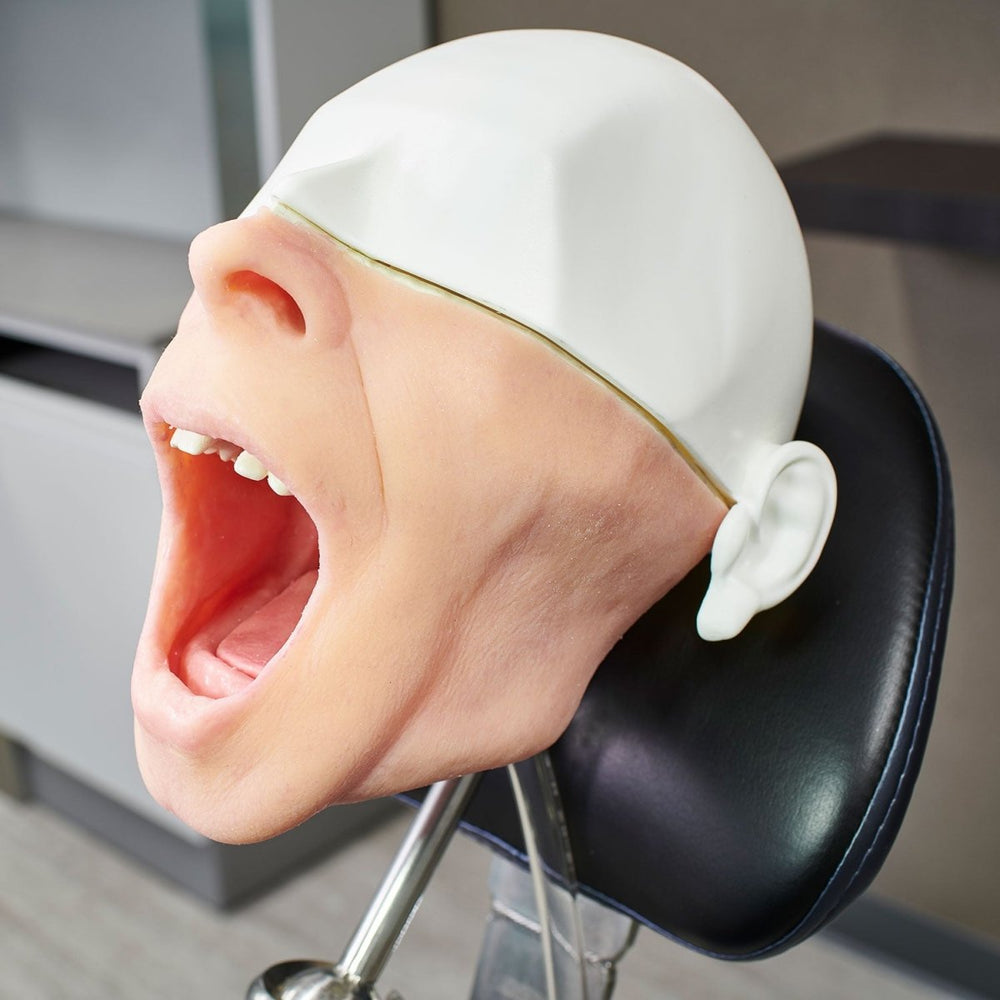

Surgio can be easily mounted to a bench or a dental chair and has a drain plug and tube in the throat region for use of water during placement and easy cleanup of dust/debris when drilling. Bench mount, chair mount and table mount are sold separately.

1 Tissue

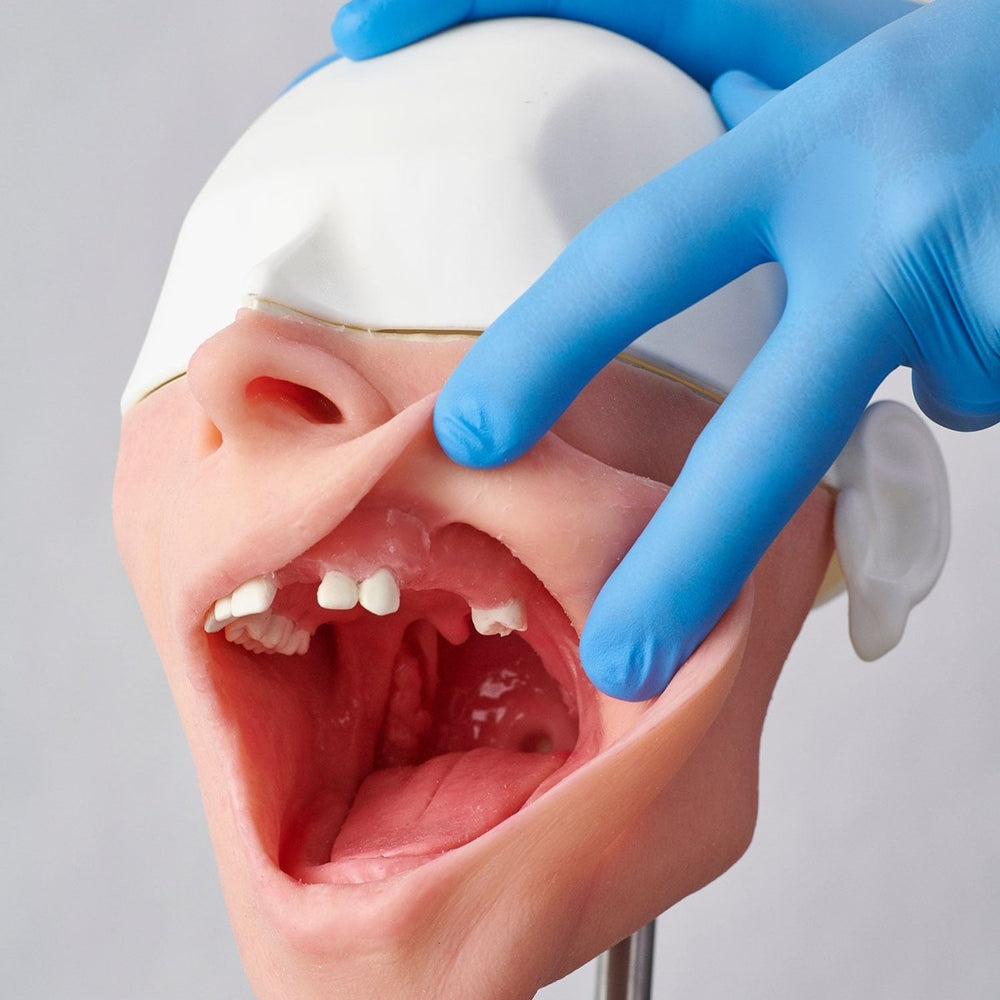

  • Labial tissue reacts and rebounds like human cheek tissue, simulated tongue intrudes procedurally just like a real tongue
  • Hyper-accurate soft tissue allows for instruction of proper flap incision techniques
  • Tissue can be impressed with PVS, polyether or putty impression materials without releasing agent needed, no material adhesion
  • Tissue can be re-attached with simple cyanacrylate adhesive post incision/suture for impression taking

2 Gingiva

  • Accurately simulated gingiva: attached simulated periosteum; incises and holds sutures well; has attached mucosal tissue

3 Bone

  • Accurately simulated bone densities in the proper regions of the mouth: D1 (symphasis), D2 (posterior mandible), D3 (anterior maxilla), D4 (posterior maxilla)
  • Edentulous mandible provides excellent platform for teaching denture impression/ fabrication technique
  • Manikin can be X-Rayed and CT scanned for use with implant and guided surgery software


Anterior site with ideal patient presentation for students placing their first implant case.

  • Accurate bone density (D3) for anterior maxilla region
  • Adequate bone with good density for ease of placement
  • Adequate tissue height and thickness
  • Easy access in anterior region


Moderate complexity single-unit, implant site in aesthetic region. Teaches proper implant placement angulation to maximize the aesthetic result.

  • Accurate bone density (D3) for anterior maxilla region
  • Slight buccal wall defect dictating slightly lengual implant placement
  • Accommodates immediate or standard temporization techniques


  • Accurately simulated sinus cavities with Schneiderian Membrane supporting either Caldwell/Luck (lateral wall) or Summers (crestal) lift technique
  • Schneiderian Membrane is attached to the bone giving a very realistic “feel” to the sinus lift; must be carefully lifted away
  • Sufficient coronal bone to place two implants 12 & 14 (post-lift with enough initial stability for restoration)


  • Edentulous mandible has dense, D1 bone enabling teaching of tilted implant protocol supported by four implants (i.e., All-on-4)
  • Excellent initial stability due to dense bone allows for immediate impression taking and pickup of the denture
  • CT scan ability of model allows for digital case planning as well as surgical stent manufacture


Fully edentulous mandible ideal for placement of 2 implants (#22, #28) and Locator abutments for lower denture conversion.

  • Accurate bone density (D1) for anterior mandible region
  • Non-esthetic site ideal for second implant case
  • Promotes proper locator abutment placement, chairside pickup technique
  • Utilizes student-fabricated (lower) denture for full-arch restoration

Surgio allows the completion of 4 different implant procedures. However, upon completion of these procedures, it is necessary to replace the entire Surgio manikin. Post, abutment, restoration parts and surgical equipments are NOT included.

    In the box:

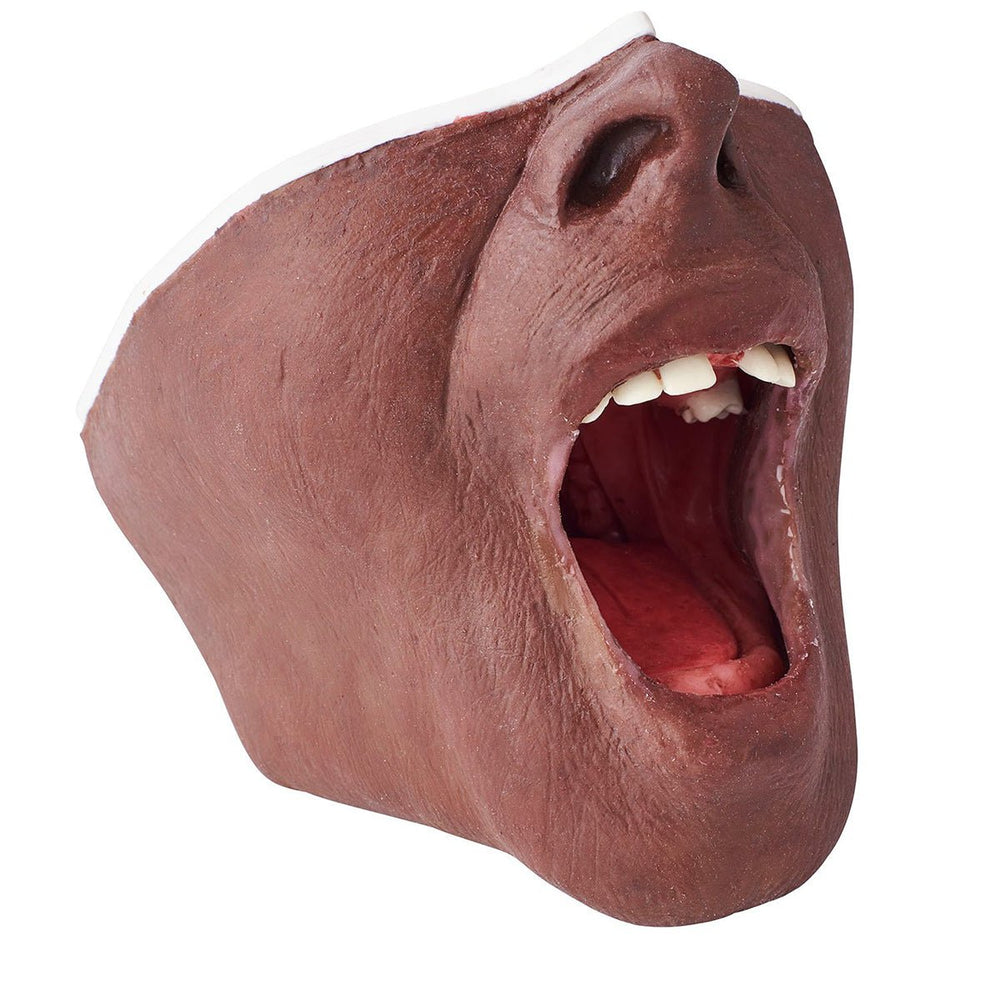

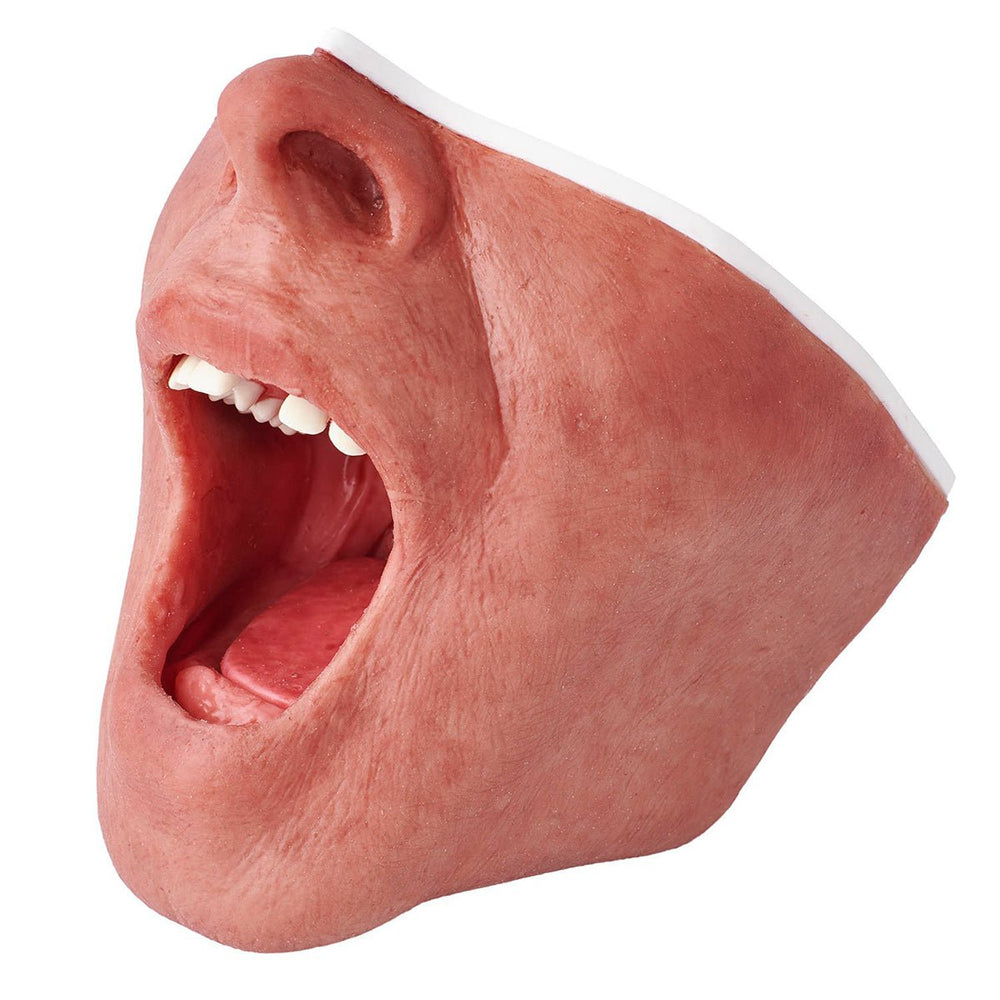

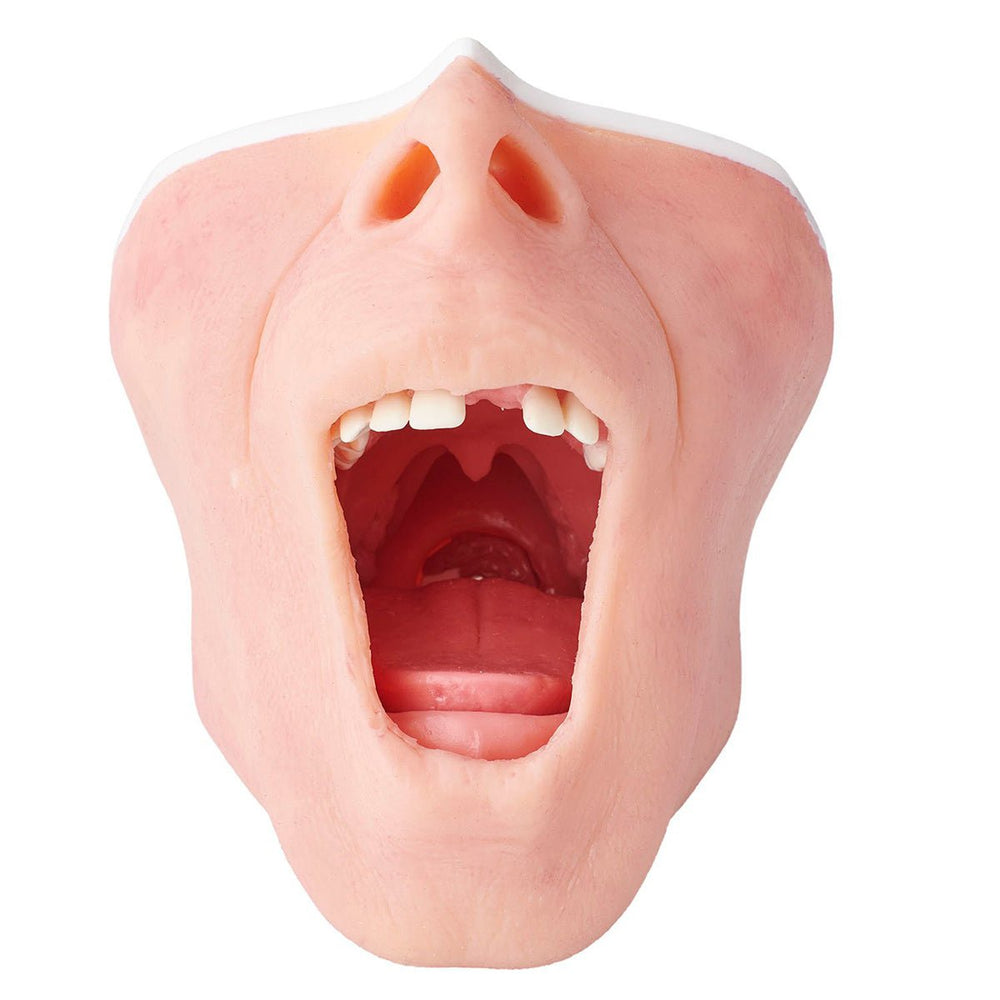

  • Soft tissue surgery system (lower half)
  • Plastic cranium (upper half)
  • Allen key (for the optional mounts)
    Optional mounts:
  • Small Bench Mount with Universal Ball Joint (1KM81)
  • Chair Mount with Small Ball Joint (1KM1R10SB)
  • Small Table-Top Stand with Univesal Ball Joint (1KTM81)
  • Chair Mount with Heavy Duty Ball Joint (1KM1R10)
  • Heavy Duty Bench Mount with Large Ball Joint (1KM5BJ)
