Adult Elbow for X-Ray CT, US, MRI
The Elbow phantom has an internal structure and anatomy based on the average elbow of an adult human. The synthetic
bones used in this phantom are made out of our patented material, which is best suited for X-Ray, CT ,US and MRI
imaging applications. The soft tissue is made from realistic urethane-based tissue-mimicking materials.
The positioning of the bones is designed to mimic an elbow X-Ray AP View.
The phantom can be used as a tool to conduct radiology training in schools and other teaching institutions, medical
imaging research, or testing. The phantom can be scanned over and over again without any risk of radiation. The
bones are individually casted by hand and assembled by expert technicians before being casted in the soft tissue
mimicking material.
This product can be further customized to match a wide variety of project requirements.
Anatomy:
- Partial Ulna
- Partial Radius
- Partial Humerus
- Realistic Soft Body Tissue
- Elbow Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Product Dimensions and Weight:
- Size: 4.4 x 3.6 x 9.9 Inches (11 x 9 x 25 cm)
- Weight: 2.7 lbs (1.2kg) (approx.)
- Size: 23 x 14 x 10 Inches
- Weight: 11 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

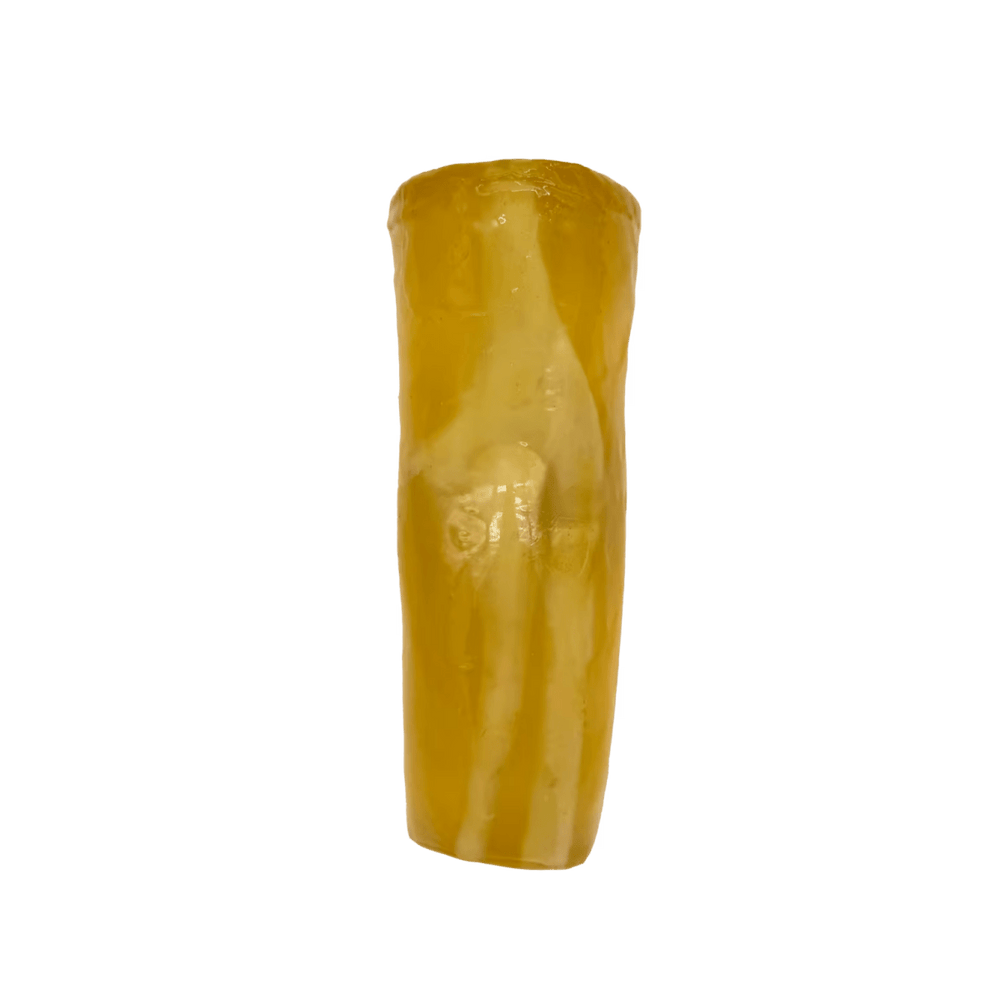

Front View

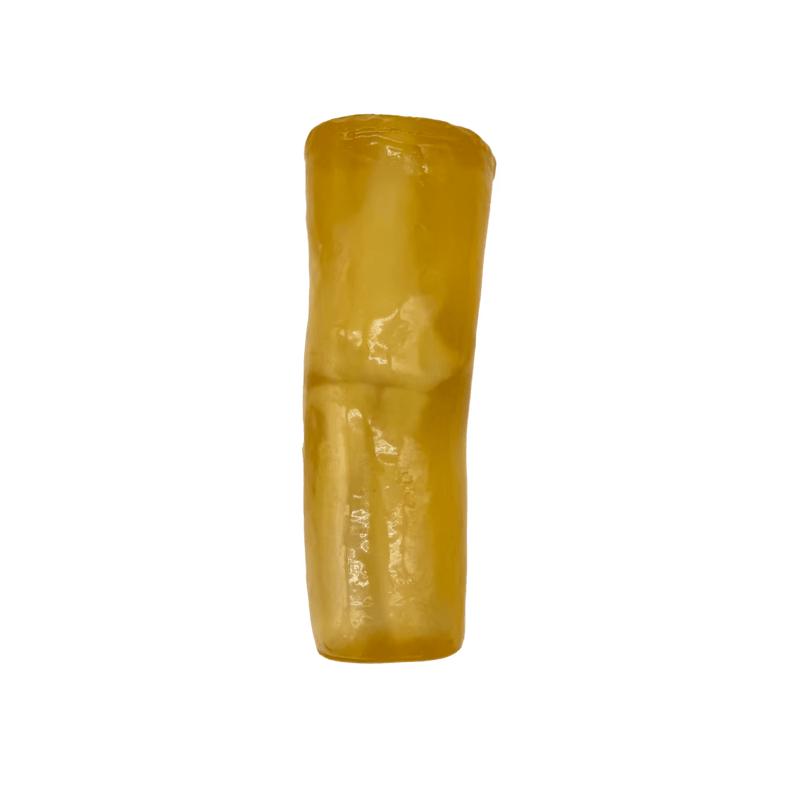

Lateral View

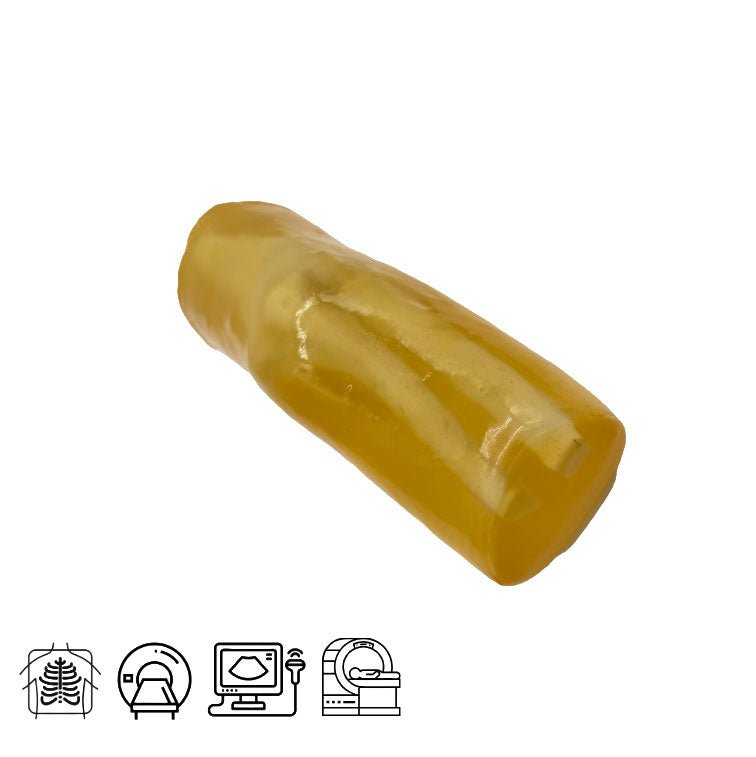

Perspective View

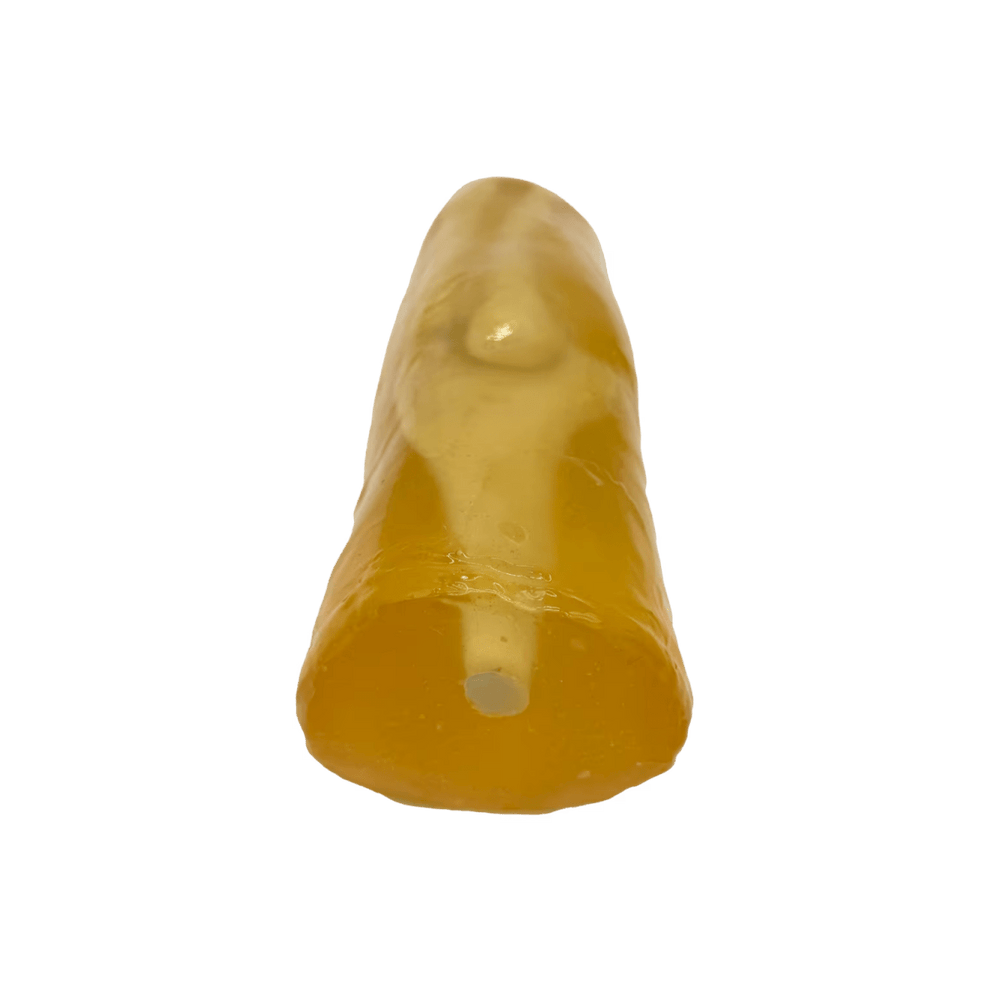

Top View
Coming soon ...
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Body Tissue | 1410 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Elbow for X-Ray CT, US, MRI
Product Dimensions and Weight:- Size: 4.4 x 3.6 x 9.9 Inches (11 x 9 x 25 cm)
- Weight: 2.7 lbs (1.2kg) (approx.)
- Size: 23 x 14 x 10 Inches
- Weight: 11 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
