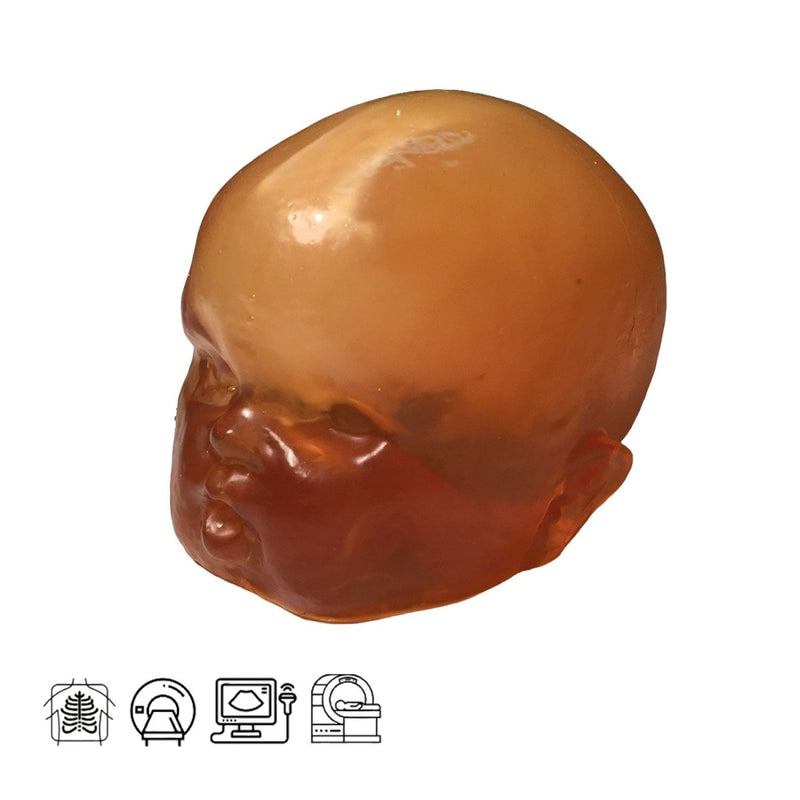

Newborn Head Phantom for X-Ray CT, Ultrasound and MRI Training (Complex)
0.0 lb
All pictures shown are for illustration purposes only. The actual product appearance may vary.
Newborn Head Phantom for X-Ray CT, Ultrasound and MRI Training (Complex)
Item # TPS-HD-N01
$3,500.00
Ships in 12-16 weeks
Need an estimate?
Click Add To Quote
Features & Specifications
-
by
A trusted GT partner -
FREE Shipping
U.S. Contiguous States Only -
2-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request
by
Frequently Bought Together
(
Newborn Head Phantom for X-Ray CT, Ultrasound and MRI Training (Complex)
Newborn Head (Complex) Phantom for diagnostic medical imaging training and POCUS. The phantom is designed based on an average newborn head and is made out of realistic tissue-mimicking materials suitable for Ultrasound, X-Ray CT and MRI imaging. This phantom can be used with Barium-sulfate, Iodine-based, and Microbubble contrast mediums.
The phantom was developed in collaboration with a group of physician experts from the Sonographic Clinical Assessment of the Newborn (SCAN) Training Program program at the University of Calgary (Department of Pediatrics).
Anatomy:
- Newborn Brain
- Corpus Callosum
- Falx
- Brain Ventricles
- Septum Pellucidum
- Caudate
- Putamen
- Thalamus
- Choroid Plexus
- Cerebellum & Pons
Included In Order:
- Newborn Head Phantom (Complex)
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Dimensions & Weight
Phantom- Size: 5 x 6 x 5 in (approx.)
- Weight: 4 Lbs (approx.)
- Size: 12 x 10 x 10 in (approx.)
- Weight: 6 Lbs (approx.)
Materials Used:
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
Design of the Phantom:
Front view
Lateral view
Perspective view
Top view
Ultrasound Scans:
Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz[dB/cm] |
|---|---|---|---|---|---|---|
| Brain Matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
| Soft Tissue | 1400 ± 10 | 1.01 | 35 | N/A | NO | 1.3 ± 0.2 |
HU Values of the Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Brain Tissue | -25 |
Newborn Head Phantom for X-Ray CT, Ultrasound Training and MRI (Complex)
Dimensions and Weight:
> Phantom- Size: 5 x 6 x 5 in (approx.)
- Weight: 4 lbs (approx.)
- Size: 12 x 10 x 10 in (approx.)
- Weight: 6 lbs (approx.)
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
