Head QC1 Phantom for X-Ray CT, Ultrasound and MRI

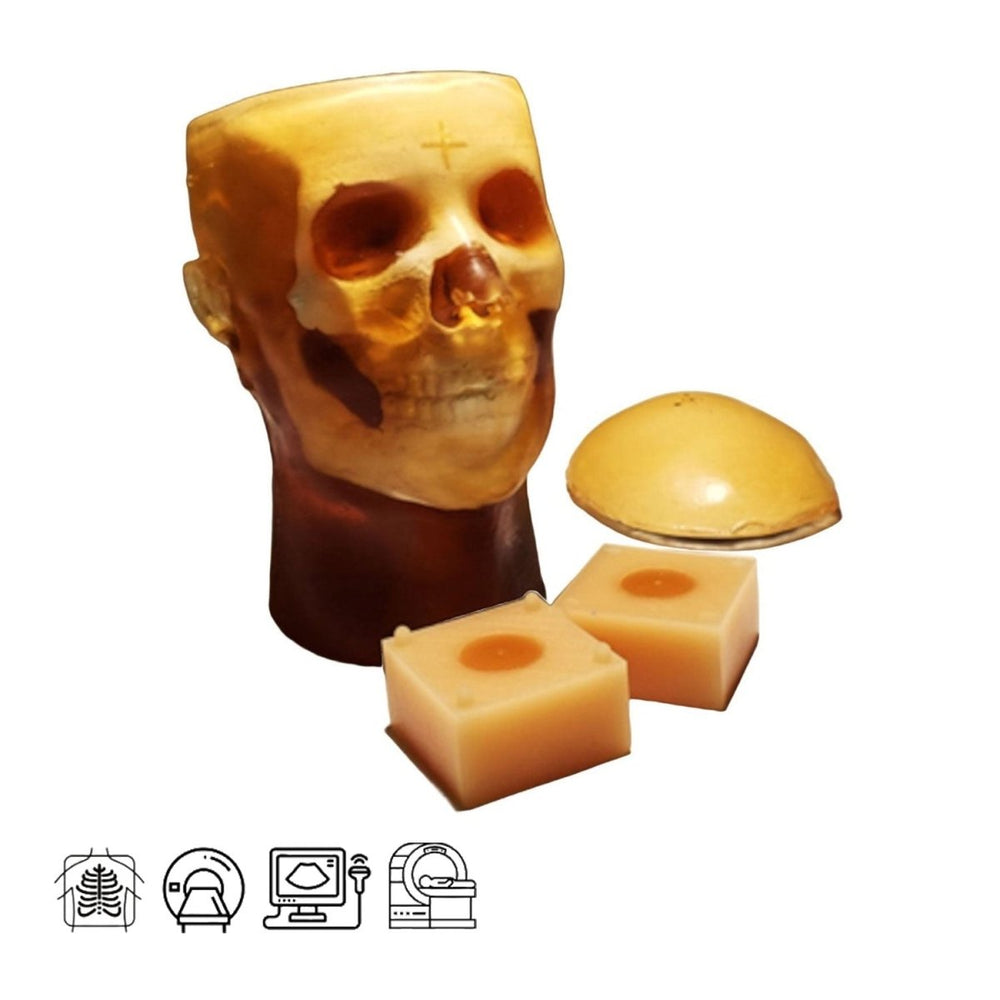

HD-QC1 is an anthropomorphic adult human head phantom that can be used for applications related to Image guided radiotherapy (IGRT), Stereotactic radiosurgery (SRS), and potential quality assurance (QA) applications. It serves as an ideal tool to study target localization and dose delivery under the image guidance of X-Ray/CT, US, MRI and PET.

HD-QC1 serves as an ideal tool to study target localization and dose delivery under the image guidance of X-Ray/CT, US, MRI, and PET. The anthropomorphic features include a lifelike skull with cortical and trabecular bone structures, simulated brain(white and gray matter), cervical vertebrae, sinus cavities, larynx, trachea, and oral cavities.

In addition to this, it can be customized with tissue-equivalent inserts for QA applications.

Anatomy

  • Skull
  • Cervical Spine
  • Brain Surrounded by Dura Mater
    • Grey Matter
    • Openable Skull with Cavity Inside
  • Sinus Cavities
  • Larynx
  • Trachea
  • Oral Cavities
  • Target Object Implemented in the Removable Insert
  • Alignment Markings
  • Acoustically Correct Skin-Mimicking Material

Features

  • Ability to perform IGRT QA procedures under X-Ray, CT, and MR image guidance
  • Ability to perform machine quality checks
  • Ability to conduct Winston-Lutz test, study blind targets, and target localization techniques
  • Head customizable with different shaped targets (2D, 3D) for IGRT and QA applications
  • Ability to verify patient positioning using frame or frameless systems
  • Ability to verify treatment plans in critical regions
  • Customizable with a variety of interchangeable tissue-equivalent inserts suitable for dosimetry applications
Included In Order:
  • Head QC1 Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case
Download:
manual
Phantom Dimensions and Weight:
  • Size: 12 x 9 x 7 in (approx.)
  • Weight: 17 Lbs (approx.)
Shipment Dimensions and Weight:
  • Size: 23 x 14 x 10 in (approx.)
  • Weight: 22 Lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

Front view

Lateral view

Perspective view

Top view

CT Scans

MRI Scans

Features Dynamic, Adv. Static Dynamic Standard Training, V1 Hematoma Openable
Skull X X X X X X X
Openable and Removable Calvaria X - - - - - X
Cervical Spine - X - - X X -
Skin Mimicking Material X X X X X X X
Brain (Gray Matter) X X X X X X -
Brain Ventricles X - - X - X -
Brain Tumor - - - X - - -
Falx Cerebri - - - X X X -
White Matter - - - - X - -
Brain Vessels (2, 3, 4mm) incorporated Circle of Willis - (2, 3, 4mm) incorporated Circle of Willis X - - -
One Bifurcation X - X X - - -
One Stenosis X - X - - - -
Two Aneurysms X - X - - - -
Vessels Connected with the Neck X - X X - - -
Plastic Connectors X - X - - - -
Small Static Objects - (0.5, 1, 2, 3mm) Diameters - - - - -
Realistic Air Cavities - - - - X - -
Alignment Markings X X X X X X X
Frontal Sinus with Air Gaps - - - - X - -
Hematoma - - - - - X -
Download a PDF with product details

Head QC1 Phantom for X-Ray CT, US and MRI

Phantom Dimensions and Weight:
  • Size: 12 x 9 x 7 in (approx.)
  • Weight: 17 Lbs (approx.)
Shipment Dimensions and Weight:
  • Size: 23 x 14 x 10 in (approx.)
  • Weight: 22 Lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Type of Tissue Sound Velocity [m/s] Density [g/cm³] Hardness [Shore 00] T2 [ms] Speckles Attenuation Measured at 2.25 MHz [dB/cm]
Cortical Bone 3000 ± 30 2.31 N/A N/A N/A 6.4 ± 0.3
Trabecular Bone 2800 ± 50 2.03 N/A N/A N/A 21 ± 2
Brain Matter  1400 ± 10 0.99 20 70 YES 1.0 ± 0.2
Brain White Matter 1400 ± 10 1.01 1.3 ± 0.2 35 60 1.3 ± 0.2
Skin/Body Tissue 1400 ± 10 1.02 60 50 NO 1.7 ± 0.2

All standard phantoms are coated with a protective layer of the harder urethane rubber to offer enhanced appearance and safeguard the phantom from any scratches when handled without care. This coated layer also provides a glossy finish and slightly changes the hardness of the phantom. The Hardness [Shore 00] for the ‘Body Tissue’ mentioned above is measured without the coat layer. The coat will increase the hardness by approximately 30 points meaning that if the body tissue hardness is OO 60, the coated body tissue will be OO 90.

Thermal Properties of Bone-Mimicking Tissue

Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s

HU Values of the Tissue-Mimicking Materials

S.No. Tissue Type HU Value (average)
1 Brain Tissue -25
2 Trabecular Bone 800
3 Cortical Bone 1300
4 Skin Tissue -25
