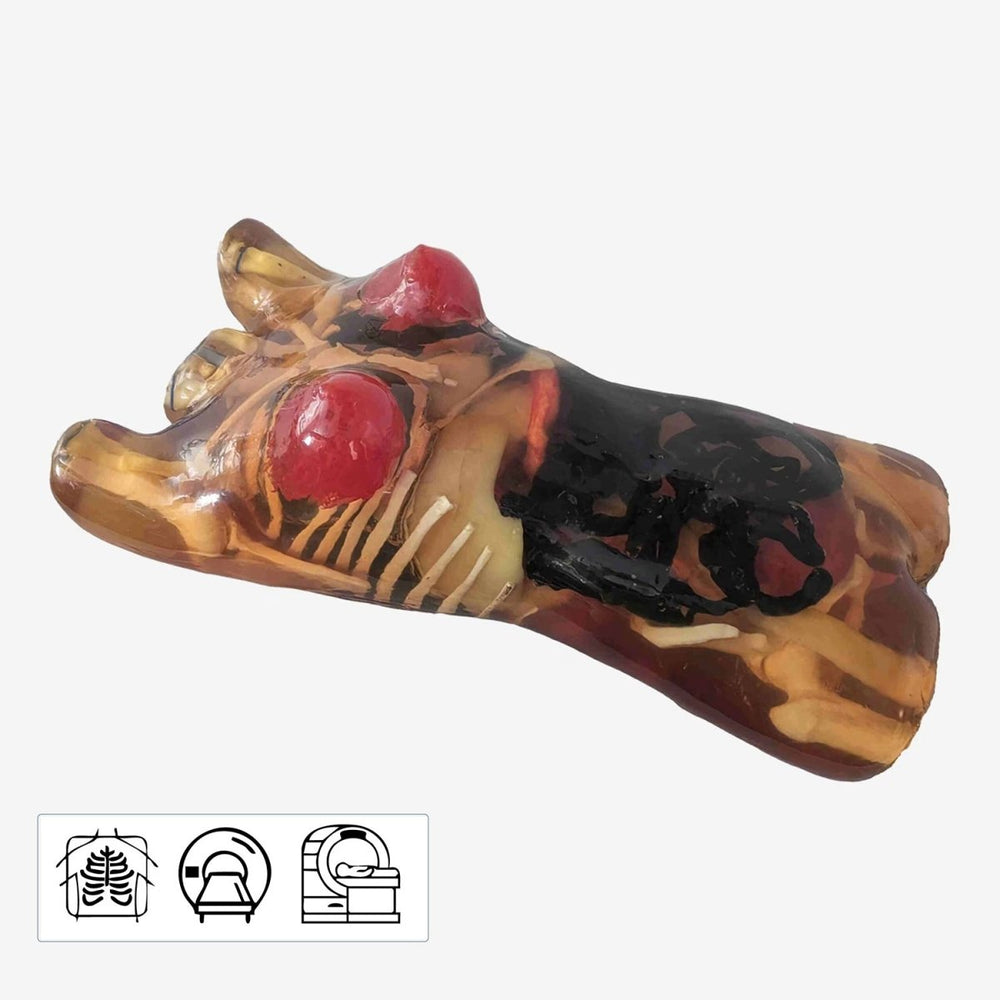

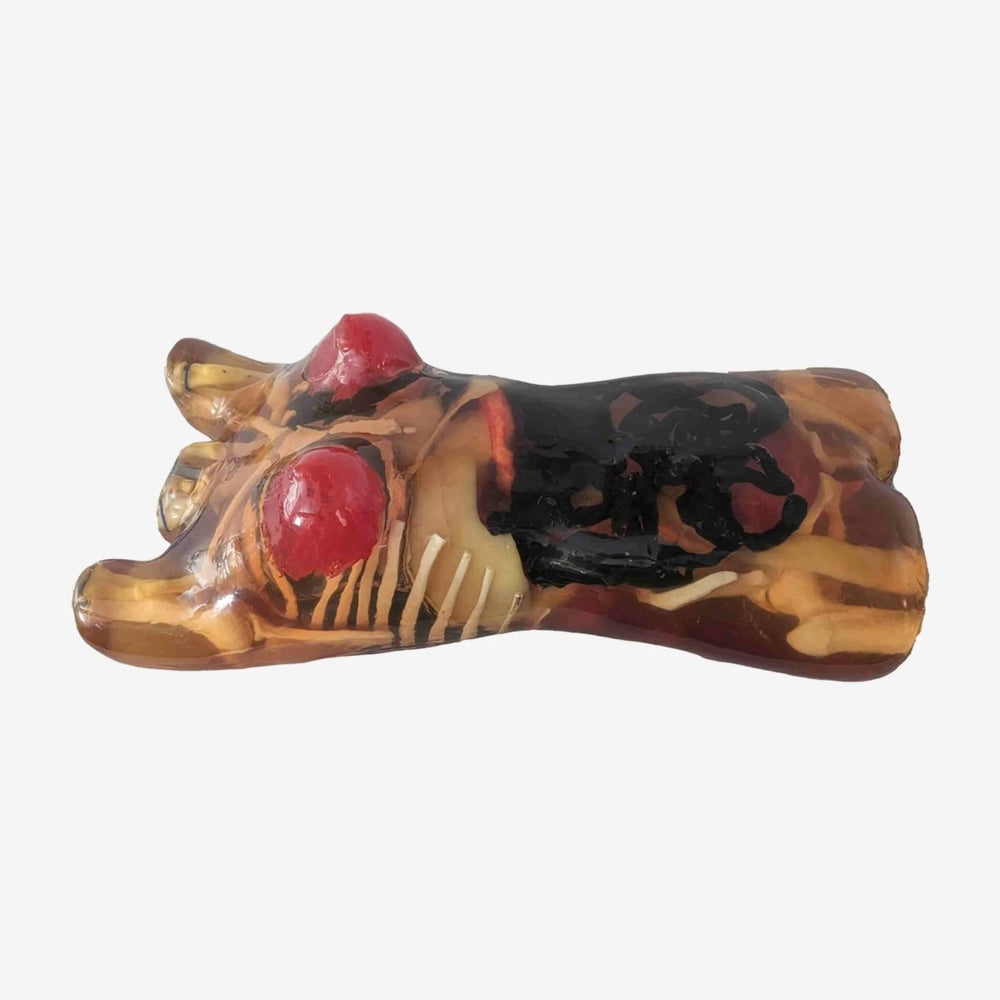

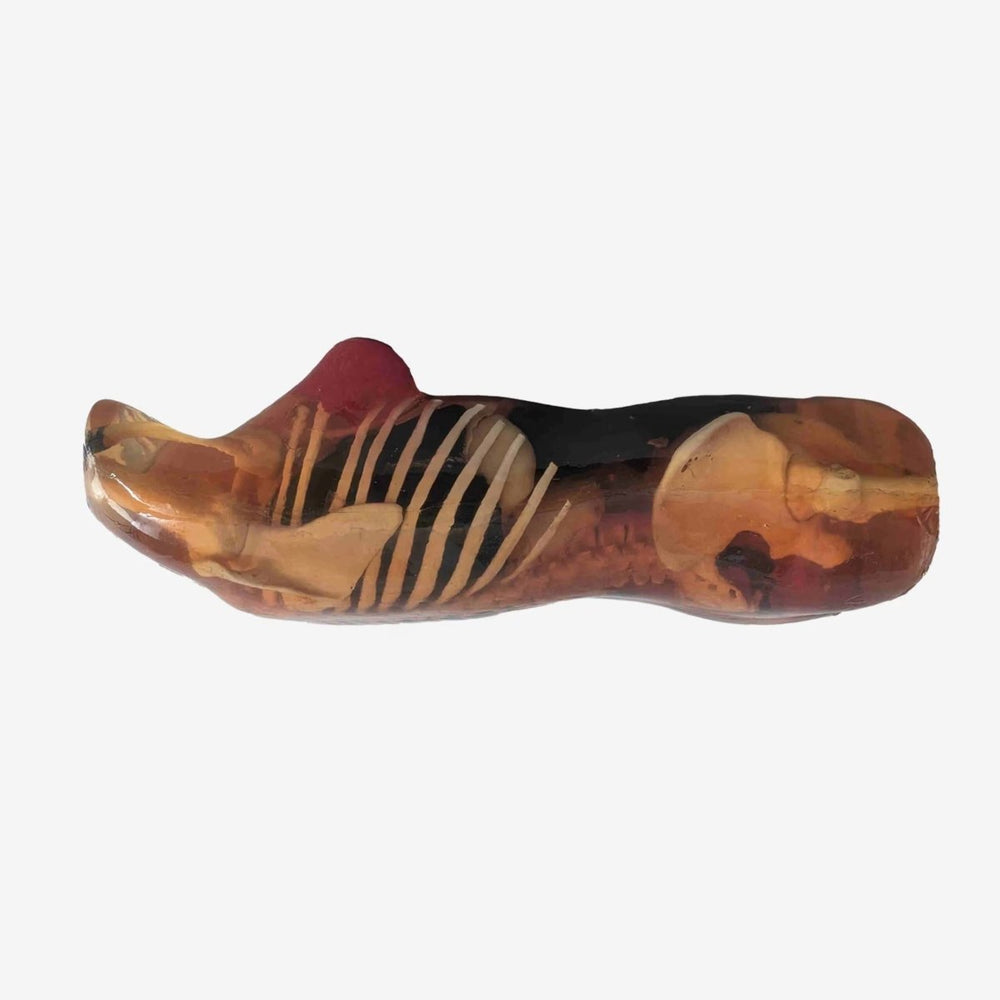

Adult Female Torso for X-Ray CT, MRI

This phantom was designed using a CT dataset from a healthy 35-year-old female patient, standing 168 cm (5’5″) tall with a BMI adjusted to 22. The model was developed using advanced artificial intelligence (AI) software, incorporating a leading-edge algorithm to extract anatomical structures, ensuring exceptional precision and anatomical accuracy within the phantom.

The Adult Female Torso Phantom is a groundbreaking innovation in medical imaging simulation, offering an unprecedented level of anatomical accuracy. With the help of AI (Artificial Intelligence) software, this phantoms design has been directly extracted from CT scans of a live, healthy 35-year-old patient with a height of 168cm (5’5″) and a BMI adjusted to 22. As a result, it features highly realistic anatomical structures and organ positioning. Developed in collaboration with medical professionals in the United States and Switzerland, this advanced phantom sets a new standard in medical imaging education, system development, and research applications.

Engineered with multi-modality compatibility, the Adult Female Torso Phantom is optimized for X-Ray, CT, and Ultrasound, making it a versatile tool for a wide range of clinical and research purposes. Its advanced tissue-mimicking materials closely replicate soft tissue and bone of real human tissue. This high level of realism is particularly beneficial for radiology training, where medical students, residents, and technologists can gain hands-on experience using this phantom with different imaging equipment.

This female torso phantom also offers insight into several specialties dedicated to women’s health, as well as general medical fields that frequently address female-specific conditions. For example, gynecology, breast oncology, and mammography, with the potential for customizations to address obstetrics, including childbirth and pregnancy.

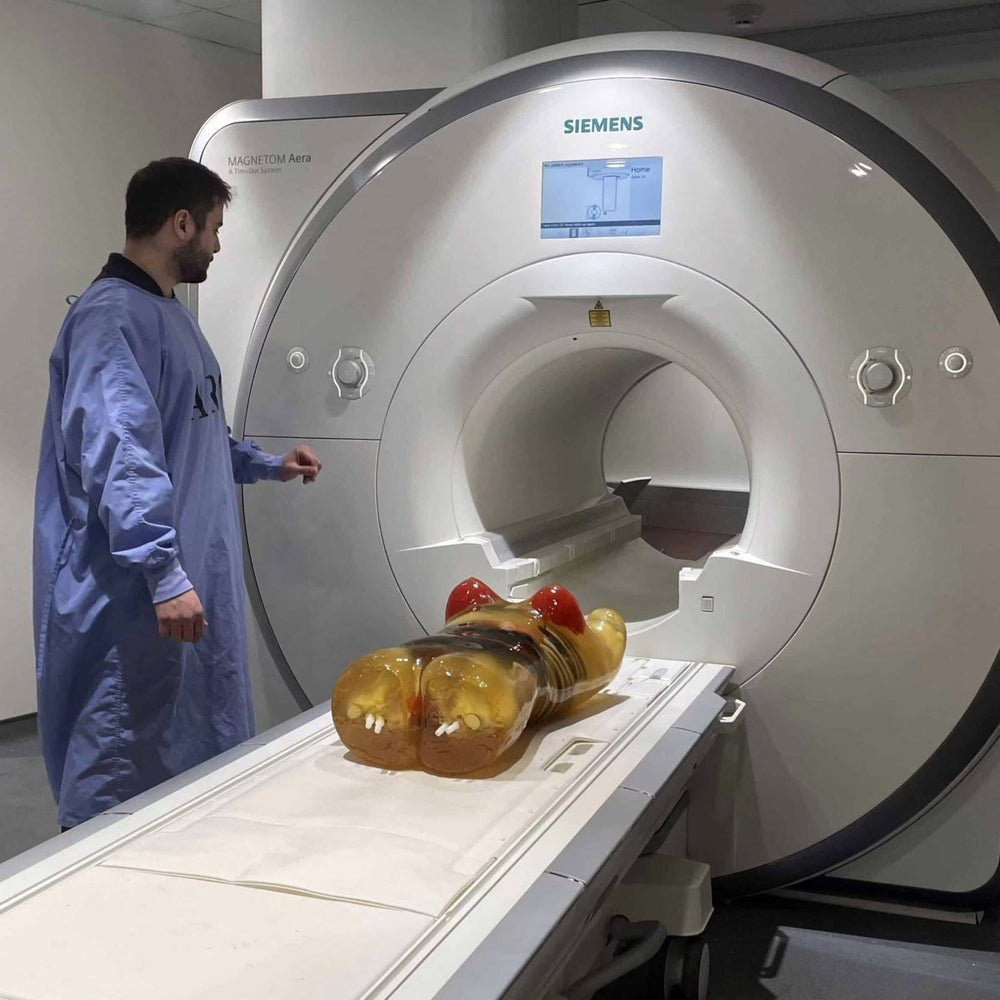

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.

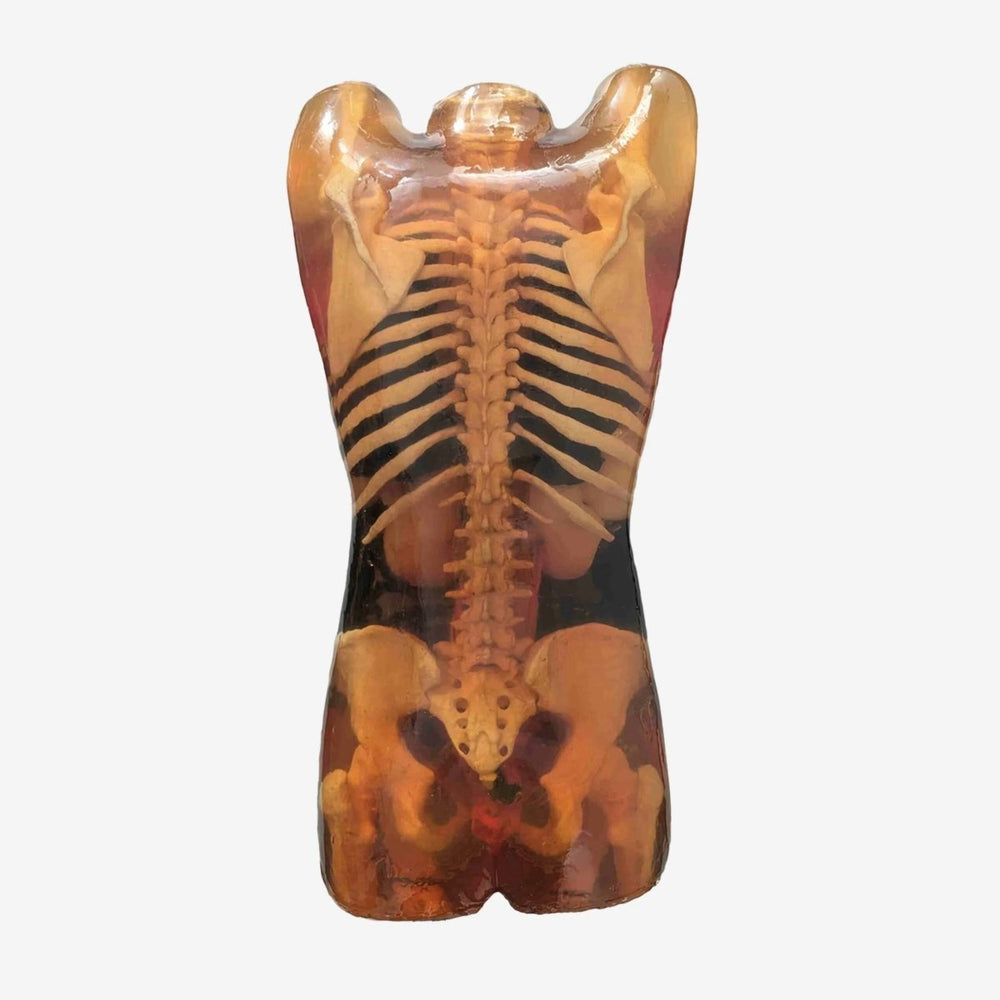

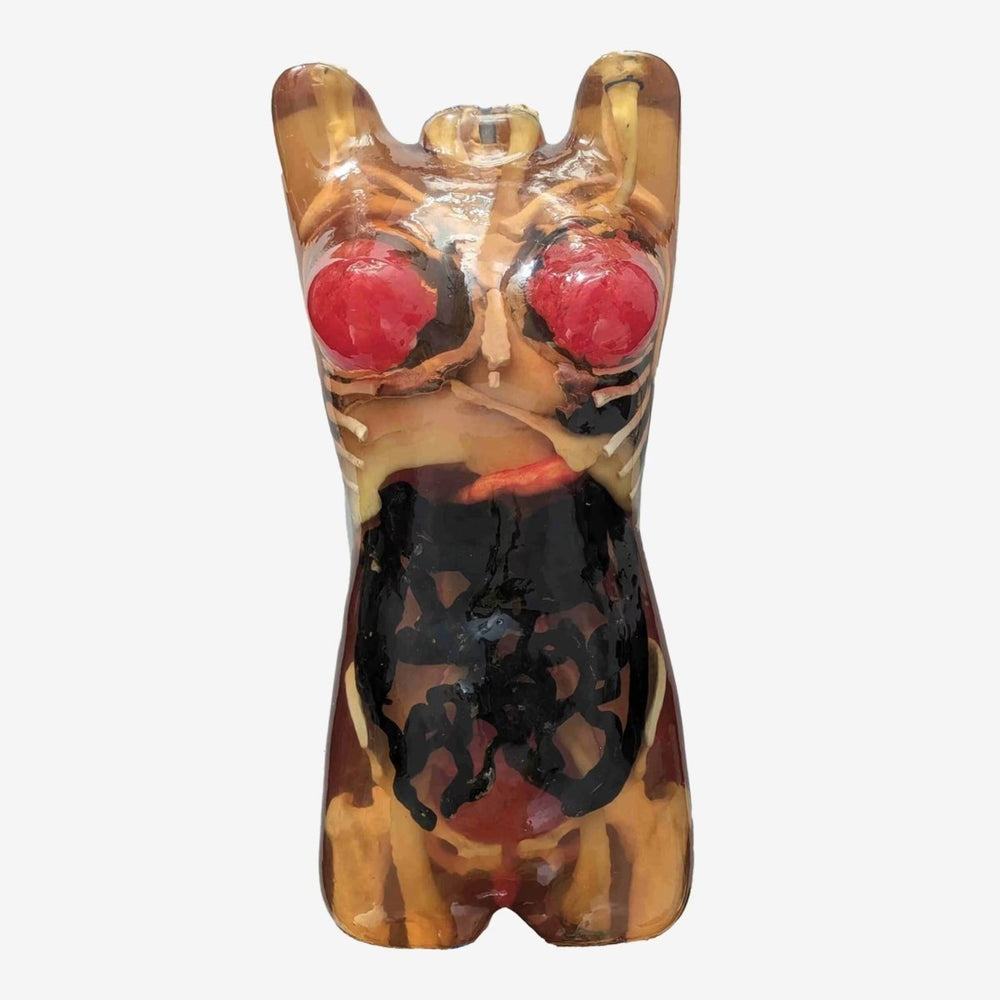

Anatomy

  • Complete Spine
  • Complete Ribcage
  • Shoulders and Clavicles
  • Pelvis
  • Partial Femoral Bones
  • Trachea
  • Heart
  • Lungs
  • Diaphragm
  • Breasts:
    • Body Tissue Mimicking Material
    • Mammary Fat Tissues
    • Mammary Gland Tissues
  • Liver
  • Gallbladder
  • Stomach
  • Kidneys
  • Spleen
  • Pancreas
  • Large and Small Intestines
  • Bladder
  • Cervix
  • Vaginal Canal
  • Ovaries
  • Uterus
Your order will include:
  • Adult Full Body Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case
Download:
Download PDF Frequently Asked Questions

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

Phantom Dimensions and Weight:
  • Size: 29 x 14 x 11 Inches (approx.).
  • Weight: 80 Lbs (approx.)
Shipping Dimensions and Weight:
  • Size with Hard Carry Case: 46 x 36 x 17 Inches (approx.)
  • Weight: 136 Lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

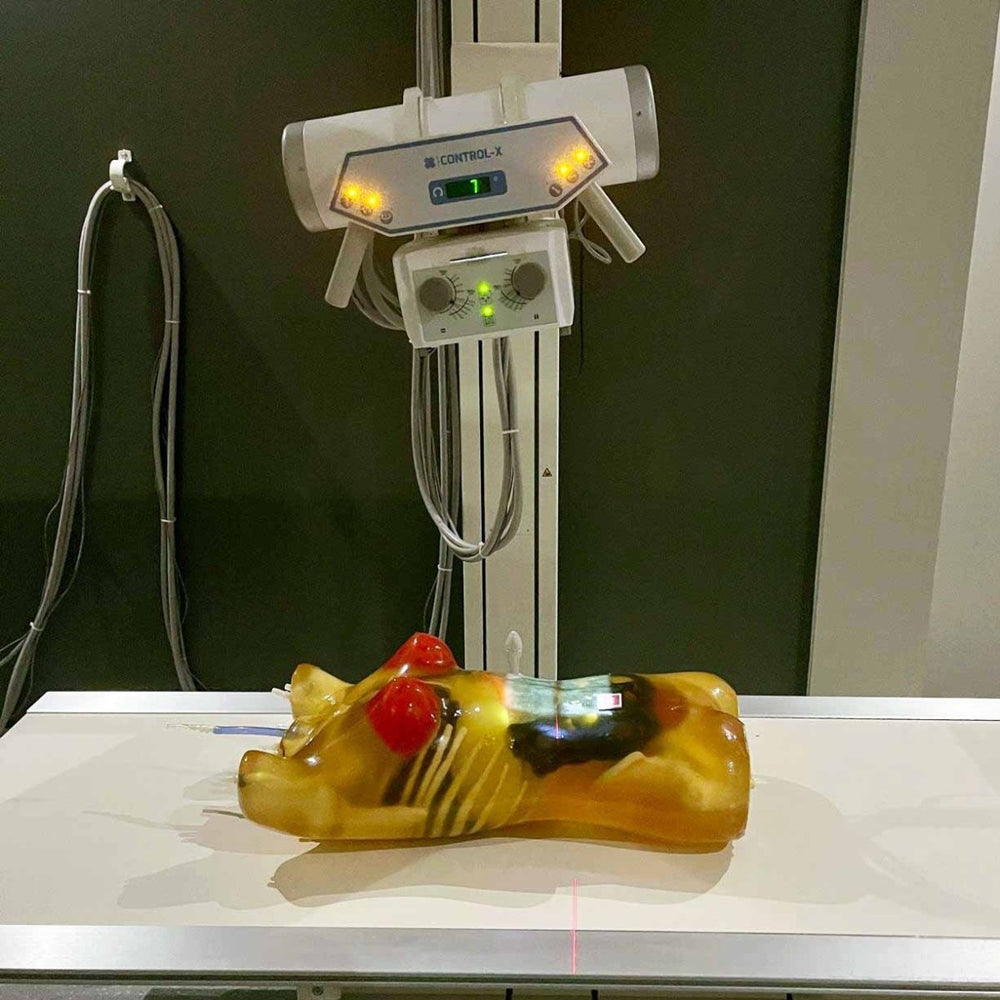

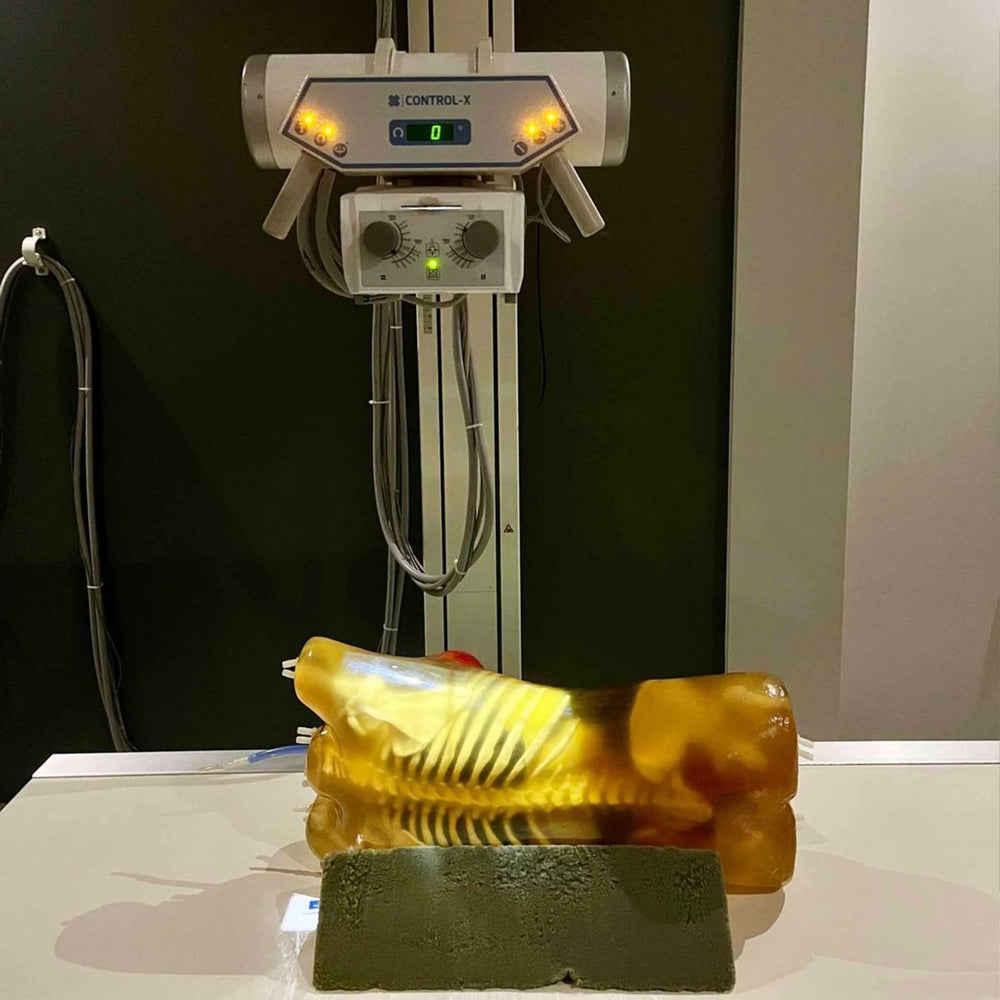

*/ These X-Ray scans were obtained from a customized version of this phantom with dynamic heart, lungs, and a hollow fillable GI tract. These X-Ray scans were obtained with a Control-X machine and a VXvue (DR plate). If you have any questions related to these, please Contact Us /*

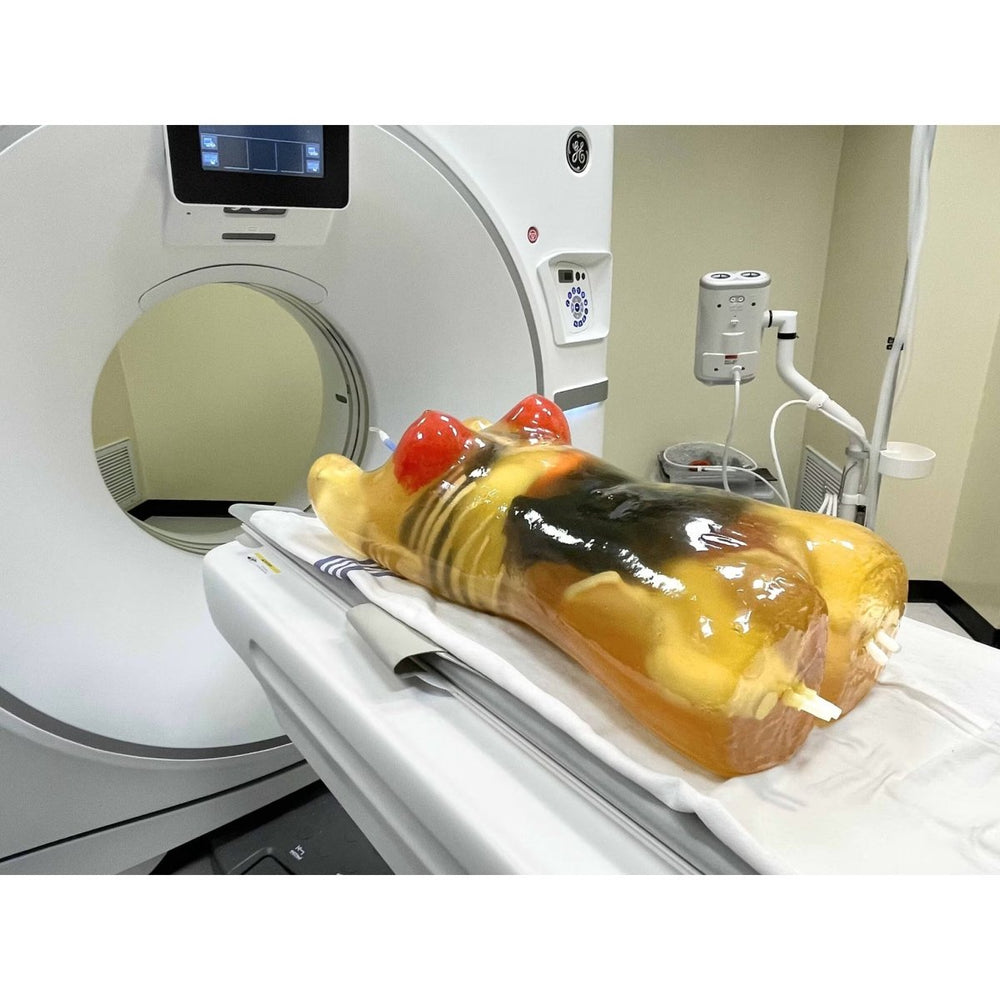

*/ These CT scans were obtained from a customized version of this phantom with dynamic heart, lungs, and a hollow fillable GI tract. The scans scans were obtained using the following parameters: 120 kV, 240mA; slice thickness: 0.625mm; 512 x 512 matrix; slice count: 1105; SFOV: 50.0 cm; DFOV: 42.9 cm; slice thickness at acquisition: 1.250 mm. If you have any questions related to these, please Contact Us /*

T2 Scan Results

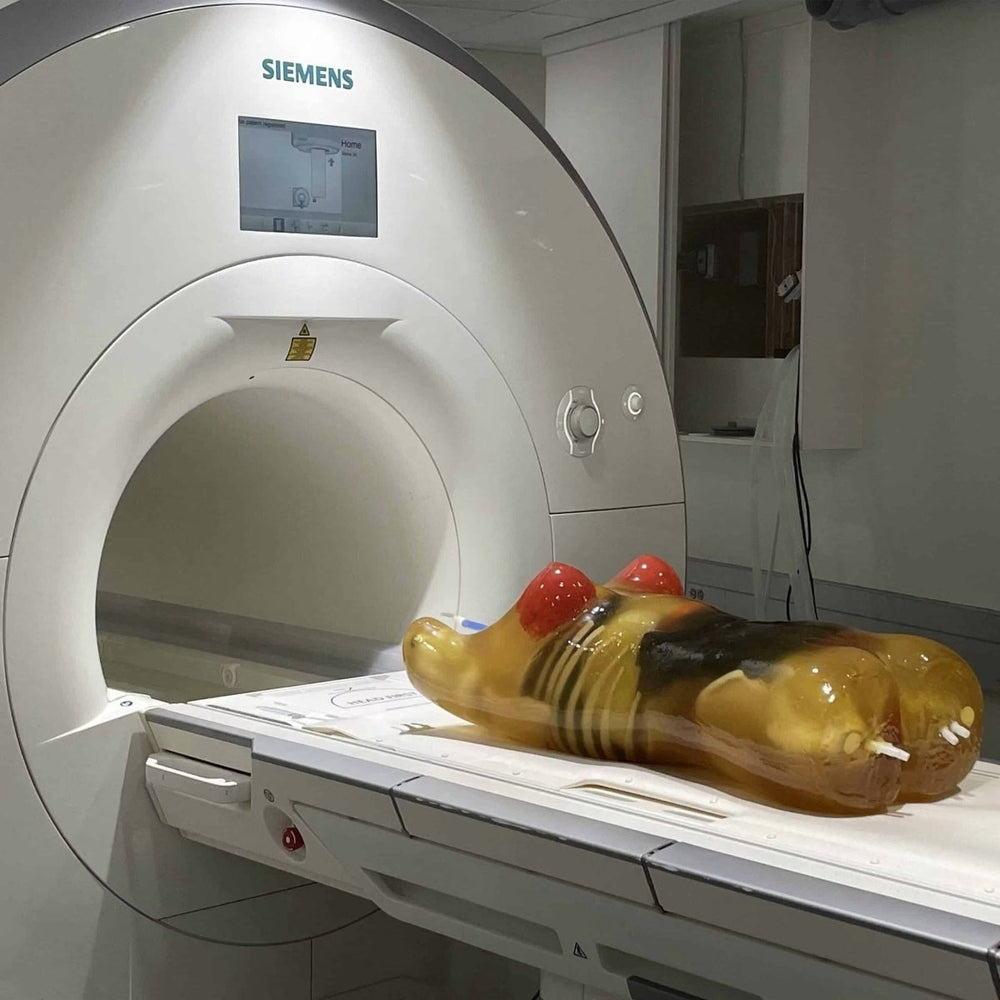

*/ These MRI scans were obtained from a customized version of this phantom with dynamic heart, lungs, and a hollow fillable GI tract. The scans were obtained using the following parameters: 500×406 mm FOV; 256×208 matrix; 2 mm in-plane resolution; 48 6-mm slices; 68/4000 ms TE/TR; 401 Hz/pixel readout bandwidth; 3 averages; 3 concatenations; 6 min 14 sec

T1 Scan Results


*/ These MRI scans were obtained from a customized version of this phantom with dynamic heart, lungs, and a hollow fillable GI tract. The scans were taken using the following parameters: 448 x 364 mm FOV; 320×260 matrix; 1.4 mm isotropic resolution; 192 slices; 2.39/4.77/7.08 ms TE1/TE2/TR; 450 Hz/pixel readout bandwidth; 1 average; 7 min 22 sec

Note: Although this product is primarily compatible with X-Ray CT and Ultrasound, it can also be used under MRI imaging. The only region of the torso that may yield slightly less realistic results is the GI tract (stomach and intestines).

Optional Add-Ons:

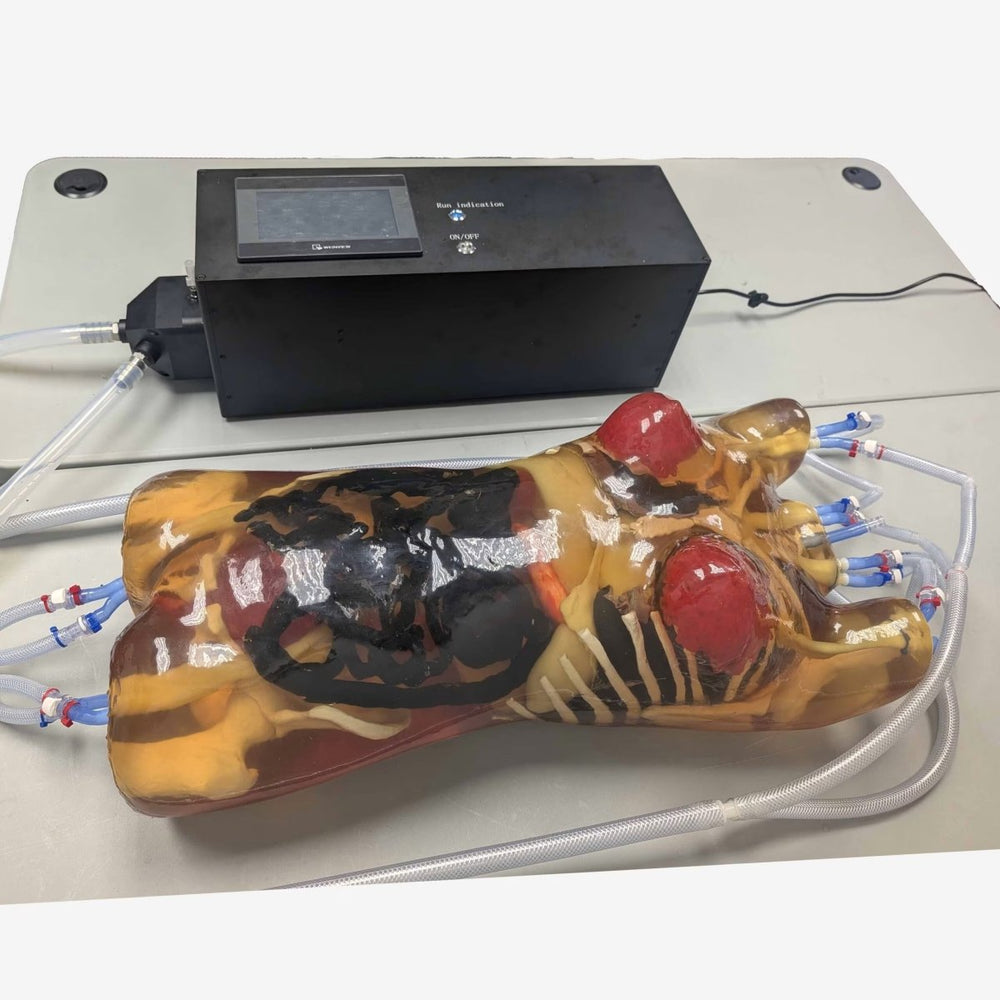

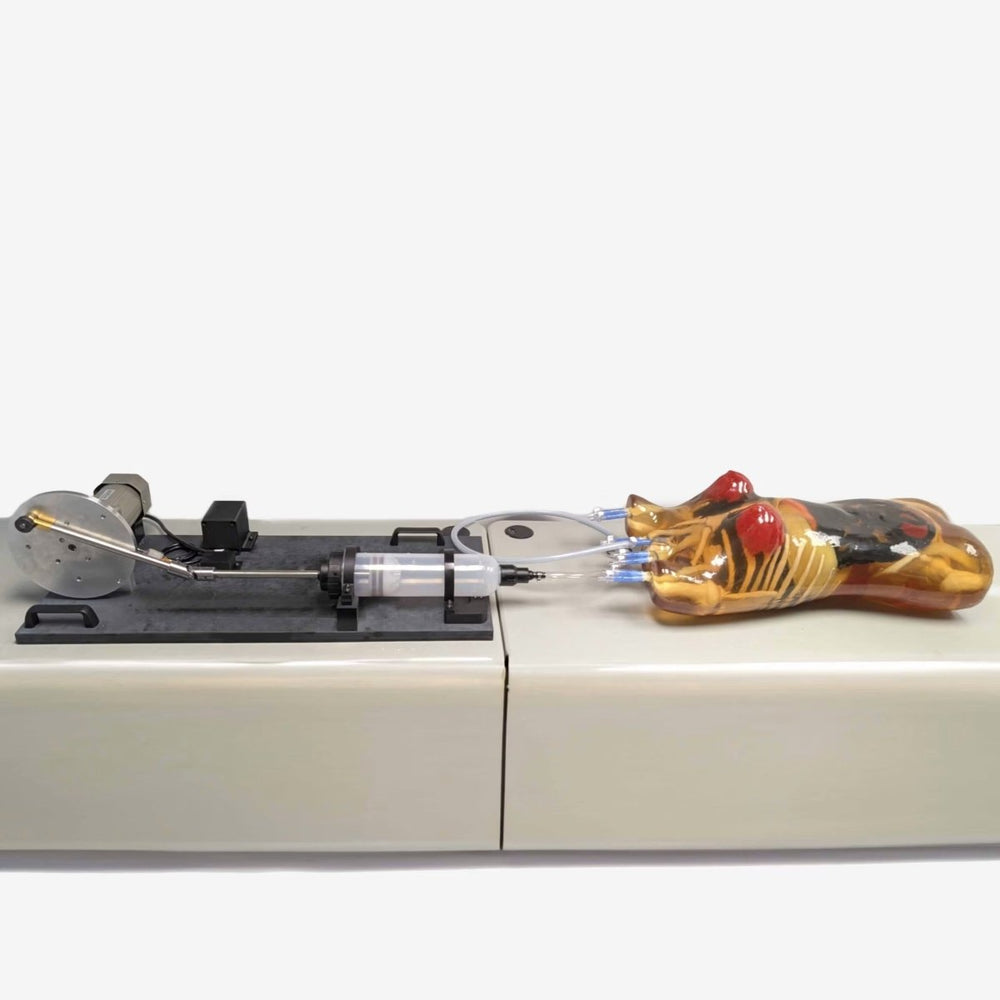

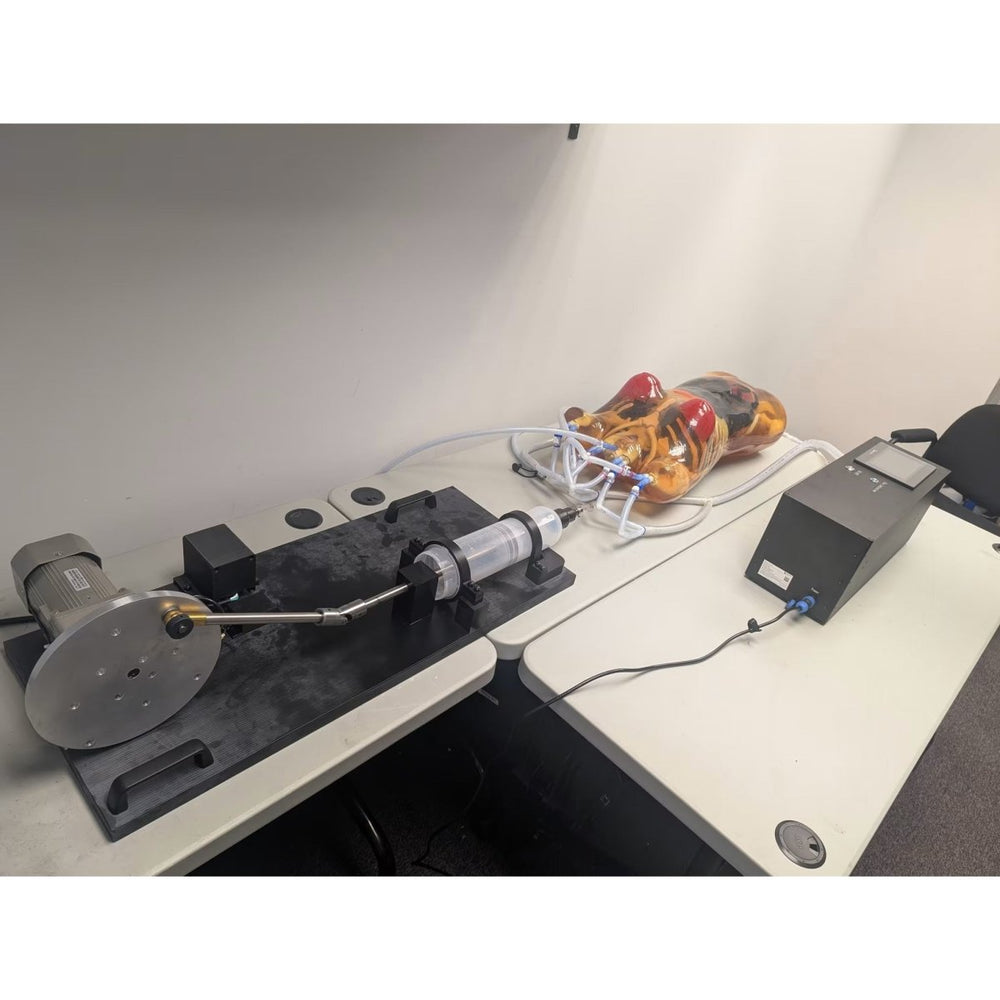

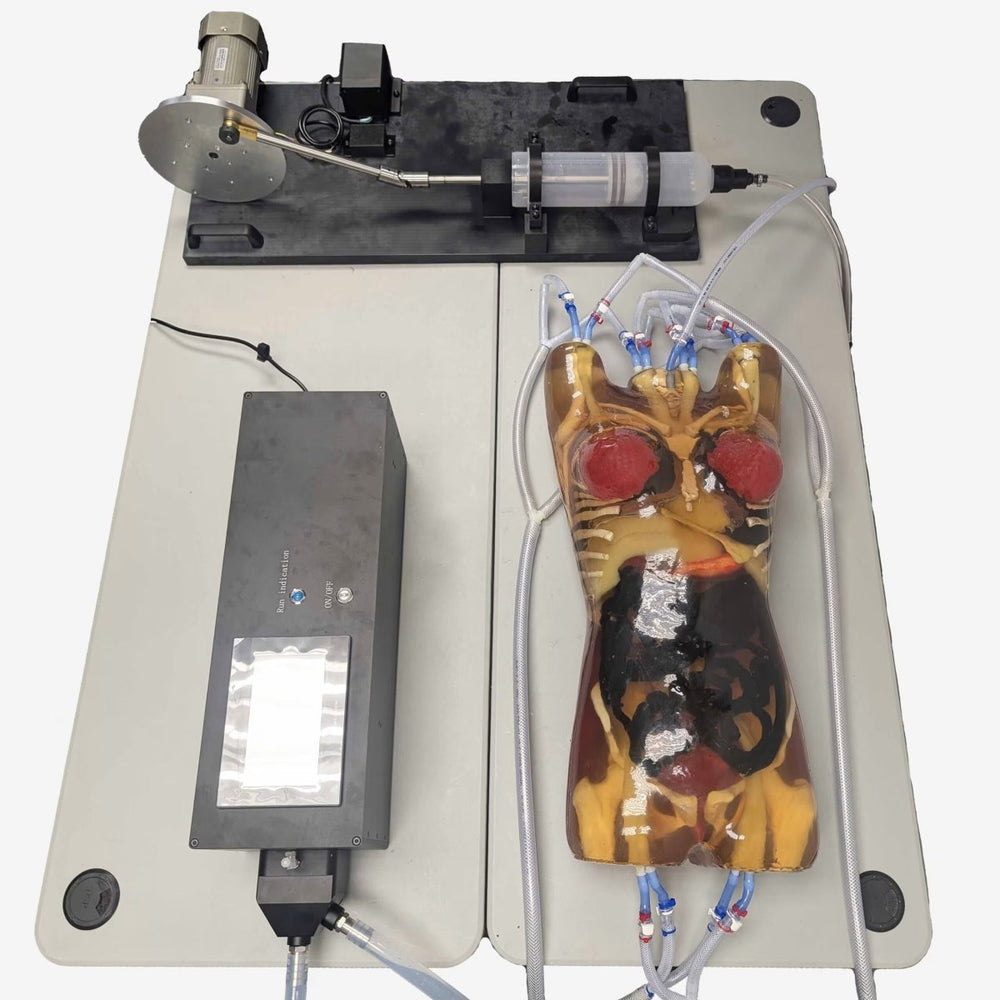

The Adult Female Torso can also be made dynamic with our heart and lung pumps to simulate respiratory motion.
If you would like to receive a quote or additional information on these pumps, please Contact Us.

Images - Torso With Pump

Heart and Lung Pump

Lung Pump

Heart Pump

Videos - Torso With Pump

Download a PDF with product details

Adult Female Torso for X-Ray CT, MRI

Phantom Dimensions and Weight:
  • Size: 29 x 14 x 11 Inches (approx.).
  • Weight: 80 Lbs (approx.)
Shipping Dimensions and Weight:
  • Size with Hard Carry Case: 46 x 36 x 17 Inches (approx.)
  • Weight: 136 Lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Type of Tissue Sound Velocity[m/s] Density [g/cm3] Attenuation Measured at 2.25 MHz [dB/cm] Hardness [Shore OO] T2 [ms] Speckles
Organs with Speckles (liver, kidneys, etc.) 1435 ± 10 0.99 1.0 ± 0.2 20 70 VARIABLE
Organs without Speckles (stomach, intestines, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 NO
Body Tissue 1410 ± 10 1.00 1.5 ± 0.2 40 55 NO/LOW
Cortical Bone 3000 ± 30 2.31 6.4 ± 0.3 N/A N/A N/A
Trabecular Bone 2800 ± 50 2.03 21 ± 2 N/A N/A N/A
Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
S.No. Tissue Type HU Value (average)
1 Body Tissue -25
2 Trabecular Bone 800
3 Cortical Bone 1300
4 Aorta 40
5 Vena Cava 40
6 Trachea 80(Tissue part), -1000(Air filled part)
7 Pancreas 110
8 Spleen 110
9 Kidneys 110
10 Bladder 35
11 Rectum Wall 100
12 Sigmoid Colon Wall 100
13 Heart 40
14 Liver 110
15 Gallbladder 35
