Adult Leg Phantom with Muscles for for X-Ray CT and Ultrasound

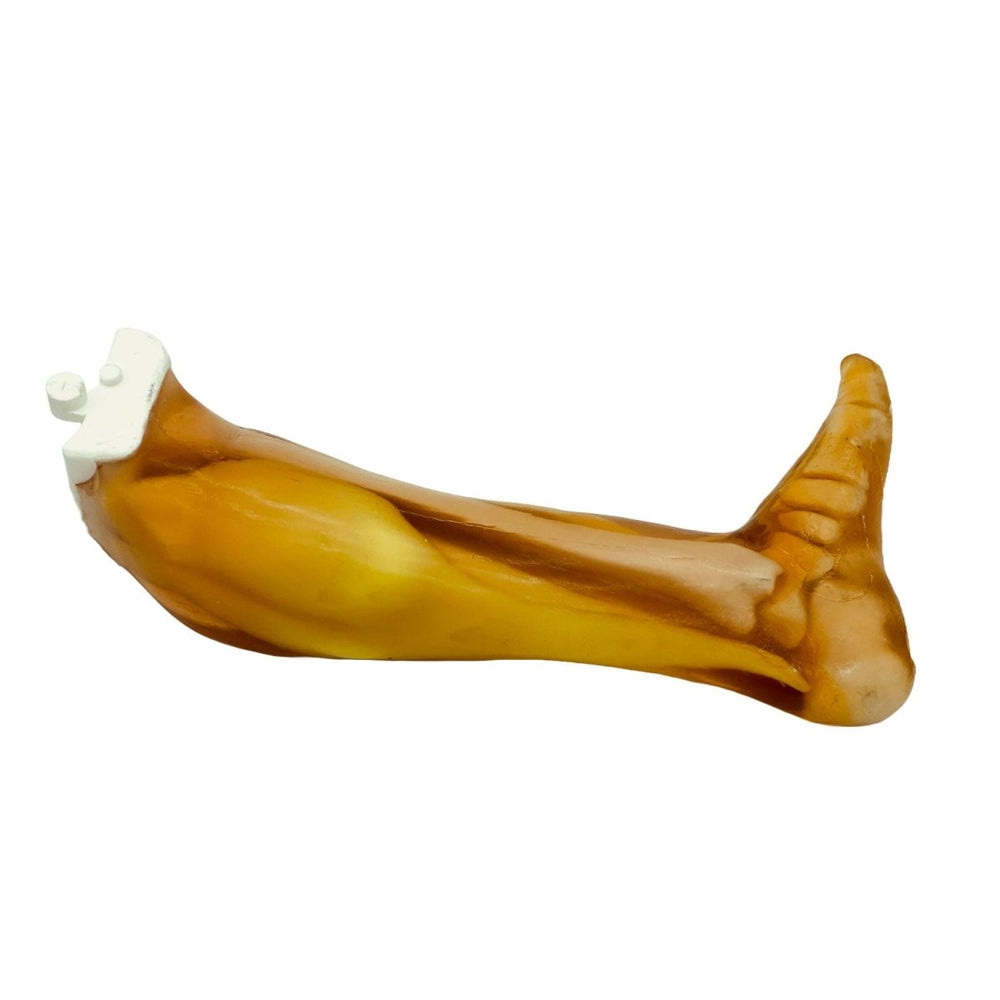

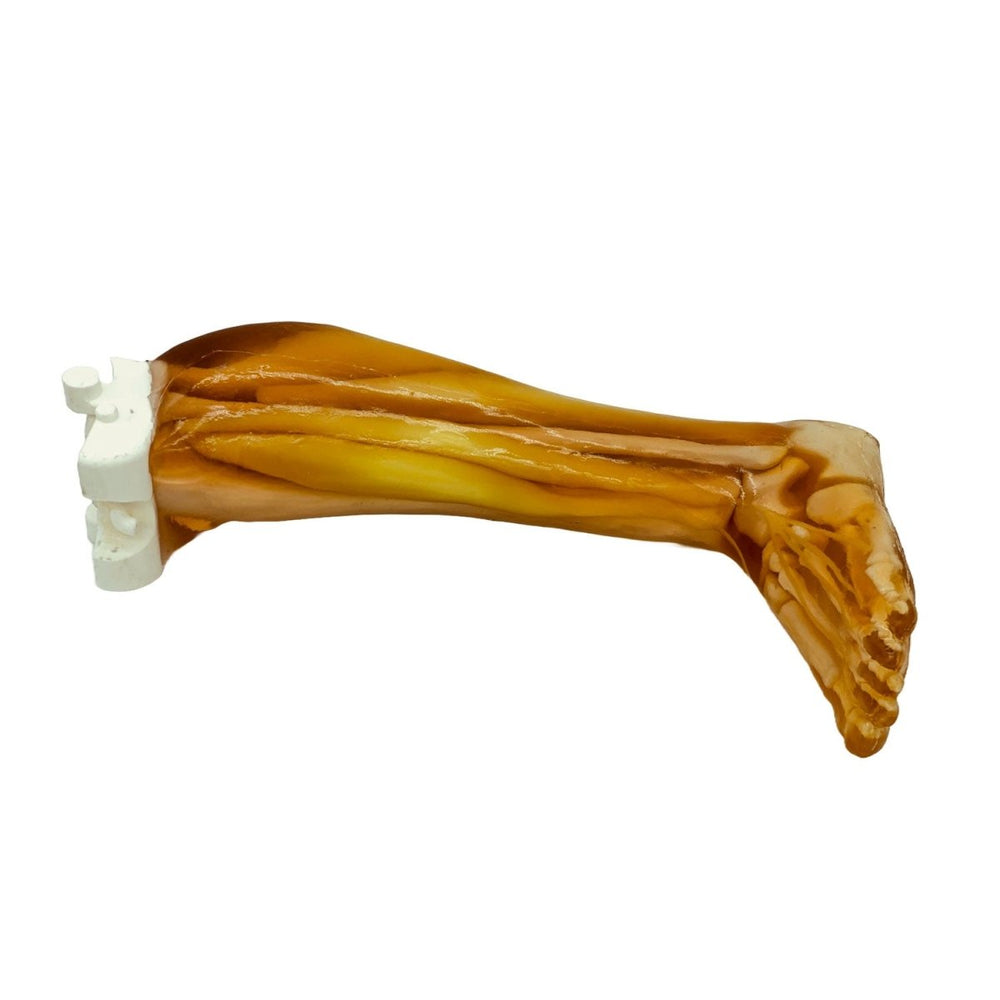

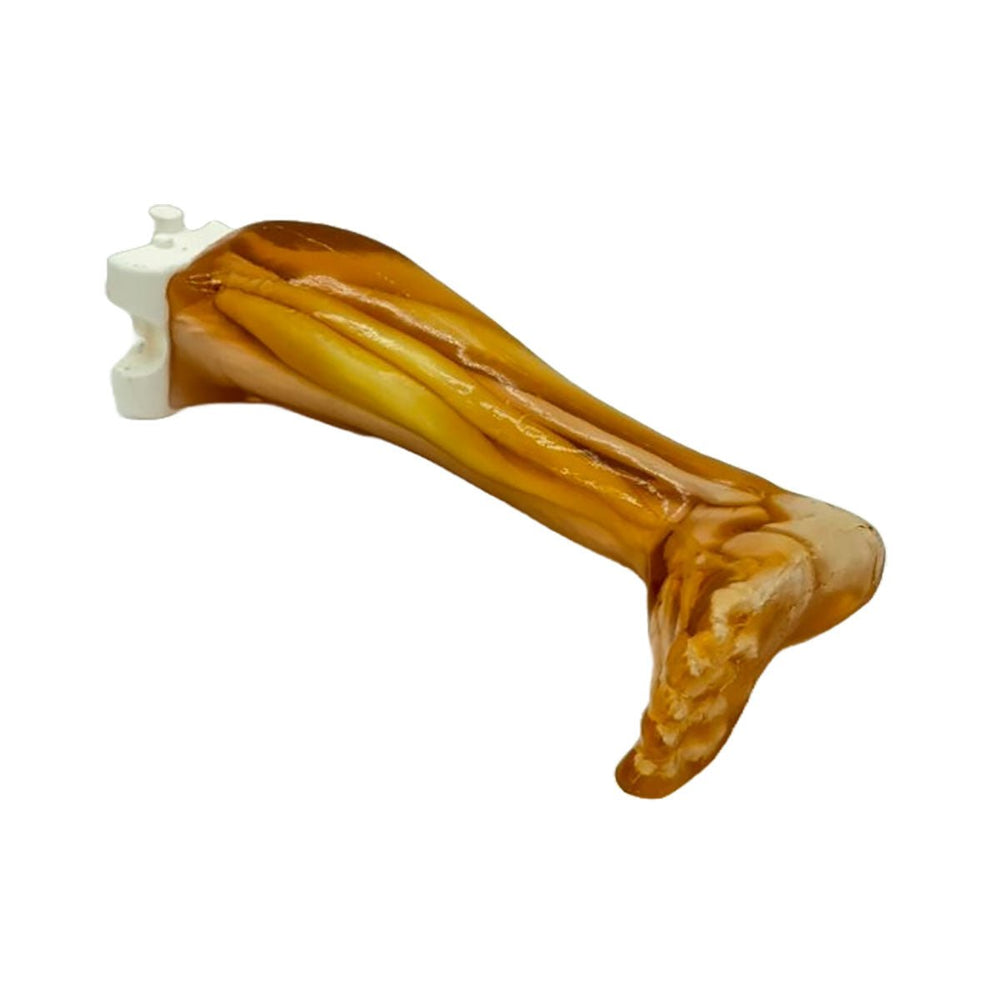

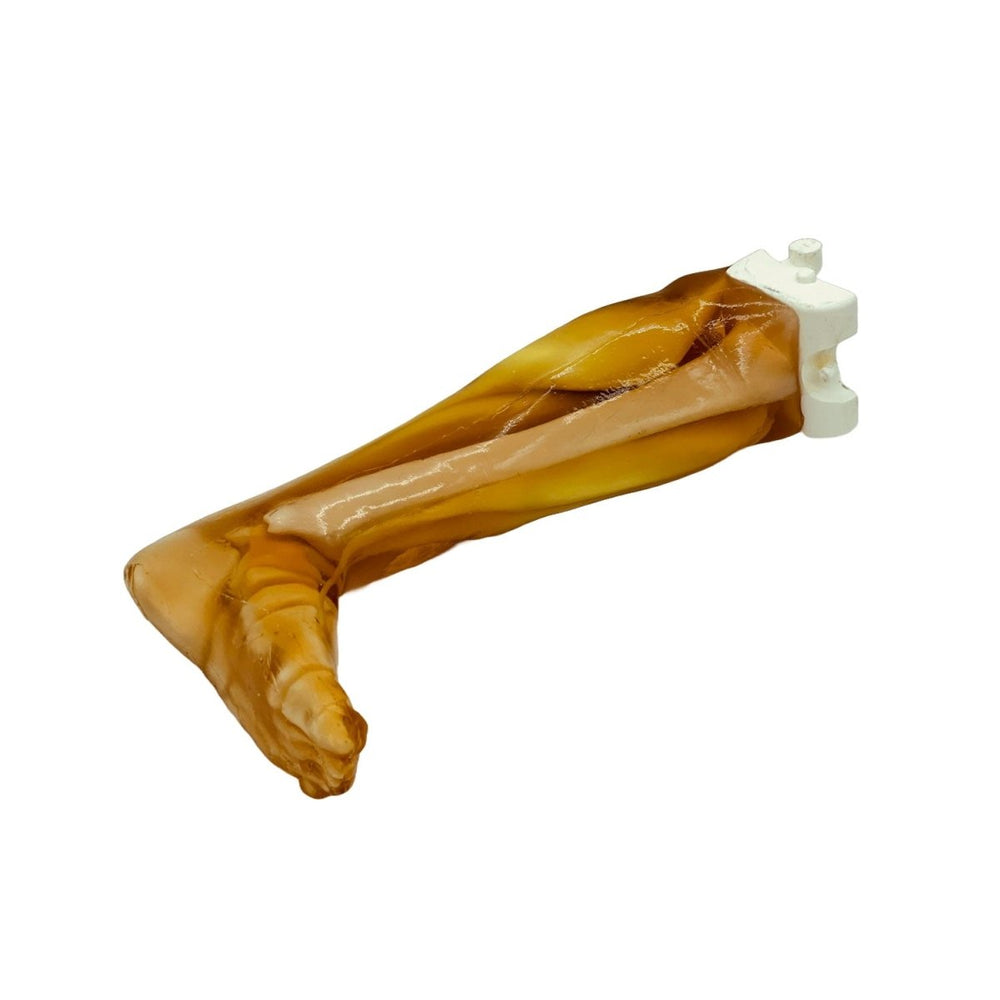

The Adult Leg (Muscles) Phantom is a realistic tool for studying and testing medical imaging devices. Based on the average anatomy of a male leg, it includes bony and soft tissue features. The LG-A02 is suitable for various X-Ray/CT and Ultrasound procedures and can be customized with pathologies or for specific training needs upon request.

Adult Leg (Muscles) Phantom for X-Ray CT and Ultrasound is a realistic phantom designed based on the average anatomy of a human male leg. It has all the essential bony and soft tissue features that make it an ideal tool to study, research, and test medical imaging devices.

The LG-A02 can be used to study several diagnostic X-Ray CT and Ultrasound procedures in different orientation and positioning techniques. Upon request, this product can be customized with different pathologies as well as for specific training applications.

Anatomy:
  • Fibula Bone
  • Tibia Bone
  • Foot Bones
  • Major Muscle Tissues
  • Realistic Soft Body Tissue
Your order will include:
  • Adult Leg (Muscles) Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
Download:
manual
Product Dimensions and Weight:
  • Height: 38 x 10 x 7 in (approx.)
  • Weight: 26.5 lbs (approx.)
Shipping Dimensions and Weight:
  • Height: 36 x 24 x 12 in (approx.)
  • Weight: 35 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

Design of the Phantom

Front view

Lateral view

Perspective view

Top view

Animation

Ultrasound Scans

X-Ray Scans

*/ These CT scans were obtained from our product, Adult Leg for X-Ray CT, MRI SKU: LG-A01. These are served as an example to refer to the imaging quality of this phantom. If you have any questions related to these, please write us at info@truephantom.com /*

Type of Tissue Sound Velocity [m/s] Density [g/cm³] Hardness [Shore 00] T2 [ms] Hounsfield Value Attenuation Measured at 2.25 MHz [dB/cm]
Cortical Bone 3000 ± 30 2.31 N/A N/A 1300 6.4 ± 0.3
Trabecular Bone 2800 ± 50 2.03 N/A N/A 1300 21 ± 2
Soft Tissue 1400 ± 10 1.02 60 50 ms 25 1.7 ± 0.2
Muscle Tissue 1400 ± 10 1.01 35 60 N/A 1.3 ± 0.2
Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
S.No. Tissue Type HU Value (average)
1 Trabecular Bone 800
2 Cortical Bone 1300

Adult Leg Phantom with Muscles for for X-Ray CT and Ultrasound

Product Dimensions and Weight:
  • Height: 38 x 10 x 7 in (approx.)
  • Weight: 26.5 lbs (approx.)
Shipping Dimensions and Weight:
  • Height: 36 x 24 x 12 in (approx.)
  • Weight: 35 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
