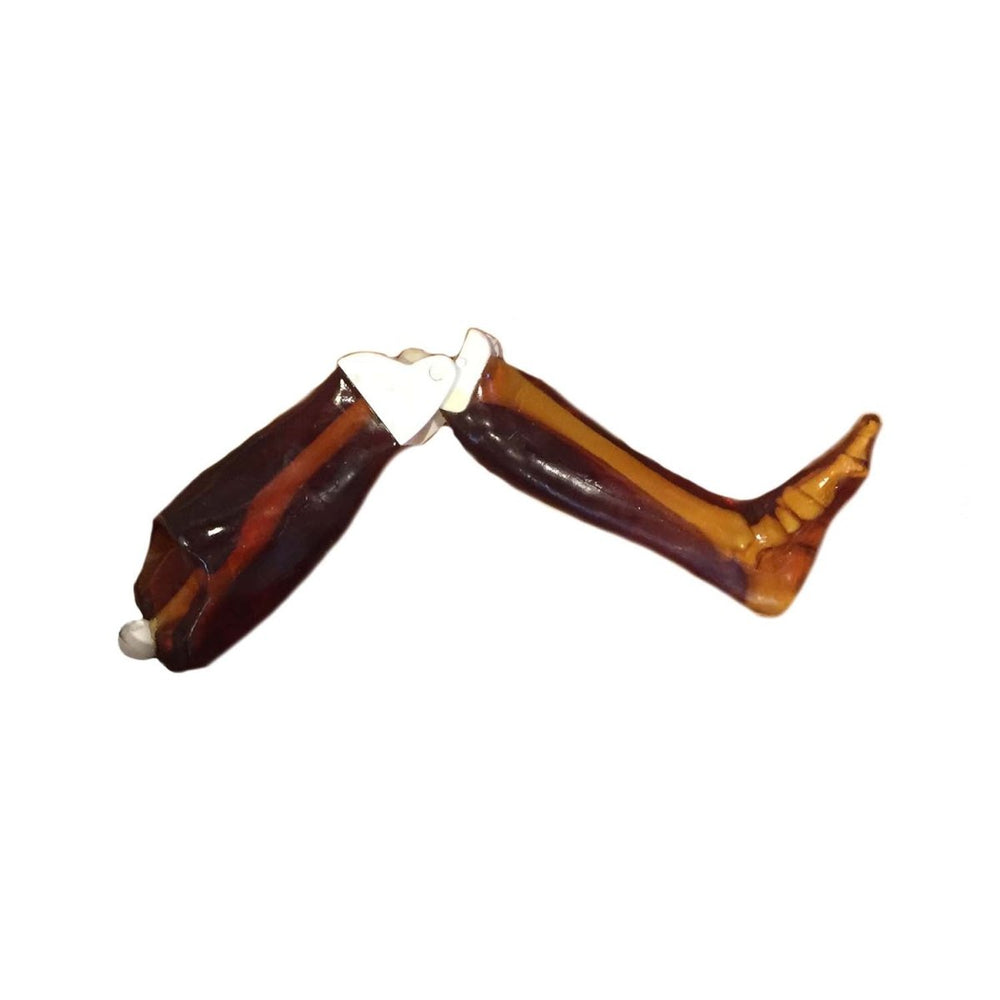

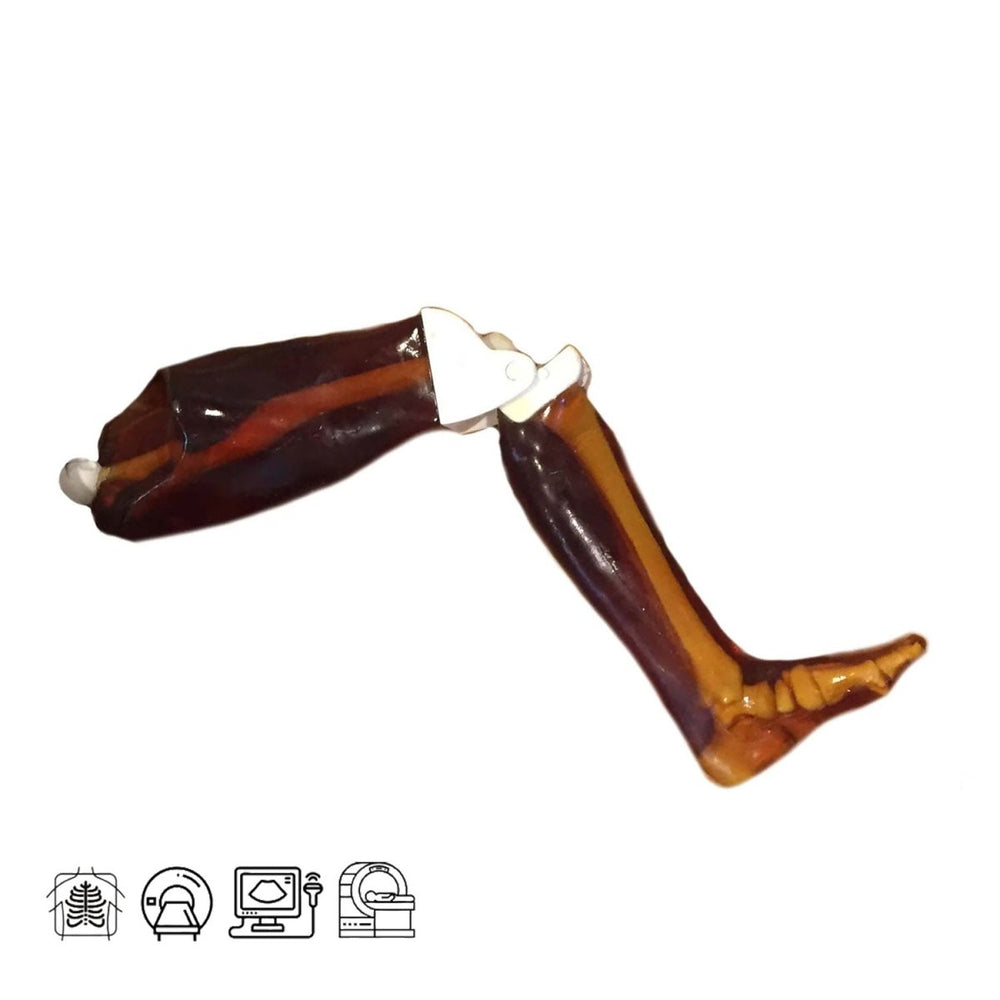

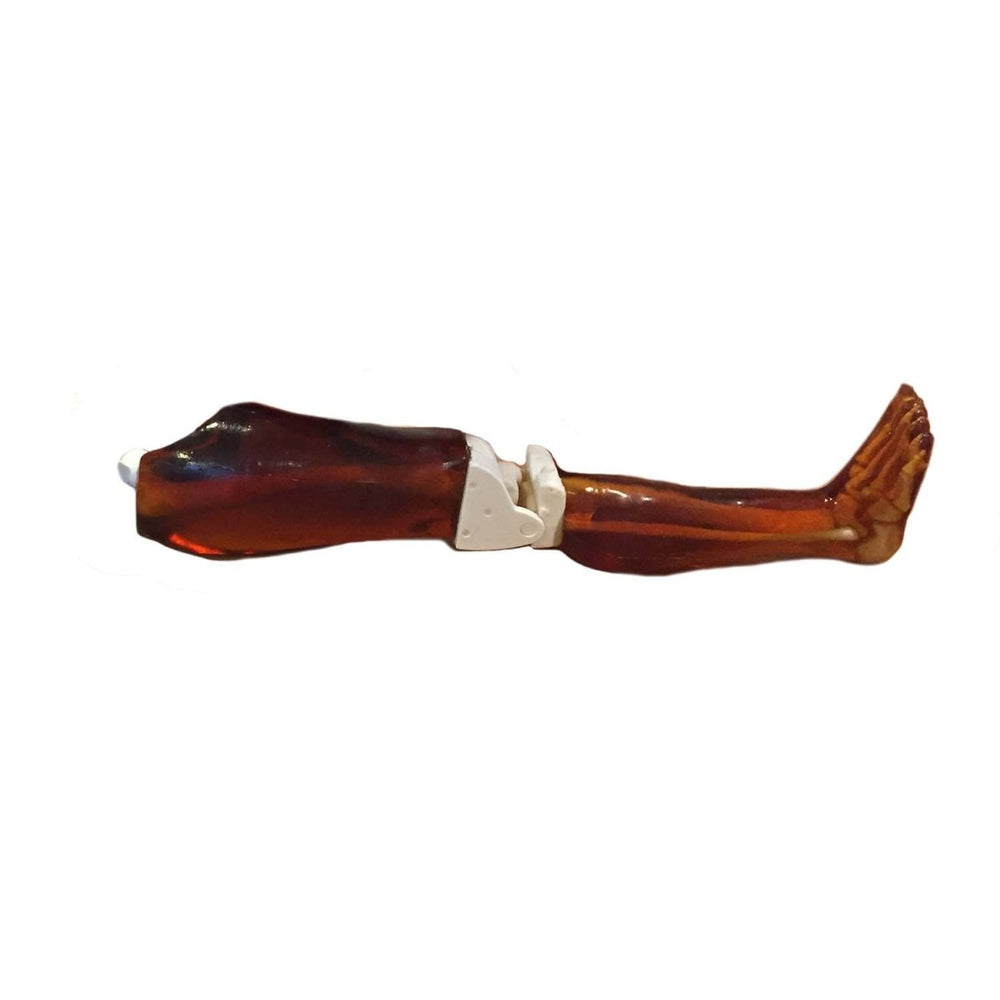

Adult Leg for X-Ray/CT and MRI has a joint at the knee for flexibility and motion. It connects the lower leg with the upper leg (thigh). These two parts can be disarticulated as per needs. Our patented bone mimicking material allows for realistic X-ray and MR images.

Adult Leg for X-Ray CT and MRI is a part of our Adult Full Human Body Phantom for X-Ray CT & MRI Training [TPS-FB-A01] that can be purchased independently.

This X-Ray CT and MRI Leg Phantom can be used to take X-Ray images of the full leg. The model includes synthetic bones made out of realistic patented bone-mimicking material. The X-Ray Leg Model is perfect for radiology schools for training and learning different settings of X-Ray without the danger of exposing an actual patient to harmful radiation.

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MR imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.

The bones are embedded in a realistic tissue-mimicking material that can be either transparent or opaque. The X-Ray Models may differ in size and shape. Due to production technology, there may be discoloring and cracks inside the phantom. This is related to production and does not lack quality.

The leg phantom has a joint at the knee for flexibility and motion. It connects the lower leg with the upper leg (thigh).

Anatomy:
  • Thigh (Femur)
  • Knee Joint
  • Leg (Tibia, Fibula)
  • Foot (Toe Bones)
Your order will include:
  • Adult Leg Phantom for for X-Ray CT and MRI
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
Download:
manual
Product Dimensions and Weight:
  • Height: 38 x 10 x 7 in (approx.)
  • Weight: 27 lbs (approx.)
Shipping Dimensions and Weight:
  • Height: 36 x 24 x 12 in (approx.)
  • Weight: 35 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

Design of the Phantom

Front view

Lateral view

Perspective view

Top view

Animation

X-Ray Scans

CT Scans

These CT scans were obtained from our product, Adult Full Body (with Muscles) for X-Ray CT, MRI SKU: TPS-FB-A02. This phantom will only include 1 leg. If you have any questions related to these, Contact Us./*

MRI Scans

Type of Tissue Sound Velocity [m/s] Density [g/cm³] Hardness [Shore 00] T2 [ms] Hounsfield Value Attenuation Measured at 2.25 MHz [dB/cm]
Cortical Bone 3000 ± 30 2.31 N/A N/A 1300 6.4 ± 0.3
Trabecular Bone 2800 ± 50 2.03 N/A N/A 1300 21 ± 2
Soft Tissue 1400 ± 10 1.02 60 50 ms 25 1.7 ± 0.2
Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
S.No. Tissue Type HU Value (average)
1 Trabecular Bone 800
2 Cortical Bone 1300

Adult Leg Phantom for for X-Ray CT and MRI

Product Dimensions and Weight:
  • Height: 38 x 10 x 7 in (approx.)
  • Weight: 27 lbs (approx.)
Shipping Dimensions and Weight:
  • Height: 36 x 24 x 12 in (approx.)
  • Weight: 35 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
