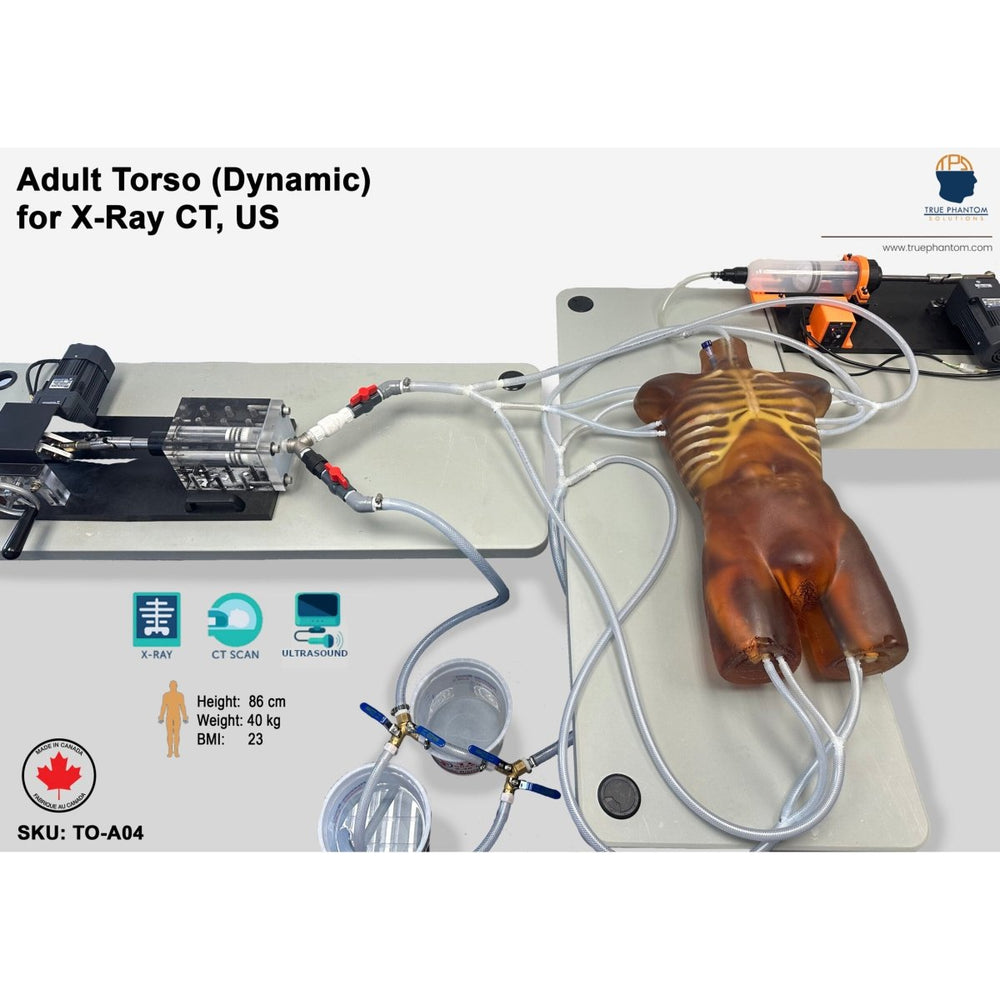

Dynamic Adult Torso with Heart Pump for X-Ray CT and Ultrasound

The Dynamic Adult Human Torso phantom is a lifelike simulator compatible with Ultrasound and X-Ray/CT. The skeleton features a realistic three-layered structure and inner porosity. The phantom includes a realistic heart with a TPS heart pump and breathable lungs with a TPS lung pump.

Dynamic Adult Human Torso with a beating heart and breathable lungs is a lifelike, anatomically realistic, from neck to pelvic area phantom/simulator with all the essential organs present inside. This phantom is compatible with Ultrasound and X-Ray/CT, and it is an ideal tool for applications such as angiography. The organs are made from realistic urethane-based tissue-mimicking materials, and the bones are made from a patented ceramic-reinforced epoxy-based composite material. The skeleton is assembled from individually cast bones with vertebrae that have a realistic three-layered structure and inner porosity. This phantom can be used with Iodine-based and Microbubble contrast mediums.

The design of this phantom includes a realistic heart with all major heart vessels and internal heart chambers. The TPS heart pump is included with this phantom, and it enables the realistic heartbeat and motion of heart walls. The TPS lung pump is also included to provide lifelike breathing motion in the torso.

Anatomy

  • Complete Spine
  • Complete Ribcage
  • Shoulders and Clavicles
  • Pelvis
  • Partial Femoral Bones
  • Trachea
  • Realistic Heart with:
    • Right Ventricle:
      • Moderator Band that runs from the anterior wall to the septum bridge
      • Volume: 60 ml
    • Left Ventricle:
      • Papillary muscles to the anterior and posterior walls
      • Volume: 63 ml
    • Right Atrium:
      • Right atrial appendage with distinct muscle structures
      • Volume: 45 ml
    • Left Atrium:
      • Unique muscle structure to the appendage of the left atrium
      • Volume: 29 ml
  • Appendage Feature
  • Aorta
  • Jugular vessels
  • Pulmonic and Pulmonary Veins attached to LA
  • Flexible Valvular Structures
  • SVC
  • IVC
  • Inflatable Breathing Lungs
  • Diaphragm
  • Liver
  • Gallbladder
  • Stomach
  • Kidneys
  • Spleen
  • Pancreas
  • Large and Small Intestines
  • Bladder
  • Prostate

Beating Heart Features:

  • Beating heart model with the cyclic motion of the heart walls
  • Water-fillable chambers with minimal air pockets
  • Adjustable heart rate (0 BPM – 140 BPM)
  • Adjustable stroke volume (0 ml to 60 ml)
  • Hysteresis in motion (diastole and systole of the cardiac cycle)
  • Asymmetrical displacement of the heart chambers
  • The complete system is installed on a plex glass
  • Available in 220 V or 110 V

Breathable Lung Features:

  • Enabling breathing capability by modifying static lungs to dynamic inflatable lungs
  • Realistic cyclic respiratory motion
  • Custom duration of the breathing cycle
  • Adjustable cyclic respiratory motion (0 – 45 breaths per minute)
  • Adjustable breath volume (0.25L, 0.5L, 0.75L, 1 L)
  • Complete system installed on a secure plexiglass base

Included In Order:

  • Adult Torso (Dynamic) Phantom
  • TPS Heart Pump
  • TPS Lung Pump
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case

Materials Used:

  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

Download:

manual

Product Size & Weight

Phantom:
  • Size: 34 x 18 x 10 in (approx.)
  • Weight: 88 lbs (approx.)
Heart Pump:
  • Size: 36 x 12 x 8 in (approx.)
  • Weight: 88 lbs (approx.)
Lung Pump:
  • Size: 36 x 12 x 8 in (approx.)
  • Weight: 48 lbs (approx.)

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

Design of the Phantom:

Front view

Lateral view

Perspective view

Top view

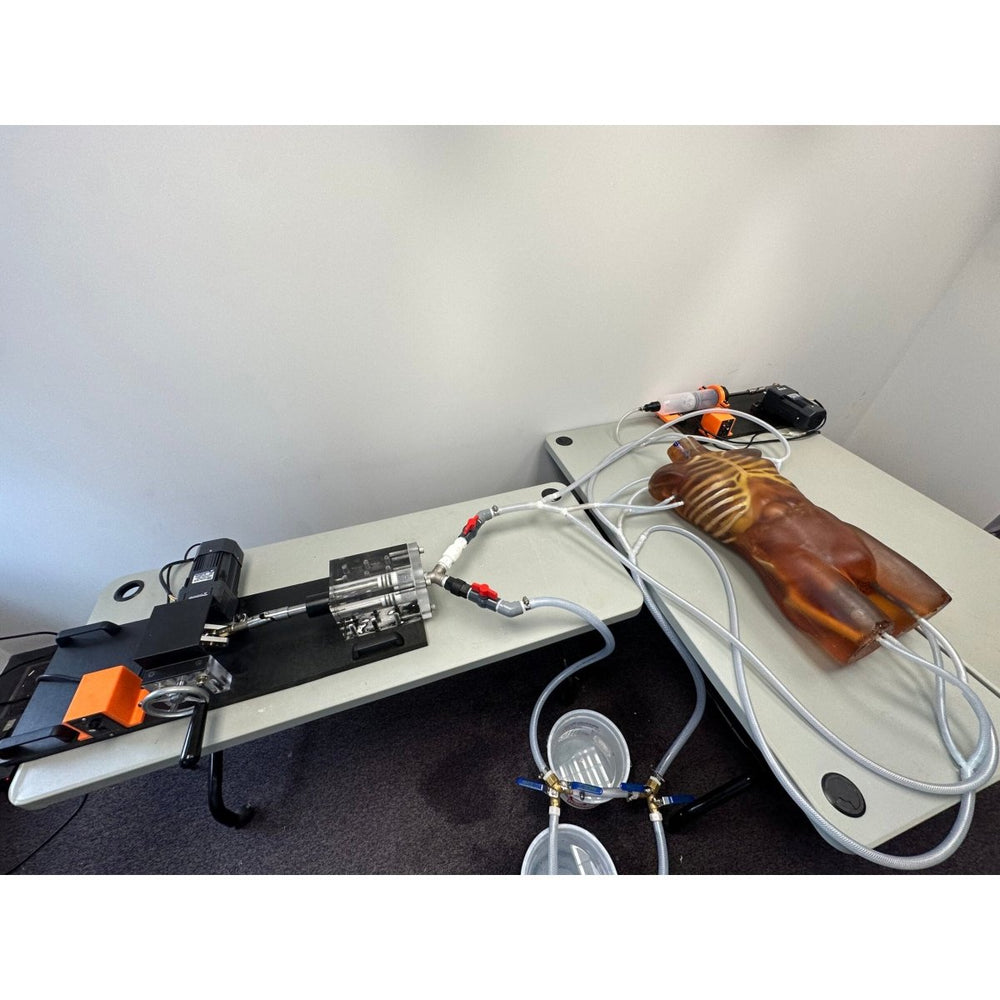

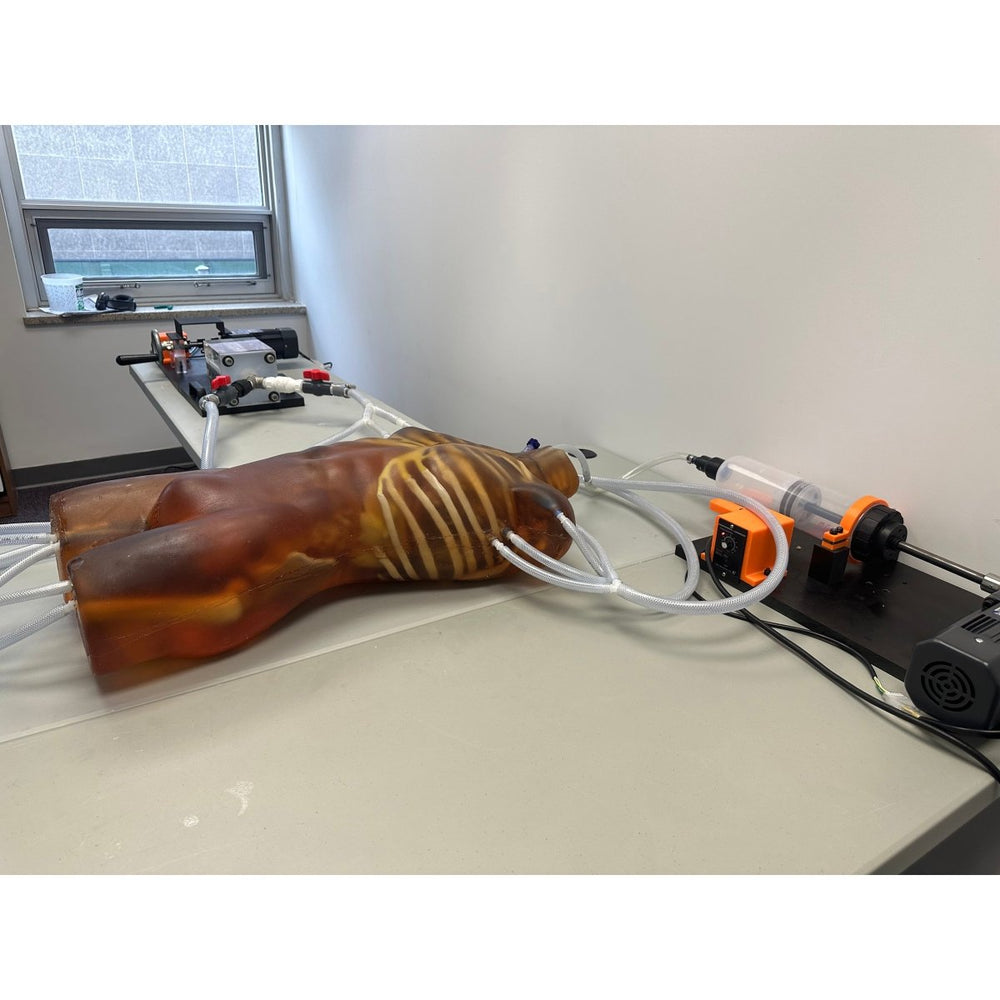

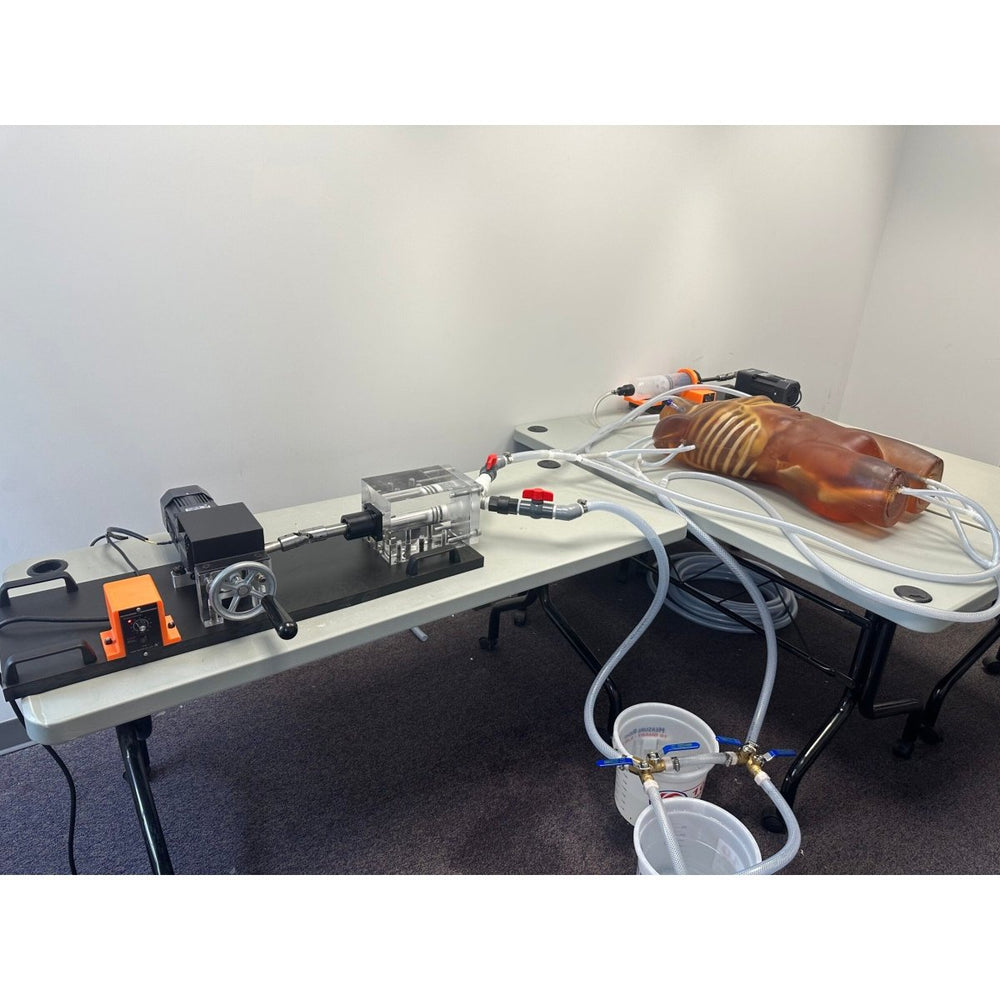

Heart and Lung connections

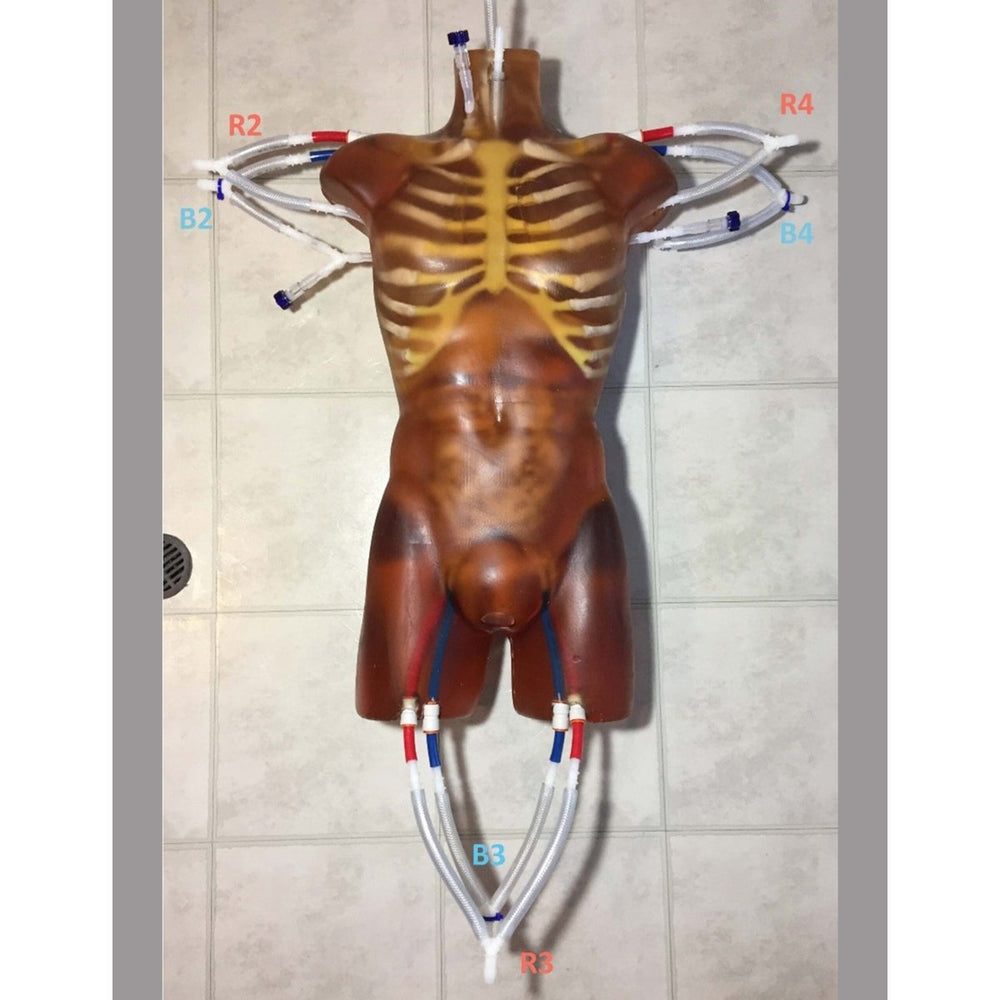

Heart connections in Torso

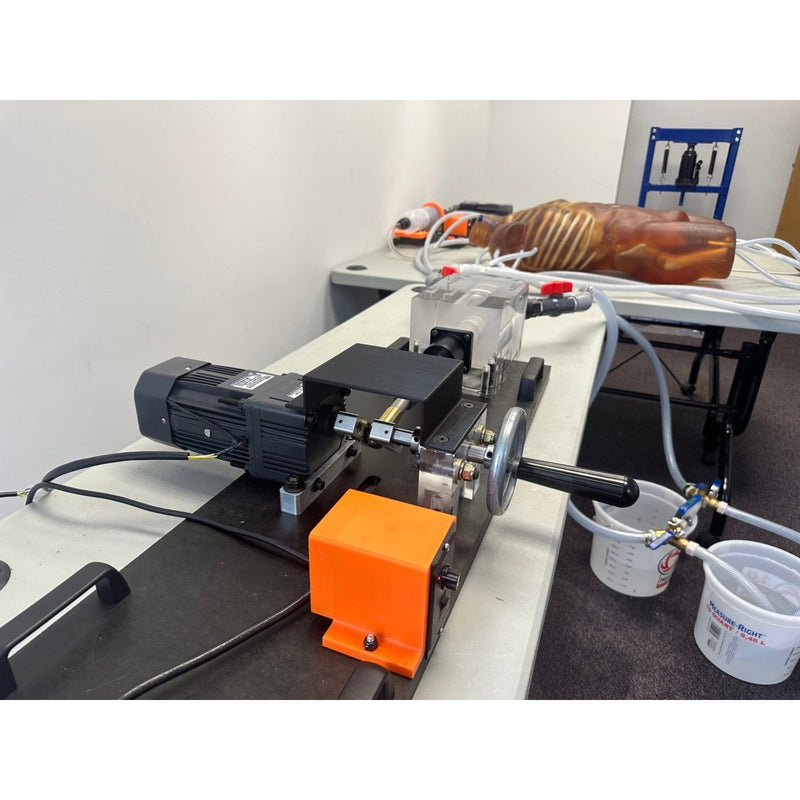

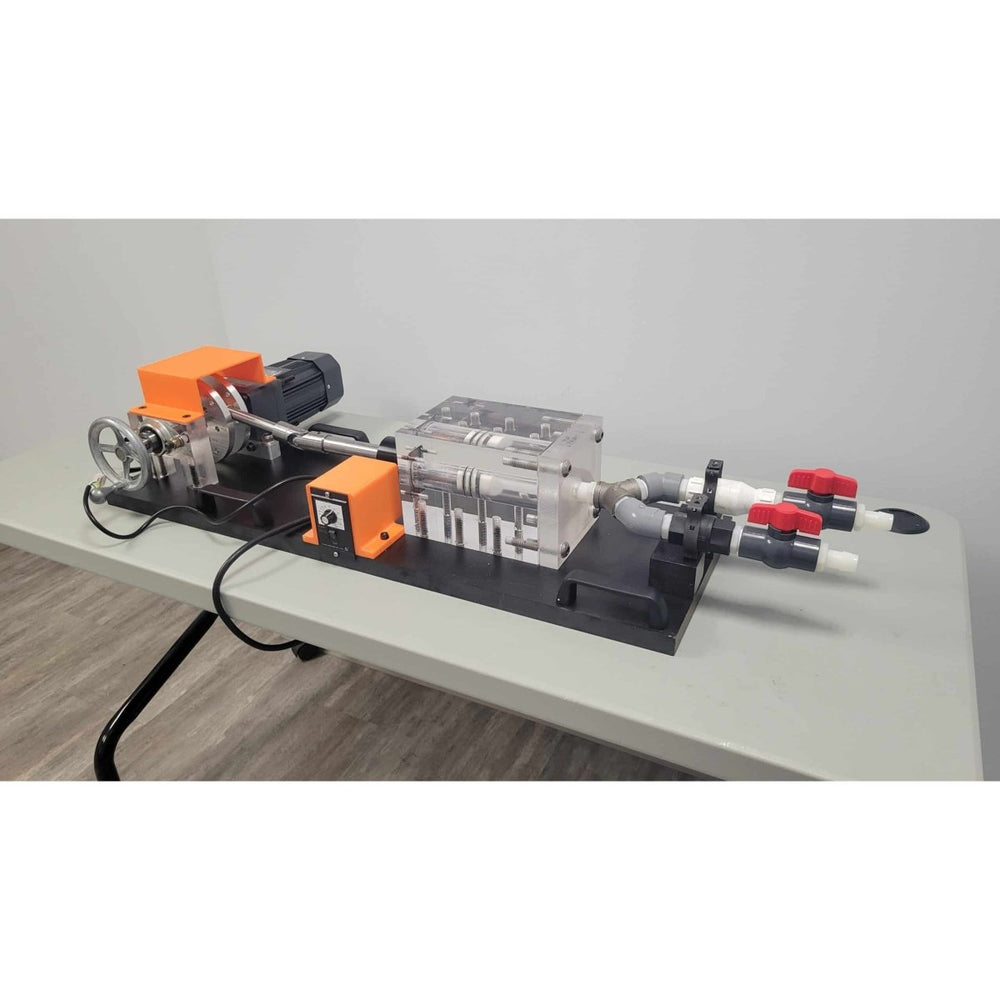

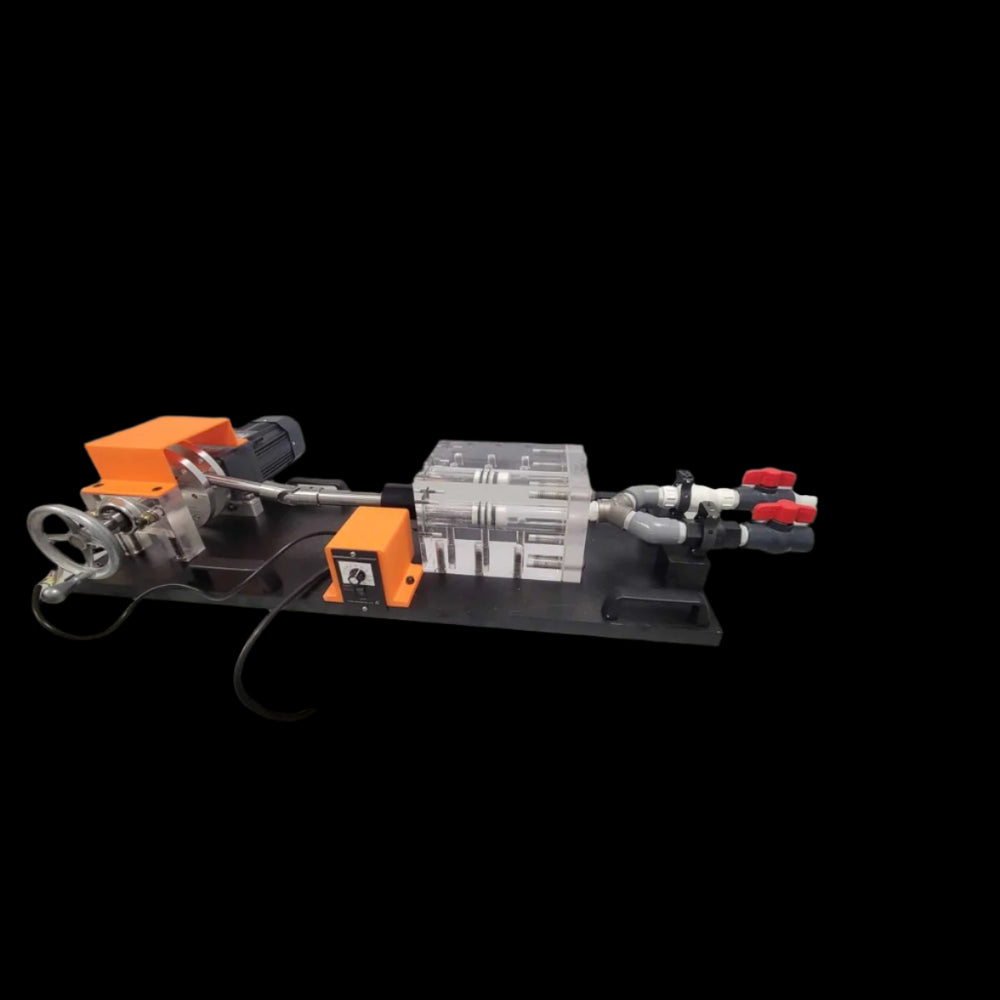

Heart Pump

Lung Pump

Ultrasound Scans of the Heart

Ultrasound Scans of the Torso

*/ These scans were obtained from the Adult Torso for X-Ray CT, US ~ SKU: TPS-US-A02 and were taken using a GE device. The abdominal probe of 3.0 MHz -5.0 MHz. If you have any questions related to these, please Contac Us /*

CT Scans of the Torso

*/ These scans were obtained from a customized Ultrasound & X-Ray CT Torso that were captured by a CANON CT Scanner – One Aquilion (Model TSX-305A). If you have any questions related to these, please write us at info@truephantom.com/*

Download a PDF with product details

Dynamic Adult Torso for X-Ray CT and Ultrasound

Shipping Dimensions and Weight

Size with Hard Carry Case:
  • Size: 47 x 26 x 18 in (approx.)
  • Weight: 144 Lbs (approx.)
Size of Pump Package:
  • Size: 36 x 14 x 10 in (approx.)
  • Weight: 90 Lbs (approx.)
Size of Lung Package:
  • Size: 49 x 17 x 13 in (approx.)
  • Weight: 62.5 Lbs (approx.)
*Entire shipment will be placed on a wooden pallet.

Materials Used
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite materia

Technical Properties

Type of Tissue Sound Velocity[m/s] Density [g/cm3] Attenuation Measured at 2.25 MHz [dB/cm] Hardness [Shore OO] T2 [ms] Speckles
Organs with Speckles (liver, kidneys, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 VARIABLE
Organs without Speckles (stomach, intestines, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 NO
Body Tissue 1400 ± 10 1.00 1.2 ± 0.2 30 65 NO/LOW
Cortical Bone 3000 ± 30 2.31 6.4 ± 0.3 N/A N/A N/A
Trabecular Bone 2800 ± 50 2.03 21 ± 2 N/A N/A N/A

Thermal Properties of our Bone-Mimicking Material

Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s

HU Values of the Tissue Mimicking-Materials

Tissue Type HU Value (Average)
Body Tissue -25
Trabecular Bone 800
Cortical Bone 1300
Aorta 40
Vena Cava 40
Trachea 80 (Tissue Part),-1000 (Air Filled Part)
Pandreas 110
Spleen 110
Tissue Type HU Value (Average)
Kidneys 110
Bladder 35
Rectum Wall 100
Sigmoid Colon Wall 100
Heart 40
Liver 110
Gallbladder 35
