Adult Male Torso Phantom for X-Ray CT Imaging and MRI Training

This phantom is designed based on average human anatomy and is made out of realistic bone and soft tissue-mimicking materials that are suitable for X-Ray/CT and MRI applications. It can be used for medical imaging research and radiology training and can also be served as a customized tool for equipment testing and calibration.

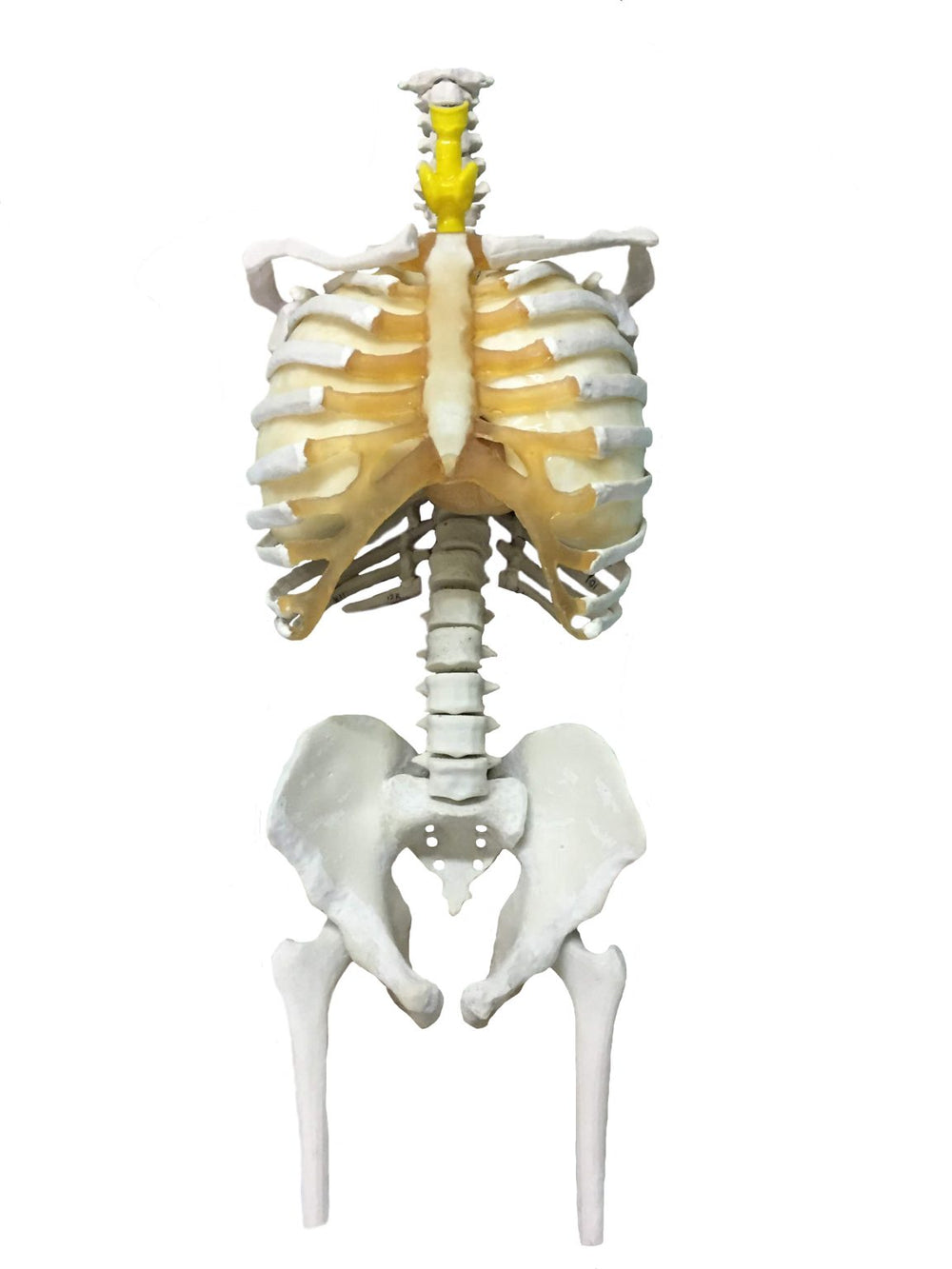

The skeleton is made from individually cast bones from a realistic patented epoxy-based composite material with vertebrae that have realistic three-layered structure with inner porosity.

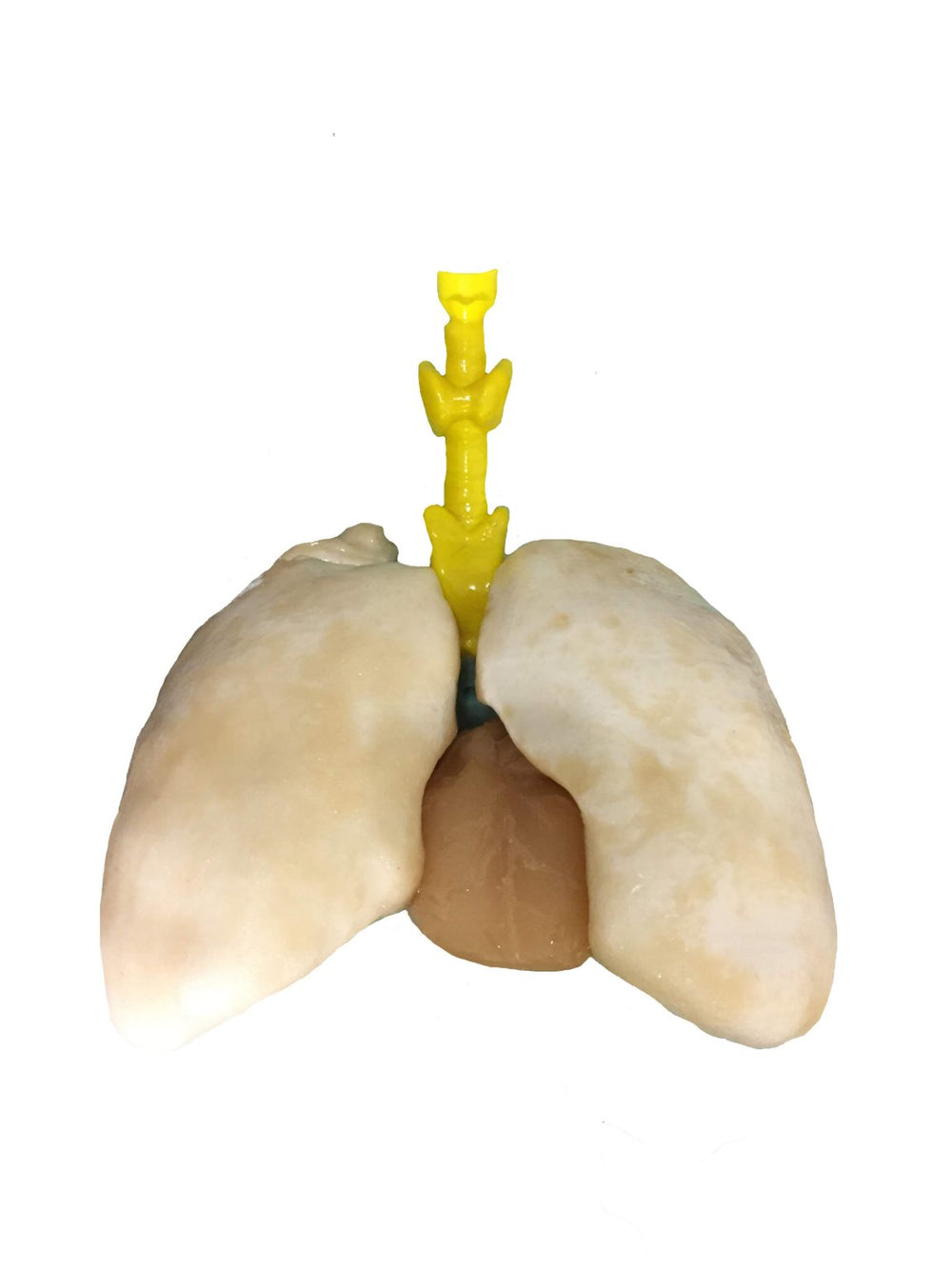

The Lungs installed inside this Torso can be customized in several ways to simulate any pathology, such as mucus, lesions, and typical infections. This phantom can also be customized as a training simulator to train medical students on COVID-19-related diagnostic procedures.

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with Proton Density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.

Upon request, this phantom can also be customized in size & shape (i.e., based on the individual’s CT scan).

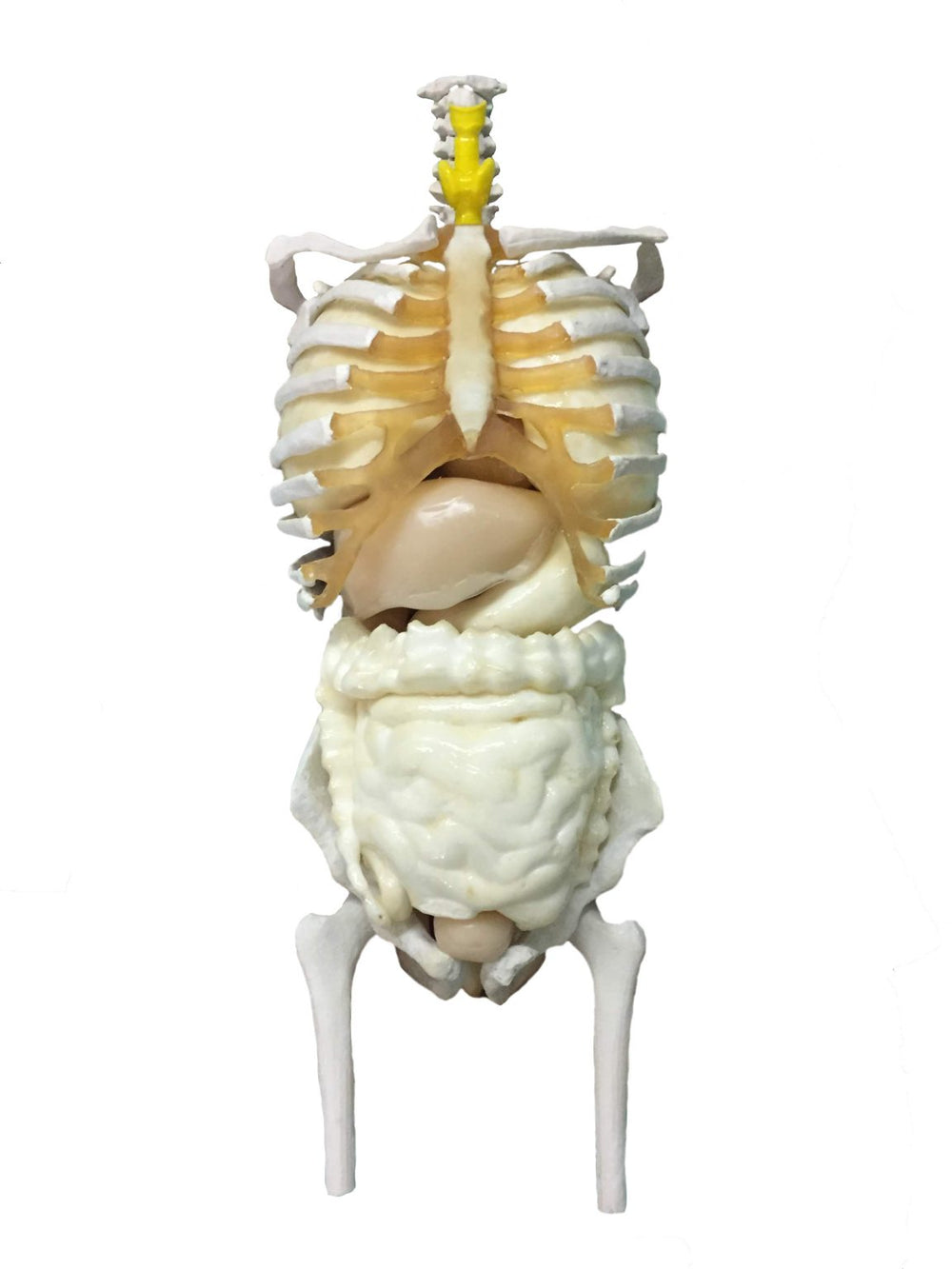

Anatomy

  • Complete Spine

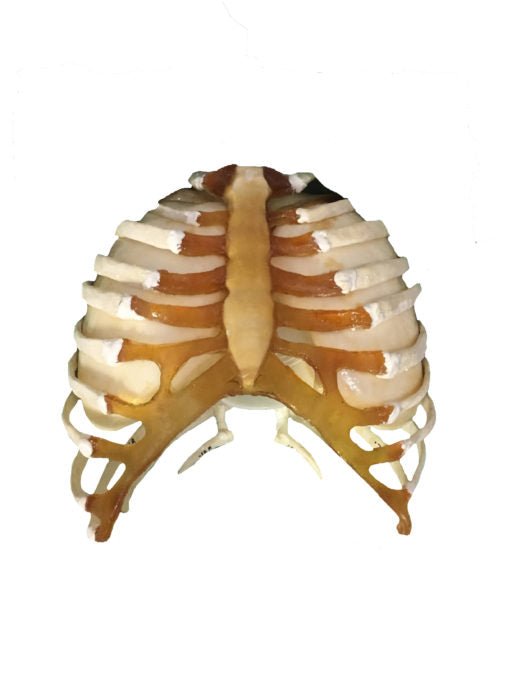

  • Complete Ribcage
  • Shoulders & Clavicles
  • Pelvis
  • Partial Femur Bones
  • Trachea
  • Heart
  • Lungs
  • Diaphragm
  • Liver (Ligaments, Bile Ducts)
  • Gallbladder
  • Stomach
  • Kidneys
  • Spleen
  • Pancreas
  • Large & Small Intestines
  • Bladder
  • Prostate
Included In Order:
  • Adult Torso Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service

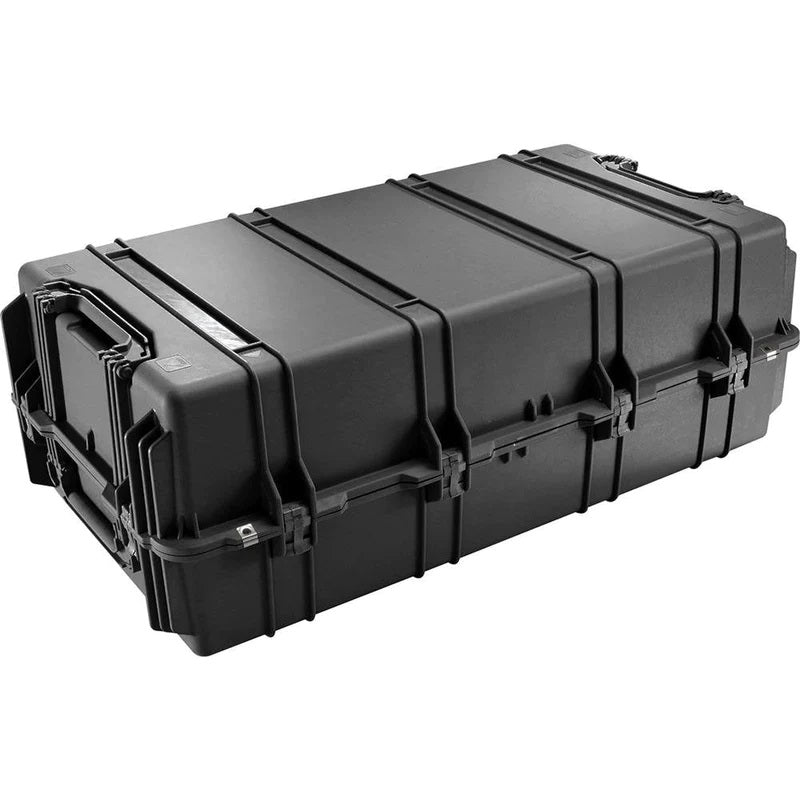

  • Hard Carry Case
Download:
manual
Shipping Dimensions and Weight:
  • Size: 47 x 36 x 18 in (approx.)
  • Weight: 144 lbs (approx.)
Product Size & Weight
  • Size: 34 x 18 x 10 in (approx.)
  • Weight: 88 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

Design of the Phantom:

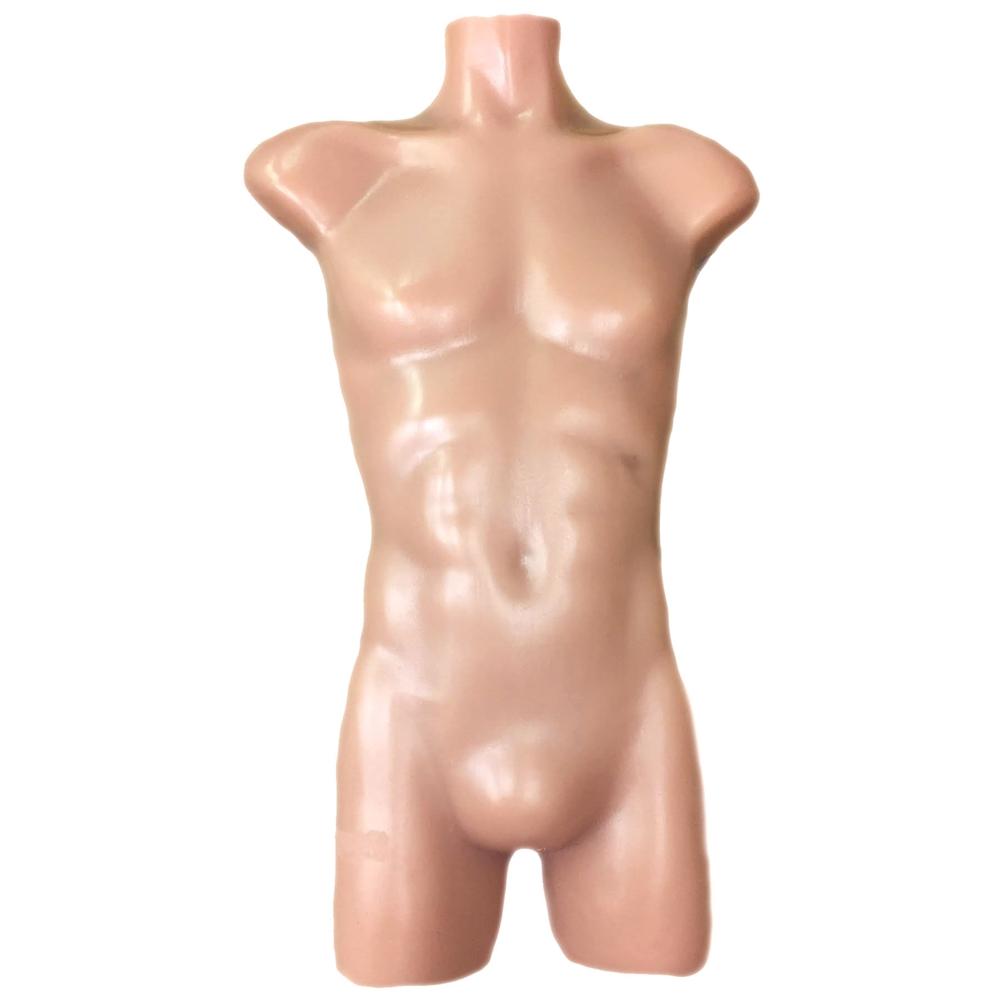

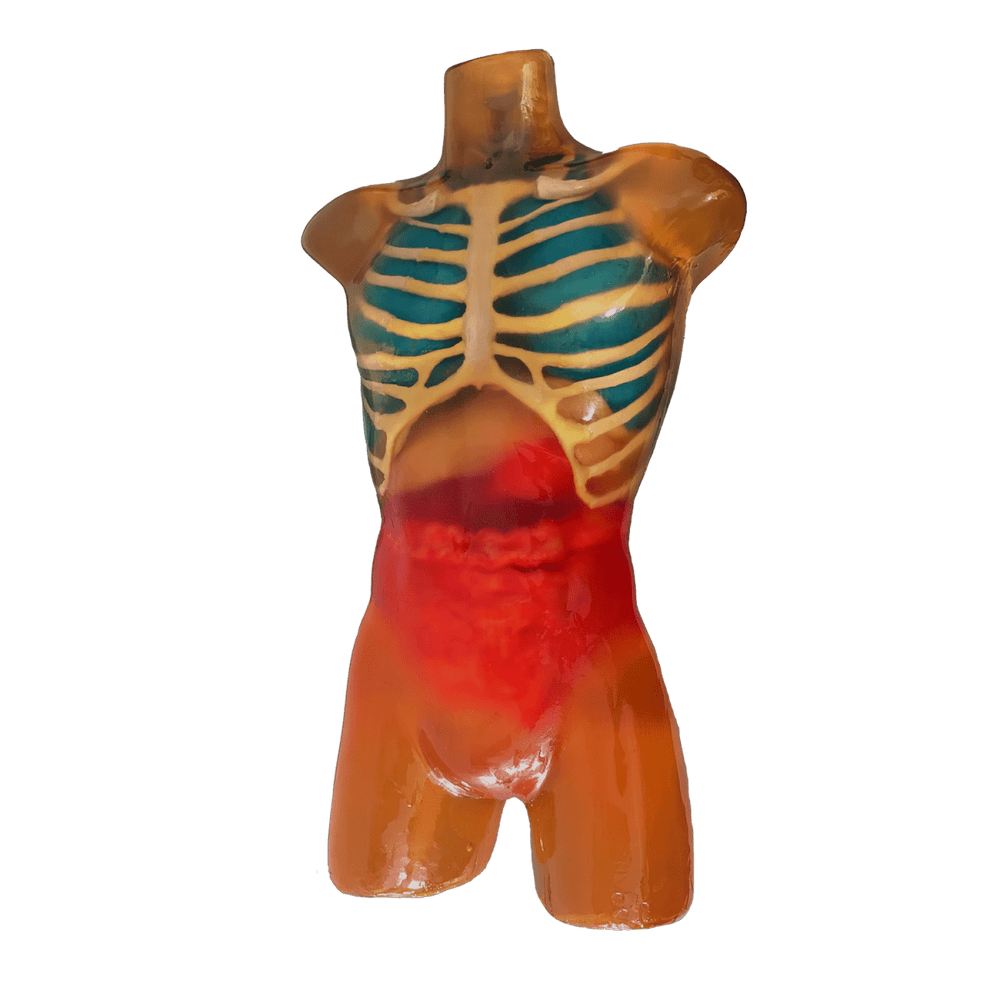

Front view

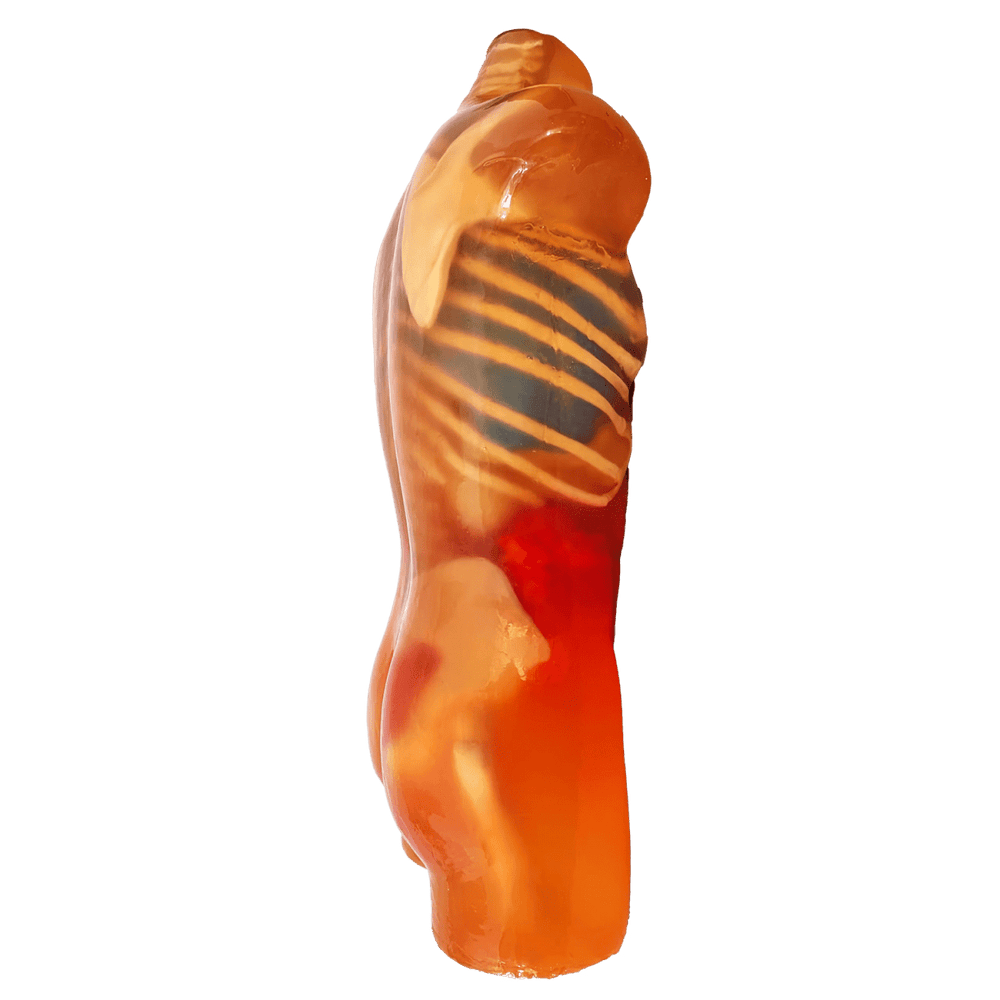

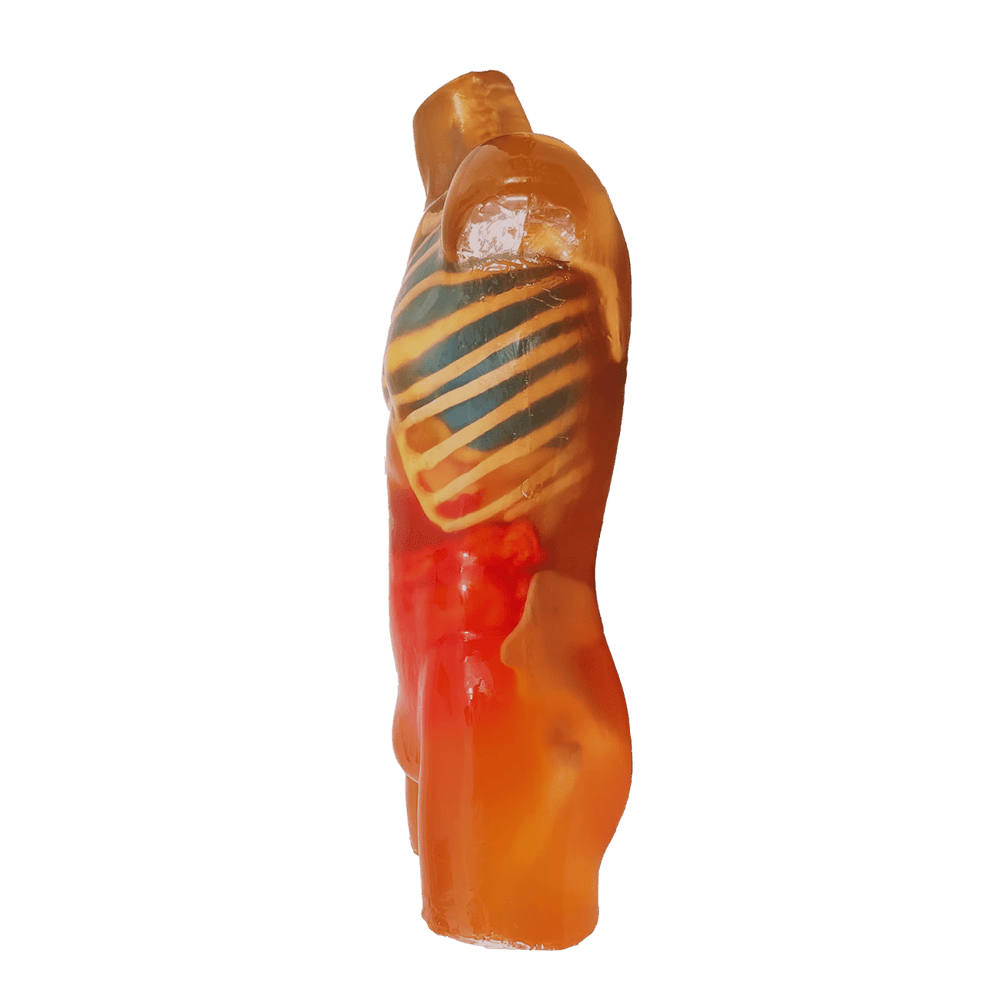

Lateral view

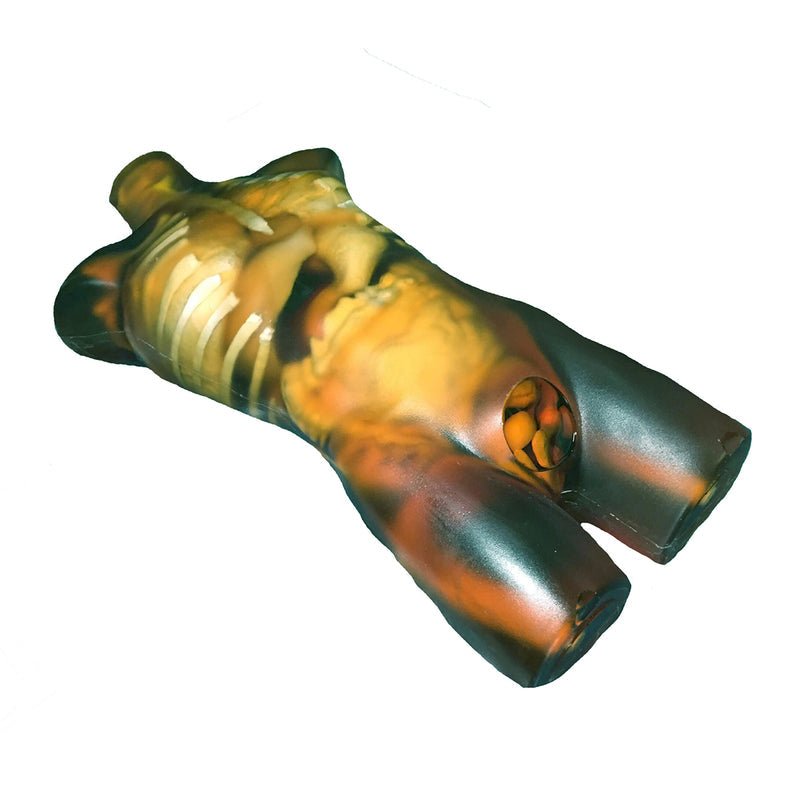

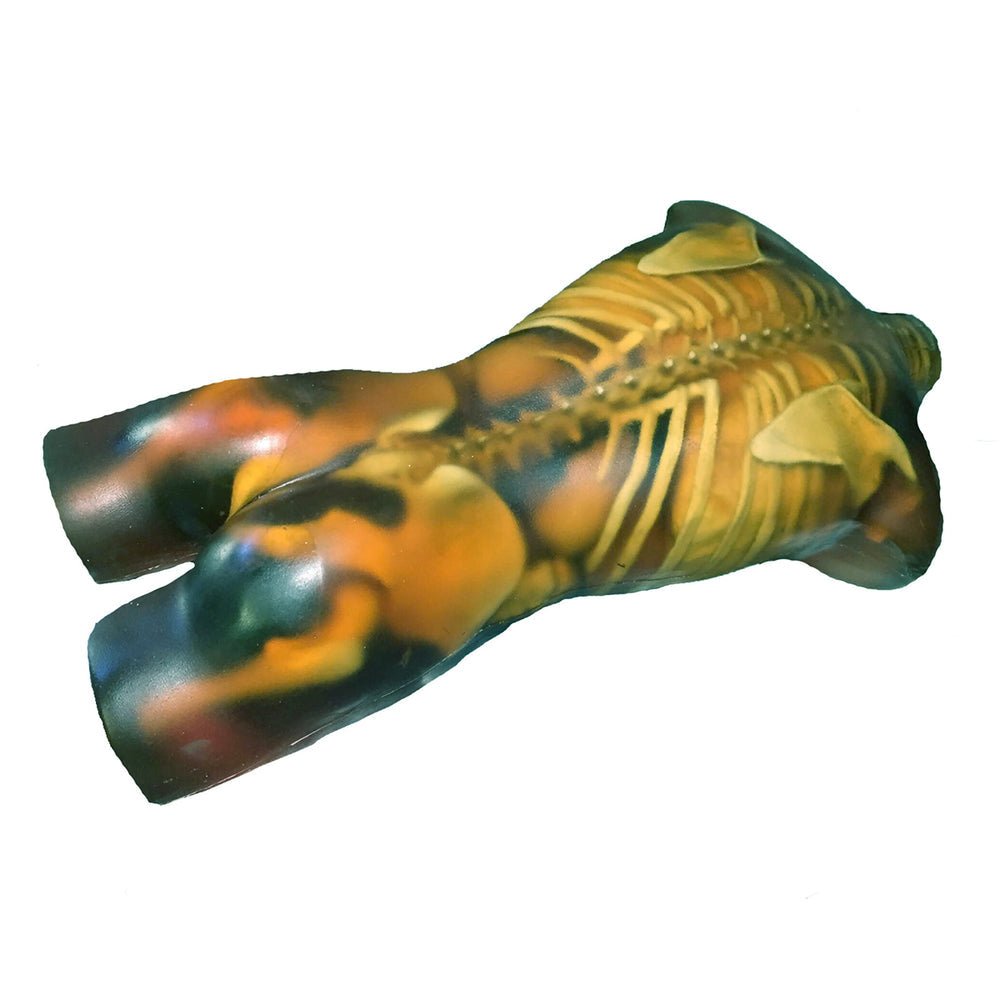

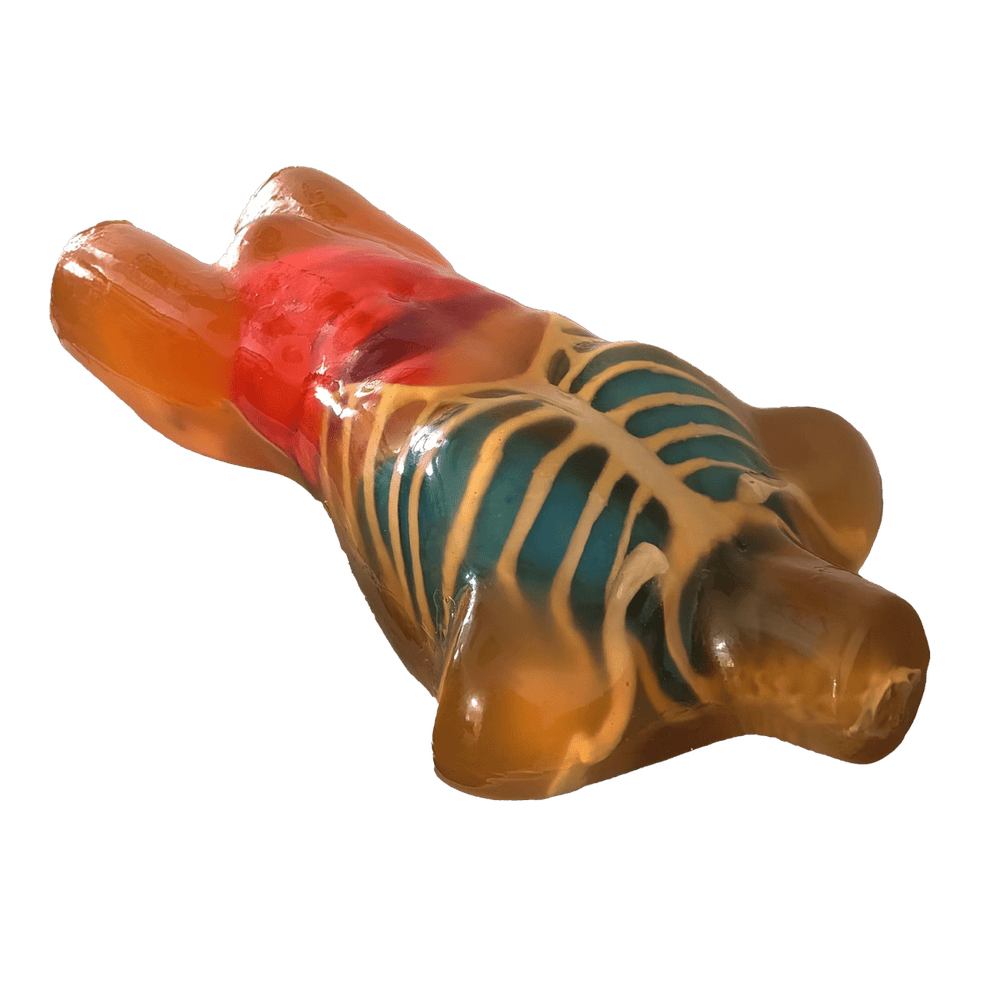

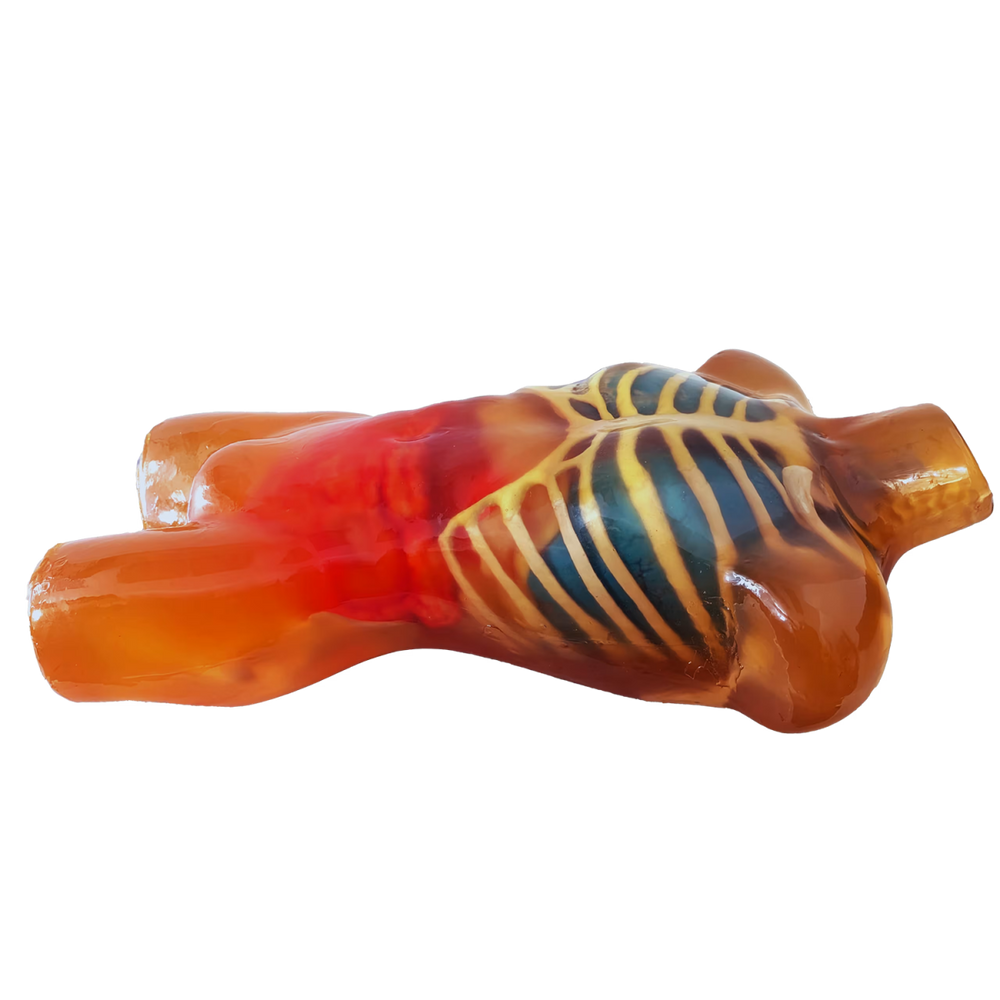

Perspective view

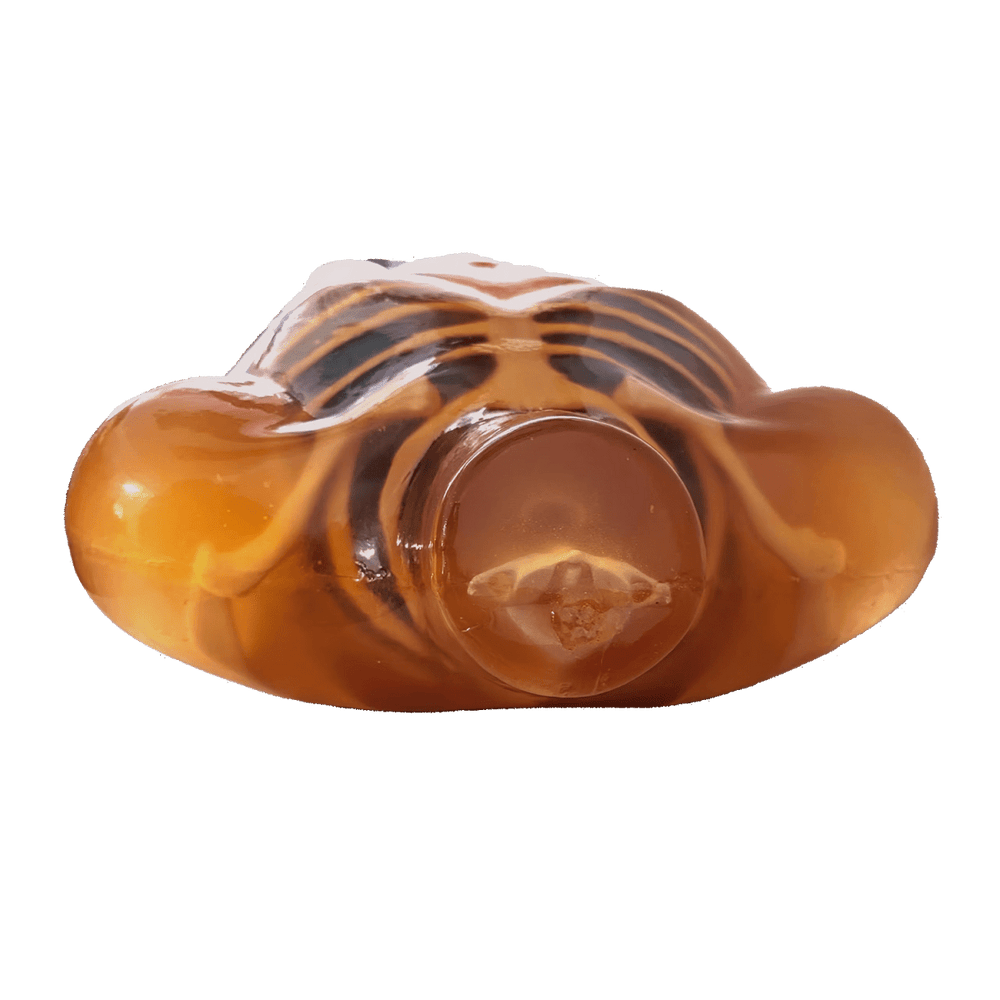

Top view

MRI Scans

*/ These MRI scans were obtained from our product, Adult Full Human Body Phantom(With Muscles) for X-Ray CT & MRI Training(TPS-FB-A02). These are served as an example to refer to the imaging quality of this phantom; this phantom only includes the torso portion. If you have any questions related to these, Contact Us /*

X-Ray Scans

X-Ray Fluoro Scans

Chest X-RAY Fluoro
Abdomen X-RAY Fluoro
Pelvis X-RAY Fluoro

CT Scans

*/ These scans were obtained from a customized ultrasound & X-RAY CT Torso that were captured by a CANON CT Scanner – One Aquilion (Model TSX-305A). If you have any questions related to these, Contact Us /*

Download a PDF with product details

Adult Male Torso Phantom for X-Ray CT Imaging and MRI Training

Shipping Dimensions and Weight:
  • Size: 47 x 36 x 18 in (approx.)
  • Weight: 144 lbs (approx.)
Product Size & Weight
  • Size: 34 x 18 x 10 in (approx.)
  • Weight: 88 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

Tissue Properties

Type of Tissue Sound Velocity [m/s] Density [g/cm3] Attenuation Measured at 2.25 MHz [dB/cm] Hardness [Shore OO] T2 [ms] Speckles
Organs with Speckles (liver, kidneys, etc.) 1435 ± 10 0.99 1.0 ± 0.2 20 70 VARIABLE
Organs without Speckles (stomach, intestines, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 NO
Body Tissue 1410 ± 10 1.00 1.5 ± 0.2 40 55 LOW
Cortical Bone 3000 ± 30 2.31 6.4 ± 0.3 N/A N/A N/A
Trabecular Bone 2800 ± 50 2.03 21 ± 2 N/A N/A N/A

Thermal Properties of our Bone-Mimicking Material

Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/m K 1.040 MJ/m3 K 0.746 mm2/s 1.289 m K/W 0.978 J/g Deg Celsius 3070 m/s

HU Values of the Tissue Mimicking-Materials

Tissue Type HU Value (Average)
Body Tissue -25
Trabecular Bone 800
Cortical Bone 1300
Aorta 40
Vena Cava 40
Trachea 80 (Tissue Part), -1000 (Air Filled Part)
Lungs -850
Pancreas 110
Spleen 110
Stomach -850
Tissue Type HU Value (Average)
Kidneys 110
Bladder 35
Rectum Wall 100
Sigmoid Colon Wall 100
Heart 40
Liver 110
Gallbladder 35
Diaphragm 80
Large and Small Intestines 80 (Tissue Part), -1000 (Air Filled Part)
