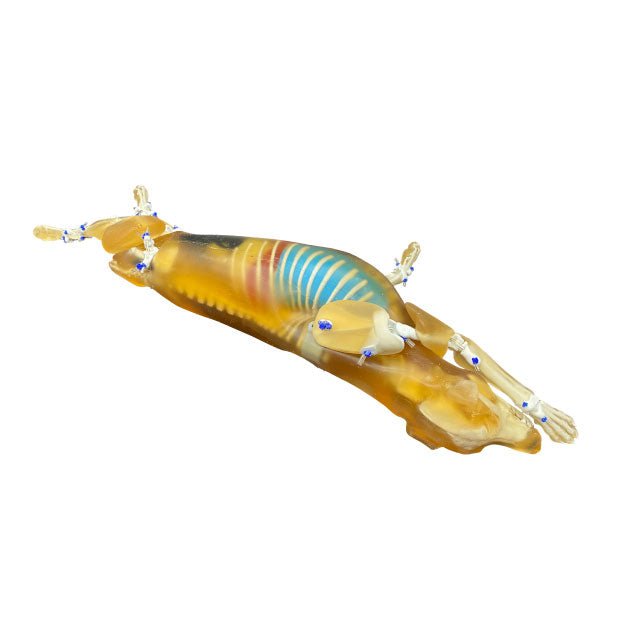

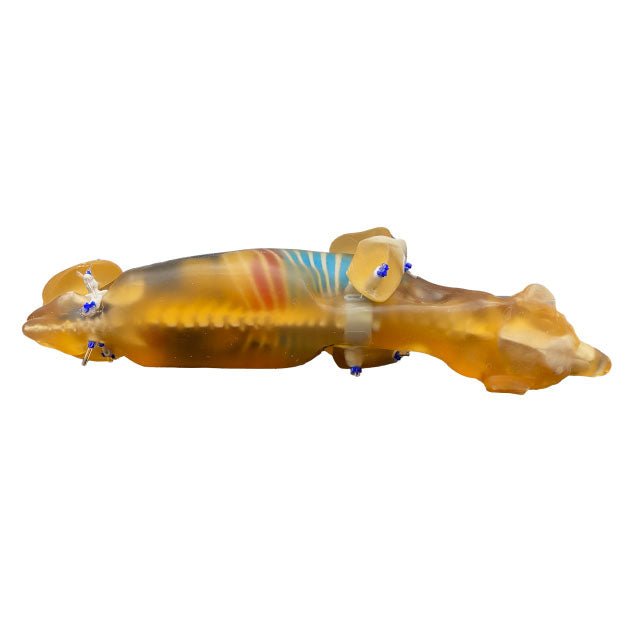

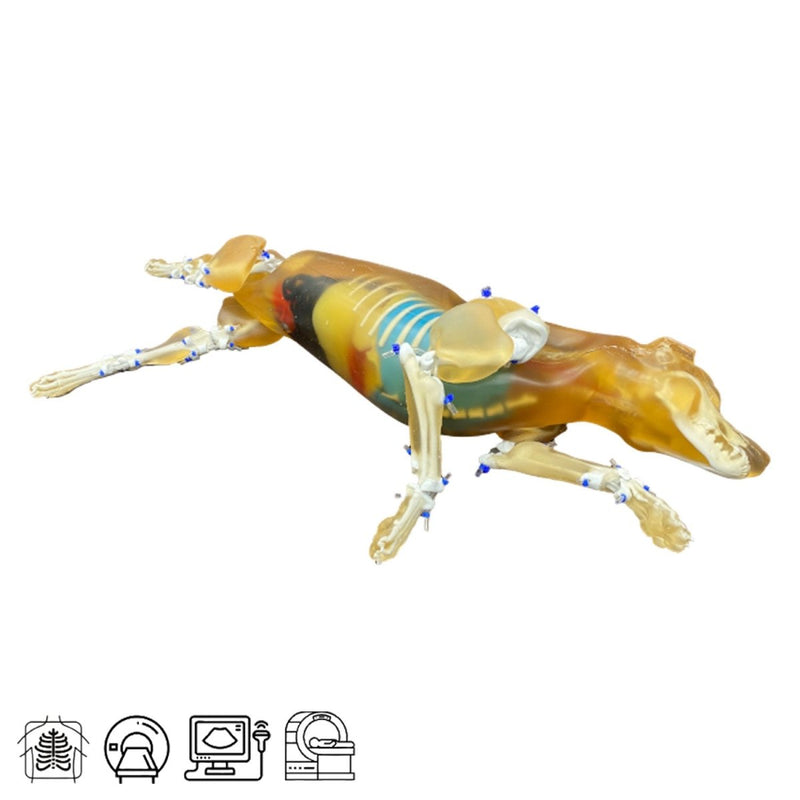

Canine Phantom for X-Ray CT, US, MRI
Phantom Dimensions and Weight:
0.0 lb
All pictures shown are for illustration purposes only. The actual product appearance may vary.
Canine Phantom for X-Ray CT, US, MRI
Item # TPS-CN-A01
$27,900.00
Ships in 12-16 weeks
Need an estimate?
Click Add To Quote
Features & Specifications
-
by
A trusted GT partner -
FREE Shipping
U.S. Contiguous States Only -
2-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request
by
Frequently Bought Together
(
Canine Phantom for X-Ray CT, US, MRI
The Canine Phantom was thoughtfully designed to meet the real-world needs of veterinary education and hands-on
clinical training. It is a major step forward from the previous model, featuring improved articulating joints for
x-ray positioning practice. Its anatomical design is based on a CT dataset of a male Bull Mastiff–Rhodesian
Ridgeback cross, ensuring anatomical authenticity.
With the help of cutting-edge AI, the model was refined using advanced algorithms that precisely extracted and
replicated intricate anatomical structures with exceptional accuracy.
Engineered to meet the advancing demands of veterinary education, research, and clinical practice, the latest Canine
Phantom sets a new benchmark in anatomical realism and training versatility. Developed in collaboration with leading
veterinary institutions across Canada, the USA, the UK, and Australia, this upgraded model builds on the success of
its predecessor with significant enhancements driven by global expert feedback.
Derived from a real CT dataset of a two-year-old male Bull Mastiff x Rhodesian Ridgeback weighing 37 kg, the phantom
features both skeletal and soft tissue structures. For handling purposes, the model was scaled down to 16 kg.
Cutting-edge AI algorithms were employed to extract and replicate anatomical details with remarkable precision,
resulting in a model that delivers exceptional fidelity for both diagnostic and procedural training.
- Joint Articulation: Provides realistic joint mobility, allowing movements that closely replicate those of a real canine.
- Durable Build: Designed for repeated use in demanding clinical environments without compromising structural integrity.
- Advanced Vascular Detailing: Liver, spleen, and pancreas vasculature have been refined for accurate organ positioning.
- Realistic Heart: Includes all chambers, internal valves, and major vessels (IVC, SVC, aorta) for comprehensive cardiac imaging.
- Expanded Anatomical Accuracy: Includes a detailed vasculature, a realistic intestinal tract featuring small and large intestines, caecum, and rectum.
These upgrades reflect a major leap forward in both anatomical precision and educational value, ensuring the phantom
meets expectations for realism and functionality.
Ideal for use in academic institutions and clinical training settings, this model supports a broad spectrum of
applications, from ultrasound imaging to X-ray positioning. With its robust design, responsive materials, and high
anatomical accuracy, the Canine Phantom is an indispensable tool for preparing the next generation of veterinary
professionals.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product
the
best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging
methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they
are
within the range of about 100 ms.
Anatomy
- Adult Canine Head
- Skull
- Jaw Bone
- Adult Canine Torso
- Complete Spine
- Complete Ribcage
- Shoulder (Scapula Bones)
- Pelvis
- Realistic Heart with Internal Structures
- Valves
- Chambers
- Major Heart Vessels – IVC, SVC, Aorta
- Lungs
- Diaphragm
-
- Stomach
- Liver with Vessels
- Gallbladder
- Kidneys with Vessels and Arteries
- Spleen with Vessels
- Large Intestine
- Small Intestine
- Caecum
- Rectum
- Pancreas with Vessels
- Bladder
- Ureters
- Adult Canine Front Arms
- Adult Canine Rear Legs
Your order will include:
- Canine Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Phantom Dimensions and Weight:
- Size: 110cm x 20cm x 20cm (44 x 8 x 8 Inches)
- Weight: 16kg (35lbs) (approx.).
- Size: 120 x 42 x 24 cm (48 x 17 x 10 Inches)
- Weight: 29kg (65lbs) (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- 3D-printed realistic bones
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
Canine Phantom for X-Ray CT, US, MRI
Phantom Dimensions and Weight:- Size: 110cm x 20cm x 20cm (44 x 8 x 8 Inches)
- Weight: 16kg (35lbs) (approx.).
- Size: 120 x 42 x 24 cm (48 x 17 x 10 Inches)
- Weight: 29kg (65lbs) (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- 3D-printed realistic bones
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
All standard phantoms are coated with a protective layer of the harder urethane rubber to offer enhanced appearance and safeguard the phantom from any scratches when handled without care. This coated layer also provides a glossy finish and slightly changes the hardness of the phantom. The Hardness [Shore 00] for the ‘Body Tissue’ mentioned above is measured without the coat layer. The coat will increase the hardness by approximately 30 points meaning that if the body tissue hardness is OO 30, the coated body tissue will be OO 60.
HU Values of the Tissue Mimicking-Materials
| S.No. | Tissue Type | HU Value (Average) |
|---|---|---|
| 1 | Body Tissue | -25 |
| 2 | Aorta | 40 |
| 3 | Vena Cava | 40 |
| 4 | Trachea | 80 (Tissue Part);-1000 (Air Filled Part) |
| 5 | Pancreas | 110 |
| 6 | Spleen | 110 |
| 7 | Kidneys | 110 |
| 8 | Bladder | 35 |
| 9 | Rectum Wall | 100 |
| 10 | Sigmoid Colon Wall | 100 |
| 11 | Heart | 40 |
| 12 | Liver | 110 |
| 13 | Gallbladder | 35 |
