AirSim Child Combo Bronchi X Model

AirSim Child Combo Bronchi X Model

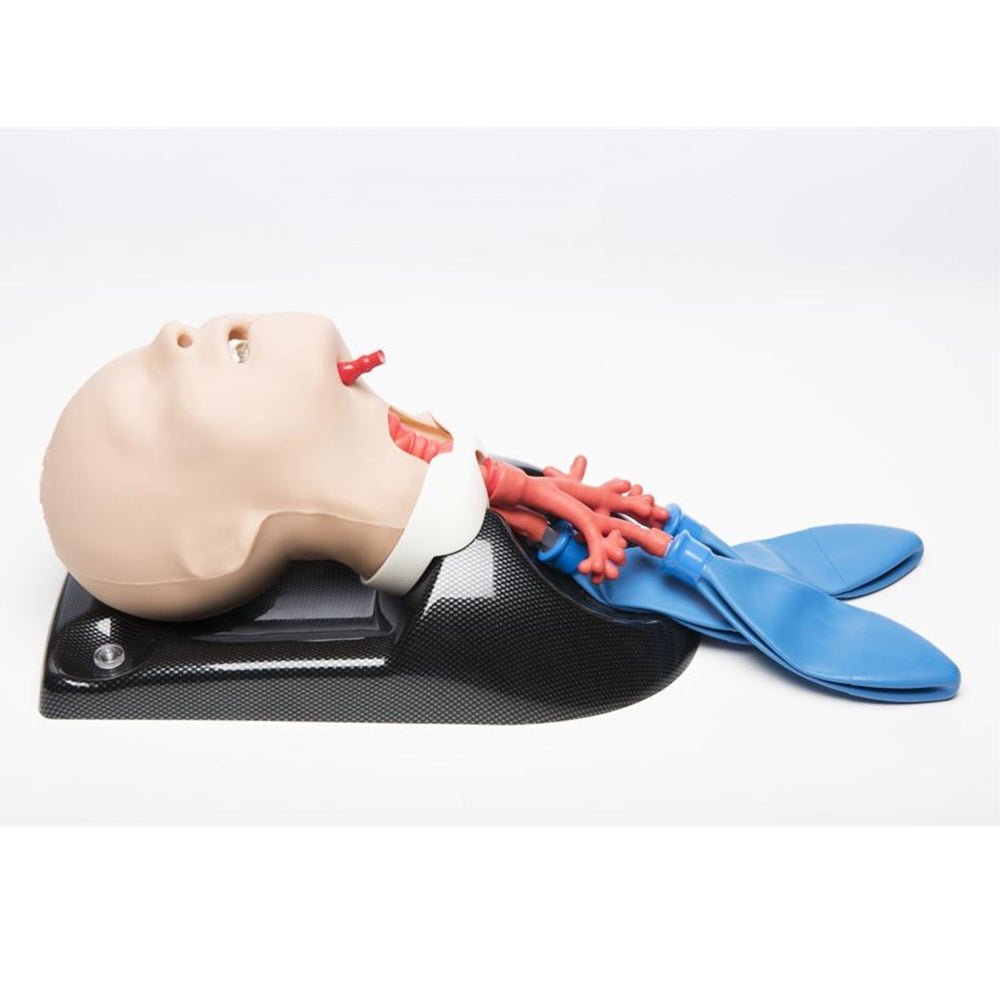

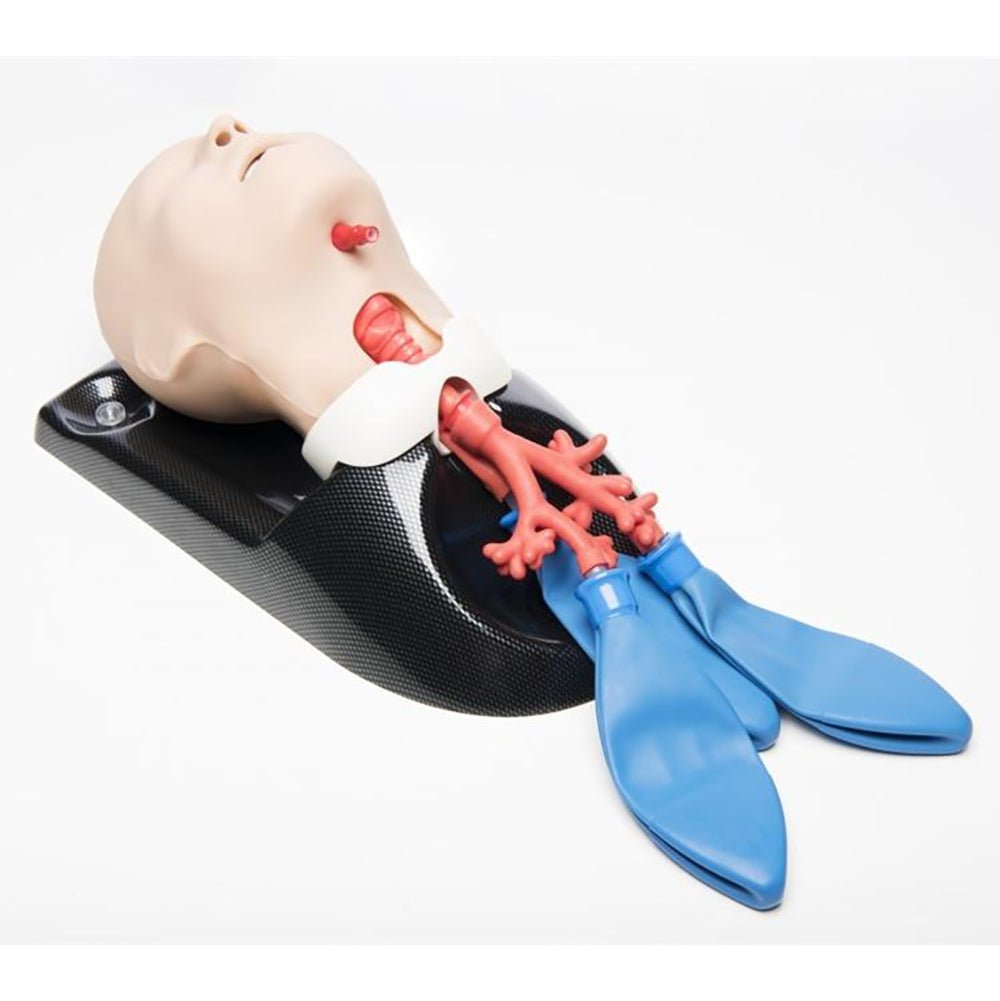

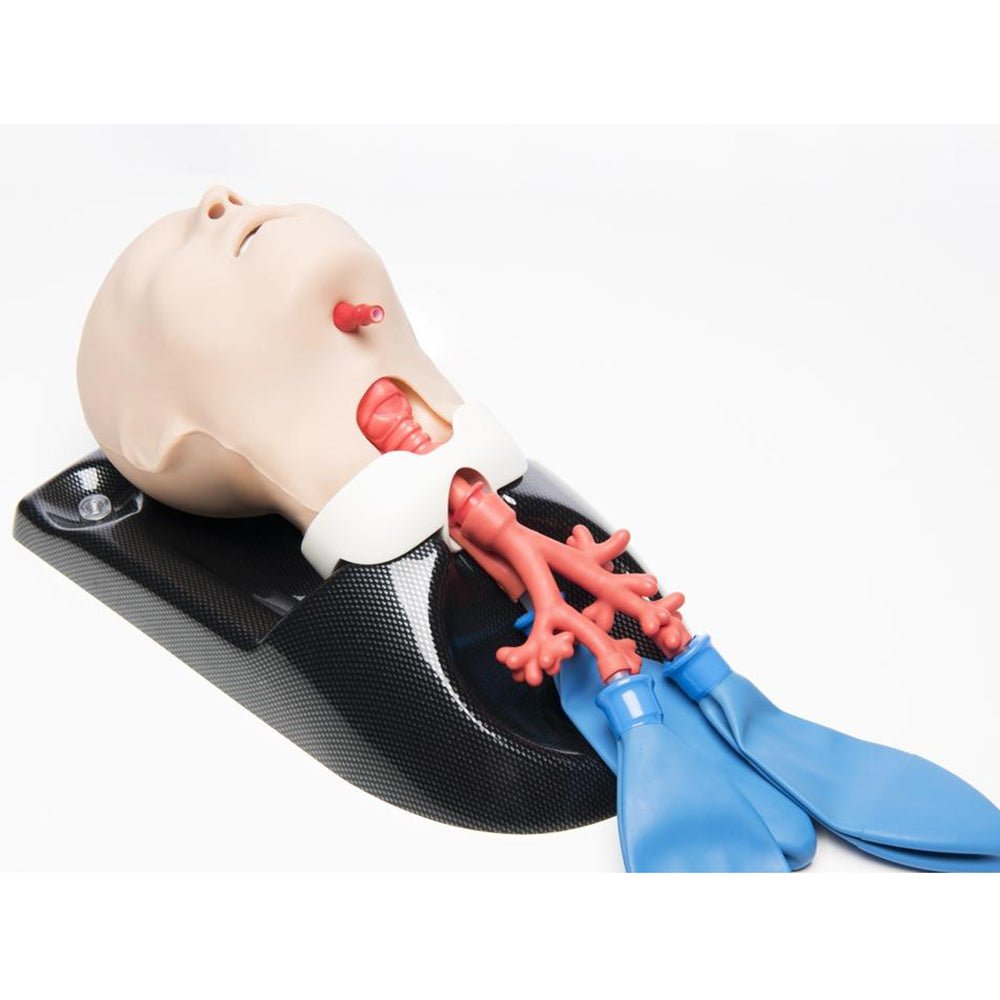

Our pediatric airway, bronchoscopy and cricothyroidotomy trainer features the uniquely constructed AirSim® X airway with 5-year warranty enhanced with palpable cricoid landmarks, laryngeal cartilages and tracheal rings. This versatile pediatric intubation manikin is based on a 6-year-old child and ideal for practicing percutaneous tracheostomy, ventilation, bronchoscopy and needle & surgical cricothyroidotomy.

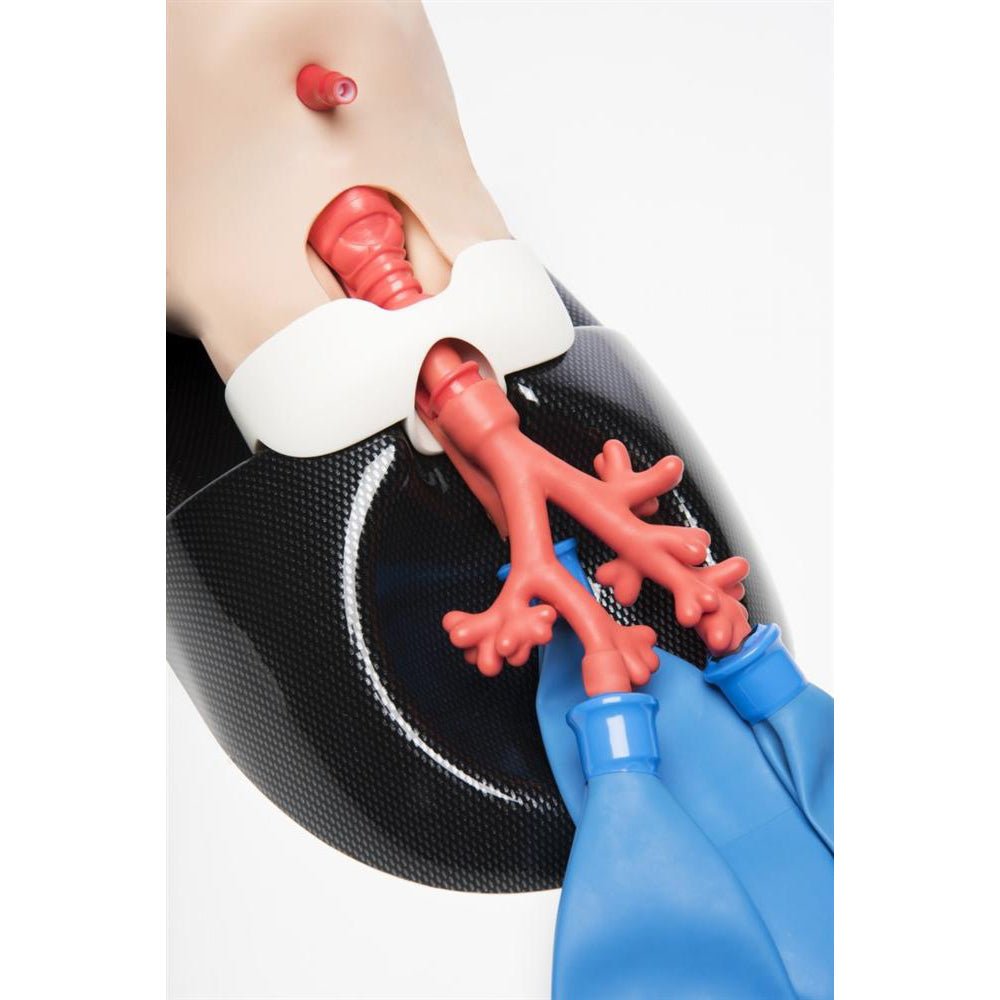

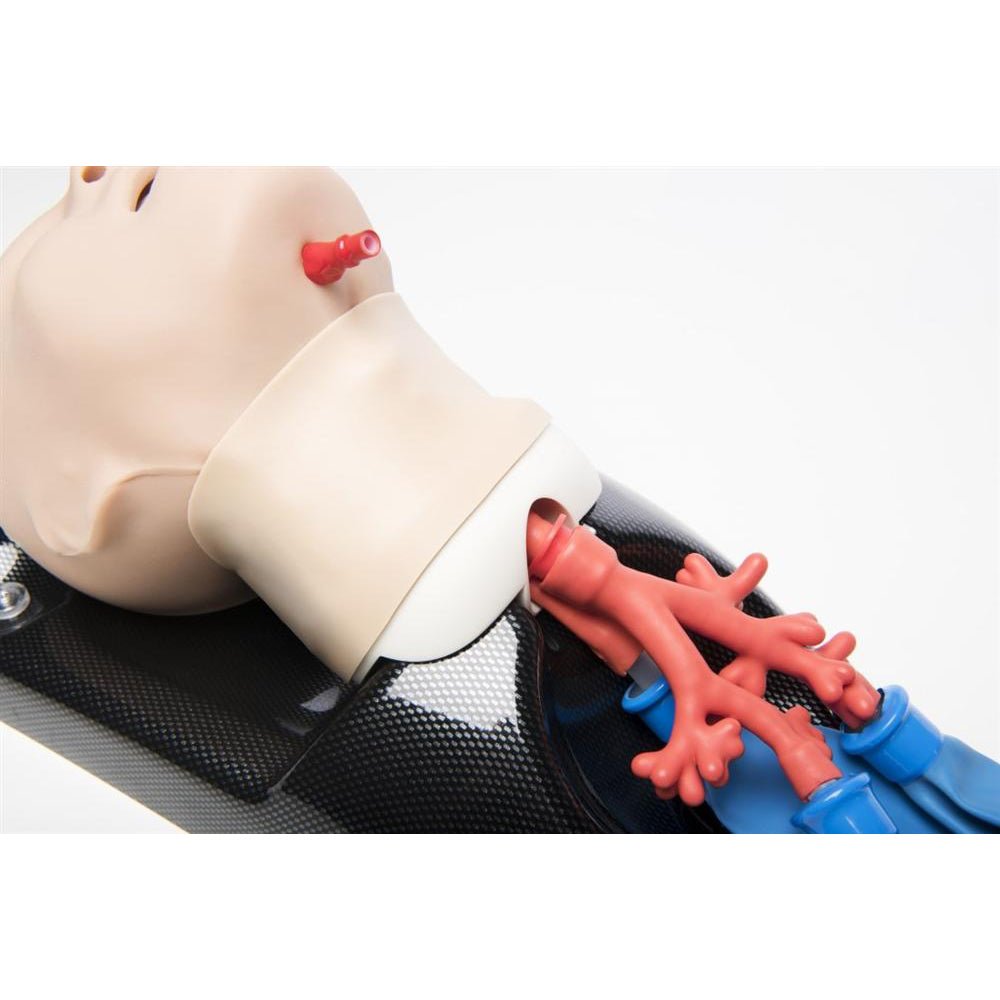

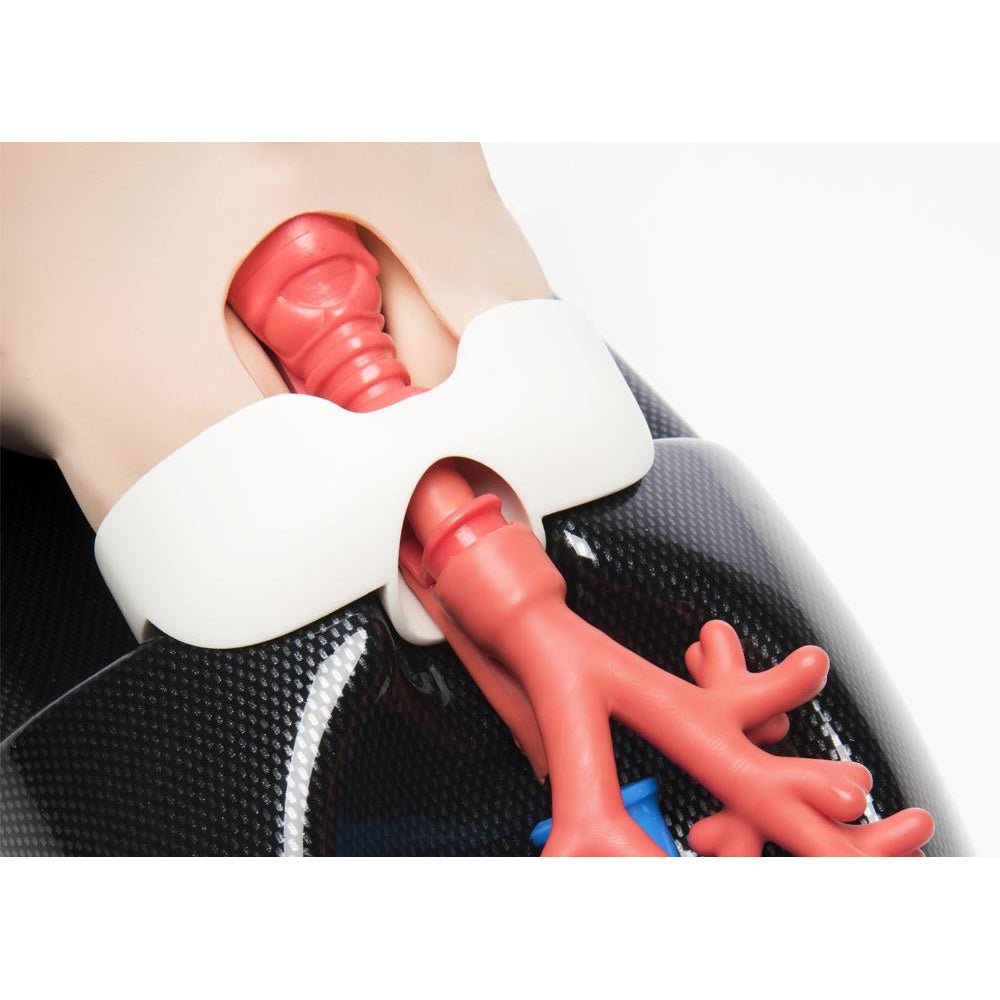

The pediatric AirSim® Combo Bronchi X features anatomically correct detail down to the fourth generation bronchi for increased accuracy training in bronchoscopy techniques. Realistic features include palpable cricoid landmarks, laryngeal cartilages and tracheal rings to provide positive user feedback and easy identification of the sternal notch. This pediatric airway trainer is ideal for demonstrating fiber optic bronchoscopy, single & double lumen tubes and bronchial blockers and specialized bronchial stents.

TruCorp is committed to providing the most realistic and durable pediatric airway trainers for more true to life airway management training and improved patient outcomes. This advanced pediatric intubation manikin is ideal for EMTs, paramedics, first responders, nurses, doctors, anaesthesiologists and many other healthcare professionals.

Front of neck access in a pediatric airway emergency requires regular training to build and maintain the necessary skills. Our AirSim Child Combo X model facilitates efficient, true-to-life practice in simulated pediatric emergency front of neck airway (FONA) techniques including pediatric cricothrotomy (needle and surgical) and percutaneous tracheostomy.

• Innovative pediatric AirSim® X airway with 5-year warranty & nasal cavity created from CT DICOM data
• Anatomically correct internal features & visually accurate landmarks in airway and nasal passage
• Wraparound replaceable neck skin rotates for 10-15 incisions
• Easy identification of sternal notch, tracheal rings & cricoid & laryngeal cartilages
• Inflatable tongue with lifelike texture can simulate edema
• Silicone skin covering with lifelike texture
• Replaceable lung bags inflate with successful ventilation

• Needle and surgical cricothyroidotomy
• Percutaneous tracheostomy
• Diagnostic bronchoscopy
• Lung suctioning techniques
• Lung isolation techniques using left and right endobronchial tubes & bronchial blockers
• Double nasotracheal intubation
• Bag-valve mask (BVM) ventilation techniques
• Full range of supraglottic device insertion
• Direct and video laryngoscopy including Sellick Maneuver
• Awake fiberoptic examination
• Endotracheal tube insertion
• Combi tube insertion
• Naso gastric tube insertion techniques
Further Info Compare FAQ's Video

The AirSim Child Combo Bronchi X airway manikin is compatible with a full range of supraglottic devices. We recommend the following equipment sizes for optimal performance:

• 4.5-5.0 mm ID for nasal intubation
• 5.5-6.0 mm ID for oral intubation
• Size 2 for LMA laryngeal masks
• Size 2 laryngoscope blade
• Similar respective sizes for other supraglottic devices

AirSim Child Combo Bronchi X weight: Approx. 5.73 lbs

Versatile, lifelike and durable, the AirSim Child Combo Bronchi X makes an excellent airway demonstration model for device manufacturers and educators.

Package Contents

• 1 Carrier/Storage Case
• 1 Bottle of TruCorp^® Lubrication
• 3 Child Lung Bags replicating 2 lungs & stomach
• 5 Larynx Inserts(1 attached, 4 extra)
• 1 Wrap Around Neck Skin (attached)
• 2 sets of adhesive pads (attachable to suction cups for increased stability if required)

Download:



GTSimulators by Global Technologies
TruCorp Authorized Dealer


	AirSim Child X	AirSim Child Bronchi X	AirSim Child Combo X	AirSim Child Combo Bronchi X
Oral/nasal intubation	Y	Y	Y	Y
Bag valve mask ventilation	Y	Y	Y	Y
Supraglottic device insertion	Y	Y	Y	Y
Direct/video laryngoscopy	Y	Y	Y	Y
NG tube insertion	Y	Y	Y	Y
Bronchoscopy techniques	-	Y	-	Y
Needle/surgical cricothyroidotomy	-	-	Y	Y
Percutaneous tracheostomy	-	-	Y	Y
AirSim X Airway warranty	5 years	5 years	5 years	5 years
	View	View	View	Viewing

What makes the AirSim X airway so unique?

The AirSim X airway has been designed using CT DICOM data from real patients, to provide trainees with a lifelike intubation training solution. The internal airway is anatomically accurate and will guarantee 20,000+ intubation cycles when used correctly. TruCorp is proud to offer a 5-year warranty on the AirSim X airway. This manikin also features bronchi to the 4th generation.

What age of the patient is the AirSim Child Combo X?

This manikin is designed as a 6-year old child.

What skills can I teach using the AirSim Child Combo Bronchi X?

Learners will gain proficiency in the below procedures:

• Direct and video laryngoscopy
• Endotracheal intubation
• Nasotracheal intubation
• Supraglottic device insertion
• Bag-valve-mask (BVM) ventilation
• Nasogastric (NG) tube insertion techniques
• Needle & surgical cricothyroidotomy
• Percutaneous tracheostomy
• Bronchoscopy techniques

What package contents will arrive with my order?

• 1 AirSim Child Combo Bronchi X manikin ready to use (CC50006X)
• 1 Carrier/storage case
• 1 Bottle of TruCorp® lubrication
• 3 Child lung bags replicating 2 lungs & stomach
• 5 Larynx inserts (1 attached, 4 extra)
• 1 Wrap around neck skin (attached)
• 2 sets of adhesive pads (attachable to suction cups for increased stability if required)

What replacement consumables are compatible?

• TruCorp lubrication (TL001)
• Child larynx inserts (CNLX050)
• Wraparound neck skins (CRSN1005)
• Super Saver Child Cric Pack (50 students) (CTP0050)

How many procedures will each consumable facilitate?

• 1 child larynx insert (CNLX050) facilitates 1 surgical cricothyroidotomy and 2-3 percutaneous tracheostomy procedures
• 1 wraparound neck skin (CRSN1005) facilitates approx. 10-15 incisions, the skin is designed to be rotated around the neck to maximize usage
• All consumables are quick and easy to interchange so there is no disruption to teaching time

What type of lubrication can be used during intubation practice?

We recommend TruCorp’s lubrication for best practice, but alternatives can be used provided they are water-soluble lubricants. Please do not use silicone-based products as they will degrade the materials.

Does the AirSim Child Combo Bronchi X require assembly?

No, this training manikin is delivered ready to use so you can begin training straight away! Generously spray the oral/nasal passages and equipment with the lubrication provided.

What equipment sizes are recommended?

• 4.5-5.0 mm ID for nasal intubation
• 5.5-6.0 mm ID for oral intubation
• Size 2 laryngoscope blade
• Size 2 for LMA laryngeal masks
• Similar respective sizes for other supraglottic devices

Can I make intubation more difficult on the AirSim Child Combo Bronchi X manikin?

The tongue can be inflated to simulate tongue edema. Attach an empty syringe to the red connector located underneath the skin below the chin and insert approx. 20ml of air.

Does the manikin provide user feedback to indicate successful or failed procedures?

Yes, if successfully intubated the two lung bags will inflate. If the airway device is incorrectly placed in the esophagus, the stomach bag will inflate.

What warranty comes with the AirSim Child Combo Bronchi X?

The AirSim Child Combo Bronchi X manikin comes with a 5-year warranty on the AirSim X airway and a 1-year warranty on all other parts. Warranty begins from the date of delivery.

My AirSim Child Combo Bronchi X manikin needs repairing. How can I arrange this?

Another great benefit of this product is its modular design. This means spare parts can be ordered and interchanged at your location by your team. Please contact us and provide the serial number (found under the manikin base) and an image/video of the issue. If it meets the warranty conditions TruCorp will provide the required parts free of charge. If the warranty has expired, our sales team will provide a quote.

How should I store the manikin when it is not in use?

Please store the manikin in clean, dry conditions away from heat and direct sunlight. Avoid contact with metals, solvents, oils or greases, and strong detergents. When the product is not in use please store in the black carrier case provided.

What can I use to clean the manikin? not in use?

Thoroughly wash the AirSim X airway in warm water. Please use warm soapy water or similar until all visible foreign matter and residue are removed.

Mild detergents or enzymatic cleaning agents may be used on the airway at the proper dilution. The detergent must not contain skin or mucous membrane irritants.

Please do not use any of the following when cleaning the AirSim product range:
• Germicides, disinfectants, or chemical agents such as glutaraldehyde (e.g. Cidex^®)
• Ethylene oxide, phenol-based cleaners, or iodine-containing cleaners

In response to the recent COVID-19 pandemic, we recommend this additional step to ensure the product is fully sanitized:

Generously spray alcohol spray or gel (minimum 75% alcohol) and wipe off. Repeat 3-4 times to fully disinfect the product. This can be done on the silicone skin and the latex airway.
