ALS Cardiac Training Model

ALS Cardiac Training Model

Item # BT-ACTB
$22,000.00 $20,807.00   —  Save $1,193!

Ships in 4-6 weeks

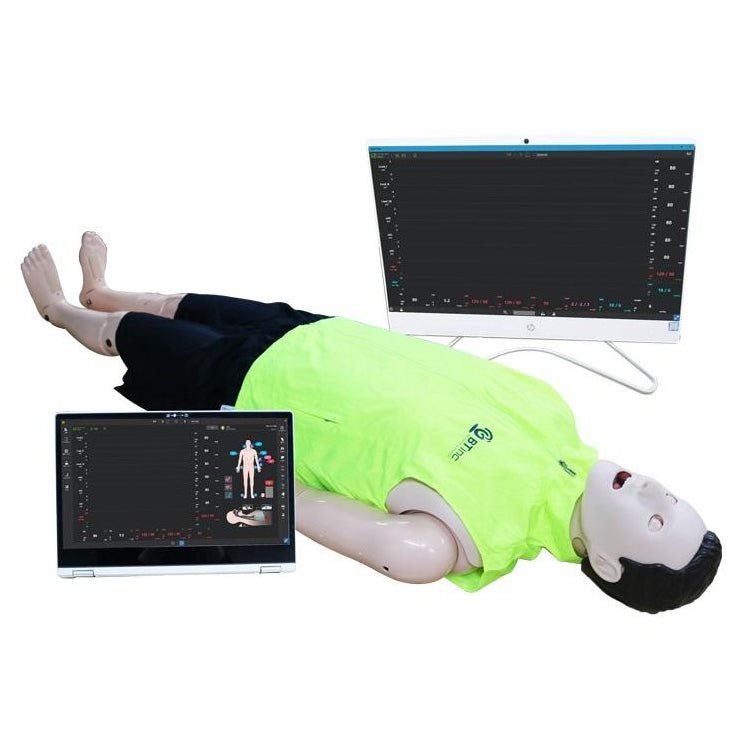

ALS Cardiac Training Model

Features:

  • Simulator for adult resuscitation training and evaluation
  • Lifelike body structure and silicon; Realistic training
  • Various emergency simulation

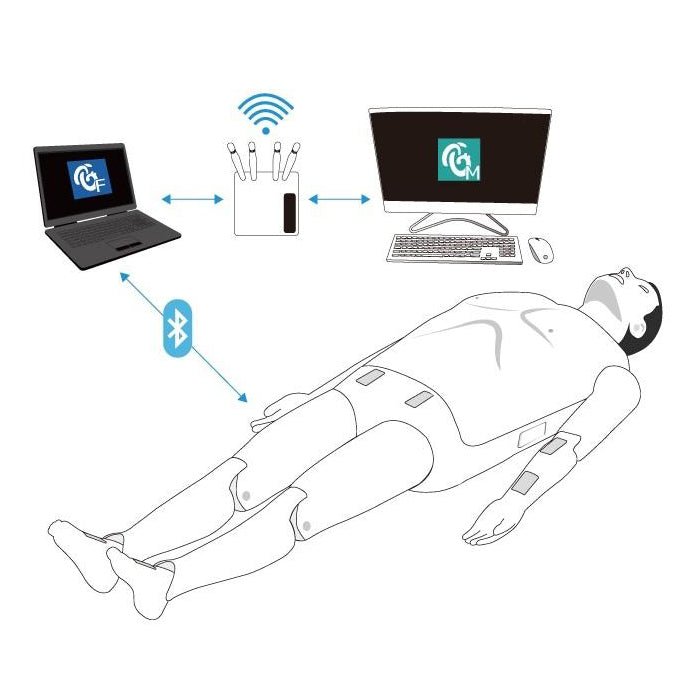

  • Rechargeable battery, completely wireless environment through Wifi and Bluetooth communication
  • Pupillary response; Patient assessment and evaluation
  • While chest compression, generate related pulse and check the ECG change from the patient monitor
  • Possible to do chest compression and ventilation at the same time
  • Palpate pulse at 8 sites (Left radial and brachial, left and right carotid/femoral/dorsal)
  • Change the pulse strength and turn each pulse off/on
  • Virtual patient monitor layout can be adjusted by selecting needed items
  • When running a prepared scenario, the current patient status can be jumped to the next status by using a transition
  • Scenario, Checklist can be exported or imported
  • The result data can be printed out by using a printer connected to a facilitator laptop
  • The detailed CPR result and even log can be saved to Excel format
  • The event log can be sorted by item or time order


Specifications:

Eyes:
  • Light Reflex / Consensual Light Reflex
    • Adjust pupil size:
      • 1~8mm
    • Adjust light reflex speed:
      • Prompt / Slow
    • Eyelids : Open / Closed

Airway management:
  • Head Tilt / Chin Lift
  • Jaw Thrust
  • Bag-Valve-Mask ventilation
  • Oral / Nasal Intubation:
    • ETT / LMA / I-gel / Combi-tube
    • Detect esophagus Intubation and gastric inflation
  • Detect Normal / Right mainstem intubation
  • Measure force on incisors
  • Airway obstruction
  • Needle decompression

Circulation:
  • 3-4 Lead ECG
  • Defibrillation and cardioversion:
    • Defibrillation waveform
    • CPR waveform
  • Heart sounds auscultation (2 sites):
    • Aortic valve / Mitral valve
  • Pulse:
    • Pulse sites:
      • Radial / Brachial artery (Left arm)
      • Left / Right Carotid artery
      • Left / Right Femoral artery
      • Left / Right Dorsalis artery
    • Pulse intensity:
      • Strong / Moderate / Weak
NiBP:
  • Palpation
  • Auscultation
  • ABP waveform (Software)
  • PAP waveform (Software)

Breathing:
  • Spontaneous breathing
    • Unilateral and bilateral chest rise
    • Normal breathing sound
  • Lung sounds auscultation (4 sites)
    • Chest Front Left Up / Down
    • Chest Front Right Up / Down
  • SPO2 waveform (Software)
  • ETCO2 waveform (Software)


CPR:
  • Chest compression
    • Compression depth
    • Hand position (Correct/Upper/Lower/Left/Right)
    • Compression rate
    • Incomplete release
    • Hands-off time
  • Artificial respiration
    • Ventilation volume
    • Ventilation time
    • Ventilation per minute

  • Vascular access:
    • IV (Right arm)
    • IO (Right tibia / Right humerus)
    • IM (Right humerus)
    • Medication (Software)

    Speech:
    • Vocal sounds:
      • 10 cases

    Manual

    GTSimulators by Global Technologies
    BT USA Inc. Authorized Dealer.
