Dynamic Adult Head Phantom for Ultrasound, MRI and CT applications

Item # TPS-HD-A02
$9,980.00 $9,680.00   —  Save $300!
FREE Shipping Ships in 12-16 weeks

Dynamic Adult Head Phantom for Ultrasound, MRI and CT applications

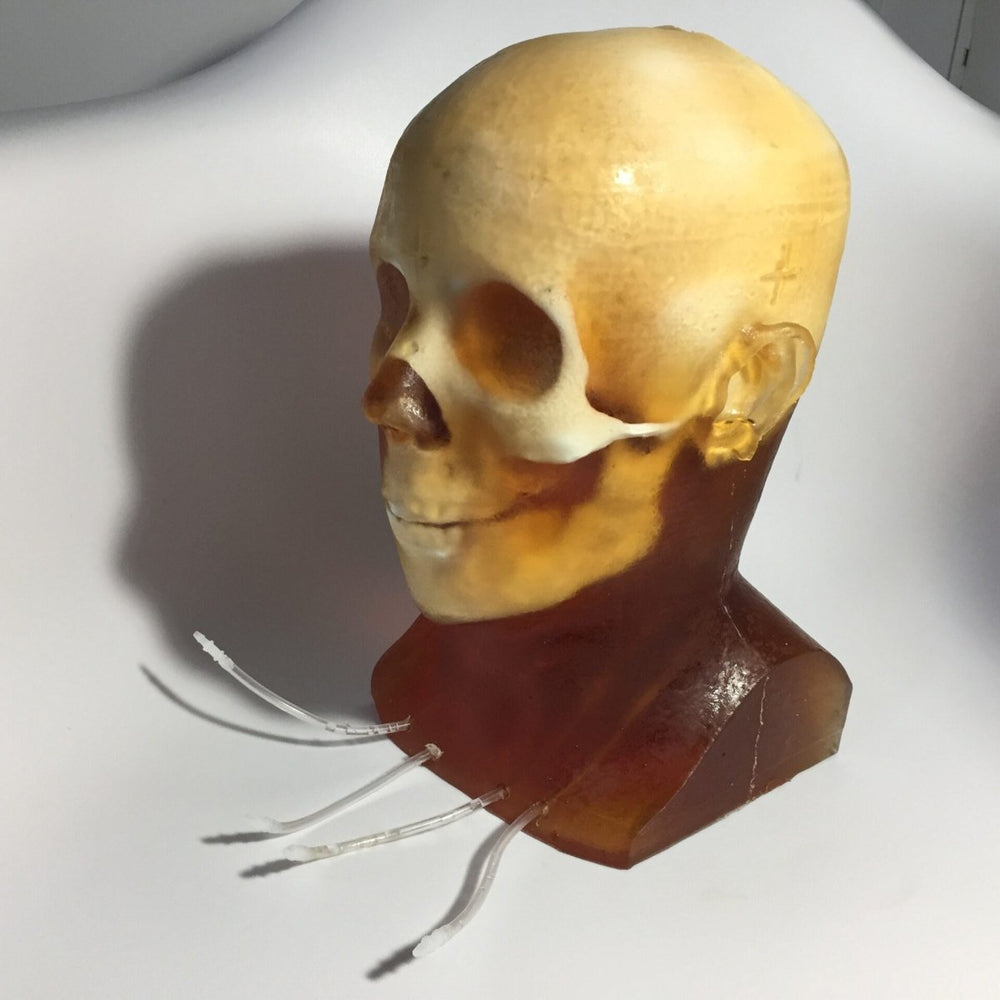

Dynamic Adult Human Head Phantom is designed to be suitable for medical imaging of blood flow underneath the skull. The phantom is designed based on an average anatomy of a human male head and it is made out of realistic soft and hard tissue mimicking materials suitable for Ultrasound, MRI and CT applications.

The phantom consists of following components:
  • Anatomically correct realistic skull
  • Realistic brain phantom
  • Complex blood vessel structure with incorporated Circle of Willis
  • One bifurcation
  • One stenosis
  • Two aneurysms

Design:

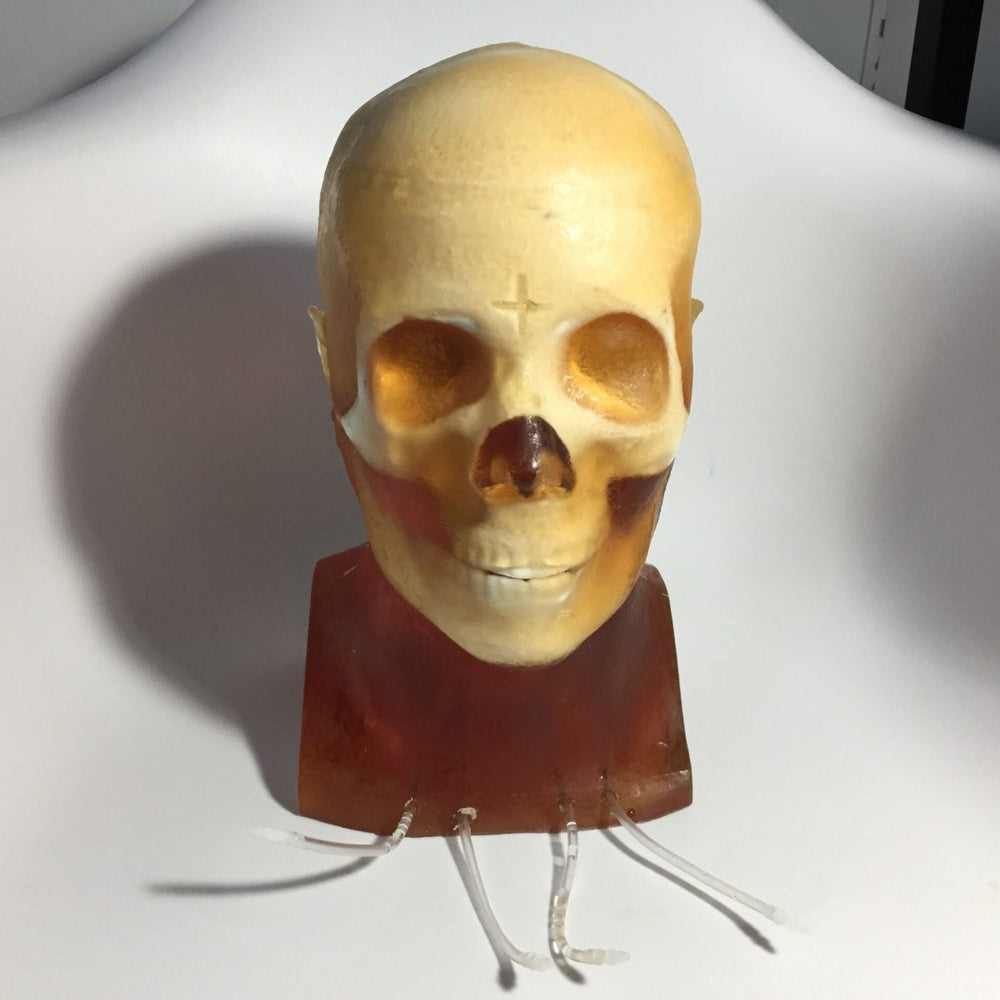

Front view
Top view

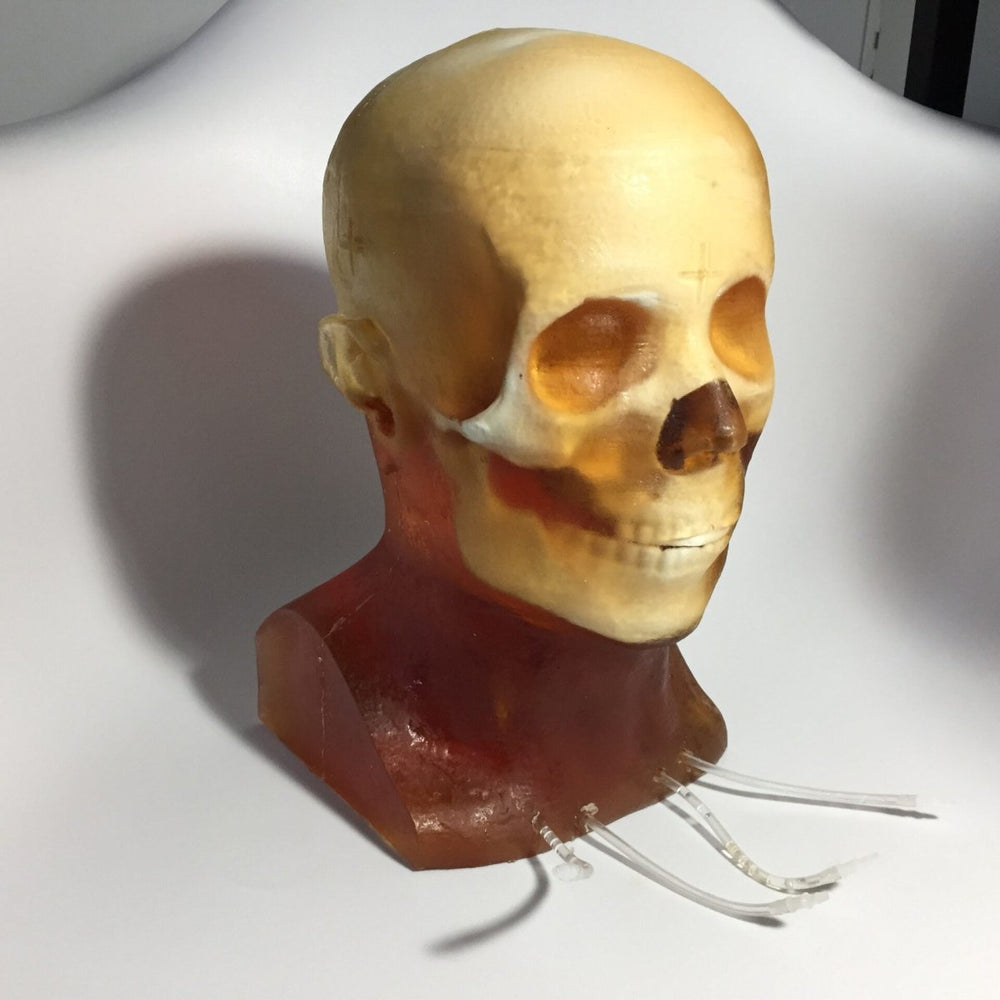

Perspective view

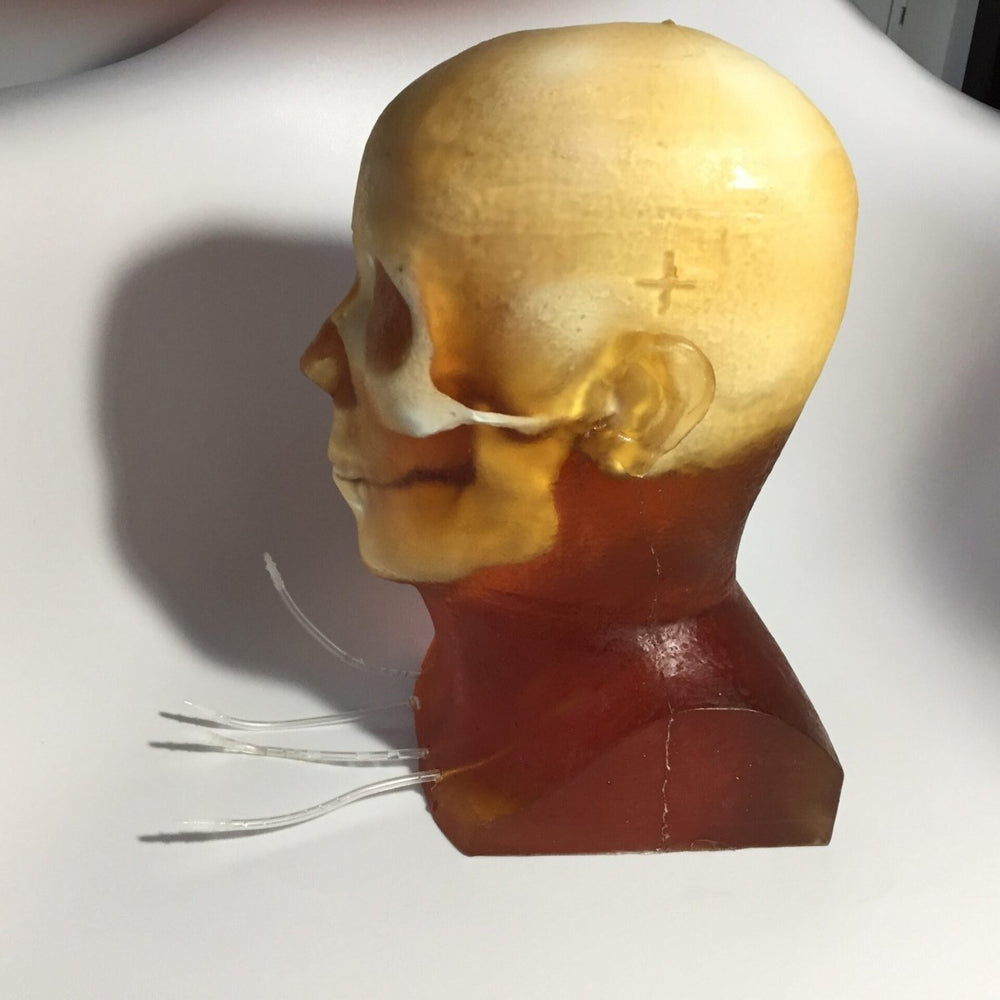

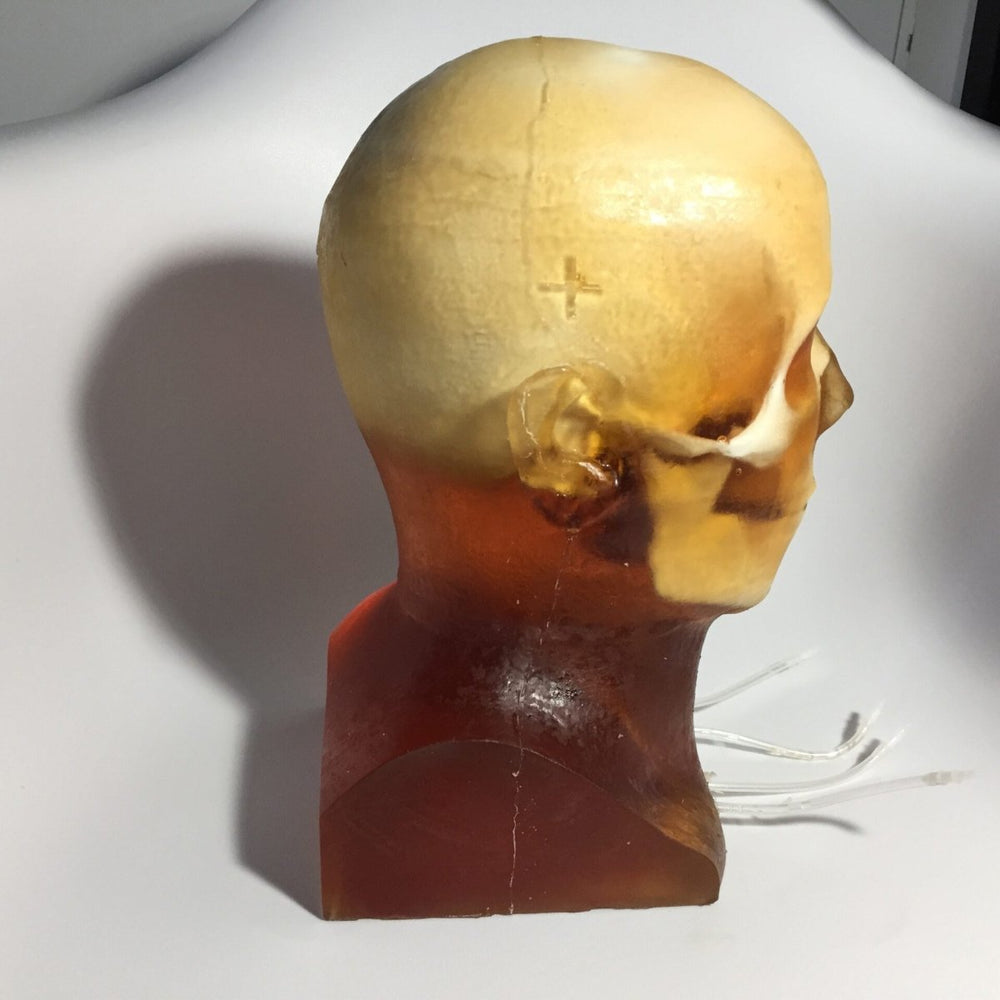

Lateral view

X-RAY Scans:

Head X-RAY LR view – Right
Head X-RAY AP view
Head X-RAY LR view – Left
Dynamic Adult Head for R&D
Type of the tissue Sound velocity [m/s] Density
[g/cm³]
Hardness
[Shore 00]
T2
[ms]
Speckles Attenuation measured
at 2.25 MHz [dB/cm]
Cortical bone material used to fabricate the skull bone phantom 3000 ± 30 2.31 N/A N/A N/A 6.4 ± 0.3
Trabecular bone material used to fabricate the trabecular layer within the bone phantom 2800 ± 50 2.03 N/A N/A N/A 21 ± 2
Brain matter 1400 ± 10 0.99 20 70 YES 1.0 ± 0.2
Skin tissue 1400 ± 10 1.02 60 50 NO 1.7 ± 0.2



THERMAL PROPERTIES OF OUR BONE MIMICKING MATERIAL
Thermal Conductivity: Volumetric Specific Heat Capacity: Thermal Diffusivity: Thermal Resistivity: Specific Heat: Speed of Sound:
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s

This phantom can be customized.
Radiology images are not included. Available upon request at an additional cost.
Manufactured by True Phantom Solutions Inc.
