Training, V1 Adult Head Phantom for X-Ray CT, Ultrasound and MRI
Skull
Cervical Spine
Frontal Sinus with Air Gaps
Brain
Realistic Air Cavities
Alignment Markings
Acoustically Correct Skin-Mimicking Material
0.0 lb
All pictures shown are for illustration purposes only. The actual product appearance may vary.
Training, V1 Adult Head Phantom for X-Ray CT, Ultrasound and MRI
Item # TPS-HD-A04-TR
$10,200.00
Ships in 12-16 weeks
Need an estimate?
Click Add To Quote
Features & Specifications
-
by
A trusted GT partner -
FREE Shipping
U.S. Contiguous States Only -
2-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request
by
Frequently Bought Together
(
Adult Head (Training, V1) Phantom for X-Ray CT, Ultrasound and MRI
The Adult Head (Training, V1) is a radiology training phantom compatible with X-Ray/CT, MRI, and Ultrasound. The
phantom’s skull bone has a realistic three-layered structure, including an inner diploe layer. The phantom also
includes a brain with synthetic tissue and ventricles.
The Adult Head (Training, V1) is an X-ray/CT, MRI, and ultrasound-compatible training phantom used by radiology
schools, medical schools & teaching hospitals for training their students & medical professionals in various
scanning techniques. The skull bone has a realistic three-layered structure with an inner diploe layer. This
phantom can be used with Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble,
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product
the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density
imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and
they are within the range of about 100 ms.
Anatomy
- - Grey Matter
- - White Matter
- - Falx Cerebri
Included In Order:
- Adult Head (Training, V1) Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Dimensions and Weight:
Phantom:- Size: 12 x 9 x 7 in (approx.)
- Weight: 17 Lbs (approx.)
- Size: 23 x 14 x 10 in (approx.)
- Weight: 22 Lbs (approx.)
Materials Used:
- Soft tissues: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
Design:

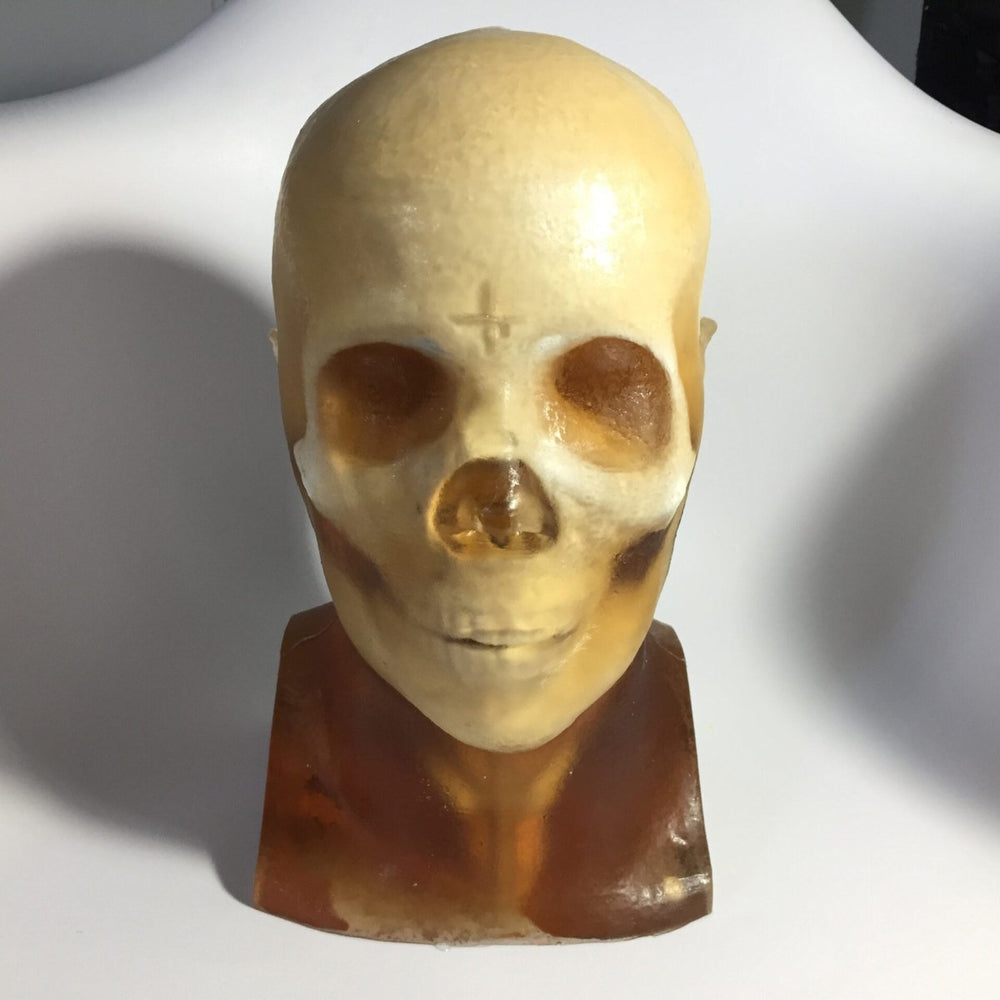

Front view

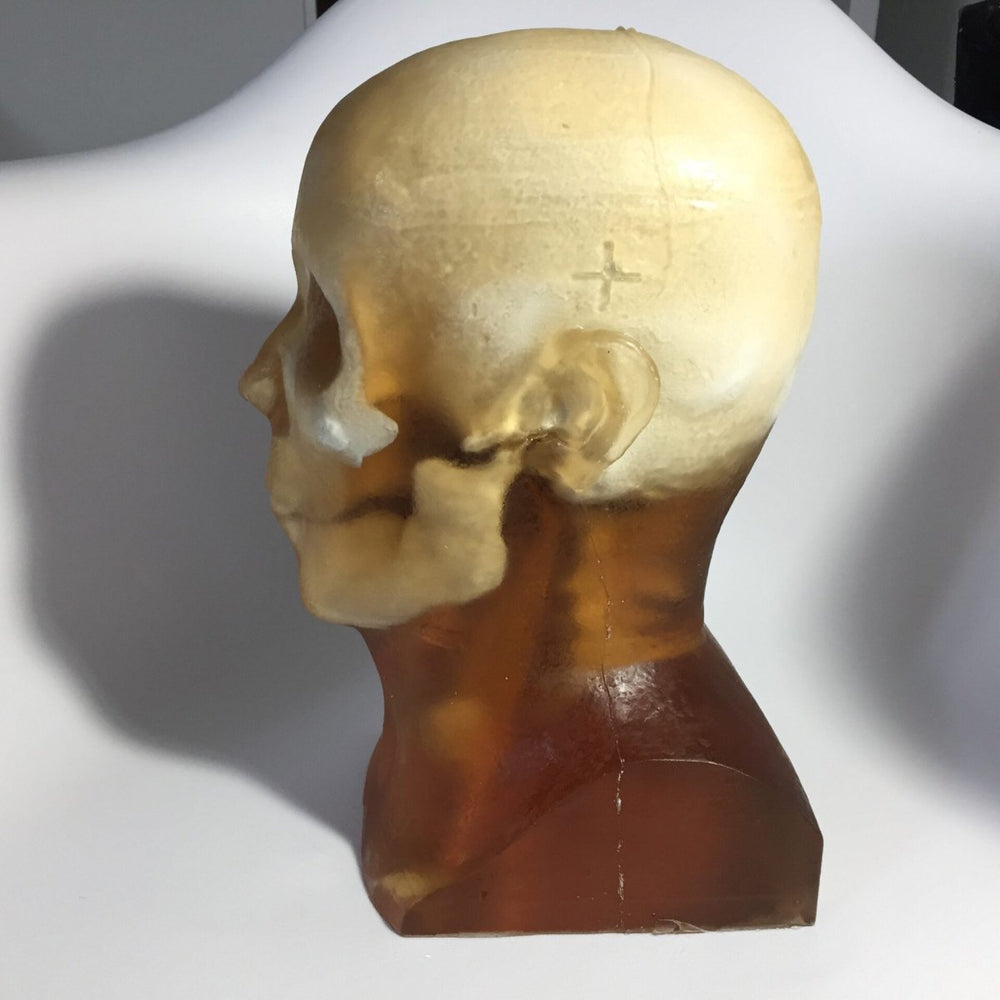

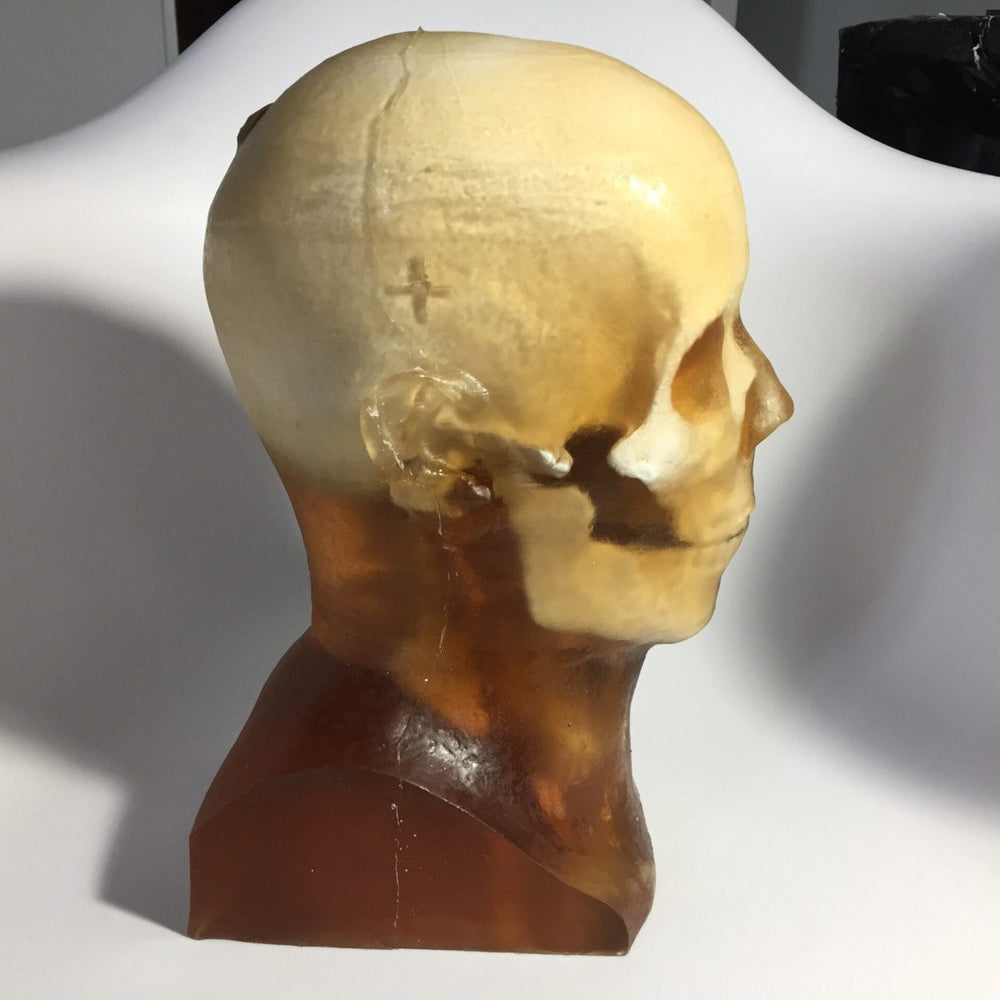

Lateral view

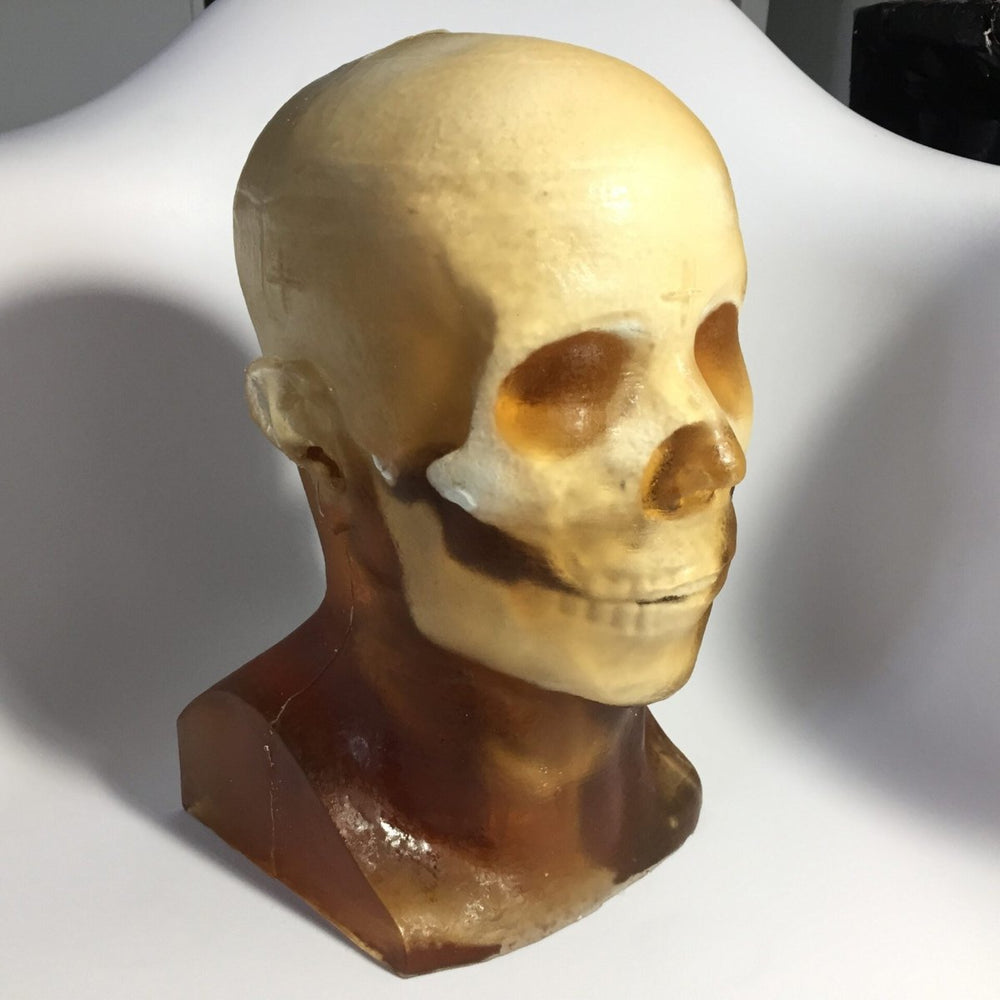

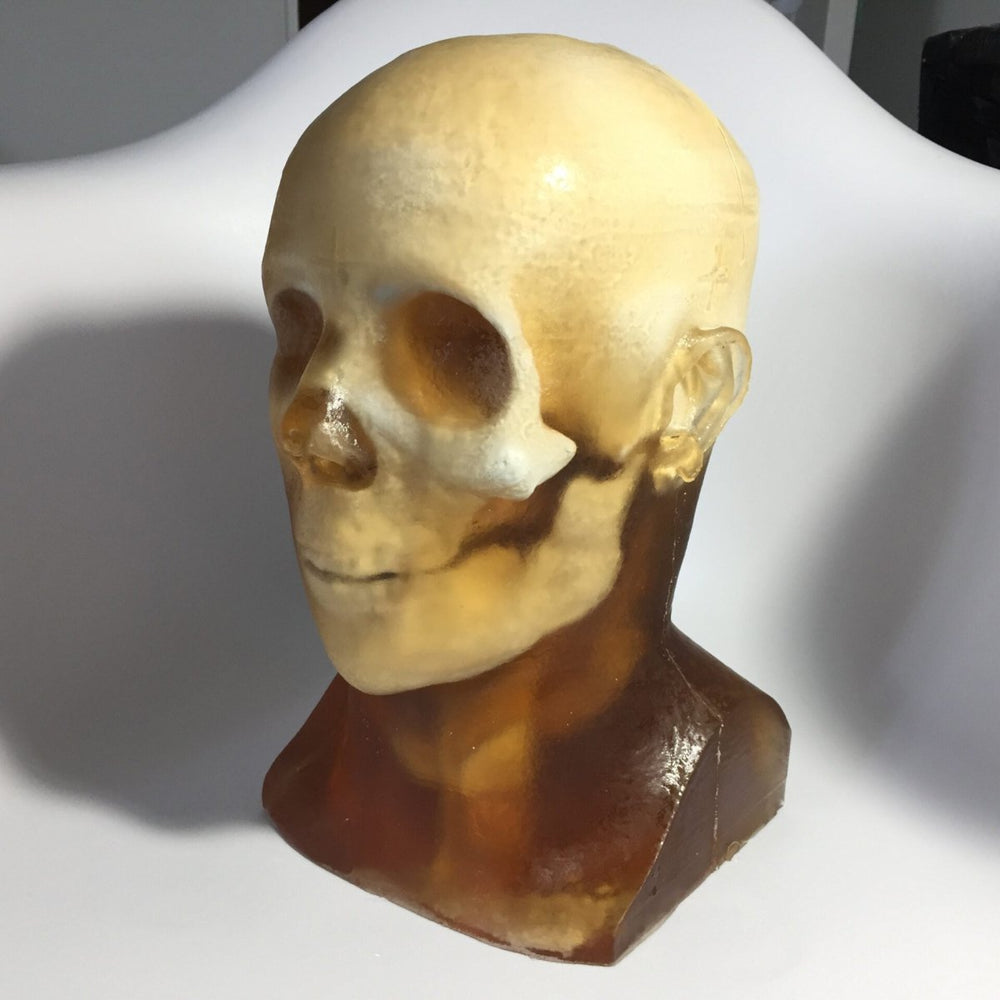

Perspective view
Top view
| Features | Dynamic, Adv. | Static | Dynamic | Standard | Training, V1 Viewing |
Hematoma | Openable |
|---|---|---|---|---|---|---|---|
| Skull | X | X | X | X | X | X | X |
| Openable and Removable Calvaria | X | - | - | - | - | - | X |
| Cervical Spine | - | X | - | - | X | X | - |
| Skin Mimicking Material | X | X | X | X | X | X | X |
| Brain (Gray Matter) | X | X | X | X | X | X | - |
| Brain Ventricles | X | - | - | X | - | X | - |
| Brain Tumor | - | - | - | X | - | - | - |
| Falx Cerebri | - | - | - | X | X | X | - |
| White Matter | - | - | - | - | X | - | - |
| Brain Vessels | (2, 3, 4mm) incorporated Circle of Willis | - | (2, 3, 4mm) incorporated Circle of Willis | X | - | - | - |
| One Bifurcation | X | - | X | X | - | - | - |
| One Stenosis | X | - | X | - | - | - | - |
| Two Aneurysms | X | - | X | - | - | - | - |
| Vessels Connected with the Neck | X | - | X | X | - | - | - |
| Plastic Connectors | X | - | X | - | - | - | - |
| Small Static Objects | - | (0.5, 1, 2, 3mm) Diameters | - | - | - | - | - |
| Realistic Air Cavities | - | - | - | - | X | - | - |
| Alignment Markings | X | X | X | X | X | X | X |
| Frontal Sinus with Air Gaps | - | - | - | - | X | - | - |
| Hematoma | - | - | - | - | - | X | - |
Adult Head (Training, V1) Phantom for X-Ray CT, Ultrasound and MRI
Dimensions and Weight:- Size: 12 x 9 x 7 in (approx.)
- Weight: 17 lbs (approx.).
- Size: Size: 23 x 14 x 10 in (approx.)
- Weight: 22 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite materia
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density
[g/cm³] |
Hardness
[Shore 00] |
T2
[ms] |
Speckles | Attenuation Measured
at 2.25 MHz [dB/cm] |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
| Brain Matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
| Brain White Matter | 1400 ± 10 | 1.01 | 35 | 60 | YES | 1.3 ± 0.2 |
| Skin Tissue | 1400 ± 10 | 1.02 | 60 | 50 | NO | 1.7 ± 0.2 |
All standard phantoms are coated with a protective layer of the harder urethane rubber to offer enhanced appearance and safeguard the phantom from any scratches when handled without care. This coated layer also provides a glossy finish and slightly changes the hardness of the phantom. The Hardness [Shore 00] for the ‘Body Tissue’ mentioned above is measured without the coat layer. The coat will increase the hardness by approximately 30 points meaning that if the body tissue hardness is OO 60, the coated body tissue will be OO 90.
Thermal Properties of our Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
HU Values of the Tissue Mimicking-Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Brain Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Skin Tissue | -25 |
