Dynamic Adult Head Phantom for X-Ray CT, Ultrasound and MRI

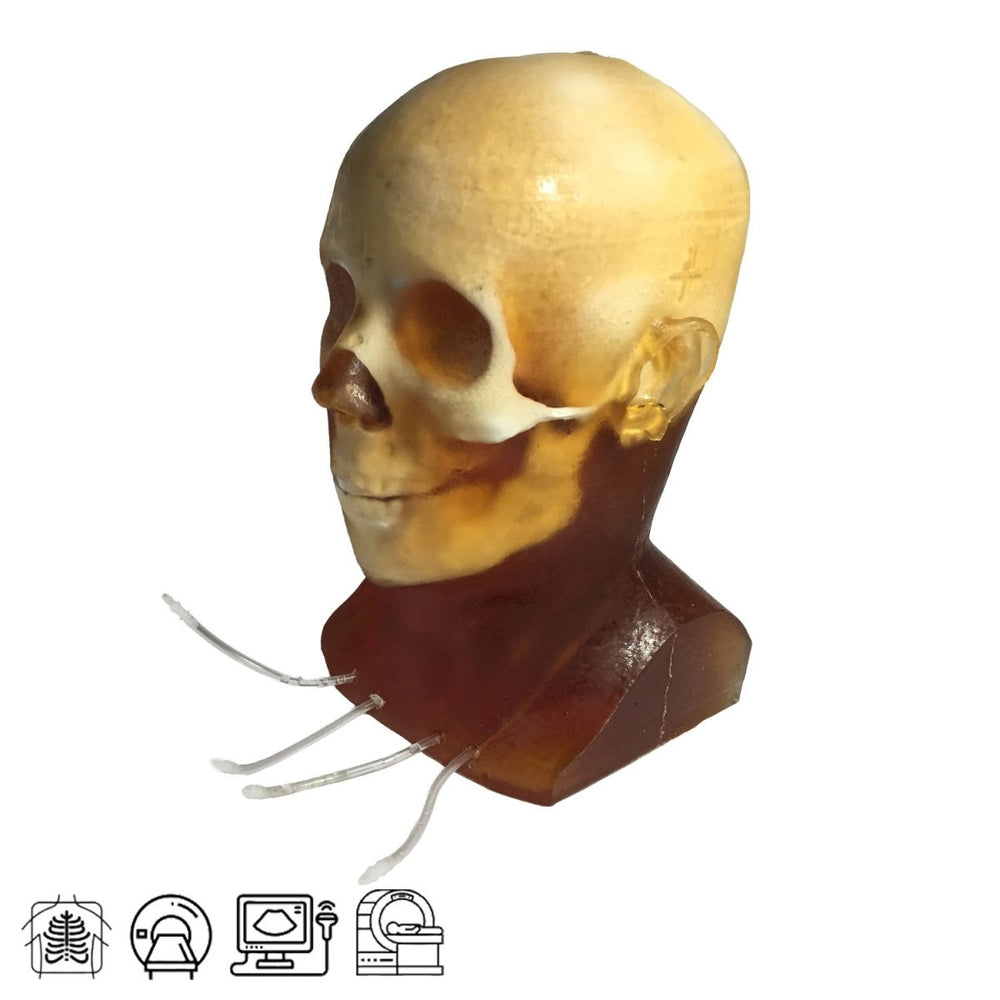

The Dynamic Adult Head phantom is visible on Ultrasound, MRI, and X-Ray/CT scans. This head phantom can also be utilized for angiography training and applications. The brain parenchyma is made of an ultra-soft polyurethane-based material that mimics soft tissue, and its anatomical shape was created based on the MRI scan of a human brain. The materials used to build this phantom are stable with time, and they do not dry out. The skull bone has a realistic three-layered structure with an inner diploe layer. This phantom can be used with Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based contrast mediums.

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with Proton Density imaging methods. The phantom can be still imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.

The phantom comprises realistic blood vessels which can be filled with any commonly used blood-mimicking fluid with or without a contrast agent.

Note: For best results, prior to imaging the phantom, please fill the blood vessels with water or chosen contrast agent.

Anatomy

  • Skull
  • Brain
    • — Grey Matter
    • — Complex Brain Vessels (2mm, 3mm, 4mm) Incorporated Circle of Willis
    • — One bifurcation– One stenosis
    • — Two aneurysms
    • — Vessels connected with the neck
  • Plastic Connectors
  • Alignment Markings
  • Acoustically Correct Skin-Mimicking Material

Included In Order:

  • Dynamic Adult Head Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case

Dimensions and Weight:

Phantom:
  • Size: 12 x 9 x 7 in (approx.)
  • Weight: 17 Lbs (approx.)
Shippment:
  • Size: 23 x 14 x 10 in (approx.)
  • Weight: 22 Lbs (approx.)

Materials Used:

  • Soft tissues: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Download:
manual

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

Design:

Front view

Lateral view

Perspective view

Top view

X-Ray Scans:

LR View – Right

AP View

LR View – Left

Features Dynamic, Adv. Static Dynamic
Viewing 		Standard Training, V1 Hematoma Openable
Skull X X X X X X X
Openable and Removable Calvaria X - - - - - X
Cervical Spine - X - - X X -
Skin Mimicking Material X X X X X X X
Brain (Gray Matter) X X X X X X -
Brain Ventricles X - - X - X -
Brain Tumor - - - X - - -
Falx Cerebri - - - X X X -
White Matter - - - - X - -
Brain Vessels (2, 3, 4mm) incorporated Circle of Willis - (2, 3, 4mm) incorporated Circle of Willis X - - -
One Bifurcation X - X X - - -
One Stenosis X - X - - - -
Two Aneurysms X - X - - - -
Vessels Connected with the Neck X - X X - - -
Plastic Connectors X - X - - - -
Small Static Objects - (0.5, 1, 2, 3mm) Diameters - - - - -
Realistic Air Cavities - - - - X - -
Alignment Markings X X X X X X X
Frontal Sinus with Air Gaps - - - - X - -
Hematoma - - - - - X -
Download a PDF with product details

Dynamic Adult Head Phantom for X-Ray CT, Ultrasound and MRI

  • Size: 12 x 9 x 7 in (approx.)
  • Weight: 17 lbs (approx.).
Shipping Dimensions and Weight:
  • Size: Size: 23 x 14 x 10 in (approx.)
  • Weight: 22 lbs (approx.)
Materials Used
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite materia

Technical Properties

Type of Tissue Sound Velocity [m/s] Density [g/cm³] Hardness [Shore00] T2 [ms] Speckles Attenuation Measured at 2.25MHz [dB/cm]
Cortical Bone 3000 ± 30 2.31 N/A N/A N/A 6.4 ± 0.3
Trabecular Bone 2800 ± 50 2.03 N/A N/A N/A 21 ± 2
Brain Matter  1400 ± 10 0.99 20 70 YES 1.0 ± 0.2
Brain White Matter 1400 ± 10 1.01 35 60 YES 1.3 ± 0.2
Skin Tissue 1400 ± 10 1.02 60 50 NO 1.7 ± 0.2

All standard phantoms are coated with a protective layer of the harder urethane rubber to offer enhanced appearance and safeguard the phantom from any scratches when handled without care. This coated layer also provides a glossy finish and slightly changes the hardness of the phantom. The Hardness [Shore 00] for the ‘Body Tissue’ mentioned above is measured without the coat layer. The coat will increase the hardness by approximately 30 points meaning that if the body tissue hardness is OO 35, the coated body tissue will be OO 65.

Thermal Properties of our Bone-Mimicking Material

Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s

HU Values of the Tissue Mimicking-Materials

S.No. Tissue Type HU Value (average)
1 Brain Tissue -25
2 Trabecular Bone 800
3 Cortical Bone 1300
4 Skin Tissue -25
