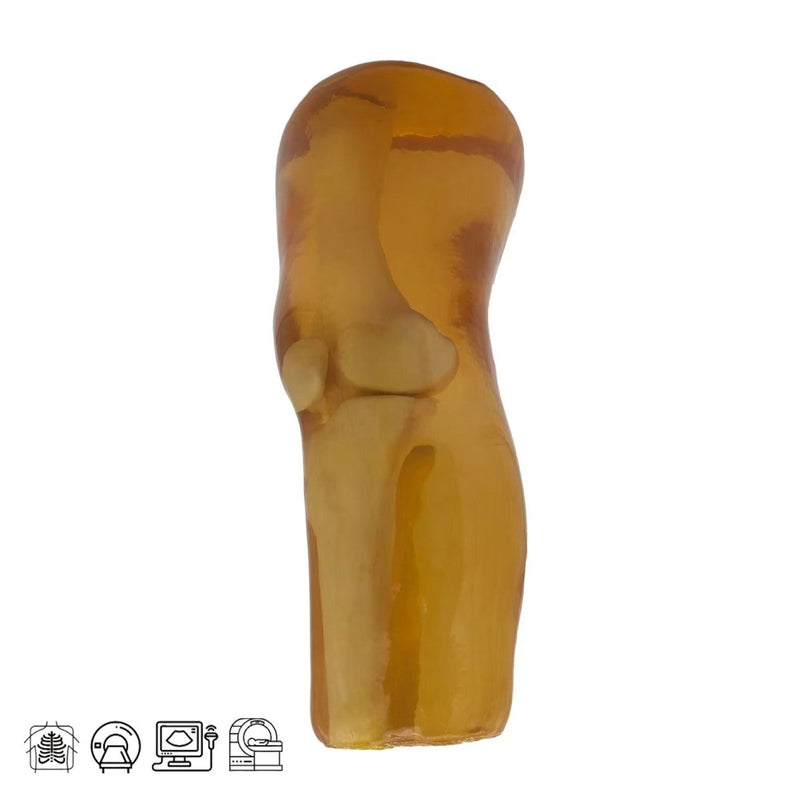

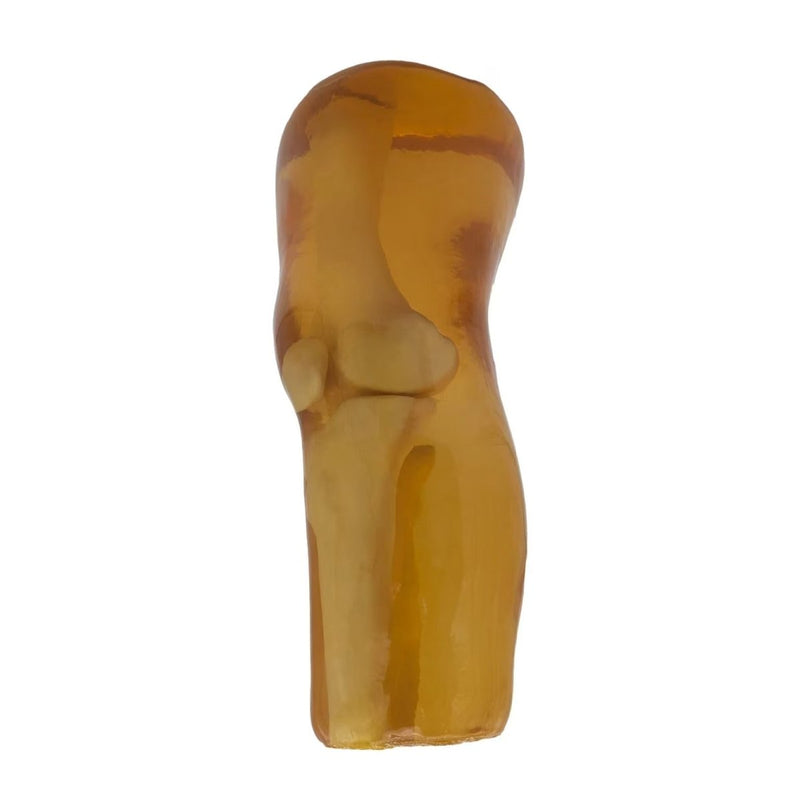

Adult Knee X-Ray, CT Scan, Ultrasound and MRI - Bones Only

The Adult Knee phantom is designed around the structure of an average adult human knee. It comprises of synthetic bones made from patented bone material and urethane-based tissue mimicking materials for soft tissues. Suitable for X-Ray/CT, US and MRI imaging, it serves medical imaging research, and Orthopedic related studies.

The Adult Knee phantom has an internal structure and anatomy based on the average knee of an adult human male. The synthetic bones used in this phantom are made out of our patented material, which is best suited for X-Ray, CT and US imaging applications. The soft tissue is made from realistic urethane-based tissue-mimicking materials.

The phantom can be used as a tool to conduct medical imaging research, radiology training, and testing. This product can be further customized to match a wide variety of project requirements.

Anatomy

    Partial Upper Leg
  • Partial Lower Leg
  • Meniscus:
    • Lateral Meniscus
    • Medial Meniscus
Your order will include:
  • Adult Knee Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case
Phantom:
  • Height: 6 x 7 x 15 in (approx.)
  • Weight: 18 lb (approx.)
Shipment:
  • Height: 32 x 23 x 13 in (approx.)
  • Weight: 26 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

Front View

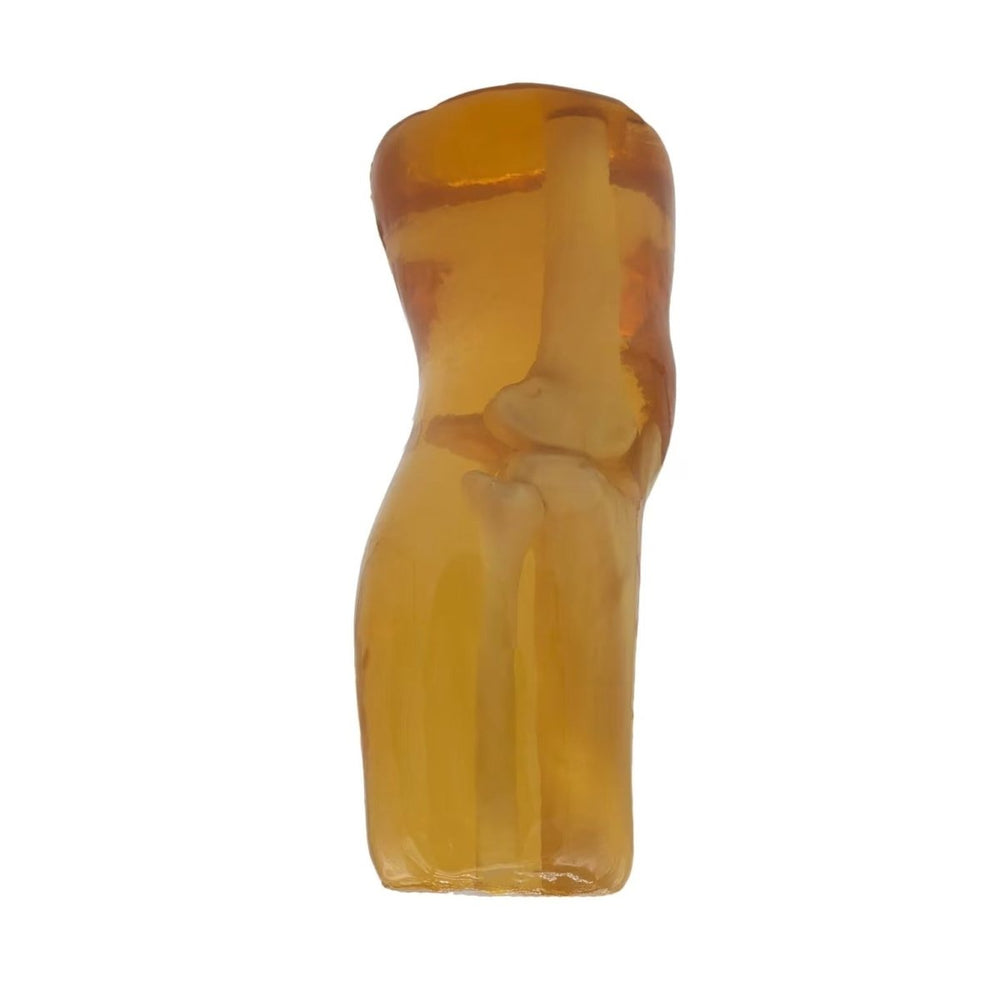

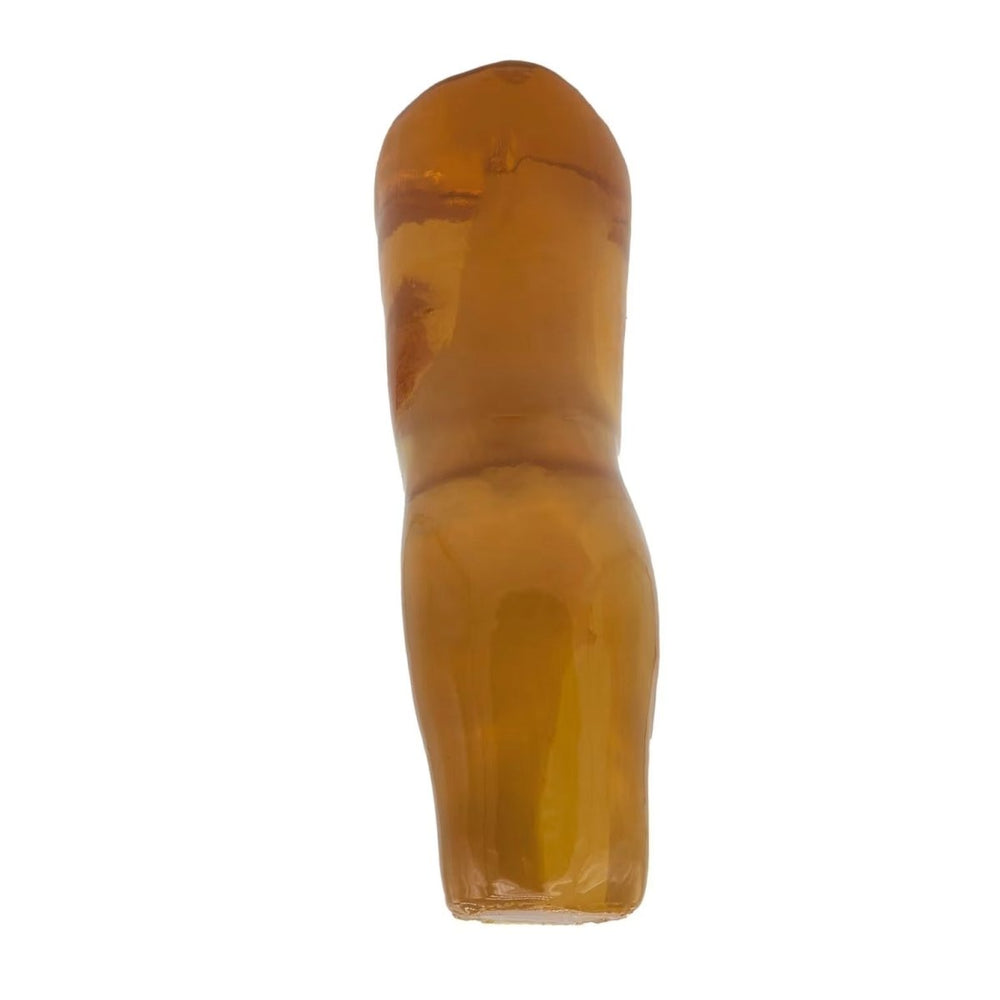

Lateral View
Perspective View
Top View

CT Scan

MRI Scan

Type of Tissue Sound Velocity
[m/s]		 Density
[g/cm³]		 Hardness
[Shore 00]		 T2
[ms]		 Hounsfield Value Attenuation Measured
at 2.25 MHz [dB/cm]
Cortical Bone 3000 ± 30 2.31 N/A N/A 1300 6.4 ± 0.3
Trabecular Bone 2800 ± 50 2.03 N/A N/A 1300 21 ± 2
Soft Tissue 1410 ± 10 1.02 60 50 ms 25 1.7 ± 0.2
Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
S.No. Tissue Type HU Value (average)
1 Trabecular Bone 800
2 Cortical Bone 1300
Download a PDF with product details

Adult Knee X-Ray, CT Scan, Ultrasound and MRI - Bones Only

Phantom:
  • Height: 6 x 7 x 15 in (approx.)
  • Weight: 18 lb (approx.)
Shipment:
  • Height: 32 x 23 x 13 in (approx.)
  • Weight: 26 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
