Advanced Adult Head Phantom for X-Ray CT, Ultrasound and MRI
0.0 lb
All pictures shown are for illustration purposes only. The actual product appearance may vary.
Advanced Adult Head Phantom for X-Ray CT, Ultrasound and MRI
Item # TPS-HD-C03-TR
$11,400.00
Ships in 12-16 weeks
Need an estimate?
Click Add To Quote
Features & Specifications
-
by
A trusted GT partner -
FREE Shipping
U.S. Contiguous States Only -
2-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request
by
Frequently Bought Together
(
Advanced Adult Head Phantom for X-Ray CT, Ultrasound and MRI

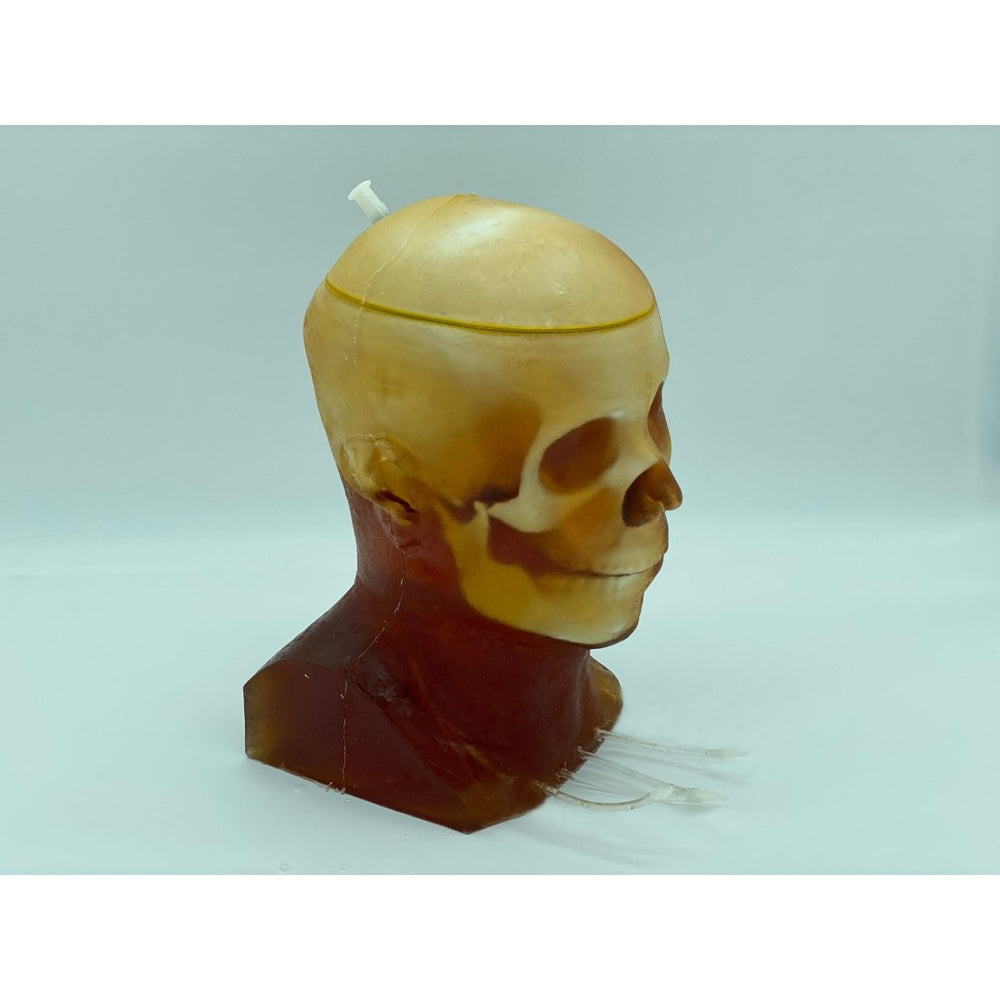

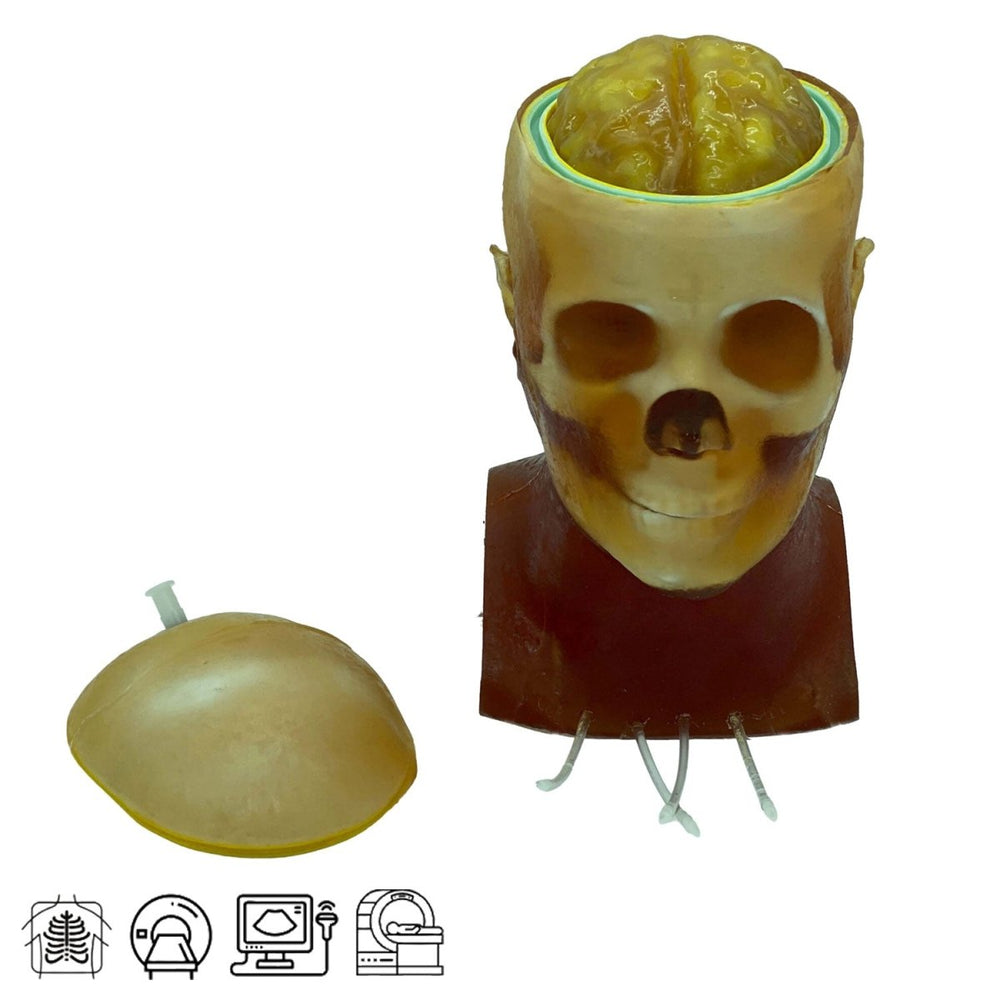

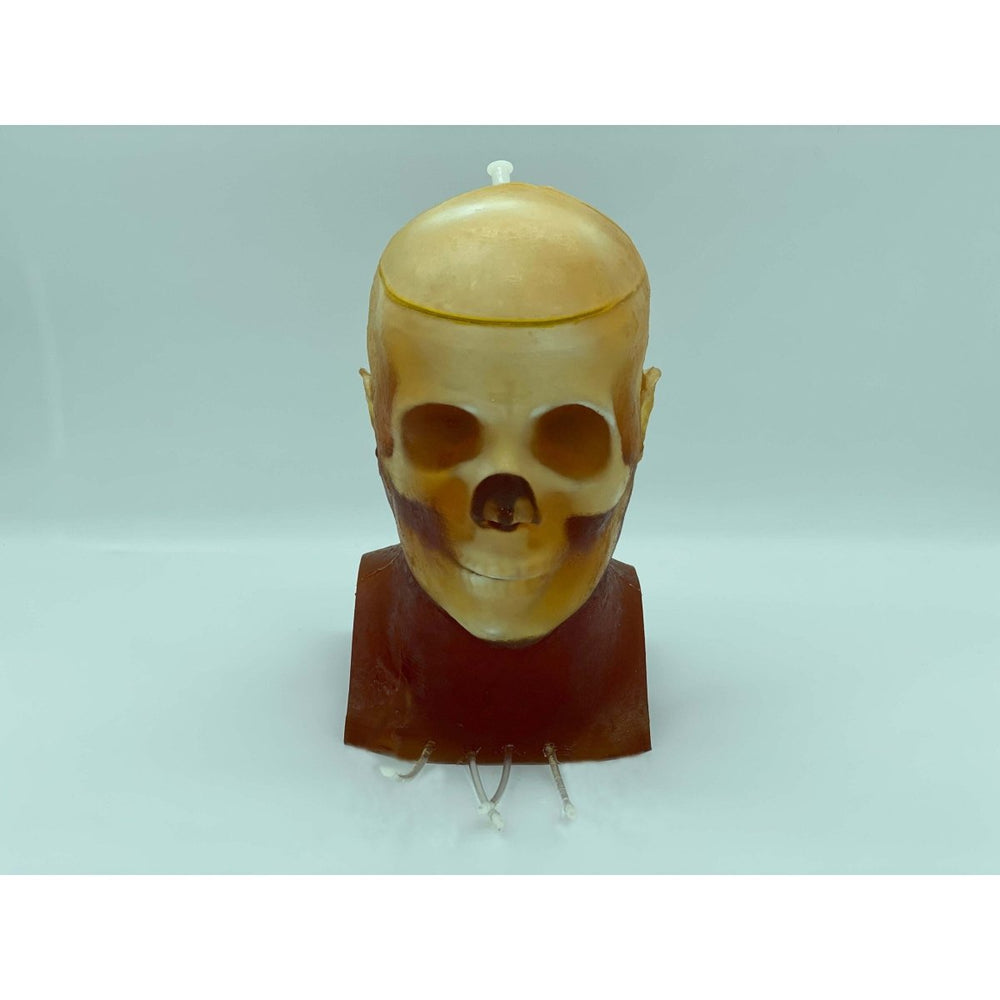

The Adult Head (Dynamic, Advanced) phantom is visible on Ultrasound, MRI, and X-Ray/CT scans. The phantom can also
be used for specific applications such as angiography. The brain parenchyma is made of an ultra-soft
polyurethane-based material that mimics soft tissue, and its anatomical shape was created based on the MRI scan of a
human brain. The materials used to build the phantom are stable over time, and they do not dry out. The skull bone
has a realistic three-layered structure with an inner diploe layer. This phantom can be used with Barium-sulfate,
Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based contrast mediums.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product
to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with Proton
Density imaging methods. The phantom can be still imaged with T1-weighted methods, but the T1 values are less
realistic, and they are within the range of about 100 ms.
The phantom comprises realistic blood vessels which can be filled with any commonly used blood-mimicking fluid with
or without a contrast agent. It also comprises the entire ventricular system (lateral, third, and fourth
ventricles), which can be used to generate pressure inside the brain and more closely approximate real cerebral
anatomy. The ventricles are inflatable and can be filled with any liquid.
Prior to imaging the phantom, please fill the ventricles completely with water (or chosen contrast agent) using the
tube on the back of the brain. After the ventricles are filled, plug the tube with a removable blue silicone plug.
Anatomy:
-
Skull with Temporal and Suboccipital Windows for Transcranial Doppler Ultrasound

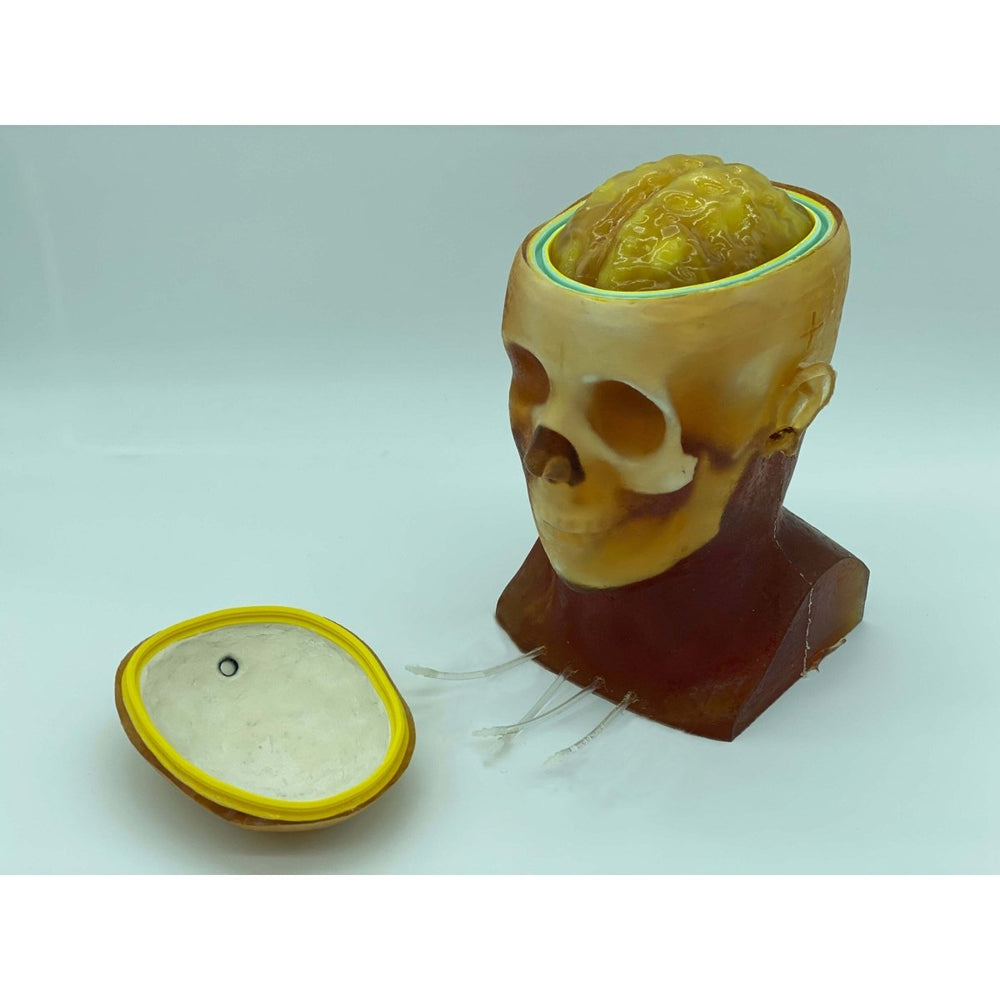

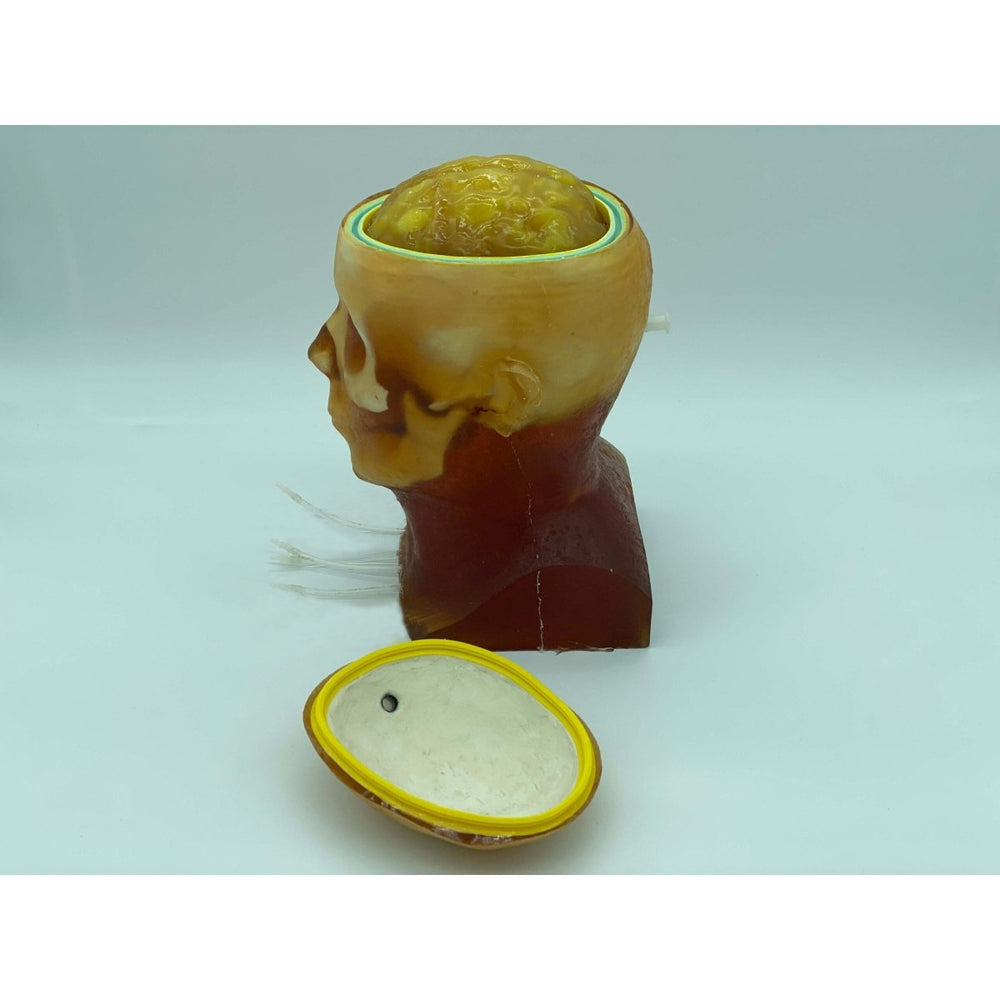

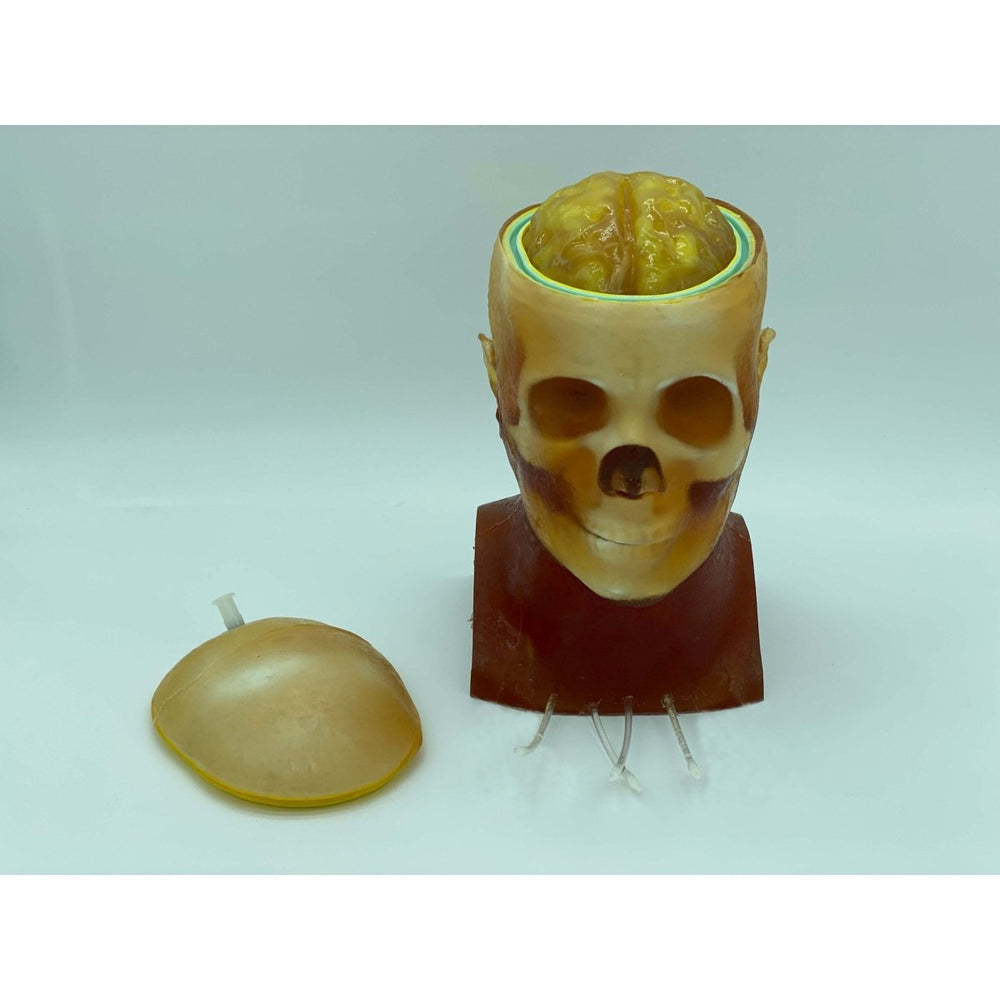

- - Openable and Removable Calvaria
- Brain
- - Grey Matter
- - Complex Brain Vessels (2mm, 3mm, 4mm) Incorporated Circle of Willis
- - One Bifurcation
- - One Stenosis
- - Two aneurysms
- - Vessels Connected with the Neck
- - Brain Ventricles
- Plastic Connectors
- Alignment Markings
- Acoustically Correct Skin-Mimicking Material
Procedure to Scan the Phantom under Ultrasound
To scan the head under ultrasound, fill the skull cavity with water or your preferred liquid. You can fill the skull
using a syringe or by directly pouring water from a water tap through the opening on the back. The liquid is added
to
act as a dura matter that would act in an actual human head, and it will work as a medium through which the
ultrasound
wave can pass.
You can also scan the head by submerging it completely under water (i.e., in a water tank) and removing all the air
bubbles from between the skull and the brain.
Once the testing is complete, drain the water and dry before storage.
Included In Order:
- Advanced Adult Head Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Phantom Dimensions and Weight:
- Size: 12 x 9 x 7 in (approx.)
- Weight: 17 Lbs (approx.)
- Size: 23 x 14 x 10 in (approx.)
- Weight: 22 Lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
Note: The phantom that was used in these CT scans was slightly customized with the addition of white matter, falx cerebri, and a tumor. These features are not included by default but can be added upon request. Scans were taken and provided by Mayo Clinic.
| Features | Dynamic,
Adv. Viewing |
Static | Dynamic | Standard | Training, V1 | Hematoma | Openable |
|---|---|---|---|---|---|---|---|
| Skull | X | X | X | X | X | X | X |
| Openable and Removable Calvaria | X | - | - | - | - | - | X |
| Cervical Spine | - | X | - | - | X | X | - |
| Skin Mimicking Material | X | X | X | X | X | X | X |
| Brain (Gray Matter) | X | X | X | X | X | X | - |
| Brain Ventricles | X | - | - | X | - | X | - |
| Brain Tumor | - | - | - | X | - | - | - |
| Falx Cerebri | - | - | - | X | X | X | - |
| White Matter | - | - | - | - | X | - | - |
| Brain Vessels | (2, 3, 4mm) incorporated Circle of Willis | - | (2, 3, 4mm) incorporated Circle of Willis | X | - | - | - |
| One Bifurcation | X | - | X | X | - | - | - |
| One Stenosis | X | - | X | - | - | - | - |
| Two Aneurysms | X | - | X | - | - | - | - |
| Vessels Connected with the Neck | X | - | X | X | - | - | - |
| Plastic Connectors | X | - | X | - | - | - | - |
| Small Static Objects | - | (0.5, 1, 2, 3mm) Diameters | - | - | - | - | - |
| Realistic Air Cavities | - | - | - | - | X | - | - |
| Alignment Markings | X | X | X | X | X | X | X |
| Frontal Sinus with Air Gaps | - | - | - | - | X | - | - |
| Hematoma | - | - | - | - | - | X | - |
Advanced Adult Head Phantom for X-Ray CT, Ultrasound and MRI
Phantom Dimensions and Weight:- Size: 12 x 9 x 7 in (approx.)
- Weight: 17 Lbs (approx.)
- Size: 23 x 14 x 10 in (approx.)
- Weight: 22 Lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] |
Hardness [Shore 00] |
T2 [ms] |
Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
| Brain Matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
| Brain White Matter | 1400 ± 10 | 1.01 | 35 | 60 | YES | 1.3 ± 0.2 |
| Skin Tissue | 1400 ± 10 | 1.02 | 60 | 50 | NO | 1.7 ± 0.2 |
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
HU Values of the Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Brain Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Skin Tissue | -25 |
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
