True Phantom

Adult Human Torso – Advanced R&D

Item # TPS-TO-A02

On Demand
Request a quote for pricing

Ships in 12-16 weeks

Quantity :

Need an estimate?
Click Add To Quote

Quote Helper

Features & Specifications

by True Phantom
A trusted GT partner
2-Year Warranty
Provided by manufacturer
Gov't pricing
Available upon request

About This Item

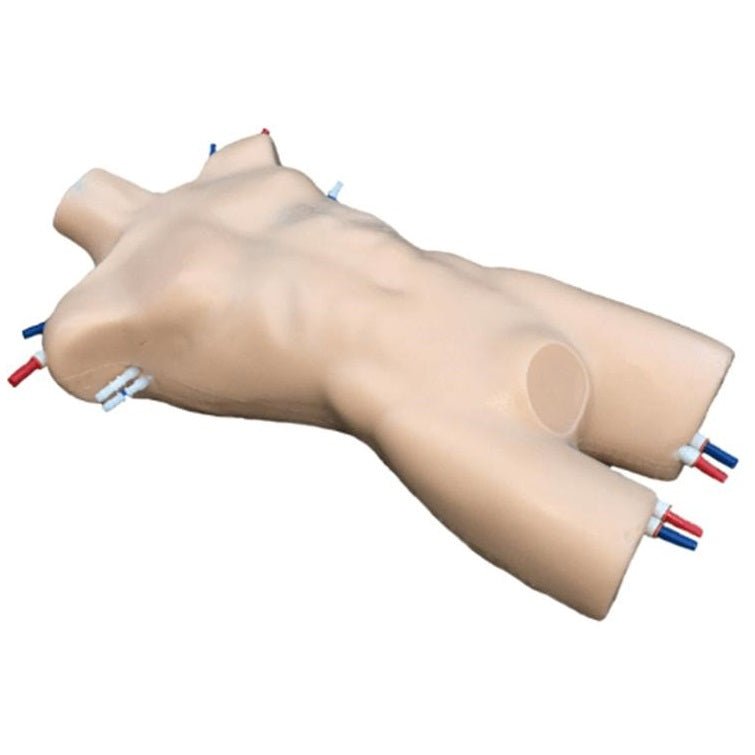

Advanced Adult Torso for X-Ray CT and Ultrasound

The Advanced Adult Human Torso phantom is a lifelike simulator compatible with Ultrasound and X-Ray/CT. The skeleton features a realistic three-layered structure and inner porosity. The phantom includes a realistic heart with major vessels, chambers, and a TPS heart pump for lifelike heartbeat and motion.

Advanced Adult Human Torso with a beating heart is a lifelike, anatomically realistic, from neck to pelvic area phantom/simulator with all the essential organs present inside. This phantom is compatible with Ultrasound and X-Ray/CT, and it is an ideal tool for conducting medical research under the guidance of medical imaging. The organs are made from realistic urethane-based tissue-mimicking materials, and the bones are made from a patented ceramic-reinforced epoxy-based composite material. The skeleton is assembled from individually cast bones with vertebrae that have a realistic three-layered structure and inner porosity.

The design of this phantom includes a realistic heart with all major heart vessels and internal heart chambers. The TPS heart pump is included with this phantom, and it enables the realistic heartbeat and motion of heart walls.

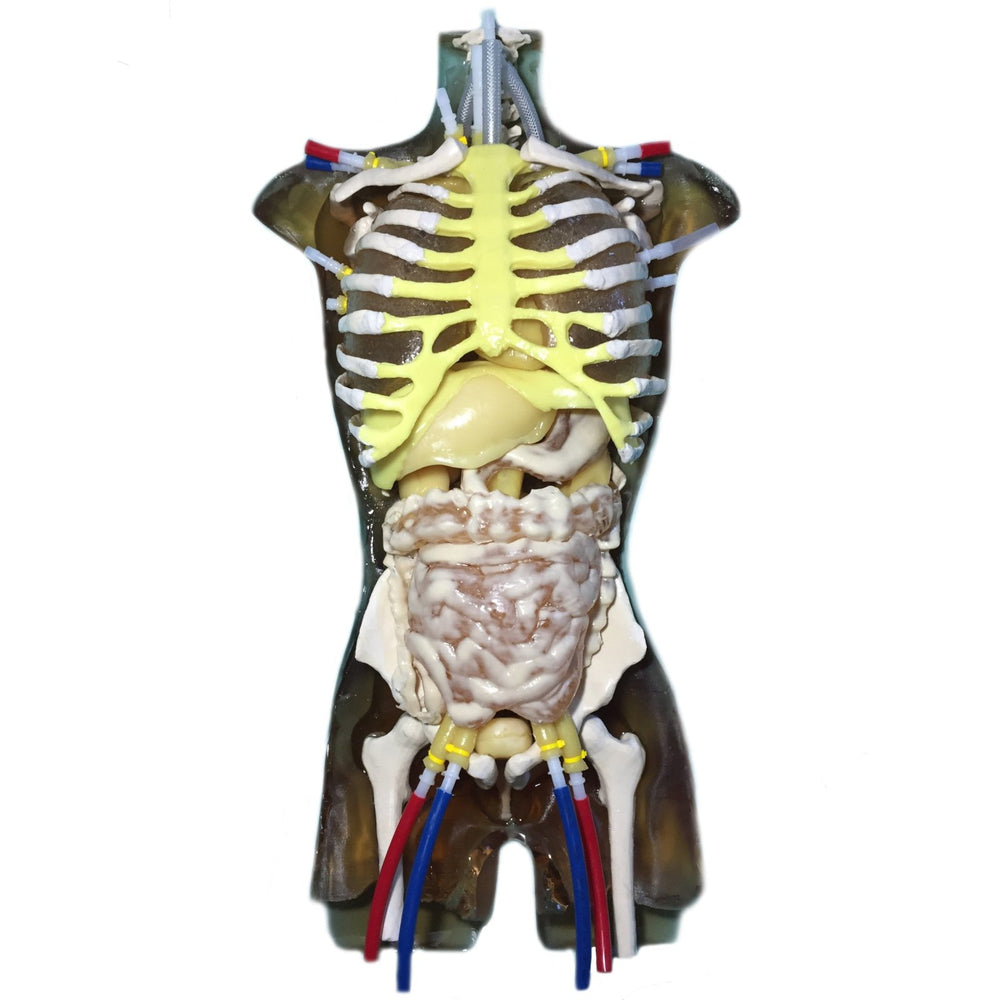

Anatomy

Complete Spine
Complete Ribcage
Shoulders and Clavicles
Pelvis
Partial Femoral Bones
Trachea
Realistic Heart with:
- Right Ventricle: Moderator Band that runs from the anterior wall to the septum bridge
- Left Ventricle: Papillary muscles to the anterior and posterior walls
- Right Atrium: Right atrial appendage with distinct muscle structures
- Left Atrium: Unique muscle structure to the appendage of the left atrium
Appendage Feature
Aorta
Jugular vessels

Pulmonic and Pulmonary Veins attached to LA
Flexible Valvular Structures
SVC
IVC
Lungs
Diaphragm
Liver
Gallbladder
Stomach
Kidneys
Spleen
Pancreas
Large and Small Intestines
Bladder
Prostate

Beating Heart Features:

Access to intravenous catheter insertion
Cyclic motion of the heart walls
Average heart rate (70 BPM)
Adjustable heart rate (0 BPM – 140 BPM)
Chambers fillable with water with minimal air pockets
Asymmetrical heart motion between left and right chambers

Pathologies:

Hemorrhages in the liver, pericardium, and urinary bladder
Tumor in the bile duct obstructing the bile outflow, left renal tumor, and anal tumor
Two tumors in the left kidney
Anal tumor
Colon polyps inside intestines
Enlarged axillary lymph nodes on one side and normal on the other

Included In Order:

Adult Torso (Advanced) Phantom
TPS Heart Pump
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case (Optional)

Materials Used:

Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

Product Size & Weight

Phantom:

Size: 34 x 18 x 10 in (approx.)
Weight: 88 lbs (approx.)

Heart Pump:

Size: 36 x 12 x 8 in (approx.)
Weight: 88 lbs (approx.)

Shipping Dimensions and Weight

Size without Hard Carry Case:

Size: 36 x 24 x 12 in (approx.)
Weight: 99 Lbs (approx.)

Size with Hard Carry Case:

Size: 47 x 26 x 18 in (approx.)
Weight: 144 Lbs (approx.)

Size of Pump Package:

Size: 36 x 14 x 10 in (approx.)
Weight: 90 Lbs (approx.)

*Entire shipment will be placed on a wooden pallet.

Design of the Phantom:

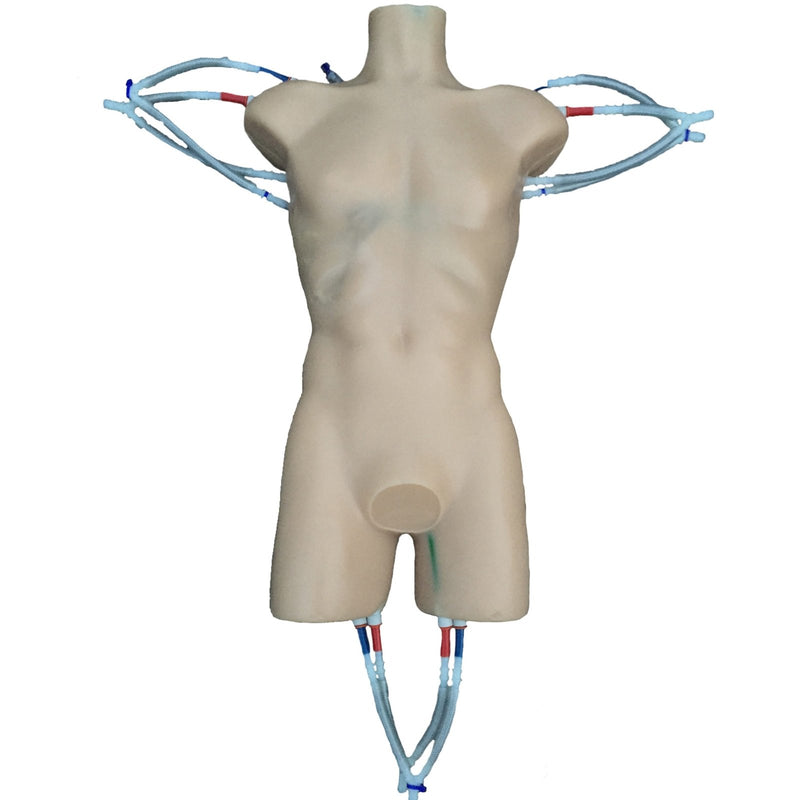

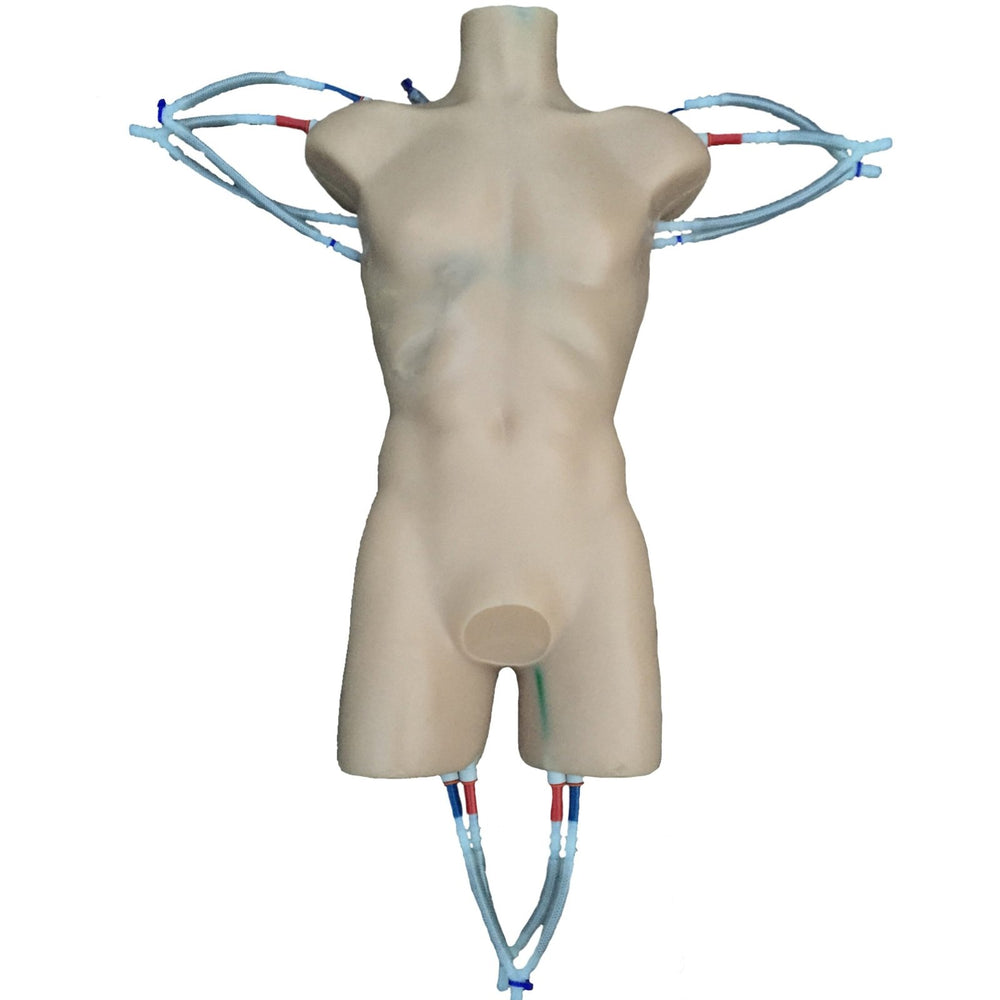

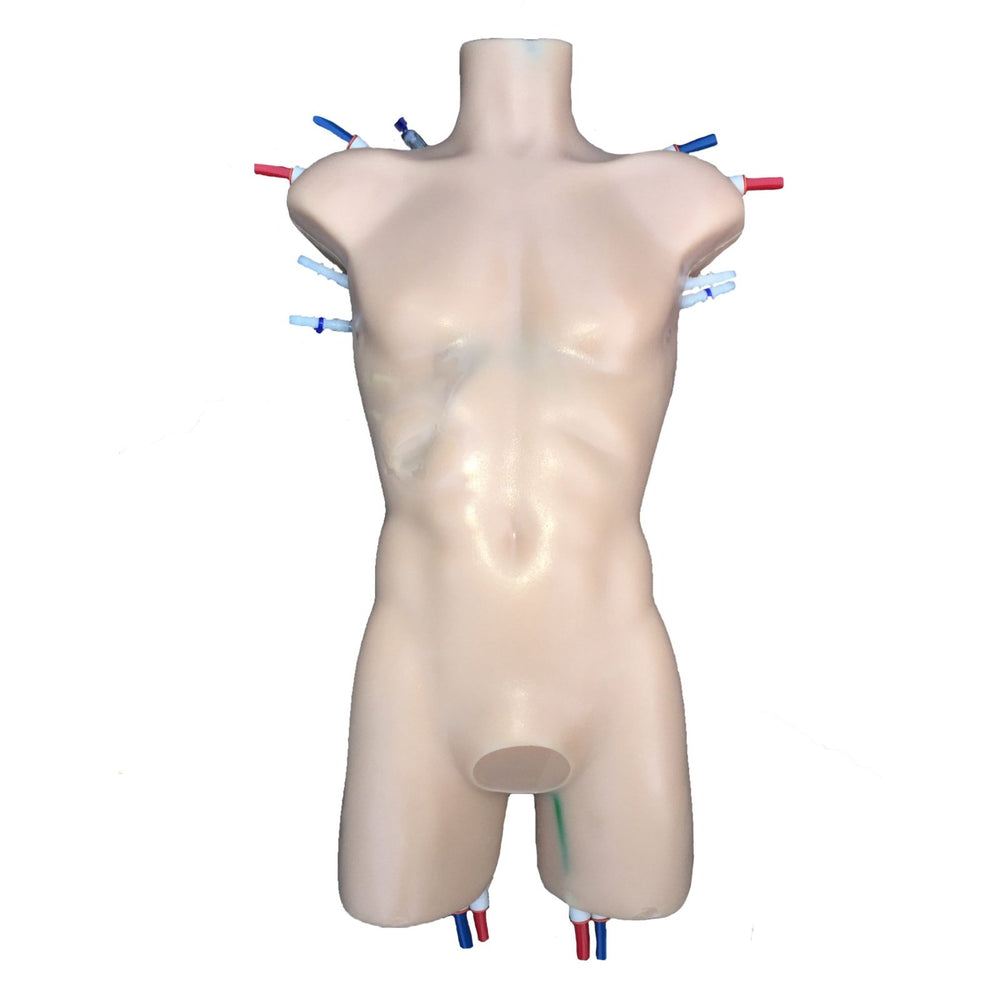

Front view

Lateral view

Perspective view

Top view

Heart Installed in Torso

Ultrasound Scans

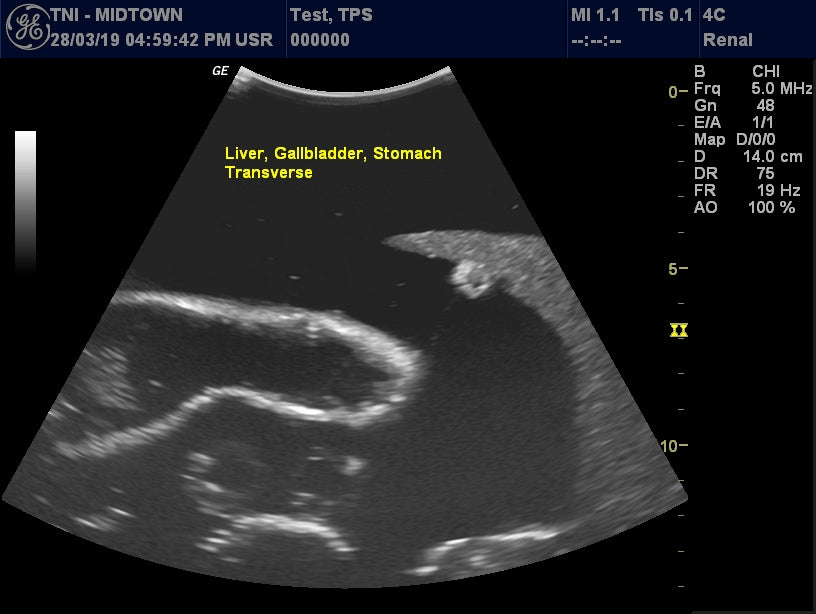

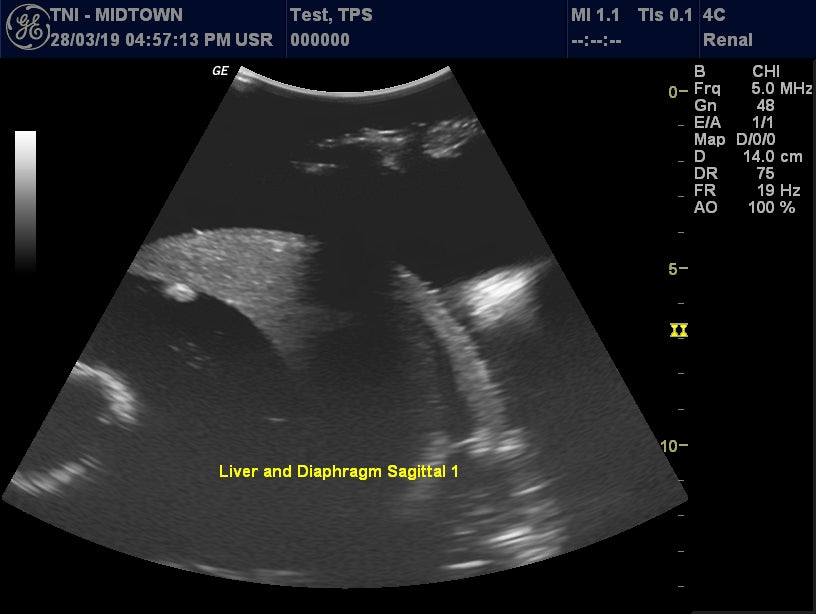

Ultrasound Scans of the Torso

*/ These scans were obtained from the Adult Torso for X-Ray CT, US ~ SKU: TPS-US-A02 and were taken using a GE device. The abdominal probe of 3.0 MHz -5.0 MHz. If you have any questions related to these, Contact Us /*

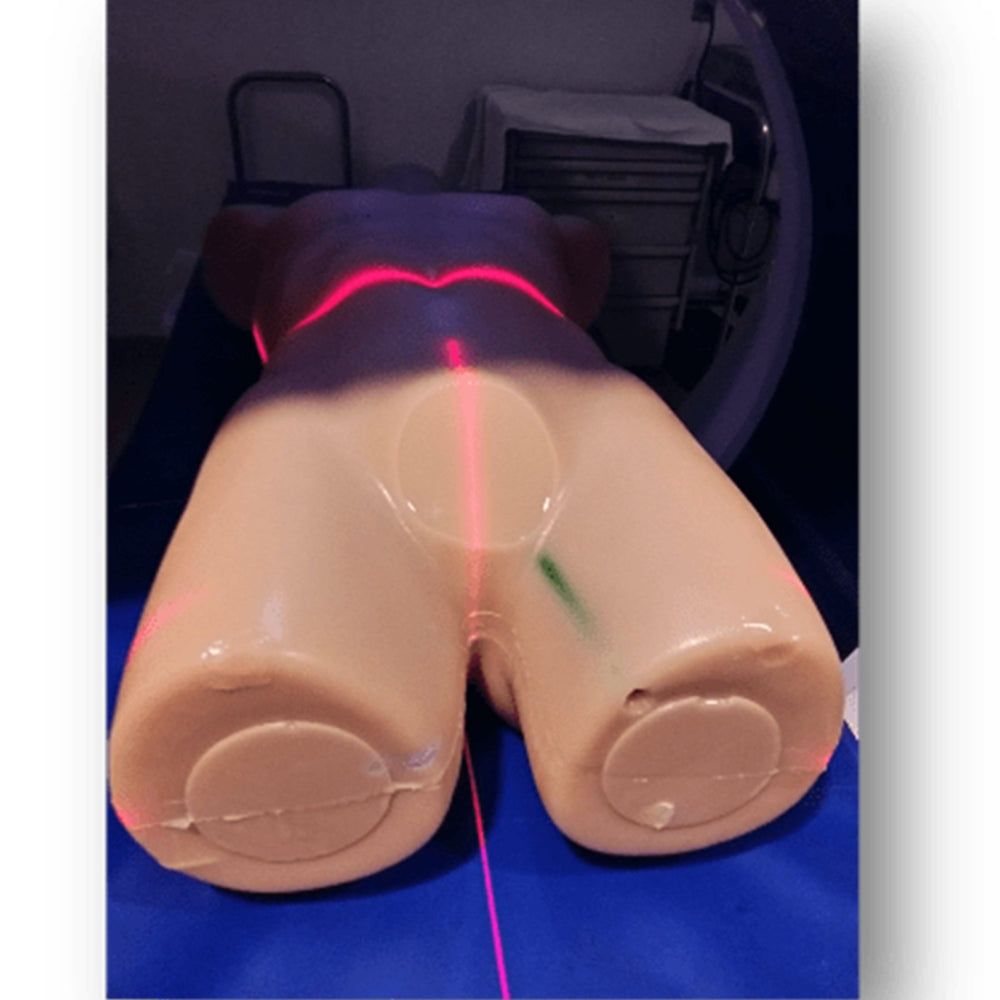

CT Scans of the Torso

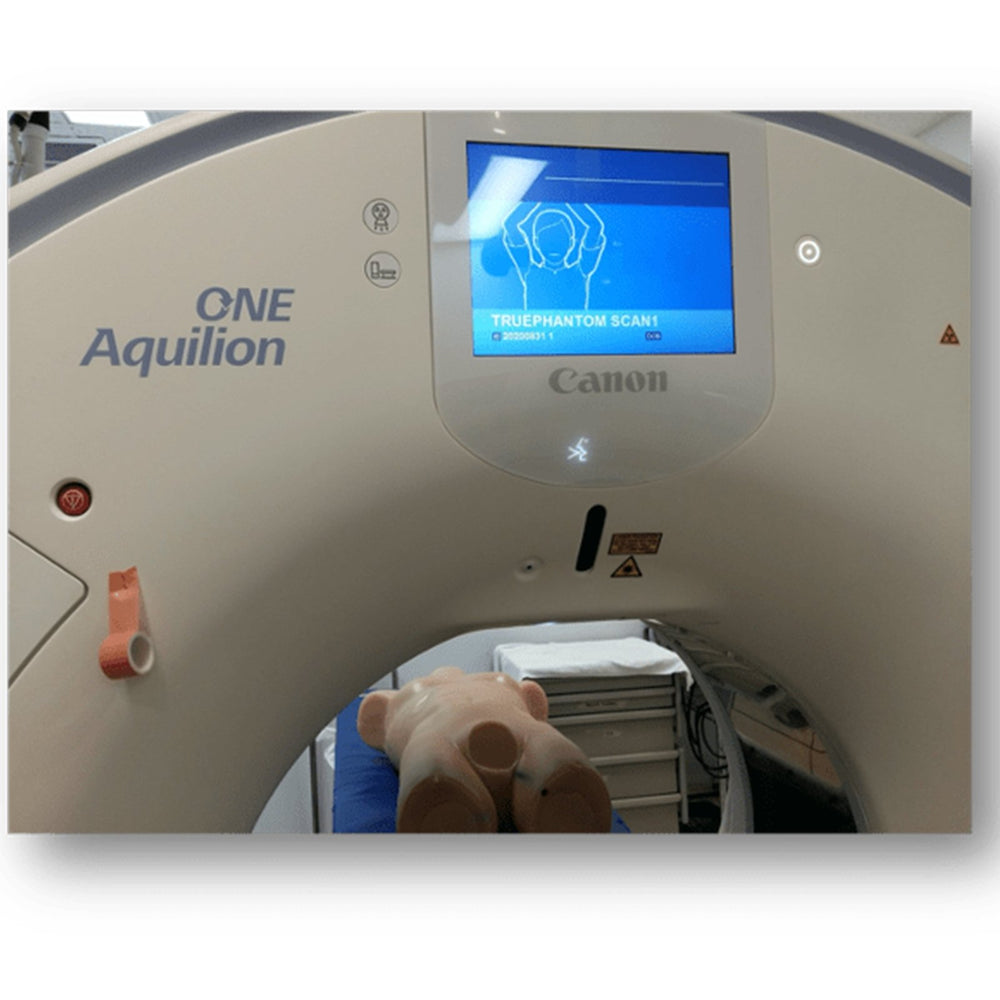

*/ These scans were obtained from a customized ultrasound & X-RAY CT Torso that were captured by a CANON CT Scanner – One Aquilion (Model TSX-305A). If you have any questions related to these, Contact Us /*

Download a PDF with product details

Additional features (based upon request):

Internal hemorrhages at bilateral chambers, pelvic area, pericardial area, perisplenic areas etc.
Lesions and tumors at precise locations.
Customizing the phantom with motion or bleeding.

Materials used:

Soft tissue and organs: Composition of urethane base soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

Dimensions and Weight of the Phantom:

Size: 85 x 46 x 26 cm(approx.) Weight: 40 Kgs (approx.).

Dimensions and Weight of the Shipment (Phantom):

Without hard carry case: Size: 91 x 60 x 30 cm (approx.) Weight: 45 kgs (approx.)
With Hard carry case: Size: 120 x 65 x 45 cm (approx.) Weight: 65 kgs (approx.)

Your order will Include:

Adult male Torso – Advanced for R&D
Heart pump and accessories
User Manual
Hard carry case (optional)
