Adult Female Torso (Dynamic) for X-Ray CT, MRI
0.0 lb
All pictures shown are for illustration purposes only. The actual product appearance may vary.

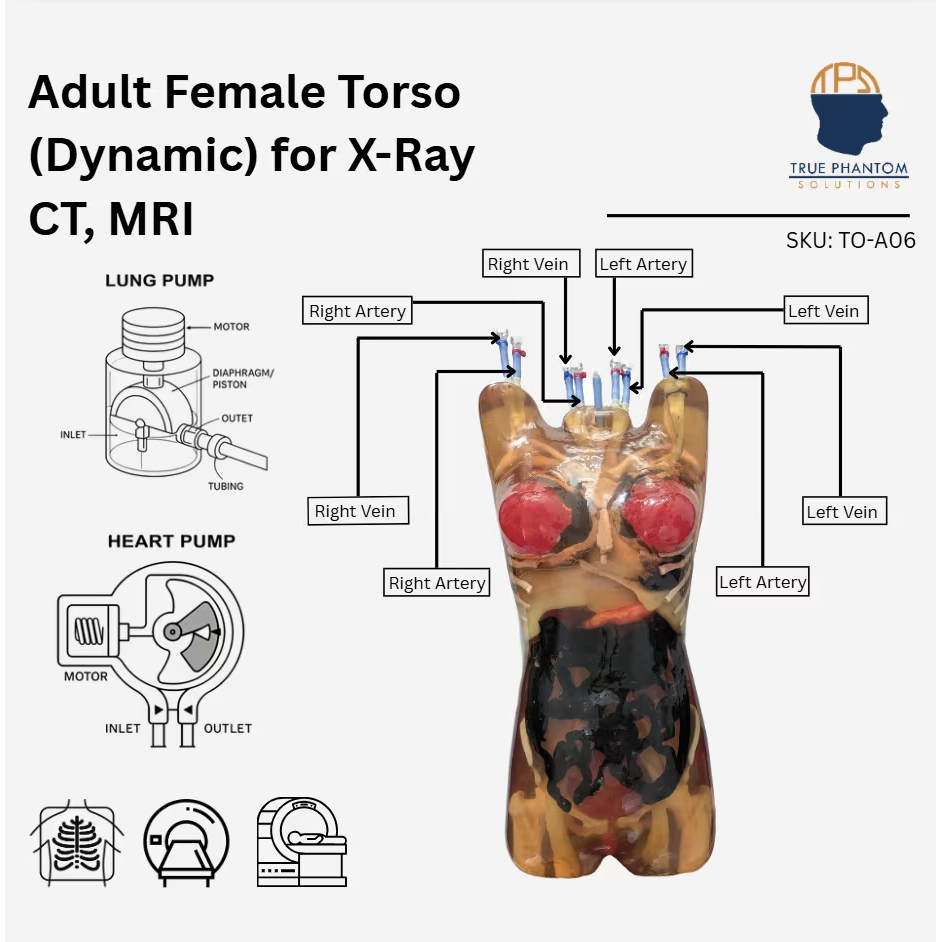

Adult Female Torso (Dynamic) for X-Ray CT, MRI
Item # TPS-TO-A06
On Demand
Request a quote for pricing
Request a quote for pricing
Ships in 20-28 weeks
Need an estimate?
Click Add To Quote
Features & Specifications
-
by
A trusted GT partner -
FREE Shipping
U.S. Contiguous States Only -
2-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request
by
Frequently Bought Together
(
Adult Female Torso (Dynamic) for X-Ray CT, MRI
This phantom was designed using a CT dataset from a healthy 35-year-old female patient, standing 168 cm (5’5″) tall with a BMI adjusted to 22. The model was developed using advanced artificial intelligence (AI) software, incorporating a leading-edge algorithm to extract anatomical structures, ensuring exceptional precision and anatomical accuracy within the phantom.
The Adult Female Torso Phantom is a groundbreaking innovation in medical imaging simulation, offering an unprecedented level of anatomical accuracy. With the help of AI (Artificial Intelligence) software, this phantoms design has been directly extracted from CT scans of a live, healthy 35-year-old patient with a height of 168cm (5’5″) and a BMI adjusted to 22. As a result, it features highly realistic anatomical structures and organ positioning. Developed in collaboration with medical professionals in the United States and Switzerland, this advanced phantom sets a new standard in medical imaging education, system development, and research applications.
The phantom features both dynamic cardiac and respiratory motion for realistic simulation. Heart and Lung Pumps are available to connect with this torso phantom. This phantom can be used with Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based contrast mediums.
Engineered with multi-modality compatibility, the Adult Female Torso Phantom is optimized for X-Ray, CT, and MRI, making it a versatile tool for a wide range of clinical and research purposes. Its advanced tissue-mimicking materials closely replicate soft tissue and bone of real human tissue. This high level of realism is particularly beneficial for radiology training, where medical students, residents, and technologists can gain hands-on experience using this phantom with different imaging equipment
This phantom also offers insight into several specialties dedicated to women’s health, as well as general medical fields that frequently address female-specific conditions. For example, gynecology, breast oncology, and mammography, with the potential for customizations to address obstetrics, including childbirth and pregnancy.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
Anatomy
- Complete Spine
- Complete Ribcage
- Shoulders and Clavicles
- Pelvis
- Partial Femoral Bones
- Trachea
- Heart
- 2 Atria, 2 Ventricles
- 4 Valves
- SVC
- IVC
- Aorta
- Appendage Feature
- Flexible Valvular Structures
- Esophagus
- Lungs
- Diaphragm
- Gallbladder
- Stomach
- Liver
- Ligaments
- Bile Ducts
- Kidneys
- Spleen
- Pancreas
- Breasts:
- Body Tissue Mimicking Material
- Mammary Fat Tissues
- Mammary Gland Tissues
- Large and Small Intestines
- Bladder
- Cervix
- Vaginal Canal
- Ovaries
- Uterus
Your order will include:
Frequently Asked Questions
- Adult Torso (Dynamic) Phantom
- Heart Pump
- Lung Pump
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Frequently Asked Questions
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
Phantom Dimensions and Weight:
- Size: 29 x 14 x 11 Inches (approx.).
- Weight: 80 Lbs (approx.)
-
Heart Pump:
- Size: 27.5 x 8 x 10 Inches
- Weight: 39 Lbs (approx.)
-
Lung Pump:
- Size: 36 x 12 x 8 Inches
- Weight: 48 Lbs (approx.).
- Size with Hard Carry Case: 46 x 36 x 17 Inches, Weight: 142 Lbs (approx.)
- Size of Heart Pump Package: 36 x 14 x 10 Inches, Weight: 90 Lbs (approx.)
- Size of Lung Pump Package: 49 x 17 x 13 Inches, Weight: 62.5 Lbs (approx.)
*/ These X-Ray scans were obtained from a customized version of this phantom with dynamic heart, lungs, and a hollow fillable GI tract. These X-Ray scans were obtained with a Control-X machine and a VXvue (DR plate). If you have any questions related to these, please Contact Us /*
*/ These CT scans were obtained from a customized version of this phantom with dynamic heart, lungs, and a hollow fillable GI tract. The scans scans were obtained using the following parameters: 120 kV, 240mA; slice thickness: 0.625mm; 512 x 512 matrix; slice count: 1105; SFOV: 50.0 cm; DFOV: 42.9 cm; slice thickness at acquisition: 1.250 mm. If you have any questions related to these, please Contact Us /*
T2 Scan Results
*/ These MRI scans were obtained from a customized version of this phantom with dynamic heart, lungs, and a hollow fillable GI tract. The scans were taken using the following parameters: 500×406 mm FOV; 256×208 matrix; 2 mm in-plane resolution; 48 6-mm slices; 68/4000 ms TE/TR; 401 Hz/pixel readout bandwidth; 3 averages; 3 concatenations; 6 min 14 sec
T1 Scan Results
*/ These MRI scans were obtained from a customized version of this phantom with dynamic heart, lungs, and a hollow fillable GI tract. The scans were taken using the following parameters: 448 x 364 mm FOV; 320×260 matrix; 1.4 mm isotropic resolution; 192 slices; 2.39/4.77/7.08 ms TE1/TE2/TR; 450 Hz/pixel readout bandwidth; 1 average; 7 min 22 sec
Videos
Design of the Phantom
Optional add-on
Custom Fat Layer with the female torso - BMI 28
Note: This is a custom fat layer which can be added upon request. With the addition of this fat layer, BMI of the phantom was increased to 28
Custom Fat Layer with the female torso - BMI 28
Note: This is a custom fat layer which can be added upon request. With the addition of this fat layer, BMI of the phantom was increased to 28
Adult Female Torso (Dynamic) for X-Ray CT, US
Phantom Dimensions and Weight:
- Size: 29 x 14 x 11 Inches (approx.).
- Weight: 80 Lbs (approx.)
-
Heart Pump:
- Size: 27.5 x 8 x 10 Inches
- Weight: 39 Lbs (approx.)
-
Lung Pump:
- Size: 36 x 12 x 8 Inches
- Weight: 48 Lbs (approx.).
- Size with Hard Carry Case: 46 x 36 x 17 Inches, Weight: 142 Lbs (approx.)
- Size of Heart Pump Package: 36 x 14 x 10 Inches, Weight: 90 Lbs (approx.)
- Size of Lung Pump Package: 49 x 17 x 13 Inches, Weight: 62.5 Lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Tissue Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.5 ± 0.2 | 40 | 55 | LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
Thermal Properties of our Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/m K | 1.040 MJ/m3 K | 0.746 mm2/s | 1.289 m K/W | 0.978 J/g Deg Celsius | 3070 m/s |
HU Values of the Tissue Mimicking-Materials
| Tissue Type | HU Value (Average) |
|---|---|
| Body Tissue | -25 |
| Trabecular Bone | 800 |
| Cortical Bone | 1300 |
| Aorta | 40 |
| Vena Cava | 40 |
| Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| Lungs | -850 |
| Pancreas | 110 |
| Diaphragm | 80 |
| Mammary Fat Tissues | -25 |
| Mammary Gland Tissues | 35 |
| Cervix | 50 |
| Vaginal Canal | 50 |
| Tissue Type | HU Value (Average) |
|---|---|
| Spleen | 110 |
| Kidneys | 110 |
| Bladder | 35 |
| Rectum Wall | 100 |
| Sigmoid Colon Wall | 100 |
| Heart | 40 |
| Liver | 110 |
| Gallbladder | 35 |
| Stomach | -850 |
| Large and Small Intestines | 80 (Tissue Part), -1000 (Air Filled Part) |
| Ovaries | 50 |
| Uterus | 50 |
