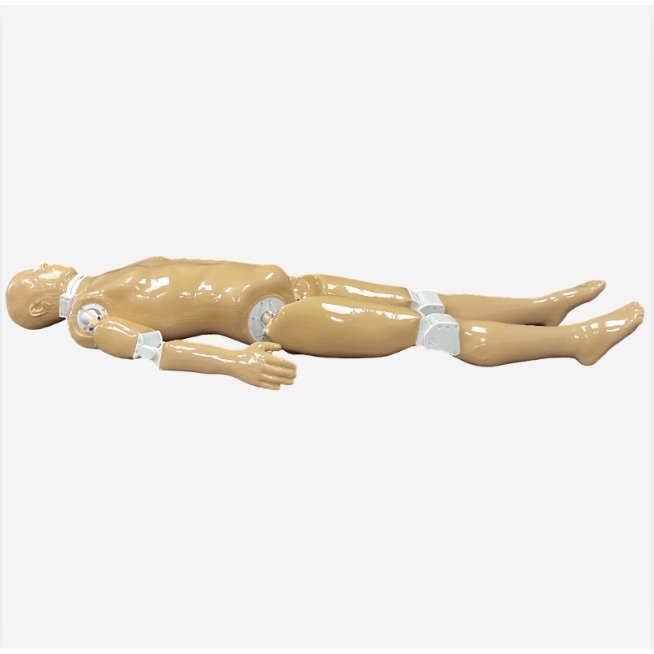

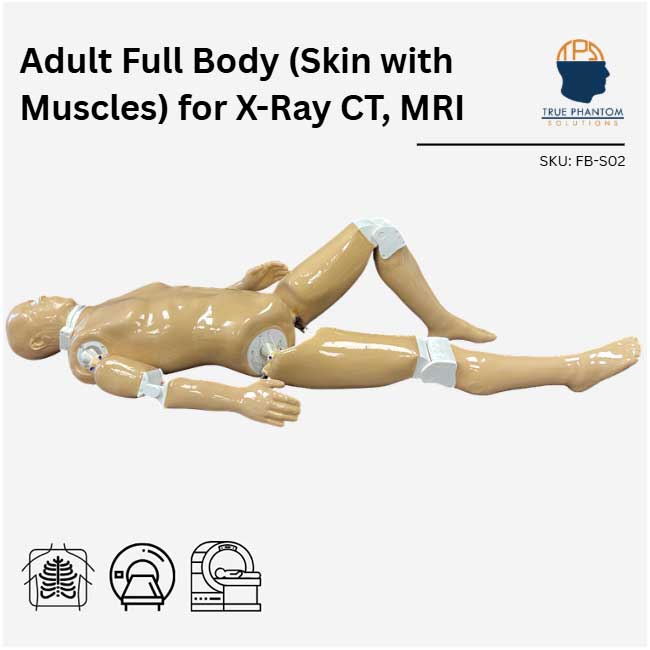

Adult Full Human Body Phantom(With Muscles) for X-Ray CT & MRI Training

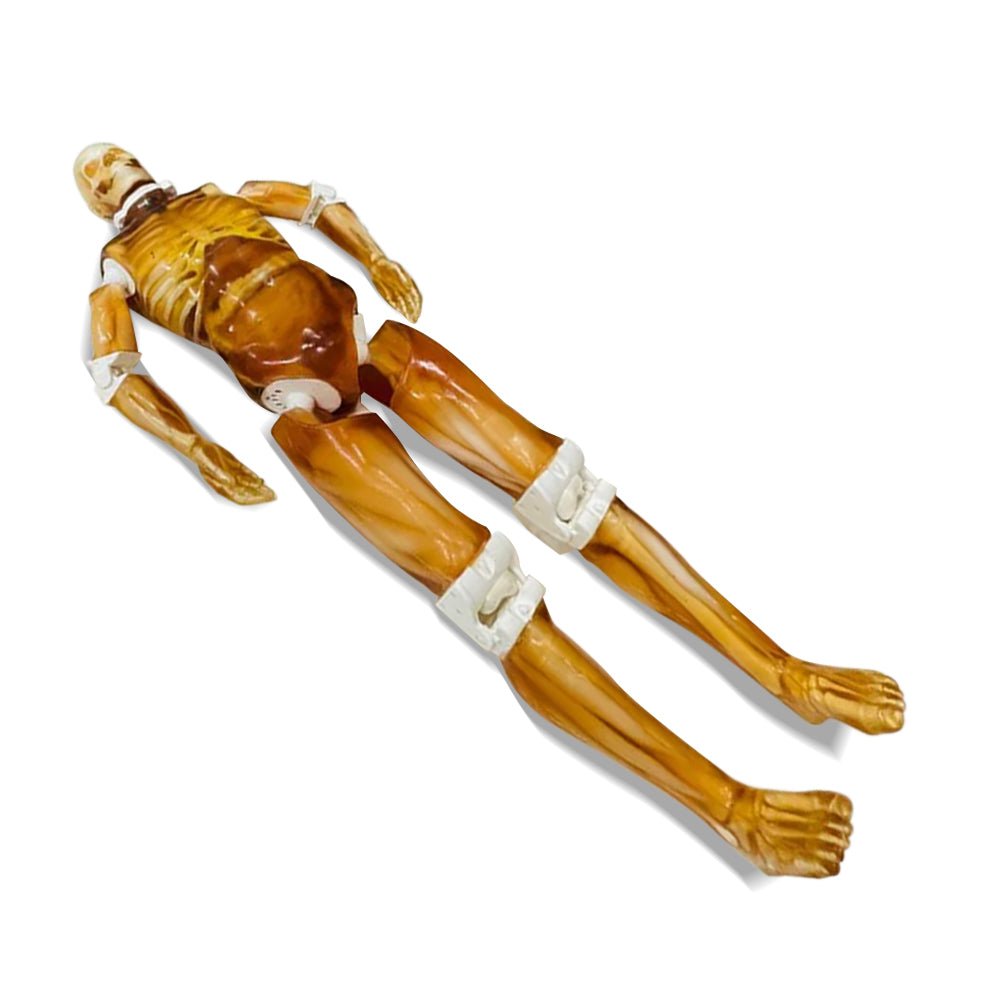

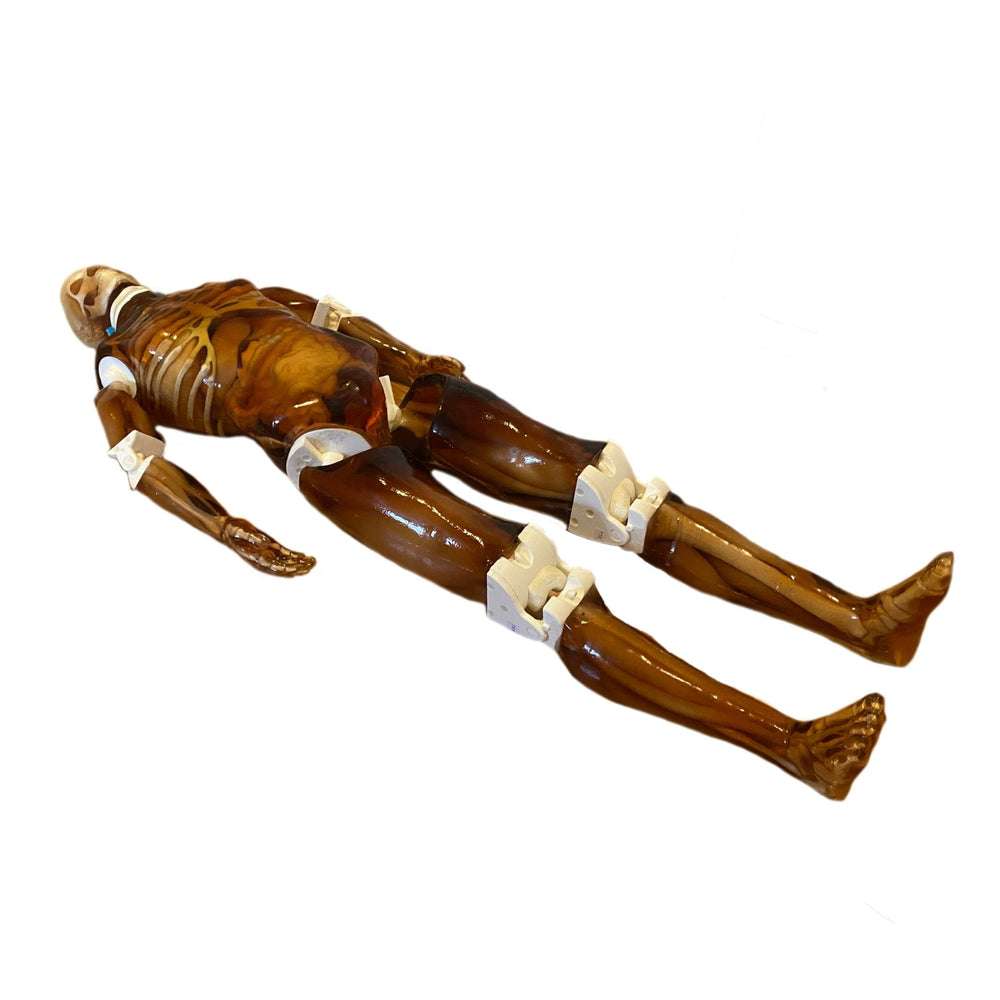

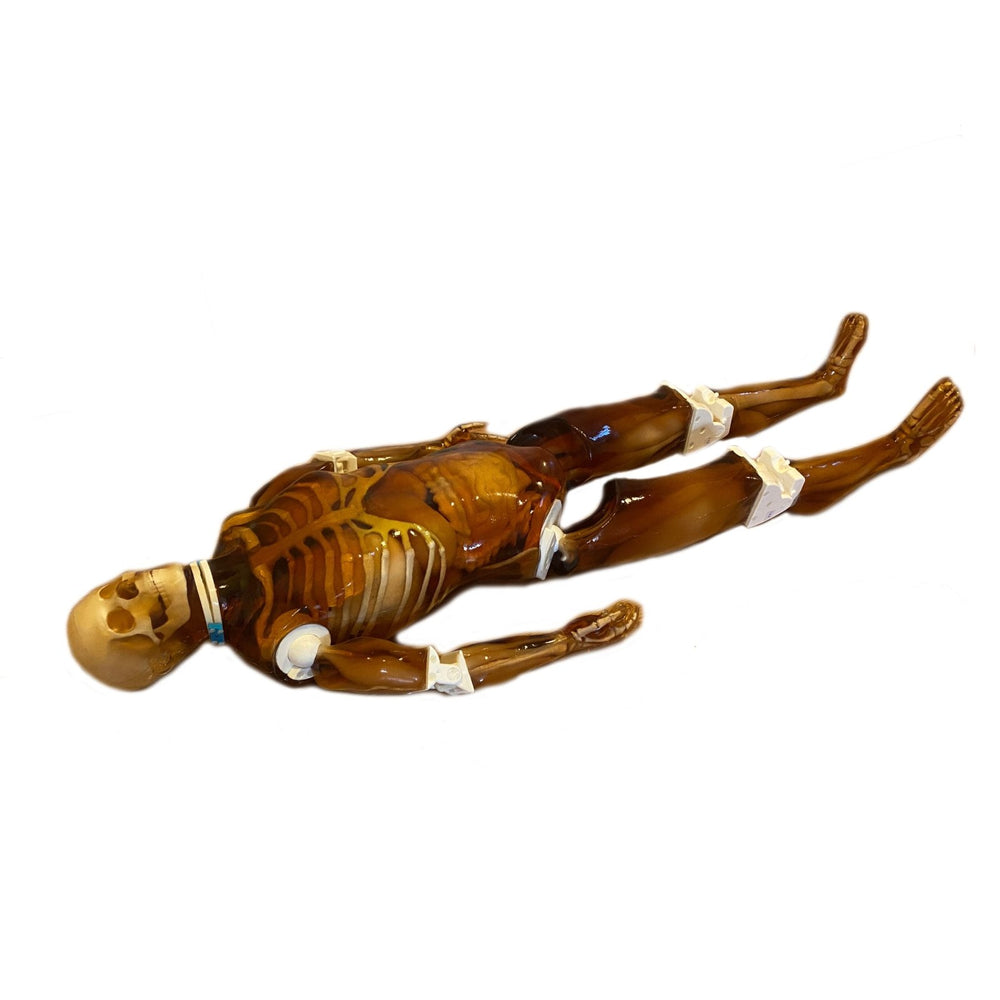

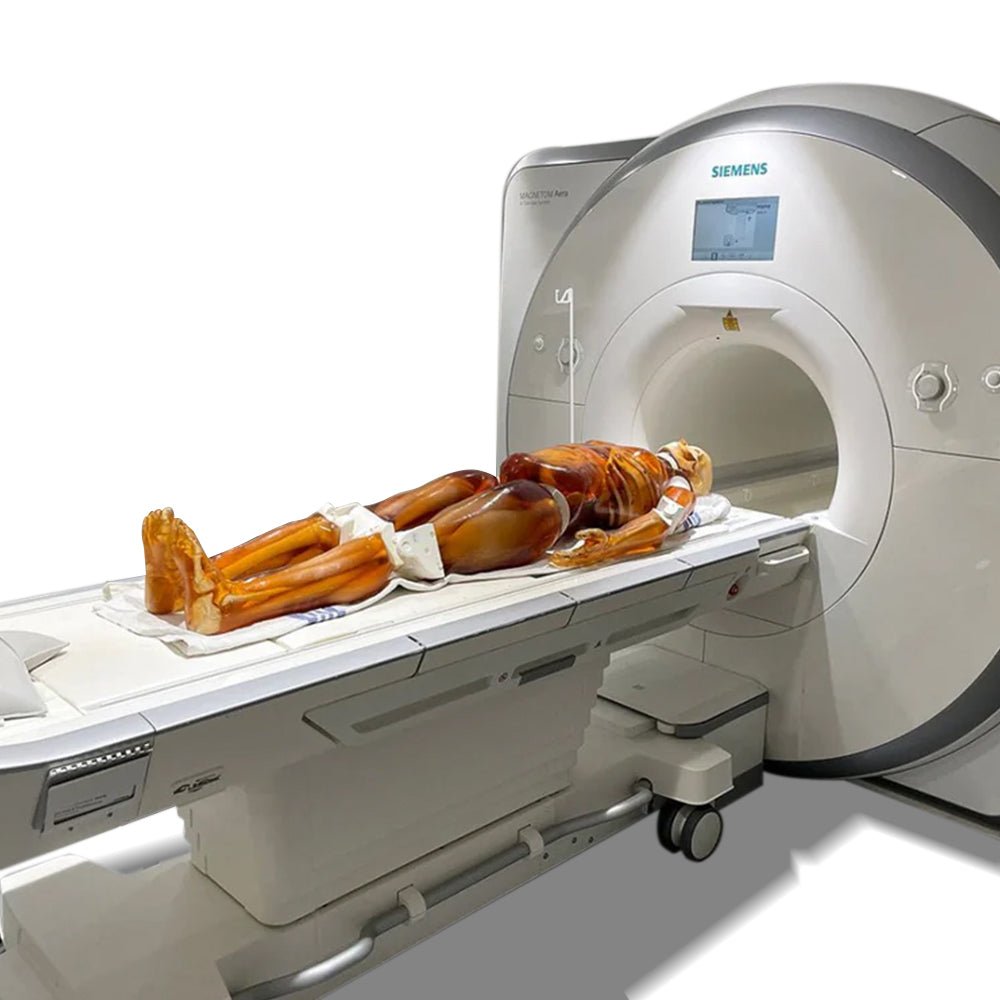

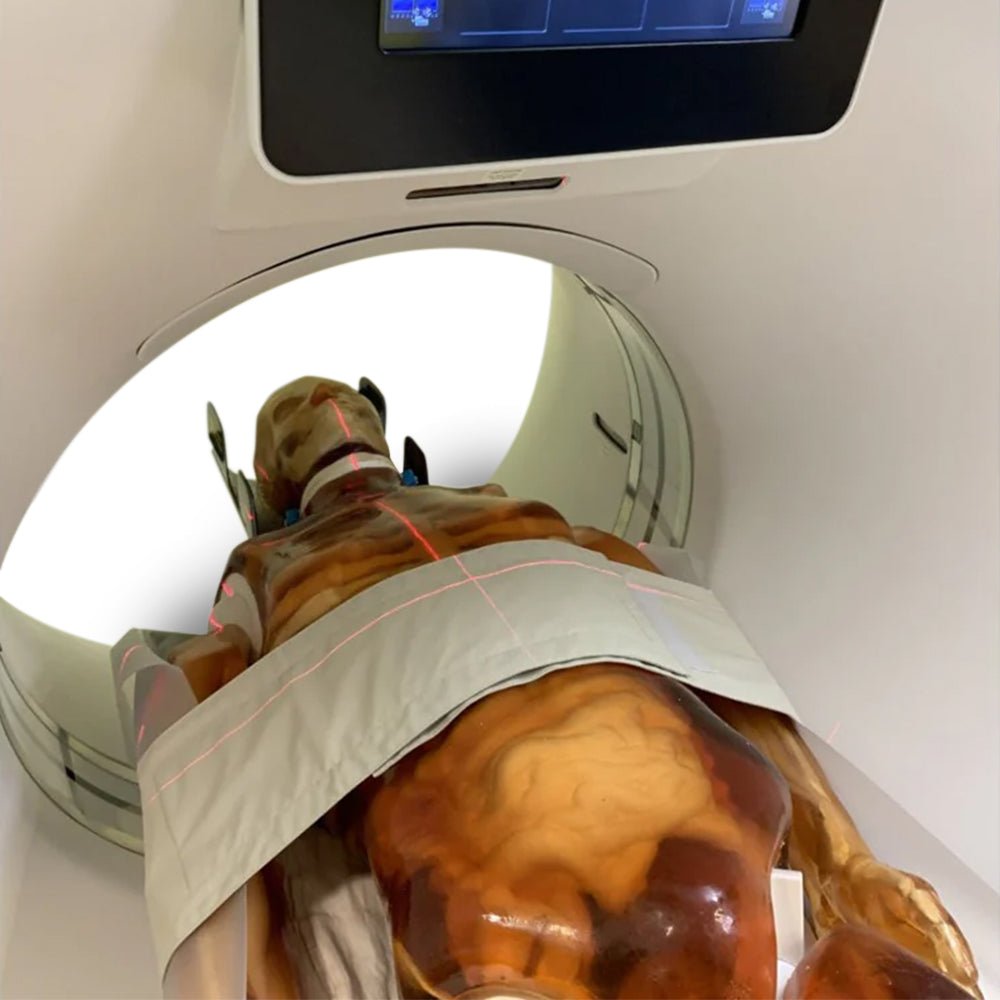

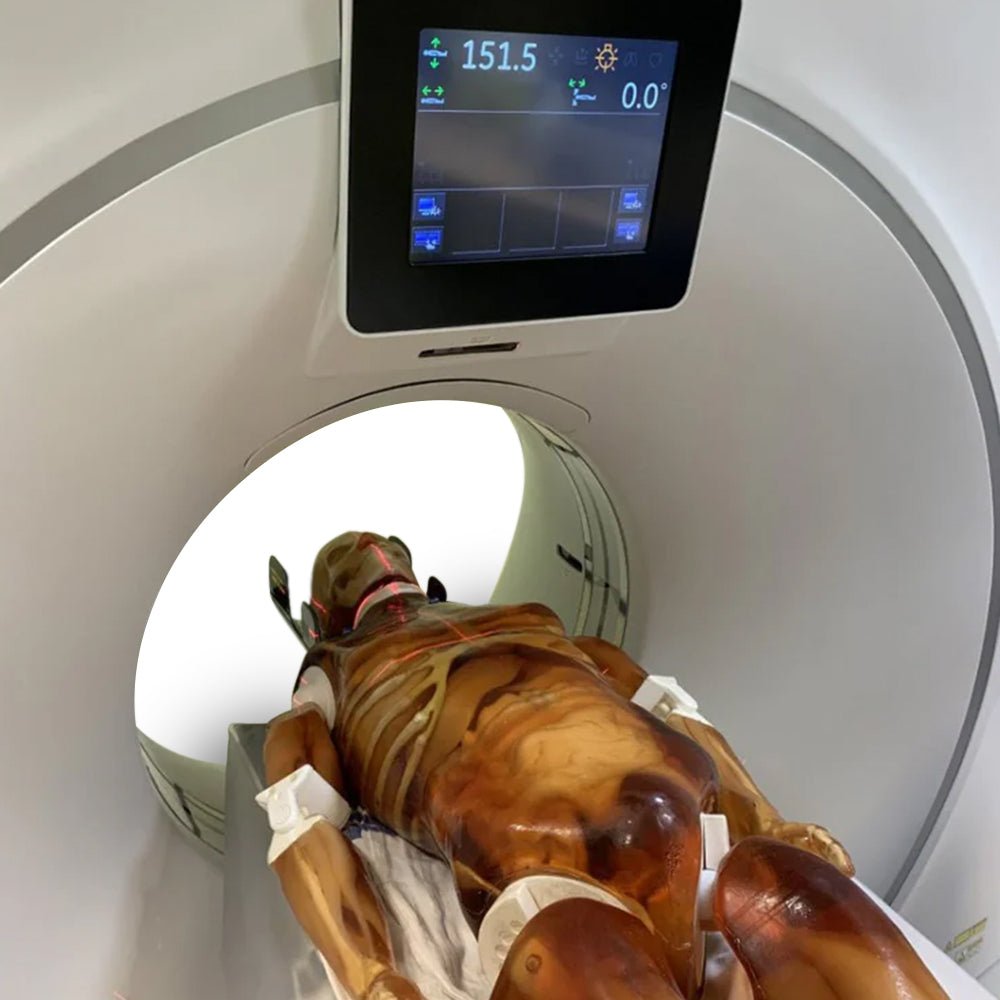

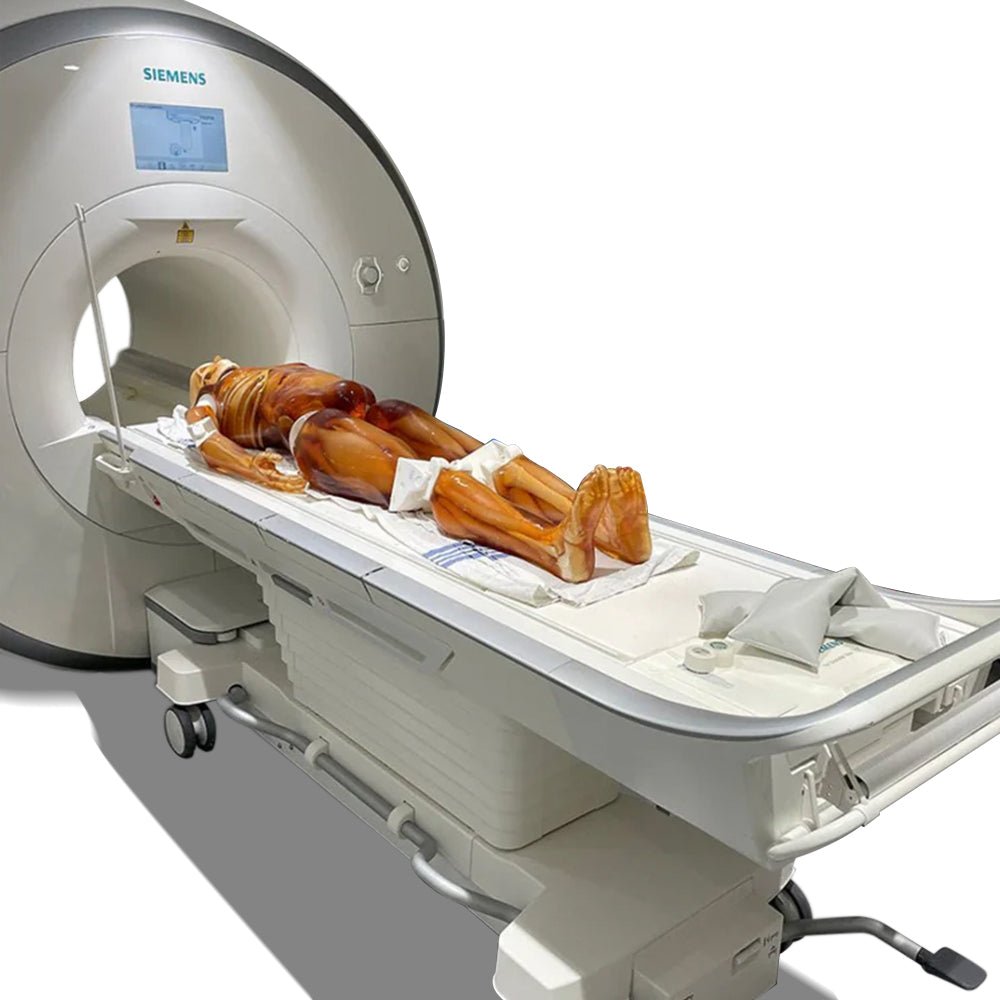

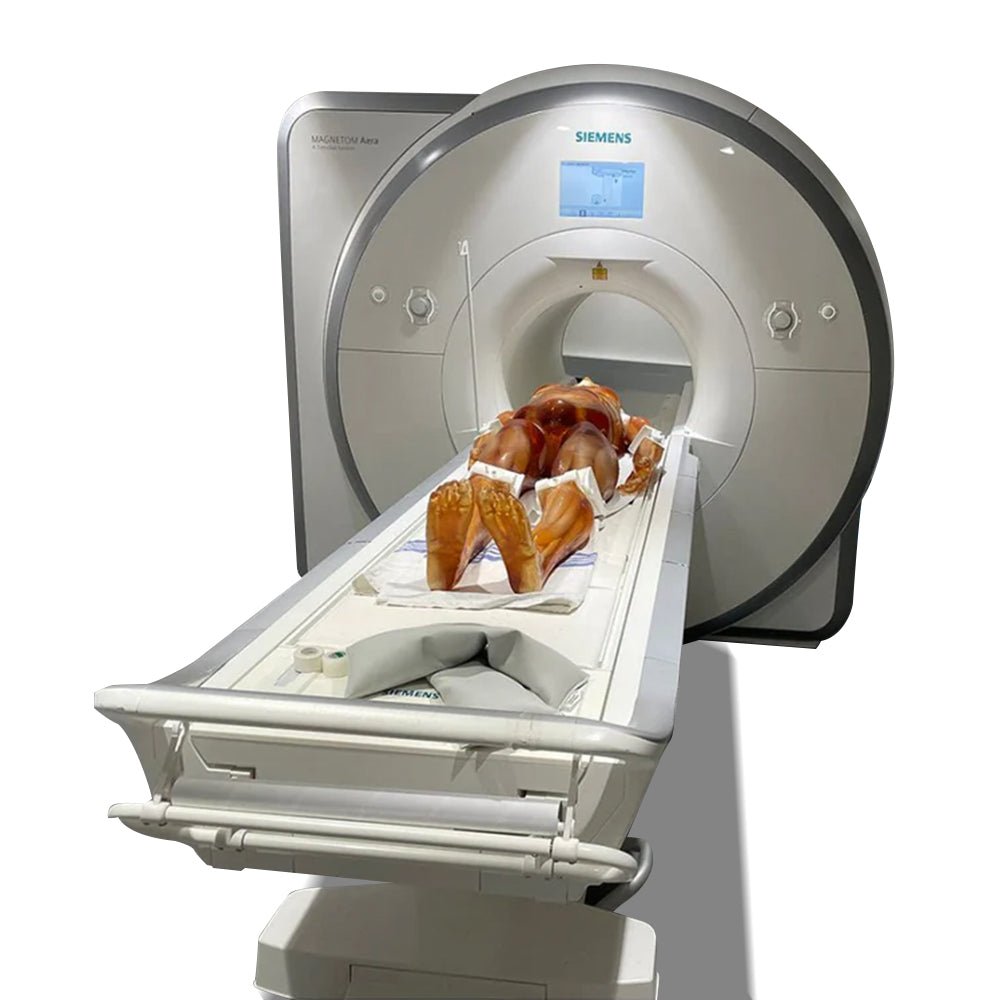

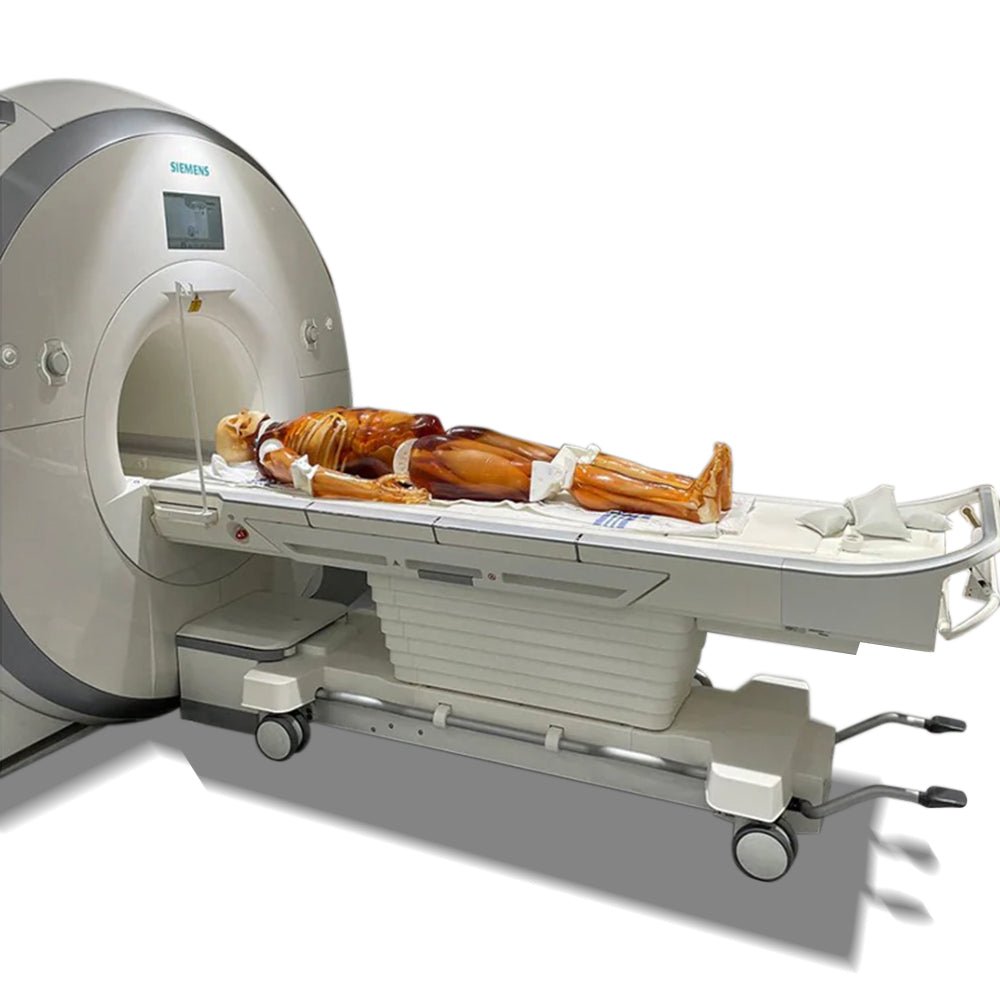

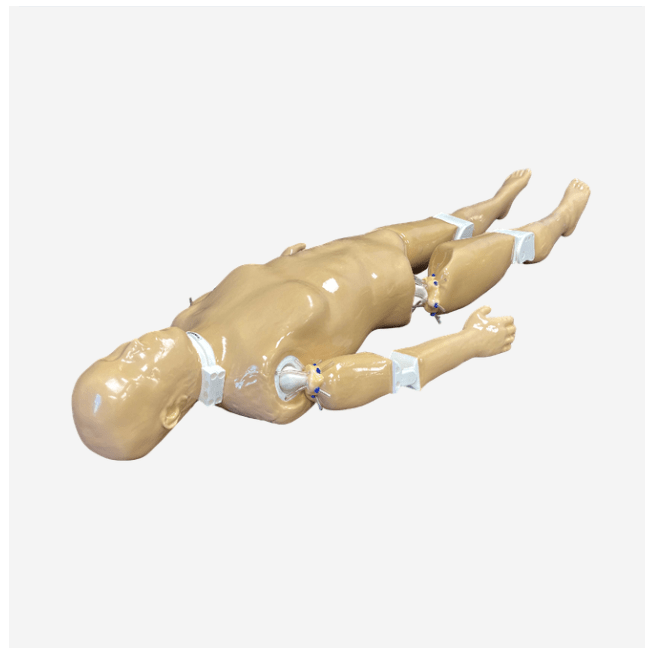

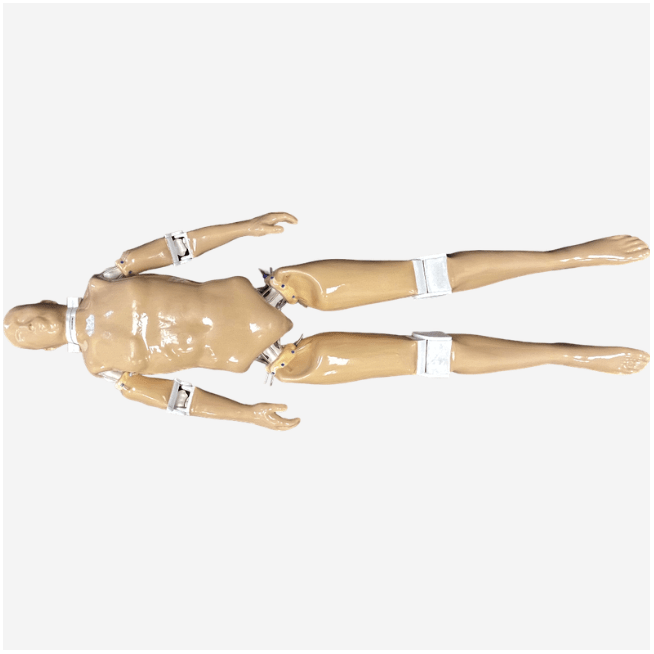

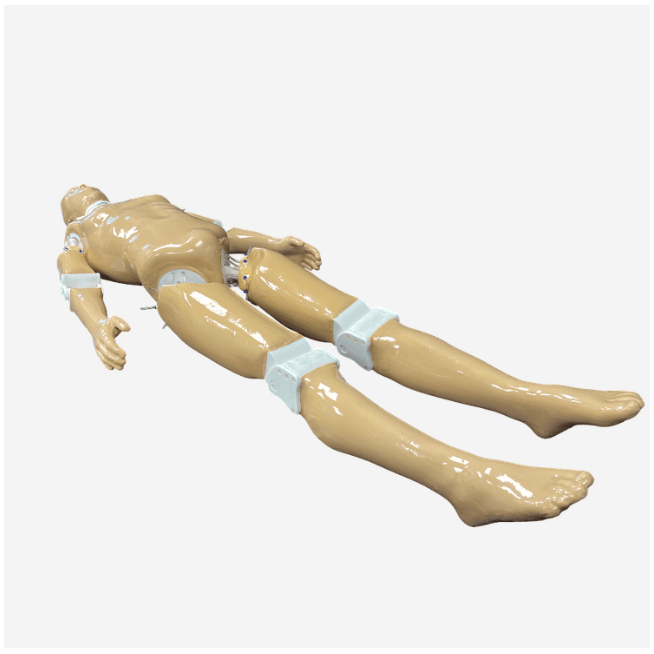

Adult Full Human Body Phantom with muscles (TPS-FB-A02) is an X-RAY CT and MRI compatible training product. It is primarily used to train various patient positioning techniques. Often purchased by medical schools & teaching hospitals to train their radiology students & other medical professionals.

Other uses include several educational applications as well as visual evaluation in finding out optimal scanning conditions.

The model of this phantom is based on an adult male full body that weighs about 70KGS and measures 175 CMS in height. Due to its complex anatomy and realistic imaging appearance, it outperforms the other similar products in the market that offers similar uses & application.

The Phantom consists of the following features:

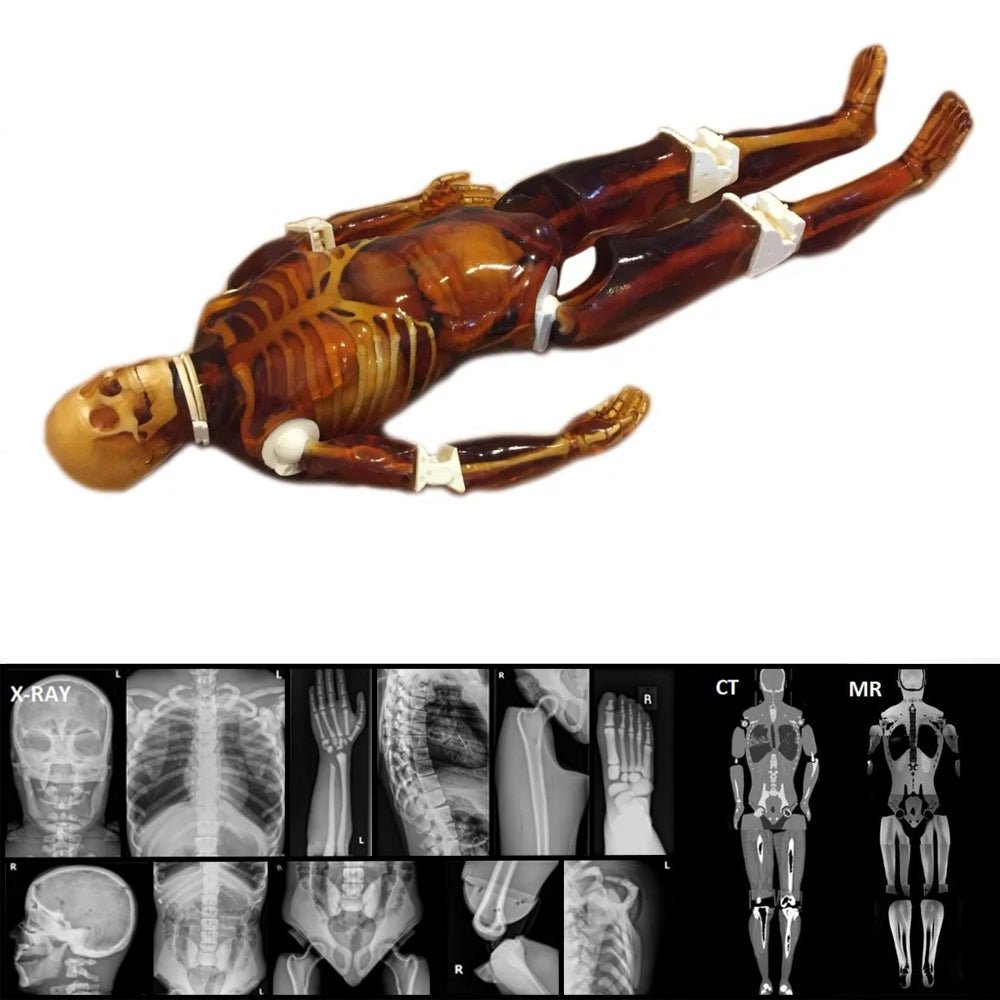

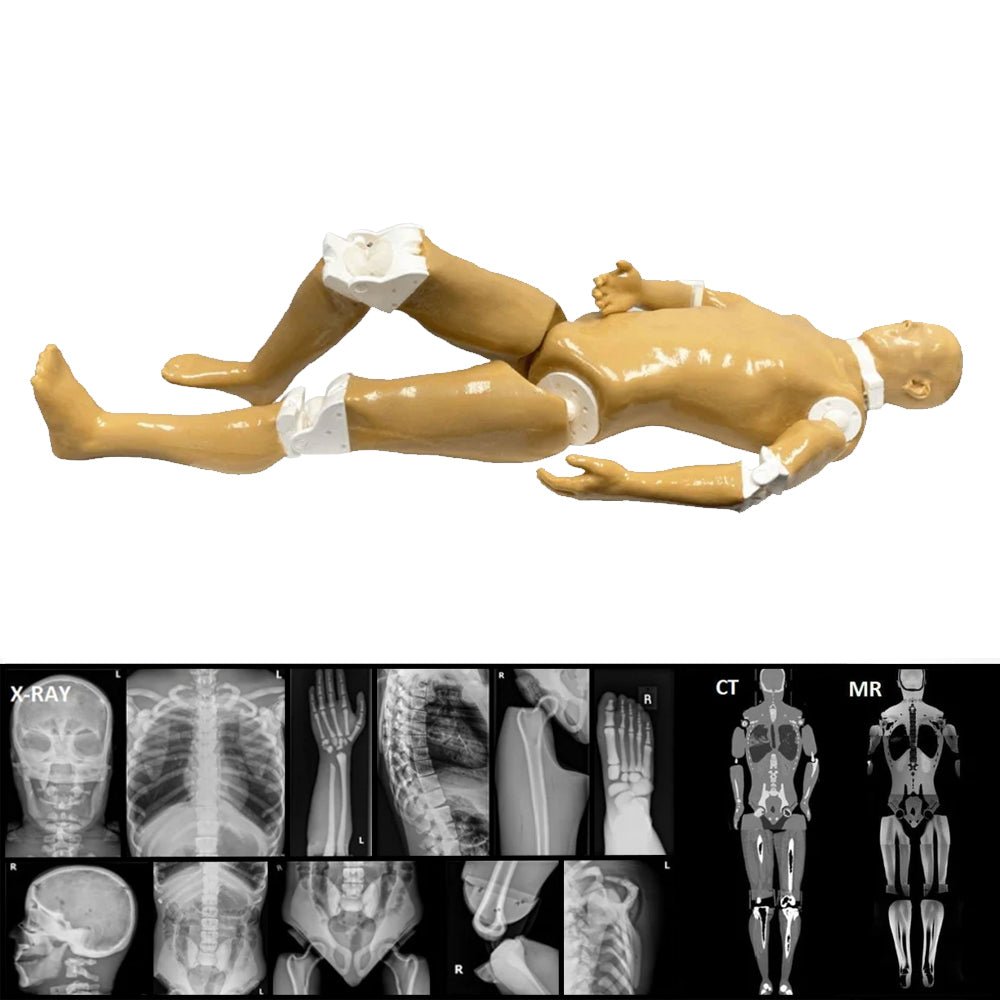

  • Anatomically correct full-body divided into 10 parts as explained below.
  • Realistic body tissue-mimicking material, compatible with CT & MR imaging.
  • Arms and legs include muscles

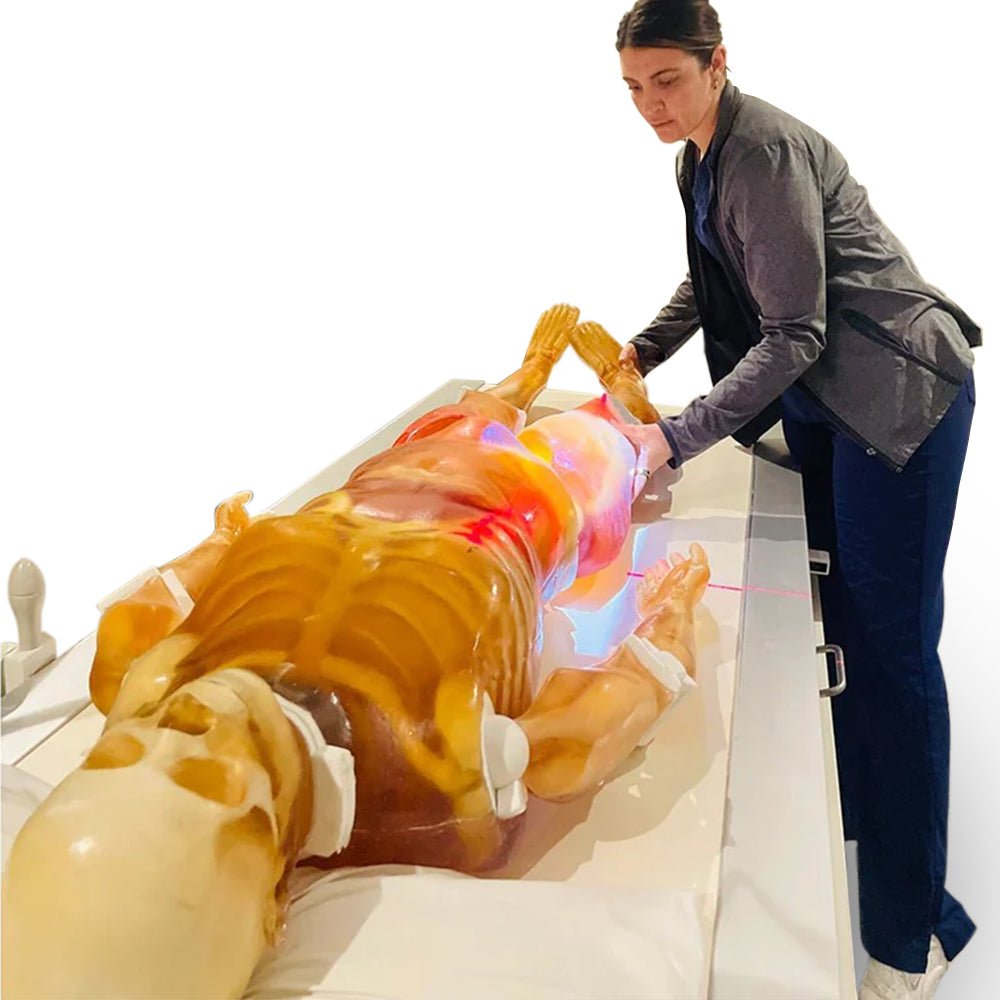

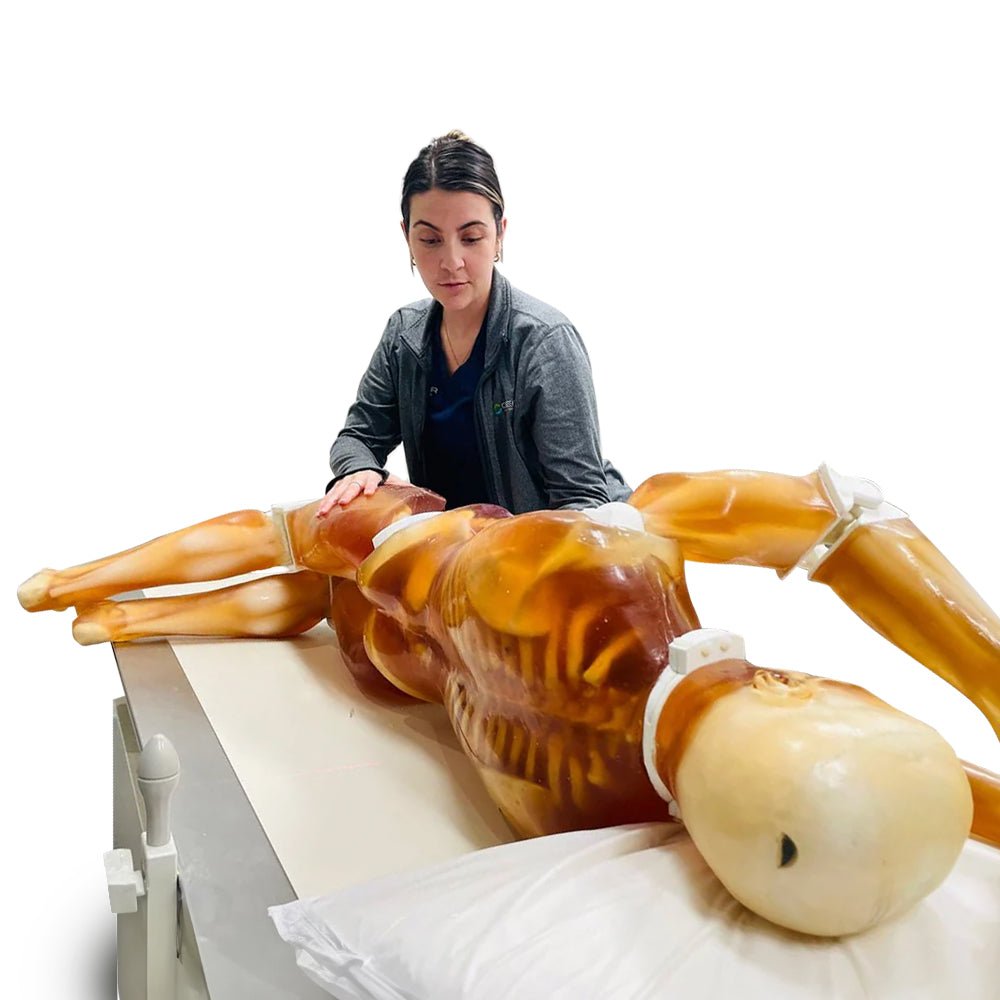

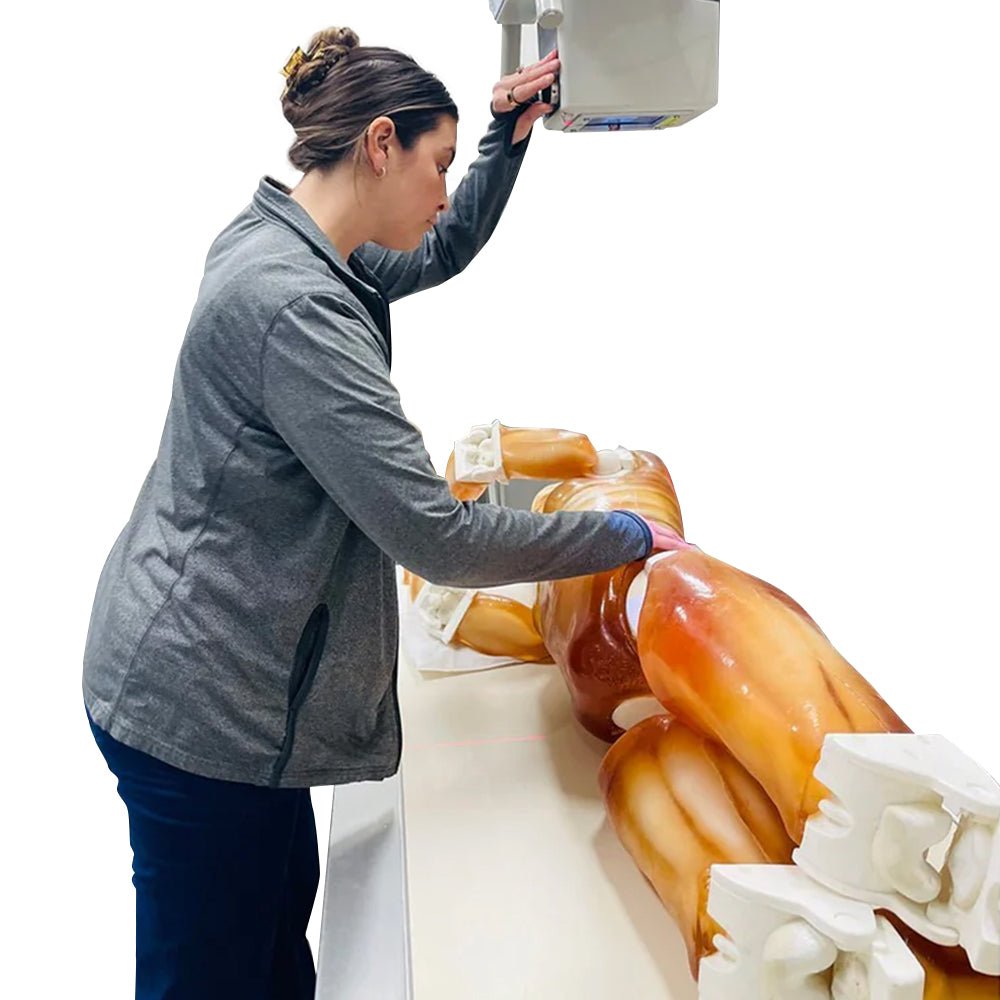

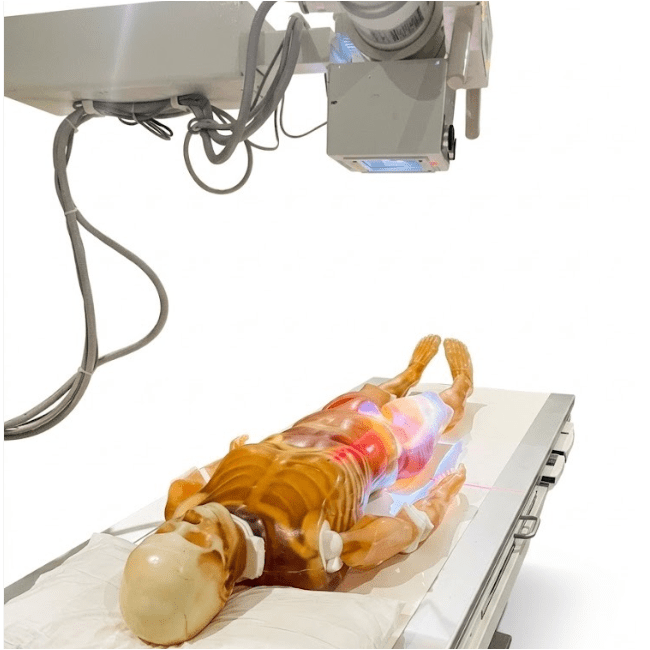

  • Useful to train/perform several patient positioning techniques under radiology.
  • Shoulders can be rotated 360 degrees round ways and 180 degrees sideways.
  • Movable Hip joints, knees, and elbows at respective degrees.
  • Detachable Head, Torso & limbs.
  • The bones have a realistic three-layered structure with inner porosity which can be adjusted according to the requirement of the particular project.
  • Customizable with different pathologies(lesion, tumor, infection, abnormality) upon request.

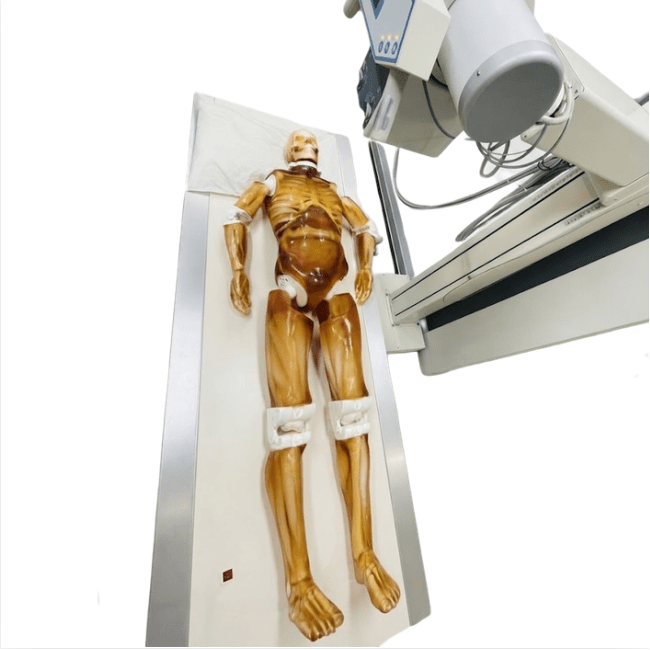

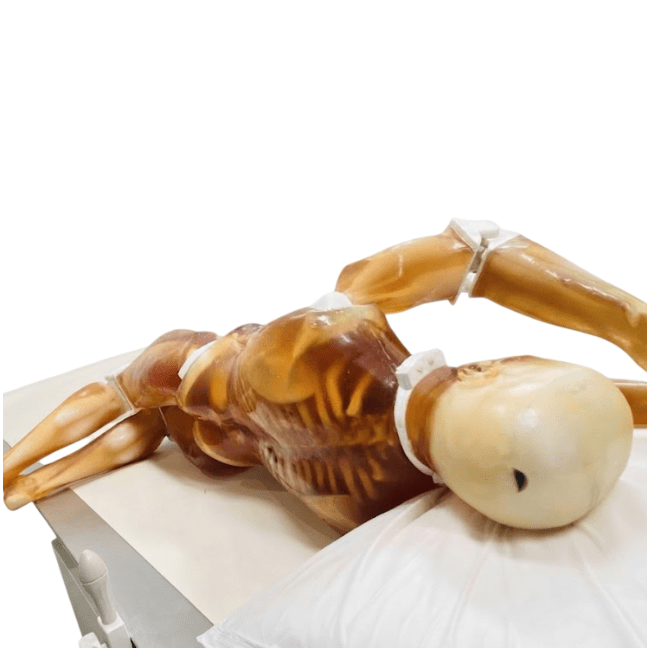

  • The phantom can be ordered in a transparent or skin-colored version.
Your order will include:
  • Full body divided into 10 parts
  • Design video
  • Manual
  • Hard carry case (Optional. Qty. 01)
Height and Weight of the phantom:
  • Height: 68.90in / 175cm (approx.)
  • Weight: 165.3lbs / 70kg (approx.)
Download:
Brochure

The phantom is divided into the following parts:

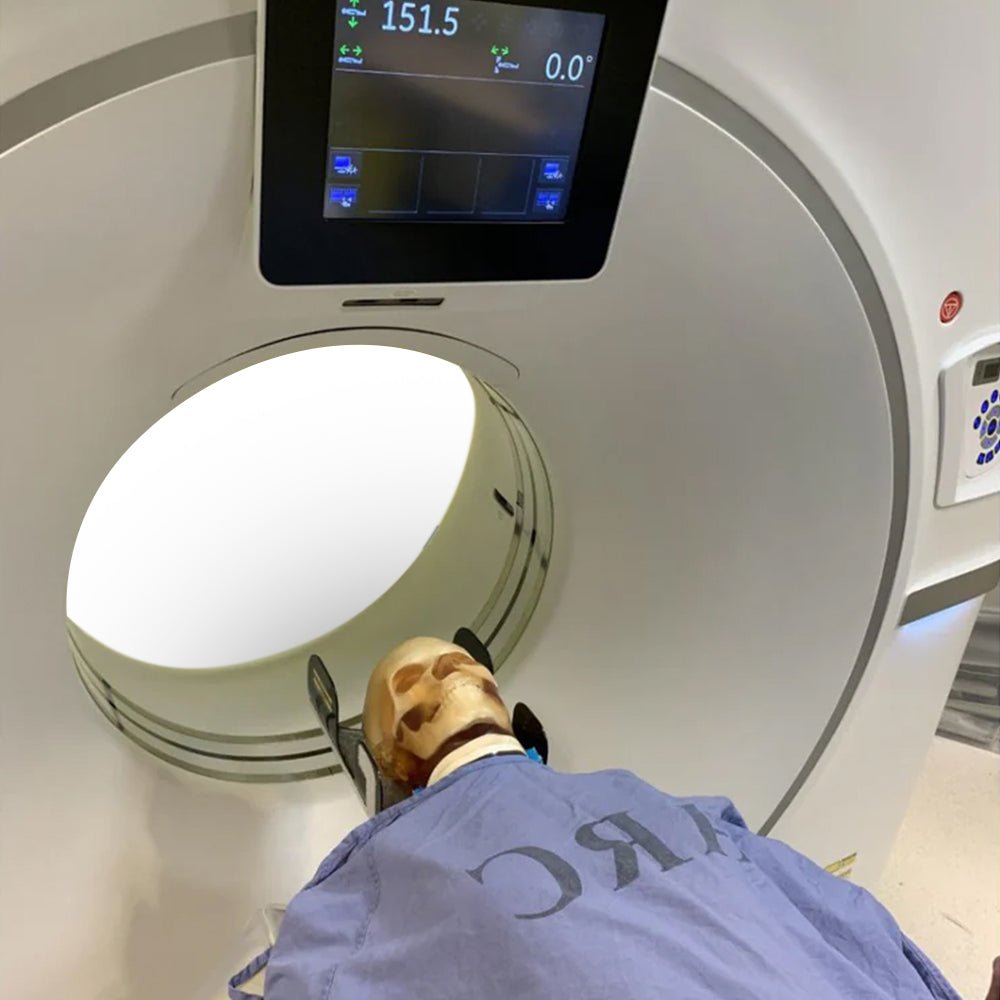

HEAD (HD-A05) – 1 Unit

  • Anatomically correct realistic skull phantom
  • Realistic brain phantom:
  • Realistic brain tissue
  • Gray matter (contrast x)
  • White matter (contrast x’)
  • Realistic air cavities within the phantom
  • Acoustically correct opaque skin-mimicking material
  • Cervical spine
  • Alignment markings
  • Frontal sinus with air gaps

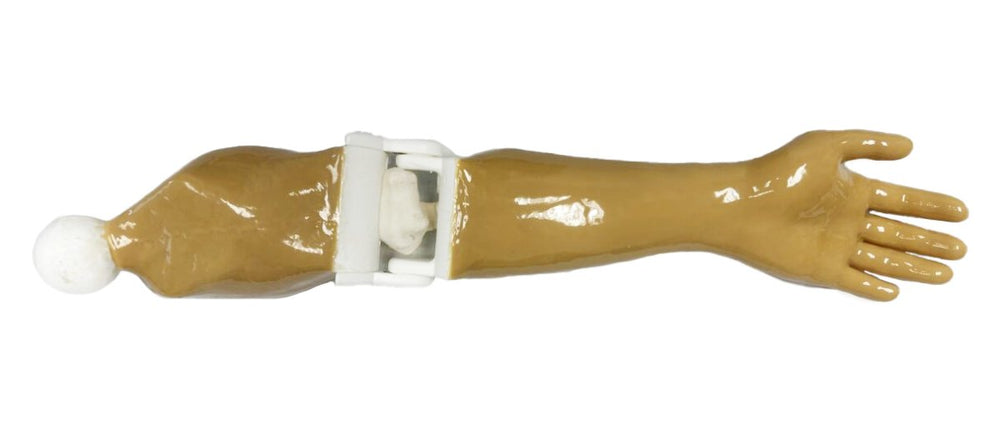

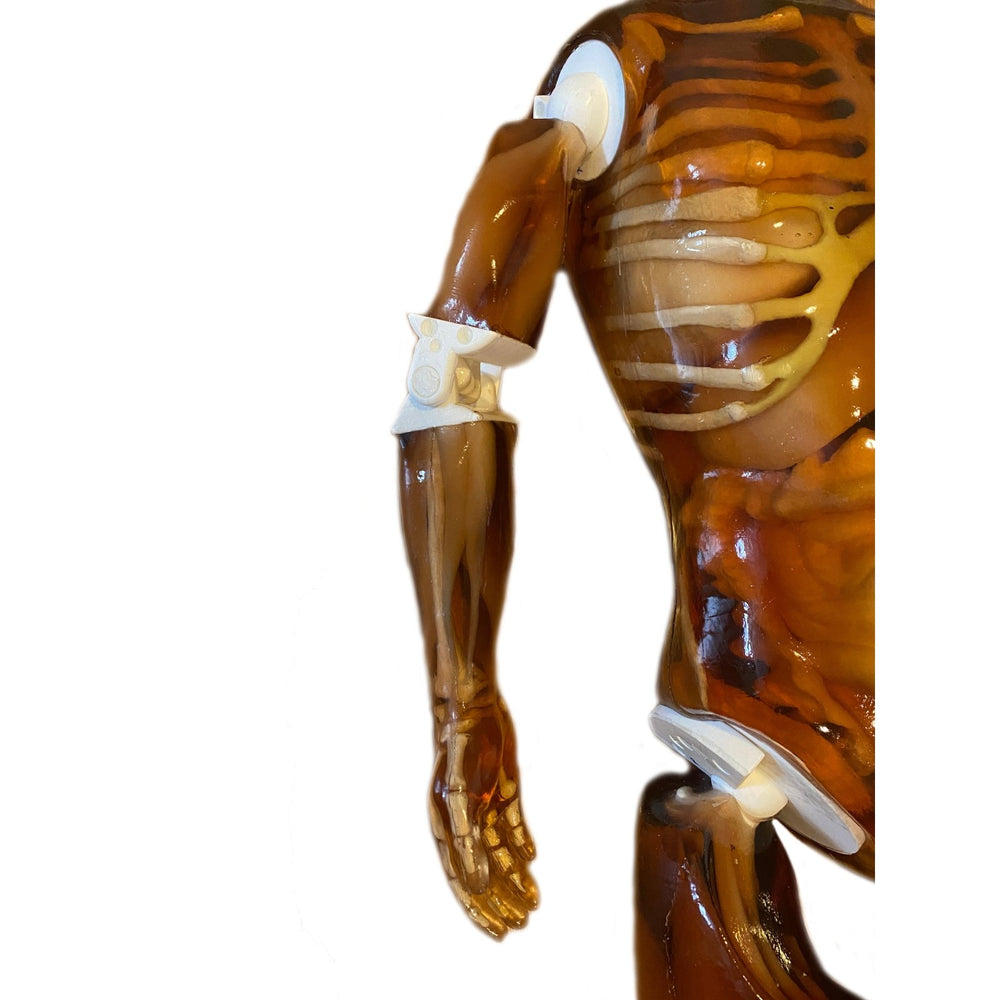

ARMS (AR-A02) – 2 Units

  • Shoulder (Clavicle & Scapula)
  • Arm (Humerus)
  • Major Muscles
  • Elbow joints
  • Forearm (Radius, Ulna)
  • Hand (wrist with fingers)
  • Acoustically correct skin-mimicking material surrounding the arm

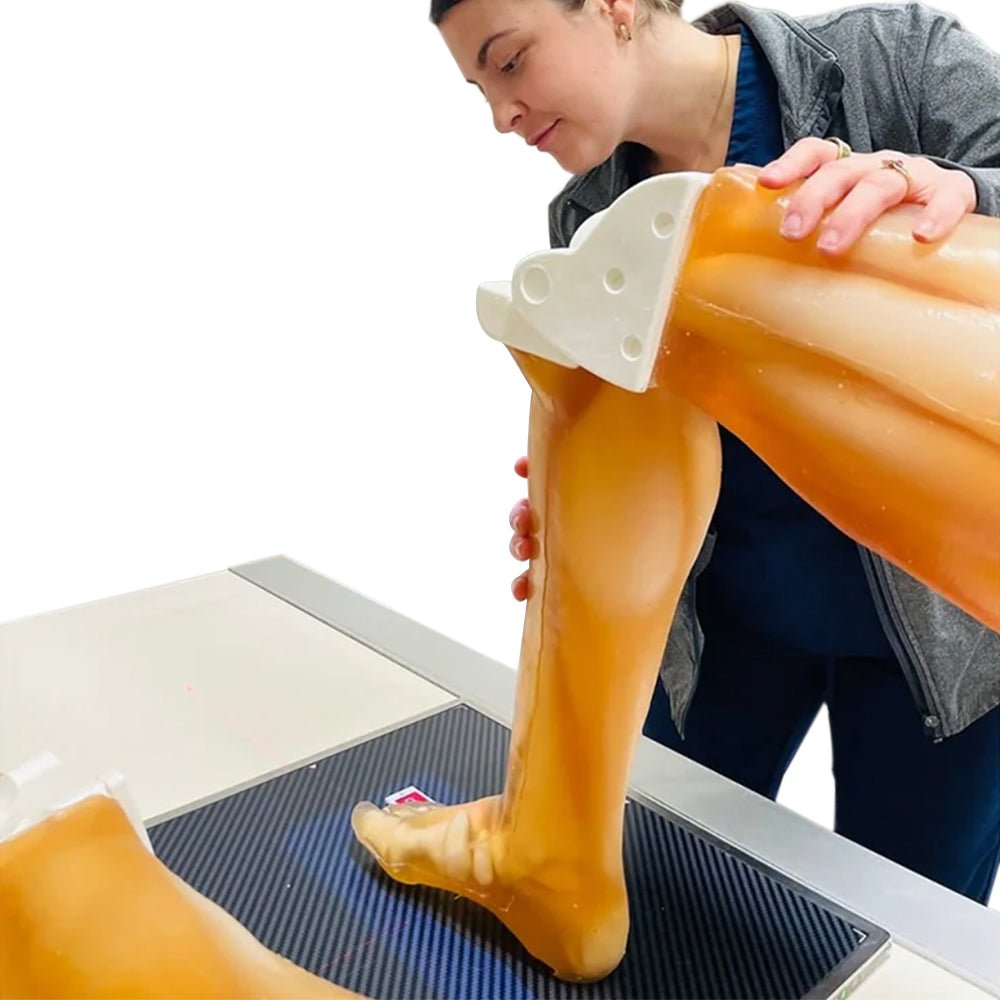

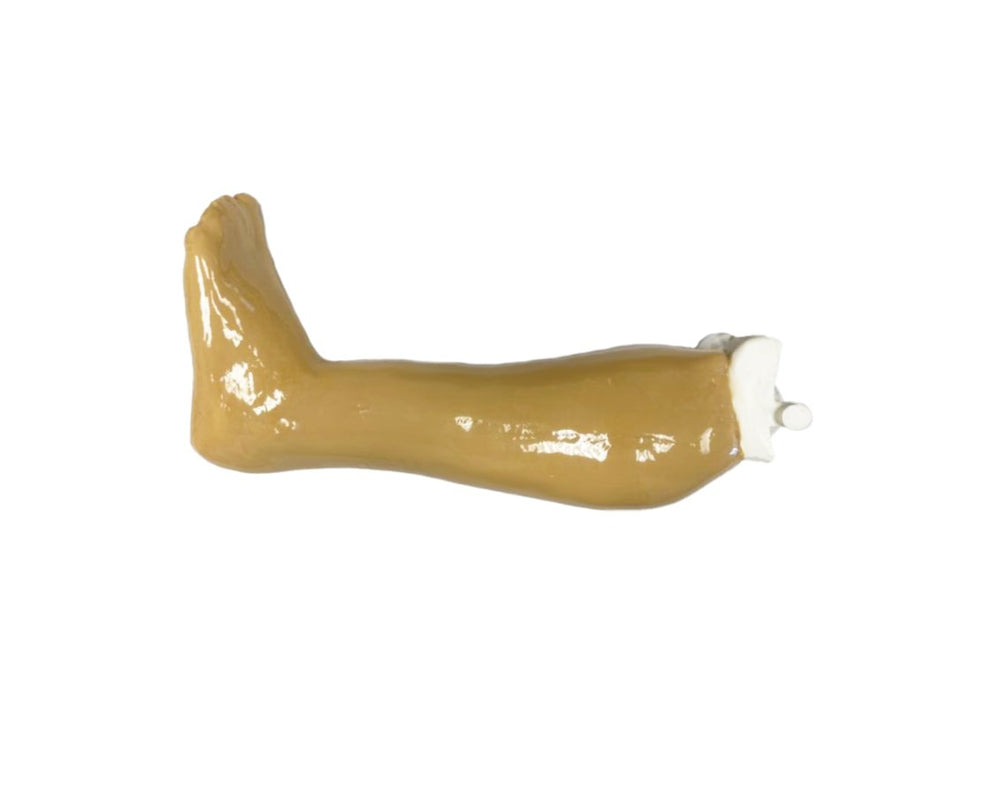

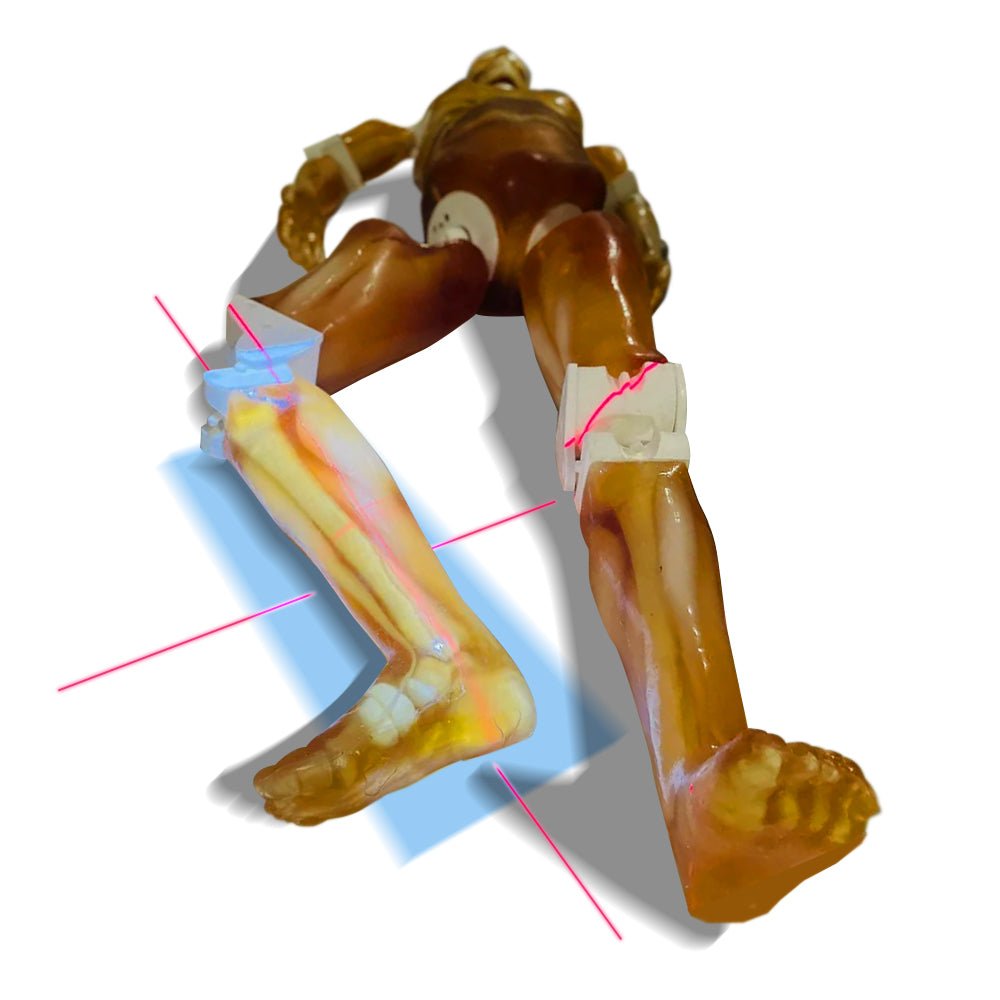

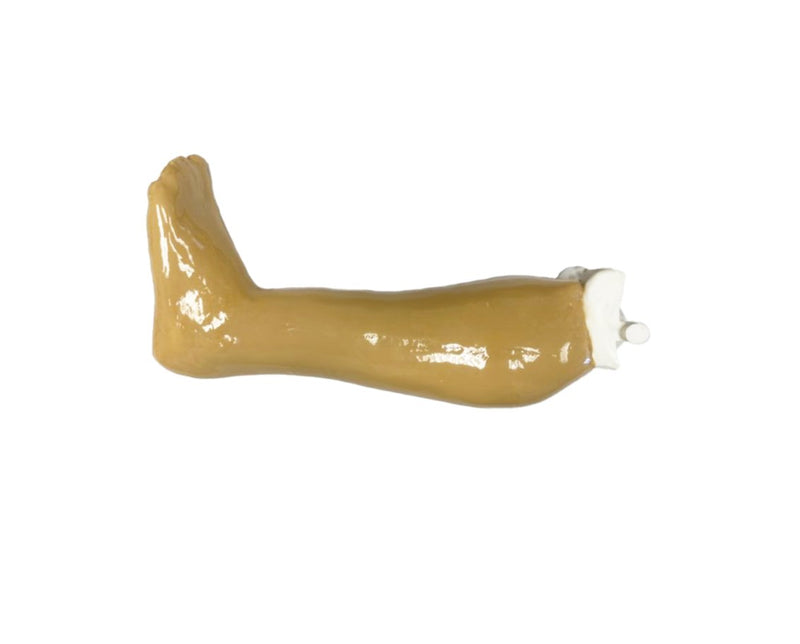

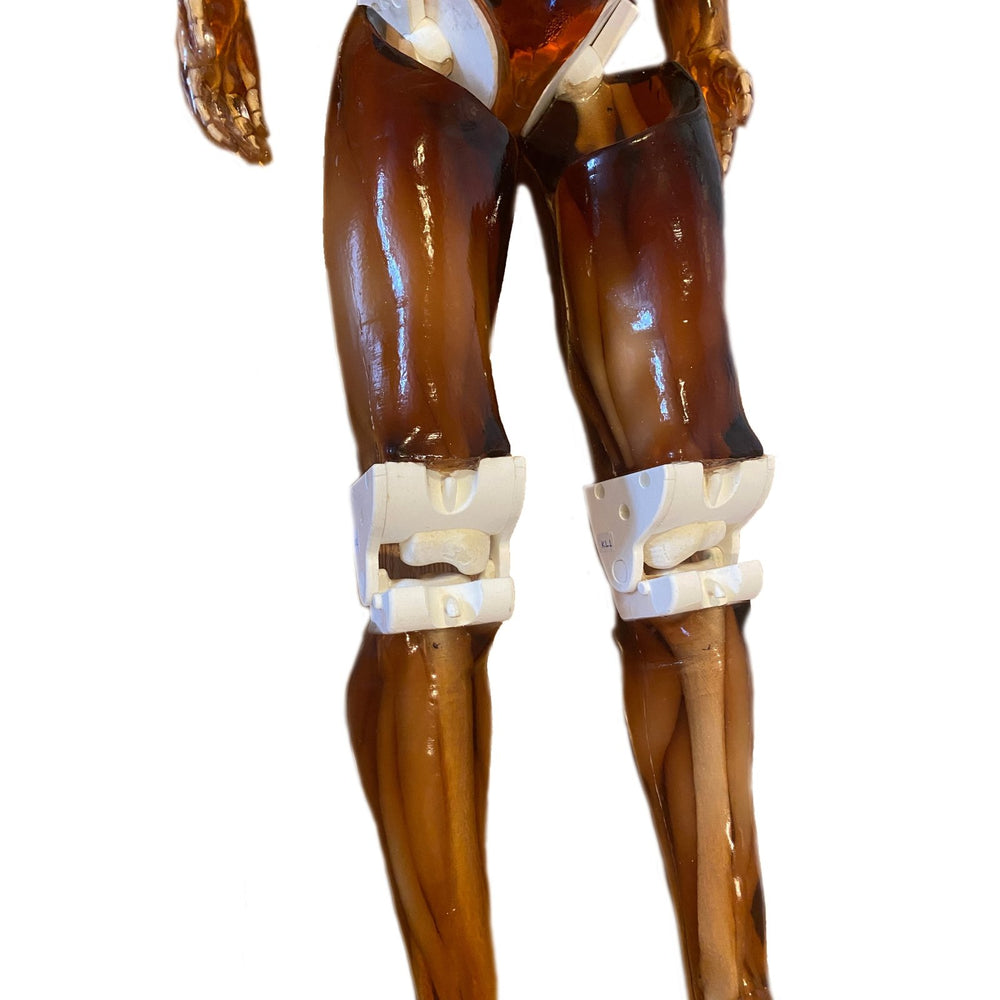

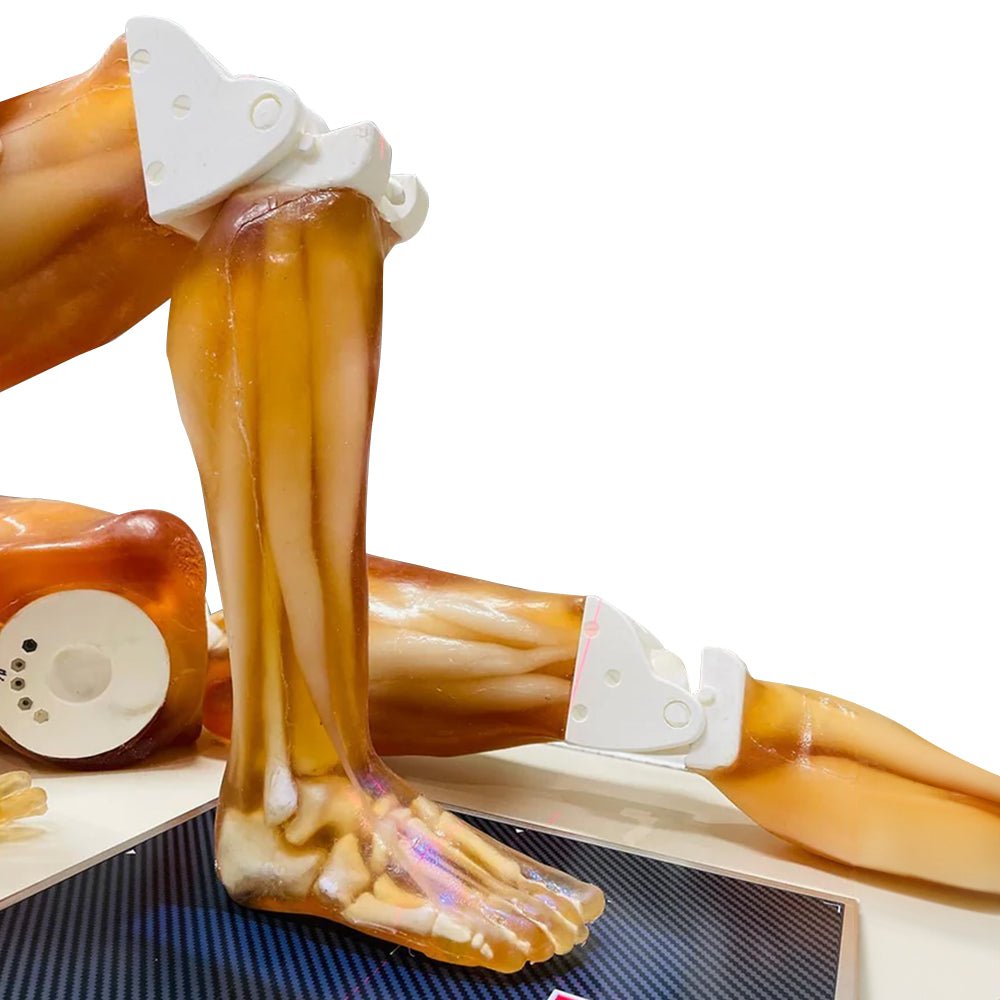

LEGS (LG-A02) – 2 Units

  • Thigh (Femur)
  • Knee joints
  • Major Muscles
  • Leg (Tibia, Fibula)
  • Foot (Finger bones)
  • Acoustically correct skin-mimicking material surrounding the arm

TORSO (TO-C01) – 1 Unit

  • Bones included:
    • - Complete Spine
    • - Complete Ribcage
    • - Pelvis
  • Thoracic organs included:
    • - Trachea
    • - Anatomically correct Heart
    • - Aorta from aorta arc until abdominal aorta with common iliac artery,
    • - External iliac artery, internal iliac artery, and renal arteries
    • - Lungs
    • - Fine arteries for the Liver and Kidneys
  • Major abdominal organs included:
    • - Stomach
    • - Liver
    • - Kidneys
    • - Fine arteries
    • - Bladder
    • - Large & small intestines

HD-A05

TO-C01

AR-A02(Left)

AR-A02(Right)

LG-A02(Thigh left)

LG-A02 (Left)

LG-A02(Thigh Right)

LG-A02(Right)

Design of the Phantom:

Front – Top view

Front- Mid view

Front – Bottom view

Top View

CT Scans

CT – head & torso

CT -head & torso

CT-chest

CT-abdomen

CT- legs

CT-legs

MRI Scans:

MRI- head and back

MRI- chest and abdomen

MRI- pelvis, thighs and Muscles

MRI – thighs with muscles

MRI- lower legs with muscles

These MRI scans were obtained from our product, Adult Full Human Body Phantom(With Muscles) for X-Ray CT & MRI Training(TPS-FB-A02). These are served as an example to refer to the imaging quality of this phantom, the standard Full body phantom (FB-A01) will not have muscles in the arms and legs. If you have any questions related to these, please Contact Us

CT Scans

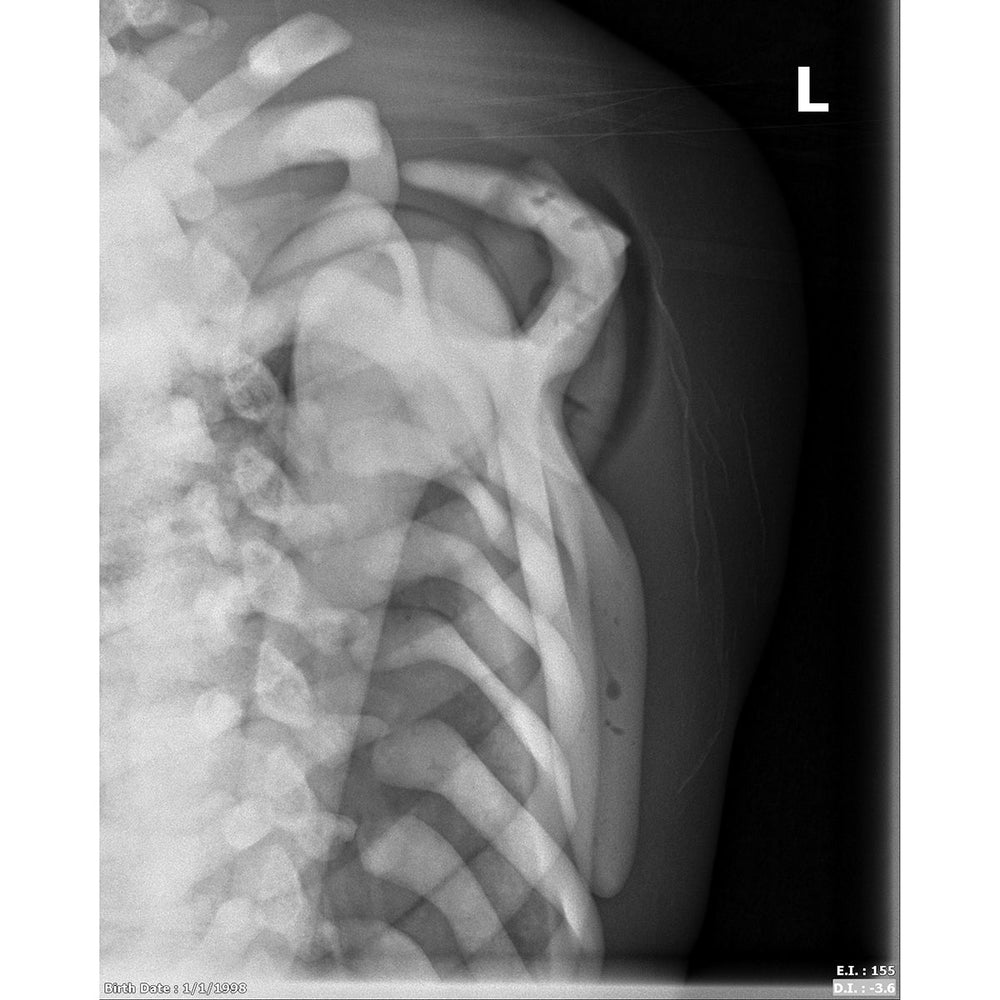

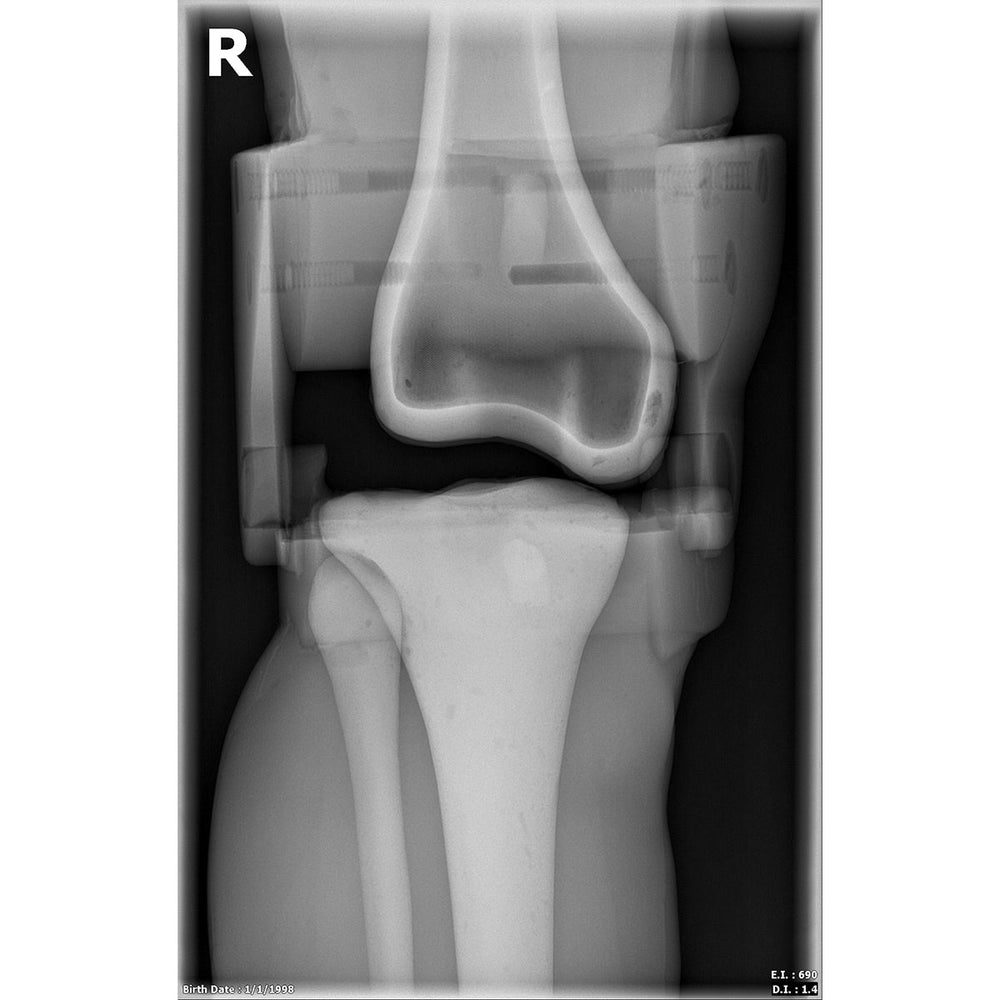

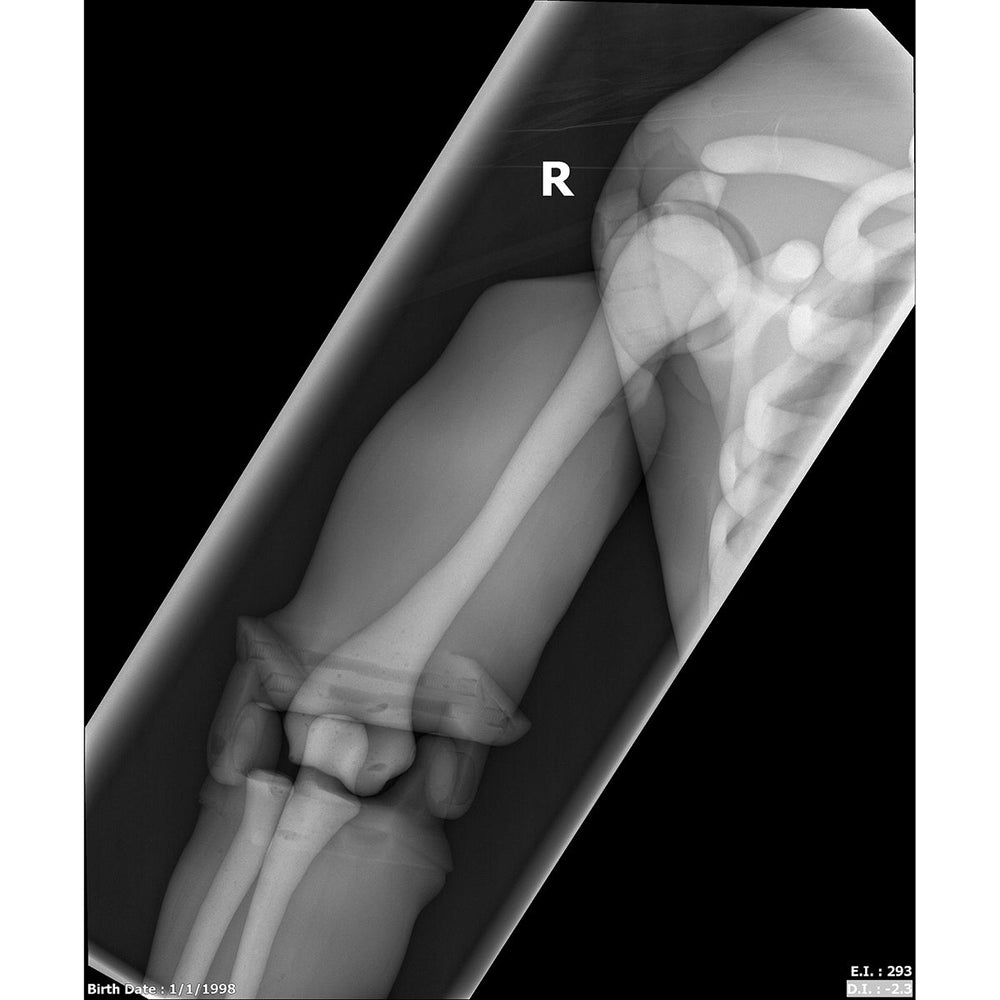

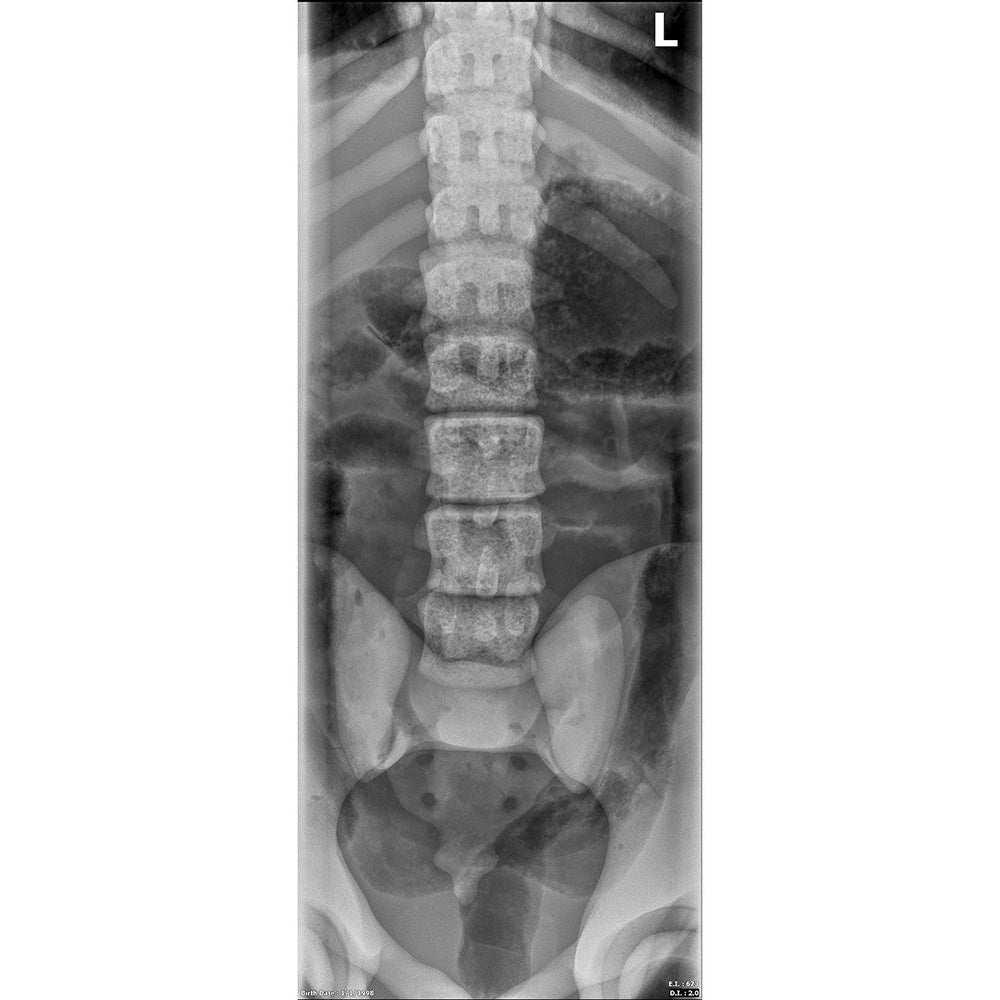

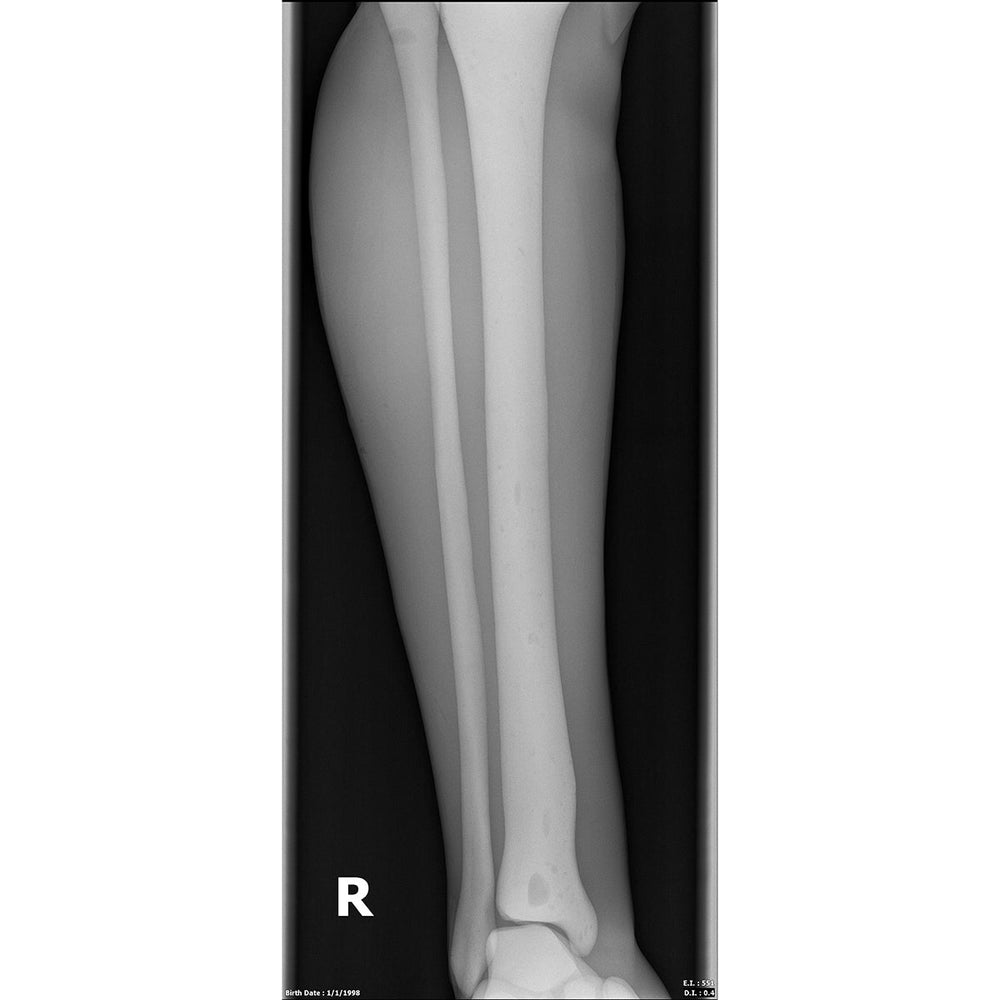

These XRAYS are served as an example to refer to the imaging quality of this phantom.
If you have any questions related to these, please Contact Us

Height and Weight of the phantom:
  • Height: 68.90in / 175cm (approx.)
  • Weight: 165.3lbs / 70kg (approx.)

Logistic arrangement:

  • Total boxes: 1 Hard carry case (inside of the cardboard box)
  • Shipment Total weight: 198.4 lbs / 90 kg
  • Shipment Total dimensions: 47.24 x 25.59 x 17.72 in / 120 x 65 x 45 cm (outer dimensions of the cardboard box.)
    Materials used:
  • Soft tissue and organs: Composition of urethane base soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
S.No. Tissue Type HU Value (average)
1 Body tissue: -25
2 Trabecular bone: 800
3 Cortical bone: 1300
4 Aorta: 40
5 Vena cava: 40
6 Trachea: 80(Tissue part),
-1000(Air filled part)
7 Pancreas: 110
8 Spleen: 110
9 Kidneys: 110
10 Bladder 35
11 Rectum wall: 100
12 Sigmoid Colon Wall: 100
13 Heart: 40
14 Liver: 110
15 Gallbladder: 35
Type of the tissues: Sound velocity [m/s] Density
[g/cm³]		 Hardness
[Shore 00]		 T2
[ms]		 Speckles Attenuation measured
at 2.25 MHz [dB/cm]
Cortical bone material used to fabricate the skull bone phantom 3000 ± 30 2.31 N/A N/A N/A 6.4 ± 0.3
Trabecular bone material used to fabricate the trabecular layer within the bone phantom 2800 ± 50 2.03 N/A N/A N/A 21 ± 2
Type of the tissues: Sound velocity [m/s] Density [g/cm³] Hardness [Shore 00] T2 [ms] Speckles Attenuation measured
at 2.25 MHz [dB/cm]
Brain tissue 1400 ± 10 0.99 20 70 YES 1.0 ± 0.2
Skin tissue 1400 ± 10 1.02 60 50 NO 1.7 ± 0.2
Thermal Conductivity: Volumetric Specific Heat Capacity: Thermal Diffusivity: Thermal Resistivity: Specific Heat: Speed of Sound:
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
