Adult Full Human Body Phantom for X-Ray CT & MRI Training

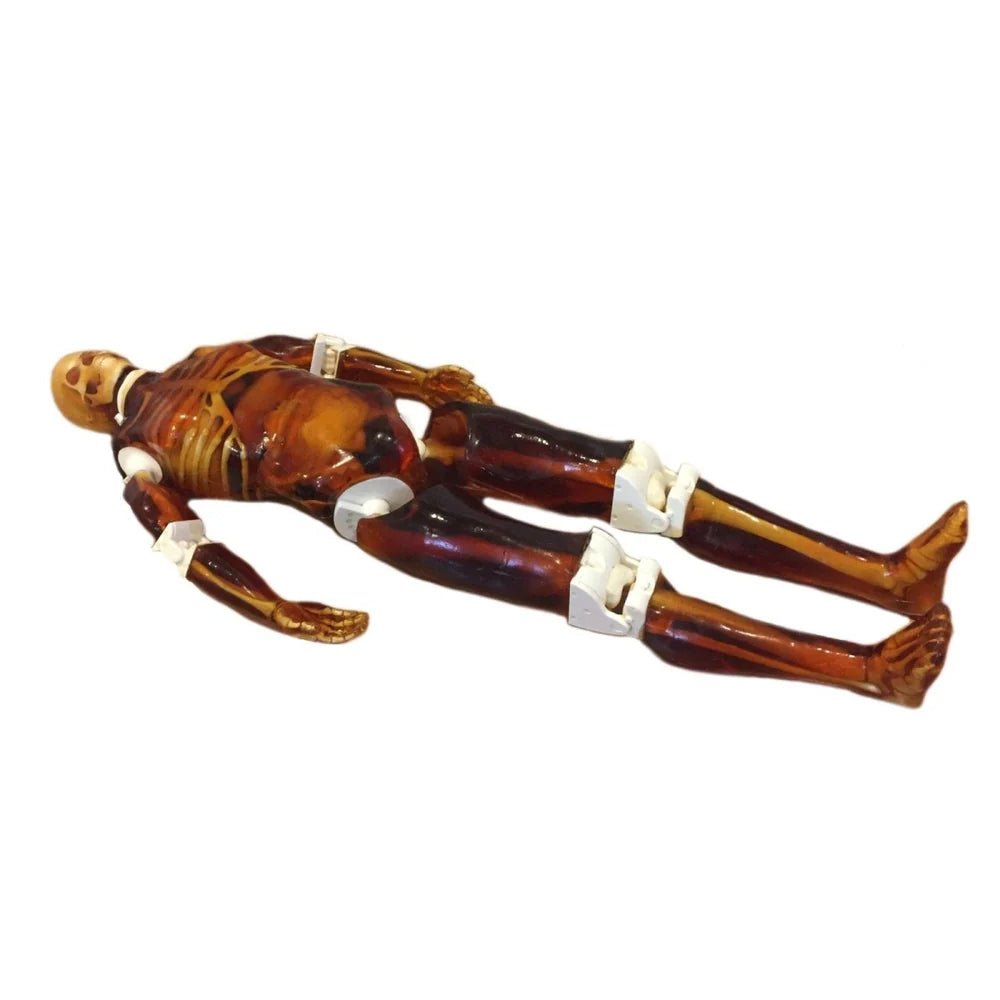

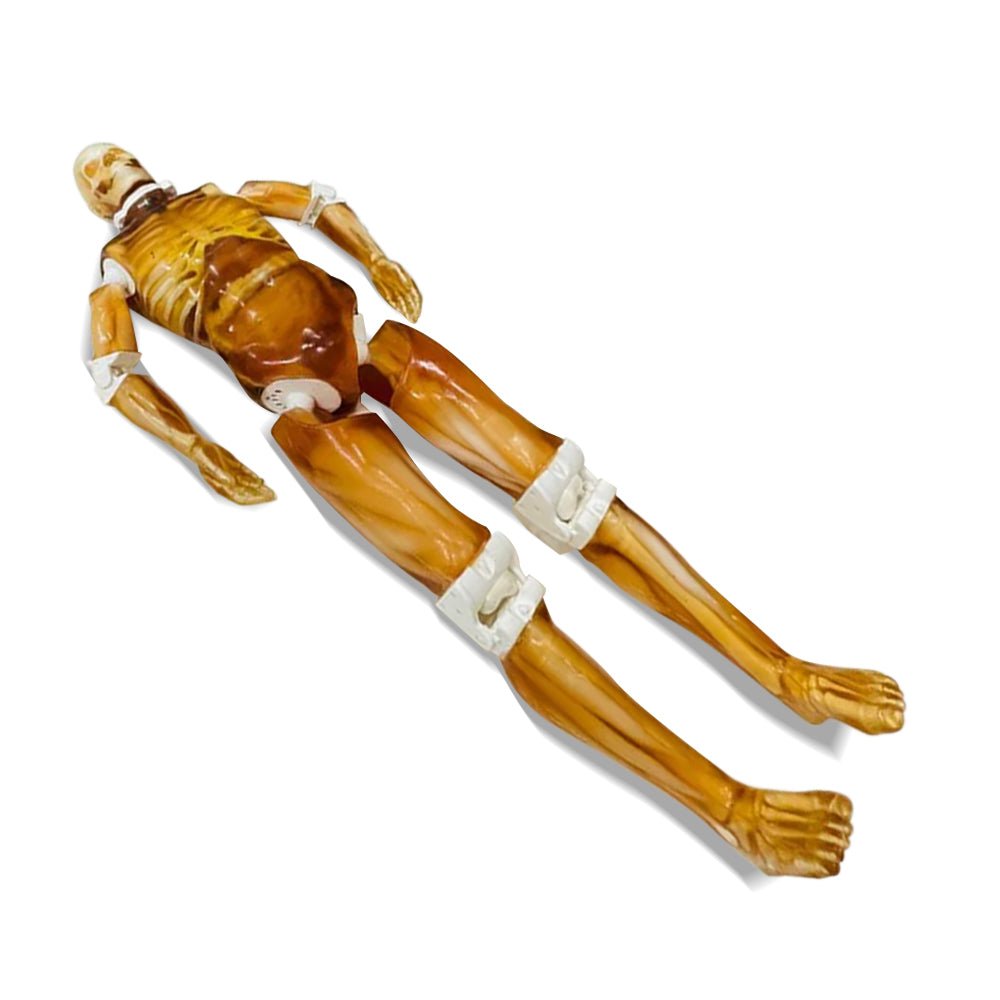

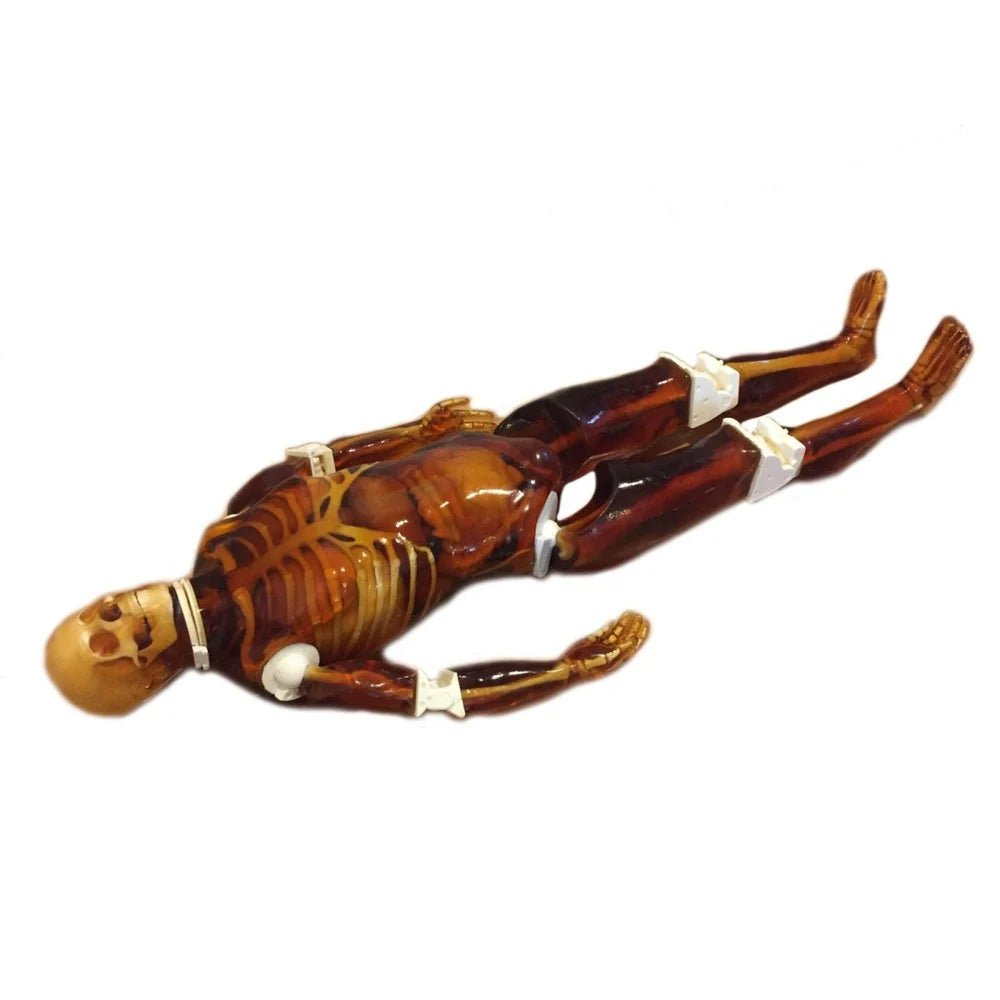

The Adult Full Body Phantom (FB-A01) is a versatile training product compatible with X-Ray/CT and MRI. It is
primarily used for providing hands-on experience with diagnostic imaging. The phantom’s bones are individually cast
with adjustable three-layered structures, and they can be customized with different pathologies. It is available in
transparent or skin-colored versions.

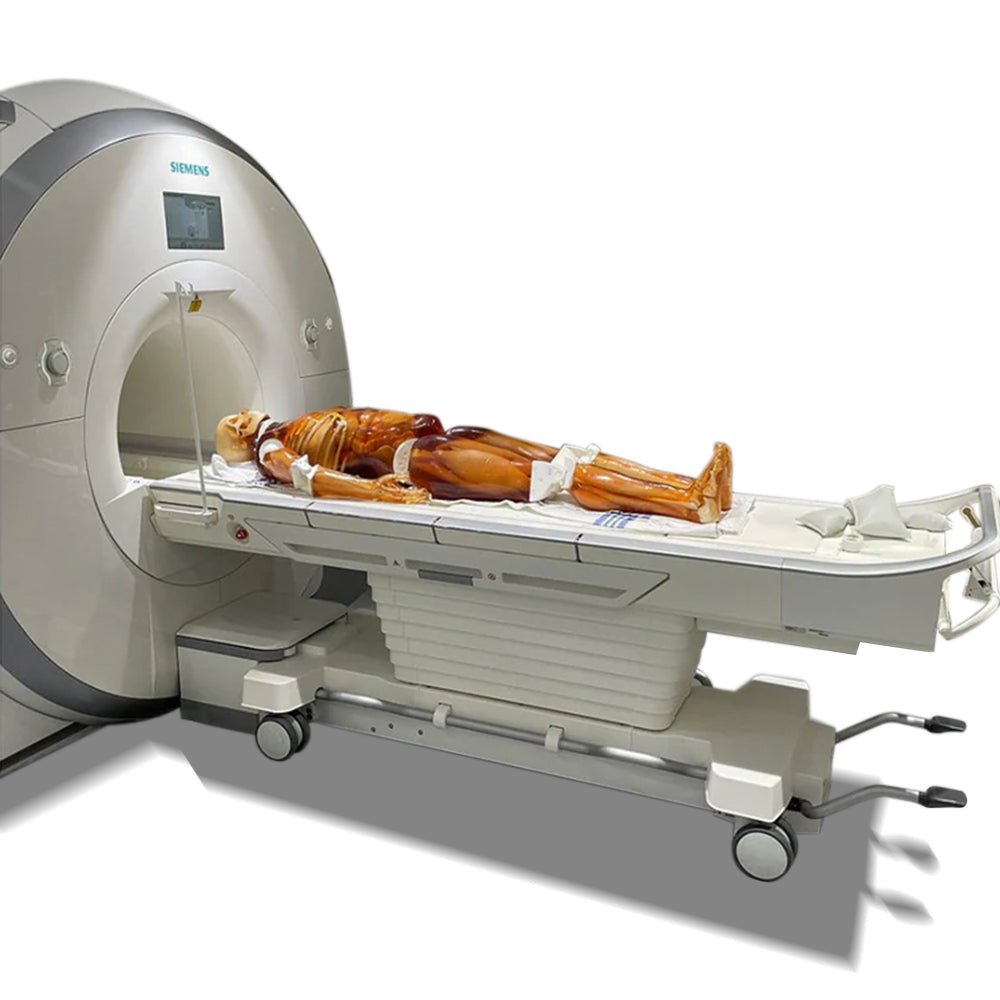

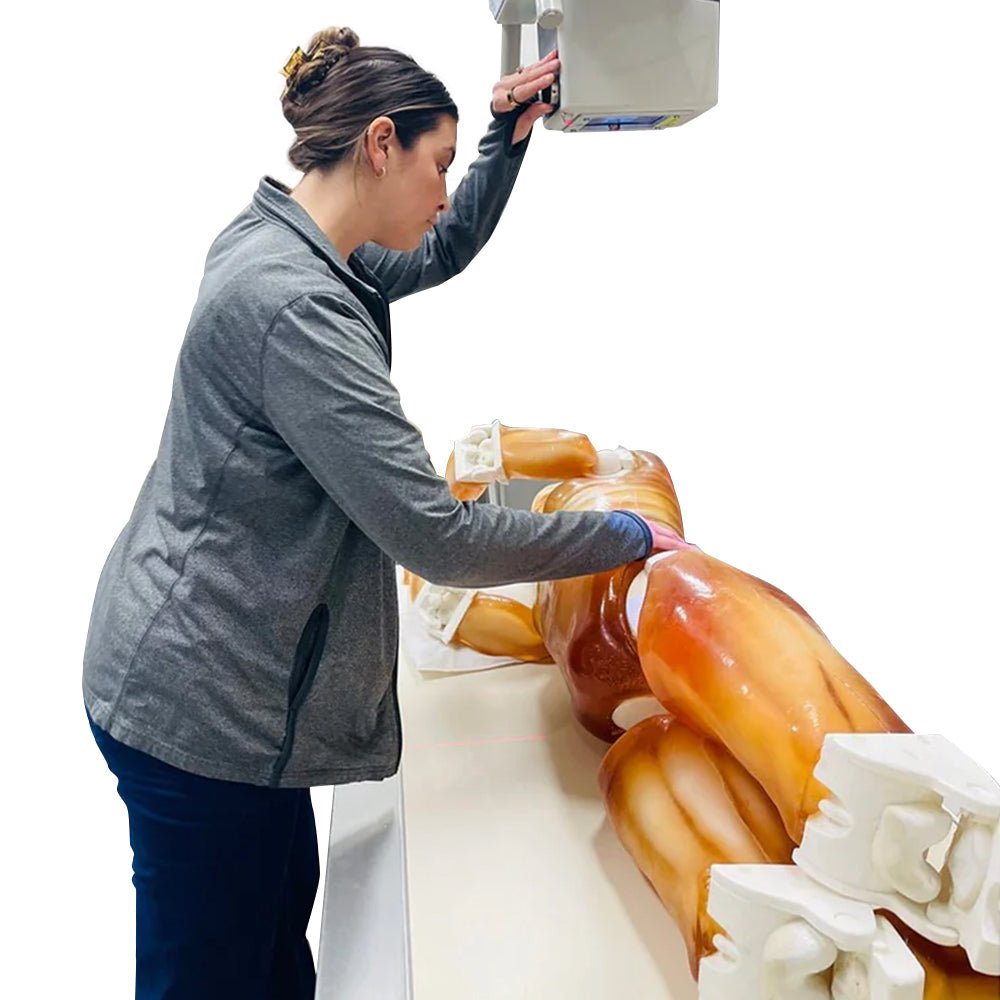

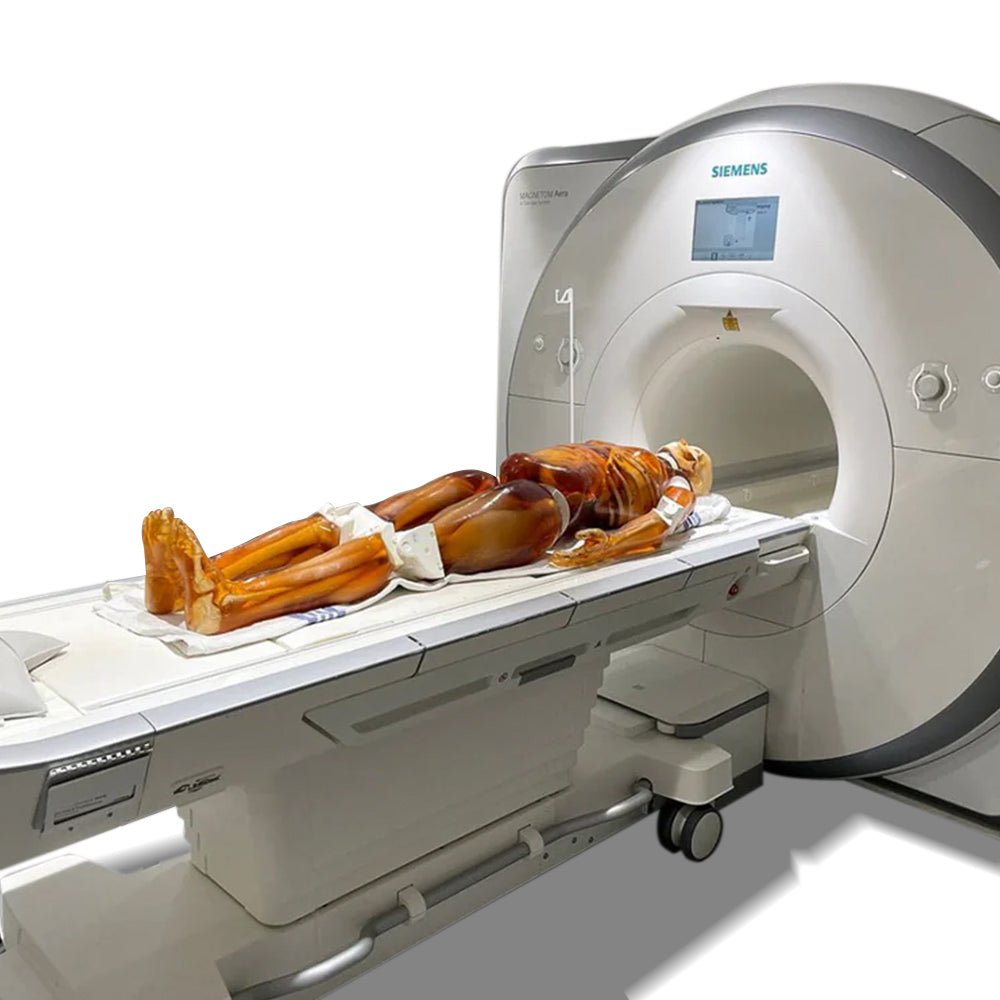

Adult Full Body Phantom is an X-Ray/CT and MRI-compatible training product. The primary application of this phantom
is hands-on experience with diagnostic imaging techniques and visual evaluation to find optimal scanning conditions.

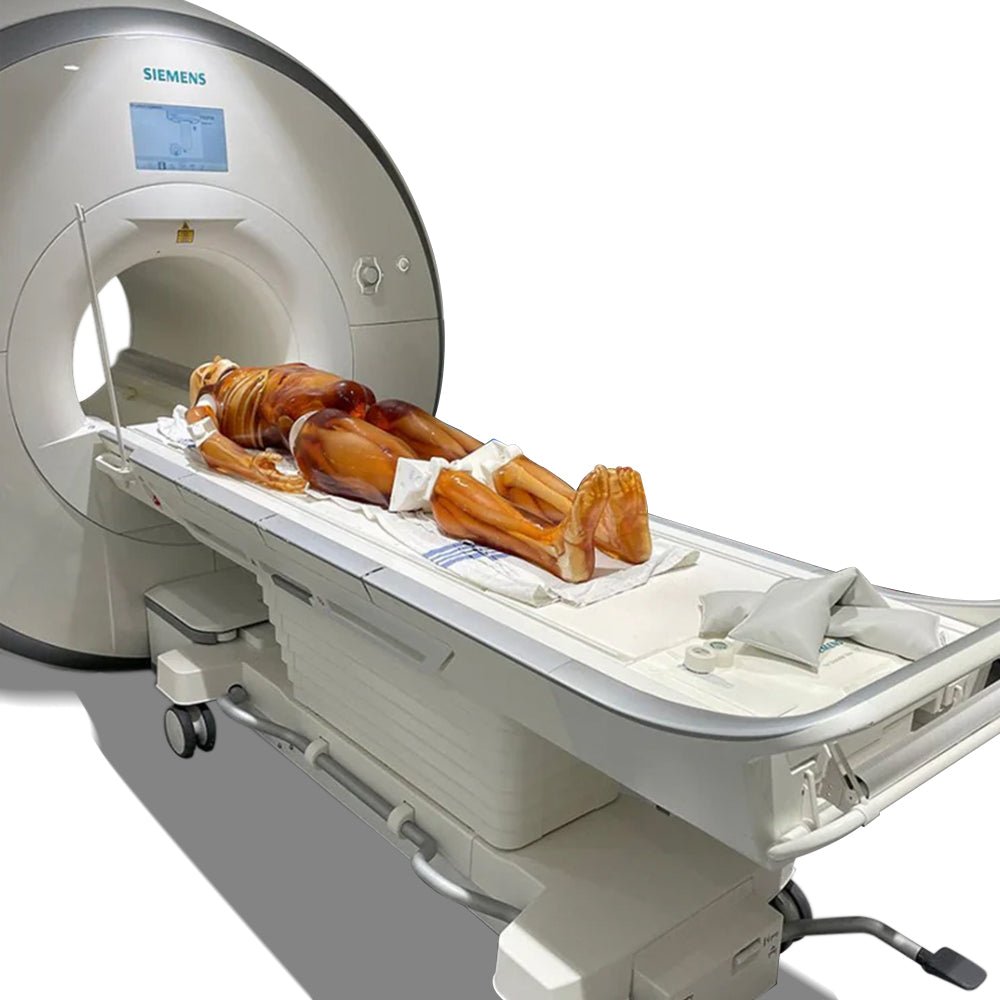

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product
to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with Proton
Density imaging methods. The phantom can be still imaged with T1-weighted methods, but the T1 values are less
realistic, and they are within the range of about 100 ms.
The model of this phantom is based on an adult male body that weighs about 70 kg (154 lbs) and measures 172 cm (69
in) in height.
The bones are cast individually from patented epoxy-based composite material and have a realistic three-layered
structure with inner porosity, which can be adjusted according to the requirement of the particular project. The
phantom is customizable with different pathologies(lesion, tumor, infection, abnormality) upon request. This

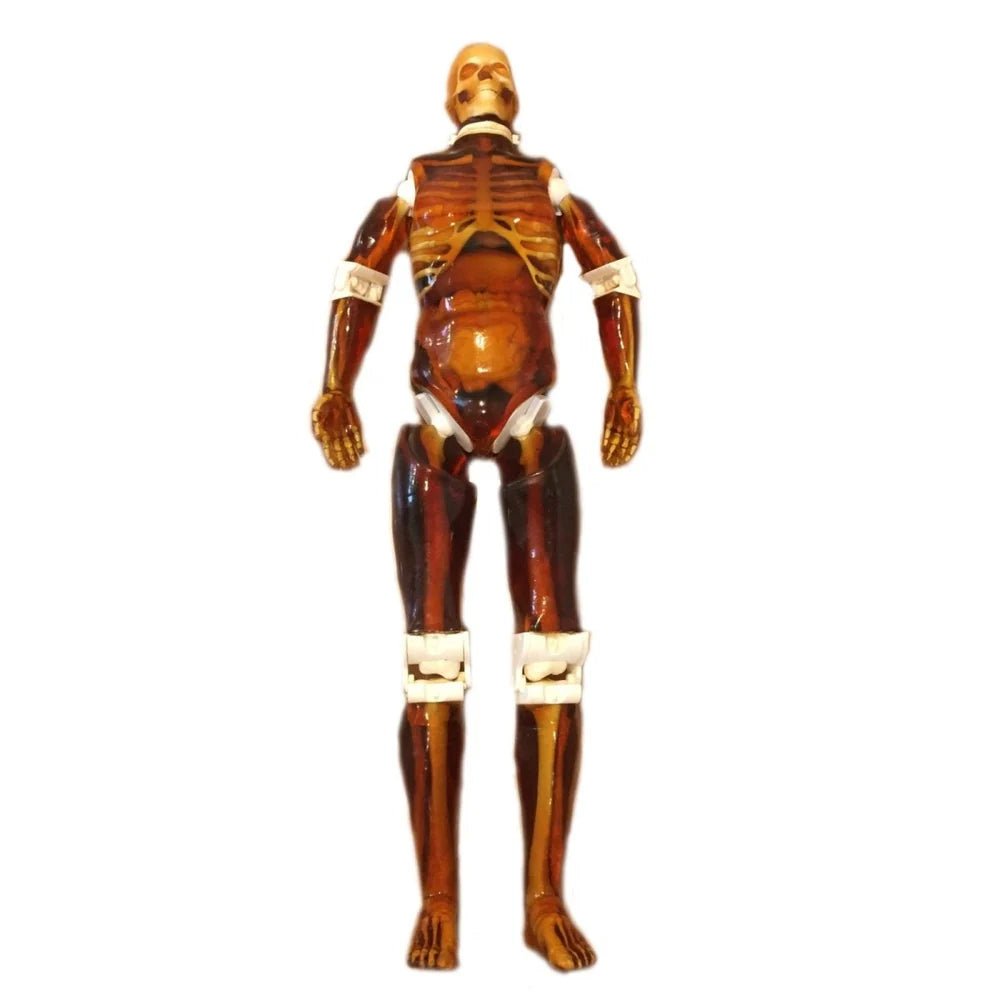

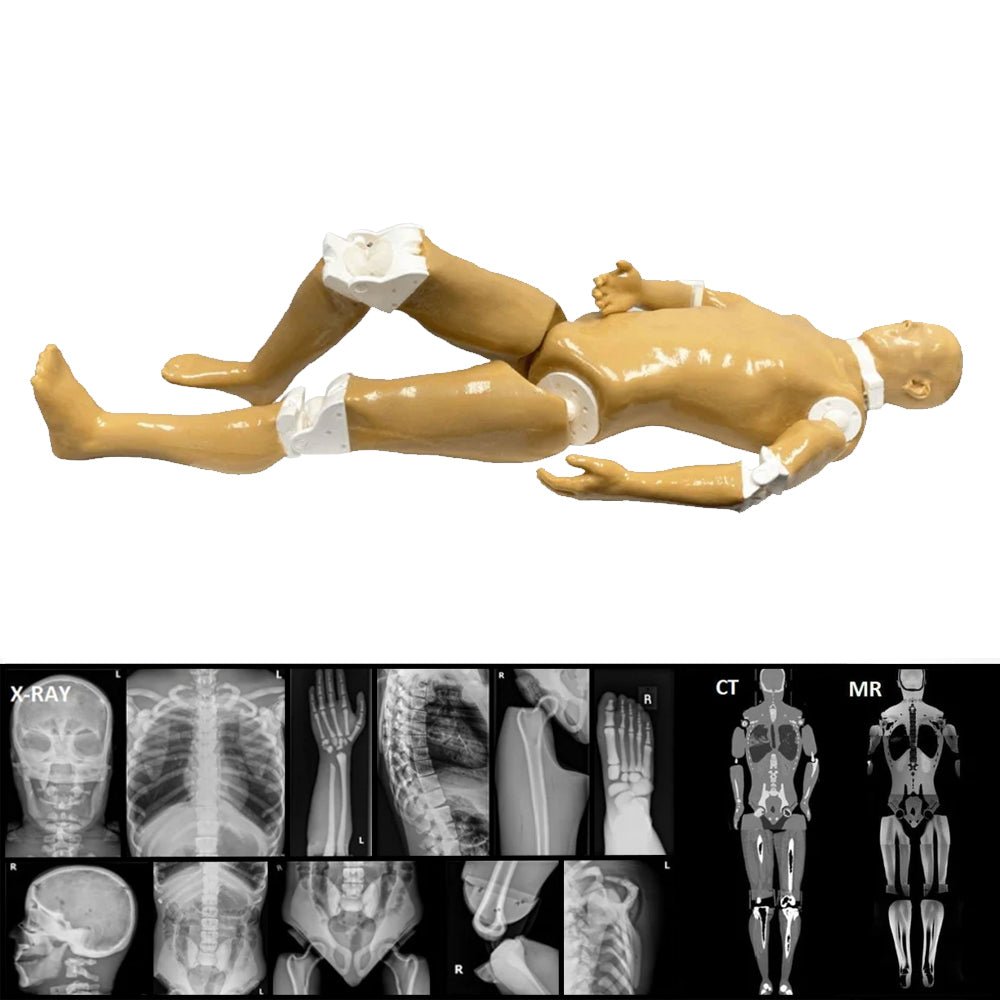

positioning phantom can be ordered in a translucent or skin-colored version.
Anatomy
- Full Human Body (10 Parts)
- Realistic Body Tissue-Mimicking Material
- Rotatable Shoulders (360° Around and 180° Sideways)

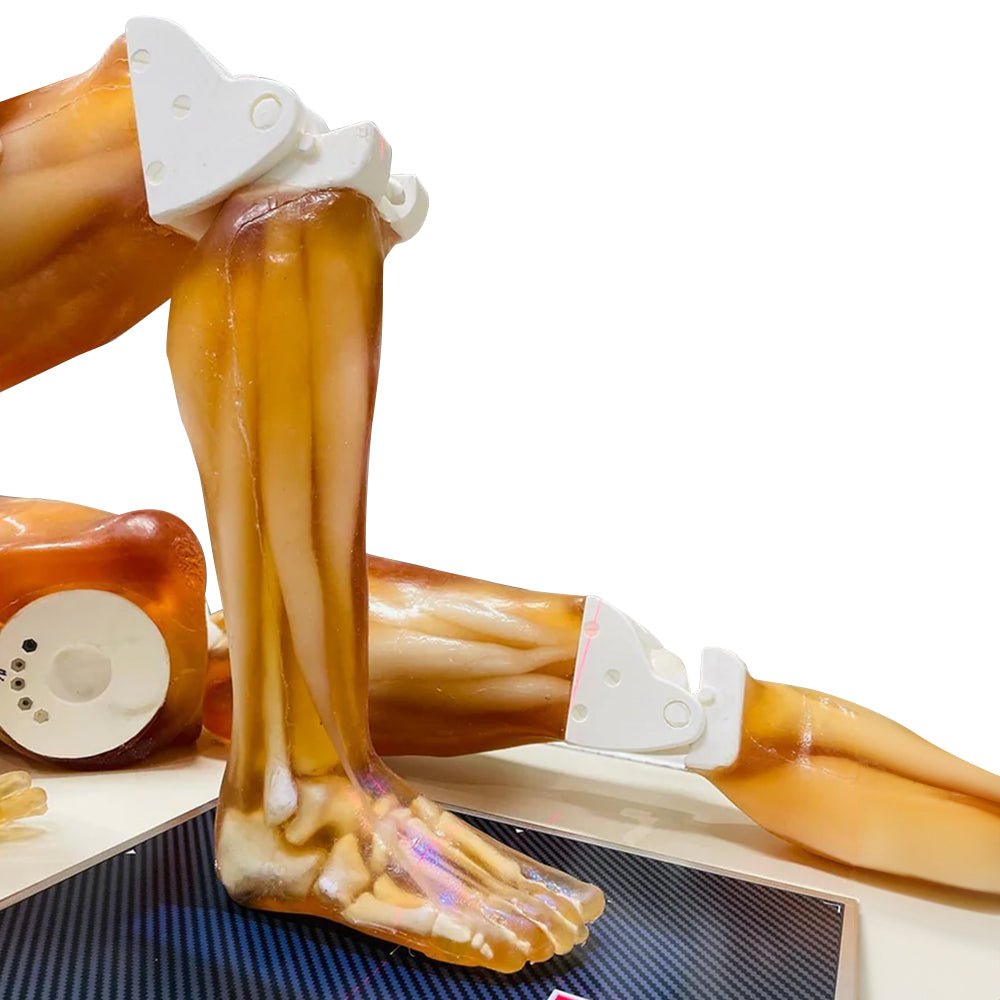

- Movable Hip, Knee, and Elbow Joints
- Detachable Head, Torso, and Limbs
-

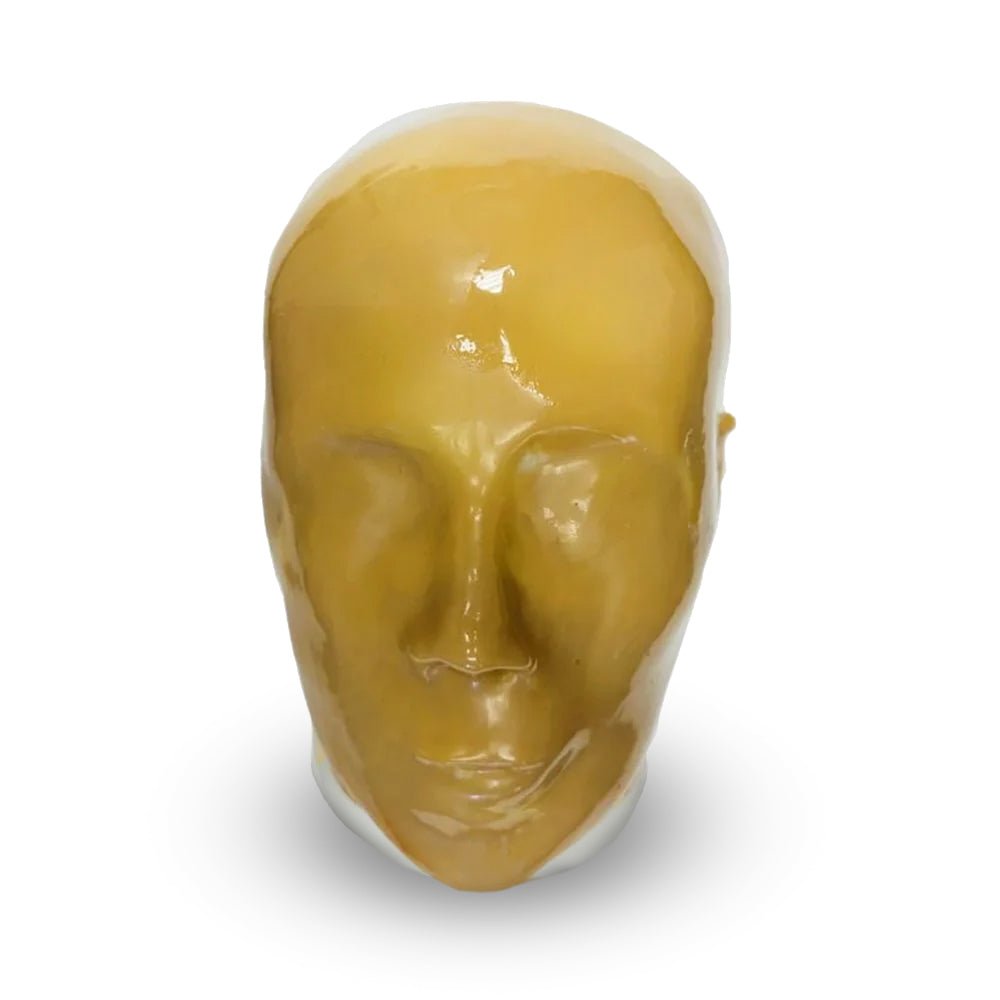

Adult Head
- Skull
- Brain
- Brain Tissue
- Grey and White Matter
- Air Cavities
- Frontal Sinus with Air Gaps
-
Adult Torso
- Spine
- Ribcage
- Shoulders
- Clavicles
- Pelvis
- Trachea
- Heart
- Lungs with Bronchi (Air Ducts with Blood Vessels)
- Diaphragm
- Liver (with Ligaments & Bile Ducts)
-
- Gallbladder
- Stomach
- Kidneys
- Spleen
- Pancreas
- Large and Small Intestines
- Bladder
- Prostate
-

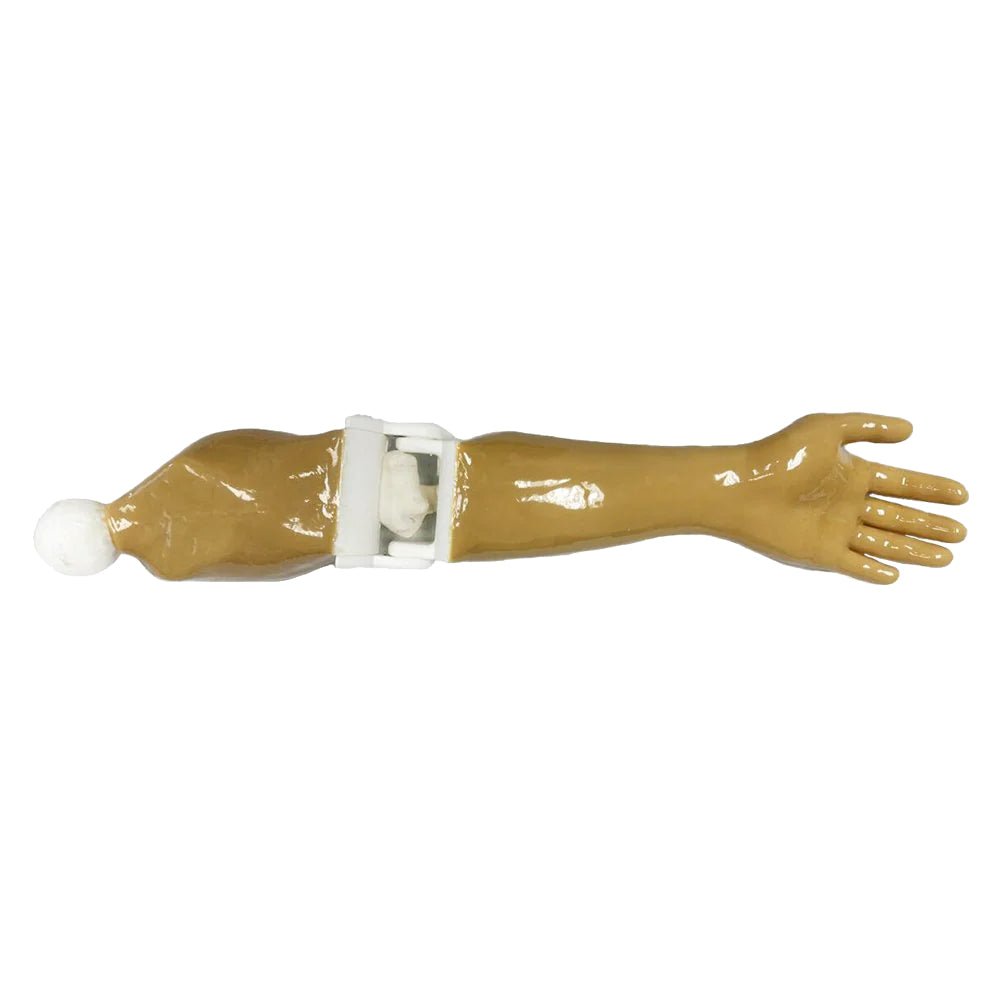

Adult Arms
- Humerus
- Elbow Joints
- Radius
- Ulna
- Wrist
- Fingers
-

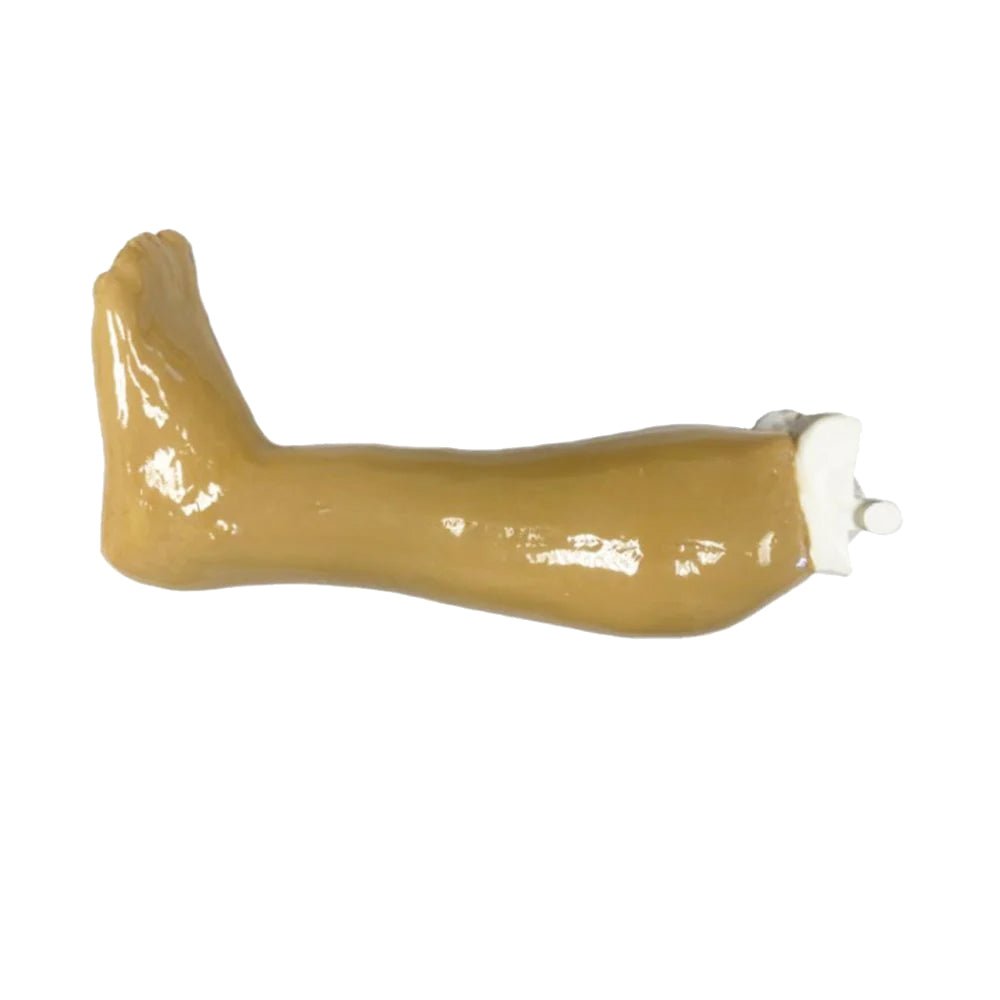

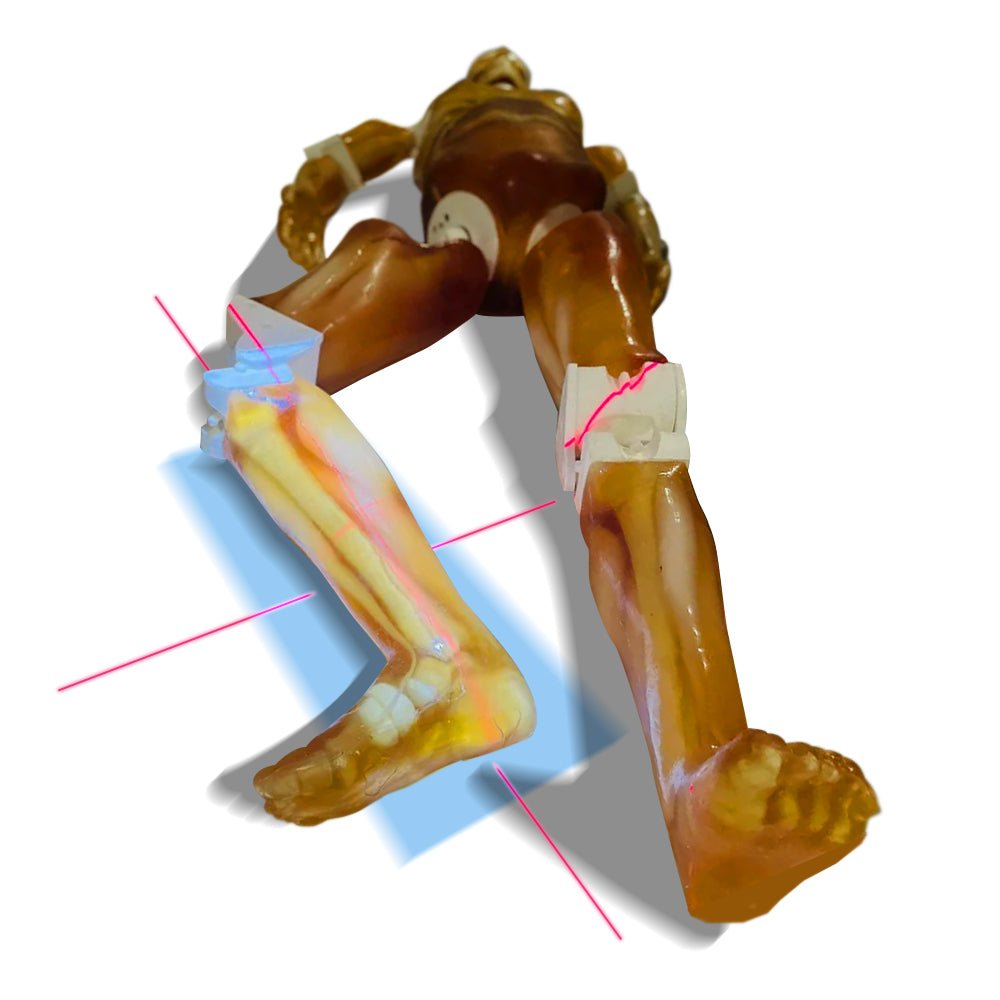

Adult Legs
- Femur
- Knee Joints
- Tibia
- Fibula
- Foot
- Toes

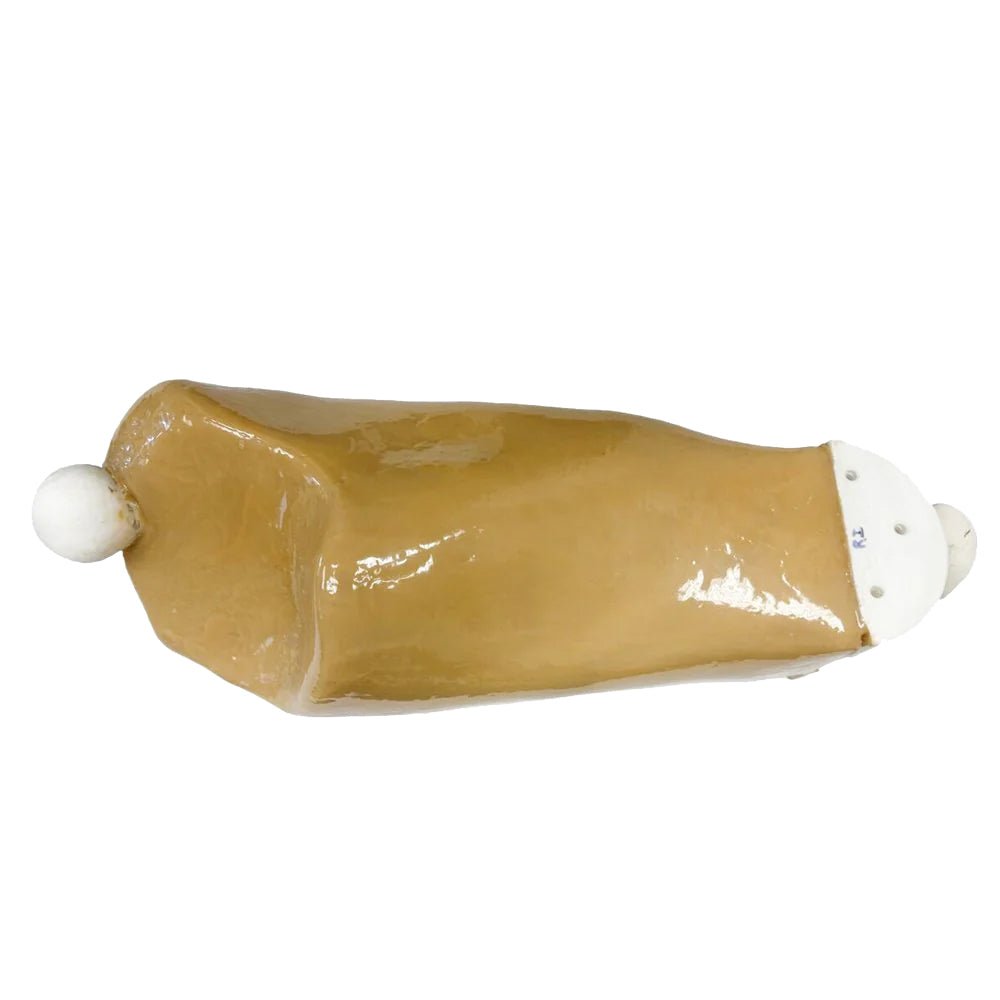

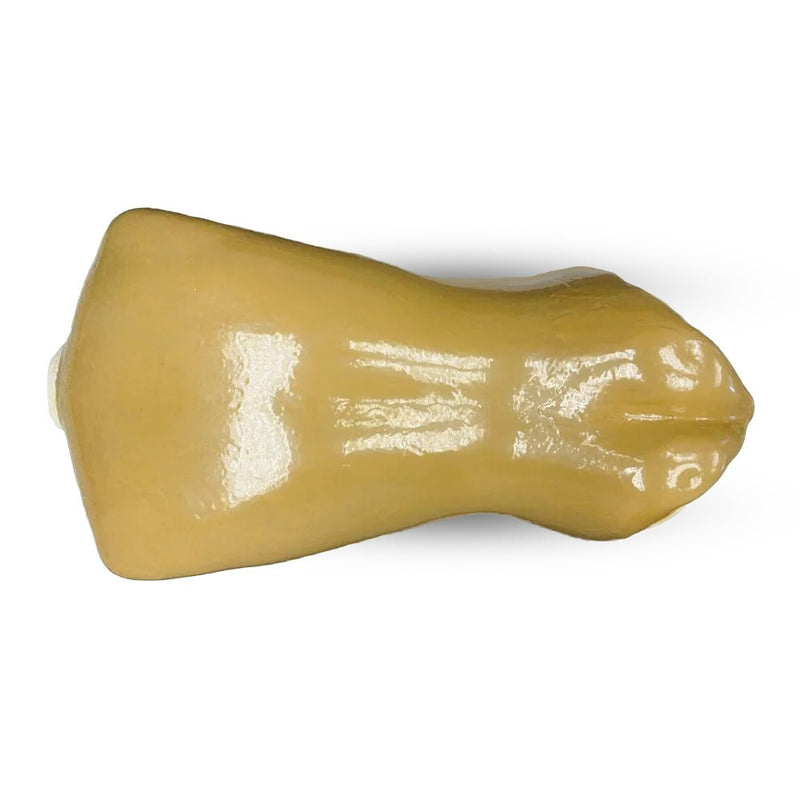

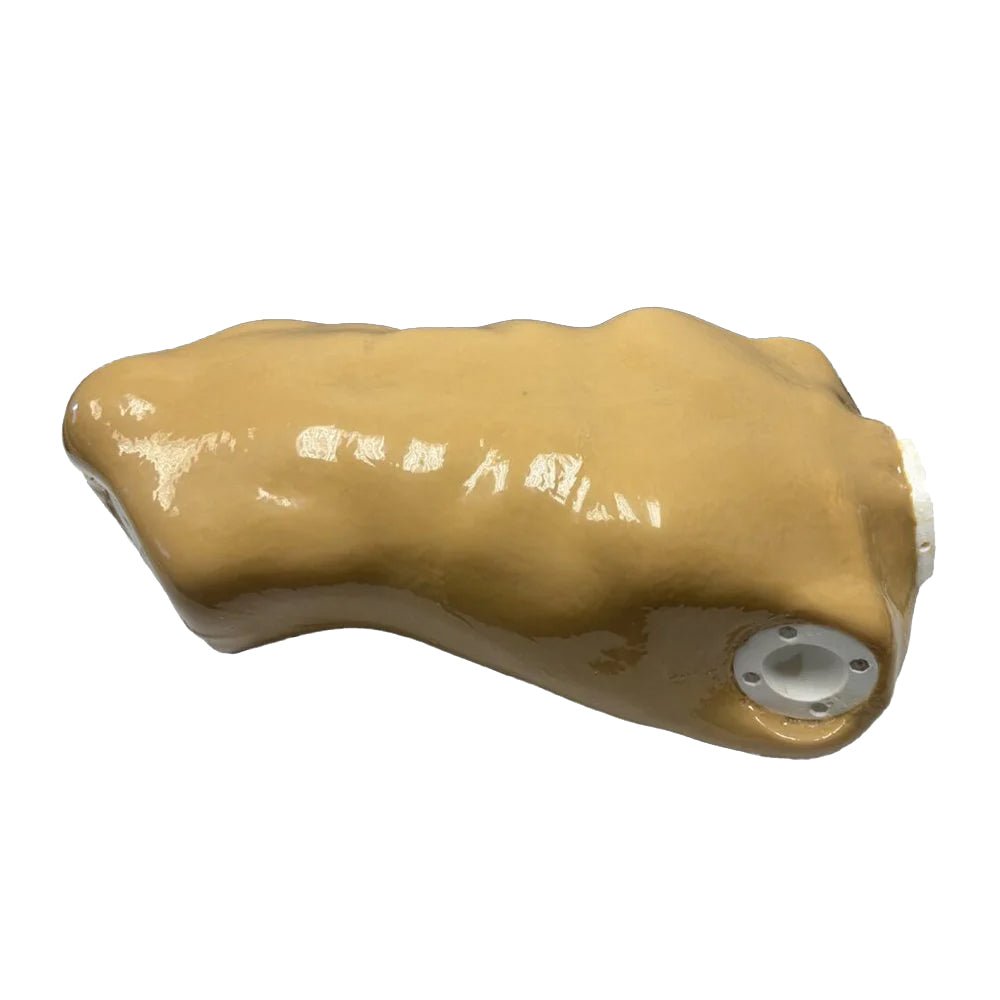

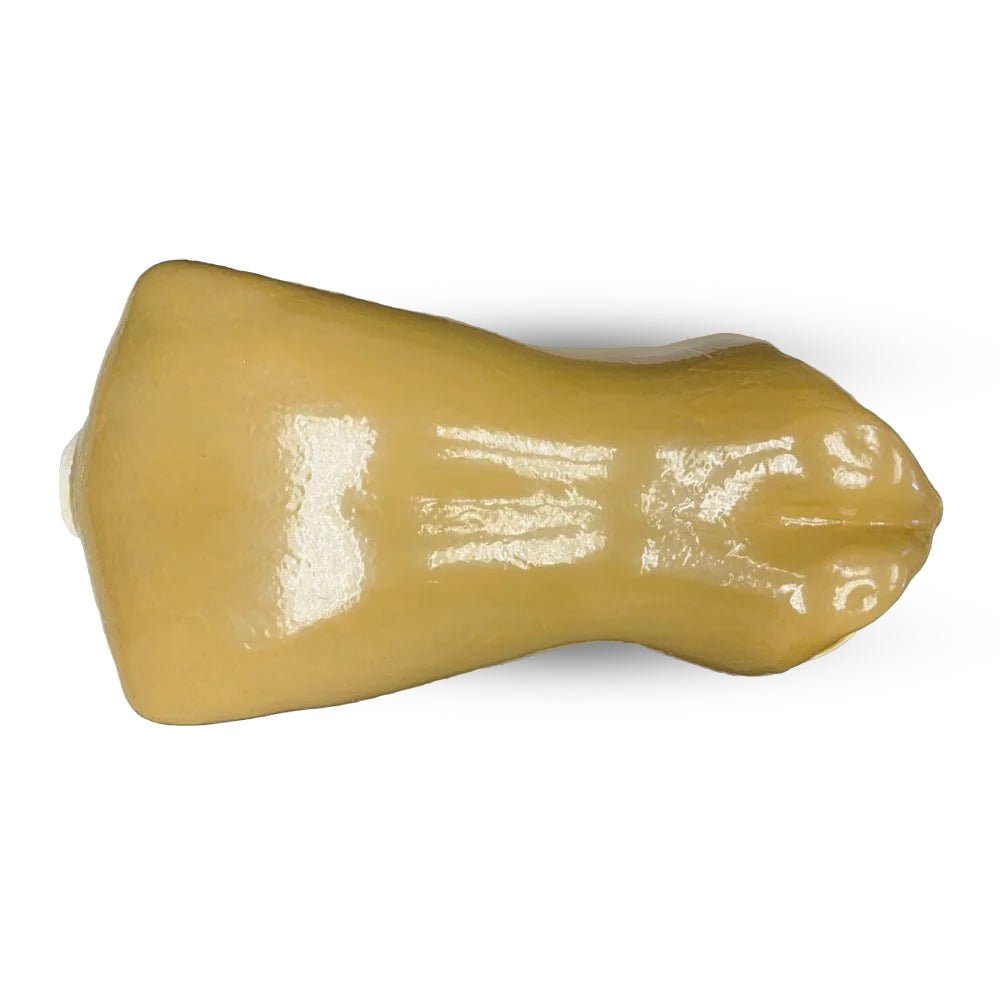

- Transparent or Skin-Mimicking Appearance
Your order will include:
- Adult Full Body Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Phantom Dimensions and Weight:
- Size: 69 in (approx.)
- Weight: 154 lbs (approx.)
- Size: 46 x 36 x 17 in (approx.)
- Weight: 199 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

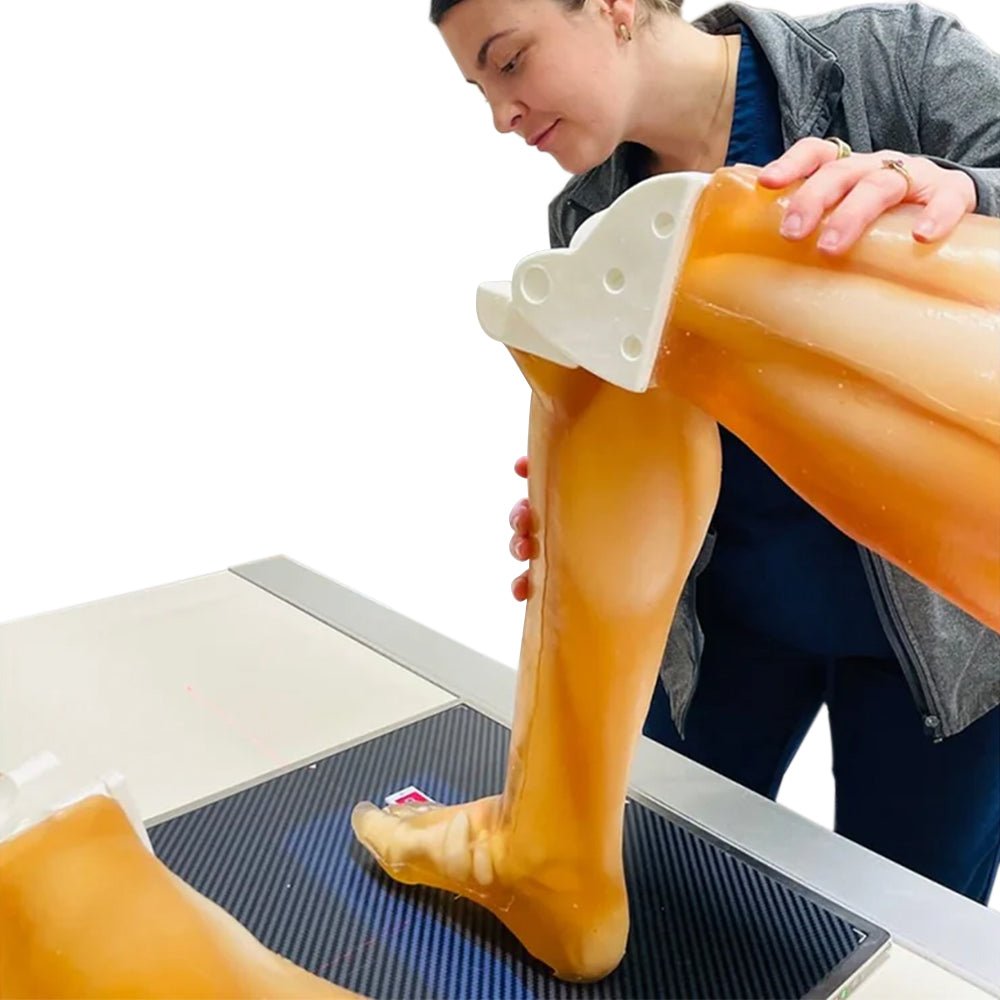

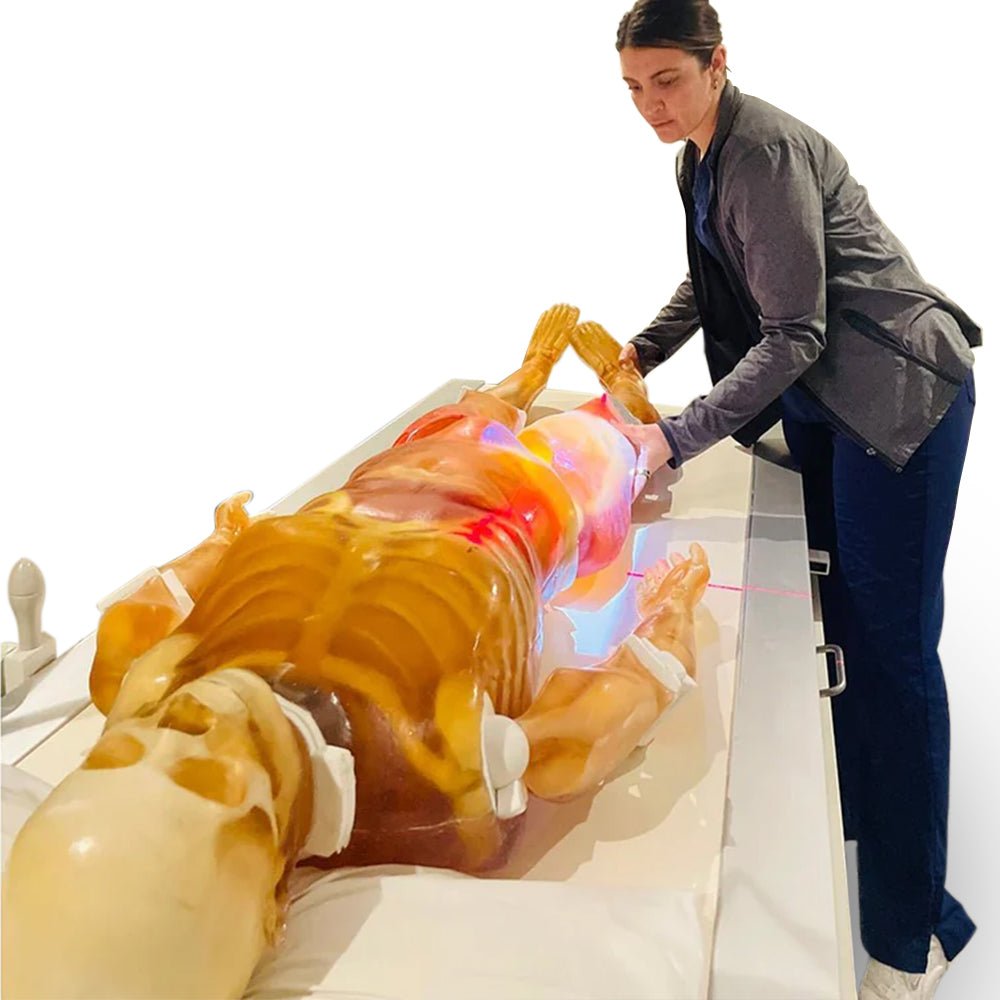

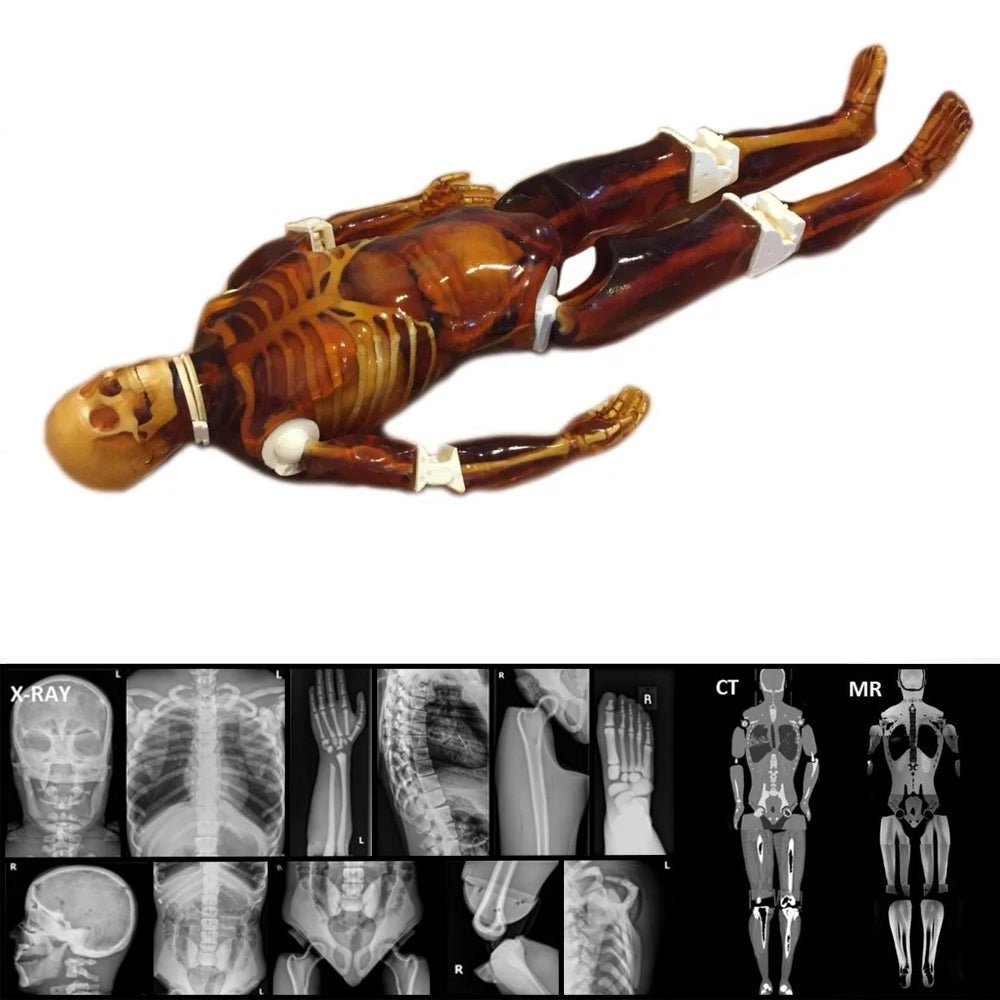

2D X-Ray Scans
*/ These X-Ray scans were obtained with a Control-X machine and a VXvue (DR plate) from our product, Adult Full Body (with Muscles) for X-Ray CT, MRI SKU: FB-A02. These are served as an example to refer to the imaging quality of this phantom; the standard Full body phantom (FB-A01) will not have muscles in the arms and legs. /*

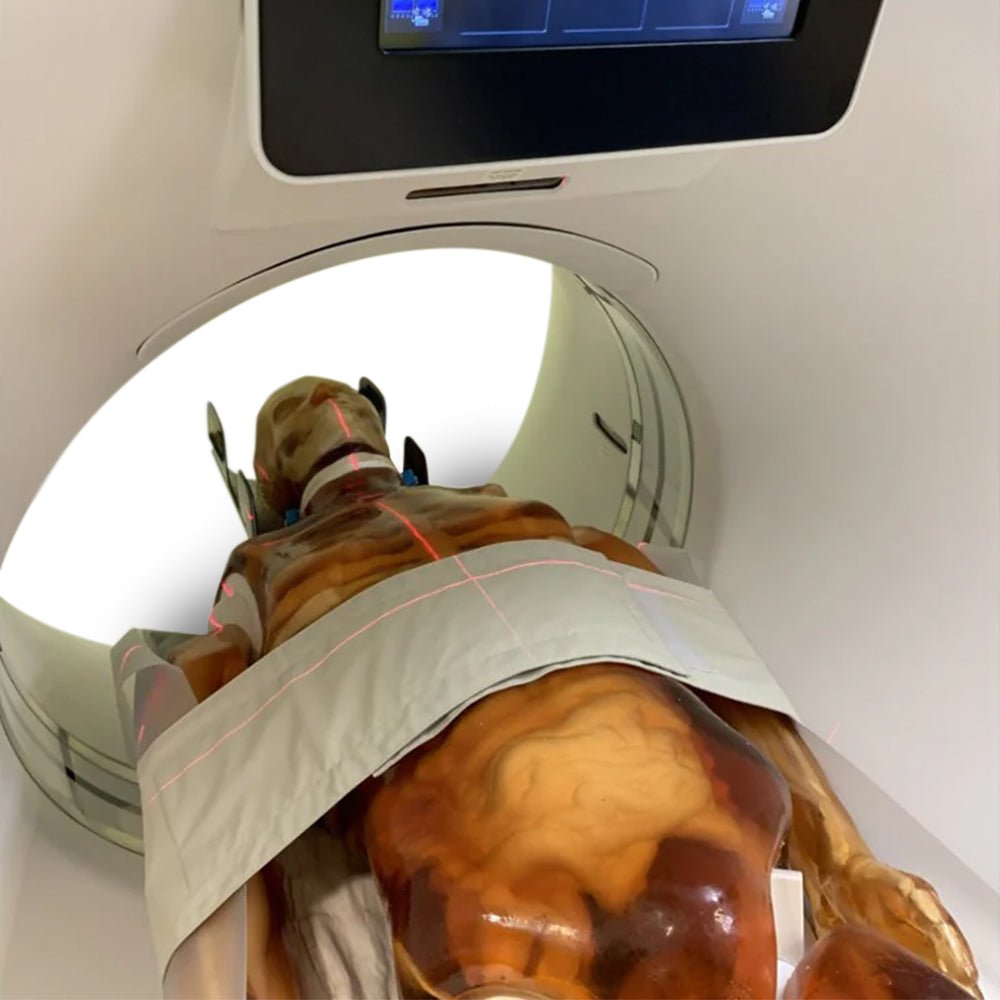

Spot Image X-Ray Scans

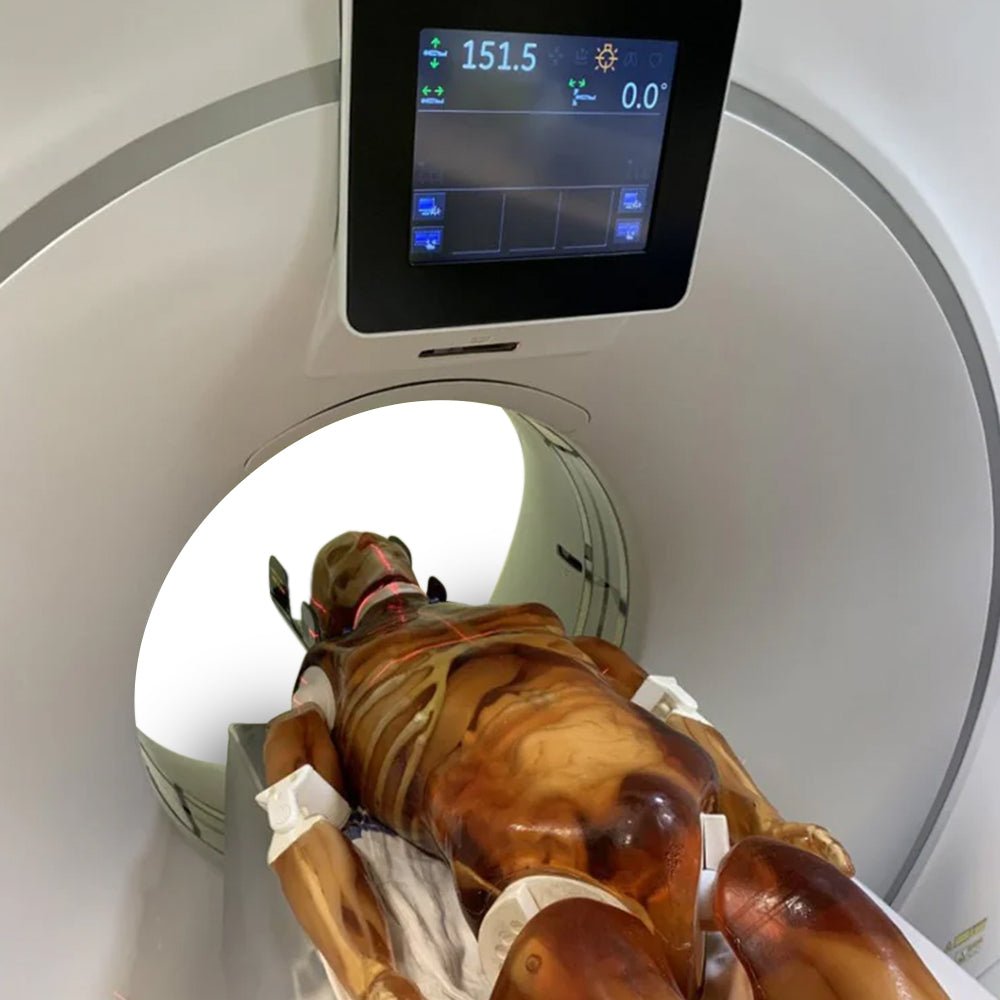

*/ These CT scans were obtained with a GE Revolution Spectral CT Frontier ES from our product, Adult Full Body (with Muscles) for X-Ray CT, MRI SKU: FB-A02. These are served as an example to refer to the imaging quality of this phantom; the standard Full body phantom (FB-A01) will not have muscles in the arms and legs. /*

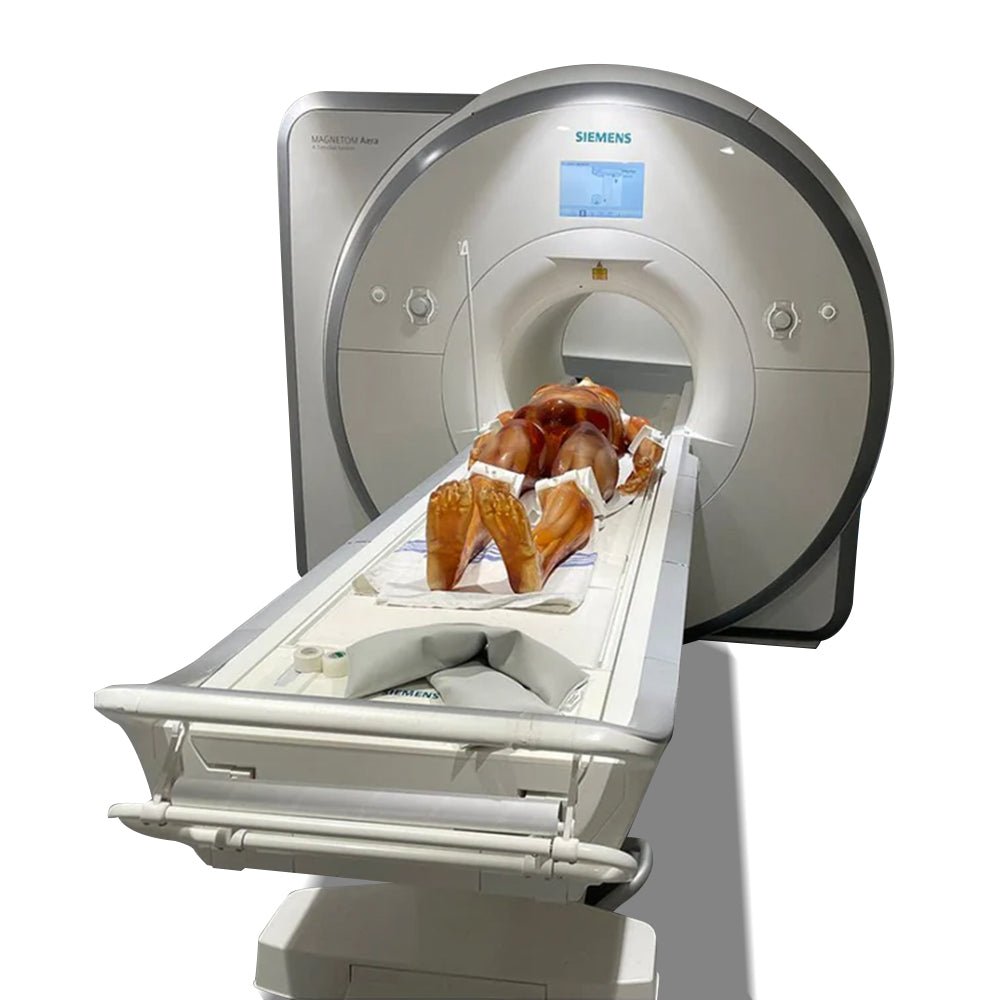

MRI Scans
*/ These X-Ray scans, CT scans and MRI scans were obtained from,
Adult
Full Body (with Muscles) for X-Ray CT, MRI
SKU: TPS-FB-A02. These are served as an example to refer to the imaging quality of this phantom; the
standard Full body phantom (TPS-FB-A01) will not have muscles in the arms and legs.
If you have any questions related to these, please Contact
Us /*
Design of the Phantom:
Front – Top view
Front- Mid view
Front – Bottom view
Top View
Front – Top view
Front- Mid view
Front – Bottom view
Animation
Disclaimer: The phantom displayed on this page is a synthetically fabricated training simulator. While it has been engineered to mimic the anatomy of an adult male for medical imaging, it is not meant to replace a live person and may have certain limitations in its capabilities. Unlike an actual human however, the phantom will not be harmed or deteriorated due to repeated radiation. It is designed for easy use by radiologists or students with minimal supervision. The phantom presents a safe alternative to using cadavers or volunteers. This makes it a sustainable, ethical choice for the early stages of research and education. Please review the design, description, and properties carefully before purchasing the model. Only manufacturing defects will be covered under two years of the standard warranty. For more details, specific questions or concerns, please Contact Us.
Adult Full Human Body Phantom for X-Ray CT & MRI Training
Phantom Dimensions and Weight:- Size: 69 in (approx.)
- Weight: 155 lbs (approx.)
- Size: 47 x 36 x 18 in (approx.)
- Weight: 199 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
| Anatomy | Projection | E.I. | D.I. | kVp | mAs |
|---|---|---|---|---|---|
| Skull | AP | 375 | -0.2 | 85 | 20 |
| Lateral | 286 | -1.4 | 75 | 8 | |
| Ribs/Chest | AP/PA | 412 | 0.6 | 80 | 5 |
| Thoracic Spine | AP | 412 | 0.6 | 80 | 20 |
| Lateral | 782 | 2.6 | 85 | 56 | |
| C spine | AP | 165 | -3.8 | 75 | 6.3 |
| Lumbar Spine | AP | 448 | 1 | 88 | 45 |
| Lateral | 862 | 2.4 | 90 | 63 | |
| Abdomen | Lateral | 862 | 2.4 | 85 | 25 |
| Pelvis | AP | 650 | 1.8 | 85 | 25 |
| Femur | AP | 584 | 1.7 | 80 | 16 |
| Lateral | 892 | 3.6 | 80 | 14 | |
| Tib/Fib | AP | 551 | 0.4 | 74 | 2.5 |
| Lateral | 342 | -1.6 | 74 | 2.5 | |
| Knee | AP | 690 | 1.4 | 75 | 5.6 |
| AP | 293 | -2.3 | 80 | 8 | |
| Foot | PA/Oblique | 631 | 1 | 58 | 2 |
| ScapY | Lateral | 257 | -2.9 | 80 | 5.6 |
| Humerus | AP/Oblique | 556 | 0.5 | 64 | 2 |
| Hand/Wrist | Lateral | 155 | -3.6 | 84 | 10 |
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1400 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Tumor Feature (Optional) | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
| Brain White Matter | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
| Muscle Tissue (Optional) |
1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| S.No. | Tissue Type | HU Value (Average) |
|---|---|---|
| 1 | Body Tissue | -25 |
| 2 | Brain Tissue | -25 |
| 3 | Trabecular Bone | 800 |
| 4 | Cortical Bone | 1300 |
| 5 | Aorta | 40 |
| 6 | Vena Cava | 40 |
| 7 | Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| 8 | Pancreas | 110 |
| 9 | Spleen | 110 |
| 10 | Kidneys | 110 |
| 11 | Bladder | 35 |
| 12 | Rectum Wall | 100 |
| 13 | Sigmoid Colon Wall | 100 |
| 14 | Heart | 40 |
| 15 | Liver | 110 |
| 16 | Gallbladder | 35 |
