Adult Breast for X-Ray, CT Scan and Ultrasound
Adult Breast for X-Ray, CT Scan and Ultrasound
All pictures shown are for illustration purposes only. The actual product appearance may vary.
True Phantom

Adult Breast for X-Ray, CT Scan and Ultrasound

Item # TPS-BT-A02
$9,061.00 $9,245.00
You save $184.00
Ships in 12-16 weeks
×

Request a Quote

Product Name: Adult Breast for X-Ray, CT Scan and Ultrasound

Adult Breast for X-Ray, CT Scan and Ultrasound

Unit Price: $9,061.00

Total Price: $9,061.00

Your Information

Need an estimate?
Click Add To Quote

Quote Helper

Features & Specifications
  • Trusted Vendorby True Phantom
    A trusted GT partner
  • FREE Shipping
    U.S. Contiguous States Only
  • 2-Year Warranty
    Provided by manufacturer
  • GSA PricingGov't pricing
    Available upon request
About This Item
Frequently Bought Together
Store Ratings: 4.7/5 GT Reviews (1900+ Reviews)
Questions?
Get Help From Our Support
1-888-437-3900 Email Live Chat
Product of the month - potm

Adult Breast for X-Ray, CT Scan and Ultrasound

The Adult Breast for X-Ray CT, US is a life-sized representation of a female breast, meticulously crafted to reflect typical anatomical features. This phantom is particularly useful for medical professionals and students who are seeking to develop their skills in breast examinations, especially in the detection and diagnosis of tumors. By using the phantom, they can practice various imaging techniques, learn to identify different types of breast abnormalities, and gain experience in interpreting mammograms and ultrasounds.

The Adult Breast for X-Ray CT, US is a realistic phantom that is designed around the average anatomy of a female breast, and it has all the essential bones and organs. This phantom is compatible with X-Ray/CT and US imaging, making it an ideal tool to study, research, test, and train on sonography and mammography techniques.

This phantom is a life-size female breast phantom with all bony and major organ structures. BT-A02 can be used to study several diagnostic procedures under X-Ray/CT & US in different orientation and positioning techniques.

Upon request, this product can be customized to different pathologies as well as for specific training applications.

Anatomy

  • Partial Ribs and Cartilage
  • One Lung
  • Major Fat Tissues
  • Major Muscles
  • Axillary Lymph Nodes
  • Subcutaneous Adipose
  • Retromammary Adipose
  • Mammary Glands
  • Two Spherical Tumors
Your order will include:
  • Adult Breast Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case
Download:
manual
Product Dimensions and Weight:
  • Height: 10 x 9 x 10 in (approx.)
  • Weight: 11 lbs (approx.)
Shipping Dimensions and Weight:
  • Height: 32 x 23 x 13 in (approx.)
  • Weight: 45 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

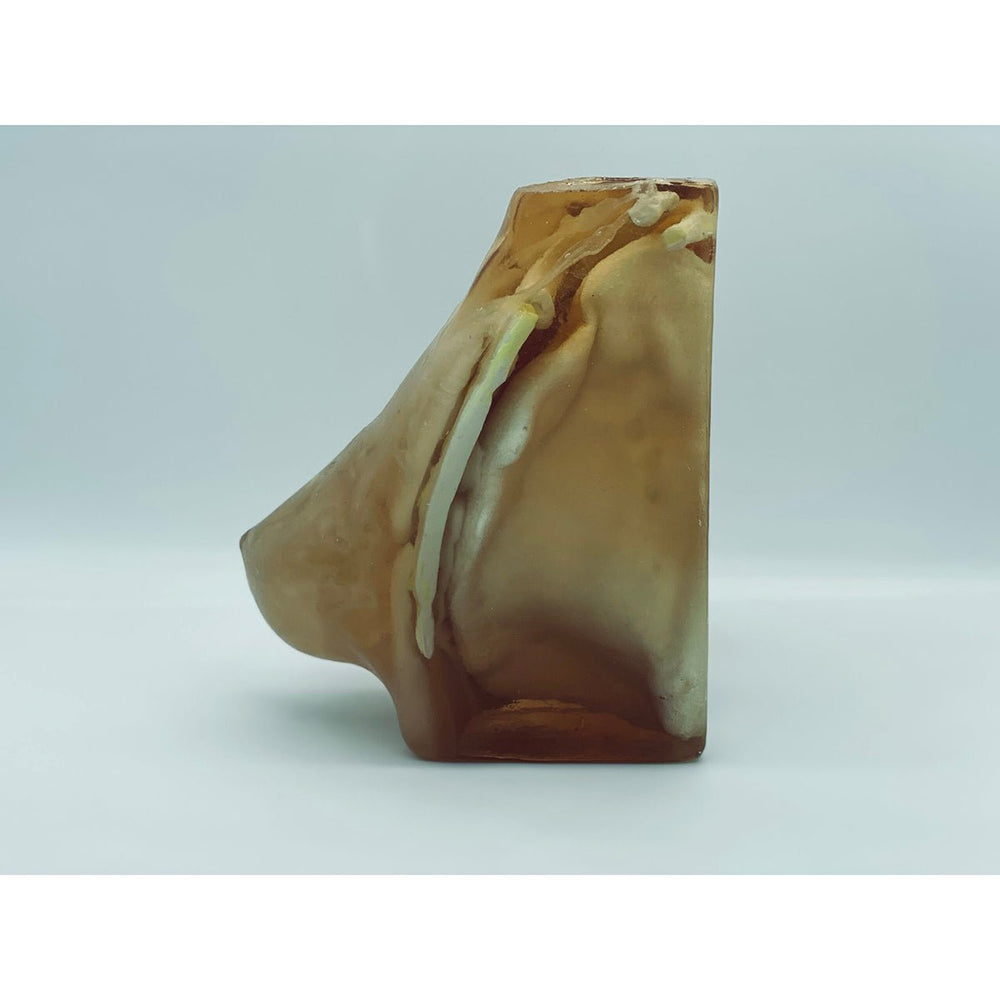

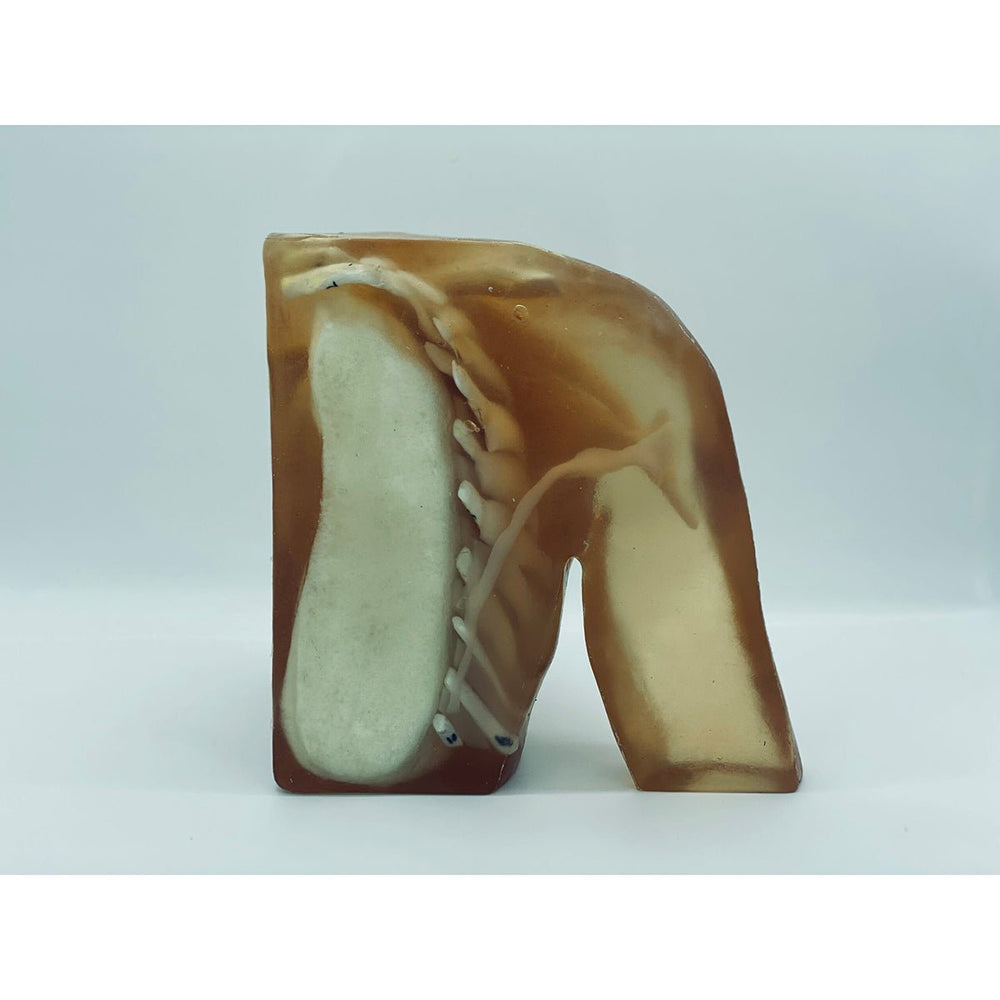

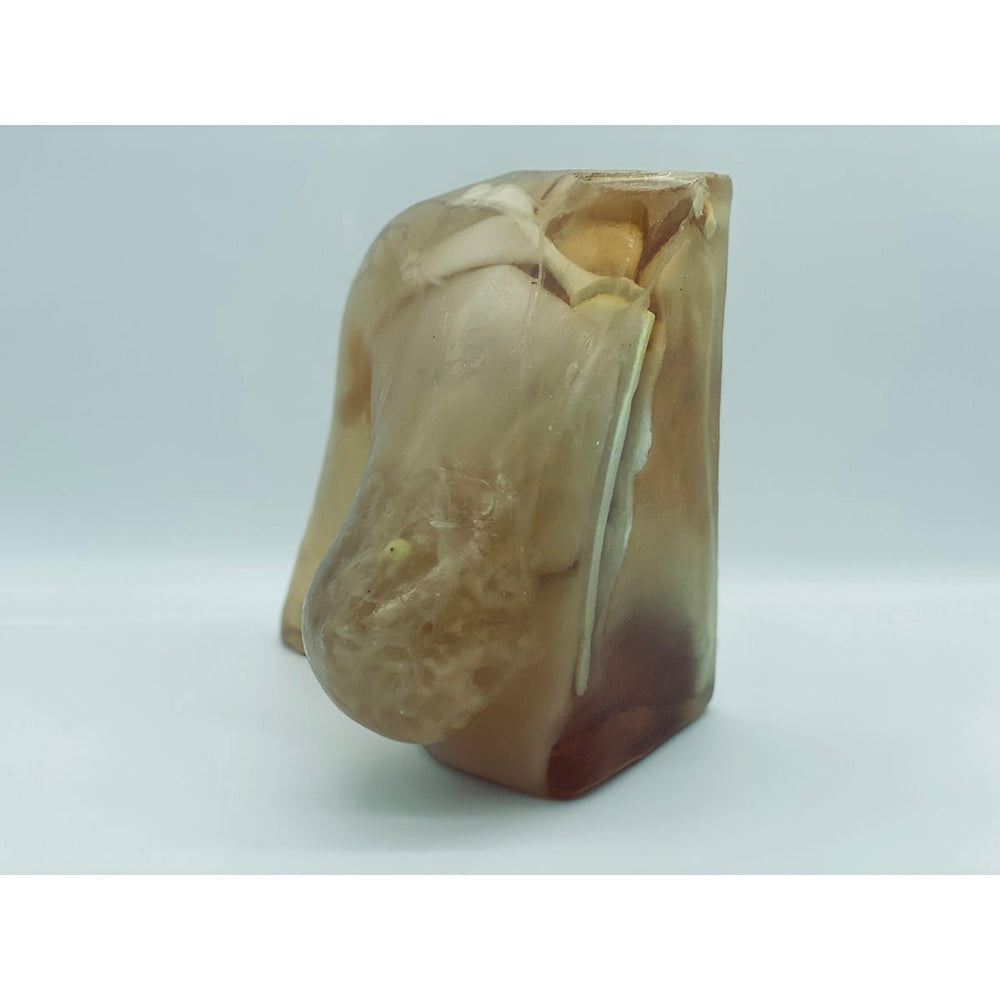

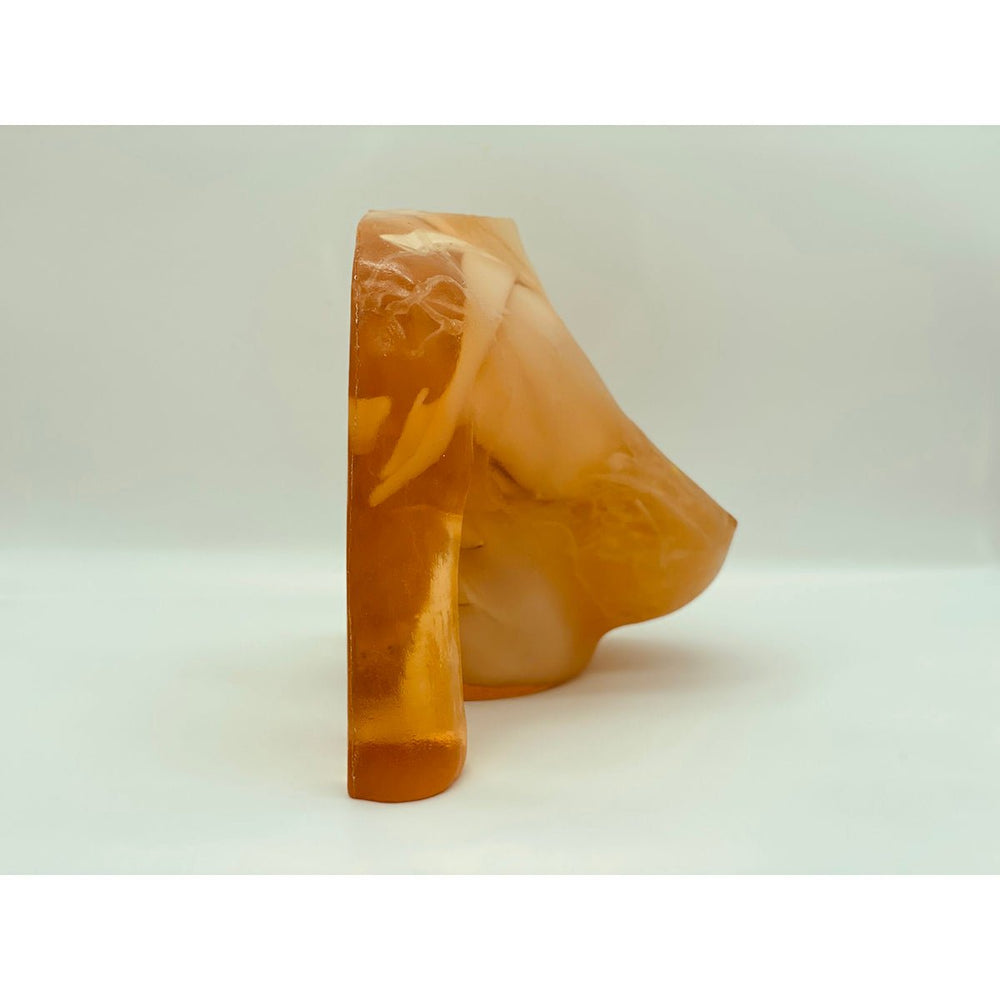

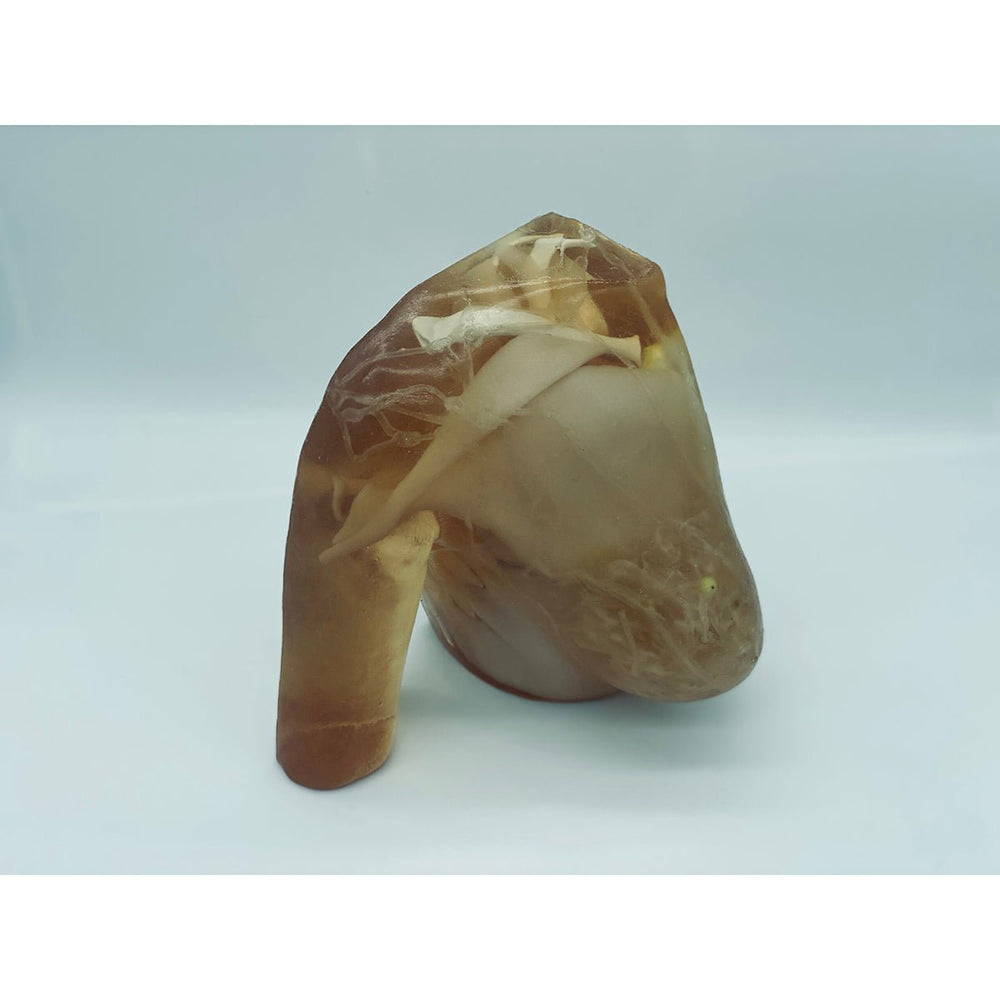

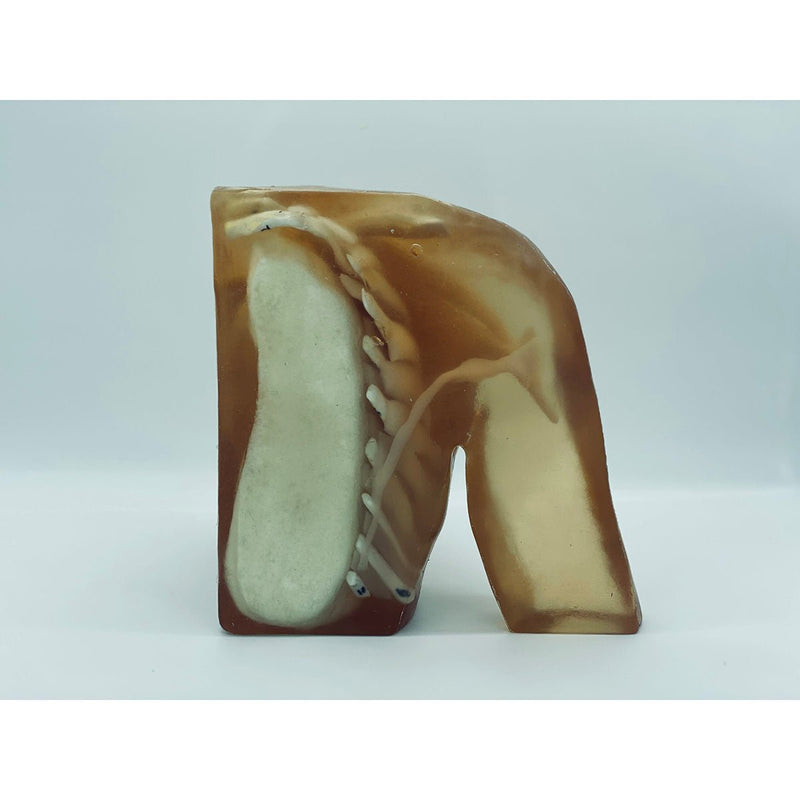

Front View
Perspective View
Lateral View
Top View

CT Scan

X-Ray Scan

Ultrasound Scans:

Type of Tissue Sound Velocity[m/s] Density [g/cm3] Attenuation Measured at 2.25 MHz[dB/cm] Hardness [Shore OO] T2 [ms] Speckles
Organs with Speckles (liver, kidneys, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 VARIABLE
Organs without Speckles (stomach, intestines, etc.) 1400 ± 10 0.99 1.0 ± 0.2 20 70 NO
Body Tissue 1400 ± 10 1.00 1.2 ± 0.2 30 65 NO/LOW
Tumor Feature 1400 ± 10 1.01 1.2 ± 0.2 30 65 YES
Cortical Bone 3000 ± 30 2.31 6.4 ± 0.3 N/A N/A N/A
Trabecular Bone 2800 ± 50 2.03 21 ± 2 N/A N/A N/A
Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
S.No. Tissue Type HU Value (average)
1 Body Tissue -25
2 Trabecular Bone 800
3 Cortical Bone 1300

Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
S.No. Tissue Type HU Value (average)
1 Body Tissue -25
2 Trabecular Bone 800
3 Cortical Bone 1300
Download a PDF with product details

Adult Breast for X-Ray, CT Scan and Ultrasound

Product Dimensions and Weight:
  • Height: 10 x 9 x 10 in (approx.)
  • Weight: 11 lbs (approx.)
Shipping Dimensions and Weight:
  • Height: 32 x 23 x 13 in (approx.)
  • Weight: 45 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
