Adult Skull for X-Ray CT, Ultrasound and MRI

Adult Human Skull Phantom is an ideal tool for medical imaging research and treatment planning for non-invasive HIFU brain surgeries. True Phantom Solutions is a pioneer in developing these phantoms and holds the strength to customize them.

For MRI applications, the phantom’s tissues exhibit realistic T2 relaxation time values, making it an excellent fit for T2-weighted MRI imaging techniques. Proton Density imaging methods also yield high-quality outcomes. While T1-weighted techniques are viable, T1 values are less accurate, falling within the approximate range of 100 ms.

The design of this phantom is based on the actual CT scan of a human male head. The Skull is cast out of our realistic patented epoxy-based bone material that is suitable for Ultrasound, MRI, and X-Ray/CT applications (any other part of the skull can be fabricated based on the customer’s order).

The phantom has a realistic three-layered structure with an inner porosity (diploe) that can be adjusted according to the project’s requirements. The phantom realistically mimics the thickness of a real human skull. This skull phantom includes the four paranasal sinuses.

Anatomy:
  • Complete Human Skull
  • Removable Calvaria
  • Jaw Bone
  • 4 Paranasal Sinuses:
    • Maxillary
    • Ethmoid
    • Sphenoid
    • Frontal
Your order will include:
  • Adult Skull Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
Phantom:
  • Height: 6 x 8 x 9 in (approx.)
  • Weight: 4 lbs (approx.)
Shipment:
  • Height: 16 x 12 x 10 in (approx.)
  • Weight: 15 lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
Download:
manual

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

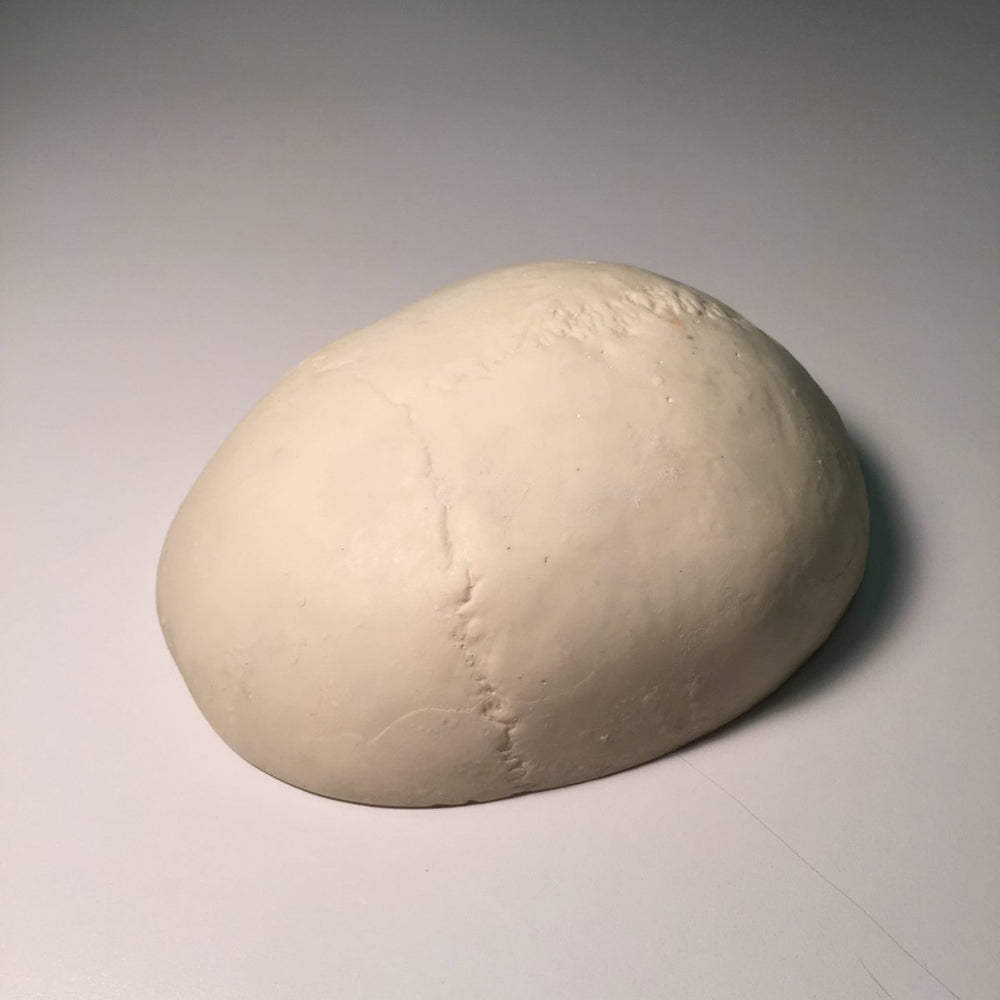

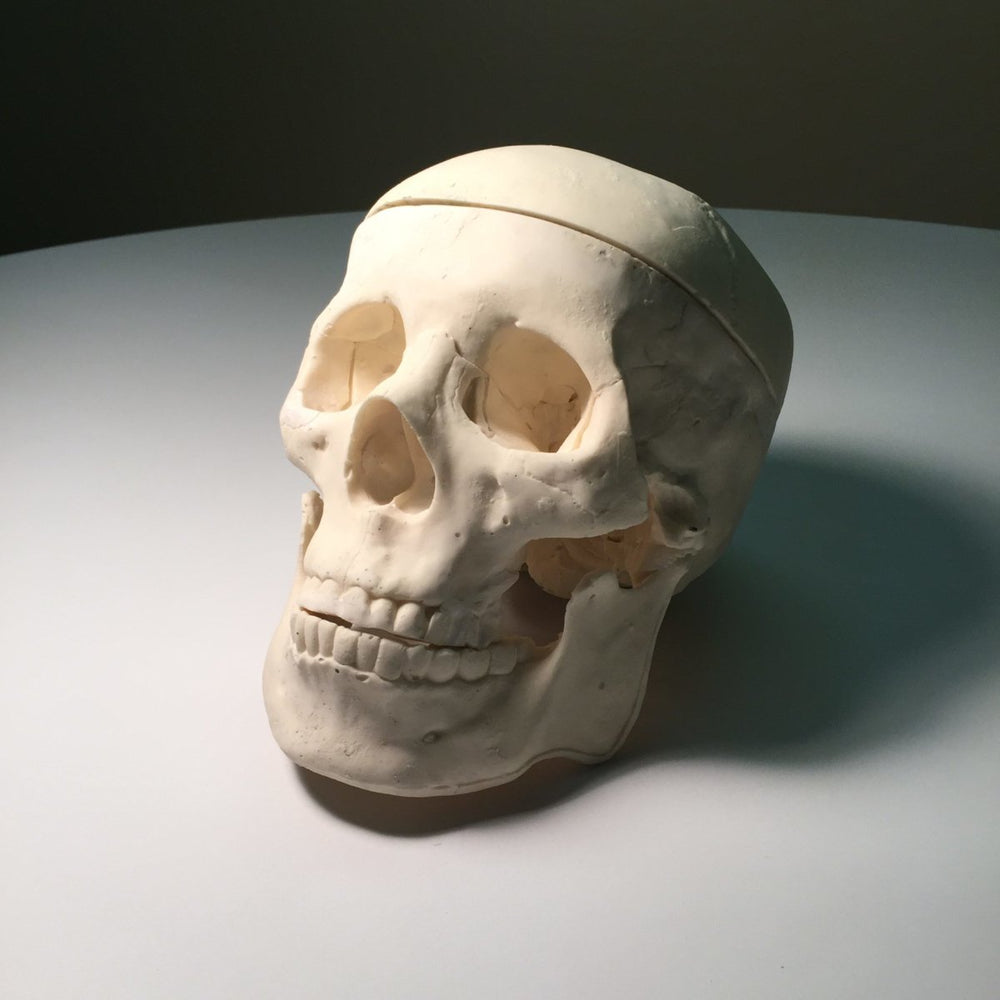

Front view

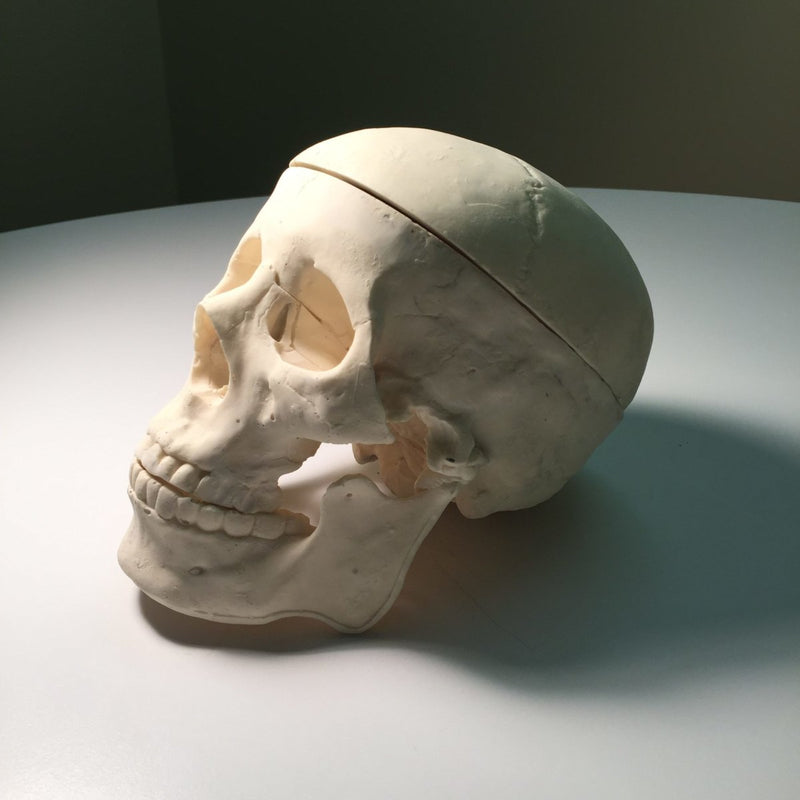

Lateral view

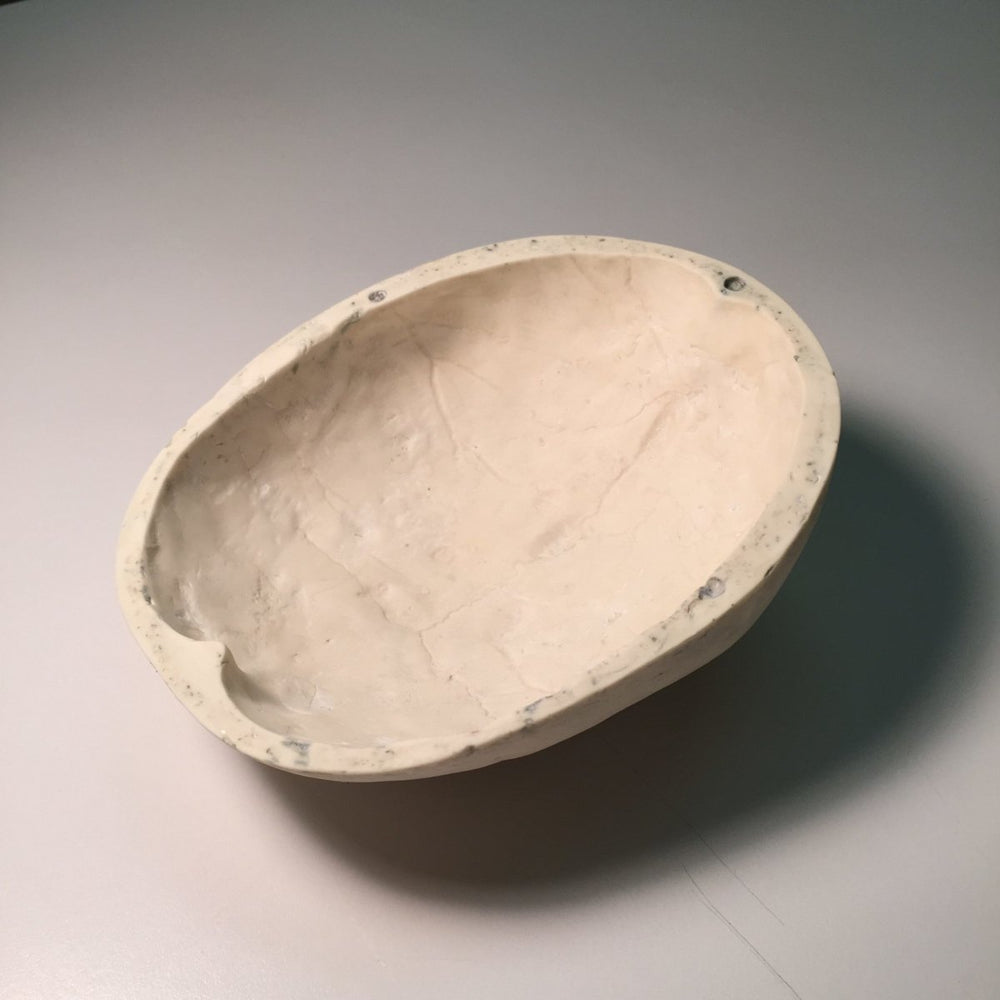

Perspective view

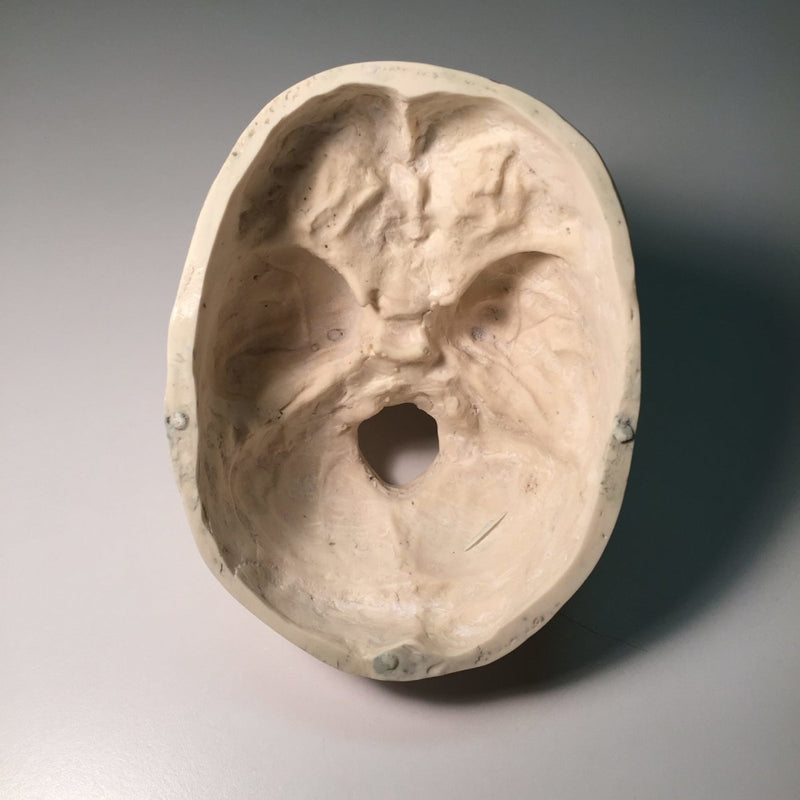

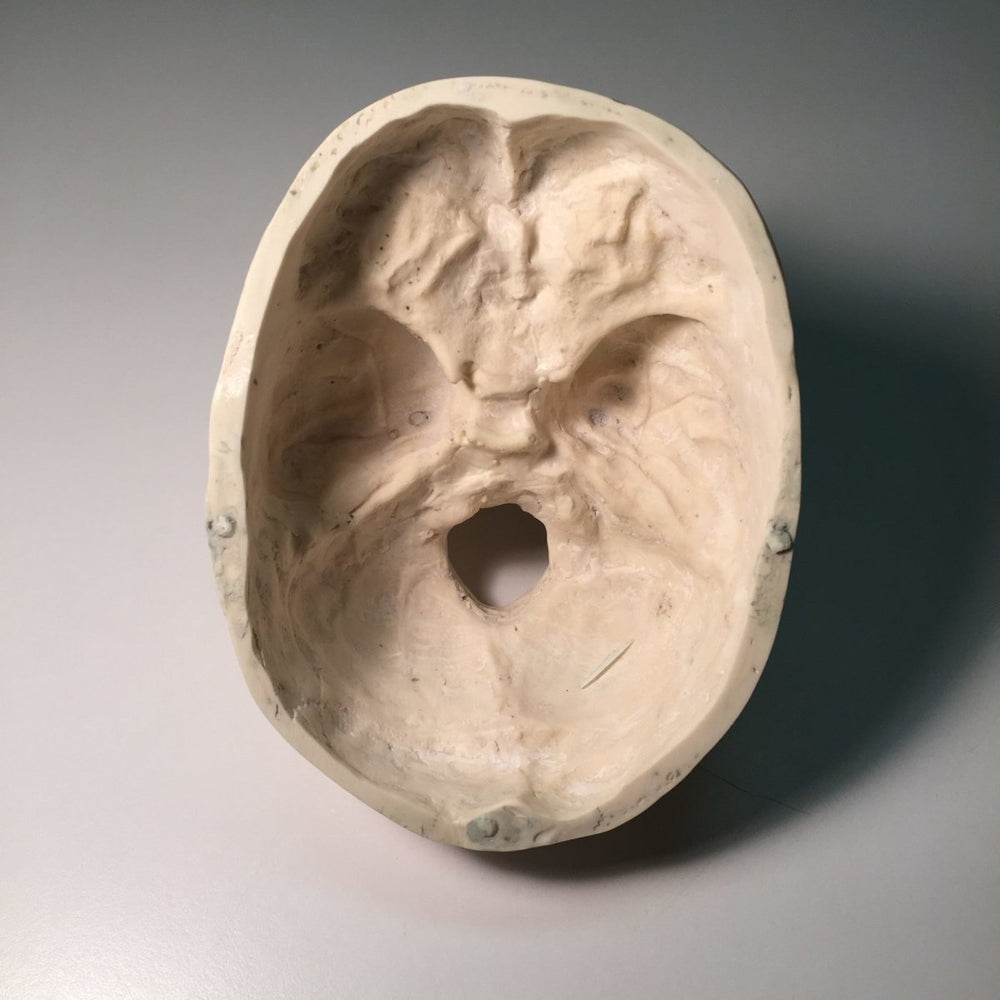

Top view
Animation

Technical Properties:

Type of Tissue Sound Velocity [m/s] Density
[g/cm³]
Hardness
[Shore 00]
T2
[ms]
Speckles Attenuation Measured
at 2.25 MHz [dB/cm]
Cortical Bone 3000 ± 30 2.31 N/A N/A N/A 6.4 ± 0.3
Trabecular Bone 2800 ± 50 2.03 N/A N/A N/A 21 ± 2

Thermal Properties of Bone-Mimicking Tissue

Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s

HU Values of the Tissue Mimicking Materials

S.No. Tissue Type HU Value (average)
1 Trabecular Bone 800
2 Cortical Bone 1300

Adult Skull For X-Ray CT, Ultrasound and MRI

Dimensions and Weight:

Phantom:
  • Size: 6 x 8 x 9 in (approx.)
  • Weight: 4 Lbs (approx.)
Shippment:
  • Size: 16 x 12 x 10 in (approx.)
  • Weight: 15 Lbs (approx.)
