Adult Thorax for X-Ray CT & MRI Training
Item # TPS-TX-A01Need an estimate?
Click Add To Quote
-
by
A trusted GT partner -
2-Year Warranty
Provided by manufacturer -
Gov't pricing
Available upon request

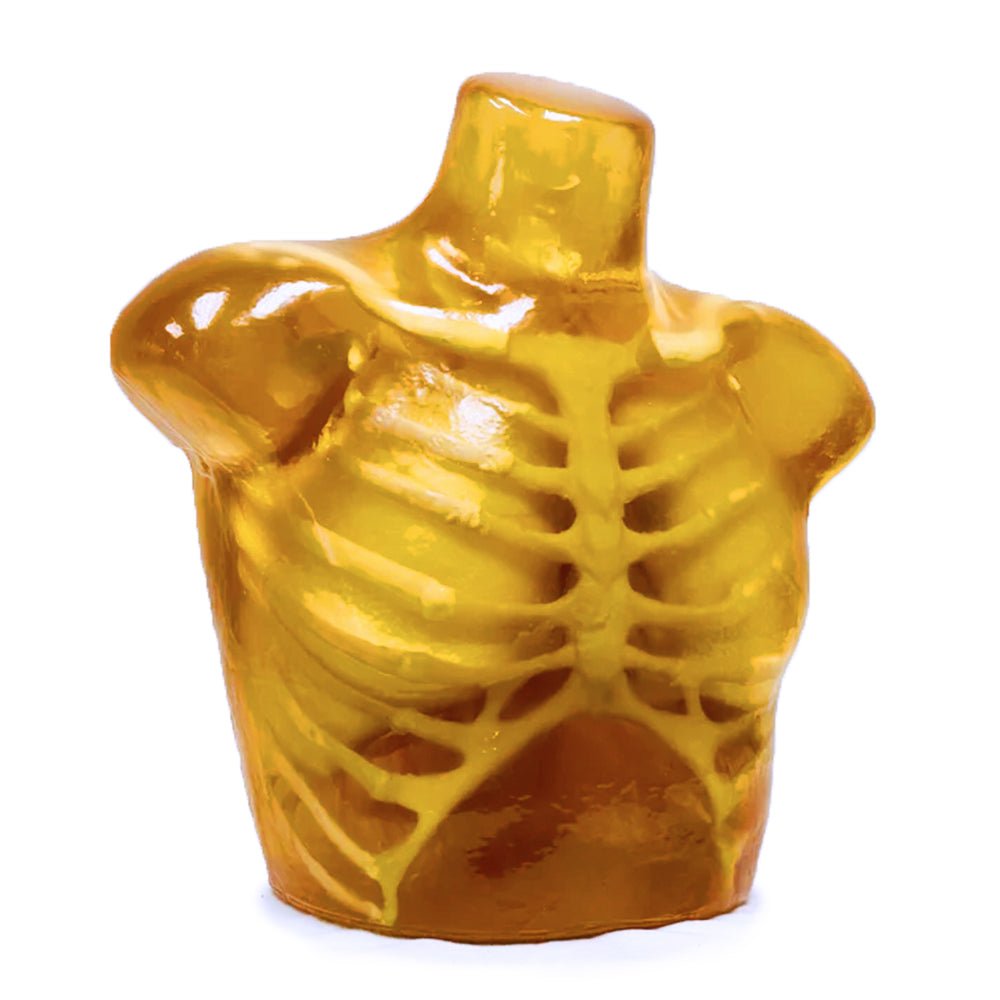

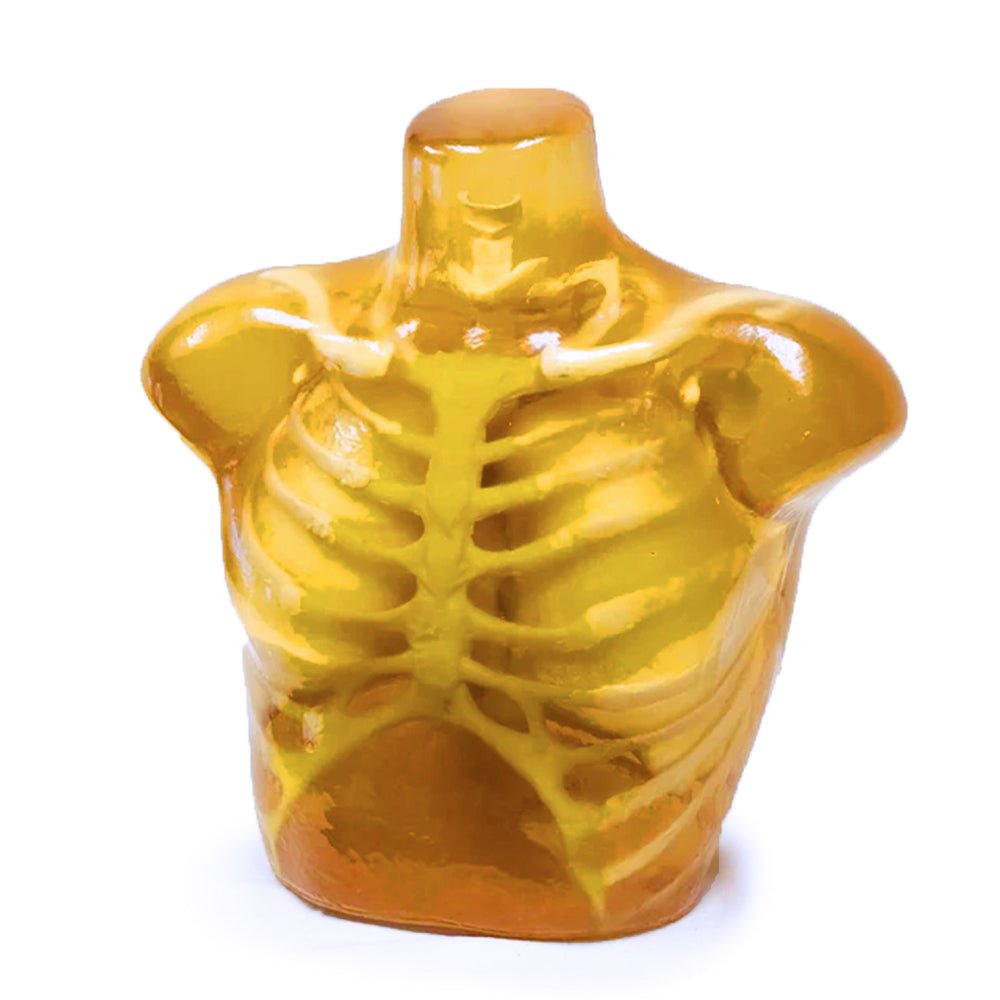

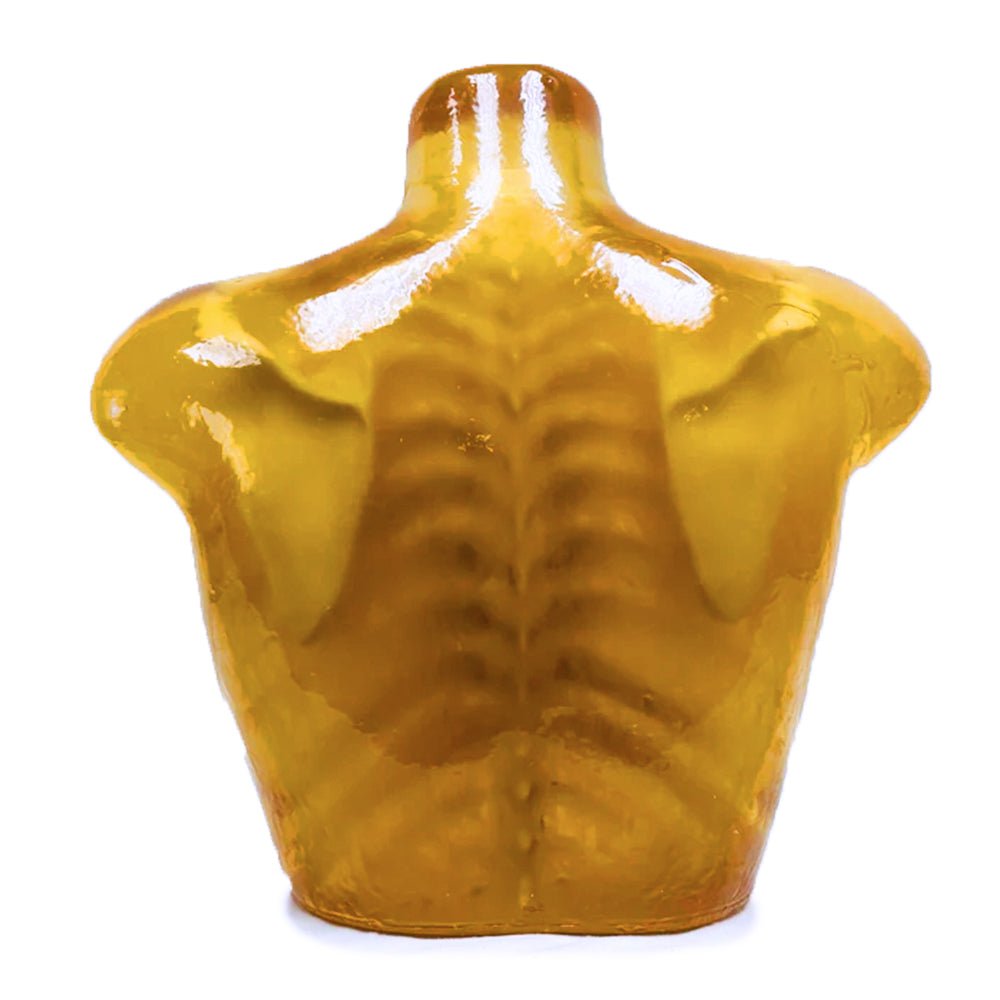

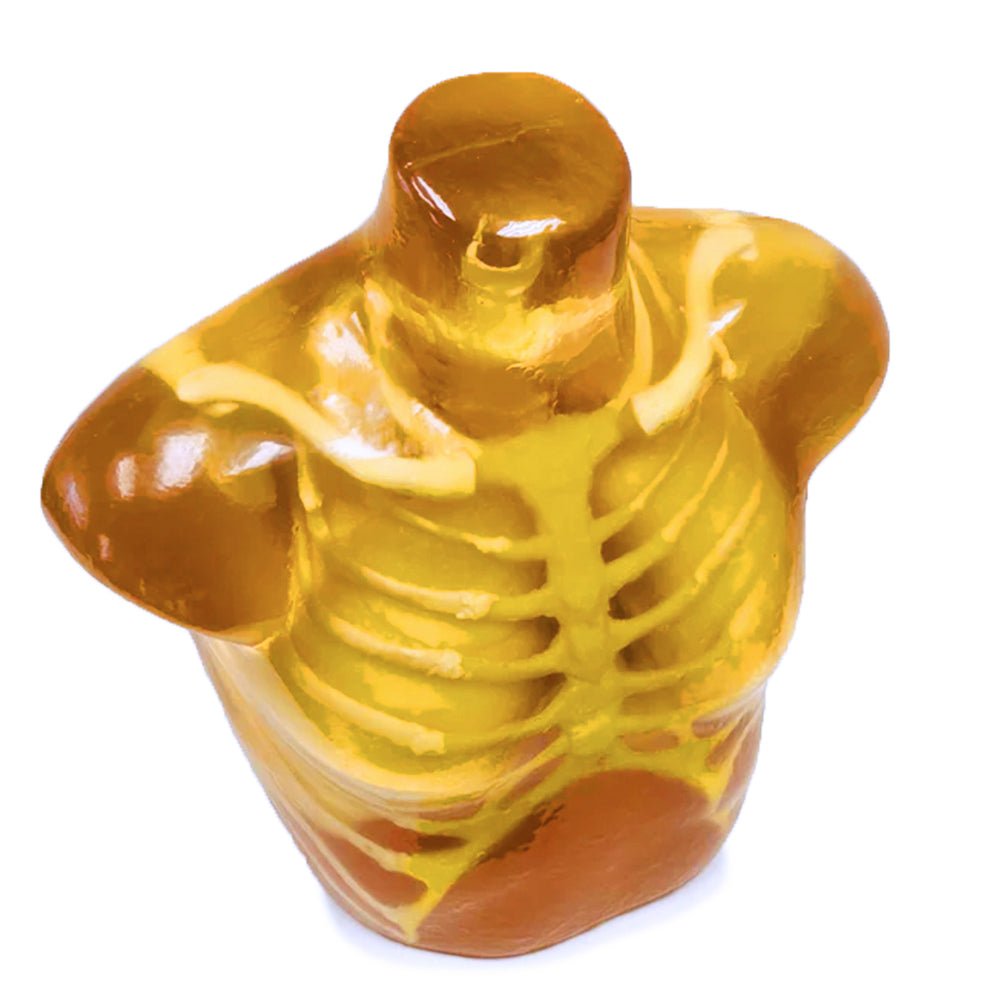

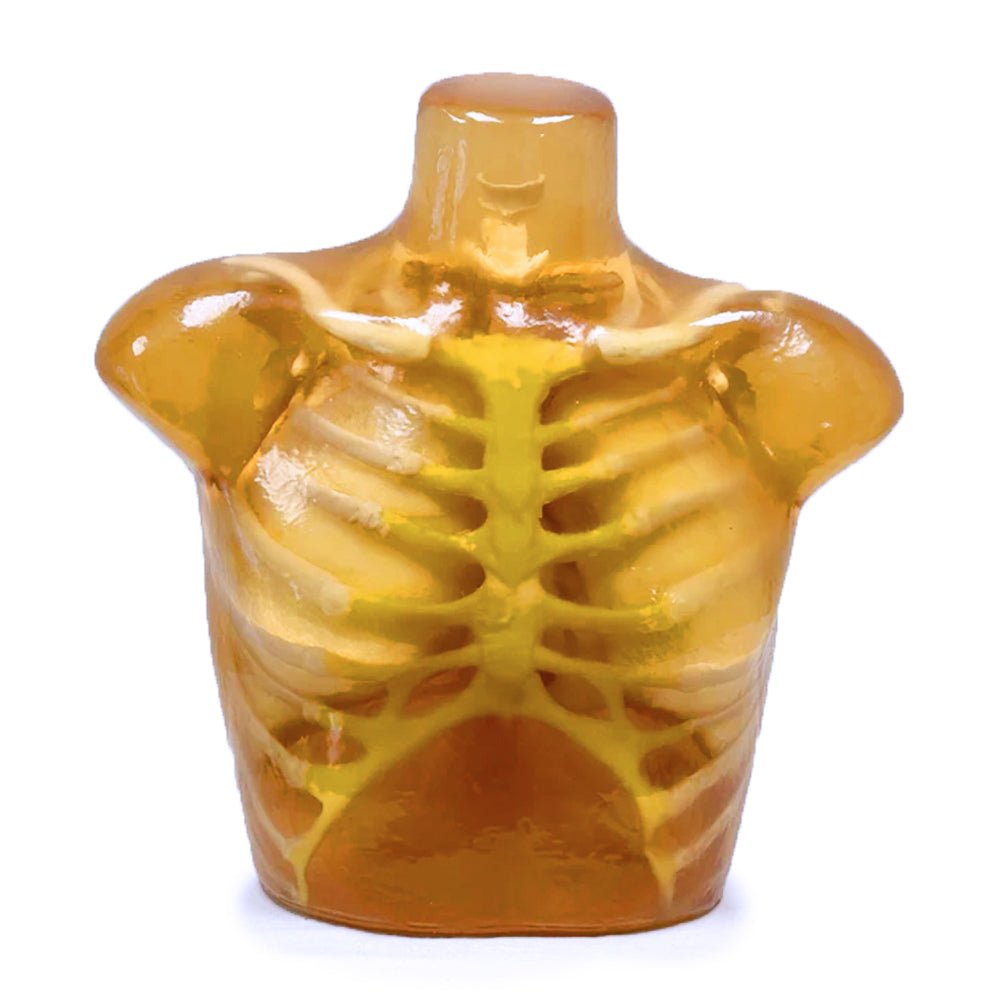

Adult Thorax for X-Ray CT & MRI Training
Adult Thorax phantom features a thoracic skeleton made of realistic patented bone material for X-Ray/CT and MRI
applications. It serves medical imaging research and radiology training while also offering customization for
equipment testing. The vertebrae have adjustable porosity and lungs are customizable that can help mimic different
pathologies.
This phantom is based on an average human anatomy and its skeleton is individually cast from a realistic patented
bone material that is suitable for X-Ray/CT & MRI applications. It can be used for medical imaging research and
radiology training and can also be served as a customized tool for equipment testing and calibration.
The vertebrae have a realistic three-layered structure with inner porosity, which can be adjusted according to the
requirement of the particular project. The lungs installed inside this torso can be customized in several ways to
simulate any pathology, such as mucus, lesions, and typical infections.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product
to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with
proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less
realistic, and they are within the range of about 100 ms
Anatomy
- Spine with Porous Inner Structure
- Complete Ribcage
- Shoulders and Clavicles
- Trachea
- Heart
- Lungs with Prefilled Major Vessels
- Adult Human Thorax Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
- Size: 18 x 10 x 18 in (approx.)
- Weight: 58 lbs (approx.).
- Size: Size: 32 x 23 x 13 in (approx.)
- Weight: 90 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite materia
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
Coming Soon...

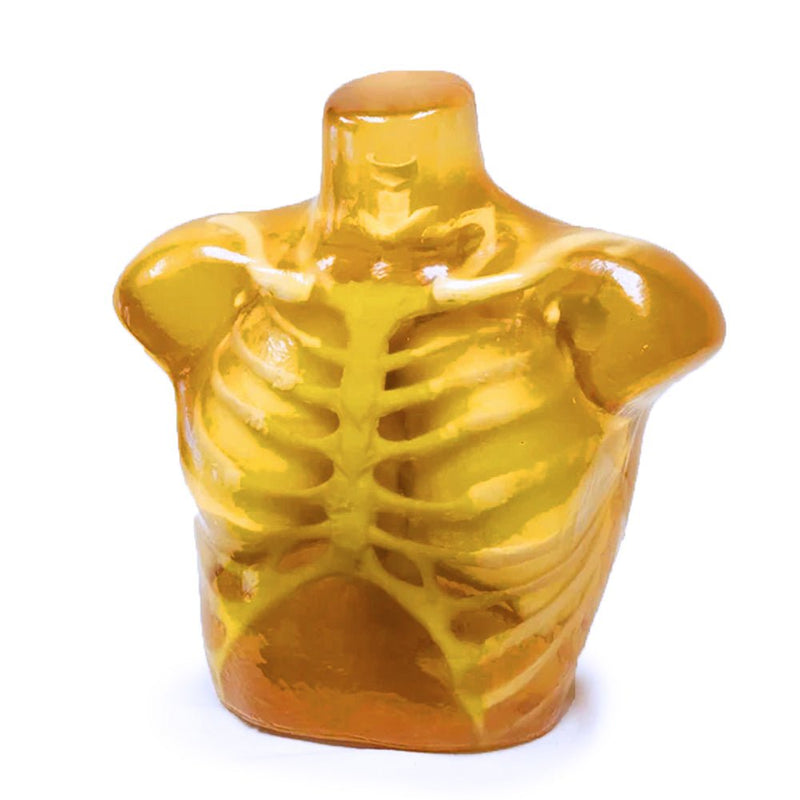

Adult Thorax for X-Ray CT & MRI Training
Dimensions and Weight:- Size: 18 x 10 x 18 in (approx.)
- Weight: 58 lbs (approx.).
- Size: Size: 32 x 23 x 13 in (approx.)
- Weight: 90 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite materia
Technical Properties
Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
Body Tissue | 1400 ± 10 | 1.00 | 1.5 ± 0.2 | 40 | 55 | NO/LOW |
Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
Thermal Properties of our Bone-Mimicking Material
Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
HU Values of the Tissue Mimicking-Materials
S.No. | Tissue Type | HU Value (Average) |
1 | Trabecular Bone | 800 |
2 | Cortical Bone | 1300 |
