Breast Phantom Mass And Calcifications

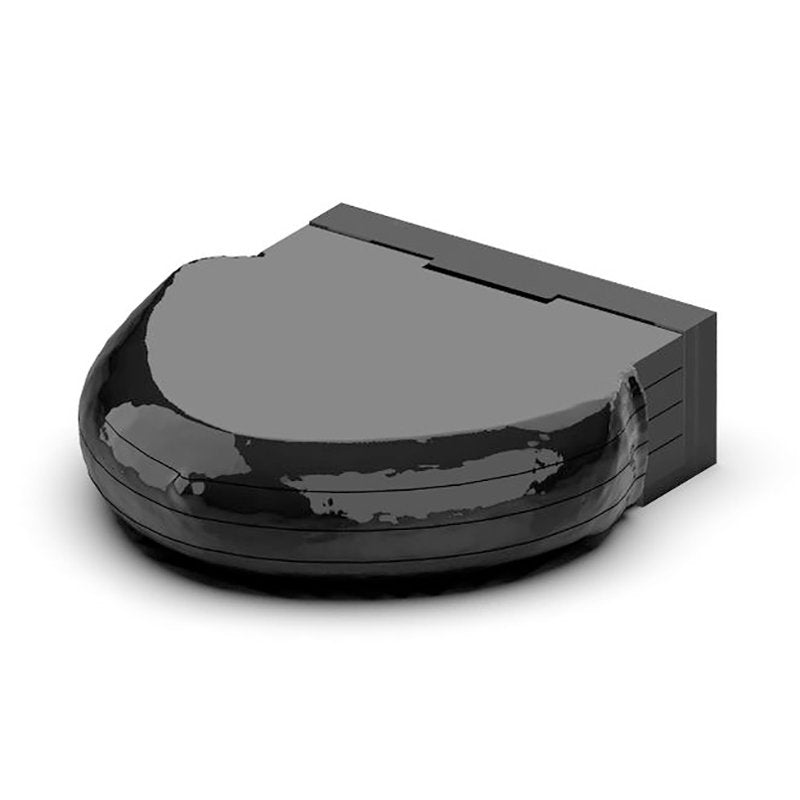

This breast phantom simulates a compressed breast. It is composed of four slabs that are held together by a magnetic mount. The phantom can be equipped with an insertable pattern to simulate microcalcifications. The central slabs can be replaced to simulate a breast mass.

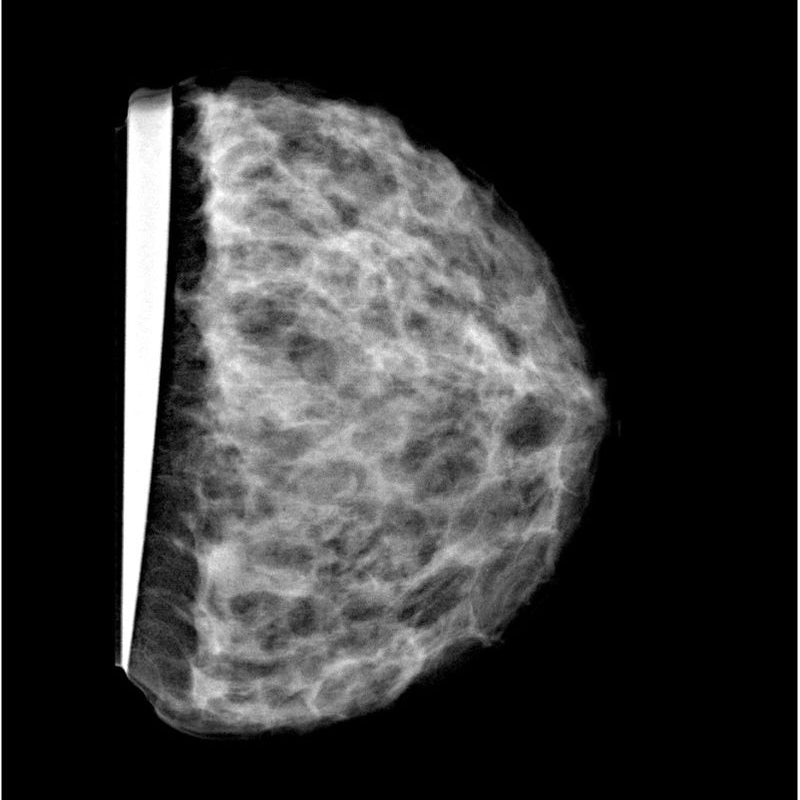

The phantom can be used in mammography and breast tomosynthesis to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications. It is also suited for training purposes.
The phantom provides a detailed and realistic simulation of glandular and adipose tissue.

  • Size: 152 x 134 x 36 mm
  • Weight: 590 g
  • Components: 4 slabs of 9 mm thickness
  • Positioning aid: Magnetic mount
  • Base material: Cellulose-polymer composite

Realistic simulation of glandular and adipose tissue.

    Insertable calcification pattern
  • Pattern thickness: 0.1 mm
  • Calcification diameter: 0.05 to 0.39 mm
    Replacement slabs containing a spiculated mass
  • Mass integrated in 2 additional slabs for
    replacement of the 2 central slabs
  • Mass size: approx. 15 x 17 x 15 mm
  • (PX-59-02) Calcification Template for Breast Phantom
  • (PX-59-03) Tumor Slabs for Breast Phantom
    General indications
  • The phantom is made of a cellulose-polymer composite material with properties similar to hardwood. If handled carefully, it will last a long time.
  • The phantom is coated with a protective layer. If the protective layer is undamaged, the phantom can be cleaned using a damp cloth (water or mild detergent)
  • Protect from direct sunlight.
  • Maintain a storage temperature of 10 °C to 30 °C. If the phantom is exposed to temperatures below -10 °C or above 45 °C, it can be severely damaged.
  • The phantom is not equipped for dose measurements with dosimeters and it is not suited for tissue characterization by dualenergy contrast-enhanced mammography.
  • The phantom is not certified as medical device.

Made by PhantomX and sold by GTSimulators.

GTSimulators by Global Technologies
PhantomX Authorized Dealer

Product Dimensions:
  • Size: 152 x 134 x 36 mm
  • Weight: 590 g
