Female Dog Phantom for X-Ray CT and MRI Imaging

True Phantom

Female Dog Phantom for X-Ray CT and MRI Imaging

Item # TPS-DG-A02

On Demand
Request a quote for pricing

Ships in 12-16 weeks

Quantity :

Need an estimate?
Click Add To Quote

Quote Helper

The Detachable version of this phantom is currently under validation. However, we are already accepting orders.

X-Ray and Ultrasound X-Ray and MRI

Features & Specifications

by True Phantom
A trusted GT partner
2-Year Warranty
Provided by manufacturer
Gov't pricing
Available upon request

About This Item

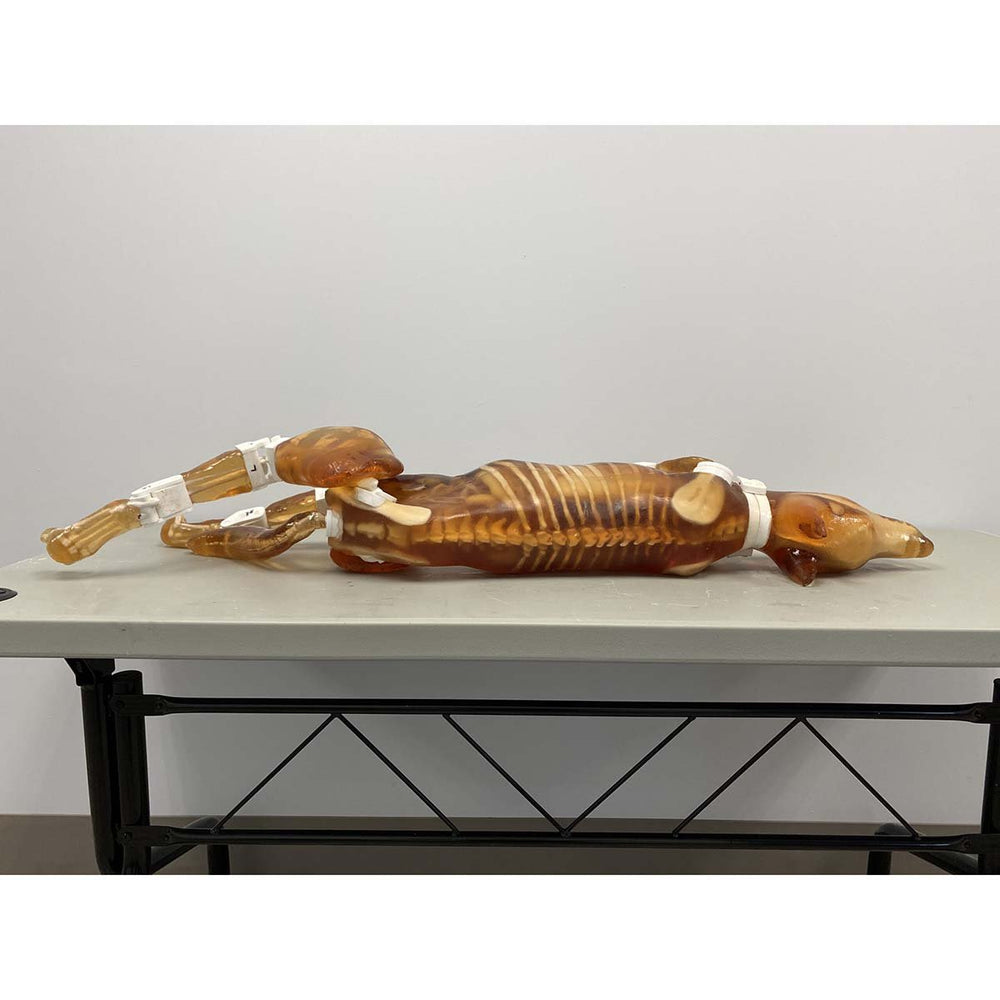

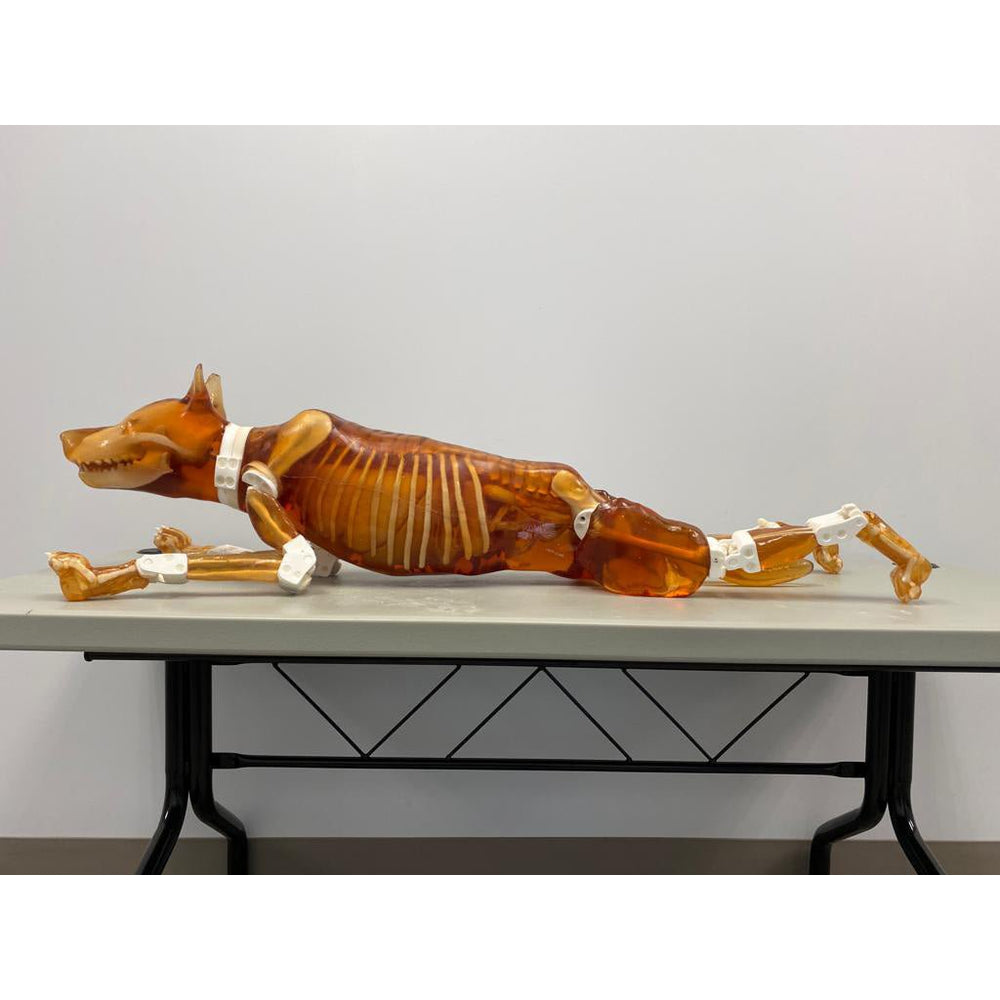

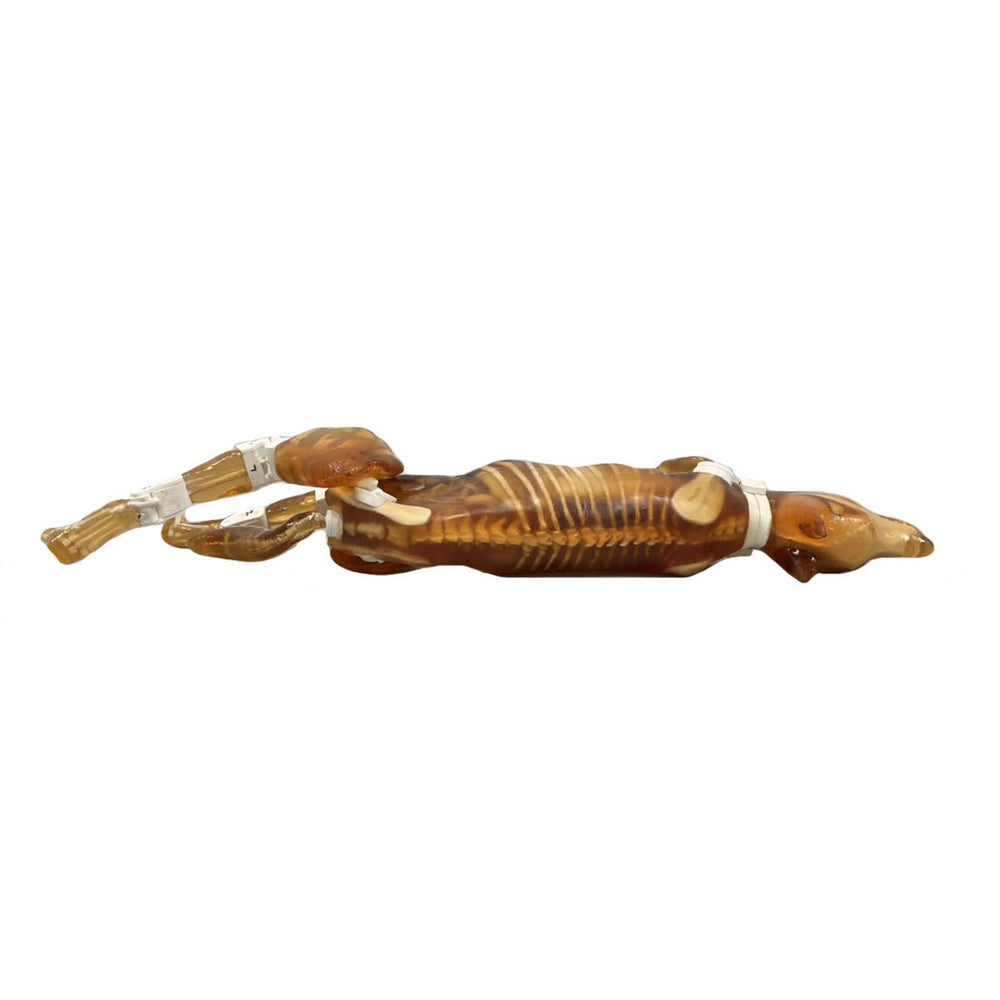

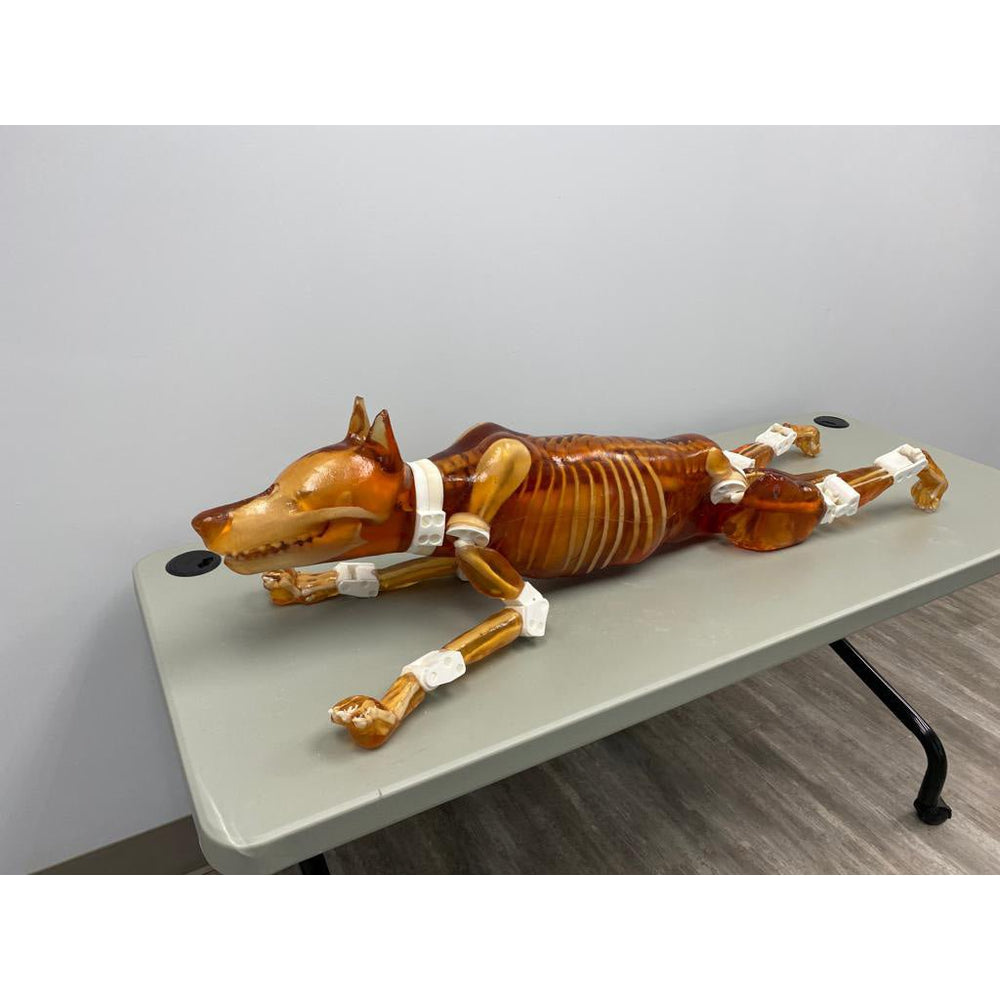

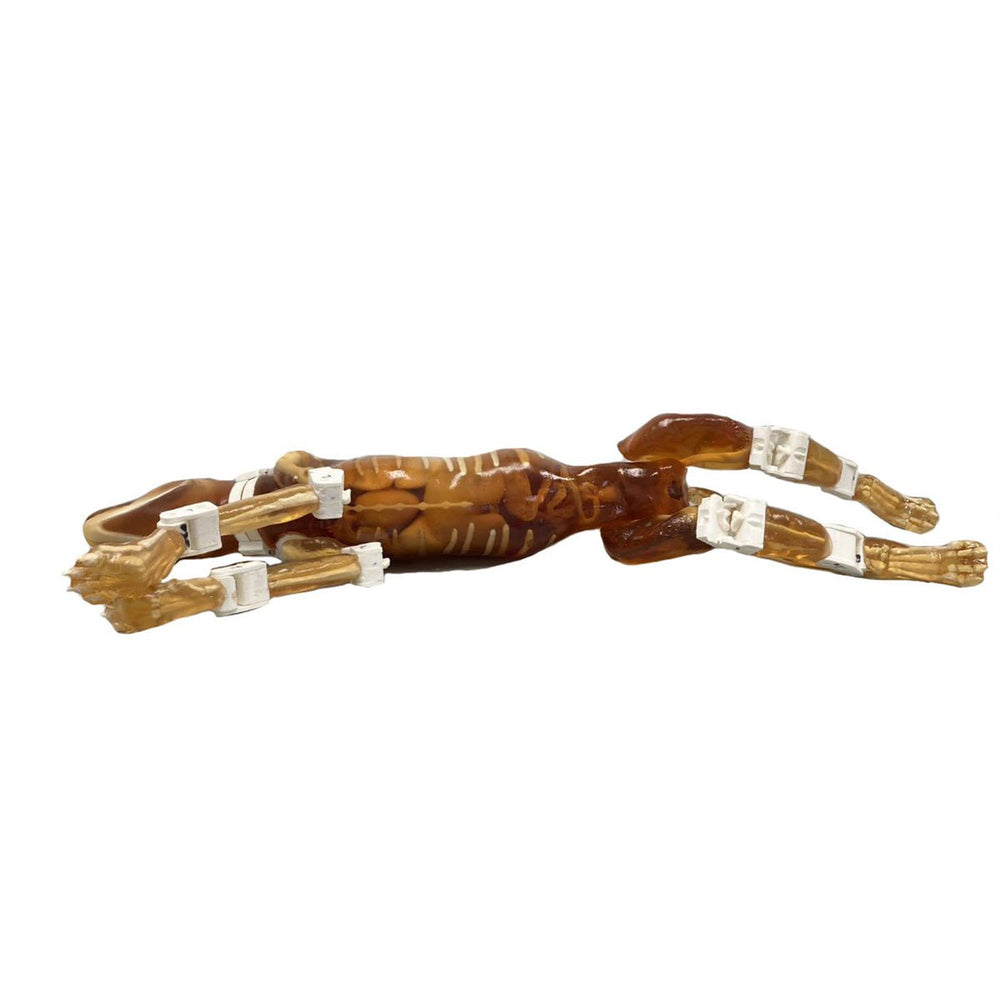

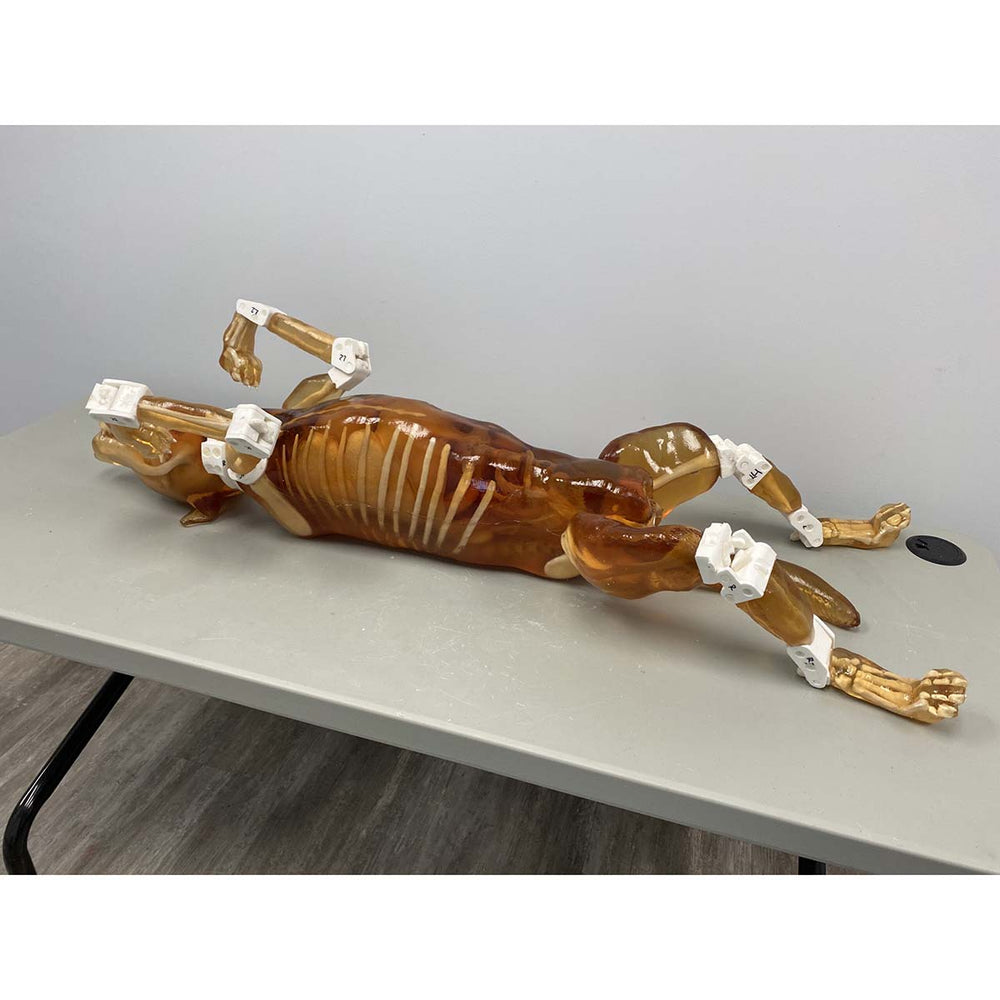

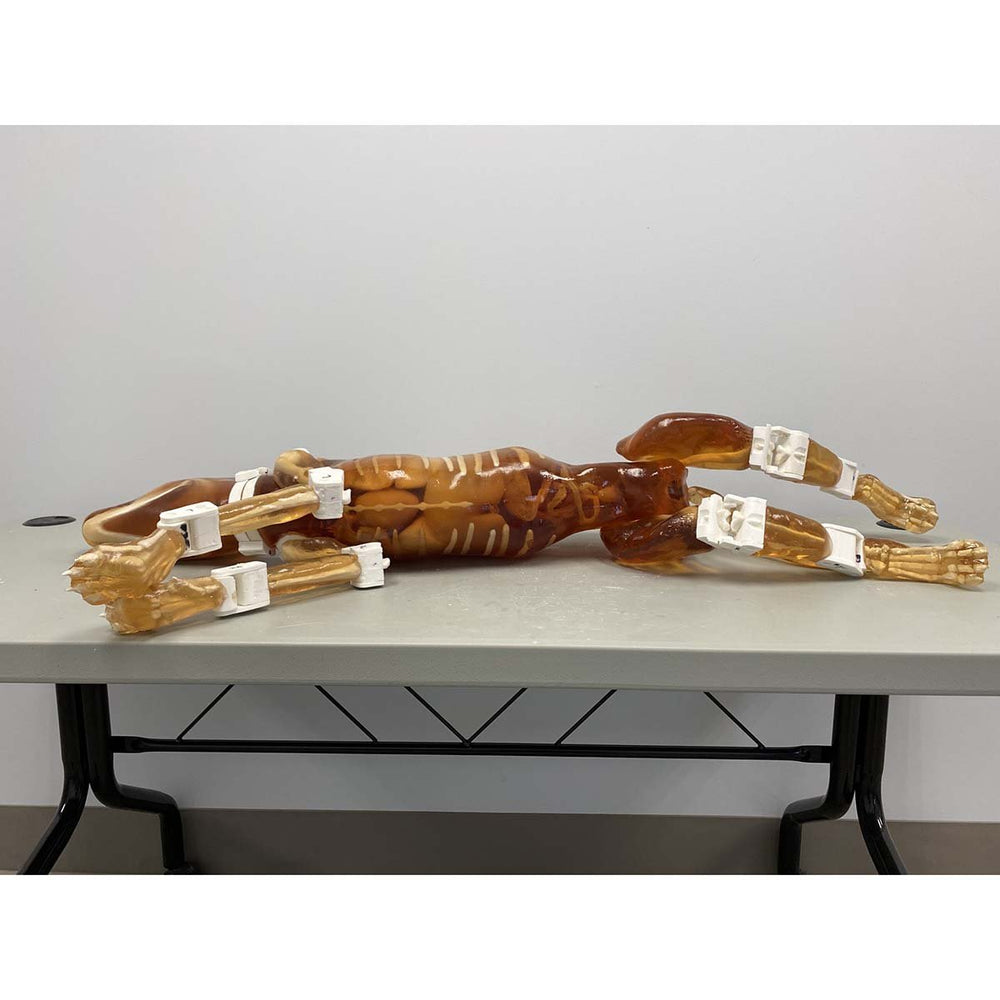

Female Dog Phantom for X-Ray CT and MRI Imaging

The dog phantom is a versatile training simulator for sonographers, radiographers, and veterinary professionals. Compatible with X-Ray/CT and MRI imaging, it offers improved anatomical structures and removable body parts, allowing for practice in different positioning techniques. An ideal teaching tool with independence from external hardware/software.

The newly designed detachable dog phantom is a training simulator independent of external hardware/software. The phantom is compatible with X-Ray/CT, and MRI imaging. It has all the right features to be an ideal teaching tool for sonographers, radiographers, veterinary residents, and other vet professionals.

Unlike its predecessor, the new detachable dog phantom has improved anatomical structures and removable body parts(head, limbs, torso, and tail). This improvement is an added advantage as it helps perform various positioning techniques under the X-Ray/CT, and MRI imaging modalities.

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values which makes this product to be best fit for any T2-weighted MRI imaging methods. Very good results can be also achieved with Proton Density imaging methods. The phantom can be still imaged with T1-weighted methods but the T1 values are less realistic and they are within the range of about 100 ms.

Your order will include:

Dog Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard carry case (Optional)

Materials Used:

Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

Phantom:

Height: 46 x 26 x 17 in (approx.)
Weight: 40 lbs (approx.)

Shipment without Hard Carry Case:

Height: 36 x 24 x 12 in (approx.)
Weight: 90 lbs (approx.)

Shipment with Hard Carry Case:

Height: 47 x 26 x 18 in (approx.)
Weight: 144 lbs (approx.)

The phantom is divided into the following parts:

Adult Dog Head – 1 Unit

View 1 (DH-A01)

View 2 (DH-A01)

Anatomically correct realistic skull phantom with the jaw bone
Realistic brain tissue

Adult Dog Front Arms – 2 Units

Left Front Leg (DF-L01)

Right Front Leg (DF-R01)

Arm (Humerus)
Elbow joints
Forearm (Radius, Ulna)
Paw (wrist with fingers)
Acoustically correct skin-mimicking material surrounding the leg

Adult Dog Rear Legs – 2 Units

(DR-L01) Left Rear Leg

(DR-R01) Right Rear Leg

Thigh (Femur)
Knee joints
Leg (Tibia, Fibula)
Paw (Finger bones)
Acoustically correct skin-mimicking material surrounding the leg

Adult Dog TORSO – 1 Unit

View 1 (DT-A01)

View 2 (DT-A01)

Bones included:
- - Complete Spine
- - Complete Ribcage
- - Shoulder (Scapula bones)
- - Pelvis
Thoracic organs included:
- - Anatomically correct Heart
- - Realistic blood vessel structure connected with the heart
- - Lungs
- - Diaphragm
Major abdominal organs included:
- - Stomach
- - Liver and gallbladder
- - Kidneys
- - Spleen
- - Pancreas
- - Fine arteries for kidneys
- - Bladder
- - Ureters and Uterine
- - Large & small intestines

Adult Dog Tail – 1 Unit

View 1 (DT-A01)

View 2 (DT-A01)

Anatomically correct realistic tail bones
Realistic tissue mimicking material

Assembly

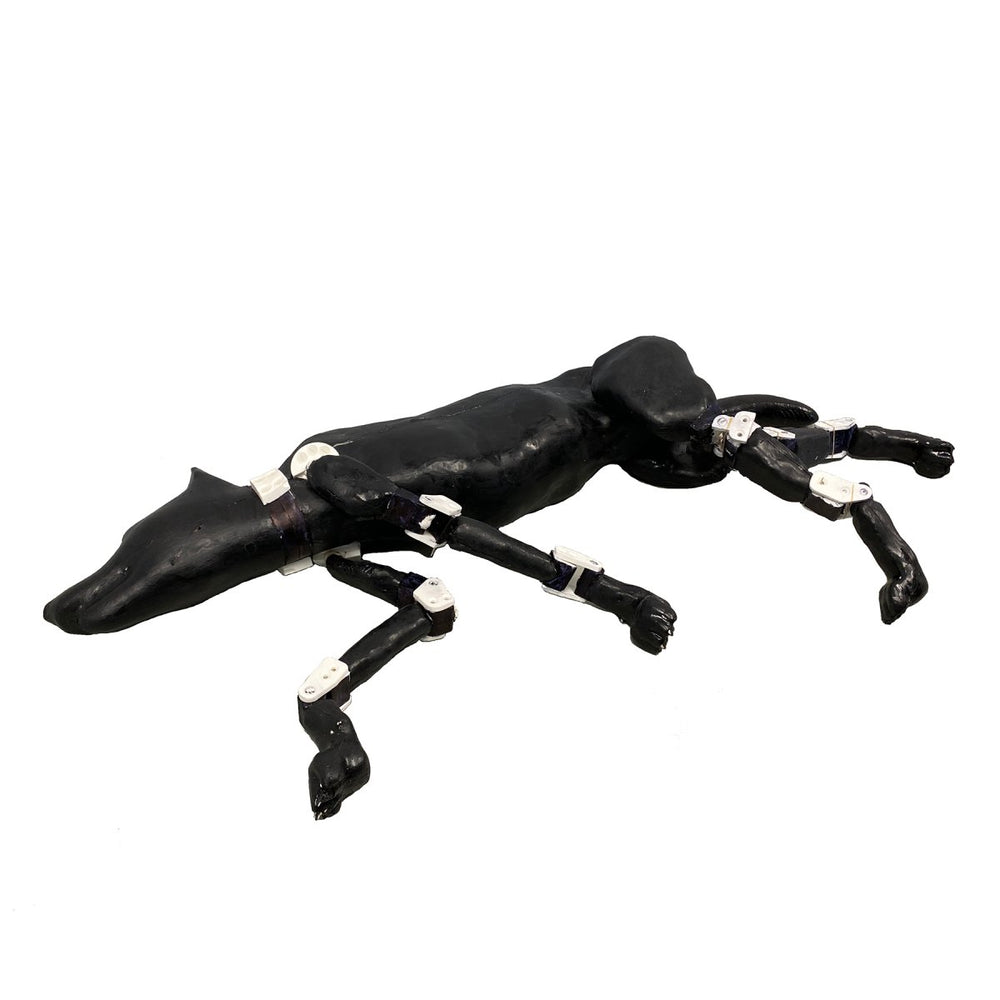

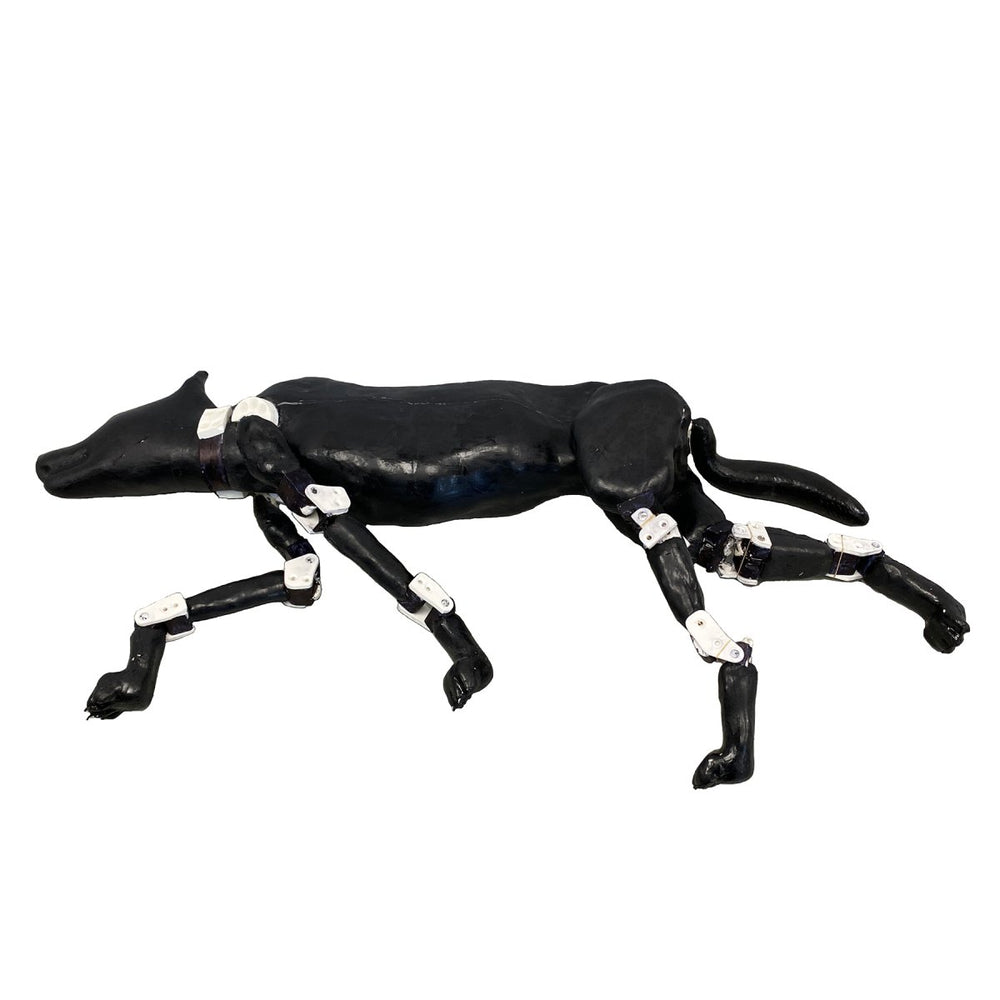

Before Assembly (in multiple parts)

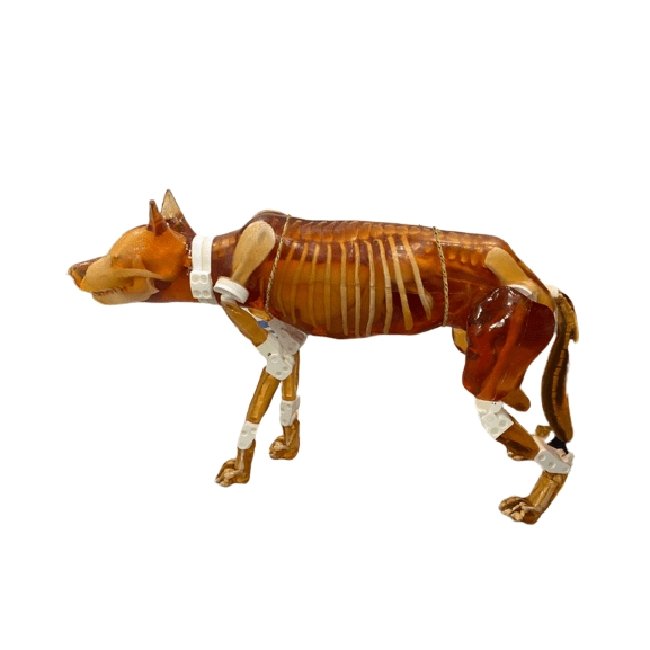

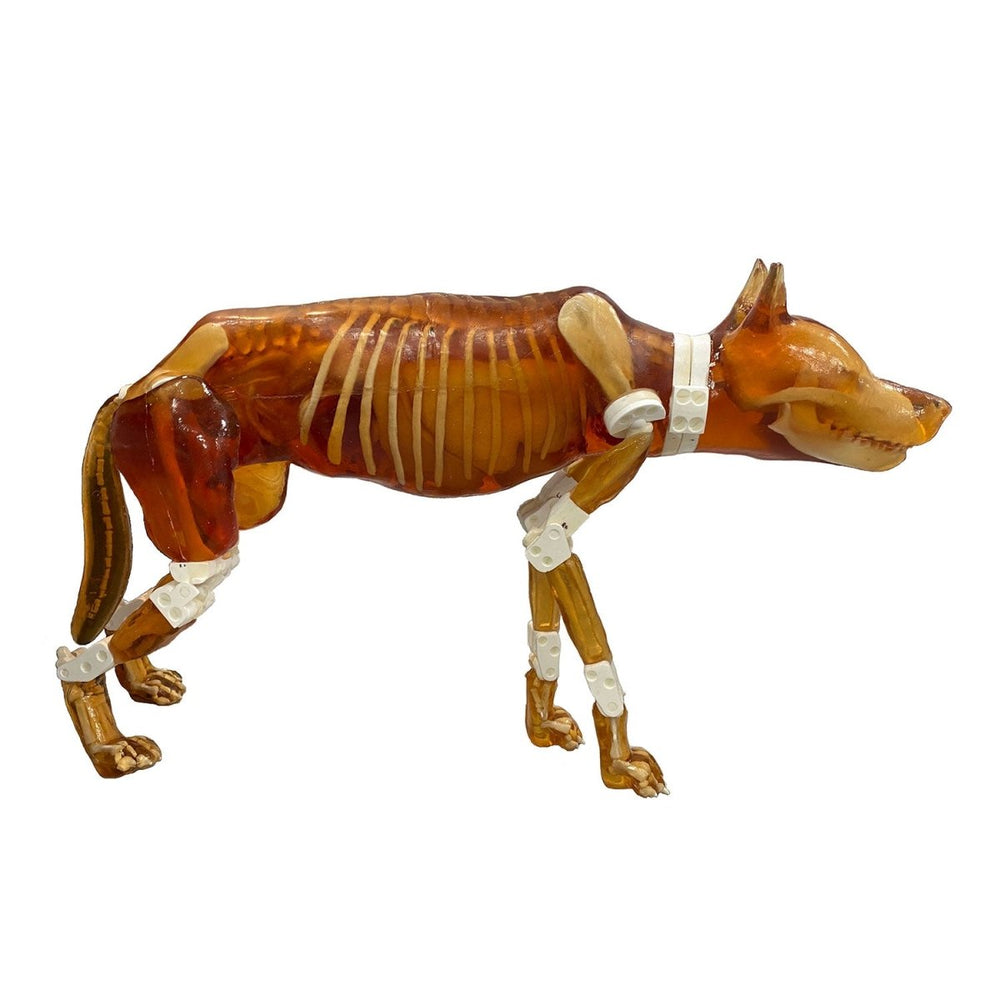

After Assembly (in single part)

3D Design:

Perspective View

Left View

Right View

Top View

X-Ray Scans

*/The above X-Ray images were obtained from our Female Dog Phantom for X-Ray and Ultrasound Imaging (TPS-DG-A01) model. An IMAGE VUE CR 20 X-RAY Scanner was used to scan the phantom. This phantom was scanned and validated by Elyse Morassutti, a registered Veterinary technician from Windsor-Essex County Humane Society/*

Download a PDF with product details

Female Dog Phantom for X-Ray CT and MRI Imaging

Phantom:

Height: 46 x 26 x 17 in (approx.)
Weight: 40 lbs (approx.)

Shipment without Hard Carry Case:

Height: 36 x 24 x 12 in (approx.)
Weight: 90 lbs (approx.)

Shipment with Hard Carry Case:

Height: 47 x 26 x 18 in (approx.)
Weight: 144 lbs (approx.)

Technical Properties:

Type of Tissue	Sound Velocity[m/s]	Density [g/cm³]	Attenuation Measured at 2.25 MHz [dB/cm]	Hardness [Shore OO]	T2 [ms]	Speckles
Organs with Speckles (liver, kidneys, etc.)	1400 ± 10	0.99	1.0 ± 0.2	20	70	VARIABLE
Organs without Speckles (stomach, intestines, etc.)	1400 ± 10	0.99	1.0 ± 0.2	20	70	NO
Body Tissue	1400 ± 10	1.00	1.2 ± 0.2	30	65	NO/LOW
Cortical Bone	3000 ± 30	2.31	6.4 ± 0.3	N/A	N/A	N/A
Trabecular Bone	2800 ± 50	2.03	21 ± 2	N/A	N/A	N/A
Brain Matter	1400 ± 10	0.99	1.0 ± 0.2	20	70	YES

Thermal Properties of our Bone-Mimicking Material

Thermal Conductivity	Volumetric Specific Heat Capacity	Thermal Diffusivity	Thermal Resistivity	Specific Heat	Speed of Sound
0.776 W/ m K	1.040 MJ/ m^3 K	0.746 mm^2/ s	1.289 m K/ W	0.978 J/ g Deg Celsius

HU Values of the Tissue-Mimicking Materials

S.No.	Tissue Type	HU Value (Average)
1	Body Tissue	-25
2	Brain Tissue	-25
3	Trabecular Bone	800
4	Cortical Bone	1300
5	Aorta	40
6	Vena Cava	40
7	Trachea	80 (Tissue Part),-1000 (Air Filled Part)
8	Pancreas	110
9	Spleen	110
10	Kidneys	110
11	Bladder	35
12	Rectum Wall	100
13	Sigmoid Colon Wall	100
14	Heart	40
15	Liver	110
16	Gallbladder	35
