Foot Phantom Metatarsal Fractures

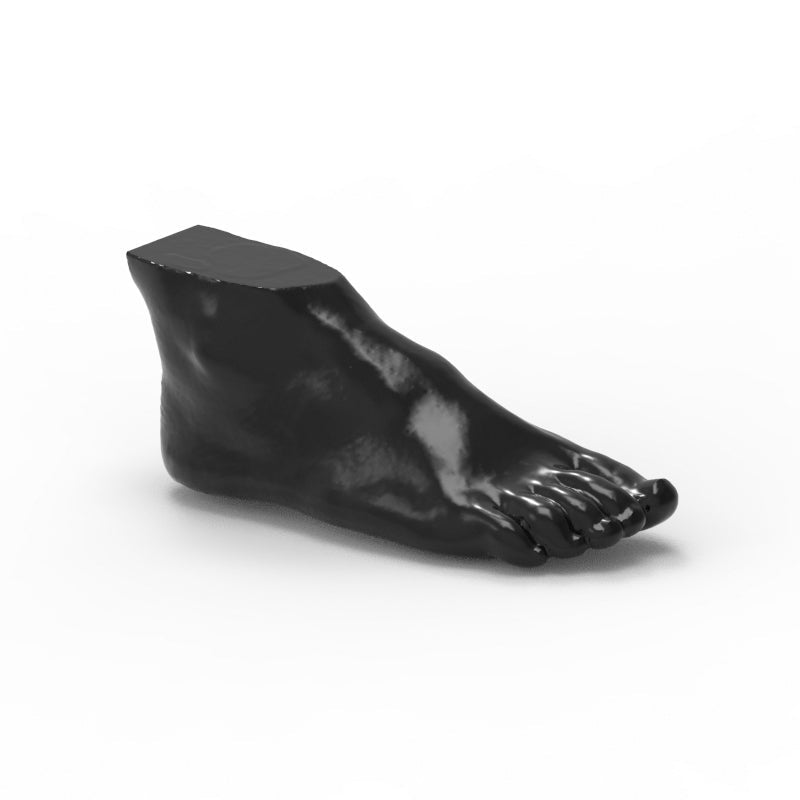

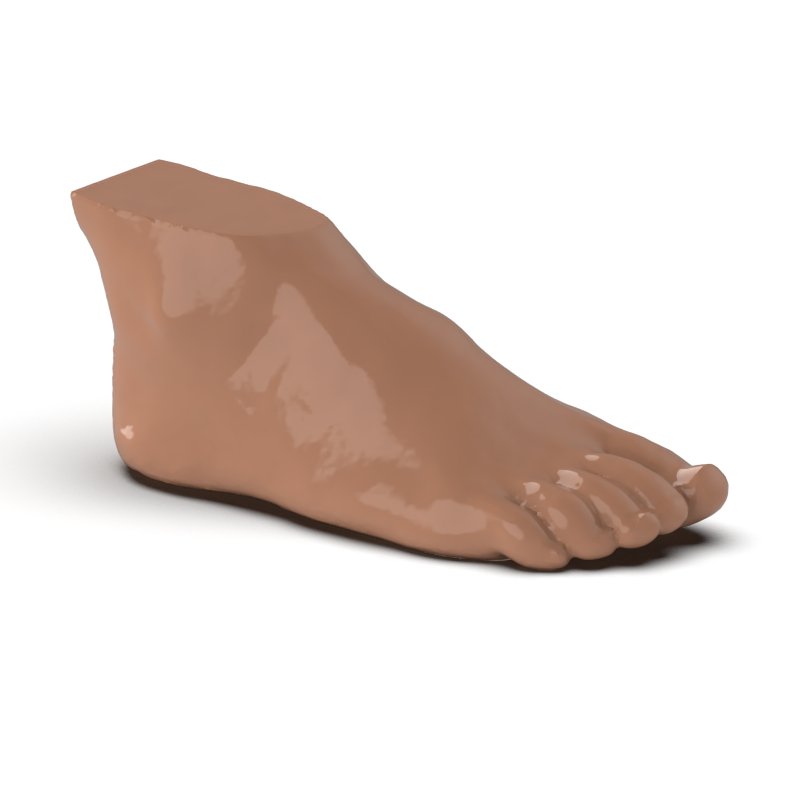

This phantom simulates a right foot with three non-displaced metatarsal fractures of metatarsale II, III and IV. It covers the entire foot including toes, metatarsus, tarsus and the distal parts of the tibia and fibula.

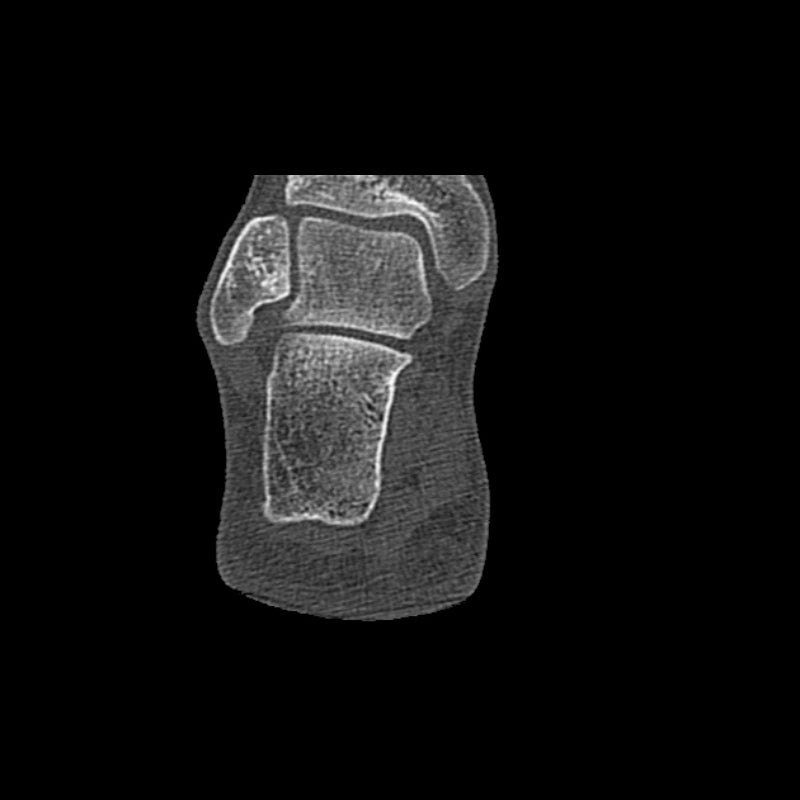

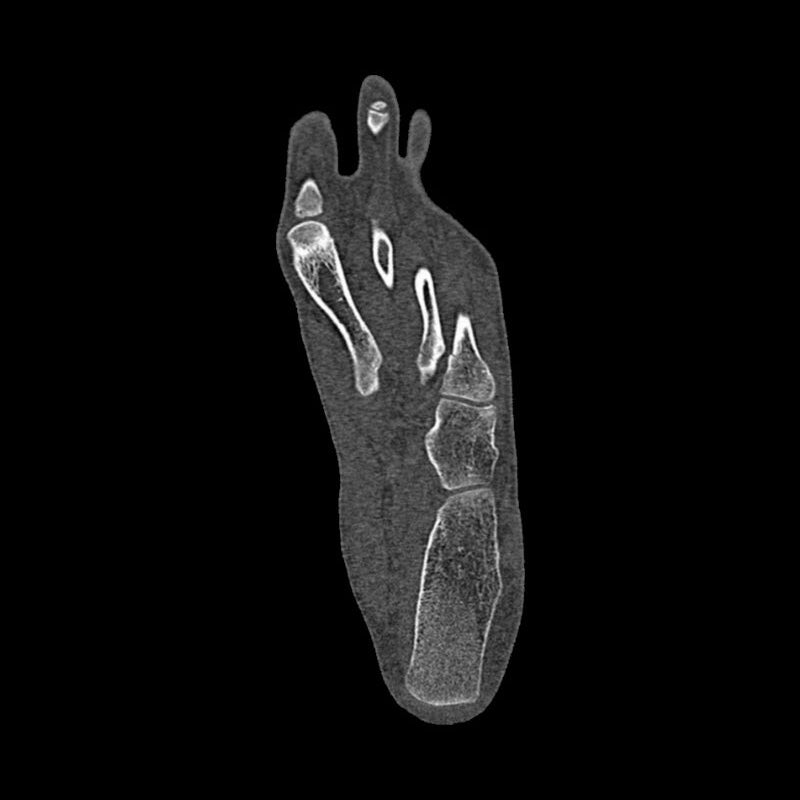

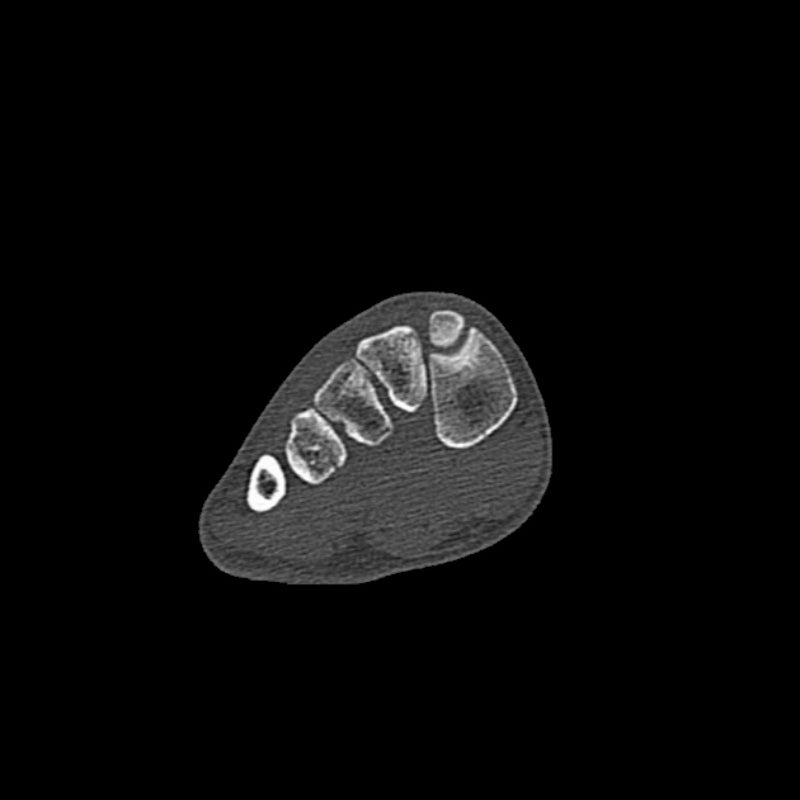

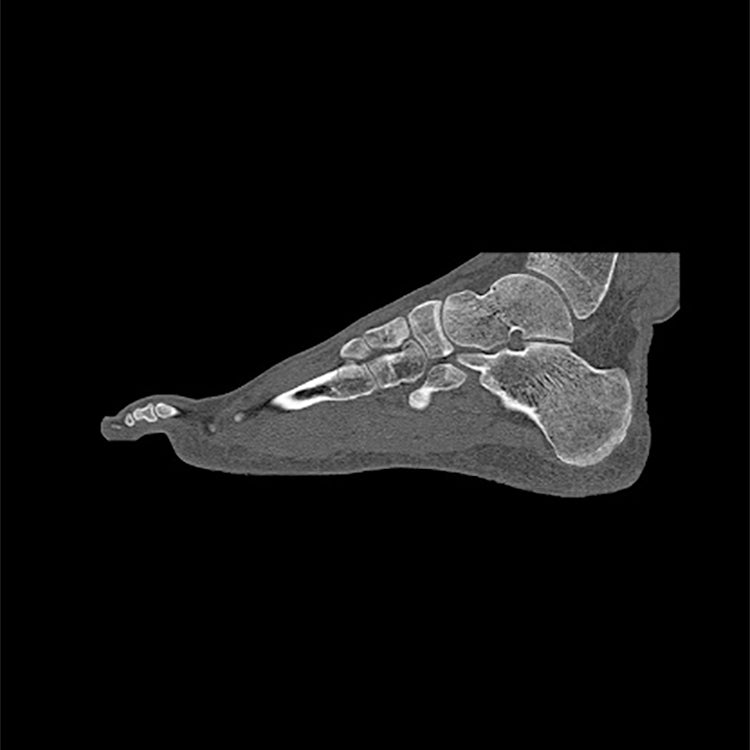

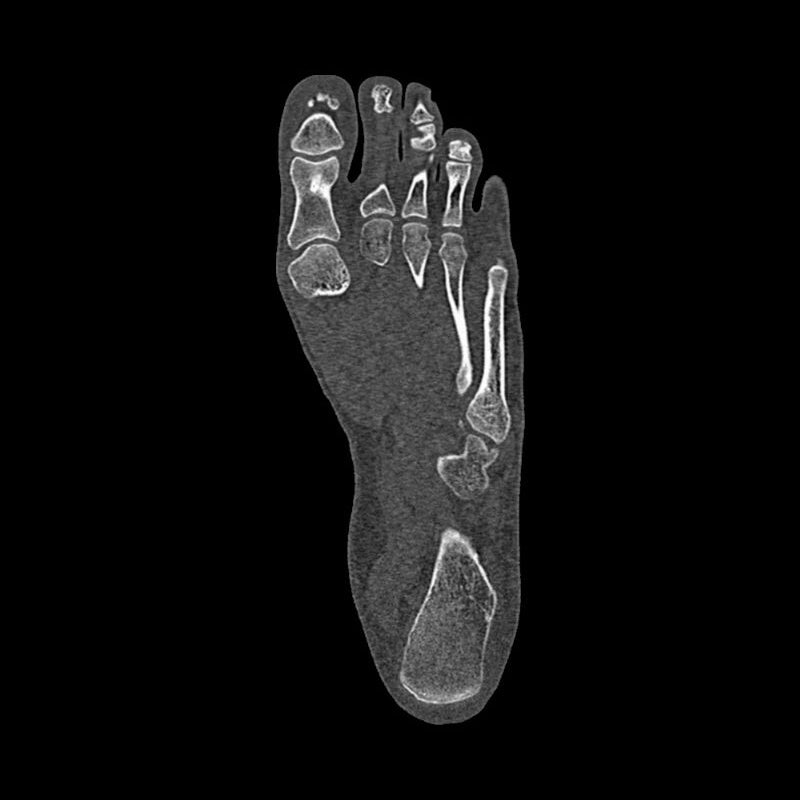

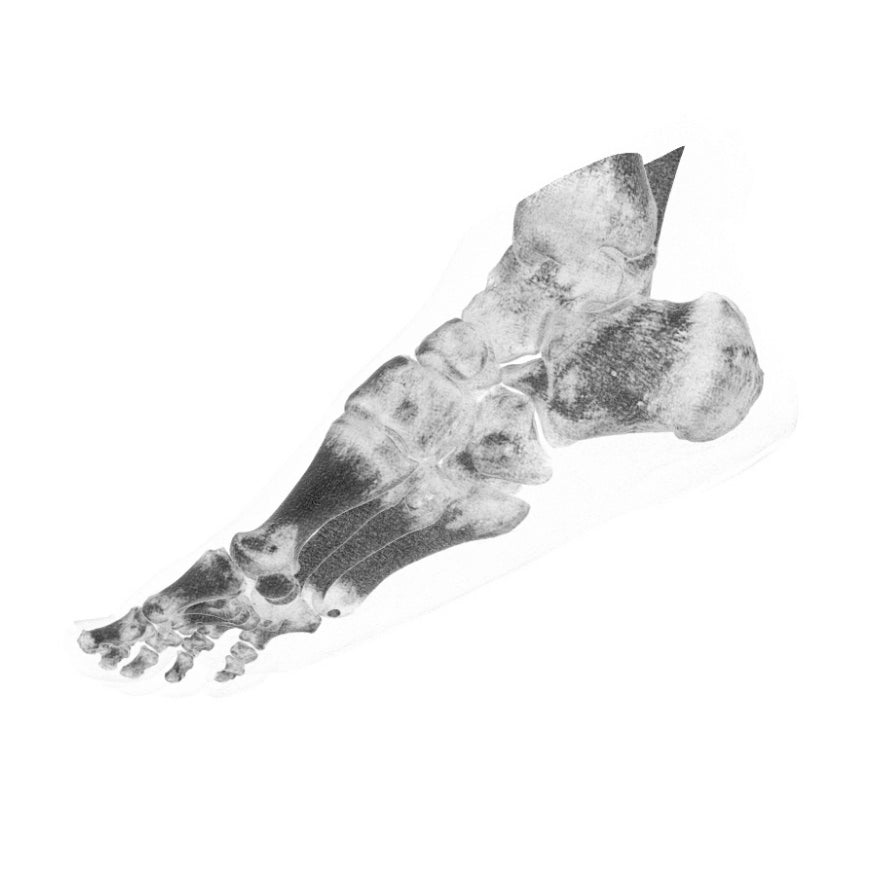

The phantom can be used in radiography and CT (including CBCT) and radiography to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications. It is also suited for training purposes.
The phantom provides a detailed and realistic simulation of soft and bone tissue.

    SPECIFICATIONS:
  • Size: Approx. 95 x 245 x 100 mm
  • Weight: Approx. 780 g
  • Base material: Cellulose-polymer composite
  • Optimal tube voltage: 120 kVp – adaptable upon request –
DIAGNOSTIC FEATURES:

Realistic simulation of bones and soft tissue.

  • Non-displaced fractures of the 2nd, 3rd and 4th metatarsal.
      • General indications
    • The phantom is made of a cellulose-polymer composite material with properties similar to hardwood. If handled carefully, it will last a long time.
    • The phantom is coated with a protective layer. If the protective layer is undamaged, the phantom can be cleaned using a damp cloth (water or mild detergent)
    • Protect from direct sunlight.
    • Maintain a storage temperature of 10 °C to 30 °C. If the phantom is exposed to temperatures below -10 °C or above 45 °C, it can be severely damaged.
    • The phantom is not equipped for dose measurements with dosimeters and it is not suited for tissue characterization by dualenergy contrast-enhanced mammography.
    • The phantom is not certified as medical device.
    • Air voids are filled with cellulose-polymer composite of approx. -160 HU.
    Download:
    Brochure

    Made by PhantomX and sold by GTSimulators.

    GTSimulators by Global Technologies
    PhantomX Authorized Dealer

    Download a PDF with product details
    Product Dimensions:
    • Size:Approx. 95 x 245 x 100 mm
    • Weight:Approx. 780 g
