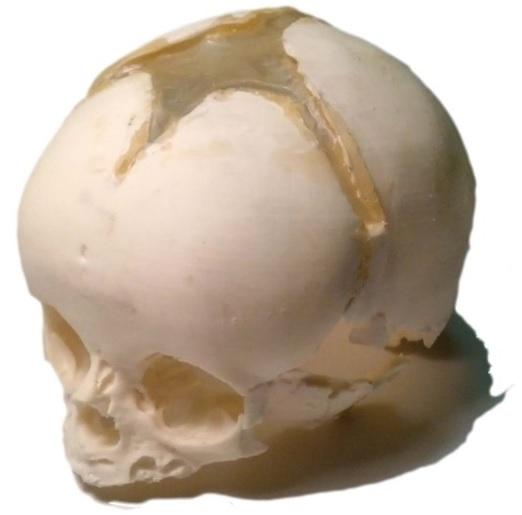

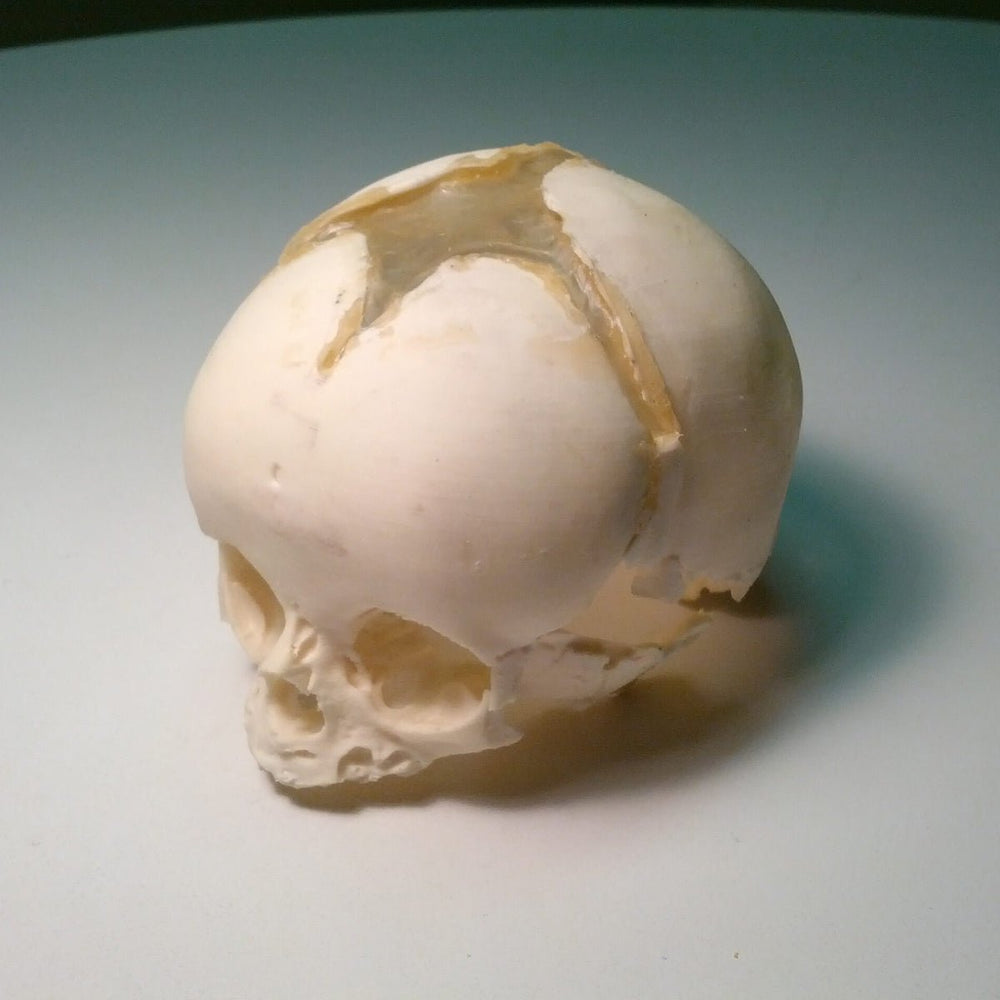

Newborn Skull Phantom for X-Ray CT, Ultrasound and MRI

The Newborn Skull is a multipurpose phantom medical imaging research & treatment planning of non-invasive HIFU brain surgeries. True Phantom Solutions are pioneers in developing these phantoms and hold strength in customizing them to suit the needs of researchers and medical practitioners.

The design of this phantom is based on an average newborn skull, and it is made out of realistic patented epoxy-based bone material suitable for Ultrasound, MRI, and X-Ray/CT applications (any other part of the skull can be fabricated based on the customer order).

Anatomy
  • Based on an Average Newborn Human Skull
  • Realistic Bone-Mimicking Material
Included In Order:
  • Newborn Skull Phantom
  • User Manual/Assembly Instructions
  • 2-Year Warranty & Unlimited Customer Service
  • Hard Carry Case
Download:
manual
Dimensions and Weight: Phantom:
  • Size: 4 x 6 x 5 in (approx.)
  • Weight: 2 Lbs (approx.)
Shippment:
  • Size: 12 x 10 x 10 in (approx.)
  • Weight: 6 Lbs (approx.)
Materials Used:
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer

Design:

Front view

Lateral view

Perspective view

Top view

CT Scans:

Ultrasound Through Real Human Skull vs Phantom Skull:

Technical Properties:

Type of Tissue Sound Velocity [m/s] Density [g/cm³] Hardness [Shore 00] T2 [ms] Speckles Attenuation Measured at 2.25 MHz [dB/cm]
Cortical Bone 3000 ± 30 2.31 N/A N/A N/A 6.4 ± 0.3

Thermal Properties of Bone-Mimicking Material

Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s

HU Values of the Tissue-Mimicking Materials

S.No. Tissue Type HU Value (average)
1 Cortical Bone 1300
